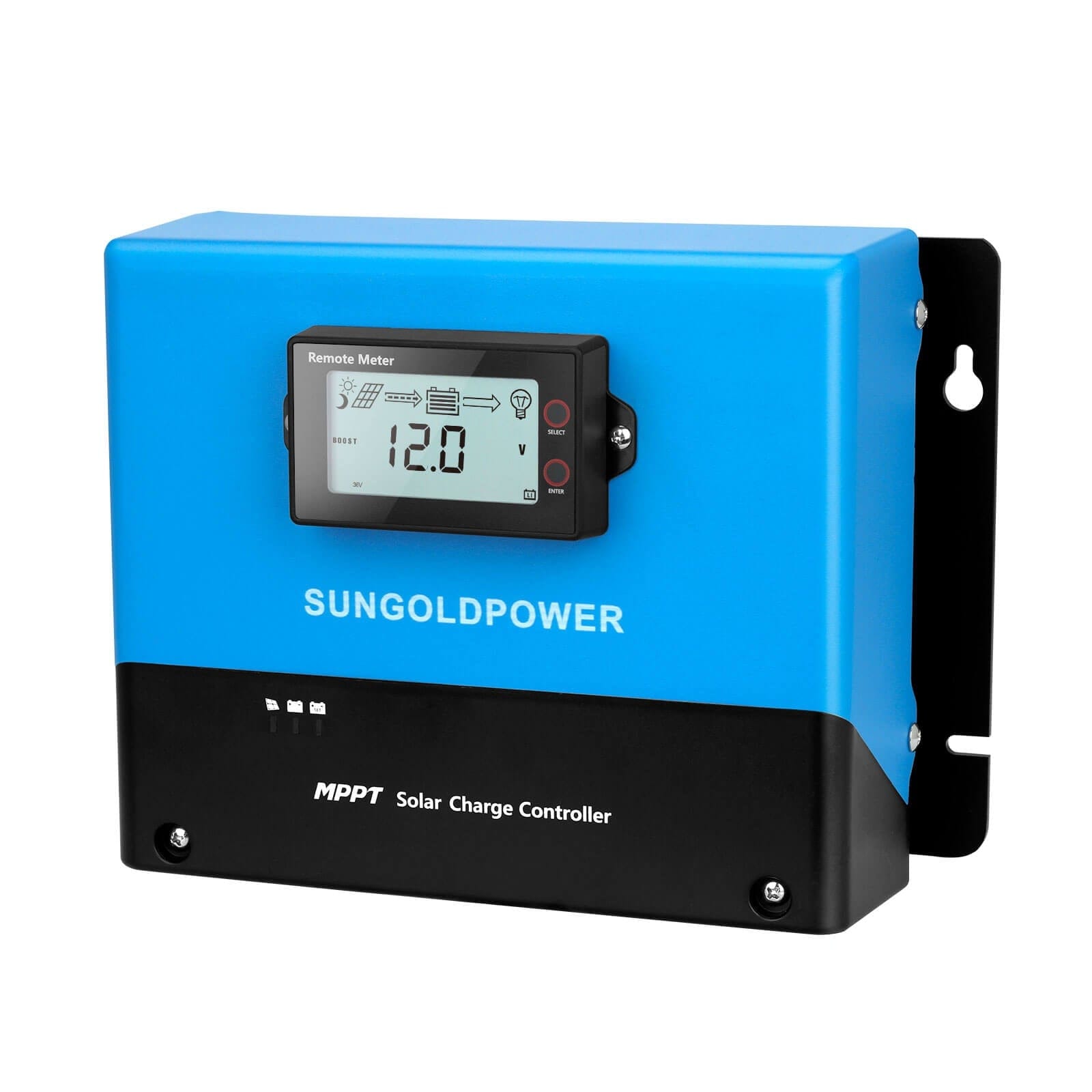

Sungold Power 100 Amp MPPT Solar Charge Controller

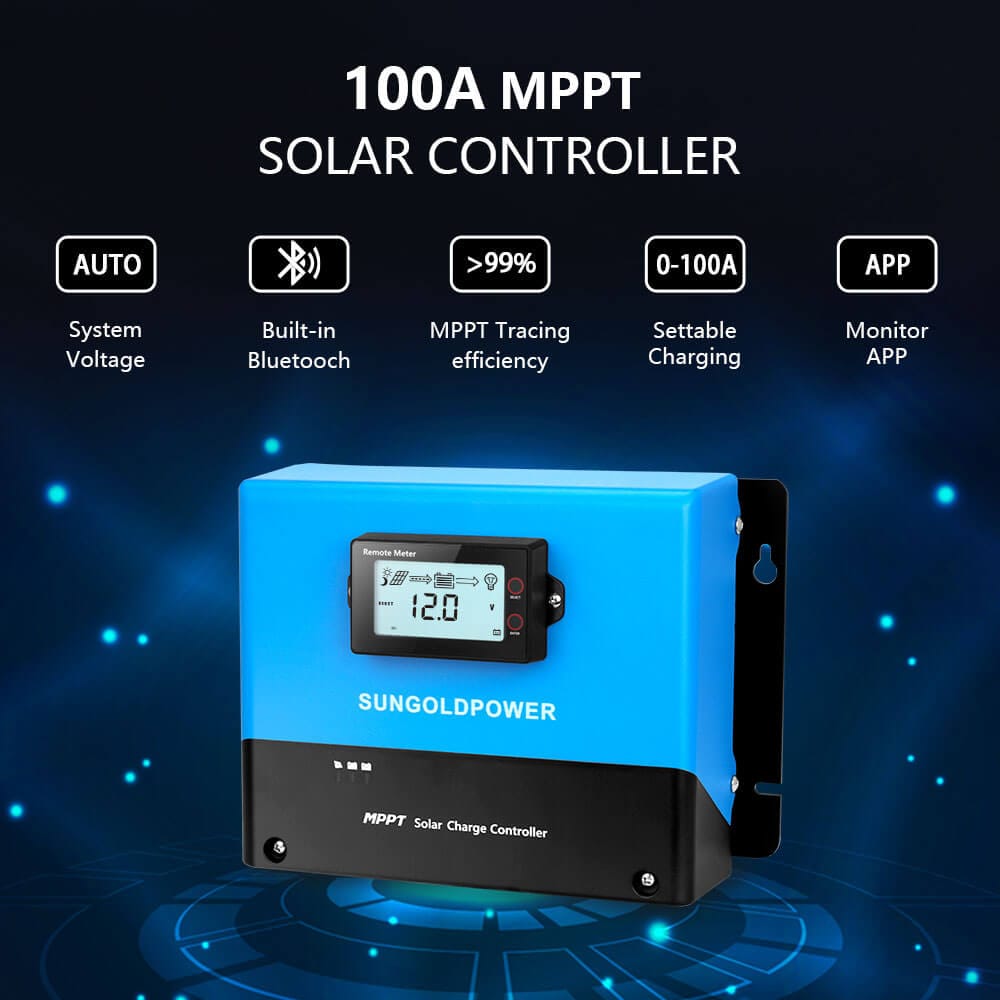

Sungold Power 100 Amp MPPT Solar Charge Controller Overview

The SunGoldPower 100A MPPT Charge Controller is the most efficient type of charge controller. With up to 99.9% tracking efficiency, it ensures maximum power point solar charging that gets more energy to your battery bank. Auto-detecting 12V/24V/36V/48V different batteries system, Also you can view system performance in real-time with bluetooth!

Sungold Power 100 Amp MPPT Solar Charge Controller Features

• Automatically detects 12V, 24V, 36V and 48V DC system voltages
• MPPT Tracking efficiency can be as much as 99.9%.

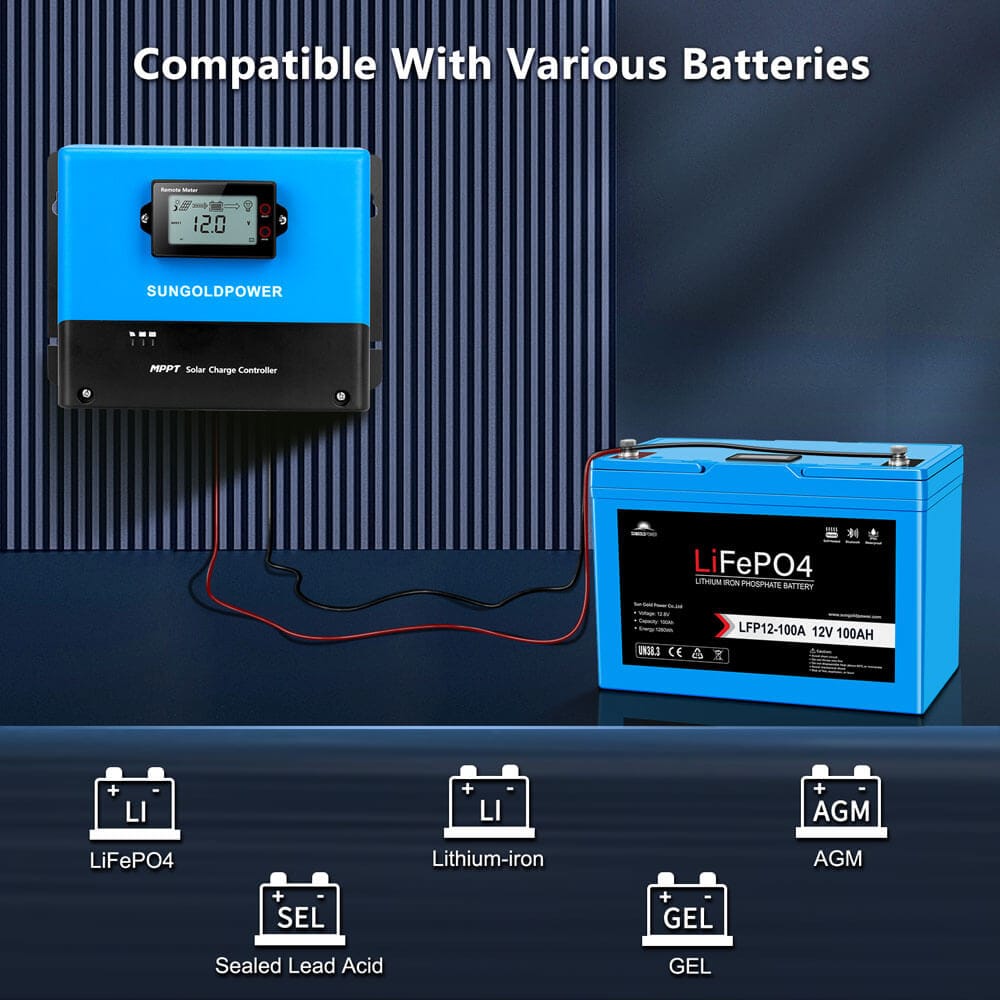

• Support battery types: lithium batteries, sealed batteries, AGM Battery and self-definition.

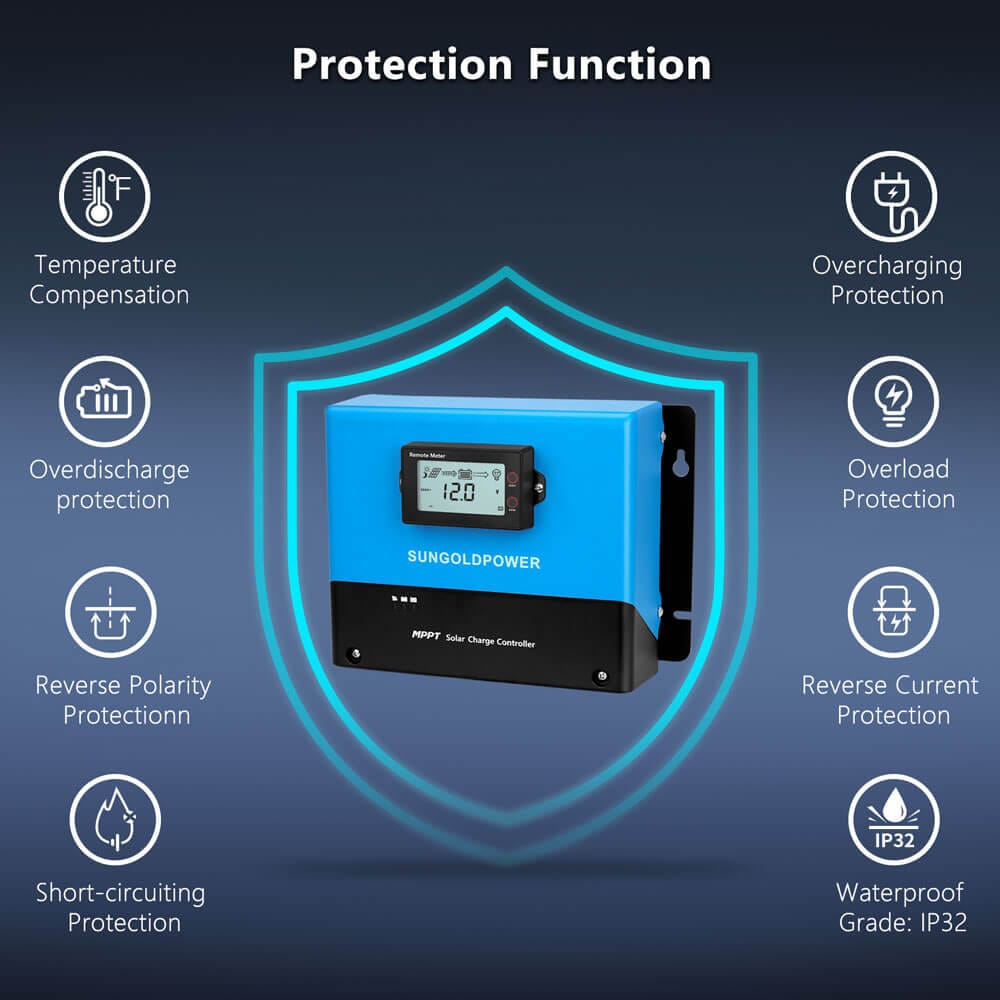

• With built-in over temperature protection and current-limited charging
• Supports parallel function and breaks through the power limit of single unit.

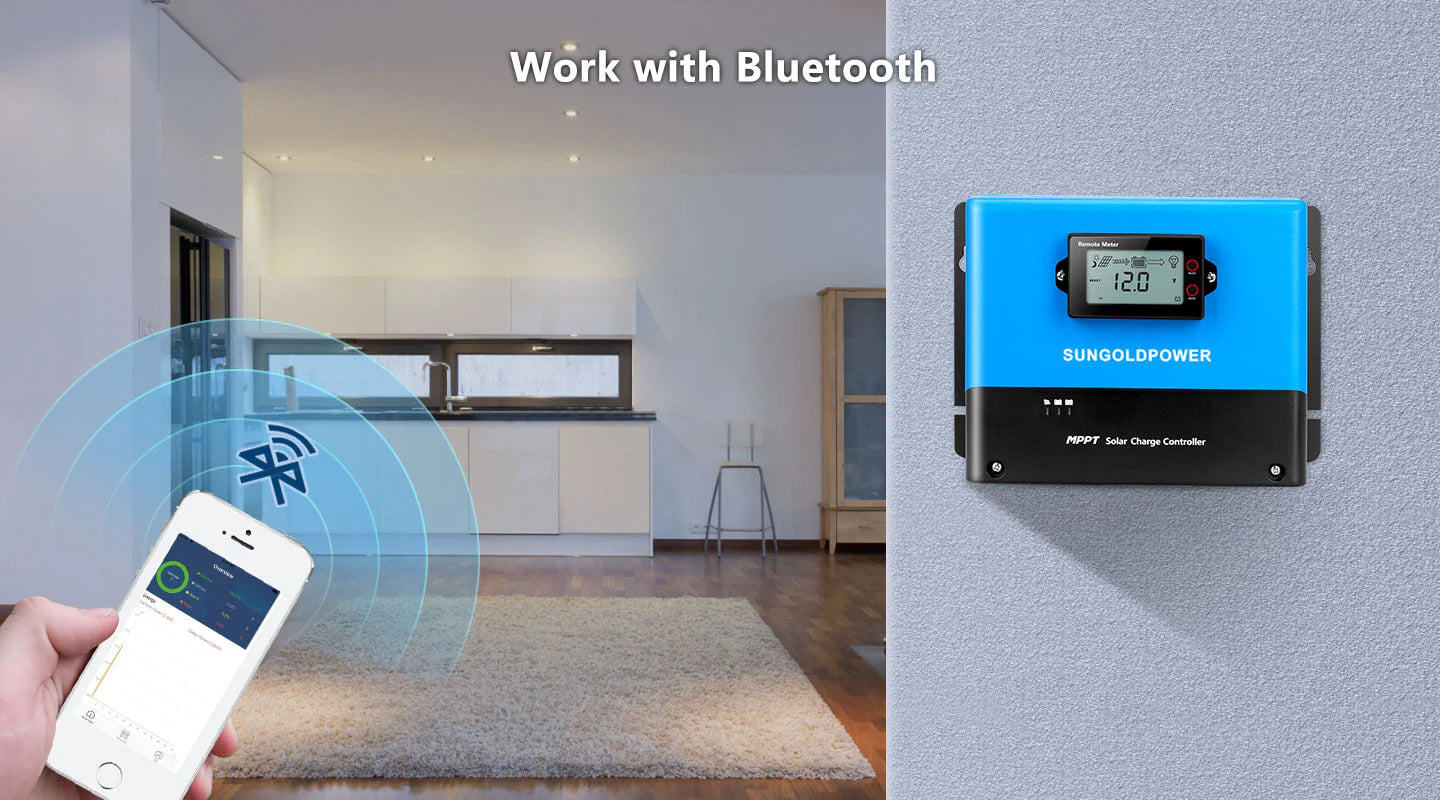

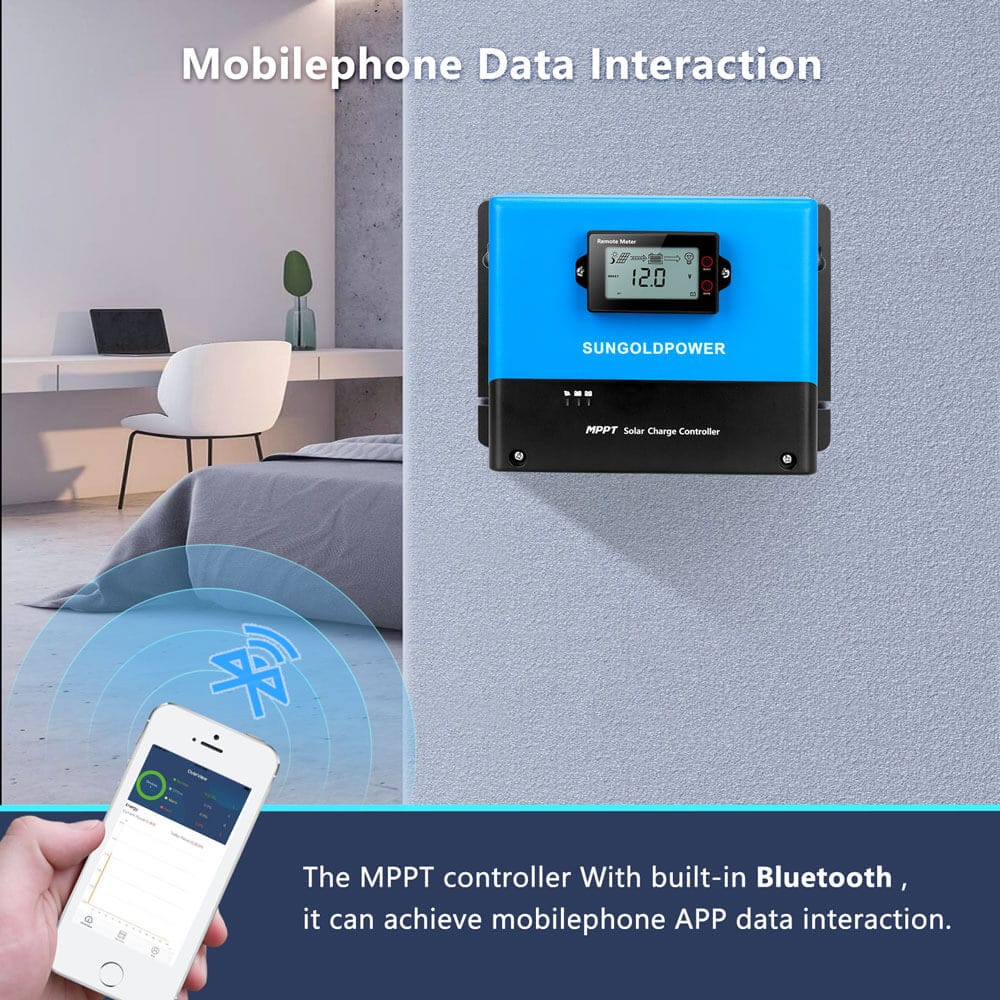

• With built-in Bluetooth module, it can achieve mobile phone APP data interaction.
• LCD screen indicators for displaying system operation information, customizable parameters, and error codes.

Sungold Power 100 Amp MPPT Solar Charge Controller Specifications

• MPPT Model: SGC4825100A
• System Voltage: 12V/24V/36V/48V
• Maximum PV open-circuitvoltage: 250V
• Max.PV Input Power: 1320W/12V;2640W/24V, 3960W/36V;5280W/48V
• Self-Consumption: 0.54W
• Battery voltage: 9V~64V
• Operation temperature: -35°C ~ +65°C
• Bluetooth: Built-in bluetooth 4.0 BLE module
• Rated Charge Current: 100A
• MPPT tracing efficiency: >99%
• Communication way: TTL/Isolated RS485
• Temperature compensation: -3mV/°C/2V(default)
• Protection grade: IP32
• Weight: 12.5 lb

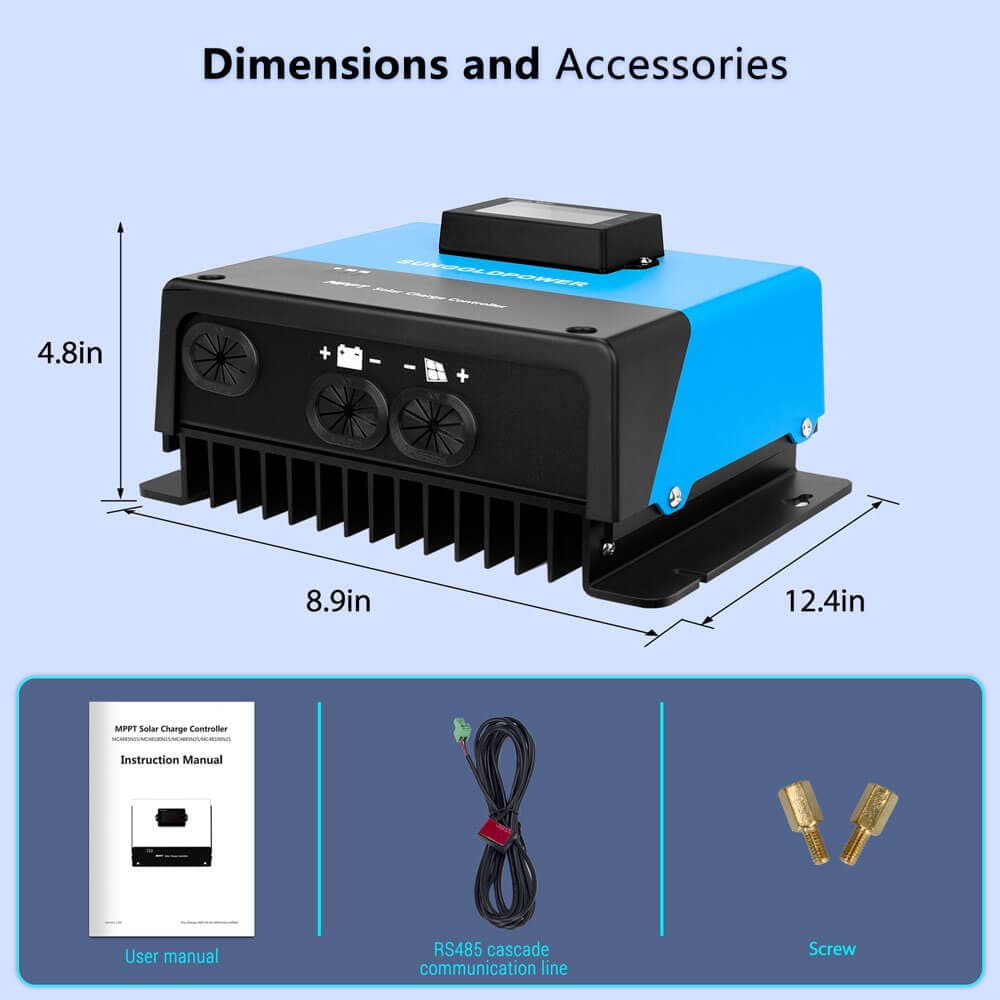

• Product size: 12.4 x 8.9 x 4.8 inch

User Manual

• Sungold Power 100 Amp MPPT Solar Charge Controller User Manual
