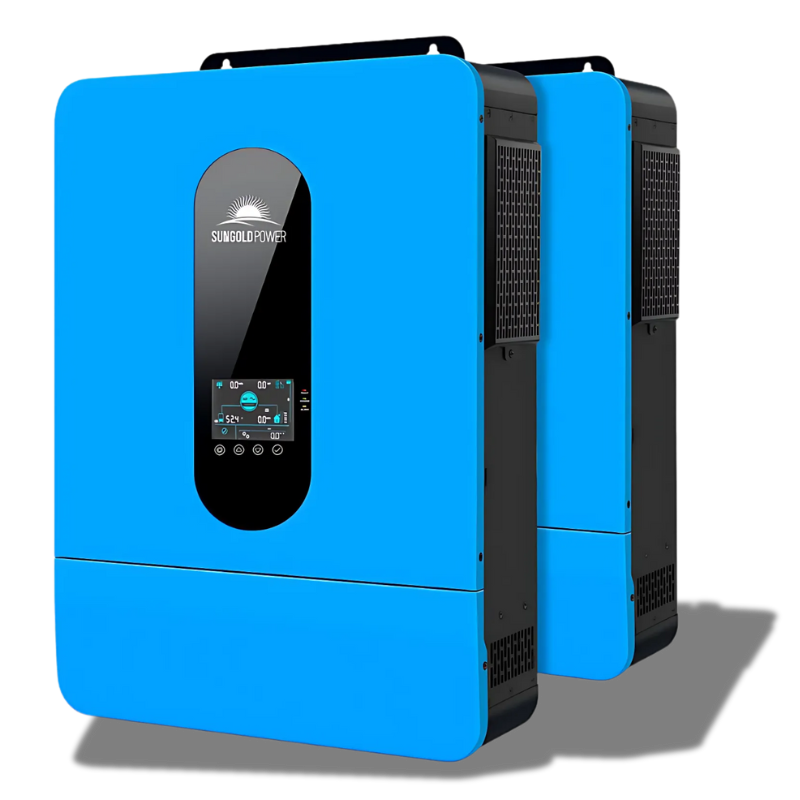

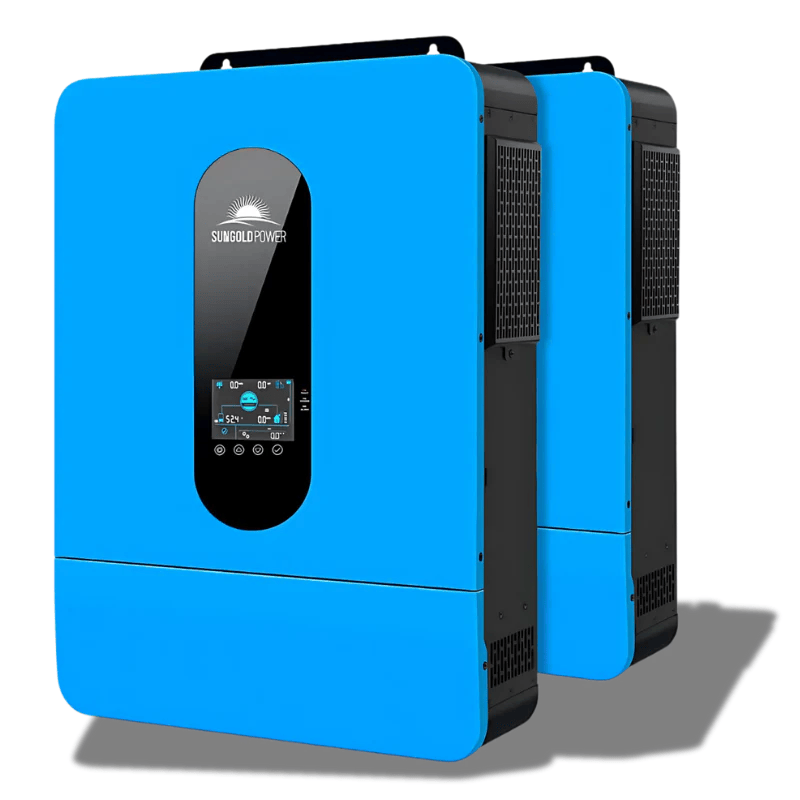

Sungold Power | 13,000W 48V Solar Charge Inverter | Split Phase + WiFi Monitor (2 Units Parallel) Hybrid Inverters SunGoldPower 2*SPH6548P

Sungold Power | 13,000W 48V Solar Charge Inverter | Split Phase + WiFi Monitor (2 Units Parallel)

SunGoldPower
SKU SPH6548P*2
Save $680.00
$3,160.00
$2,480.00

⭐ Authorized SunGoldPower Dealer

⭐ Fast & Free Shipping + No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Sungold Power | 13,000W 48V Solar Charge Inverter | Split Phase + WiFi Monitor (2 Units Parallel)

The Sungold Power 13,000W 48V Solar Charge Inverter is a high-capacity, scalable off-grid and backup power solution, perfect for homes, businesses, RVs, and industrial applications. With two 6.5kW inverters in parallel, this system delivers powerful 13,000W output, ensuring seamless operation of multiple appliances and critical loads.

Equipped with dual MPPT solar charge controllers, pure sine wave output, and advanced battery management, this inverter offers exceptional efficiency and reliability. Its WiFi monitoring allows remote access and control, making it a smart choice for modern energy systems.

Sungold Power 13,000W 48V Solar Charge Inverter Features

High-Performance Power Output

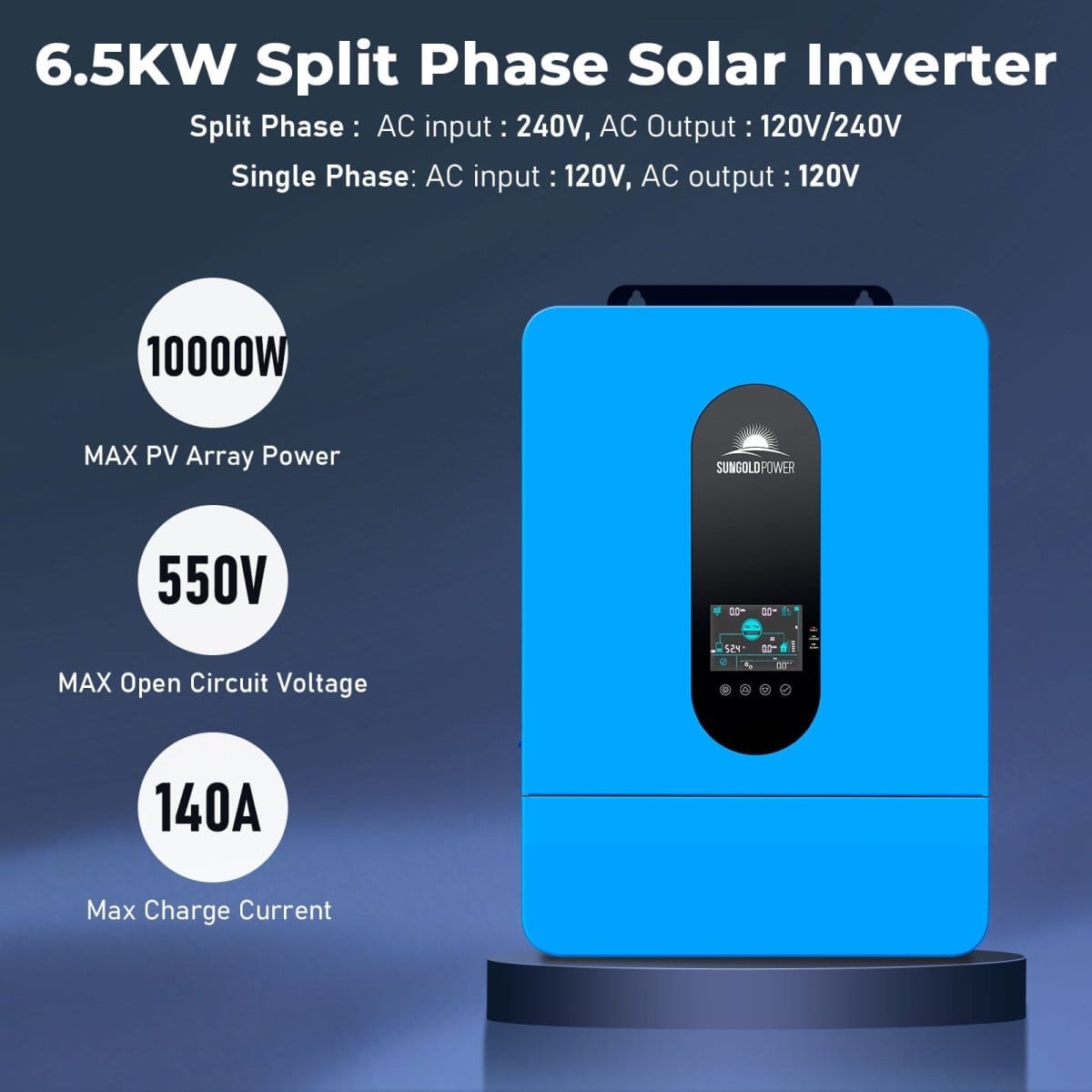

  • 13,000W Pure Sine Wave Output (6.5kW x 2 units in parallel) ensures stable and efficient power delivery.
  • Supports split-phase 120V/240V and three-phase 208V configurations for versatile applications.
  • Max PV input: 10,000W, ensuring optimal solar utilization.

Built-in Dual MPPT Solar Charge Controllers

  • Max PV input voltage: 500V DC, optimizing solar power conversion.
  • High 99.6% efficiency MPPT algorithm for maximum solar energy utilization.

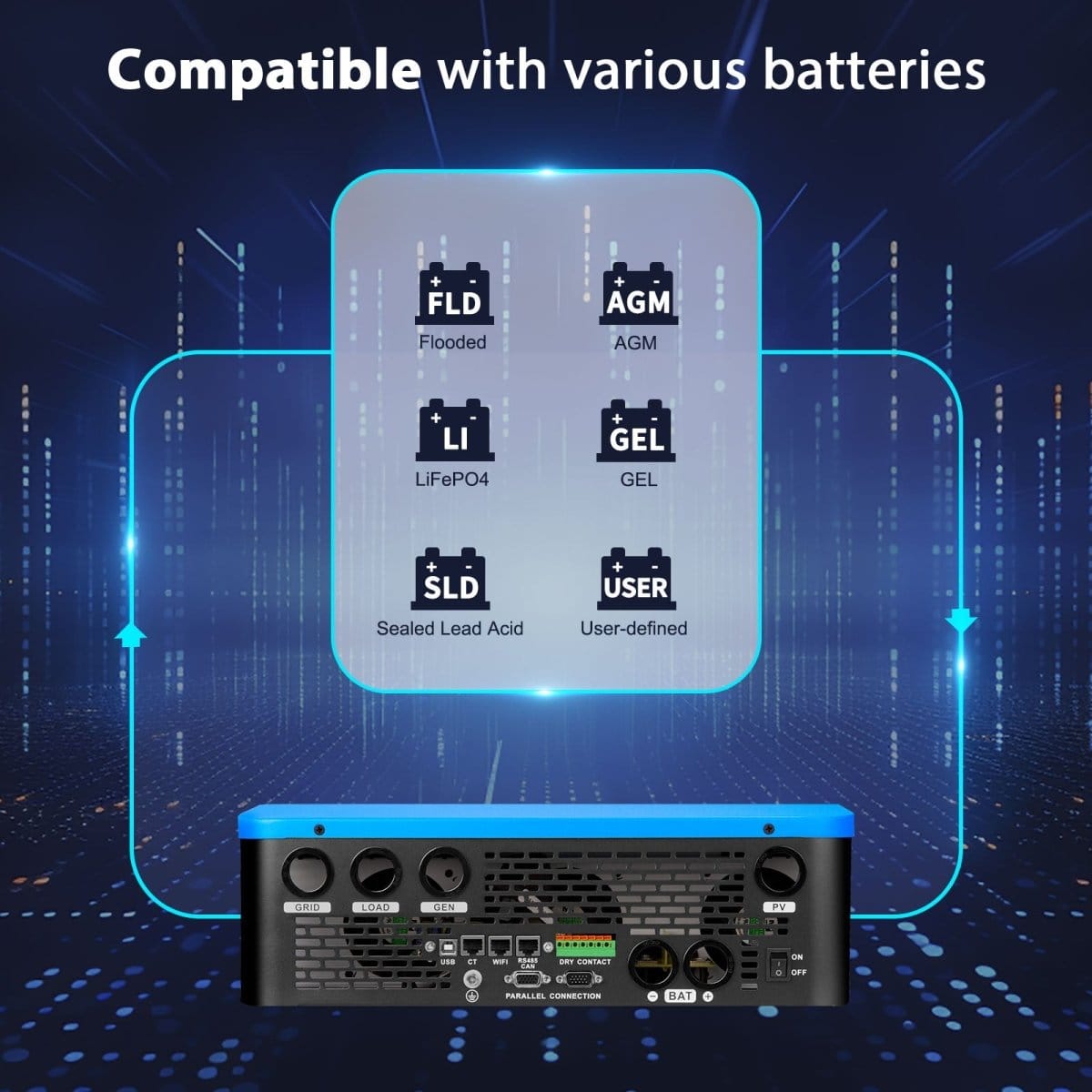

  • Compatible with LiFePO4, AGM, lead-acid, and custom battery types.

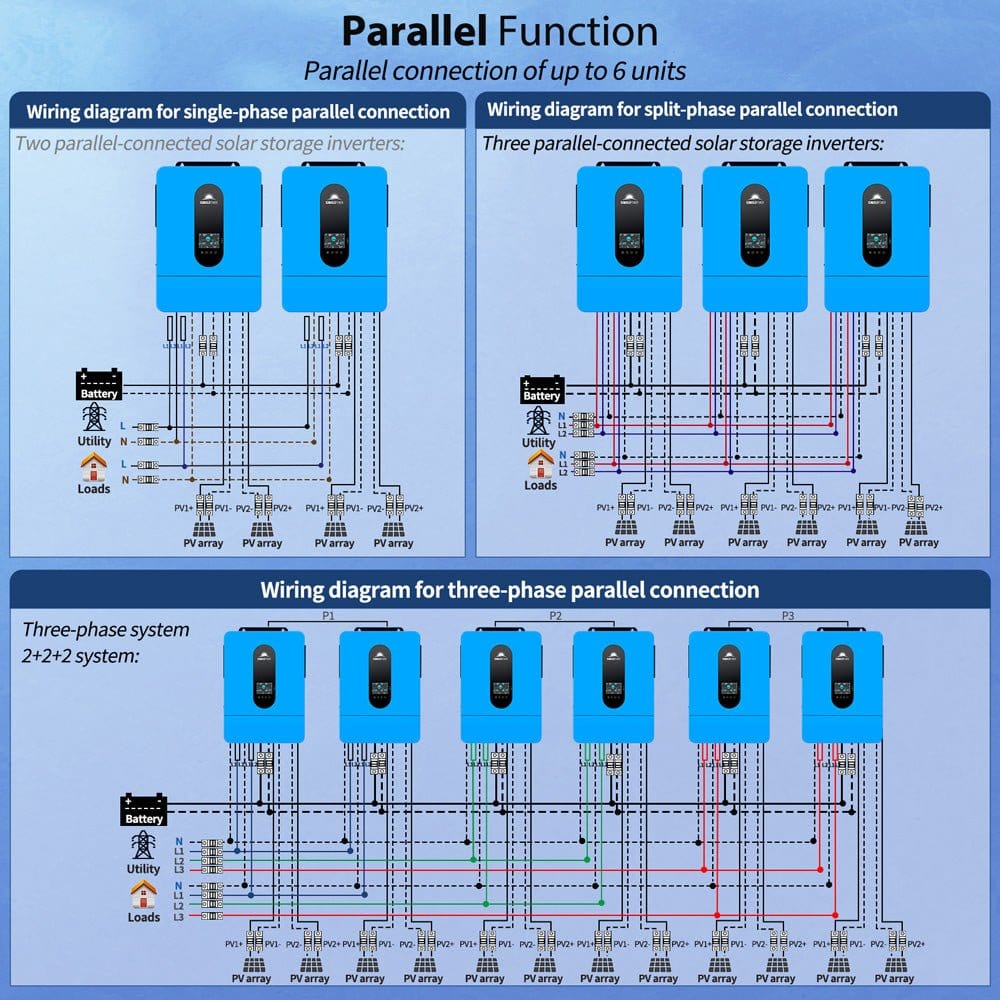

Scalable Parallel Operation

  • Supports up to 6 units in parallel, allowing for expansion up to 78,000W total power.
  • Integrated parallel kits simplify system setup and configuration.

Advanced Monitoring & Connectivity

  • WiFi Monitoring (optional) enables remote system tracking and diagnostics.
  • RS485 & USB communication ports for enhanced connectivity with BMS systems.

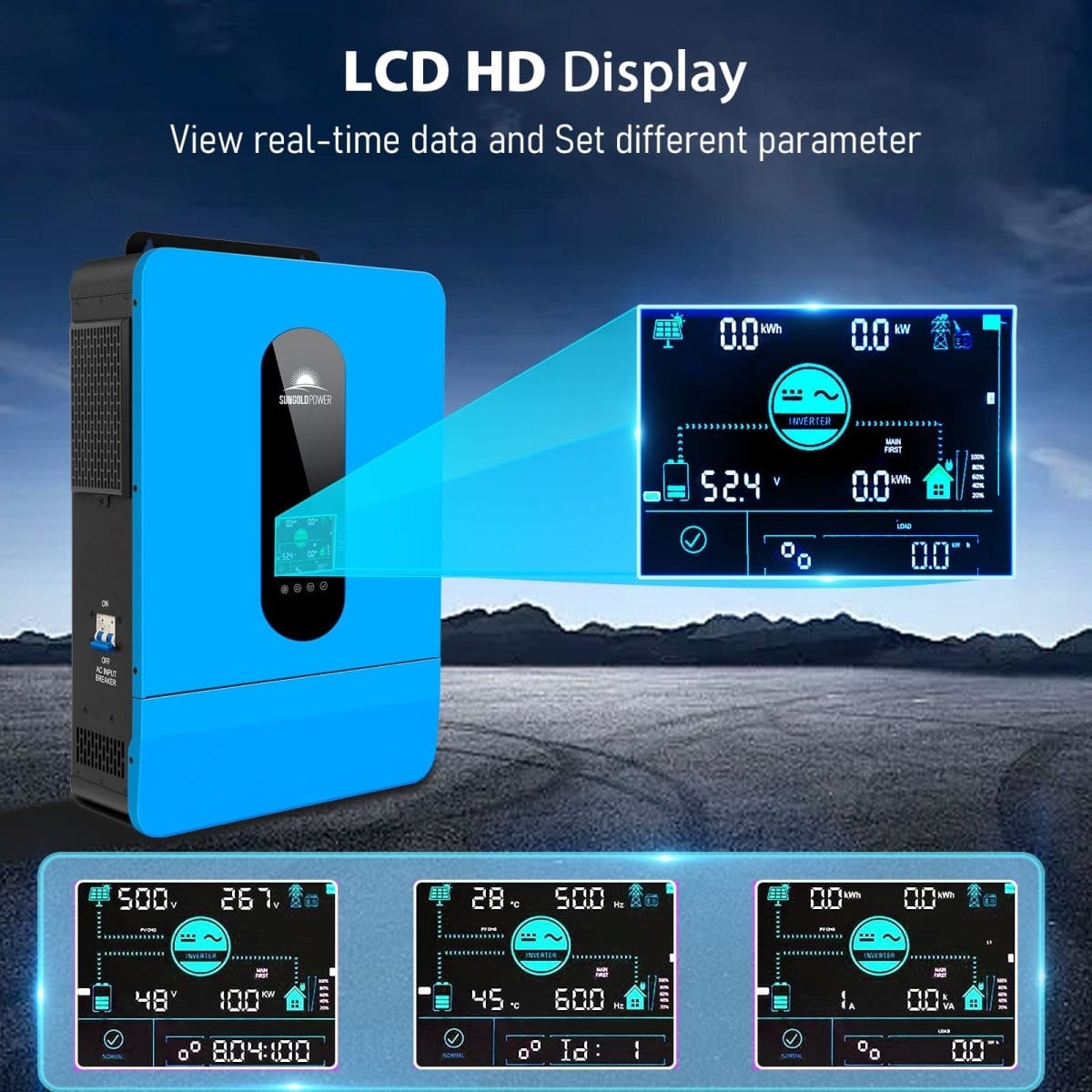

  • User-friendly LCD display provides real-time operational data.

Ultimate Safety & Protection Features

  • UPS Function (<10ms transfer time) ensures seamless backup power switching.
  • Overload, short circuit, and battery over-discharge protection.
  • Auto-start generator function for extended off-grid power security.
  • Energy-saving mode reduces energy loss during no-load conditions.

200Amp Automatic Transfer Switch Built-in

  • Seamlessly transitions between solar, battery, and grid power, reducing downtime and maintaining continuous power.
Placeholder Image

Sungold Power 13,000W 48V Solar Charge Inverter Applications

  • Off-Grid Residential Power – Powers entire homes with clean, renewable energy.
  • Backup Power for Critical Loads – Ensures uninterrupted power during outages.
  • Commercial & Industrial Use – Provides stable electricity for businesses and remote sites.
  • RV, Marine & Mobile Solar Solutions – Ideal for motorhomes, boats, and mobile operations.
  • Agricultural & Remote Power Systems – Reliable energy for farming, ranching, and rural applications.
Placeholder Image

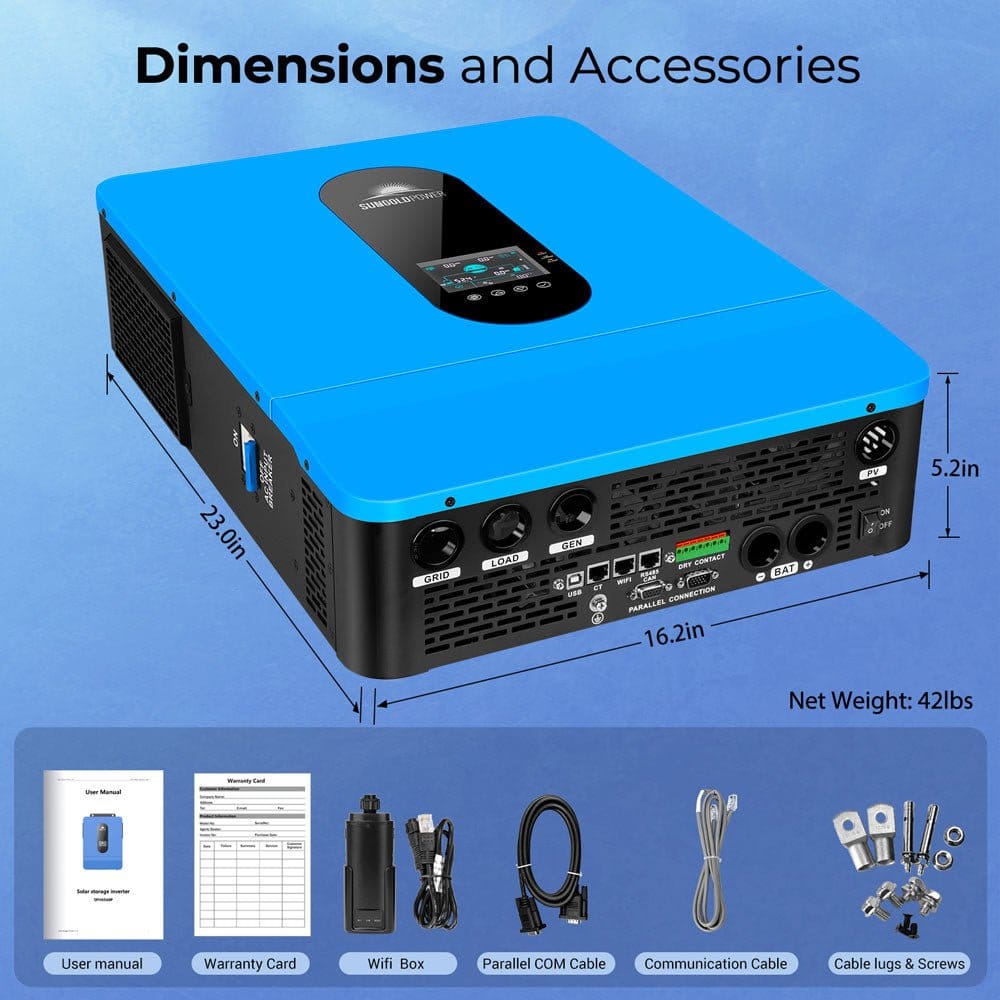

What's Included

Everything you need is included with your product.

  • 2 x Sungold Power 6.5kW 48V Solar Charge Inverters (Pre-Wired for Parallel Operation)
  • Parallel Communication Cables
  • User Manual
  • Accessory Kit
Placeholder Image

Sungold Power 13,000W 48V Solar Charge Inverter Specifications

Inverter Output

Specification Details
Rated Output Power 6500W
Max. Peak Power 13,000 VA
Rated Output Voltage 120/240Vac (split phase/single phase)
Rated AC Frequency 50/60Hz
Output Wave Pure Sine Wave
Switch Time 10ms (Typical
Parallel Number 6

Battery

Specification Details
Battery Type Lithium-ion battery/lead-acid battery/user-defined battery
Rated Battery Voltage 48Vdc
Voltage Range 40Vdc-60Vdc
Max.Mains/Generator Charging Current 80A
Maximum Mix Charge Current 140A

PV Input

Specification Details
MPPT Channel Number 2
Maximum Input Power 5000W+5000W
Maximum Input Current 18/18A
Maximum Open Circuit Voltage 550Vdc+550Vdc
MPPT Operating Voltage Range 150Vdc-450Vdc

Mains/Generator Input

Specification Details
Input Voltage Range 65VAC-140VAC
Input Frequency Range 50-60Hz
Bypass Overload Current 40A

Efficiency

Specification Details
MPPT Tracking Efficiency 99.9%
Maximum Efficiency of Battery Inverter 93%

General

Specification Details
Dimensions 23.0 Inch*16.1 inch*5.23inch (584.6mm*410mm*133mm)
Weight 41.7lb (18.9 kg)
Protection level IP20, for indoor use only
Operating Temperature Range 14-131°F,> 113°F derating (-10~55°C>45°C derating)
Noise <60dB
Cooling Method Internal Fan

Communication

Specification Details
Embedded Interfaces RS485 / CAN / USB / Dry Contact
External Modules (Optional) Wi-Fi GPRS
Placeholder Image

FAQs

Can the Sungold Power 13,000W inverter power my entire home?

Yes, this inverter can power essential appliances and heavy loads, and can be expanded for full home power coverage.

Does this inverter require batteries to function?

No, it can operate as a grid-tied inverter without batteries, allowing direct solar-to-grid energy usage.

How quickly does the inverter switch to battery power during outages?

The UPS feature provides an automatic switch in <10ms, ensuring uninterrupted power supply.

Is remote monitoring available?

Yes, the WiFi module (optional) allows for real-time system monitoring and remote adjustments via a mobile app.

Can I expand my system with additional inverters?

Yes, the Sungold Power 13,000W supports parallel operation with up to 6 units, allowing a total system capacity of 78,000W.
