Sungold Power | 16KW 48V Split Phase Solar Inverter (2 Units Parallel) Hybrid Inverters SunGoldPower

Sungold Power | 16KW 48V Split Phase Solar Inverter (2 Units Parallel)

SunGoldPower
SKU SPH8K48SPx2
Save $696.00
$3,480.00
$2,784.00

⭐ Authorized SunGoldPower Dealer

⭐ Fast & Free Shipping + No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Sungold Power | 16KW 48V Split Phase Solar Inverter (2 Units Parallel)

The Sungold Power 16KW 48V Split Phase Solar Inverter (2 Units Parallel) is a high-performance, scalable, and efficient off-grid power solution designed for residential, commercial, and industrial applications. This system integrates two 8KW inverters, offering a combined power output of 16KW while supporting single-phase, split-phase, and three-phase configurations. It is ideal for off-grid homes, businesses, and energy storage solutions, ensuring seamless power delivery and enhanced energy management.

Placeholder Image

Sungold Power 16KW 48V Split Phase Solar Inverter Features

High-Performance Power Output

  • 16,000W total power output (2 x 8KW inverters) for high-demand applications.
  • Split-phase (120V/240V) and three-phase (208V) capability for versatile power distribution.
  • Pure Sine Wave output ensures compatibility with all appliances.

Advanced Solar MPPT Charging

  • Built-in MPPT Solar Charge Controller for efficient solar power utilization.
  • Max PV input of 10,000W (per unit: 5000W) enables high solar energy conversion.
  • Dual MPPT technology (99.5% efficiency) optimizes power harvesting from solar panels.

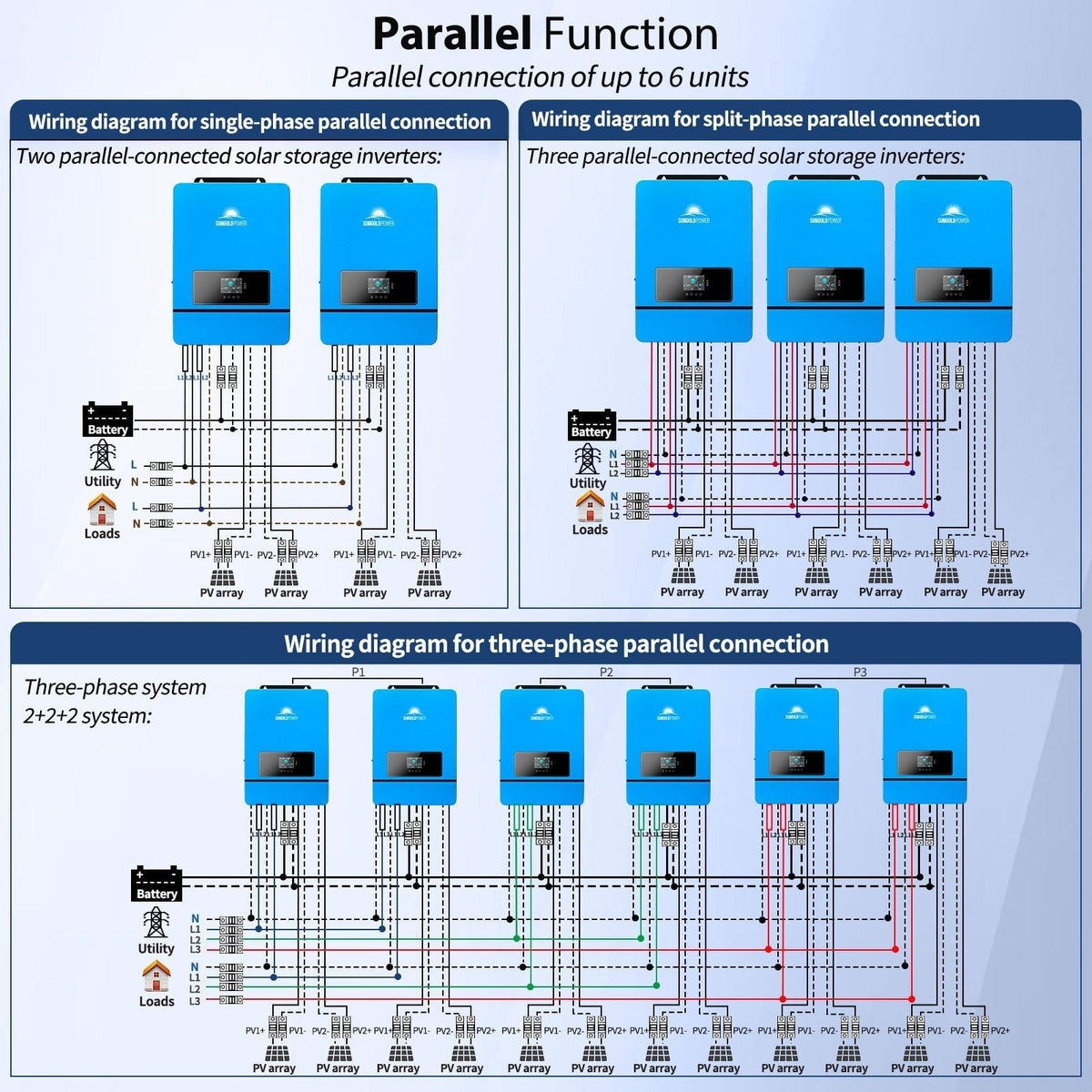

Scalable Parallel Operation

  • Supports up to 6 units in parallel, allowing scalability up to 48KW.
  • Built-in parallel kits enable seamless expansion without additional accessories.
  • Suitable for off-grid, hybrid, and backup power systems.

Smart Monitoring & Connectivity

  • WiFi Monitoring included for real-time system tracking via a mobile app.
  • RS485, CAN, and USB communication ensure smooth integration with battery management systems (BMS).

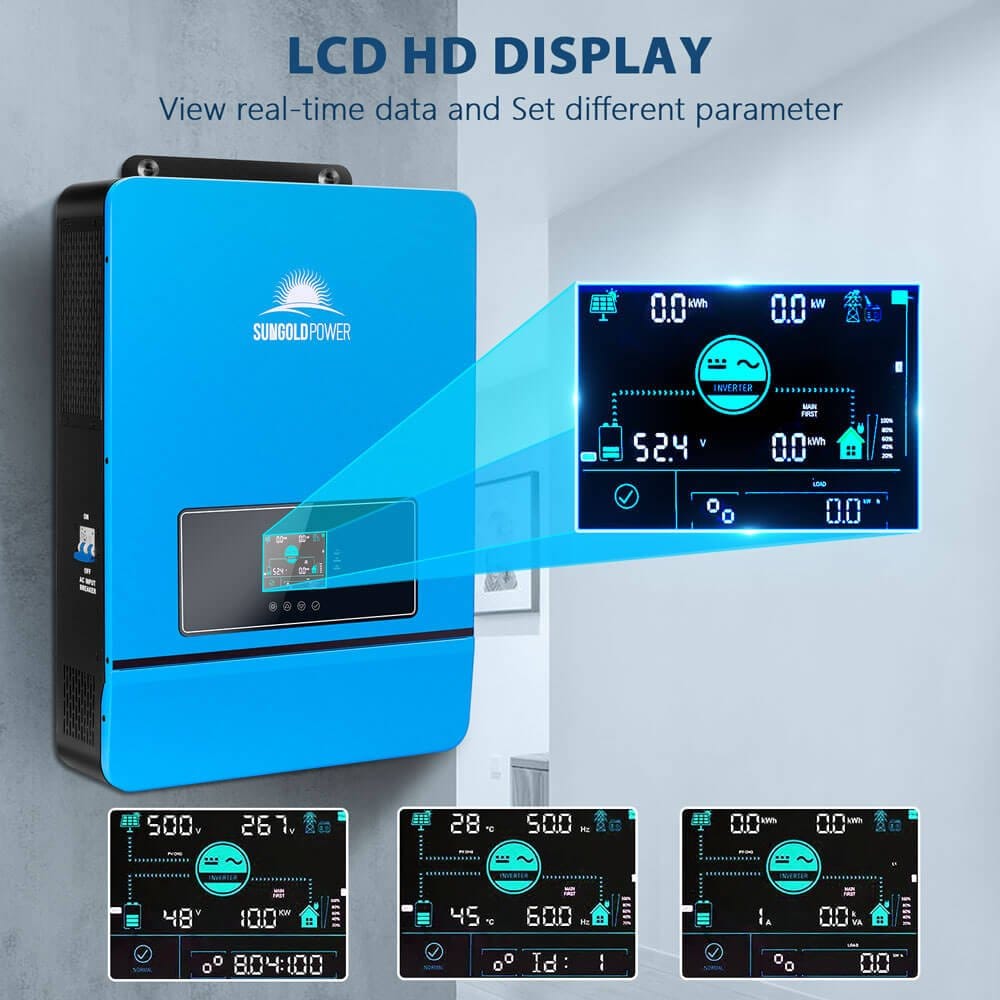

  • User-friendly LCD display provides system diagnostics and live performance updates.

Comprehensive Protection & Reliability

  • Uninterruptible Power Supply (UPS) Function, ensuring seamless power switching (<10ms reaction time).
  • Overload, short circuit, and over-discharge protection for system longevity.
  • Automatic Generator Start Function for extended off-grid use.
  • Energy-saving mode reduces idle power consumption.
Placeholder Image

Sungold Power 16KW 48V Split Phase Solar Inverter Applications

  • Residential Off-Grid Systems – Provides stable power for homes and remote properties.
  • Commercial & Industrial Energy Solutions – Suitable for small businesses, farms, and industrial setups.
  • Backup Power Systems – Keeps critical loads running during power outages.
  • Solar Energy Storage Systems – Efficient integration with solar panels and battery banks.
  • RV, Marine, and Mobile Power Solutions – Ideal for camper vans, boats, and mobile off-grid power.
Placeholder Image

What's Included

Everything you need is included with your product.

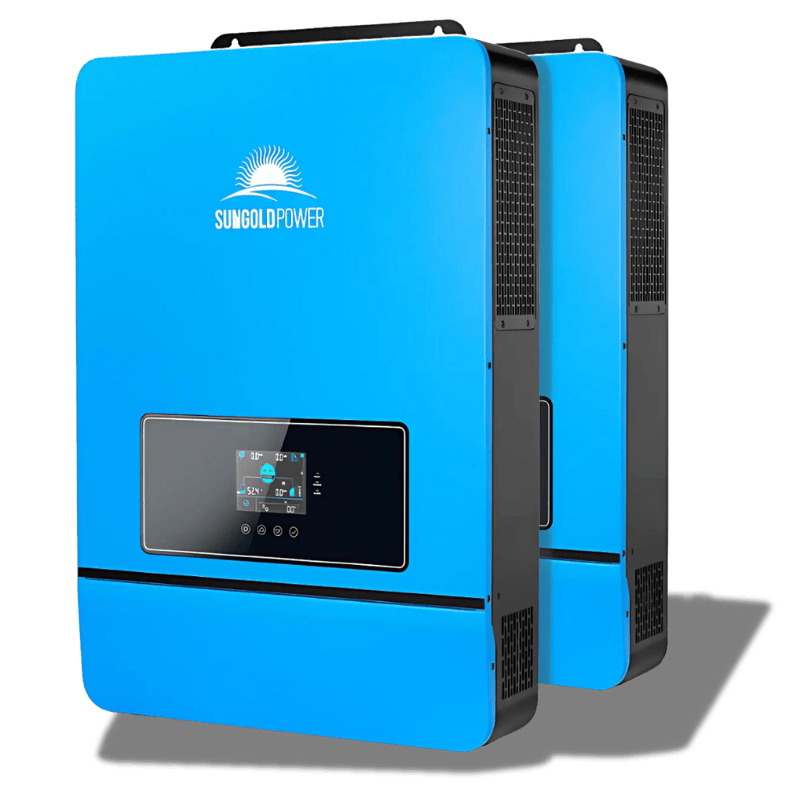

  • 2 x Sungold Power 8KW 48V Split Phase Solar Inverters
  • Parallel Communication Cables
  • User Manual
  • Accessory Kit
Placeholder Image

Sungold Power 16KW 48V Split Phase Solar Inverter Specifications

Inverter Output

Specification Details
Rated Output Power 8,000W
Max. Peak Power 16,000W
Rated Output Voltage 120/240Vac (split phase/single phase)
Load Capacity of Motors 5HP
Rated AC Frequency 50/60Hz
Waveform Pure Sine Wave
Switch Time 10ms (Typical)
Parallel Capacity 6
Overload After trigerring the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted. (102% 125% ± 10%: error reported and output switched off after 5s.

Battery

Specification Details

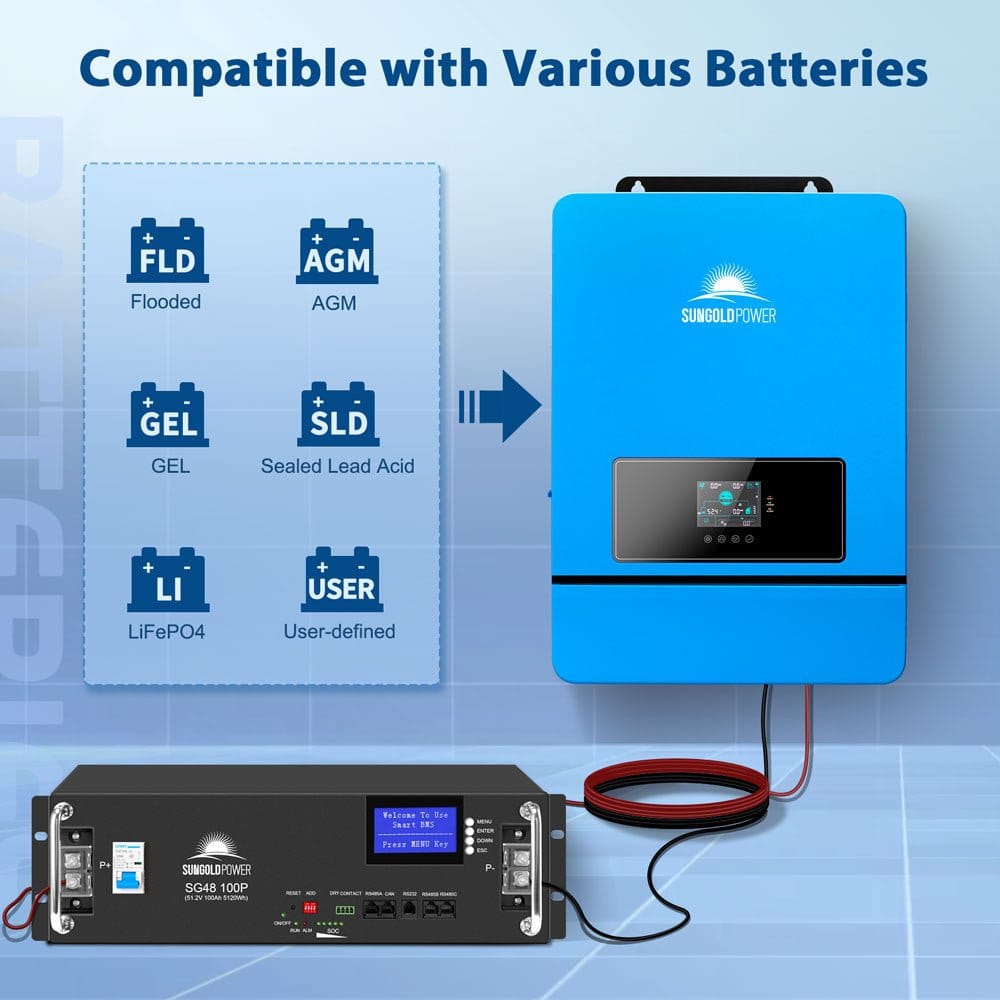

Battery Type Lithium-ion / Lead-Acid / User-Defined
Rated Battery Voltage 48Vdc
Voltage Range 40Vdc-60Vdc
Max.MPPT Charging Current 200A
Max.Mains/Generator Charging Current 100A
Max.Hybrid Charging Current 180A

PV Input

Specification Details
Num. of MPP Trackers 2
Max. PV array power 11,000W
Max. Input Current 22/22A
Max. Voltage of Open Circuit 550Vdc
MPPT Voltage Range 125-425Vdc

Mains/Generator Input

Specification Details
Input Voltage Range 90-140V (Single Phase)
Frequency Range 50/60Hz
Bypass Overload Current 63A

Efficiency

Specification Details
MPPT Tracking Efficiency 99.9%
Max. Battery Inverter Efficiency 92%

General

Specification Details

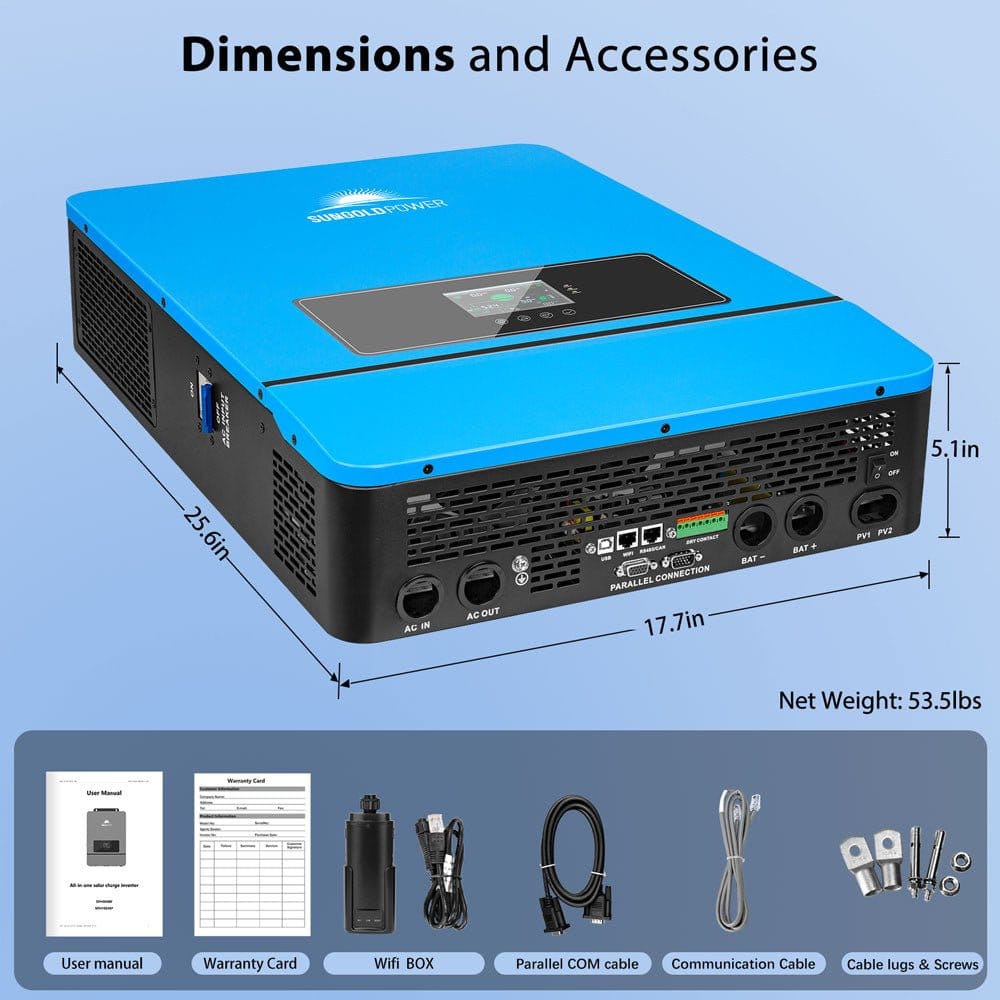

Dimensions 17.7*25.6*5. 1 inch
Weight 53.5lb
Protection Degree IP20, Indoor Only
Operating Temperature Range 14~131°F, > 113°F derated (-10~55°C,>45°C derated)
Noise <60dB
Cooling Method Internal Fan
No-Load Consumption 95W/100W
Warranty 2 Years

Communication

Specification Details
Embedded Interfaces RS485 / CAN / USB / Dry Contact
External Modules (Optional) Wi-Fi GPRS
Placeholder Image

FAQs

Can this system power an entire home?

Yes, the 16KW inverter setup can power most household appliances, and additional units can be added for full-home coverage.

Does this system require batteries?

No, it can operate as a grid-tied inverter without batteries, but adding battery storage enhances reliability and backup power options.

How quickly does it switch to battery power during outages?

The UPS feature provides an automatic switch in <10ms, preventing power interruptions.

Is remote monitoring available?

Yes, the included WiFi module allows real-time monitoring and system management via a mobile app.

Can I expand this system in the future?

Yes, the Sungold Power 16KW supports parallel operation with up to 6 units, enabling a total system capacity of 48KW.
