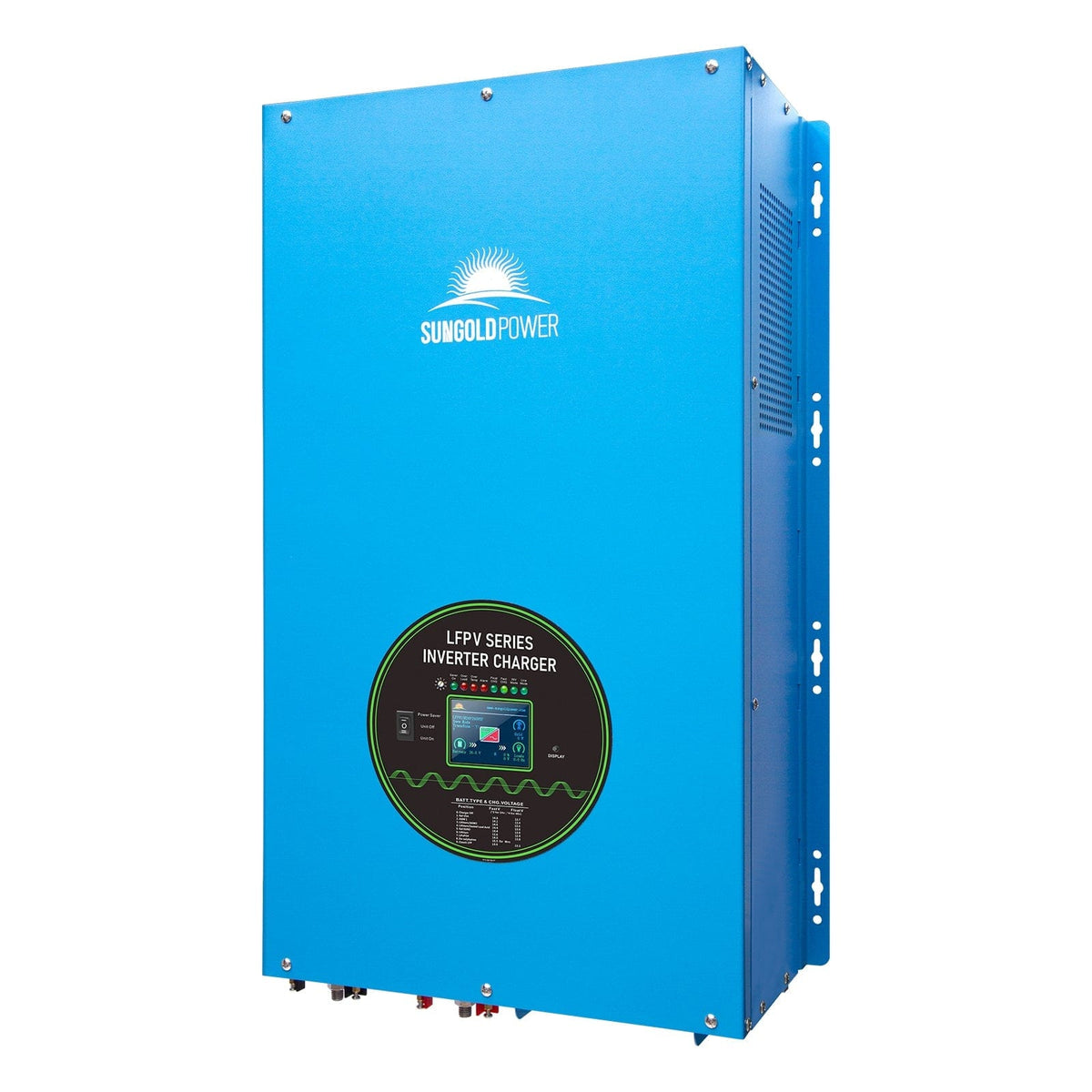

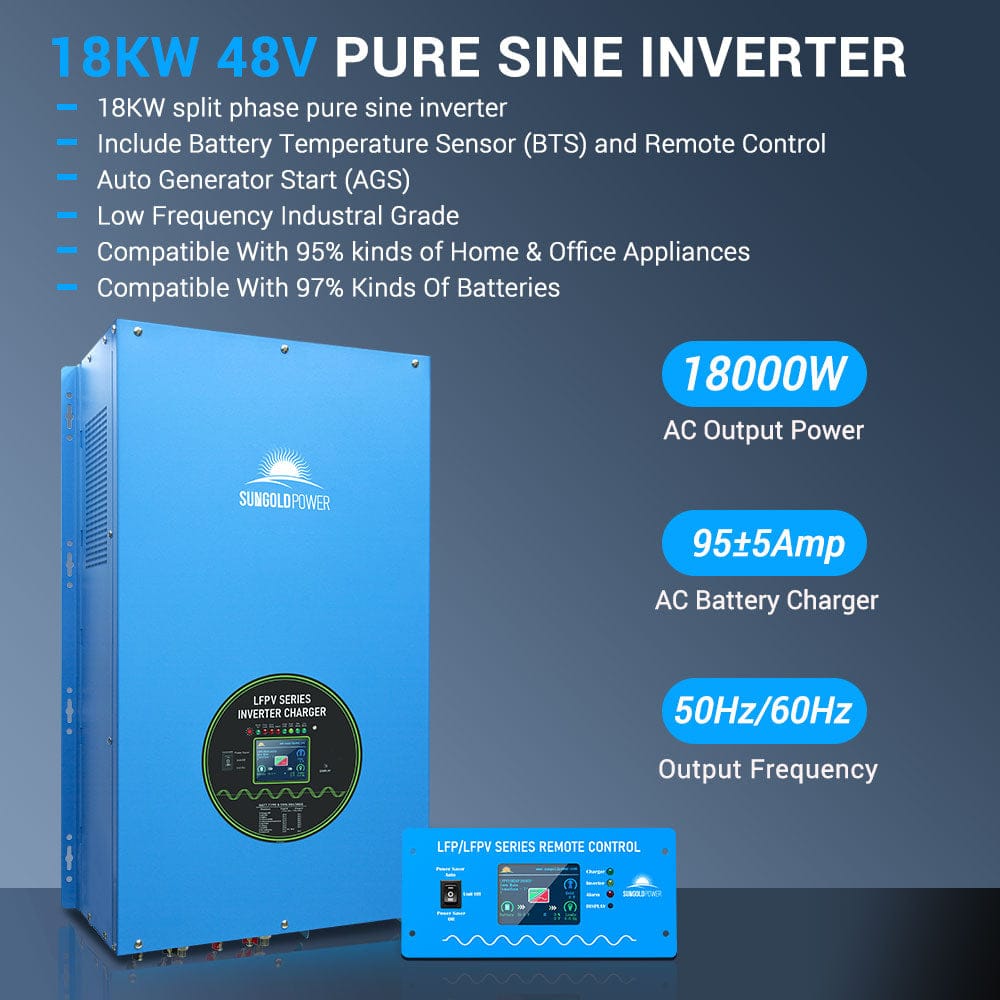

Sungold Power 18000W 48V Split Phase Pure Sine Wave Inverter Charger Overview
Sungoldpower 18000W 48V split phase inverter is built for the purpose of running the whole house, business office or large RV, which is perfect for using with renewable solar and using as an off-grid home and business back up power supply. The split-phase inverter requires 240V AC input and can provide 110/120VAC OR 220/230/240VAC output power for all kinds of appliances.
This inverter charger is built with UPS function to provide uninterrupted power to run household electric devices. The inverter comes with an internal transfer switch, so you don’t have to do anything when the power goes out. All the devices you have selected will be connected to the back-up power source automatically. In fact, you will not even notice that the power cut happened.
★ It is built-in 100 amp battery charger uses AC power, from the grid or from a generator, to recharge different kinds of battery bank. ★ Low Frequency Inverter, High Quality, your best choice for your 48V home system.
This full sine wave power inverter was designed with top quality and durability in mind and is built to survive 10+ years in the harshest conditions . Our full sine wave 18KW inverter works with very little power loss, outputs an average THD of 3% , its idle consumption is 270 watts, and its peak DC to AC efficiency is notably 90%
The AC/battery priority switch is SW5. In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output. Once the AC utility is restored, the relay is energized and the load is automatically transferred to AC utility. For solar systems, it is better to choose battery priority.
The Big Power Low Frequency Off Grid Inverter is a multi-function inverter, combining functions of inverter, and battery charger to offer uninterruptible power support.
The big power inverter has is the direct-connect terminal block, which allows users to surpass the 18,000 watt capacity and harness its 300% surge power (up to 54,000 watts for 20 seconds as previously noted). it is emergency backup power for residences, businesses and large off grid applications
It is also perfect for off grid system or use AC power supply for home power emergencies, which can keep the power supply uninterrupted in the event of an power failure. It can detect the loss of power and switch over to get power form a connected battery bank seamlessly to keep the power supply constant.
During the emergency situations, the inverter can become a true UPS (Uninterruptable Power Supply) with its seamless transition transfer switch (batteries required). It can convert DC to AC power cleanly and efficiently. It can also automatically charge a battery bank when the city or generator power is available. The switch goes back and forth between city/generator power and inverter power automatically.
Another popular application of this inverter is for RV and vehicle upfitting applications, such as powering lights and other appliances in an off-grid cabin. It also can provide electricity for a mobile business or mobile office, and running camping equipment. it is the best choice for your big power system.
Sungold Power 18000W 48V Split Phase Pure Sine Wave Inverter Charger Features
LF-PV Series Pure Sine Wave Inverter is a combination of an inverter, AC charger, and Auto-transfer switch into one complete system (without MPPT).

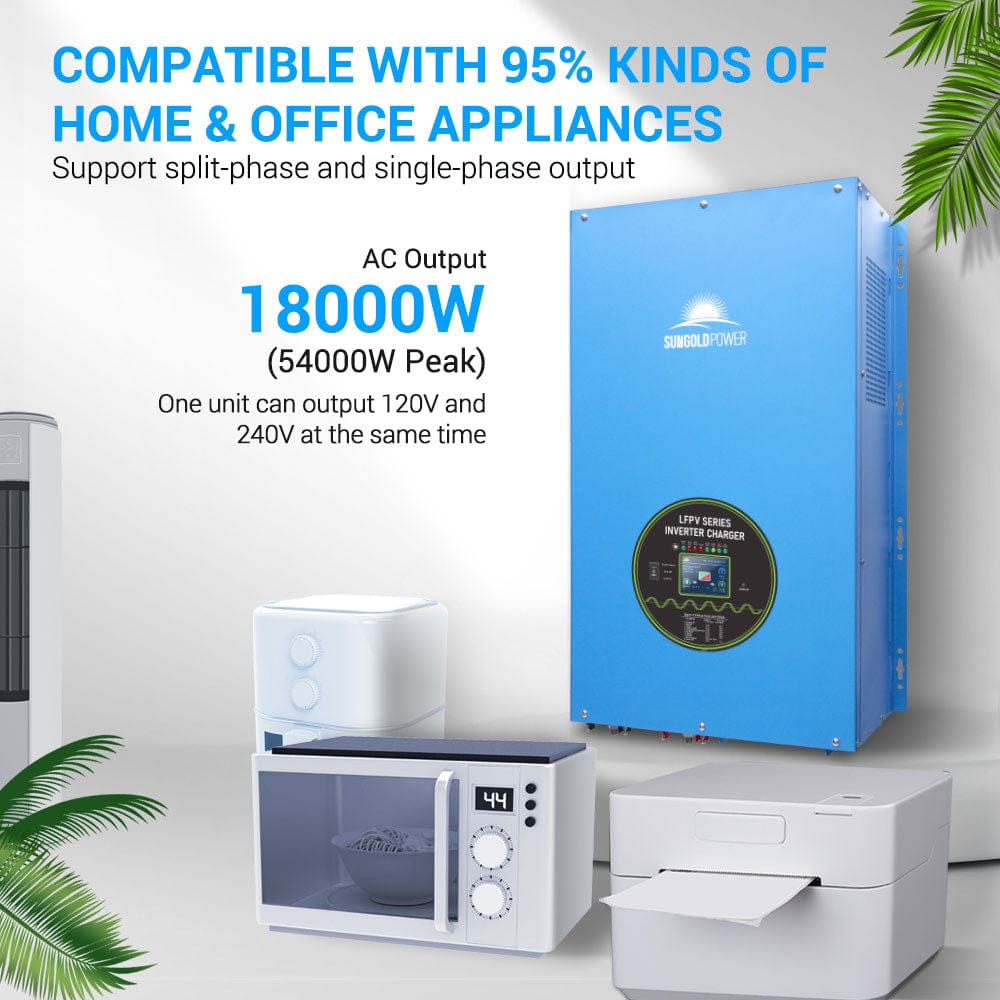

The split-phase inverter requires 240VAC input and can provide 120VAC or 240VAC output power for all kinds of appliances, and it can output 50 or 60Hz via the SW4.
AC/Battery Priority: Our inverter is designed with AC priority by default, you can choose the battery priority by SW5 switch.
Features: Smart Remote Control, Automatic Generator Starting (AGS), suitable for different kinds of batteries.
Application: for all kinds of loads: refrigerators, freezers, microwaves, dryers, air conditioners, pumps, and all the big home and business applications.
18KW split phase pure sine inverter charger DC 48V AC 240V input AC output 120V/240V
Auto Generator Start (AGS)
Support Solar Panel with MPPT Function

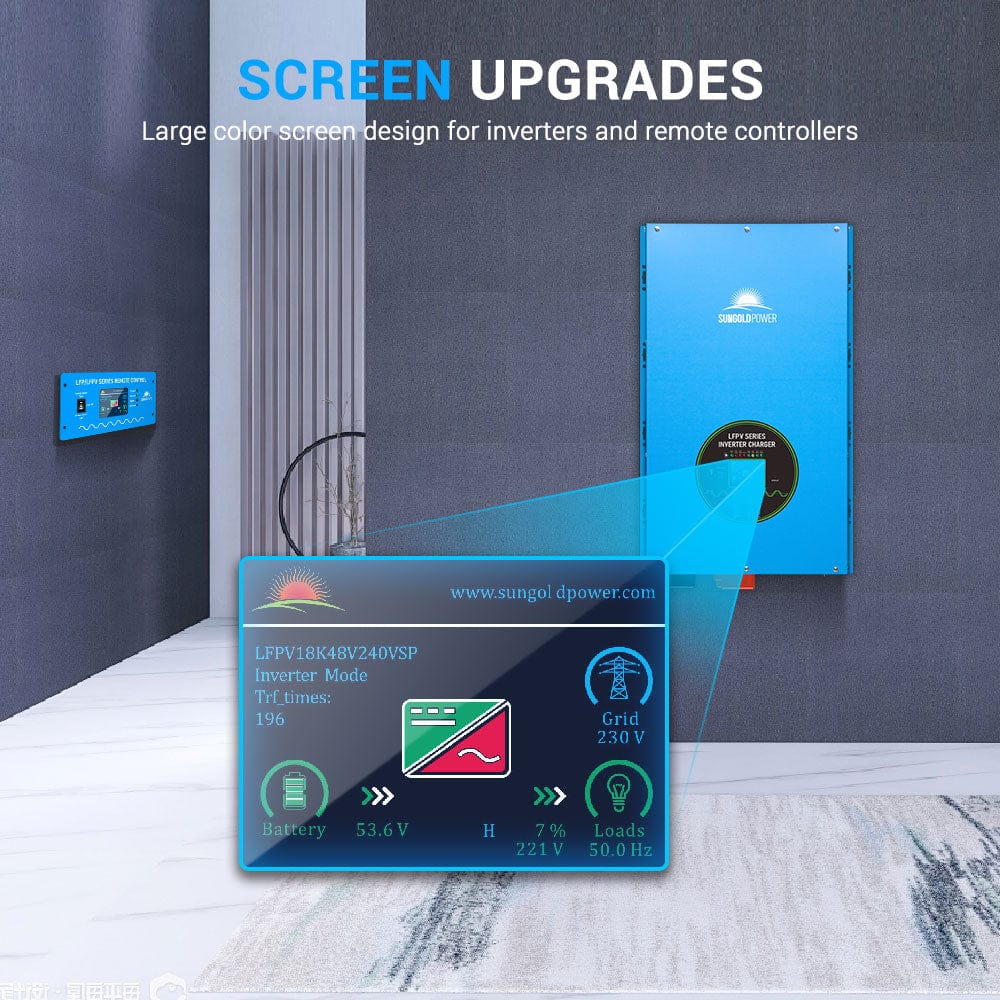

Include Battery Temperature Sensor (BTS) and Remote Control

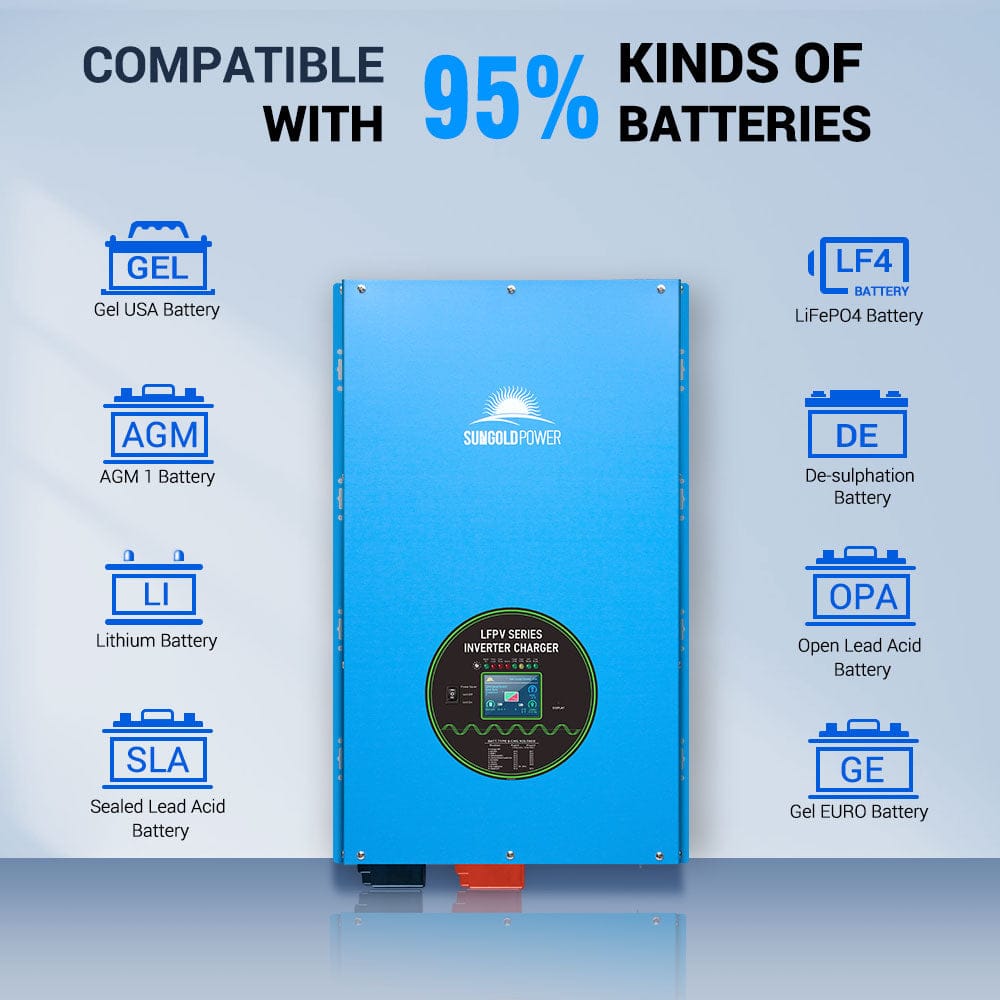

8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM, and lead Acid batteries）
Compatible With All kinds of Home & Office Appliances
Powerful Charge Rate Up to 120Amp, Selectable From 0%-100%

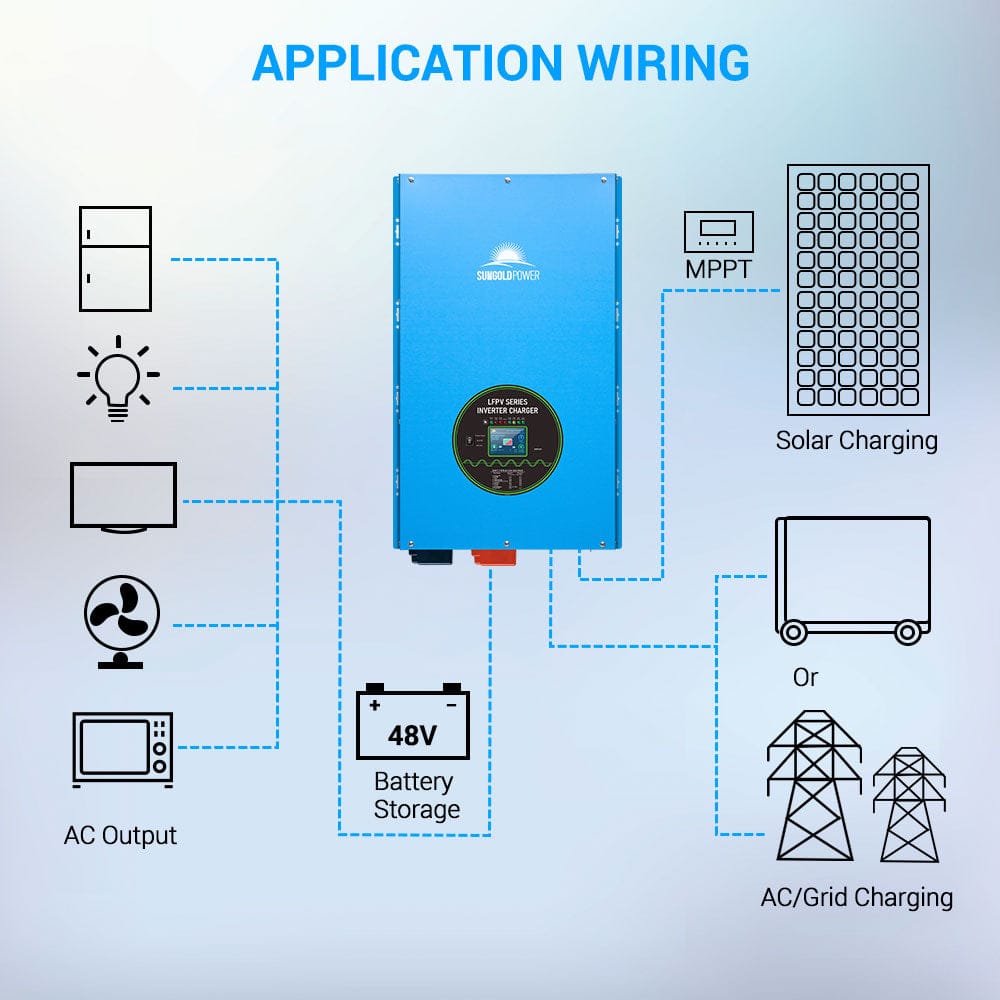

Built-in transfer switch and battery charge, backup, or off-grid power solutions
AC/Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration
4-step Intelligent Battery Charging, PFC (Power Factor Correction) for Charger
8 ms Typical Transfer Time Between Utility & Battery, Ensure Power Continuity
15s Delay Before Transfer when AC Recover, Protection for Load when Used with Generator

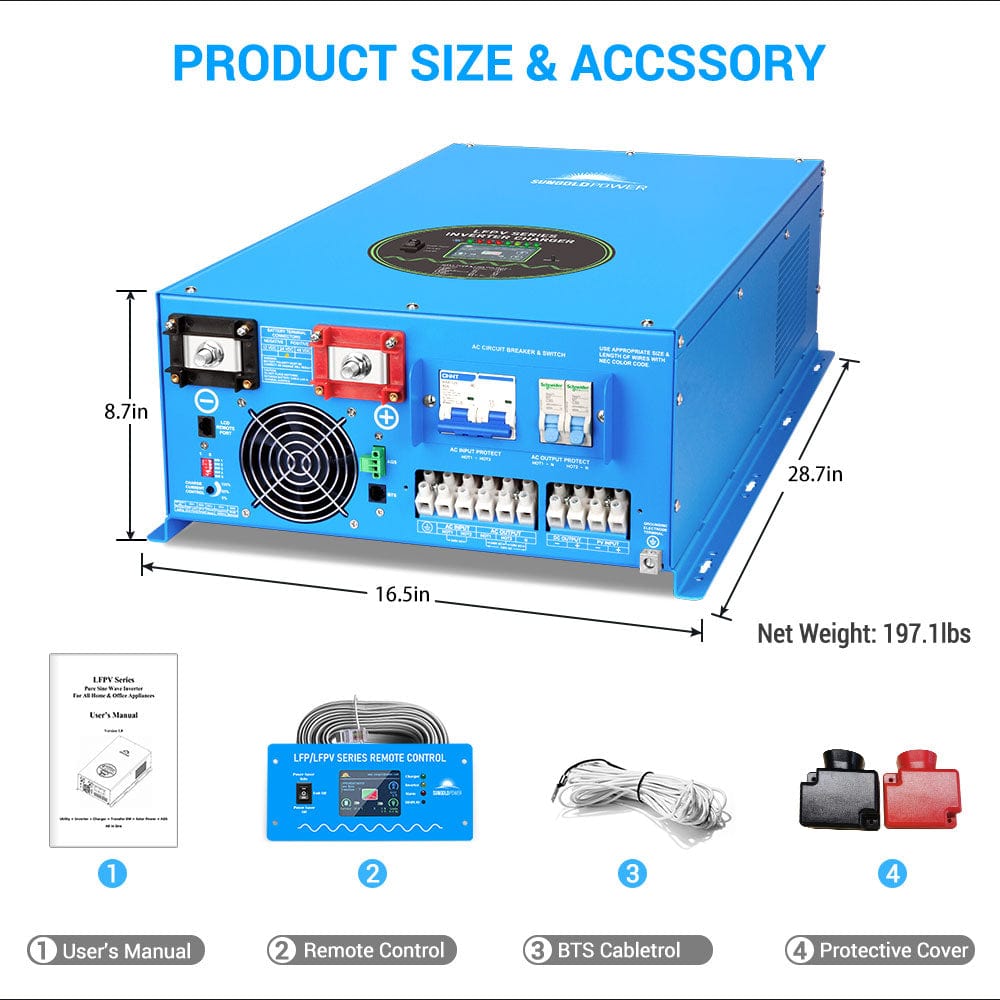

What's In The Box
1 x 18000W 48V Split Phase Pure Sine Wave Solar Power Inverter
1 x English Manual
1 x Remote Control
1 x BTS Cable
Sungold Power 18000W 48V Split Phase Pure Sine Wave Inverter Charger Specification
Main Specification：
Continuous Output Power: 18.0KW
Surge Rating(20s): 54.0KW
Output Waveform: Pure Sine Wave
AC Output Voltage: 120V and 240V
AC Input Voltage: 240V( not suitable for AC 120V input )
DC Battery Voltage: 48Vdc
AC Battery charger: 95±5Amp
Output Frequency: 50Hz /60Hz
Typical transfer Time: 10ms(Max)
Unit Weight: 197 LB
Unit Size: 28.7 x 16.5 x 8.7 inch
Shipping Weight: 232 LB
Shipping Size: 34.25 x 21.3 x 17.3 inch
DC Input:
Nominal Input Voltage: 48.0Vdc
Minimum Start Voltage: 40.0Vdc / 42.0Vdc
Low Battery Alarm: 42.0Vdc / 44.0Vdc
Low Battery Trip: 40.0Vdc / 42.0Vdc
High Voltage Alarm: 64.0Vdc
Low Battery voltage recovery: 62.0Vdc
Power Saver on Idle Consumption: 50W
Power Saver off Idle Power: 270W
Charger:
Output Voltage: Depends on battery type
Battery Initial Voltage for Start-Up: 40-62.8V
Over Charge Protection Shutdown: 62.8V
Charger Breaker: 100A
Input Voltage Waveform: Pure Sine wave (Grid or Generator)
AC input range:184-253Vac/140-270Vac
Nominal Input Frequency: 50Hz or 60Hz (Auto detect)
Q1: How do you connect this to a home with the multiple-phase system?
A: Dear Customer, it only has dual phase output, 120V, and 240V, it can't work with the multiple phase system, thanks.
Q2: Does this unit work with lithium batteries? Is there an adjustable curve for charge-discharge voltages?
A: Dear Customer, it's ok to work with lithium batteries, LiFePO4 in types is for lithium batteries, in addition, we are sorry to advise the charge and discharge voltage can't be adjusted, hope for your kind understanding, thanks.
