Sungold Power | 20KW 48V Split Phase Solar Inverter (2 Units Parallel)

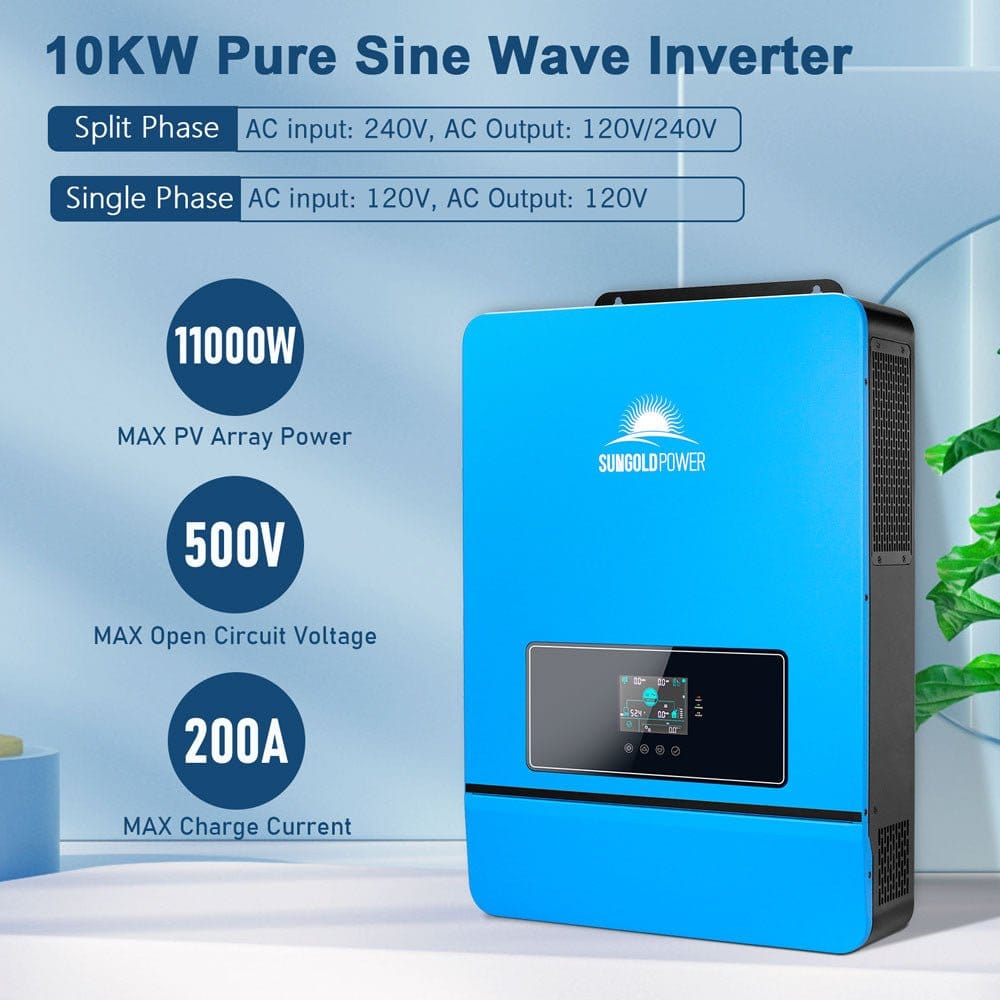

The Sungold Power 20KW 48V Split Phase Solar Inverter is a high-power, scalable, and efficient off-grid solution designed to support homes, businesses, and industrial applications. With two 10KW inverters connected in parallel, this system delivers 20,000W of reliable pure sine wave power, offering seamless integration with solar, battery, and grid inputs. Featuring advanced MPPT solar charging, intelligent monitoring, and multiple operating modes, this system provides uninterrupted power for various applications.

Sungold Power | 20KW 48V Split Phase Solar Inverter Features

High-Powered Performance

20KW Pure Sine Wave Output (10KW x 2), ensuring clean and stable power.
120V/240V Split Phase and 208V Three-Phase Compatibility, making it ideal for residential and commercial applications.
Supports up to 6 parallel units, expanding total power output.

Advanced MPPT Solar Charging

Built-in dual 2 x 200A MPPT Solar Charge Controllers for maximum solar energy efficiency.
Supports up to 11,000W PV Input (550V DC Max Per Unit) for superior solar performance.
Intelligent MPPT tracking technology ensures maximum power generation.

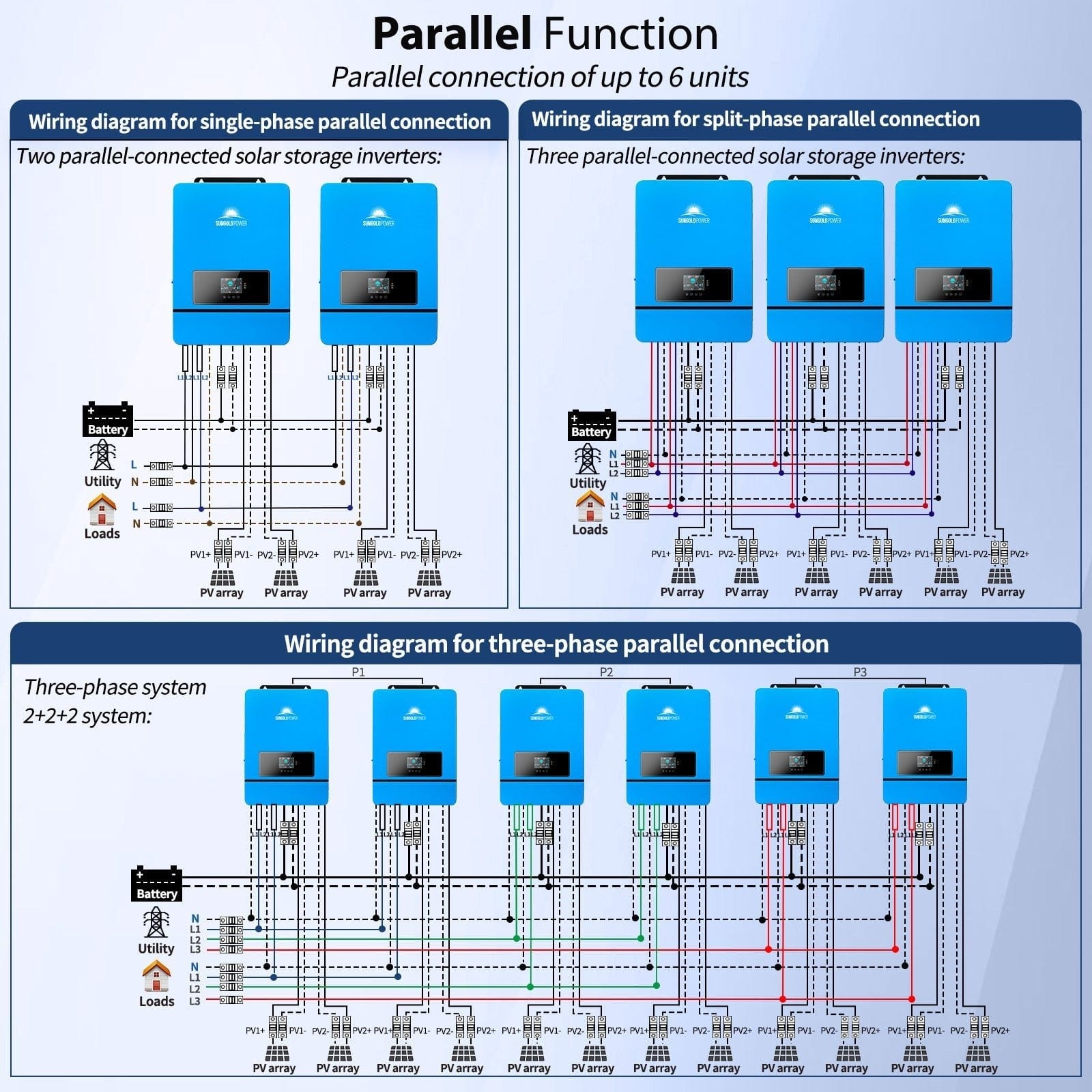

Seamless Parallel Operation

Pre-configured for dual inverter parallel operation, delivering 20KW of continuous power.
Supports single-phase, split-phase (120V/240V), and three-phase (208V) configurations.
Scalability up to 60KW (with additional units).

Smart Energy Management & Monitoring

WiFi Monitoring (Optional) for remote access via mobile app.

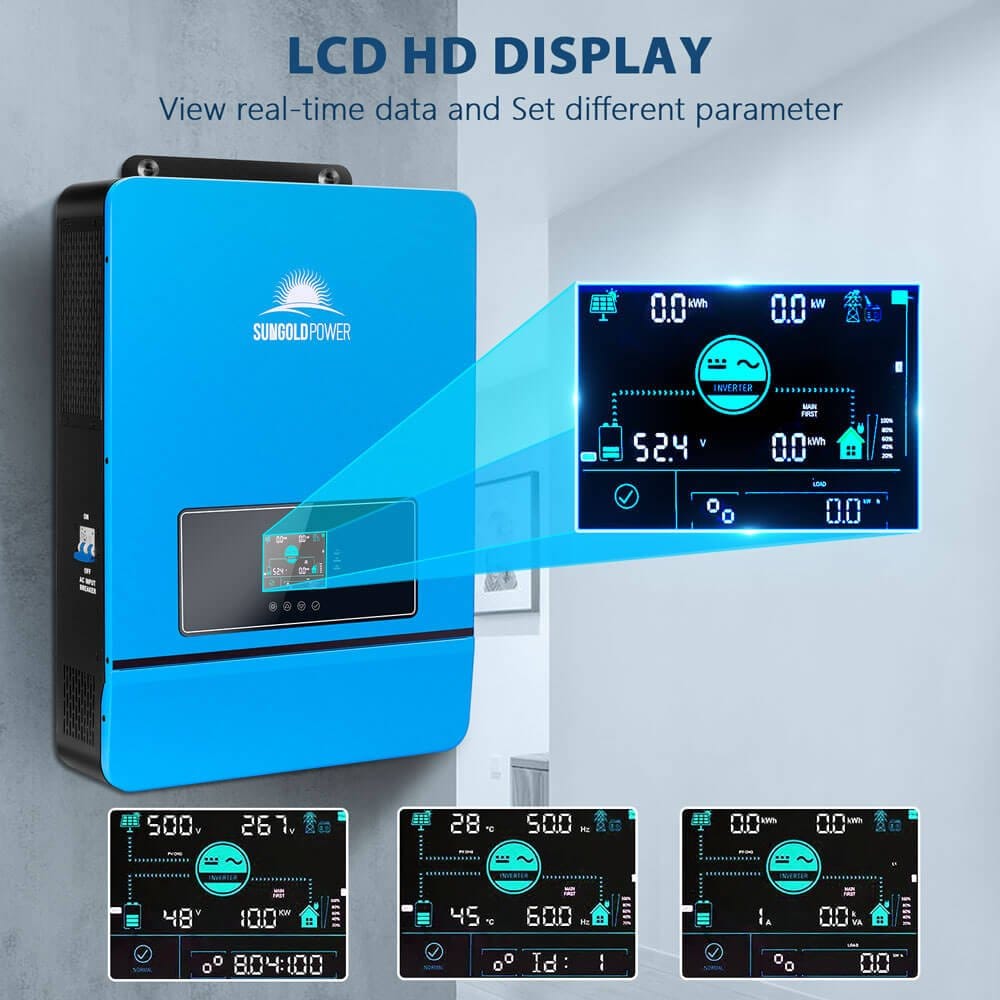

Built-in LCD Display provides real-time system data and error diagnostics.
RS485, CAN, and USB Communication for seamless integration with battery management systems (BMS).

Comprehensive Protection & Safety

<10ms Automatic Transfer Switch (UPS Mode) for uninterrupted power switching.
Overload, Overvoltage, Short Circuit, and Over-Temperature Protection.
Auto-start generator feature for extended off-grid operation.

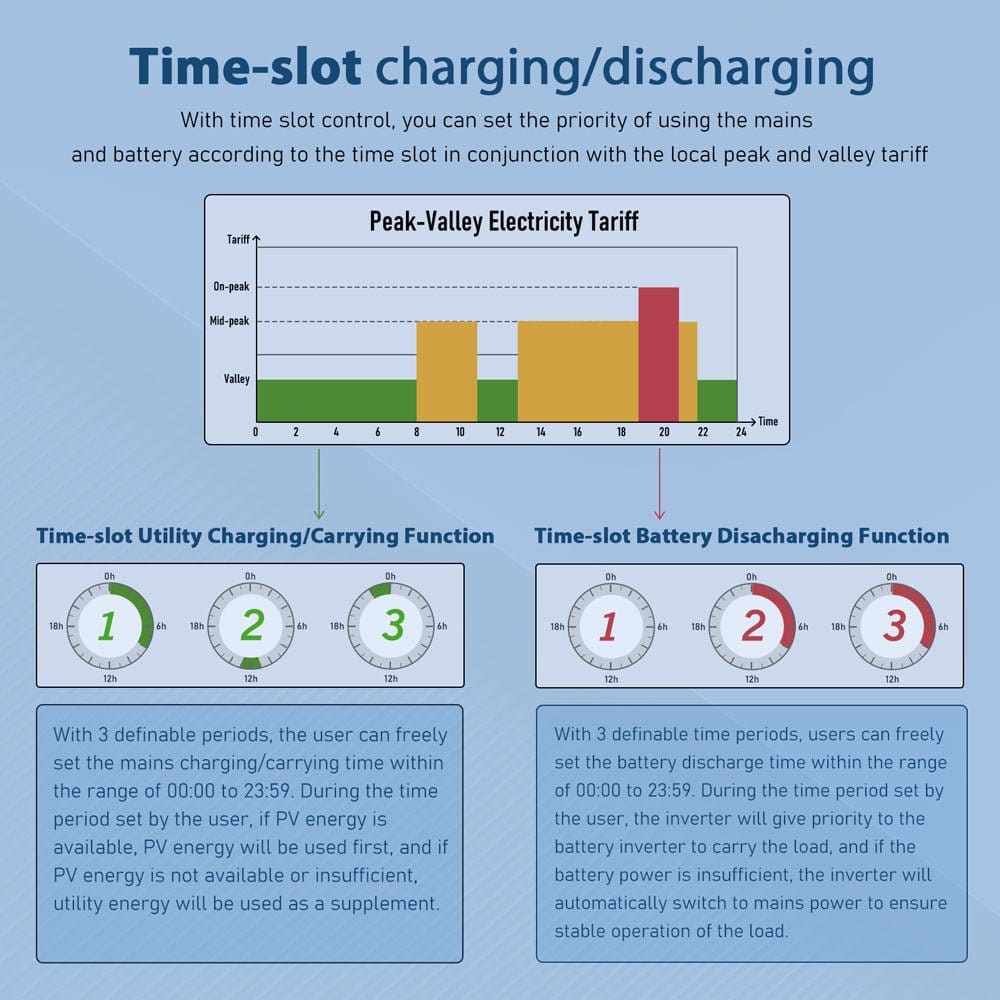

Time-Slot Charging & Energy Saving Modes

Customizable charging/discharging schedules based on local peak and valley electricity tariffs.
Power-saving mode reduces energy losses, maximizing system efficiency.

Sungold Power | 20KW 48V Split Phase Solar Inverter Applications

Off-Grid Homes & Cabins – Provides complete energy independence with reliable power.

Commercial Backup Power – Keeps critical business operations running during grid failures.

Industrial & Agricultural Power – Supports farms, workshops, and heavy-duty equipment.

Remote & Mobile Solar Systems – Ideal for large RVs, mobile homes, and off-grid facilities.

Microgrid & Hybrid Systems – Works with solar, battery, and grid connections for maximum flexibility.

What's Included

Everything you need is included with your product.

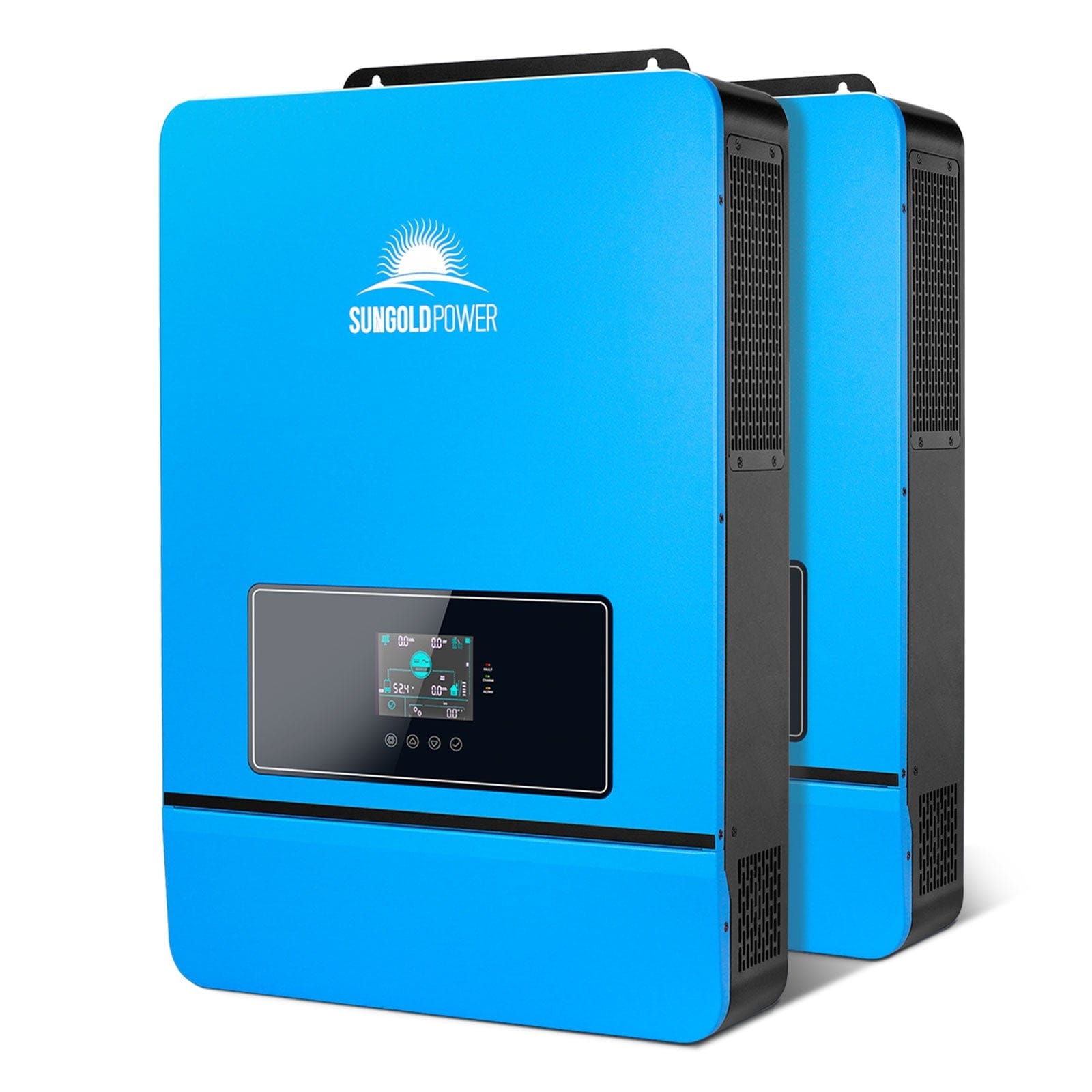

2 x Sungold Power 10KW 48V Split Phase Solar Inverters (Pre-Wired for Parallel)
Parallel Communication Cables

User Manual
Accessory Kit

Sungold Power | 20KW 48V Split Phase Solar Inverter Specifications

Inverter Output

Specification	Details
Rated Output Power	10,000W
Max. Peak Power	20,000W
Rated Output Voltage	120/240Vac (split phase/single phase)
Load Capacity of Motors	6HP
Rated AC Frequency	50/60Hz
Waveform	Pure Sine Wave
Switch Time	10ms (Typical)
Parallel Capacity	6
Overload	After trigerring the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted. (102% 125% ± 10%: error reported and output switched off after 5s.

Battery

Specification	Details

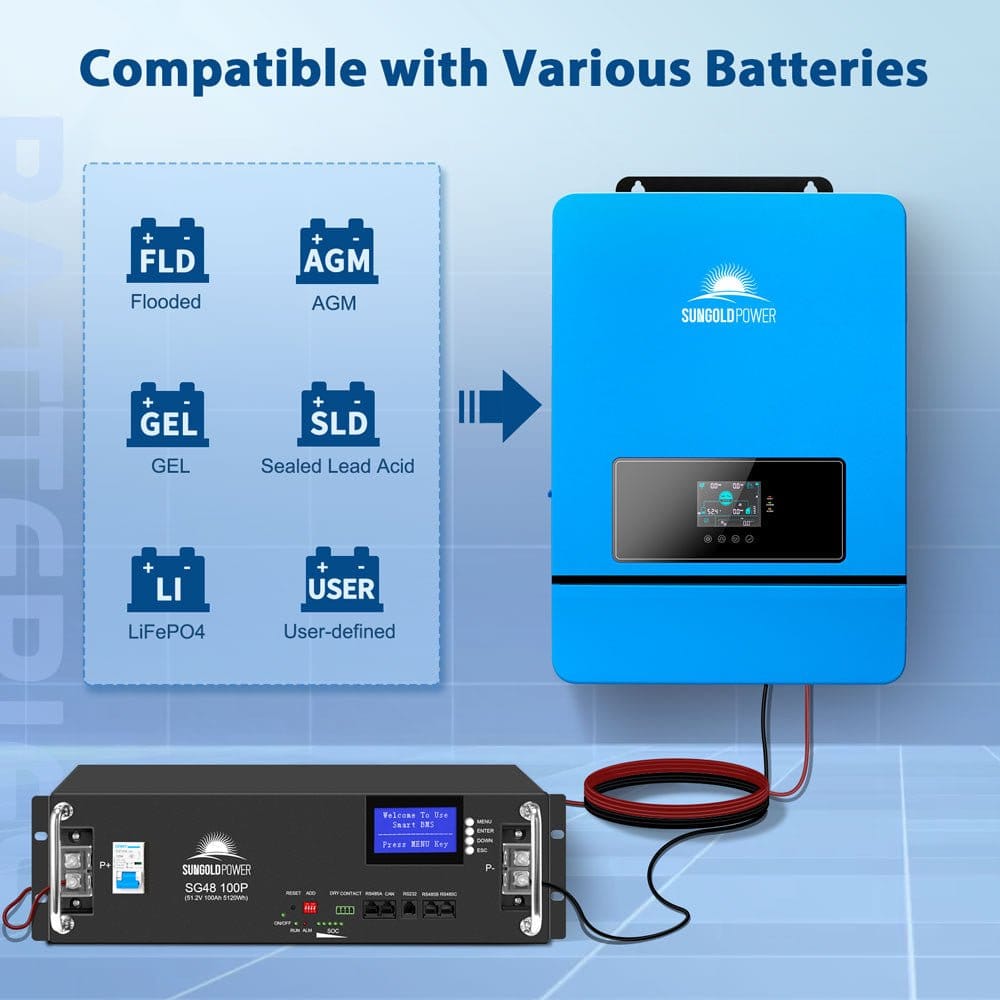

Battery Type	Lithium-ion / Lead-Acid / User-Defined
Rated Battery Voltage	48Vdc
Voltage Range	40Vdc-60Vdc
Max.MPPT Charging Current	200A
Max.Mains/Generator Charging Current	120A
Max.Hybrid Charging Current	200A

PV Input

Specification	Details
Num. of MPP Trackers	2
Max. PV array power	11,000W
Max. Input Current	22/22A
Max. Voltage of Open Circuit	550Vdc
MPPT Voltage Range	125-425Vdc

Mains/Generator Input

Specification	Details
Input Voltage Range	90-140V (Single Phase)
Frequency Range	50/60Hz
Bypass Overload Current	63A

Efficiency

Specification	Details
MPPT Tracking Efficiency	99.9%
Max. Battery Inverter Efficiency	92%

General

Specification	Details

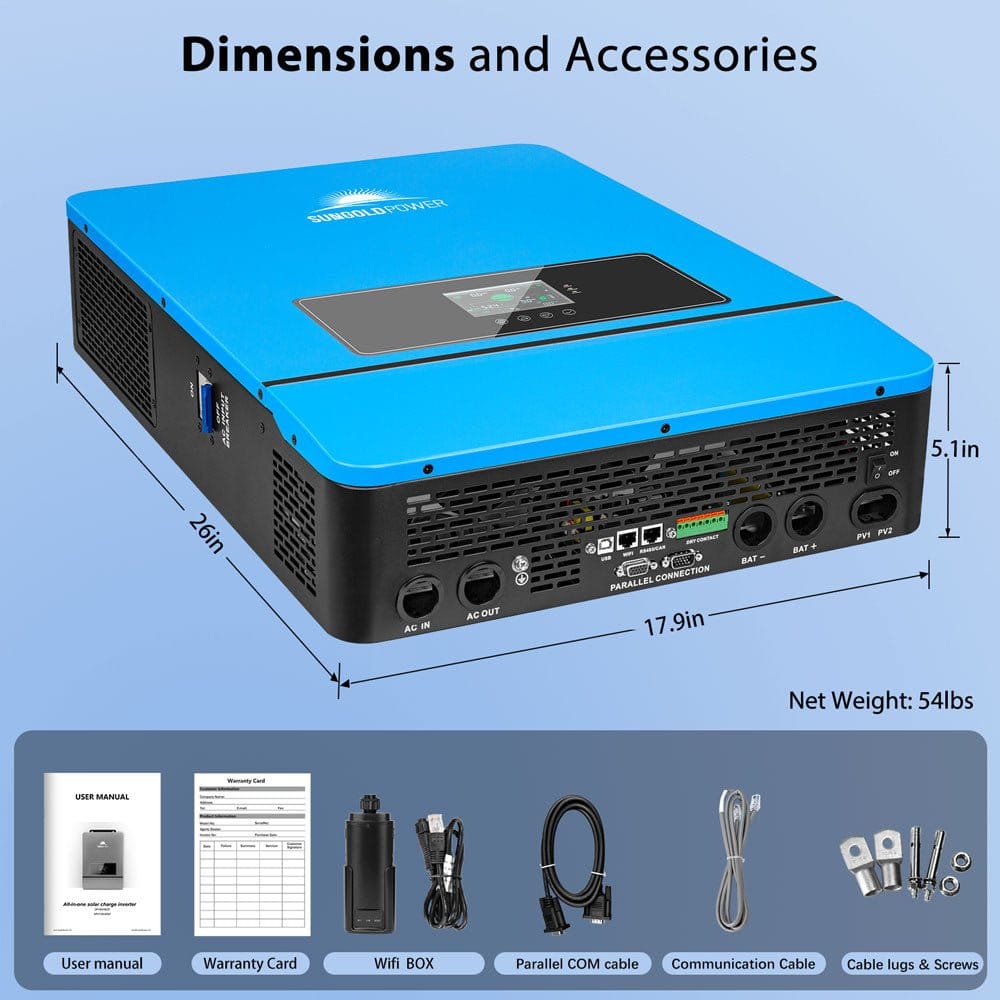

Dimensions	17.926.55. 1 inch
Weight	54lb
Protection Degree	IP20, Indoor Only
Operating Temperature Range	14~131°F, > 113°F derated (-10~55°C,>45°C derated)
Noise	<60dB
Cooling Method	Internal Fan
No-Load Consumption	95W/100W
Warranty	2 Years

Communication

Specification	Details
Embedded Interfaces	RS485 / CAN / USB / Dry Contact
External Modules (Optional)	Wi-Fi GPRS

FAQs

Can this inverter run an entire home?

Yes, with 20KW of continuous power, this system can support most household appliances and HVAC systems. It can also be expanded to 60KW for larger homes.

Does this inverter require batteries to operate?

No, it can function as a grid-tied or off-grid inverter. However, adding batteries improves energy storage and backup capabilities.

How quickly does the inverter switch during a power outage?

The UPS function switches to battery power in <10ms, ensuring uninterrupted power for critical loads.

Is remote monitoring available?

Yes, with the optional WiFi module, you can track system performance and manage settings via a mobile app.

Can I expand my system with additional inverters?

Yes, this system supports parallel operation up to 6 units, allowing scalability up to 60,000W.

Manual

Sungold Power 20KW 48V Split Phase Solar Inverter Manual
