Sungold Power 24V 100Ah LiFePo4 Deep Cycle Lithium Battery Bluetooth / Self-Heating / IP65

Sungold Power 24V 100Ah LiFePo4 Deep Cycle Lithium Battery Bluetooth / Self-Heating / IP65 Overview

The 24V 100AH LifePO4 Battery with advanced BMS and self-heating function ensure a 4000 long cycle life and exceptional discharge performance. If you’re searching for a deep cycle battery for caravan, RV, solar system, or marine use, this lightweight, auto-balanced, Bluetooth, IP65 grade and long-cycle-life lithium-ion battery is the perfect solution for you .

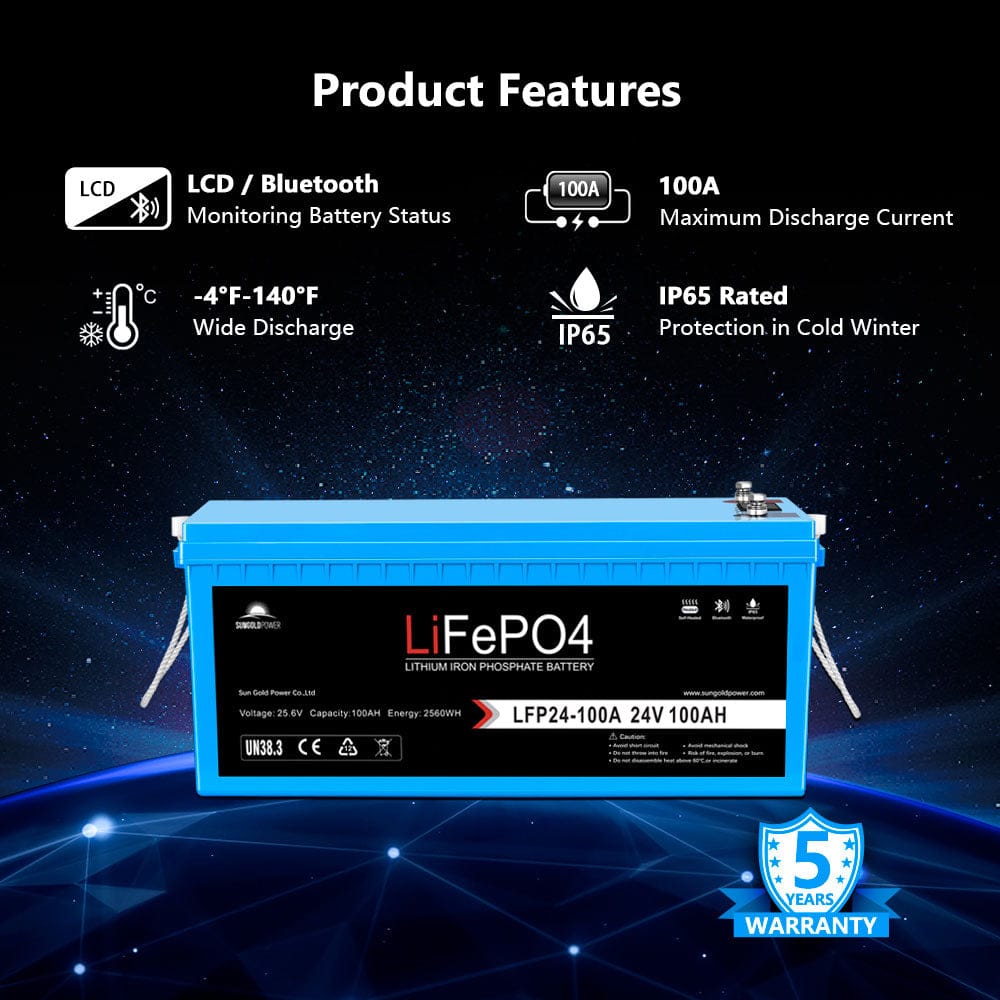

Sungold Power 24V 100Ah LiFePo4 Deep Cycle Lithium Battery Bluetooth / Self-Heating / IP65 Features

• Grade A battery Cell: Manufactured with automotive-grade battery cells with UL1973. High-quality battery cells make LiFePO4 battery provide 4000+deep cycles and more than 10 years lifetime, 5 years warranty.

• Advanced BMS: 24V 100AH LifePO4 Battery Built-in 100A BMS provides comprehensive protection to the battery from overcharging & discharging, over current, short circuits, and high-temperature cut-off.

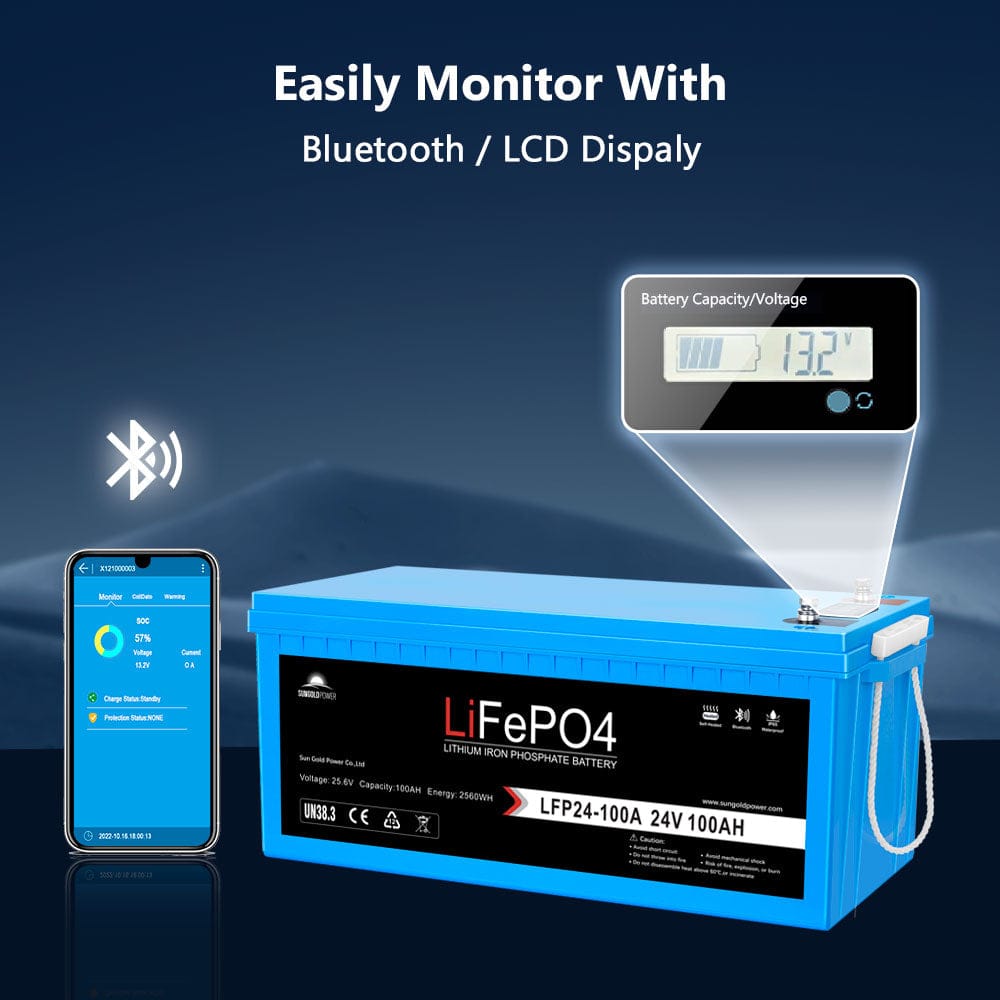

• Bluetooth module/ LCD display: you can check the battery voltage/SOC on the LCD display. Bluetooth module can also help you monitor your battery's real-time information more accurately and conveniently on mobile devices.

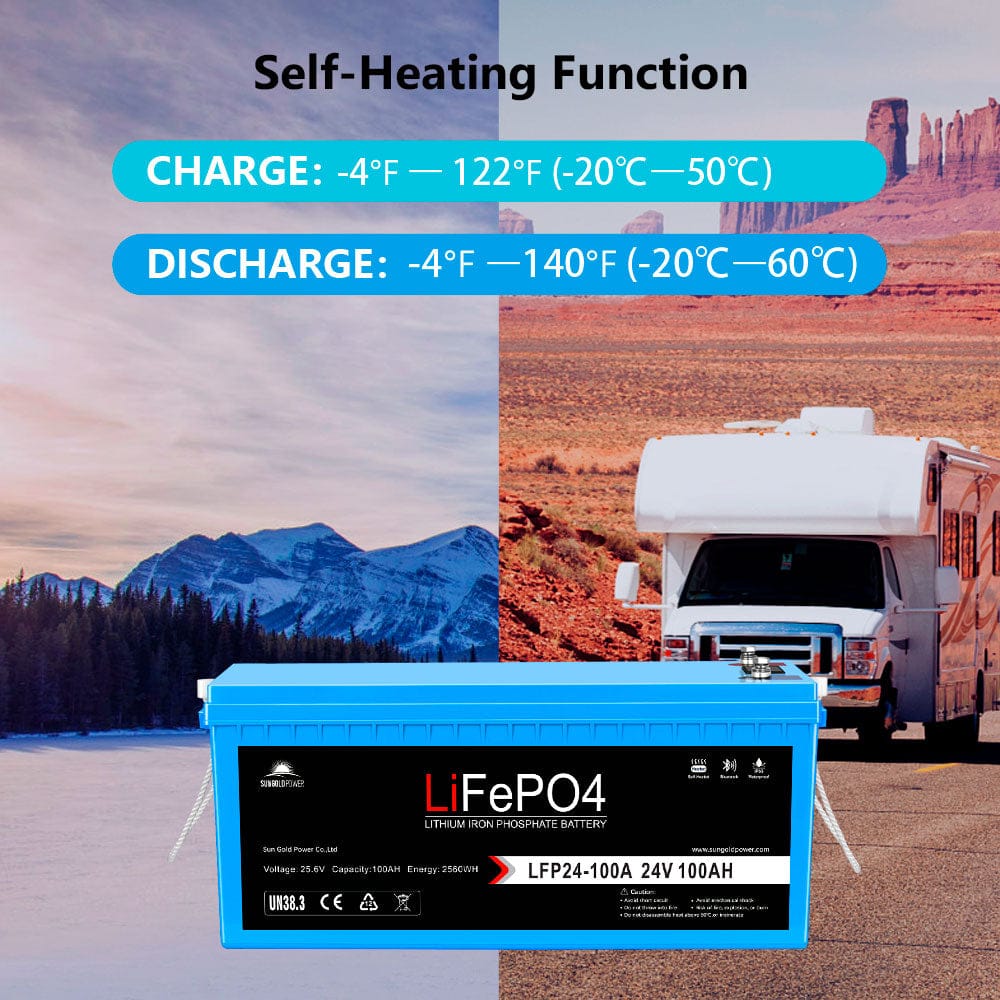

• Self-Heating Function: The intelligent self-heating function will be auto-activated operating when the battery’s core temperature drops below 33.8 °F (1 °C) and will be stopped when the temperature has reached 42.8 °F(6 °C). Perfect keeping your battery charged in cold winters, and are not restricted by the ambient temperature.

• Massive Energy Expansion:  SUNGOLDPOWER 24V 100Ah Lithium battery connect in Parallel for Larger Capacity for your RV life, van life, solar system, camping, etc.

Sungold Power 24V 100Ah LiFePo4 Deep Cycle Lithium Battery Bluetooth / Self-Heating / IP65 Specification

NORMINAL CHARACTERISTICS

• Nominal Voltage: 25.6 V
• Nominal Capacity: 100Ah
• Energy: 2560Wh
• Efficiency: ≥99.5%
• Recommend Connection: In Parallel

CHARGE & DISCHARGE CHARACTERISTICS

• Voltage Window: 21.6-29.2V
• Max. Continuous Charge Current: 100A
• Peak Discharge Current: 200A±3A(10s)
• Recommended charge current/A: 50A
• Recommended discharge current/A: 50A

OPERATING CONDITIONS

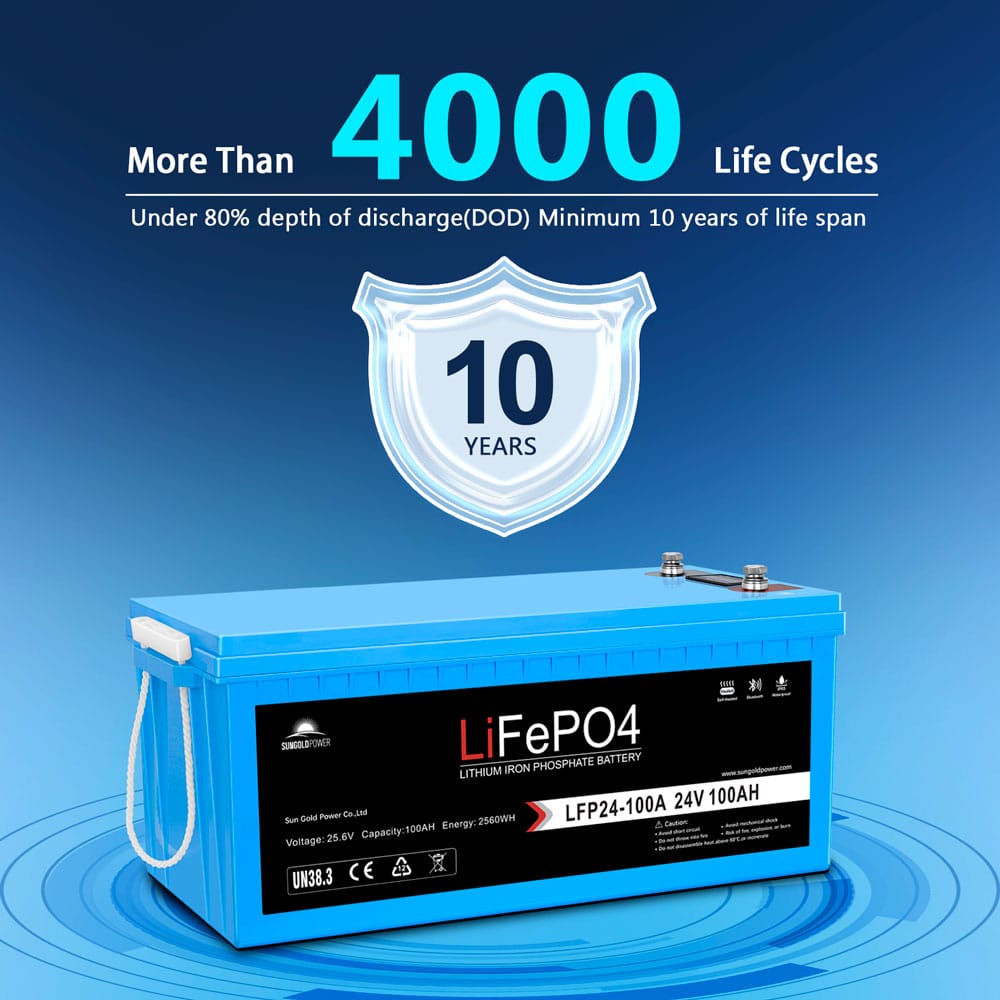

• Cycle Life (0.2C, 77°F: 80% DOD): ≥4000
• Operating Temperature (Charge): -4°F~ 113°F(-20°C~45°C)
• Operating Temperature (Discharge): -4°F ~131°F(20 °C~55 °C)
• Monitoring Function: LCD

MECHANICAL CHARACTERISTICS

• Case Material: ABS

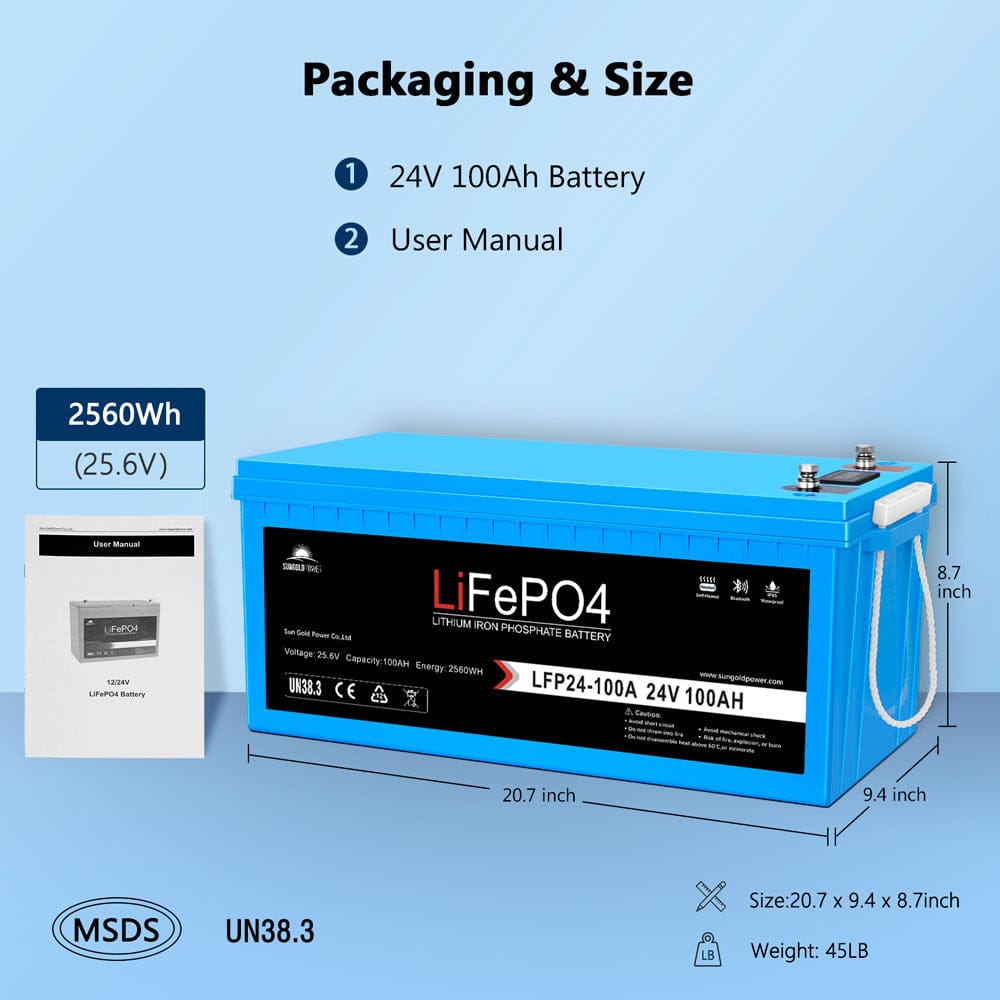

• Dimension (L*W*H): 20.7*9.4*8.7 inch
• Weight: 45lb
• Terminal Type: M8
• IP Grade: 65

BMS CHARACTERISTICS

• Communicating Function: Bluetooth

User Manual

• Sungold Power 24V 100AH LiFePO4 Deep Cycle Lithium Battery / Bluetooth /Self-heating / IP65 Data Sheet
• Sungold Power 24V 100Ah LiFePo4 Deep Cycle Lithium Battery Bluetooth / Self-Heating / IP65 User Manual
