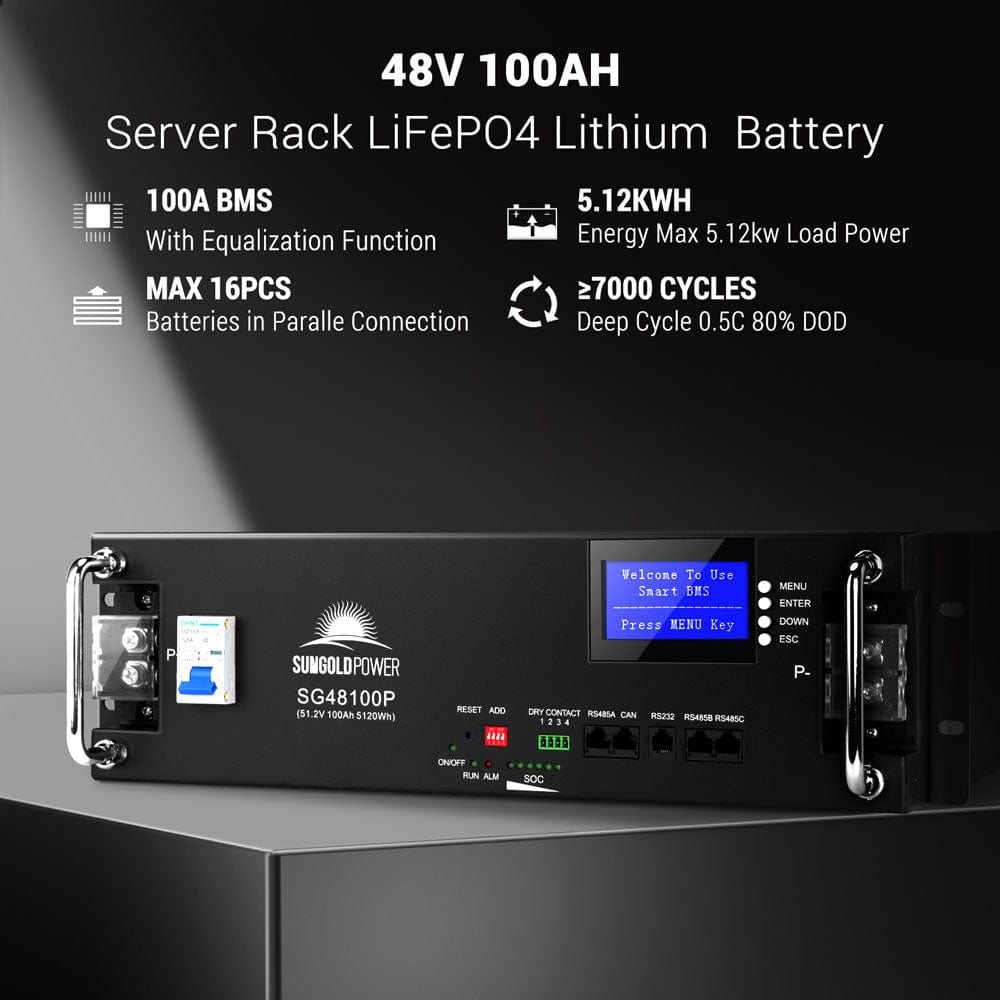

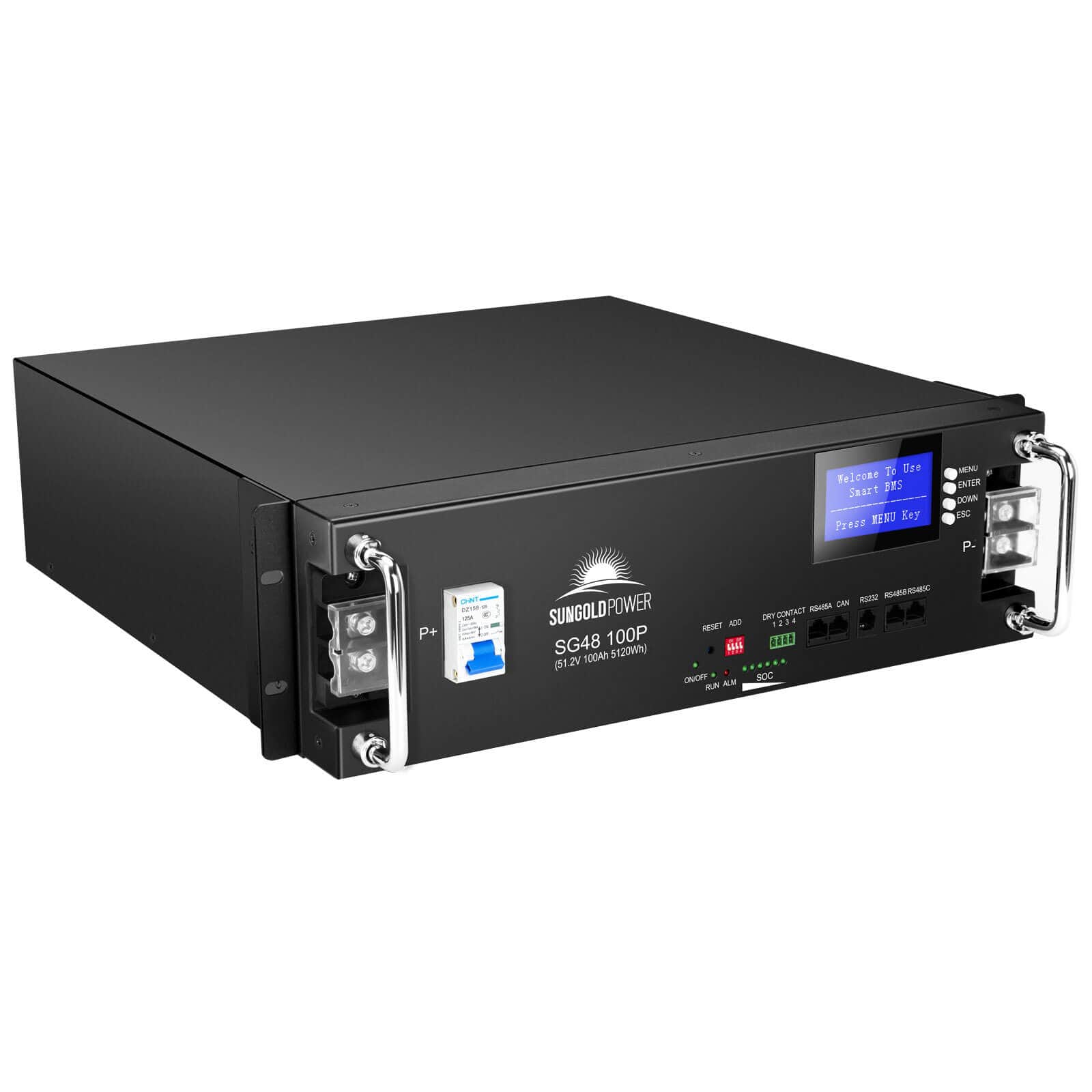

Sungold Power 48V 100AH Server Rack LiFePO4 Lithium Battery

Sungold Power 48V 100AH Server Rack LiFePO4 Lithium Battery Overview

Sungold Power 48V 100AH Server Rack LiFePO4 Lithium Battery is built for the energy storage system. lt provides a well-designed and high-performance standard battery pack. The battery is compact, easy to install, free of maintenance, and can be installed in parallel in the energy storage system to increase its capacity. it is widely used in home applications, small commercial and industrial energy storage systems, and so on.

Sungold Power 48V 100AH Server Rack LiFePO4 Lithium Battery Features

• Character: The 51.2V 100AH LFP Battery is compact, well-designed, LCD, and cable/accessories ready for installation. ≥7000 cycles deep cycle & 10 years warranty, designed for up to 15-year life.UL1973.

• Intelligent BMS :Battery Management System can manage and monitor cells information including voltage, current and temperature, protects it from overcharge, deep discharge, overloading, overheating and short circuit, help to extend lifetime.

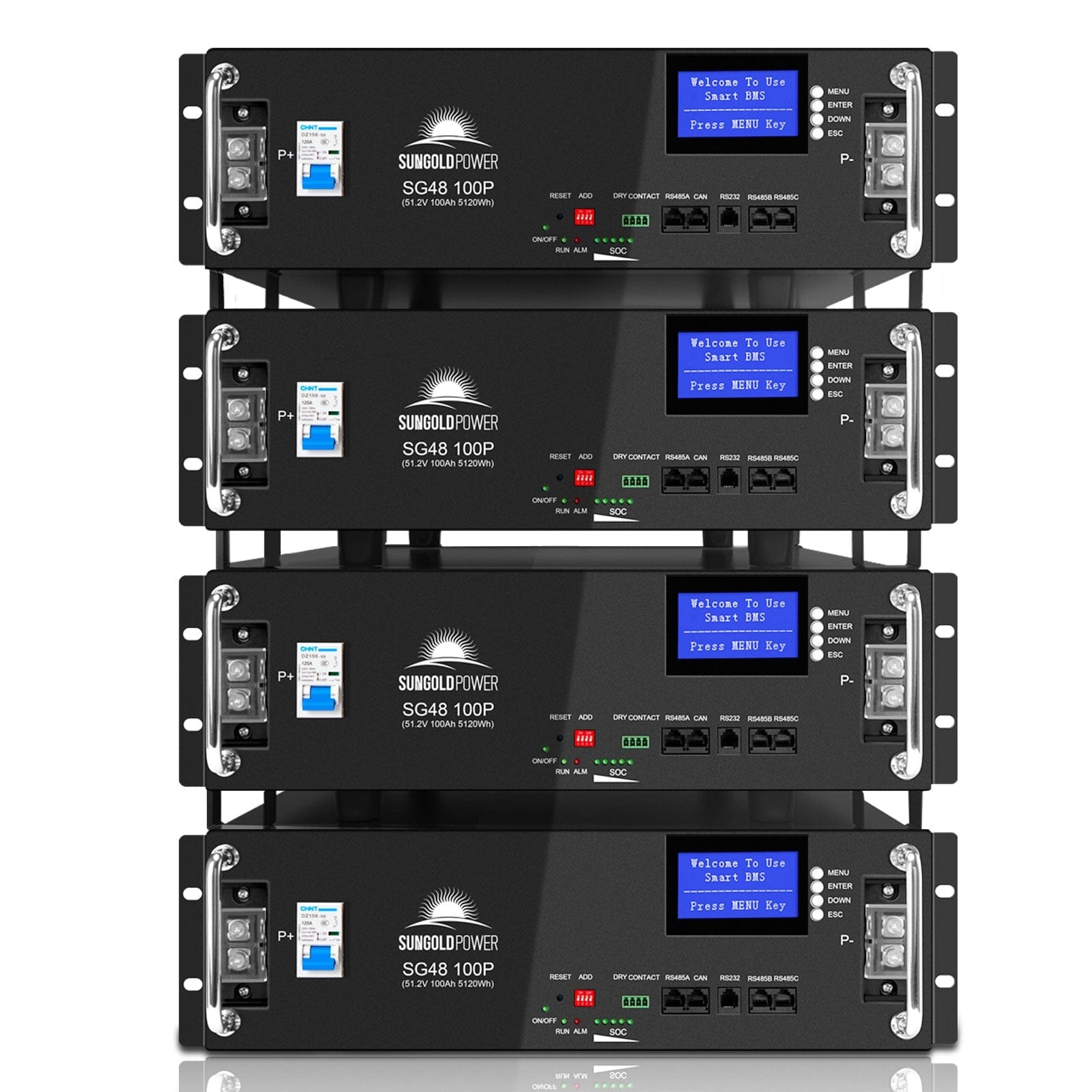

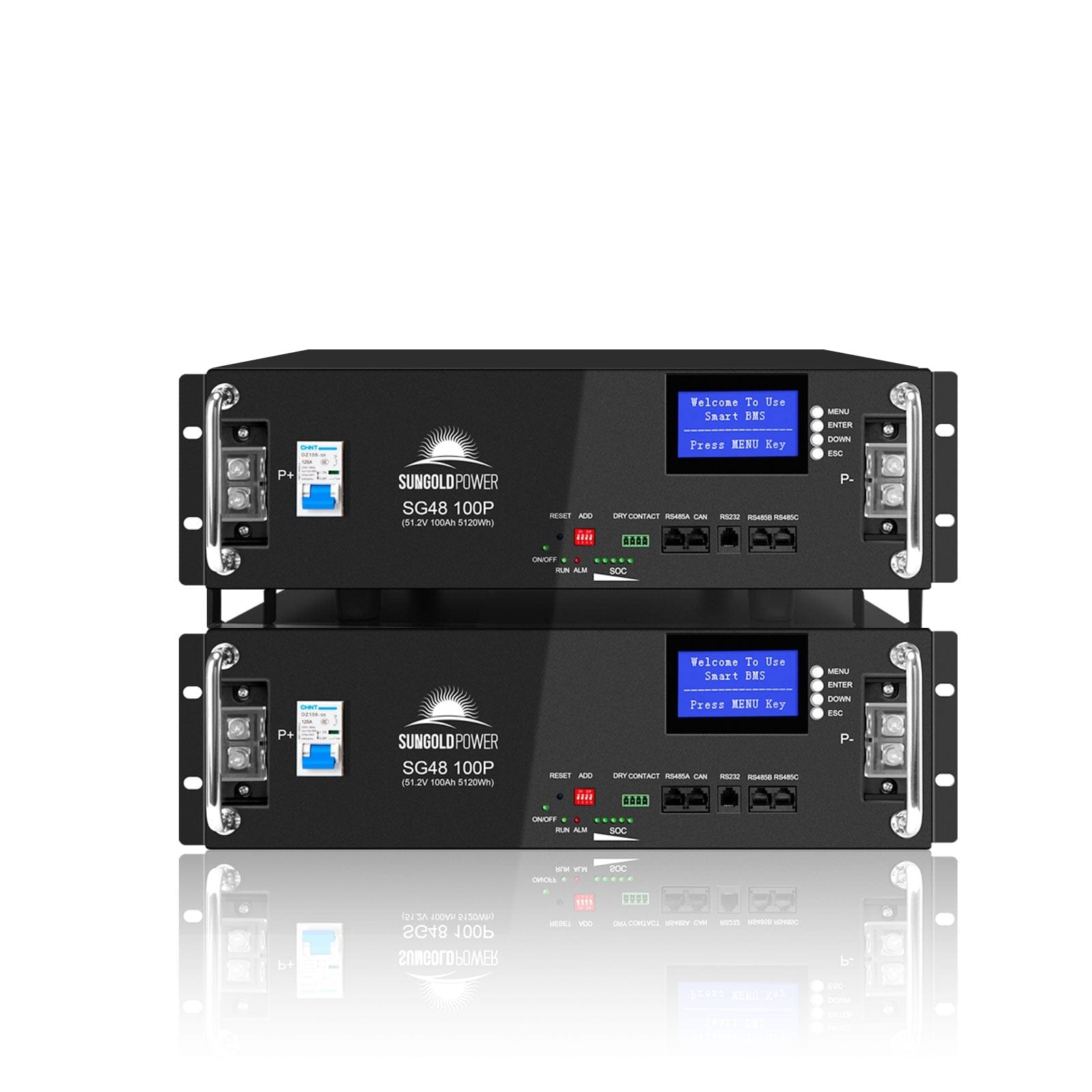

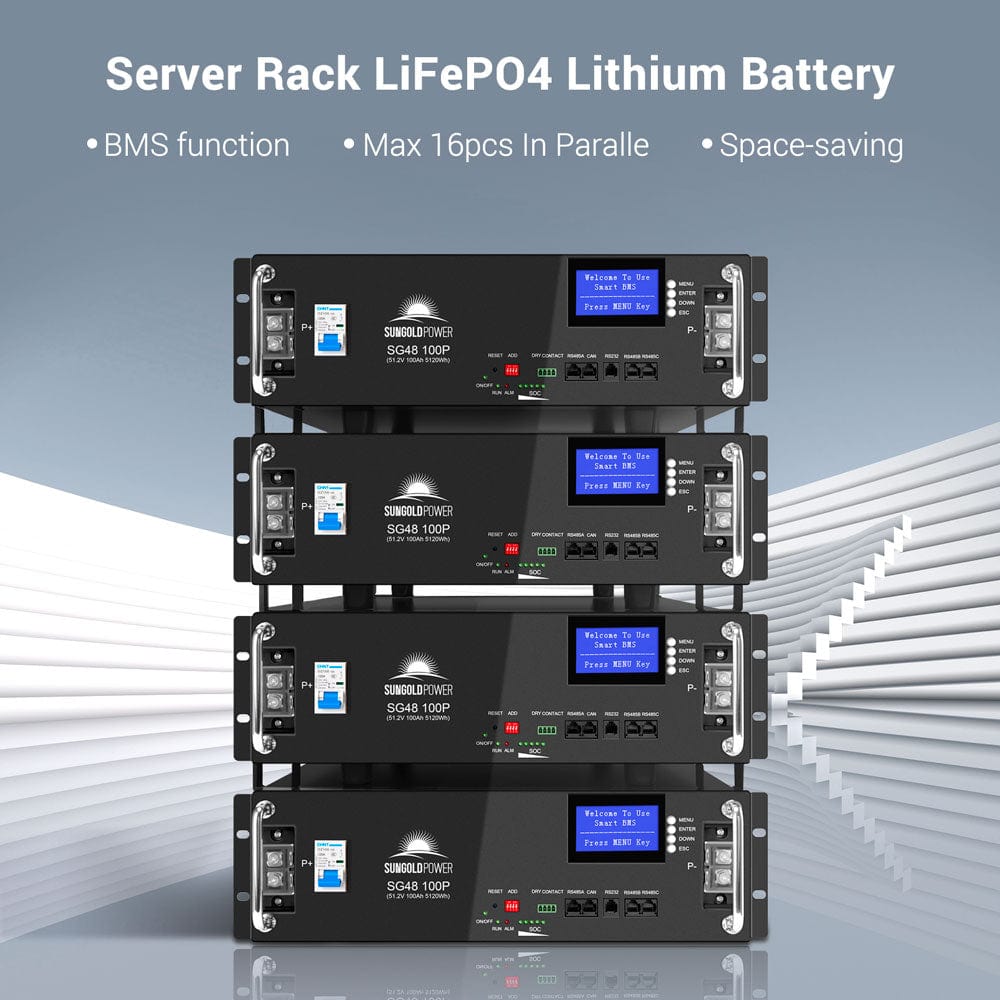

• Flexible : Modular design, easy to expand, max 16 units in parallel capacity of 81.9kwh, suitable to residential and commercial applications and other energy storage system for increasing the self-consumption ratio.

• Compatible: CAN/RS485/RS232 Communication Protocol Lithium Ion Battery can be compatible with most inverters in the market, such as Growatt, Deye, SunGoldPower, Luxpower, Victron energy, Schneider, Phocos, SMK and so on.

WHAT IS IN THE BOX?

• 1 x 51.2V 100AH Sever Rack Battery
• 1 x battery cables
• 1 x RS485 Communication Cable (Battery-Battery or Battery-Inverter)
• 1 x RS485 Communication Cable to PC for Monitoring (optional)
• 1 x RS232 Communication cable to PC for monitoring (optional)

Sungold Power 48V 100AH Server Rack LiFePO4 Lithium Battery Specifications

• Battery Model: SG48100P
• Chemistry: Lithium iron phosphate battery
• Nominal Voltage: 51.2V
• Maximum cut-off voltage for charging: 57.6V
• Charging Limited Voltage: 42V
• Nominal Capacity: 100A
• Nominal Energy: 5.12kWh

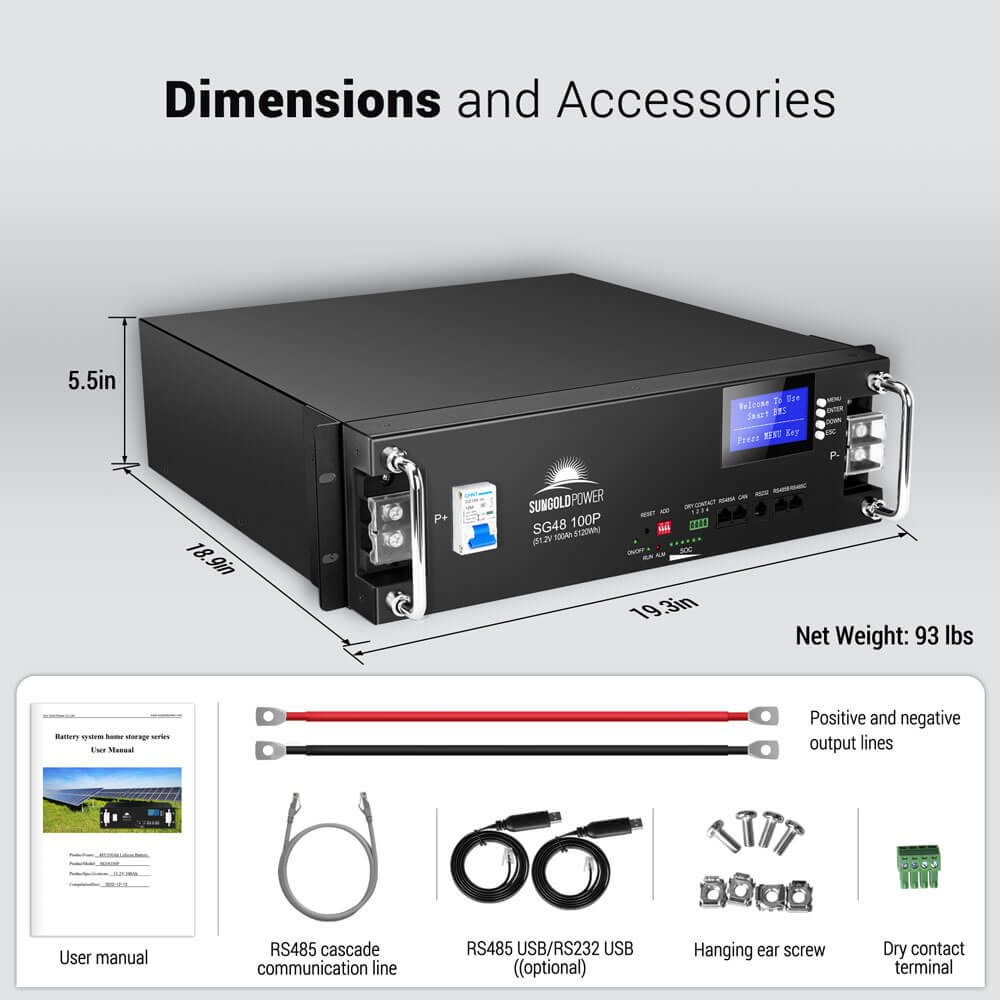

• Unit Dimension (L*W*H): 19.3 X 18.9 X 5.5 inch
• Unit Weight: 93lbs
• Charge cut-off current: 5A
• Maximum cut-off voltage for charging: 57.6V
• Standard Continuous Charge/Discharge Rate: 50A
• Discharge cut-off voltage: 43.2V
• Communication Protocol: RS232/RS485/CAN Support multiple protocols
• Cycle Life: ≥7000
• Calendar Life: >15 Year
• Operating Temperature (Battery charging): 32°F~113°F
• Operating Temperature (Battery discharging):-4°F~140°F
• Maximum Allowed Modules in Parallel: Supports up to 32 batteries in parallel
• Storage Temperature: 14°F~113°F
• Certificates: CE UN38.3 UL1973

User Manual

• Sungold Power 48V 100AH Server Rack LiFePO4 Lithium Battery Data Sheet
• Sungold Power 48V 100AH LiFePO4 Lithium Battery User Manual
