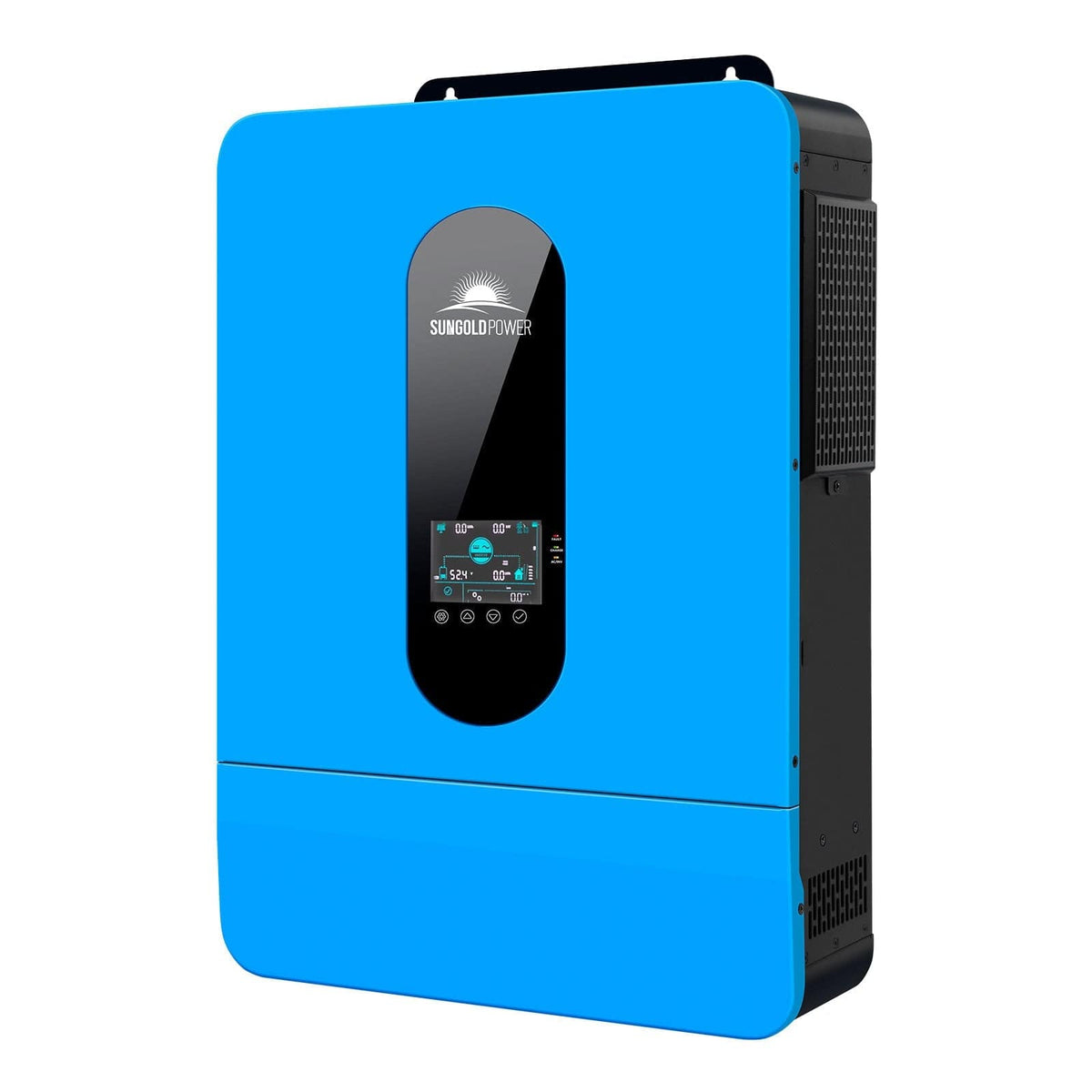

SunGold Power | 6.5kW 48V Split Phase Solar Inverter | SPH6548P Hybrid Inverters SunGoldPower Only Inverter

SunGold Power | 6.5kW 48V Split Phase Solar Inverter | SPH6548P Hybrid Inverters SunGoldPower

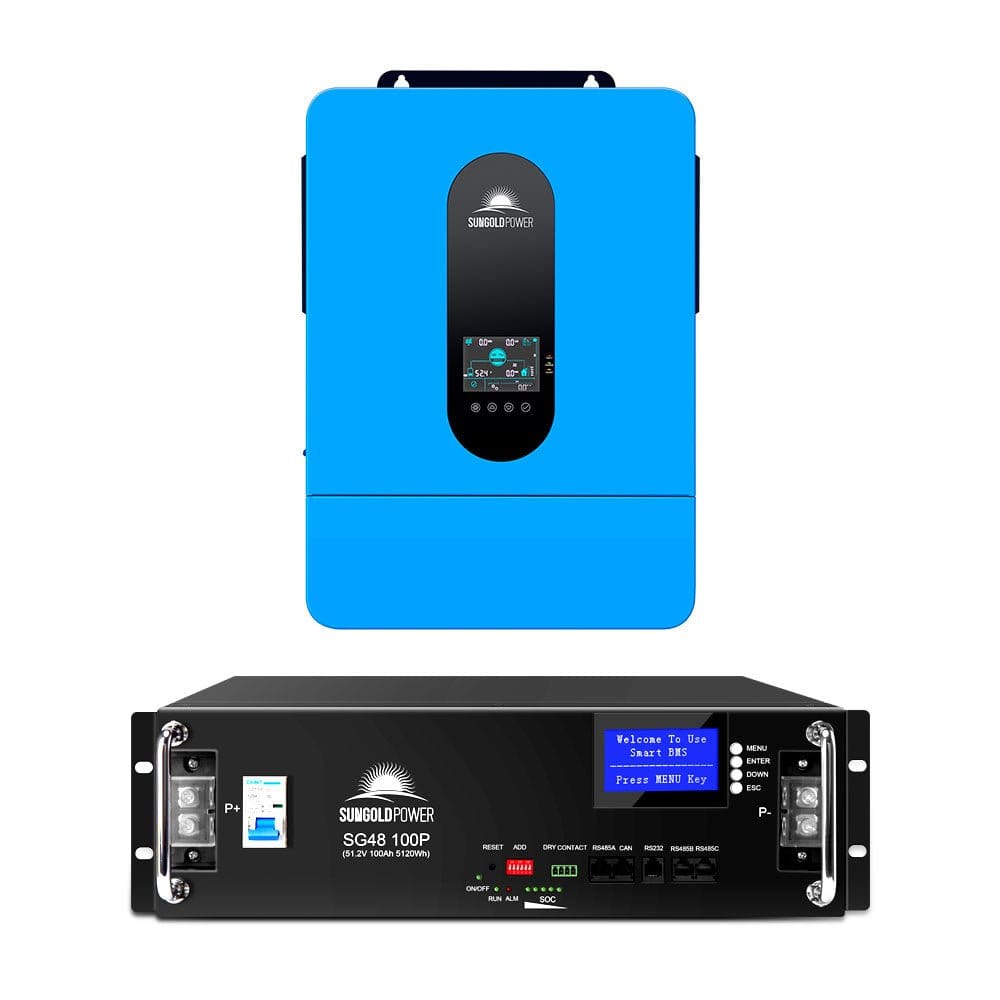

SunGold Power | 6.5kW 48V Split Phase Solar Inverter | SPH6548P Hybrid Inverters SunGoldPower Inverter+48V 100AH Lithium Battery

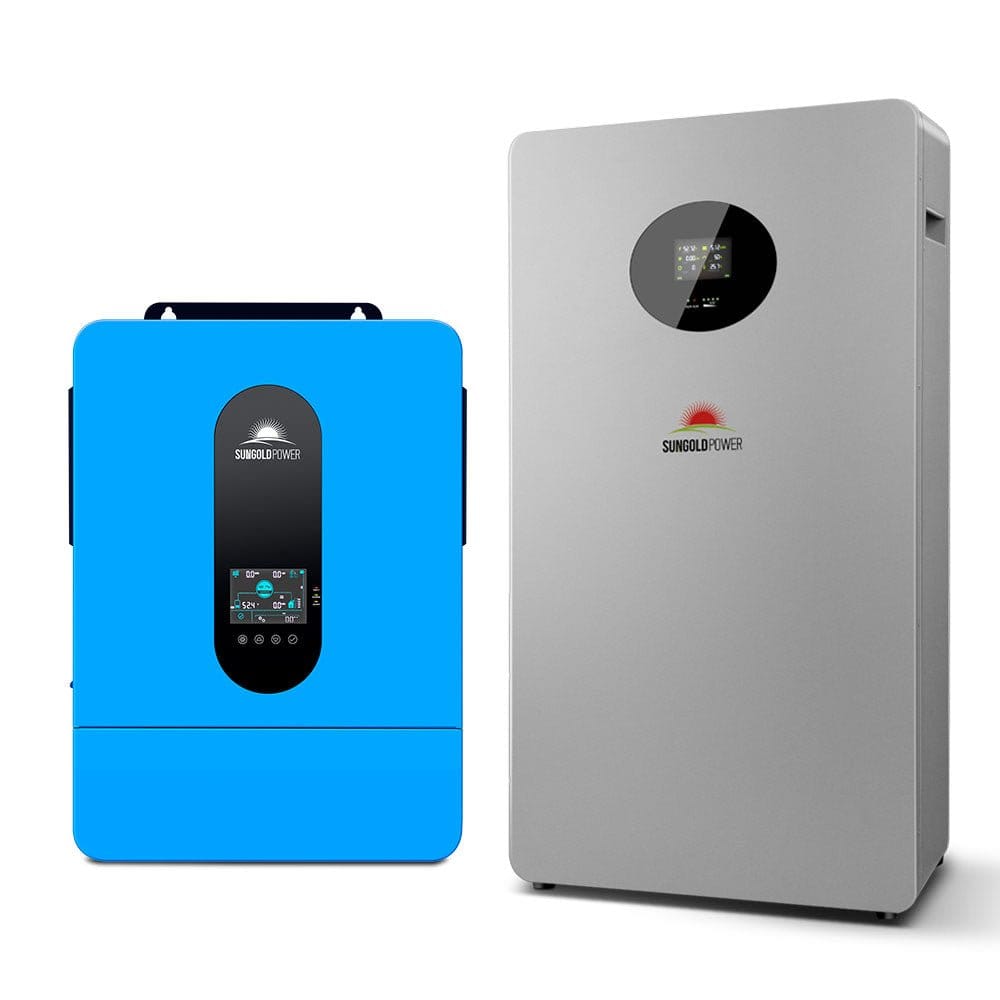

SunGold Power | 6.5kW 48V Split Phase Solar Inverter | SPH6548P Hybrid Inverters SunGoldPower Inverter+200AH Lithium Battery

SunGold Power | 6.5kW 48V Split Phase Solar Inverter | SPH6548P

Name: SunGold Power | 6.5kW 48V Split Phase Solar Inverter | SPH6548P
Brand: SunGoldPower
SKU: SPH6548P+SG48100P
Price: 2390.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

BY: SunGoldPower

SKU: SPH6548P+SG48100P

| Availability: In stock

$3,210.00

$2,390.00

You Save: $820.00

Product Model:

Quantity

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized SunGoldPower Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

SunGold Power | 6.5kW 48V Split Phase Solar Inverter | SPH6548P

The SunGold Power 6.5kW 48V Split Phase Solar Inverter (SPH6548P) is a high-performance hybrid inverter designed for off-grid, grid-tied, and battery backup applications. Featuring dual MPPT solar charge controllers, advanced Wi-Fi monitoring, and multiple charging/discharging modes, this inverter ensures efficient energy management for residential and commercial systems. With a split-phase 120V/240V output, parallel expansion support, and a robust protection system, it’s the ideal choice for solar energy storage and backup power solutions.

SunGold Power | 6.5kW 48V Split Phase Solar Inverter Features

Powerful & Versatile Hybrid Inverter

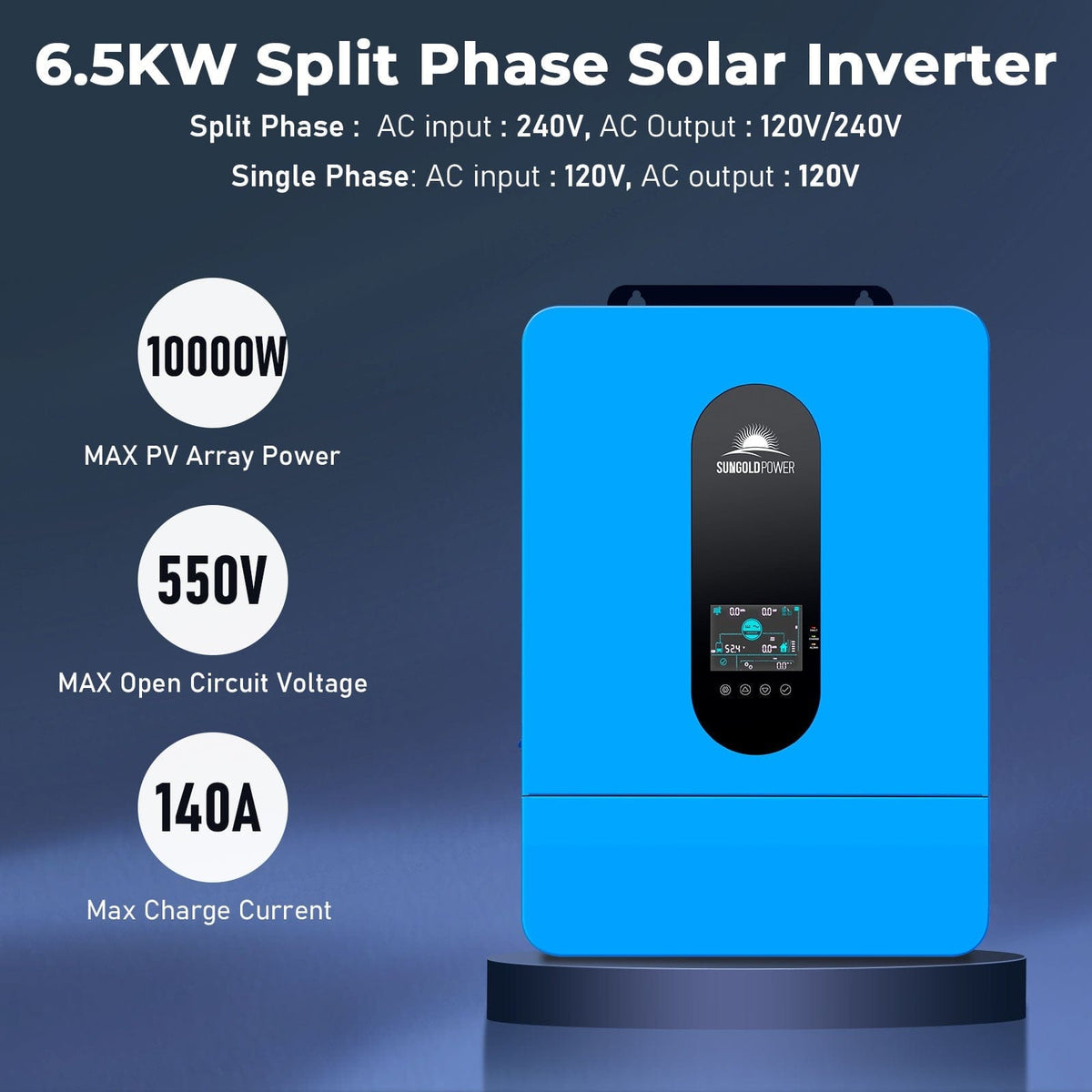

6.5kW rated power output, supporting both 120V/240V split-phase and 120V single-phase applications.
Dual MPPT solar charge controllers with a maximum 10,000W PV input.
Battery and non-battery operation for grid-tied, off-grid, and hybrid solar systems.

Advanced Charging & Energy Management

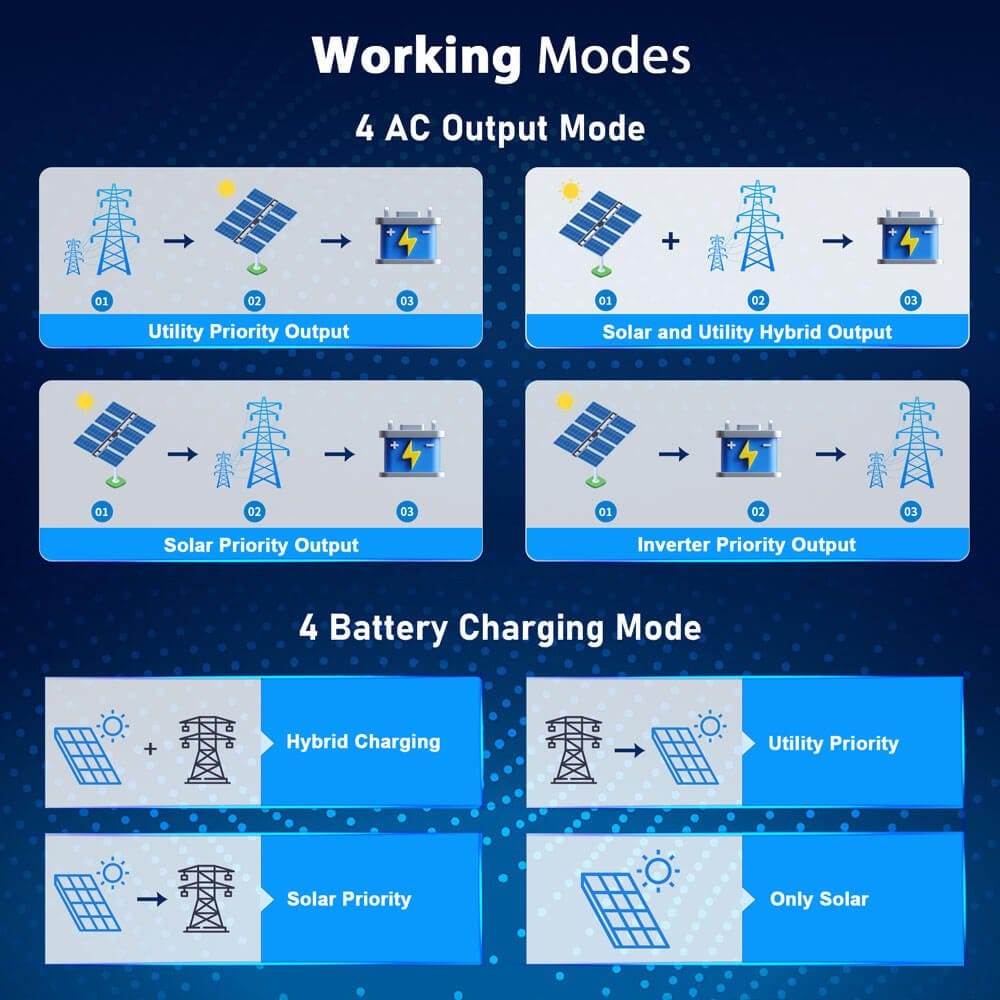

Supports multiple charging modes: solar priority, utility priority, and hybrid charging.
Automatic battery activation via PV or grid power to optimize energy efficiency.

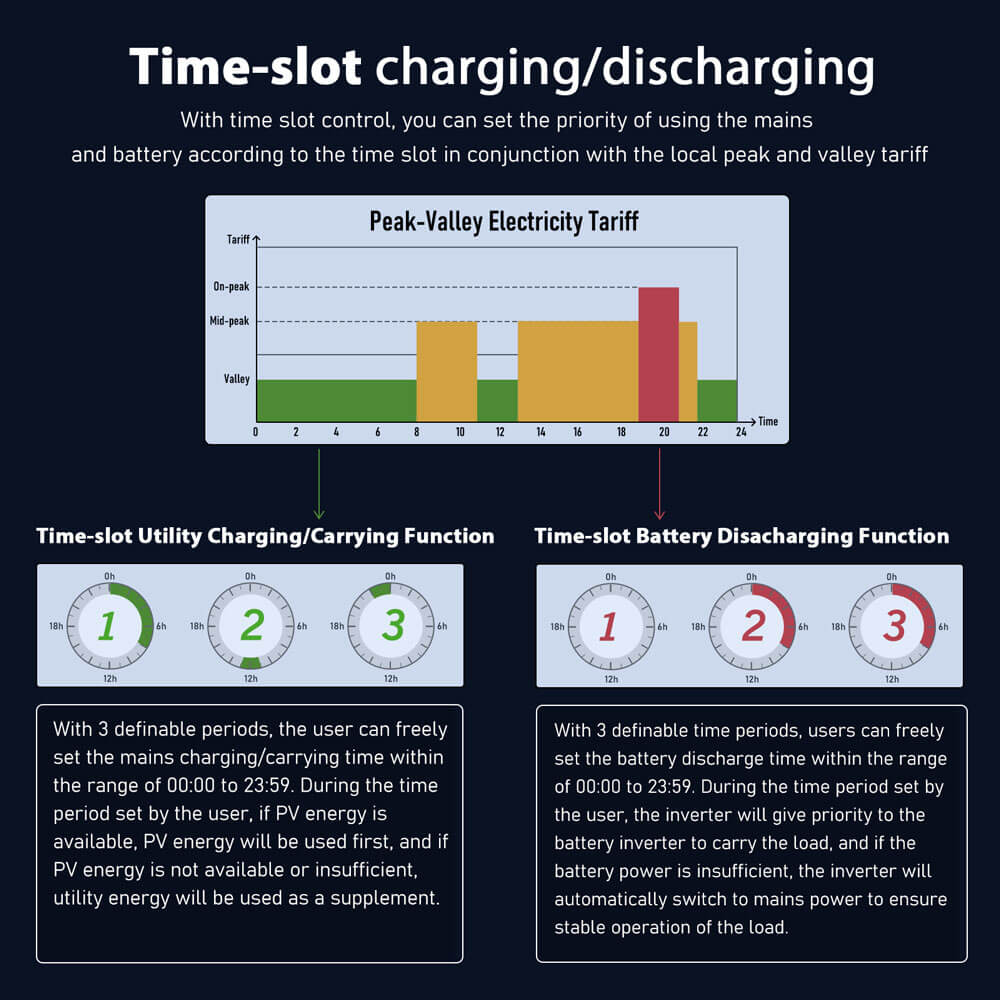

Adjustable time-slot charging and discharging schedules to comply with local energy rates and maximize savings.

Parallel Operation for Increased Power

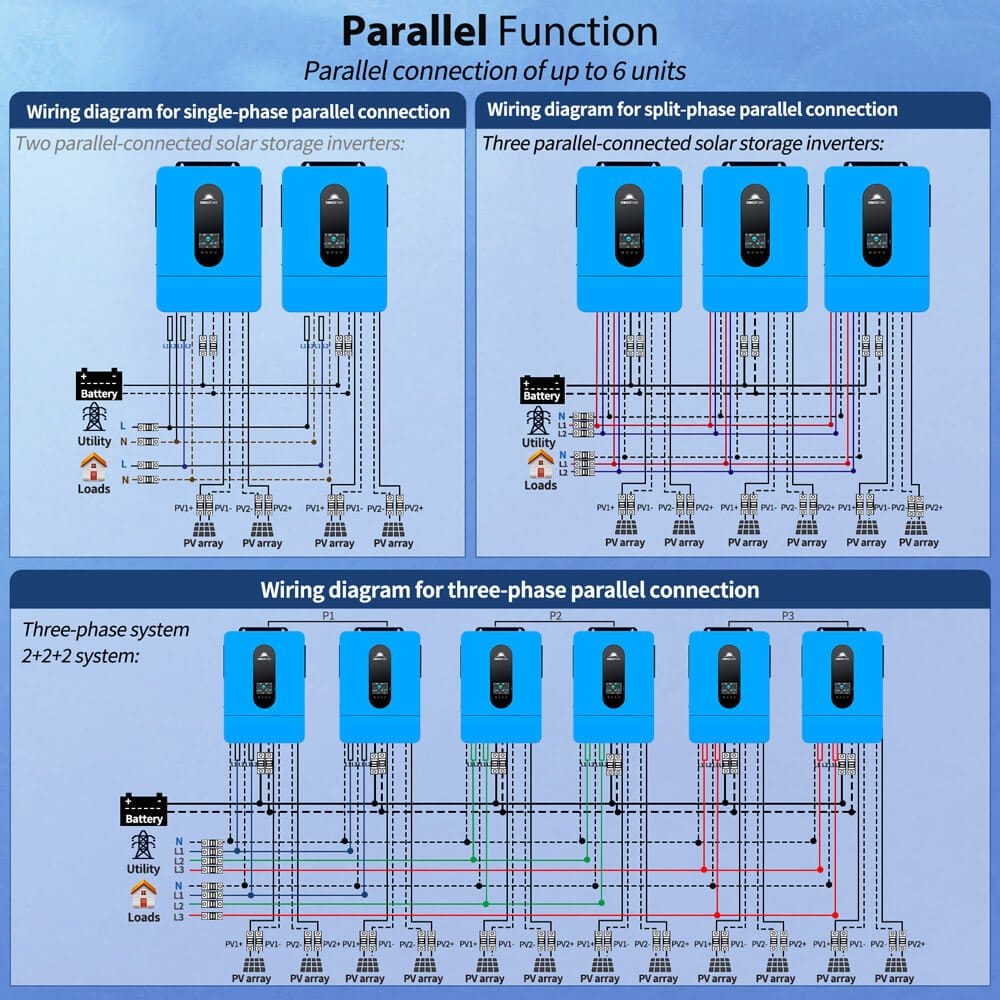

Expandable up to 6 units, achieving a maximum 39kW system capacity.
Supports single-phase, split-phase, and three-phase configurations.

Smart Monitoring & Remote Control

Built-in Wi-Fi for real-time system monitoring and remote configuration.
RS485, CAN, and USB communication for seamless integration with battery management systems (BMS).

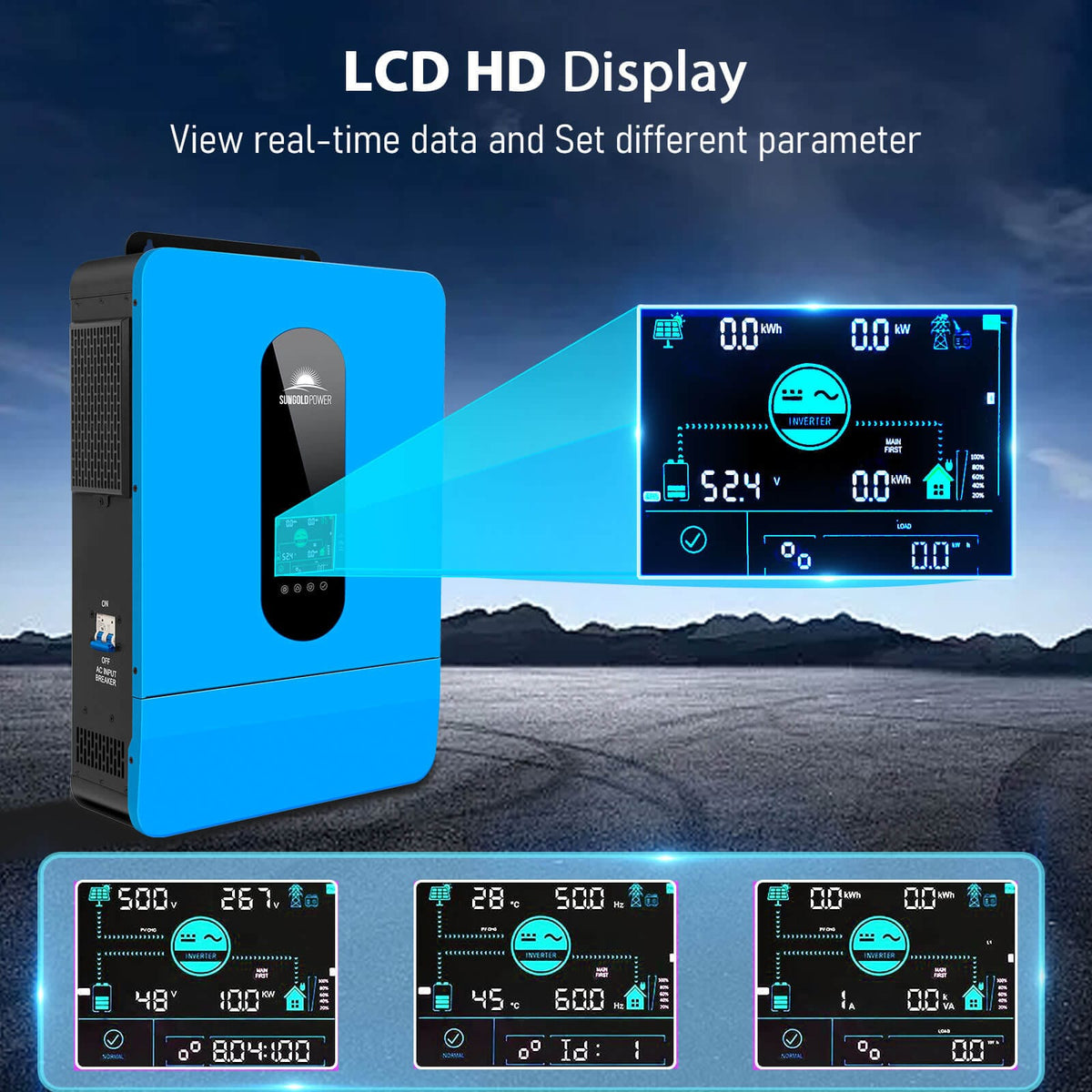

LCD display and LED indicators for easy status monitoring.

Reliable Protection & Safety Features

Advanced safety features, including over-voltage, under-voltage, short-circuit, and overload protection.
Integrated surge protection safeguards against power fluctuations.
Smart cooling system ensures optimal performance under heavy loads.

SunGold Power | 6.5kW 48V Split Phase Solar Inverter Applications

Home Backup Power – Keeps essential appliances running during power outages.

Off-Grid Solar Systems – Ideal for cabins, remote homes, and agricultural setups.

Grid-Tied with Battery Backup – Reduces reliance on the grid and provides energy savings.

Commercial & Industrial Power Systems – Supports high-demand applications and energy independence.

Mobile Solar Power Solutions – Great for RVs, boats, and portable solar setups.

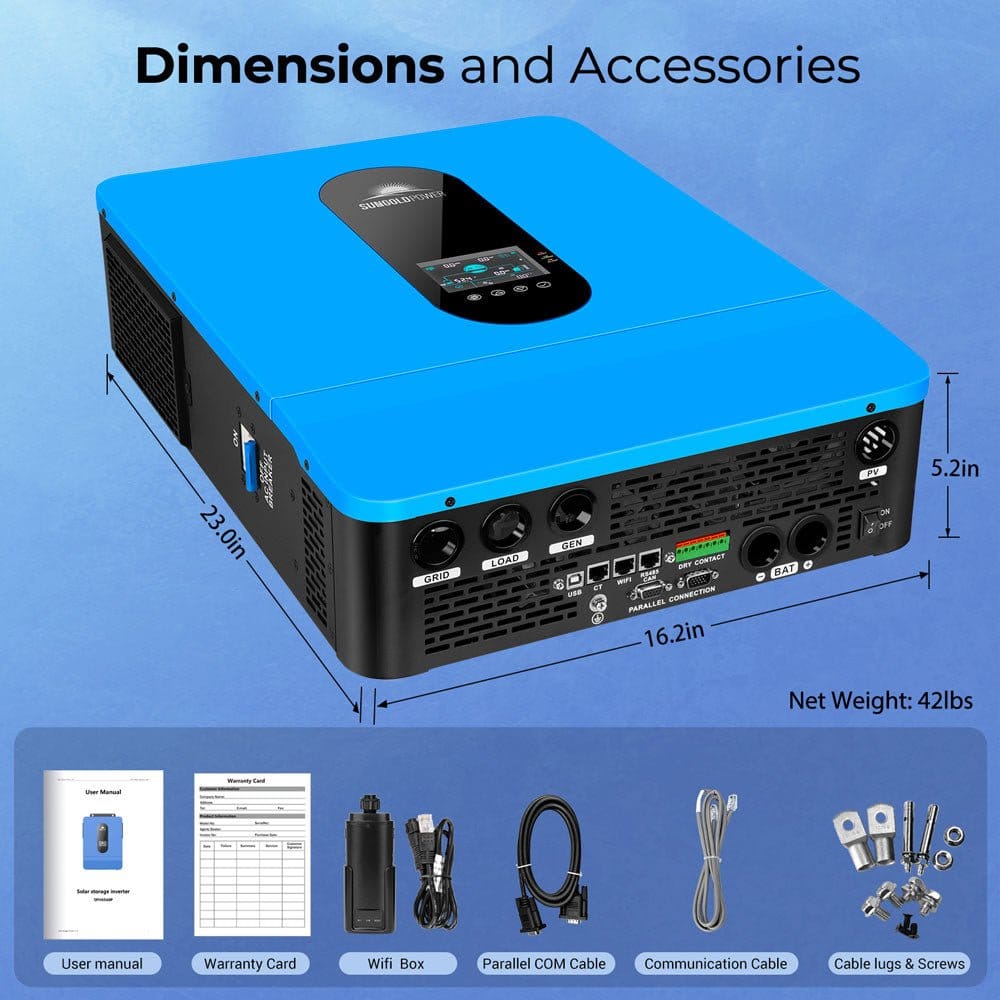

What's Included

Everything you need is included with your product.

SunGold Power 6.5kW 48V Split Phase Solar Inverter
Wi-Fi Monitoring Module

User Manual
Accessory Kit

SunGold Power | 6.5kW 48V Split Phase Solar Inverter Specifications

Inverter Output

Specification	Details
Rated Output Power	6500W
Max. Peak Power	13,000W VA
Rated Output Voltage	120/240Vac (split phase/single phase)
Rated AC Frequency	50/60Hz
Output wave	Pure Sine Wave
Switch Time	10ms (Typical)
Parallel Number	6

Battery

Specification	Details

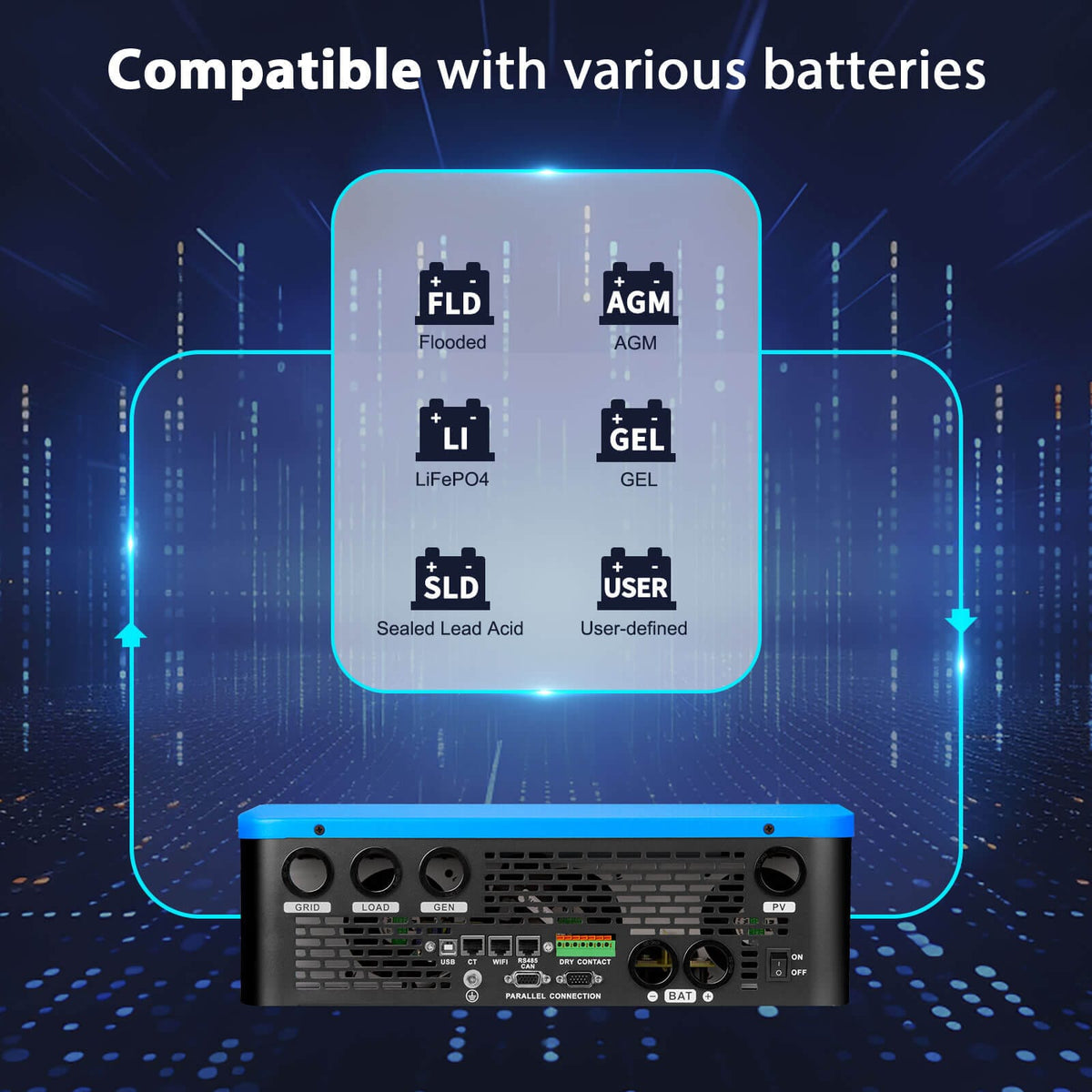

Battery Type	Lithium-ion battery / Lead-Acid Battery / User-defined battery
Rated Battery Voltage	48Vdc
Voltage Range	40Vdc-60Vdc
Max. Mains/Generator Charging Current	80A
Maximum Mix Charge Current	140A

PV Input

Specification	Details
MPPT Channel Number	2
Maximum Input Power	5000W+5000W
Maximum Input Current	18/18A
Maximum Open Circuit Voltage	550Vdc+550Vdc
MPPT Operating Voltage Range	150Vdc-450Vdc

Mains / Generator Input

Specification	Details
Input Voltage Range	65VAC-140VAC
Input Frequency Range	50/60Hz
Bypass Overload Current	40A

Efficiency

Specification	Details
MPPT Tracking Efficiency	99.9%
Max. Battery Inverter Efficiency	93%

General

Specification	Details
Dimensions	23.0 inch16.1inch5.23inch (584.6mm410mm133mm)
Weight	41.7lb (18.9kg)
Protection Level	IP20, Indoor use only
Operating Temperature Range	14~131°F, >113°F derating (-10~55°C,>45°C derating)
Noise	<60dB
Cooling Method	Internal Fan

Communication

Specification	Details
Embedded Interfaces	RS485 / CAN / USB / Dry contact
External Modules (Optional)	Wi-Fi / GPRS

FAQs

Can this inverter power my entire home?

Yes, the SunGold Power 6.5kW inverter supports whole-home backup, running essential loads and appliances with battery or solar power.

Does this inverter require a battery to operate?

No, it supports both battery and non-battery modes, allowing direct solar-to-grid operation.

How quickly does the inverter switch to battery power during outages?

The inverter features a <10ms automatic UPS function, ensuring seamless power transition.

Is remote monitoring available?

Yes, the built-in Wi-Fi module enables real-time monitoring and control via the SunGold Power mobile app.

Can I expand my system with multiple inverters?

Yes, the SPH6548P supports parallel operation with up to 6 units, enabling a total system capacity of 39kW.
