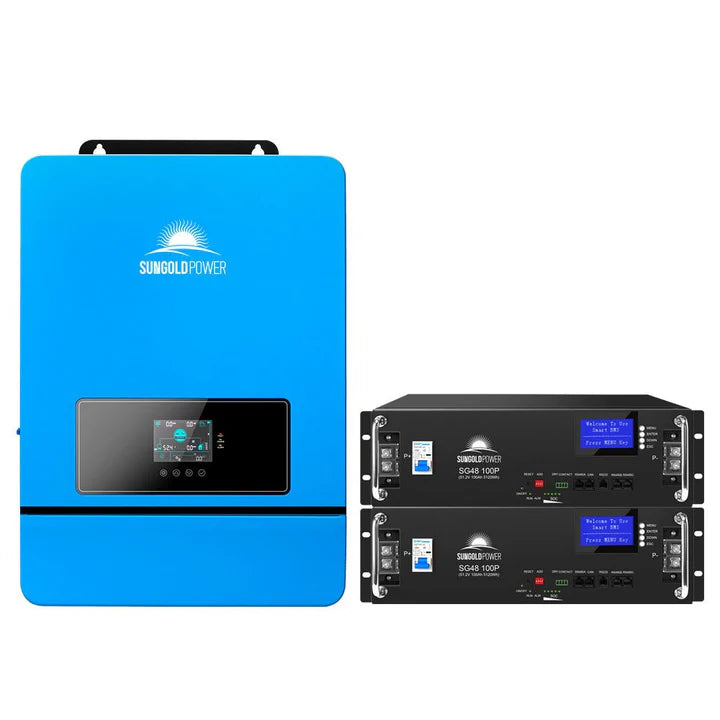

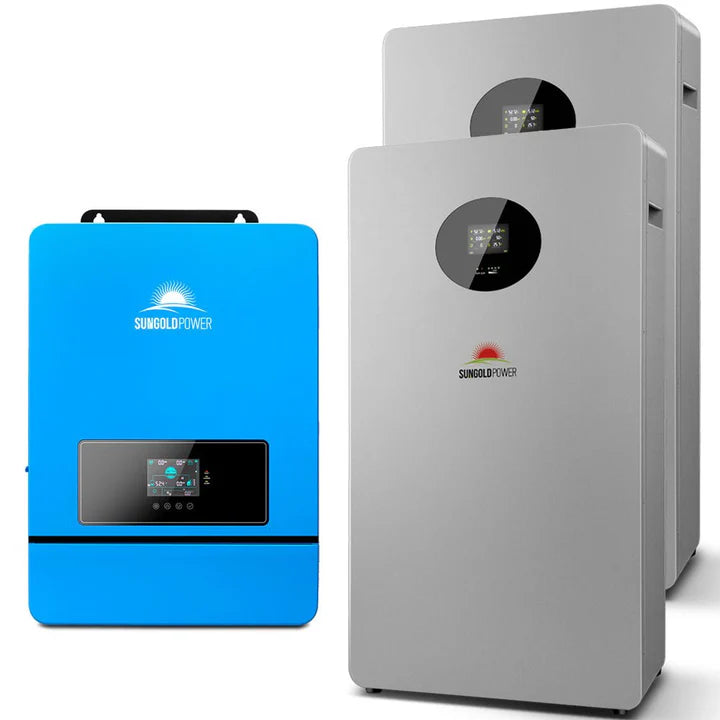

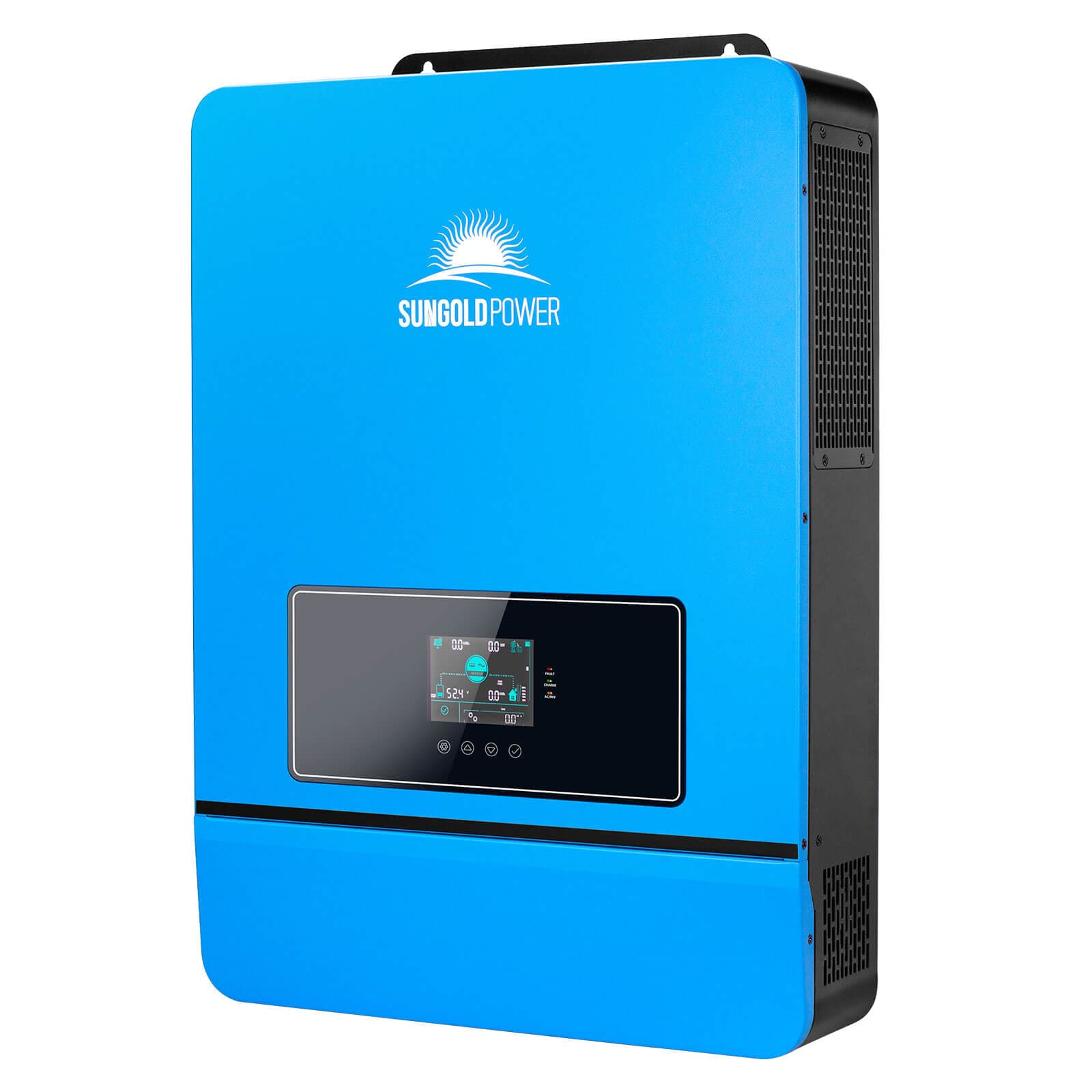

Sungold Power 8KW 48V Split Phase Solar Inverter

Sungold Power 8KW 48V Solar Inverter Charger Overview

The SungoldPower 8000W Solar Hybrid Inverter offers a versatile solution for on-grid, off-grid, or combined solar power systems, with extensive charging options, expandable configurations, and multiple operation modes.

This all-in-one inverter simplifies your solar setup by integrating a 8000-watt pure sine wave inverter, a 100A battery charger, and a powerful MPPT solar charge controller. It seamlessly blends grid-tied and off-grid functionality, allowing you to leverage solar energy even during power outages. With a Wi-Fi module (potentially sold separately), you can monitor system performance remotely.

Sungold Power 8KW 48V Solar Inverter Charger Feature

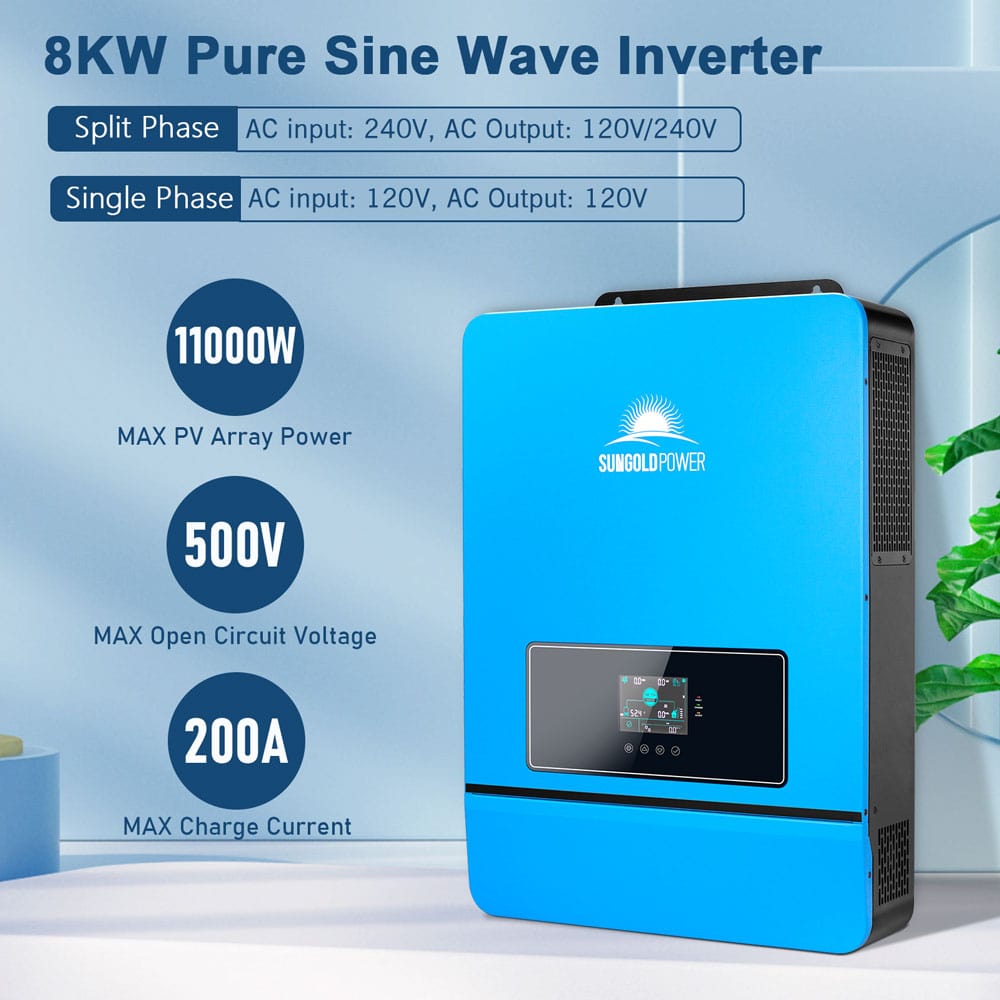

• All in one unit: 8KW Pure Sine Wave Solar Inverter Combined with Max 200A battery charging, 2 MPPT Solar controller inbuilt, Max.Voltage of Open Circuit : 500VDC, Split phase (120V/240V) or Single phase (120v) output. Wifi module is included, which allows the user to view the operating status and parameters of the inverter via the mobile phone APP,UL1741 Listed by ETL.
• Stable AC output and Smart Protection: Rated Output Power:8000W, Max Peak Power:16,000W, loaded motor capacity 6HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection,Over-load protection and so on.

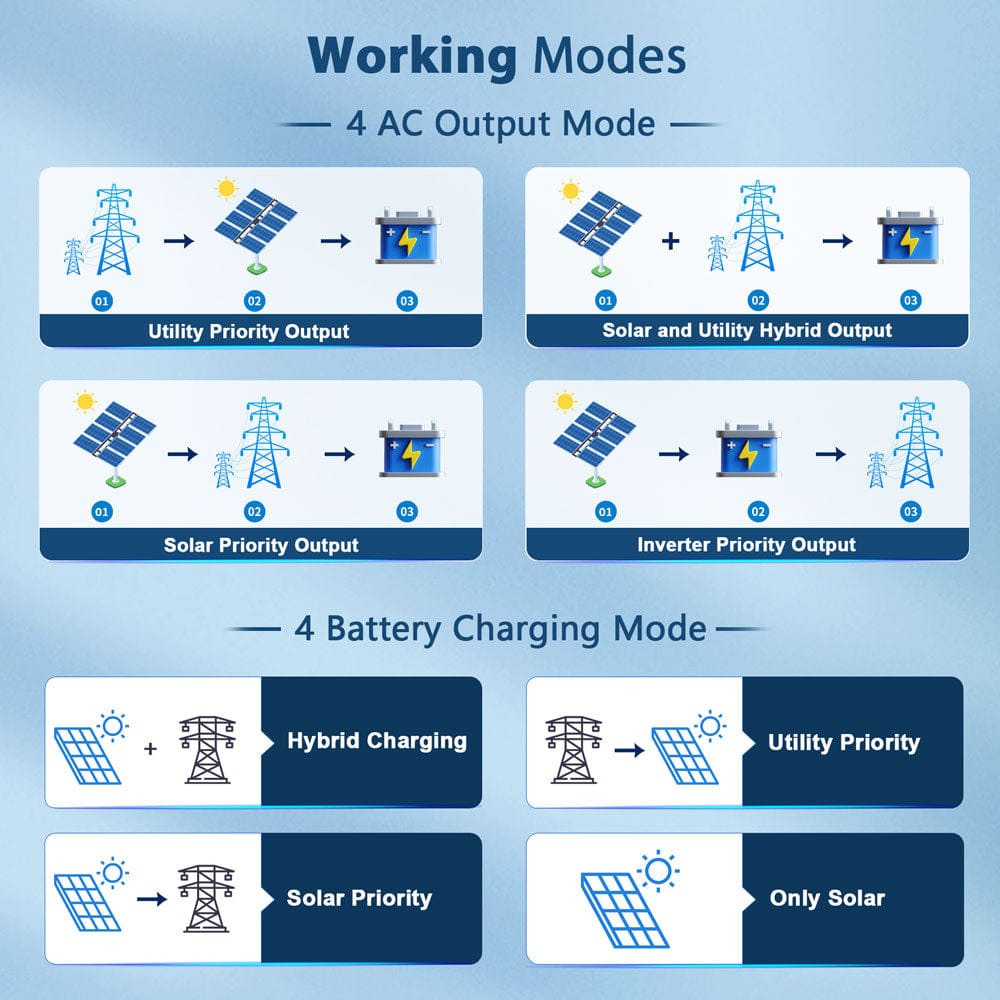

• Four charging / Output modes: Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes:  Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.

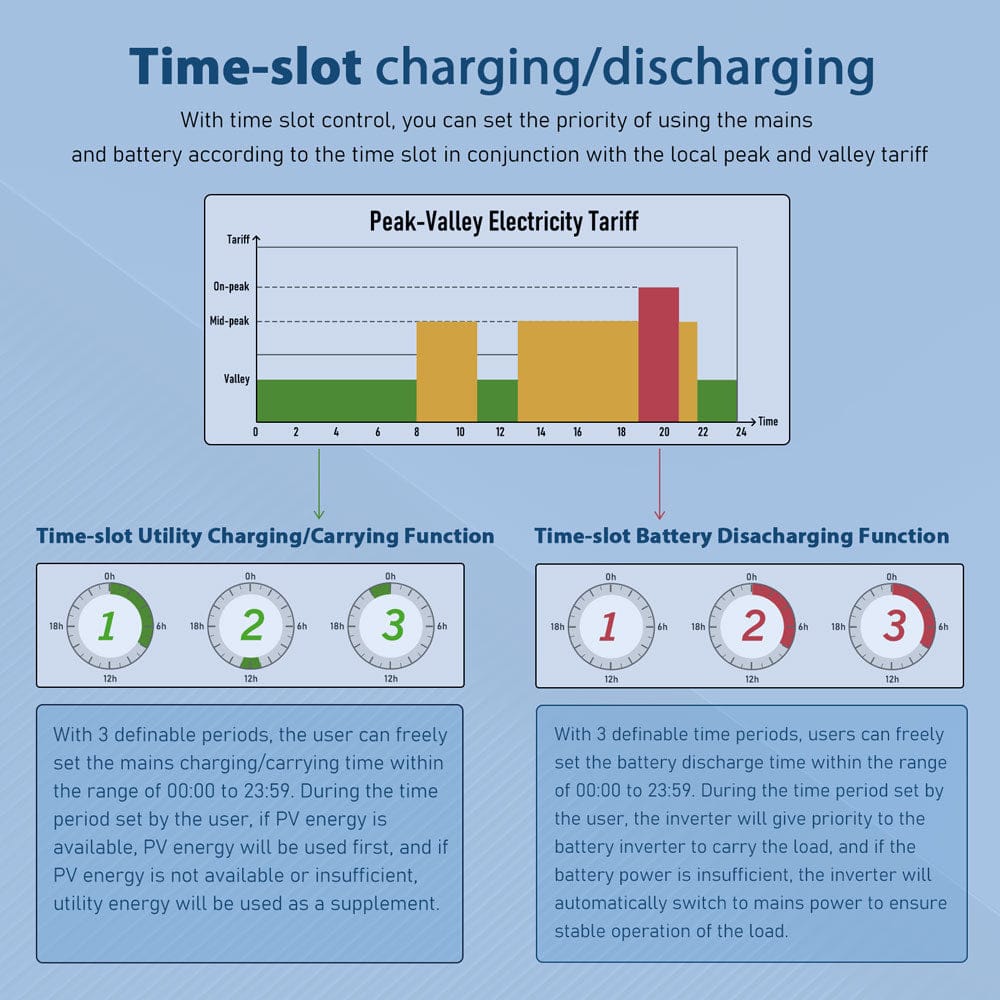

• Time-slot charging/discharging function: The SPH series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

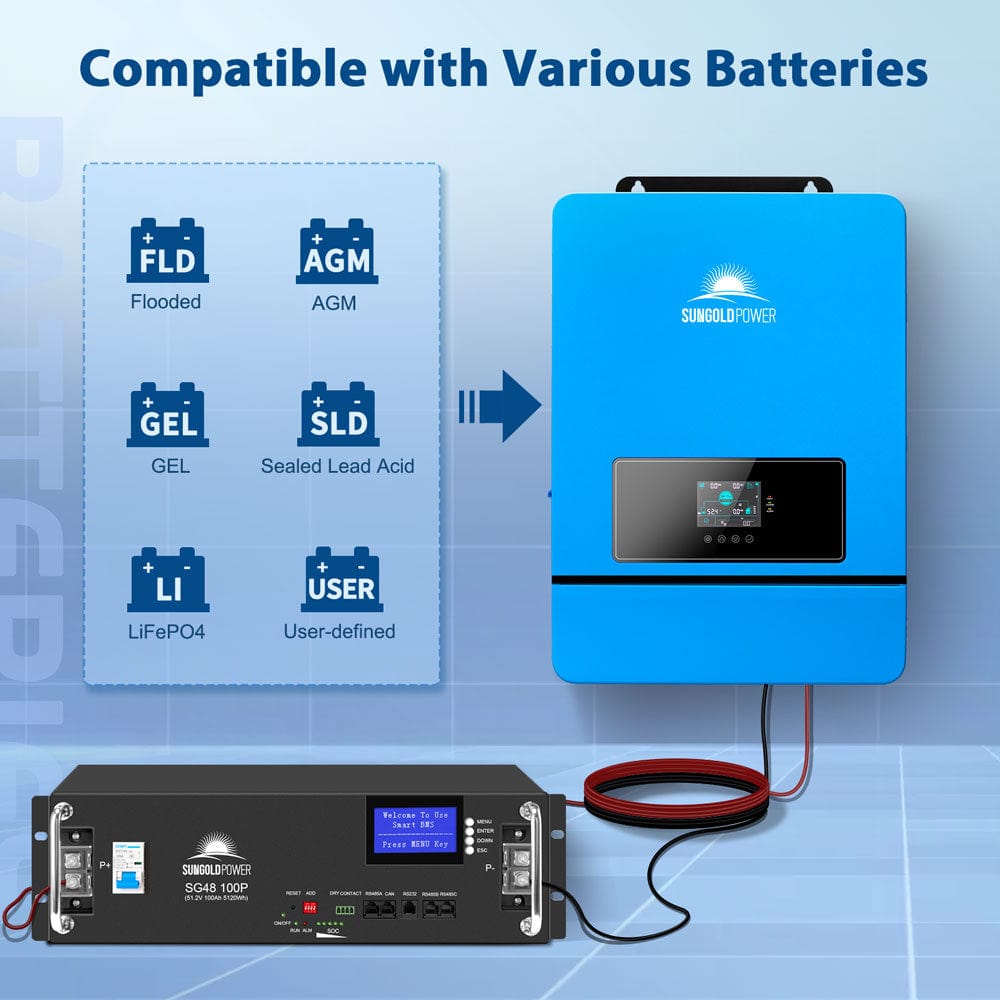

• Battery type: 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode to work with all battery types. and supports battery-free. When the lithium battery is dormant, the mains power and photovoltaics can activate the lithium battery. Support Can, USB and RS485 communication with SunGoldPower batteries.
• Parallel Kit: parallel support up to 6 units, 120V single phase,120V/240V Split Phase capable, 208V 3-Phase Support (3 unit parallel).

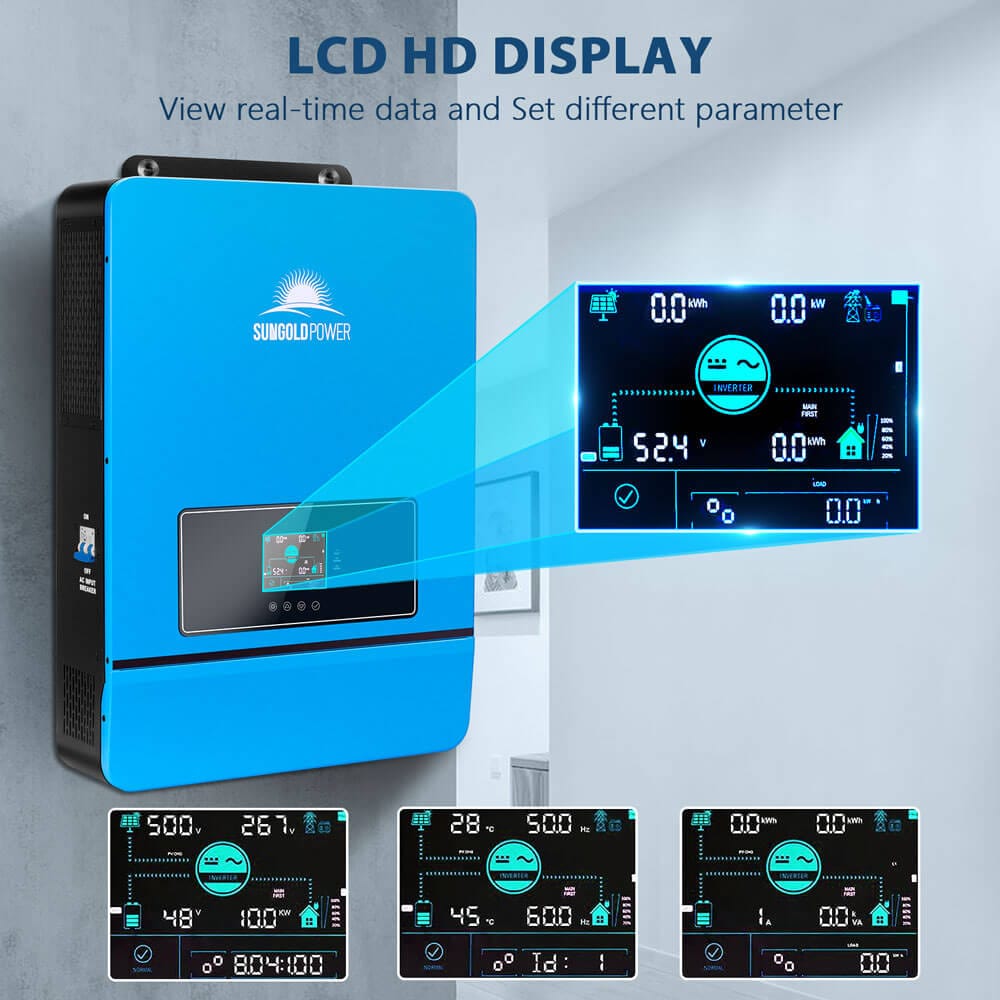

• WIFI Monitoring: Configured with Wi-Fi components, allowing user to quick and easy access to inverter data on mobile phone.
• System Connection: PV can charge the battery and supply the power to the load by inverter, if PV or battery is no power, you can power the load and charge the battery by the grid or generator.

• Grid Tied Function: An off-grid solar inverter with solar panels that generates electricity, stores that power in solar batteries, and runs independently from the power grid.

Sungold Power 8KW 48V Solar Inverter Charger Specification

INVERTER OUTPUT

• Rated Output Power: 8,000W
• Max.Peak Power: 16,000W
• Rated Output Voltage:  120/240Vac(split phase/single phase)
• Load Capacity of Motors: 5HP
• Rated AC Frequency: 50/60Hz
• Waveform: Pure Sine Wave
• Switch Time: 10ms (typical)
• Parallel capacity: 6
• Overload:  After triggering the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted.
  (102%<load<110%) ±10%: error and output shutdown after 5min;
  (110% <load < 125%) ±10%: error and output shutdown after 10s.
  Load > 125% ±10%: error reported and output switched off after 5s.

BATTERY

• Battery Type: Li-ion / Lead-Acid / User Defined
• Rated Battery Voltage: 48Vdc
• Voltage Range: 40-60Vdc
• Max. MPPT Charging Current: 200A
• Max. Mains/Generator Charging Current:100A
• Max. Hybrid Charging Current: 180A

PV INPUT

• Num. of MPP Trackers: 2
• Max.PV array power: 11,000W
• Max.input current: 22/22A
• Max. Voltage of Open Circuit: 500Vdc
• MPPT Voltage Range: 125-425Vdc

MAINS / GENERATOR INPUT

• Input Voltage Range: 90-140V (Single phase), 180-260V (Split Phase)
• Frequency Range: 50/60Hz
• Bypass Overload Current: 63A

EFFICIENCY

• MPPT Tracking Efficiency: 99.9%
• Max. Battery Inverter Efficiency: 92%

GENERAL

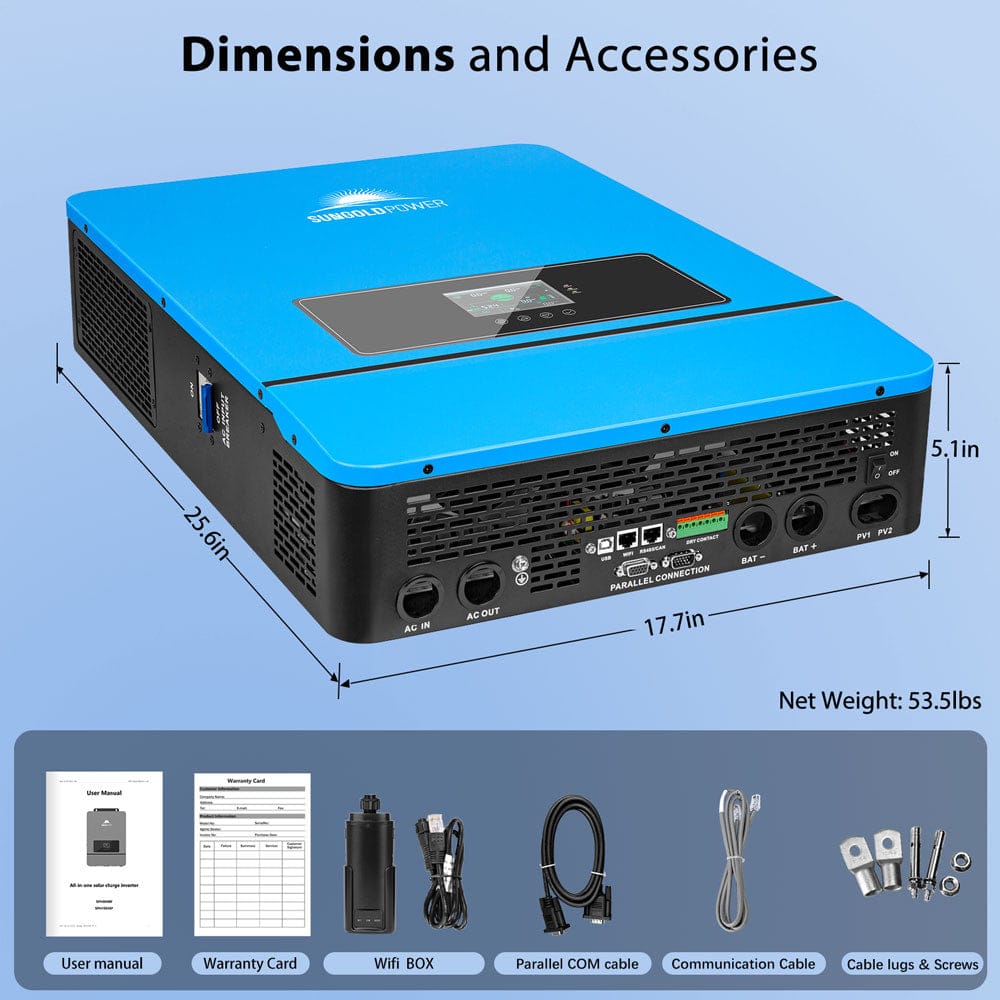

• Dimensions: 17.7 x 25.6 x 5.1inch
• Weight: 53.5lb
• Protection Degree: IP20, Indoor Only
• Operating Temperature Range: 14~131°F, >113°F derated (-10~55°C,>45°C derated)
• Noise: <60dB
• Cooling Method: Internal Fan
• No-load consumption: 95W/ 100W
• Warranty: 2 Years

COMMUNICATION

• Embedded Interfaces: RS485 / CAN / USB / Dry contact
• External Modules(Optional): Wi-Fi / GPRS

CERTIFICATION

• Safety: IEC62109-1, IEC62109-2, UL1741
• EMC: EN61000-6-1, EN61000-6-3, FCC15classB
• ROHS: Yes

User Manual

• Sungold Power 8KW 48V Solar Inverter Charger User Manual
