Tigo CCA Outdoor Kit, Data Logger/Gateway/Power Supply w/Enclosure
The Tigo CCA Outdoor Kit, Data Logger/Gateway/Power Supply w/Enclosure is an outdoor-ready communications and monitoring kit for Tigo TS4 module-level power electronics systems. The kit includes the Cloud Connect Advanced (CCA), Tigo Access Point (TAP), DIN rail power supply, DIN rail mount, and an outdoor-rated enclosure. The CCA acts as the system data logger and communications gateway, collecting and uploading system data to Tigo servers while also supporting monitoring and rapid shutdown functionality for compatible Tigo TS4 devices.
Tigo CCA Outdoor Kit Features

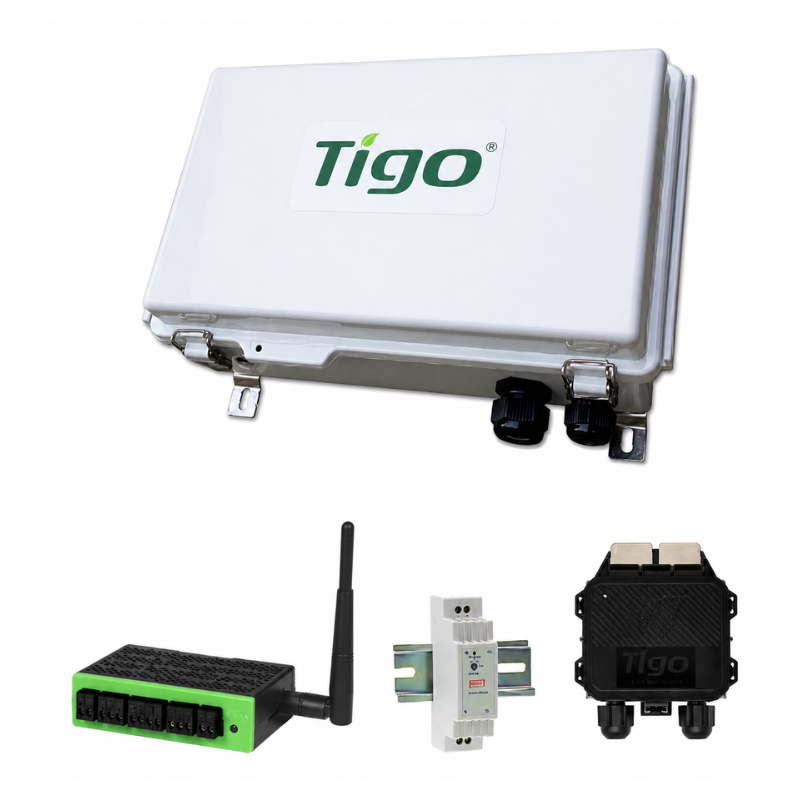

Complete Outdoor CCA Kit - Includes the key components needed for an outdoor Tigo communications setup: CCA unit with antenna, TAP, DIN rail power supply, DIN rail mount, and outdoor-rated enclosure.
Data Logger and Communications Gateway - The Cloud Connect Advanced is a compact data logging and communications gateway that powers monitoring and safety functionality for Tigo TS4 module-level power electronics.
Supports Module-Level Monitoring - When paired with compatible Tigo TS4 devices and the Tigo Energy Intelligence platform, the CCA enables module-level system visibility for performance tracking, commissioning, and troubleshooting.
Rapid Shutdown Control Support - The CCA supports system-wide rapid shutdown functionality for compatible Tigo TS4 systems when installed according to Tigo requirements.
Outdoor-Rated Enclosure - The outdoor enclosure helps protect the system electronics for outdoor installations. Tigo kit datasheets list the outdoor enclosure with IP67/NEMA 4X or IP68/Type 4R outdoor protection depending on datasheet version.
Flexible Network Connectivity - The CCA supports system connection through Ethernet, Wi-Fi, or optional cellular connectivity, helping installers connect the system to the Tigo monitoring platform.
Supports Large TS4 Systems - Each CCA supports up to 900 TS4 units and up to 7 TAPs, while each TAP supports up to 300 TS4 units up to 115 ft / 35 m away.
Tigo CCA Outdoor Kit Applications
-
Tigo TS4 monitoring systems - provides the CCA gateway and TAP needed for module-level monitoring.
-
Rapid shutdown systems - supports compatible Tigo TS4 rapid shutdown installations.
-
Residential solar arrays - enables monitoring and communication for smaller rooftop PV systems.
-
Commercial solar arrays - supports data collection and communication for larger TS4-equipped systems.
-
Outdoor PV installations - includes an outdoor enclosure for exterior mounting applications.
-
System commissioning - helps installers access system data through Tigo monitoring tools.
-
Performance troubleshooting - supports module-level visibility for identifying underperforming modules.
What’s Included?
- Tigo CCA Outdoor Kit, Data Logger/Gateway/Power Supply w/Enclosure
- User Manual
Frequently-Asked Questions
What is included in the Tigo CCA Outdoor Kit?
This kit includes the CCA unit with antenna, Tigo Access Point (TAP), DIN rail power supply, DIN rail mount, and outdoor-rated enclosure.
What does the Tigo CCA do?
The Tigo Cloud Connect Advanced is a data logger and communications gateway. It collects and uploads system data to Tigo servers and supports monitoring and rapid shutdown functionality for compatible Tigo TS4 systems.
Is this the outdoor kit?
Yes. This SKU is the CCA Outdoor Kit with TAP, DIN rail power supply, and outdoor enclosure.
What TS4 products does the CCA work with?
The kit is used with compatible Tigo TS4 systems. NAZ Solar lists support for TS4-A-M, TS4-A-S, and TS4-A-O, and notes that these cannot be mixed with TS4-A-F or TS4-A-2F units due to different communication architectures.
How many TS4 units can one CCA support?
Each CCA supports up to 900 TS4 units and up to 7 TAPs. Each TAP supports up to 300 TS4 units up to 115 ft / 35 m away.
How does the CCA connect to the internet?
The CCA can connect through Ethernet, Wi-Fi, or optional cellular connectivity.
What is the enclosure rating?
Tigo datasheets list outdoor enclosure ratings as IP67/NEMA 4X in one CCA kit datasheet and IP68/Type 4R in another older datasheet. Use the rating shown on the specific current datasheet supplied with the product batch when finalizing the Shopify spec.
