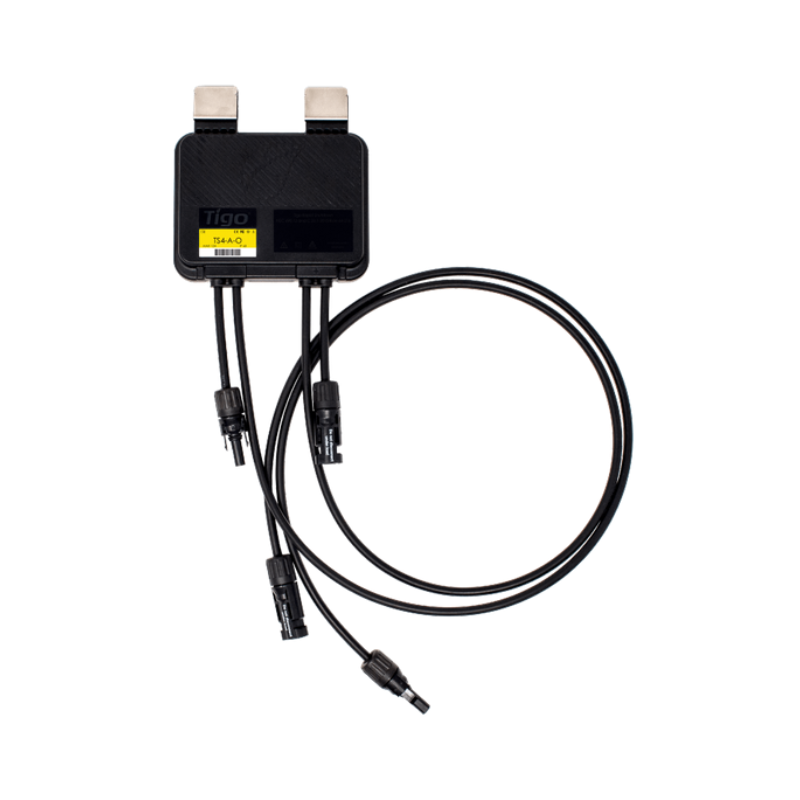

Tigo PV Rapid Shutdown/Optimizer Module
The Tigo PV Rapid Shutdown/Optimizer Module, Single 22 Amp w/Regular Cable - TS4-A-O is a module-level power electronics device designed to add optimization, module-level monitoring, and rapid shutdown to compatible PV systems. The TS4-A-O helps improve solar production on shaded or mismatched modules while supporting NEC rapid shutdown compliance when installed with the required Tigo system components. Tigo lists the TS4-A-O 22A model as a 725W, 22A Isc, 1500V UL / 1000V IEC optimizer platform.
Tigo PV Rapid Shutdown/Optimizer Module Features
Optimization, Monitoring, and Rapid Shutdown - The TS4-A-O combines module-level optimization, monitoring, and rapid shutdown in one MLPE device. This makes it useful for systems that need better module-level performance visibility and safety functionality.
22A High-Current Module Support - This version is rated for 22A maximum short-circuit current and 16A maximum operating current, making it compatible with many modern higher-current PV modules when system design limits are followed.
725W Maximum Input Power - The TS4-A-O 22A model supports up to 725W maximum input power, giving it a higher module compatibility range than older 700W TS4-A-O versions.
Regular Cable Configuration - uses 0.6m input cable length and 1.2m output cable length with MC4 connectors, based on Tigo’s ordering information.
Module-Level Optimization -The optimizer helps improve energy production where individual modules are affected by shade, mismatch, uneven soiling, or different module orientations.
Module-Level Monitoring - When paired with the required Tigo monitoring equipment, the TS4-A-O supports module-level visibility for system performance, troubleshooting, and maintenance. Tigo notes that TS4-A-O systems require a Tigo Access Point (TAP) connected to a Cloud Connect Advanced (CCA) for system monitoring and warranty eligibility.
NEC Rapid Shutdown Support - The TS4-A-O supports rapid shutdown compliance for NEC 2014, 2017, and 2020 when installed as part of the proper Tigo rapid shutdown system. Tigo states that TS4-O/-S units require Tigo monitoring equipment to function for rapid shutdown.
Outdoor-Rated IP68 Design - The TS4-A-O is built for rooftop PV environments with an IP68 outdoor rating and an operating temperature range of -40°C to 70°C / -40°F to 158°F.
Tigo PV Rapid Shutdown/Optimizer Module Applications
-
Residential PV systems - adds module-level optimization and rapid shutdown functionality to compatible solar arrays.
-
Commercial PV systems - supports module-level performance management and safety compliance for larger installations.
-
Partially shaded arrays - helps reduce the impact of shade on individual modules.
-
Mixed-orientation arrays - supports systems where modules face different directions or have uneven sun exposure.
-
Rapid shutdown systems - supports NEC rapid shutdown compliance when paired with required Tigo equipment.
-
Module-level monitoring - allows system owners and installers to view module-level performance when used with TAP and CCA.
-
Retrofit solar systems - can be used in new designs or added to existing compatible PV systems.
What’s Included?
- 1 x Tigo TS4-A-O PV Rapid Shutdown/Optimizer Module
Frequently-Asked Questions
What does the Tigo TS4-A-O do?
The TS4-A-O provides module-level optimization, monitoring, and rapid shutdown for compatible PV systems. It helps improve module-level performance and adds safety functionality when installed with the required Tigo equipment.
What cable length does this SKU include?
It uses 0.6m input cable length and 1.2m output cable length with MC4 connectors.
Does the TS4-A-O require other Tigo components?
Yes. For monitoring and rapid shutdown functionality, Tigo states that TS4-A-O systems require a Tigo Access Point (TAP) connected to a Cloud Connect Advanced (CCA).
Can the TS4-A-O be used for rapid shutdown?
Yes. Tigo states that the TS4-A-O enables rapid shutdown in compliance with NEC 2014, 2017, and 2020 when installed as part of the correct Tigo system.
Is this module outdoor rated?
Yes. The TS4-A-O has an IP68 outdoor rating and is designed for rooftop PV environments.
What is the maximum input power?
The TS4-A-O 22A version supports up to 725W maximum input power.
What warranty does it include?
The TS4-A-O datasheet lists a 25-year warranty.
