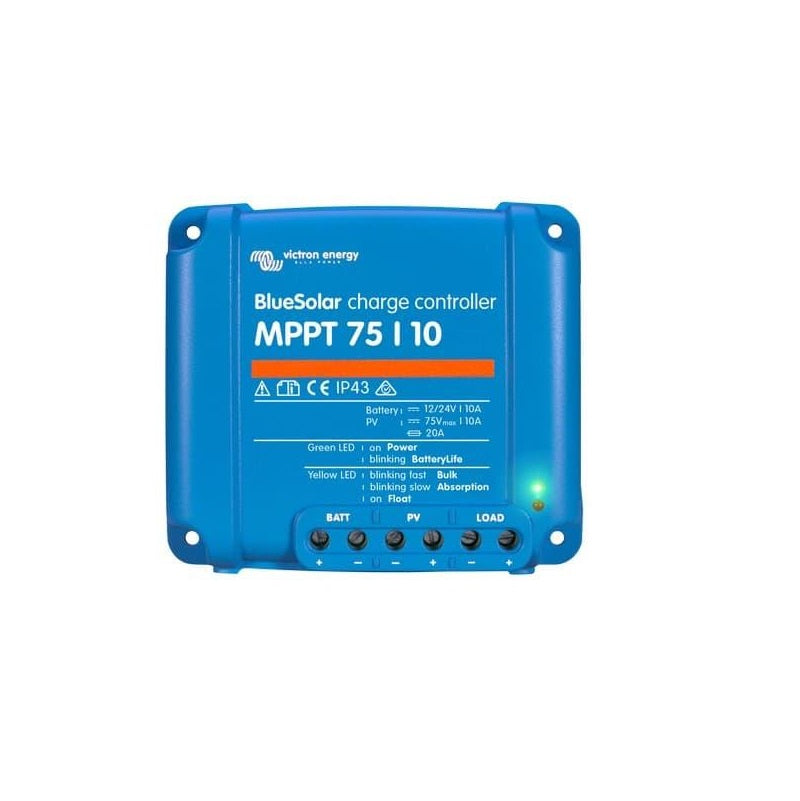

Victron Energy SCC010010050R MPPT 75/10 Charge Controller
Optimize the efficiency of your solar power system with the Victron Energy SCC010010050R MPPT 75/10 Charge Controller. Leveraging advanced Maximum Power Point Tracking (MPPT) technology, this charge controller ensures that your solar panels always operate at their optimal power point, significantly increasing the energy harvested from the sun. With the capability to handle up to 75V of solar input and deliver a 10A charging current, it's perfectly suited for small to medium solar installations, including RVs, marine applications, and remote off-grid power systems.
- Advanced MPPT technology for maximizing solar energy harvest.
- Handles up to 75V of solar input, allowing for flexible panel configurations.
- 10A output suitable for charging 12V or 24V battery systems.
- Automatic battery voltage recognition and system configuration for ease of use.
- Real-time data monitoring and control with optional Bluetooth connectivity.
Technology and Overview
The SCC010010050R features cutting-edge MPPT technology that constantly monitors solar panel output to find the maximum power point, thereby optimizing the efficiency of your solar array. This process can significantly increase the amount of power generated by your system, especially in varied weather conditions.
Installation and Compatibility Overview
Designed for straightforward installation and wide compatibility, this MPPT charge controller integrates seamlessly with a variety of solar panels and battery types, making it a versatile choice for different solar energy systems. Its compact design and user-friendly interface ensure a hassle-free setup.
Benefits and Applications Overview
Ideal for enhancing solar system performance in recreational vehicles, boats, and remote power stations, the SCC010010050R provides a reliable, efficient, and adaptive charging solution. Its ability to improve solar yield makes it a valuable addition to any solar power setup.
| Specification |
Value |
| Max PV Input Voltage |
75V |
| Max Charging Current |
10A |
| Battery Voltage |
Auto Select 12/24V |
| Max PV Power (12V/24V system) |
145W / 290W |
| Efficiency |
Up to 98% |
| Protection Features |
Overload, Short Circuit, Reverse Polarity, Over Temperature |
| Communication |
Optional Bluetooth for VictronConnect App |
| Weight |
Please verify based on product datasheet |
| Dimensions |
Please verify based on product datasheet |
