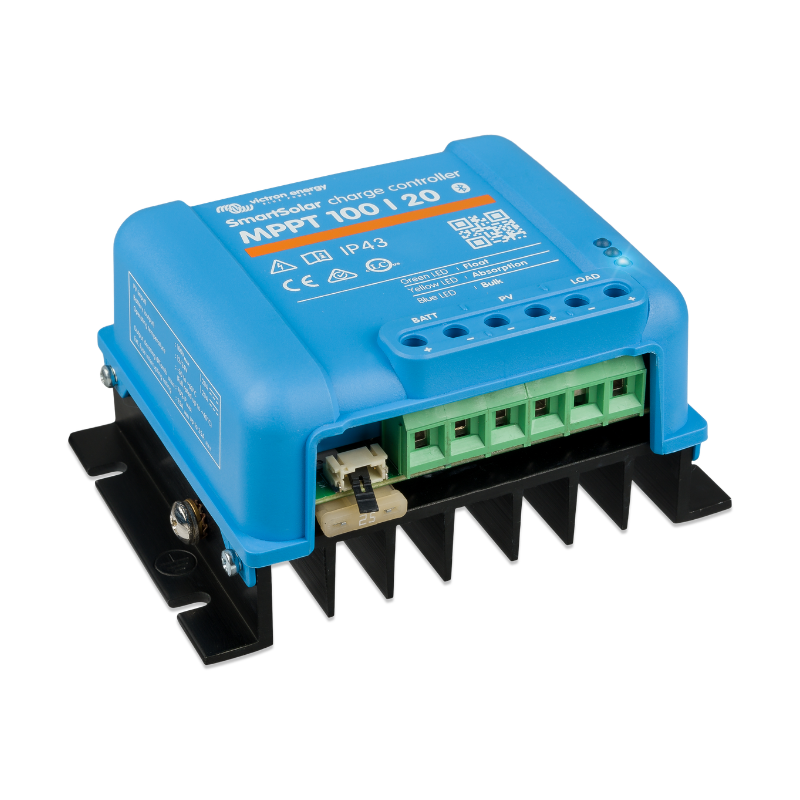

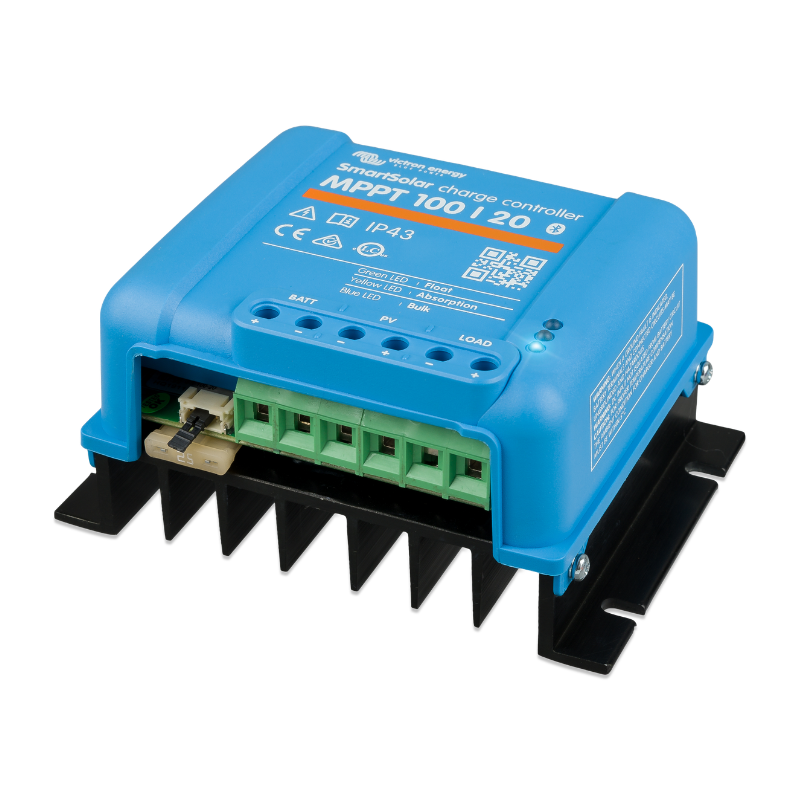

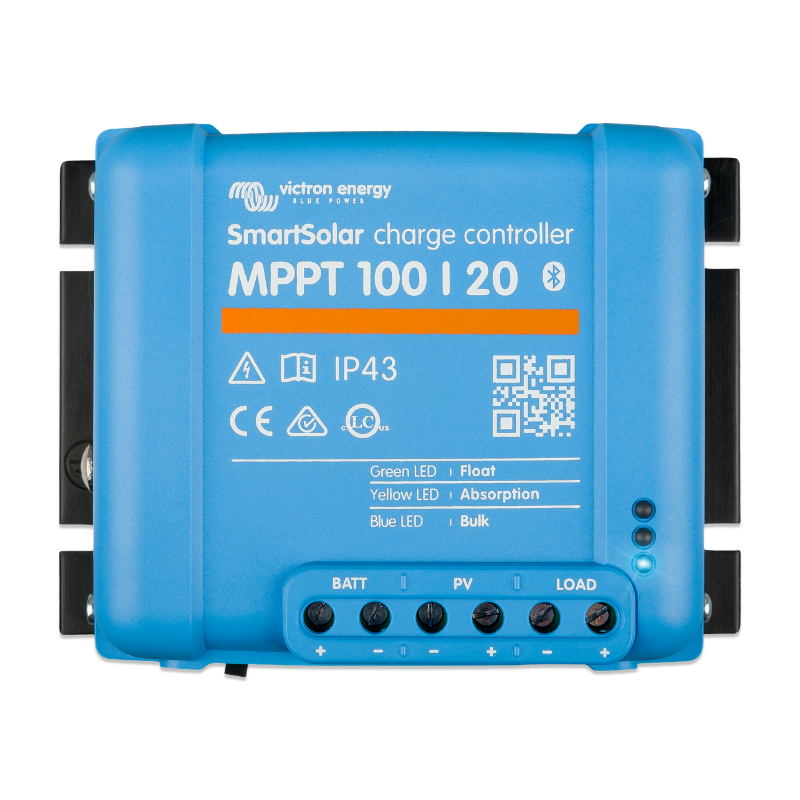

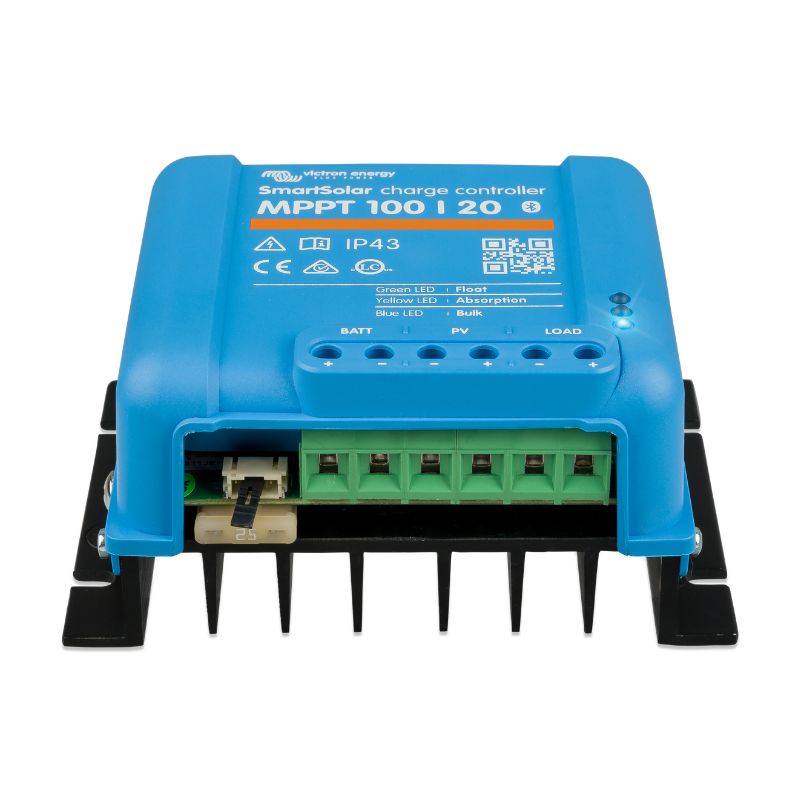

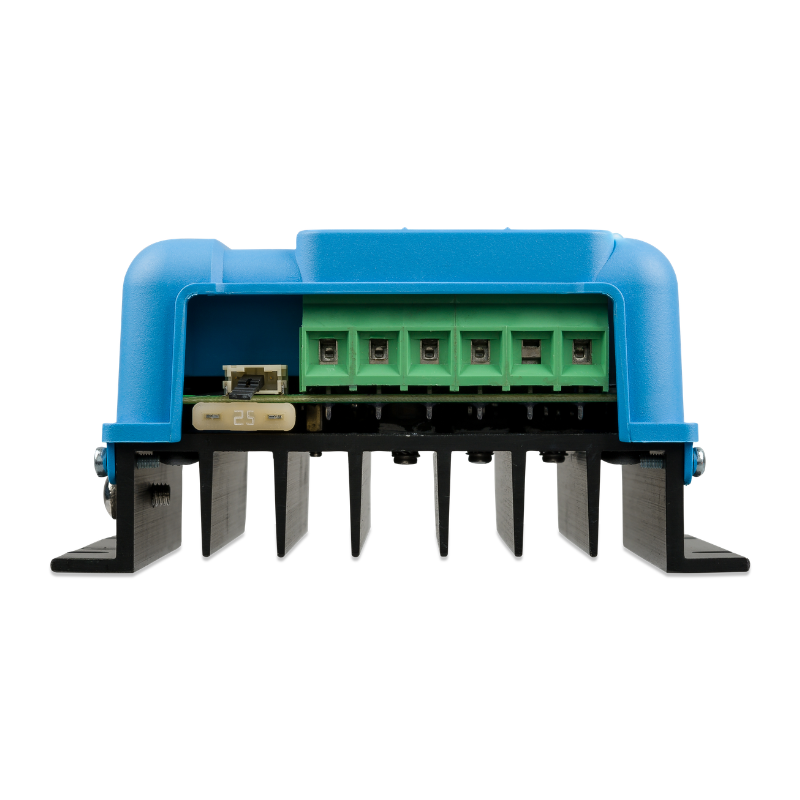

Victron Energy 20 Amp MPPT 12/24/48 VDC 100 VOC (Smart Solar), Solar Charge Controller

Name: Victron Energy 20 Amp MPPT 12/24/48 VDC 100 VOC (Smart Solar), Solar Charge Controller
Brand: Victron Energy
SKU: SCC110020160R
Price: 104.0 USD
Availability: InStock

BY: Victron Energy

SKU: SCC110020160R

| Availability: In stock

$105.00

$104.00

You Save: $1.00

Product Highlights

Built for off-grid power, RV travel, and marine systems
20 A MPPT control improves energy harvest from the solar array
Supports up to 290 W solar input for faster daytime recharging
Remote monitoring makes power and settings easy to track

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Victron Energy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Victron Energy 20 Amp MPPT 12/24/48 VDC 100 VOC (SmartSolar) Solar Charge Controller

The Victron Energy SmartSolar MPPT 100/20-48V is a compact, high-performance solar charge controller designed to maximize solar energy harvest while efficiently charging 12V, 24V, and 48V battery systems. Featuring Victron's advanced Maximum Power Point Tracking (MPPT) technology and built-in Bluetooth connectivity, this controller continuously optimizes solar panel output to improve charging performance in varying weather conditions. With support for automatic load disconnect, adaptive charging algorithms, and remote monitoring via the VictronConnect app, the SmartSolar MPPT 100/20-48V is ideal for RVs, marine applications, off-grid cabins, backup power systems, and remote solar installations.

Victron Energy 20 Amp MPPT 12/24/48 VDC 100 VOC (SmartSolar) Solar Charge Controller Features

Advanced MPPT Technology - Maximize solar harvest. Continuously tracks the optimal operating point of solar panels to extract the highest possible energy output.

Built-In Bluetooth Smart - Wireless monitoring and control. Configure settings, review historical performance, and perform firmware updates directly through the VictronConnect app.

Supports 12V, 24V, and 48V Batteries - Flexible system compatibility. Automatically detects battery voltage and supports a wide range of solar energy storage applications.

Automatic Load Disconnect - Protects battery health. Disconnects loads at programmable voltage thresholds to prevent excessive battery discharge.

20A Charging Capacity - Ideal for small-to-medium solar systems. Provides reliable charging for battery banks used in mobile, marine, and off-grid installations.

Adaptive Multi-Stage Charging - Optimizes battery lifespan. Automatically adjusts charging stages to maximize battery performance and longevity.

VE.Direct Communication - Simple system integration. Connects to Victron GX devices and monitoring systems for enhanced visibility and control.

High Efficiency Conversion - Up to 98% efficiency. Converts more solar energy into usable charging current with minimal losses.

Victron Energy 20 Amp MPPT 12/24/48 VDC 100 VOC (SmartSolar) Solar Charge Controller Applications

RV solar systems – Reliable charging for recreational vehicles and campers.
Marine installations – Efficient battery charging for boats and yachts.
Off-grid cabins – Supports renewable energy systems in remote locations.
Tiny homes – Ideal for compact solar energy systems.
Remote monitoring stations – Powers communications and monitoring equipment.
Agricultural applications – Supports fencing, pumps, and remote farm equipment.
Backup power systems – Maintains battery banks for emergency energy storage.
Portable solar installations – Perfect for temporary and mobile solar setups.

What's Included?

Victron Energy 20 Amp MPPT 12/24/48 VDC 100 VOC (Smart Solar), Solar Charge Controller
User Manual

Victron Energy 20 Amp MPPT 12/24/48 VDC 100 VOC (SmartSolar) Solar Charge Controller Specifications

Electrical Specifications

Specification	Details
Battery Voltage (Auto Select)	12/24/48 V
Rated Charge Current	20 A
Nominal PV Power, 12 V	290 W
Nominal PV Power, 24 V	580 W
Nominal PV Power, 48 V	1160 W
Max. PV Short Circuit Current	20 A
Automatic Load Disconnect	Yes
Max. PV Open Circuit Voltage	100 V
Peak Efficiency	98%
Self-Consumption – Load On	26 / 20 / 19 mA
Self-Consumption – Load Off	10 / 8 / 7 mA
Charge Voltage "Absorption"	14.4 V / 28.8 V / 57.6 V (adj.)
Charge Voltage "Float"	13.8 V / 27.6 V / 55.2 V (adj.)
Charge Algorithm	Multi-stage adaptive
Temperature Compensation	-16 mV / °C resp. -32 mV / °C
Max. Continuous Load Current	20 A / 20 A / 1 A
Low Voltage Load Disconnect	11.1 V / 22.2 V / 44.4 V or 11.8 V / 23.6 V / 47.2 V or Battery Life algorithm
Low Voltage Load Reconnect	13.1 V / 26.2 V / 52.4 V or 14 V / 28 V / 56 V or Battery Life algorithm
Protection	Output short circuit / Over temperature
Operating Temperature	-30 to +60 °C (full rated output up to 40 °C)
Humidity	95%, non-condensing
Data Communication Port	VE.Direct (see the data communication white paper on our website)

Enclosure

Specification	Details
Colour	Blue (RAL 5012)
Power Terminals	6 mm² / AWG10
Protection Category	IP43 (electronic components), IP22 (connection area)
Weight	0.6 kg / 0.65 kg
Dimensions (h × w × d)	100 × 113 × 50 mm / 100 × 131 × 60 mm

Standards

Specification	Details
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2

Stored Trends

Specification	Details
Data Stored	Battery voltage, current and temperature, as well as load output current, PV voltage and PV current
Number of Days Trends Data is Stored	46

Frequently Asked Questions

What is MPPT technology?
MPPT (Maximum Power Point Tracking) continuously adjusts the controller's operating point to maximize the amount of power harvested from connected solar panels.
Does the SmartSolar MPPT 100/20 include Bluetooth?
Yes. Bluetooth Smart is built directly into the controller, allowing wireless setup, monitoring, diagnostics, and firmware updates through the VictronConnect app.
What battery voltages are supported?
The controller automatically detects and supports 12V, 24V, and 48V battery systems.
What is the maximum solar input voltage?
The SmartSolar MPPT 100/20 supports a maximum PV open-circuit voltage of 100V.
What is the automatic load disconnect feature?
The controller can disconnect connected DC loads when battery voltage reaches a preset threshold, helping protect batteries from excessive discharge.
Can I use lithium batteries with this controller?
Yes. The controller supports lithium battery systems and allows charging parameters to be customized through VictronConnect.
Can the controller be connected to a GX device?
Yes. The VE.Direct communication port allows integration with compatible Victron GX devices and remote monitoring systems.
Is this controller suitable for RV and marine applications?
Absolutely. Its compact design, Bluetooth monitoring, and support for 12V, 24V, and 48V battery systems make it ideal for RV, marine, and off-grid installations.
