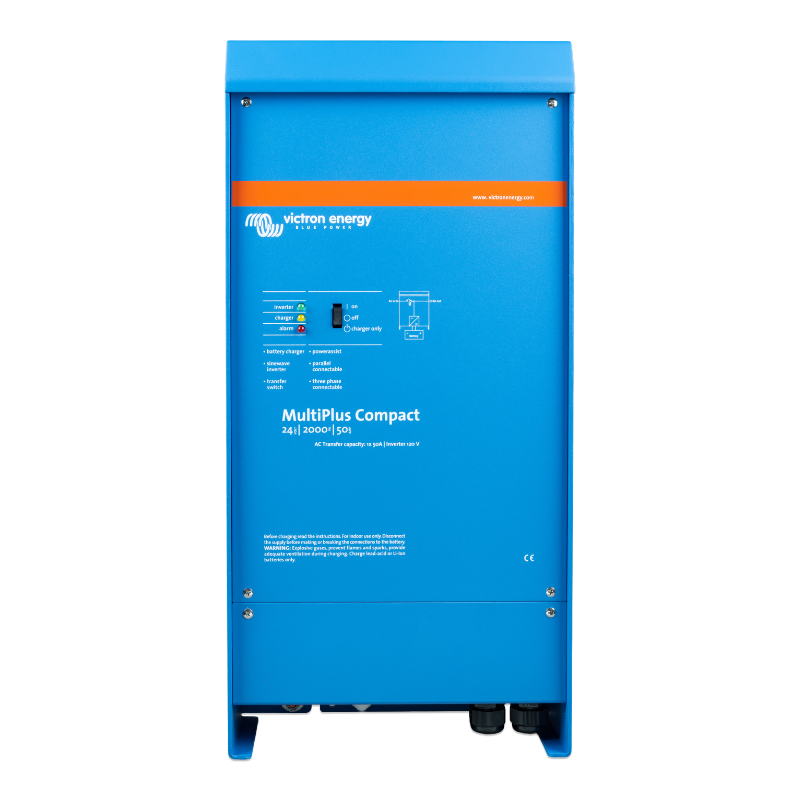

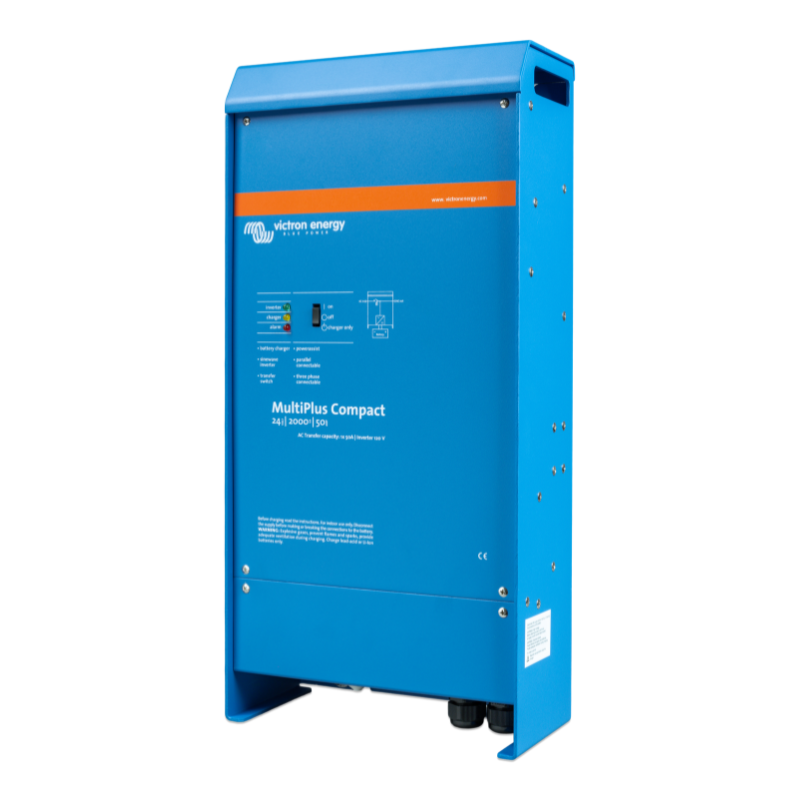

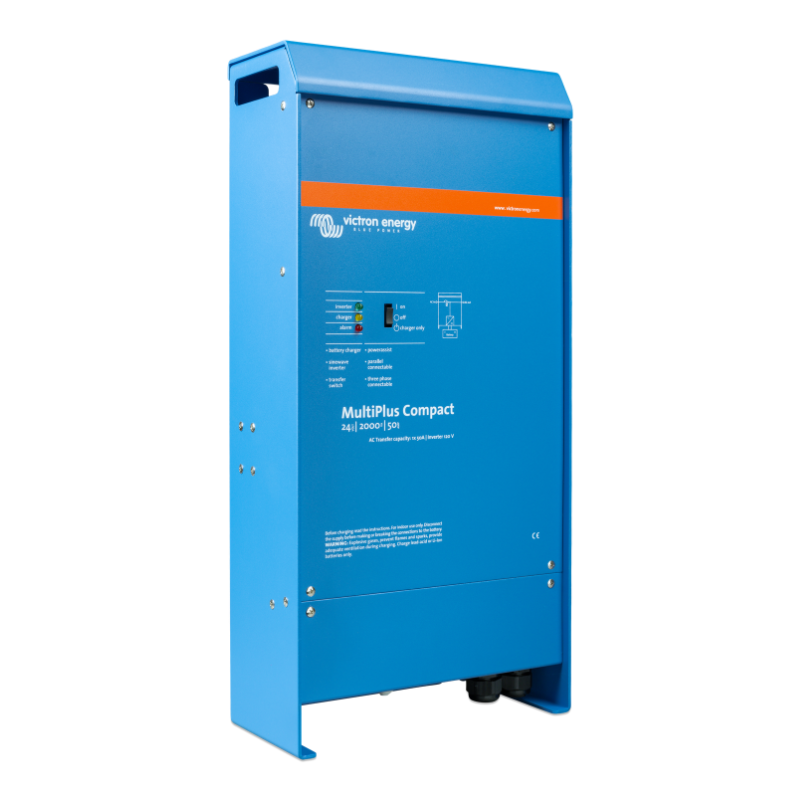

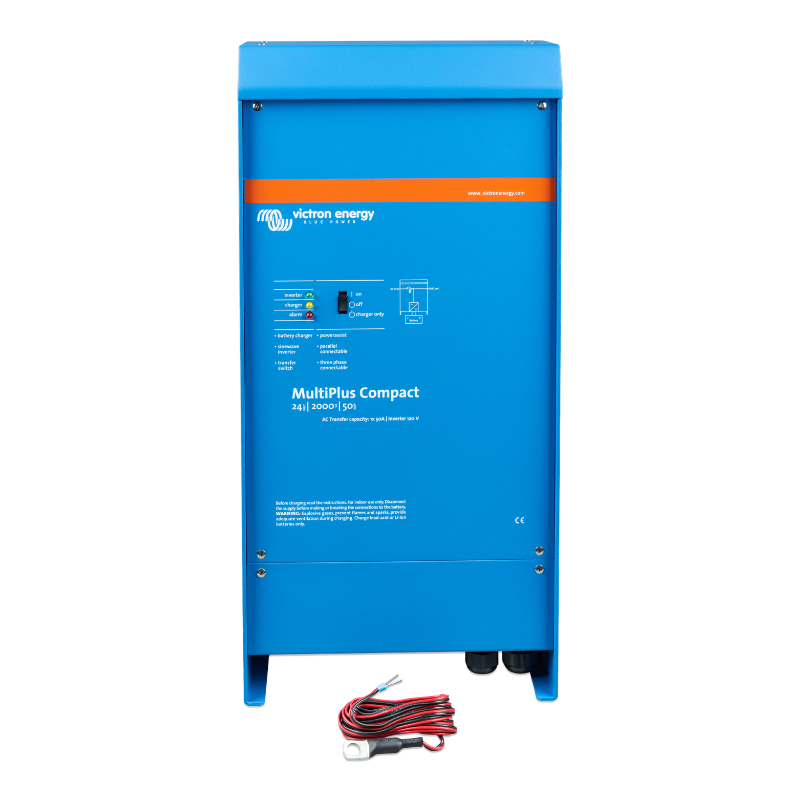

Victron Energy 2000 Watt 24 VDC - 120 VAC MultiPlus Compact VE.Bus Pure Sine Wave Inverter/Charger

The Victron Energy MultiPlus Compact 24/2000/50 is a compact inverter/charger designed for 24V battery systems. It combines a pure sine wave inverter, adaptive battery charger, and high-speed AC transfer switch in one unit. With 2000VA inverter output, 120 VAC power, and a 50A transfer switch, it is suitable for off-grid, marine, RV, backup power, and mobile power applications.

Victron Energy 2000 Watt 24 VDC - 120 VAC MultiPlus Compact VE.Bus Pure Sine Wave Inverter/Charger Features

Pure Sine Wave Inverter - Provides 120 VAC pure sine wave output for running compatible appliances, electronics, and essential AC loads.

Power Control - Allows the unit to manage limited generator or shore power by controlling how much current is used for charging and connected loads.

Power Assist - Helps supplement a limited AC source with battery power when connected loads require more power than the source can provide.

50A Transfer Switch - Includes a 50A transfer switch that automatically switches between AC input power and inverter power when needed.

Adaptive Battery Charger - Uses adaptive charging to help charge the battery system based on battery condition and charging needs.

VE.Bus Communication - Includes a VE.Bus communication port for parallel operation, three-phase operation, remote monitoring, and system integration.

Remote On/Off - Supports remote on/off operation for easier control in integrated power systems.

Victron Energy 2000 Watt 24 VDC - 120 VAC MultiPlus Compact VE.Bus Pure Sine Wave Inverter/Charger Applications

Off-Grid Power Systems – Provides inverter and charging support for standalone power setups.
RV and Van Electrical Systems – Helps power onboard appliances, electronics, and AC loads while traveling.
Marine and Boat Power Systems – Supports shore power, battery charging, and AC output for marine electrical systems.
Backup Power Systems – Helps keep essential AC loads powered during power interruptions.
Generator-Assisted Battery Systems – Works with generator input to charge batteries and support connected loads.
Shore Power Systems – Helps manage incoming shore power while charging batteries and powering AC loads.
Mobile Work Vehicles – Provides AC power support for tools, electronics, and equipment in service vehicles.
Remote Cabins and Small Energy Systems – Supports small-scale battery-based power systems in cabins and remote locations.

What's Included

Everything you need is included with your product.

Victron Energy 2000 Watt 24 VDC - 120 VAC (Multi-Plus Compact) VE. Bus, Pure Sine Wave Inverter/Charger

User Manual

Warranty

5-year Victron warranty

Victron Energy 2000 Watt 24 VDC - 120 VAC MultiPlus Compact VE.Bus Pure Sine Wave Inverter/Charger Specifications

Specification	Details
PowerControl	Yes
PowerAssist	Yes
Transfer switch (A)	50
Parallel and 3-phase operation	Yes

Inverter

Specification	Details
Input voltage range (VDC)	9,5 – 17 V \| 19 – 33 V
Output	Output voltage: 120 VAC ± 2 % \| Frequency: 60 Hz ± 0,1 %
Cont. output power at 25 ºC / 77 °F (VA	2000
Cont. output power at 25 ºC / 77 °F (W)	1600
Cont. output power at 40 ºC / 104 °F (W)	1450
Cont. output power at 65 ºC / 150 °F (W)	1100
Peak power (W)	4000
Maximum efficiency (%)	92 / 94
Zero load power (W)	9 / 11
Zero load power in AES mode (W)	7 / 8
Zero load power in Search mode (W)	3 / 4

Charger

Specification	Details
AC Input	Input voltage range: 95-140 VAC \| Input frequency: 45 – 65 Hz \| Power factor: 1
Charge voltage 'absorption' (VDC)	14,4 / 28,8
Charge voltage 'float' (VDC)	13,8 / 27,6
Storage mode (VDC)	13,2 / 26,4
Charge current house battery (A)	80 / 50
Charge current starter battery (A)	4
Battery temperature sensor	yes

General

Specification	Details
Programmable relay	Yes (1x)
Protection	a - g
VE.Bus communication port	For parallel and three phase operation, remote monitoring and system integration
Remote on-off	Yes
Common Characteristics	Operating temp. range: -40 - +65 °C / -40 to 150 °F (fan assisted cooling) \| Humidity (non-condensing): max 95%

Enclosure

Specification	Details
Common Characteristics	Material & Colour: aluminium (blue RAL 5012) \| Protection category: IP 21
Battery-connection	M8 bolts

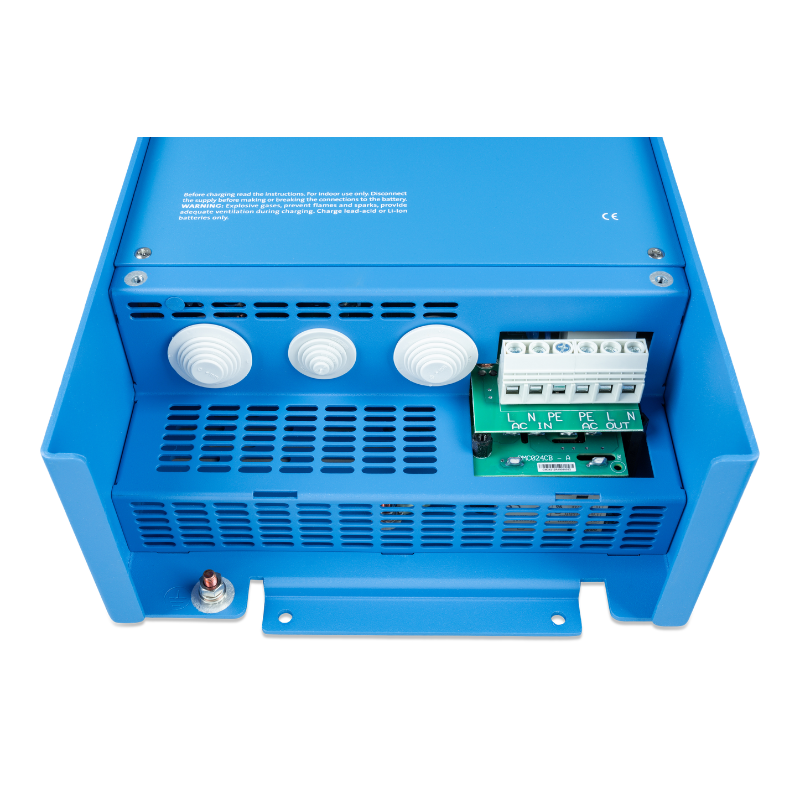

120 V AC-connection	Screw-terminal 6 AWG (13 mm²)
Weight	13 kg 25 lbs.
Dimensions (hxwxd in mm and inches)	520x255x125 mm 20.5x10.0x5.0 inch

Standards

Specification	Details
Safety	UL 458, EN-IEC 60335-1, EN-IEC 60335-2-29
Emission and Immunity	EN-IEC 61000-3-2/3-3/, EN-IEC 61000-6-1/6-2/6-3

Frequently-Asked Questions

What is the Victron Energy MultiPlus Compact 24/2000/50 used for?

The MultiPlus Compact is used in battery-based power systems where inverter power, battery charging, and AC transfer switching are needed in one unit.

Does this unit provide pure sine wave output?

Yes. This inverter/charger provides pure sine wave output with 120 VAC ±2% output voltage and 60 Hz ±0.1% frequency.

What is PowerAssist?

PowerAssist helps support a limited AC source, such as a generator or shore power connection, by using battery power when connected loads require additional power.

What is PowerControl?

PowerControl helps prevent overloading a limited generator or shore power source by controlling the amount of current used by the charger and connected loads.

Can this unit be used with a generator?

Yes. The MultiPlus Compact can be used with generator input to charge batteries and power AC loads.

Does this unit support remote monitoring or system integration?

Yes. The unit includes a VE.Bus communication port for system integration, remote monitoring, and parallel or three-phase operation.

Should this be installed by a professional?

Yes. This product should be installed by a qualified professional following the official installation manual and local electrical requirements.
