Victron Energy 30 Amp MPPT 12/24 VDC 100 VOC (Smart Solar), Solar Charge Controller

Name: Victron Energy 30 Amp MPPT 12/24 VDC 100 VOC (Smart Solar), Solar Charge Controller
Brand: Victron Energy
SKU: SCC110030210
Price: 150.0 USD
Availability: InStock

BY: Victron Energy

SKU: SCC110030210

| Availability: In stock

$151.00

$150.00

You Save: $1.00

Product Highlights

Built for off-grid power, RV travel, and marine systems
30 A MPPT control improves energy harvest from the solar array
Supports up to 440 W solar input for faster daytime recharging
Remote monitoring makes power and settings easy to track

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Victron Energy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

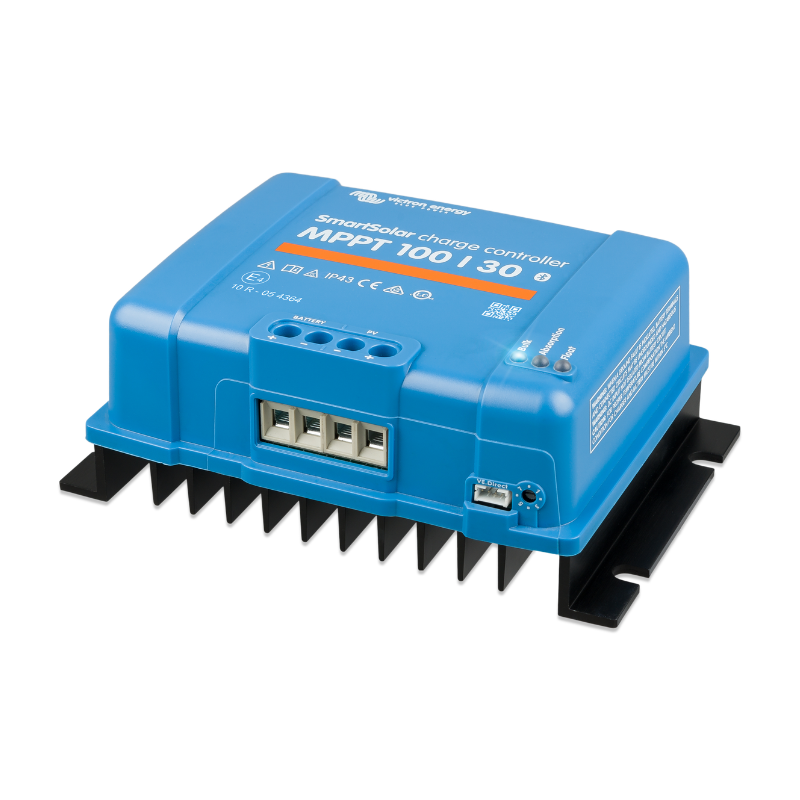

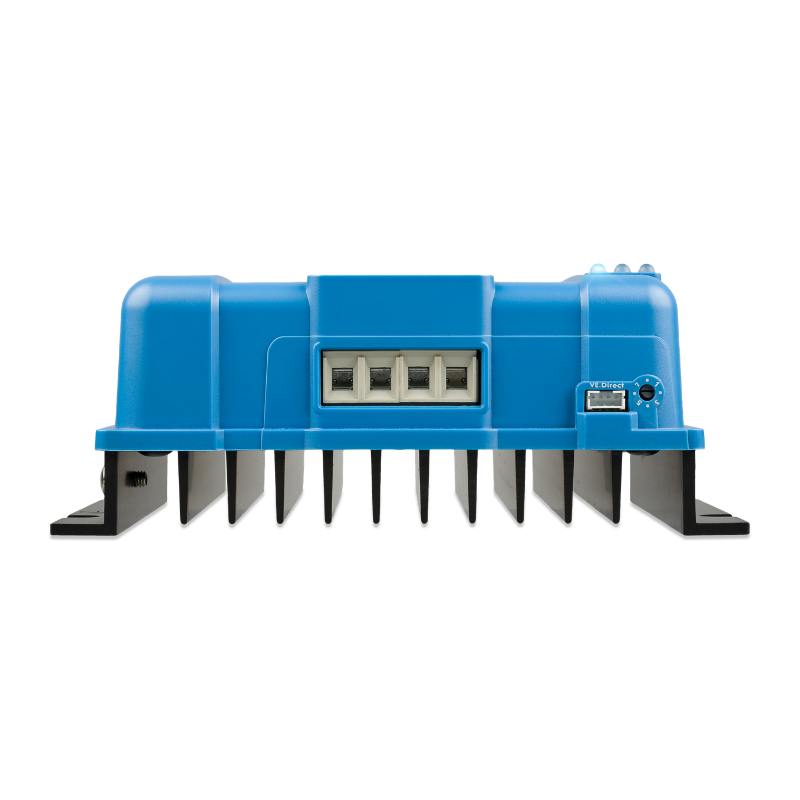

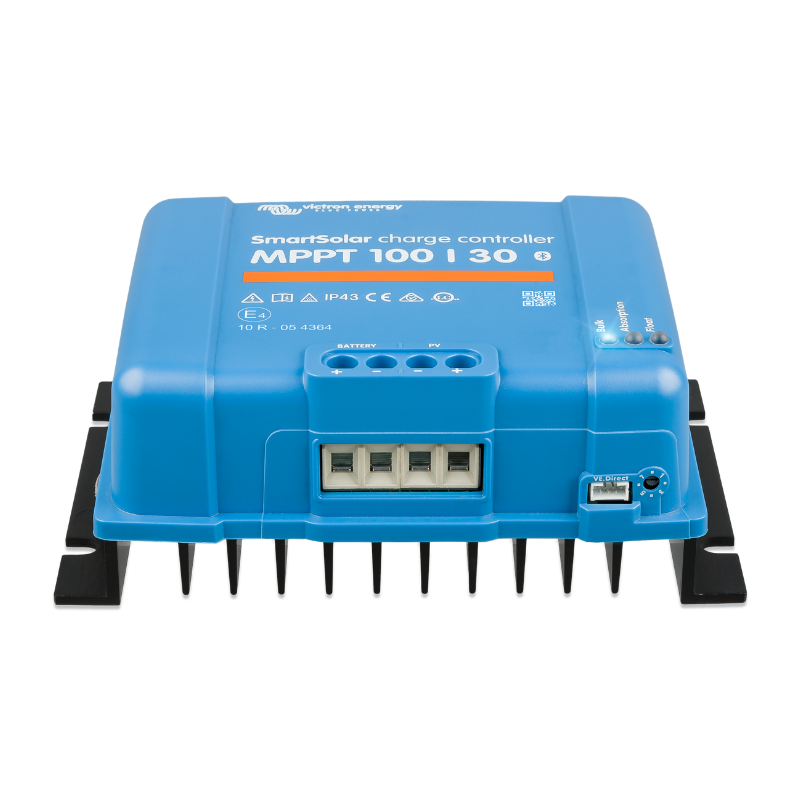

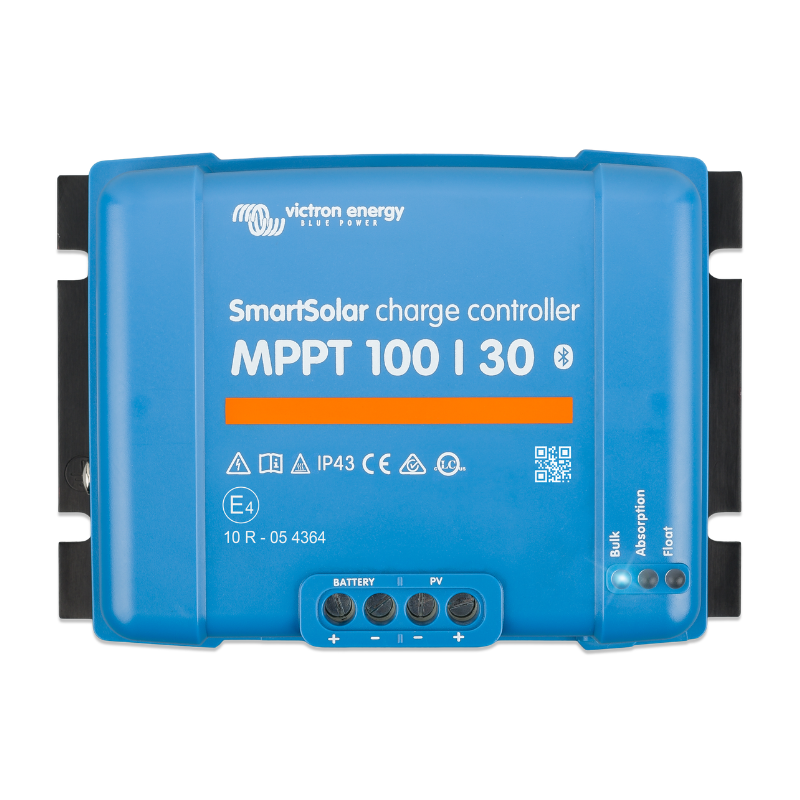

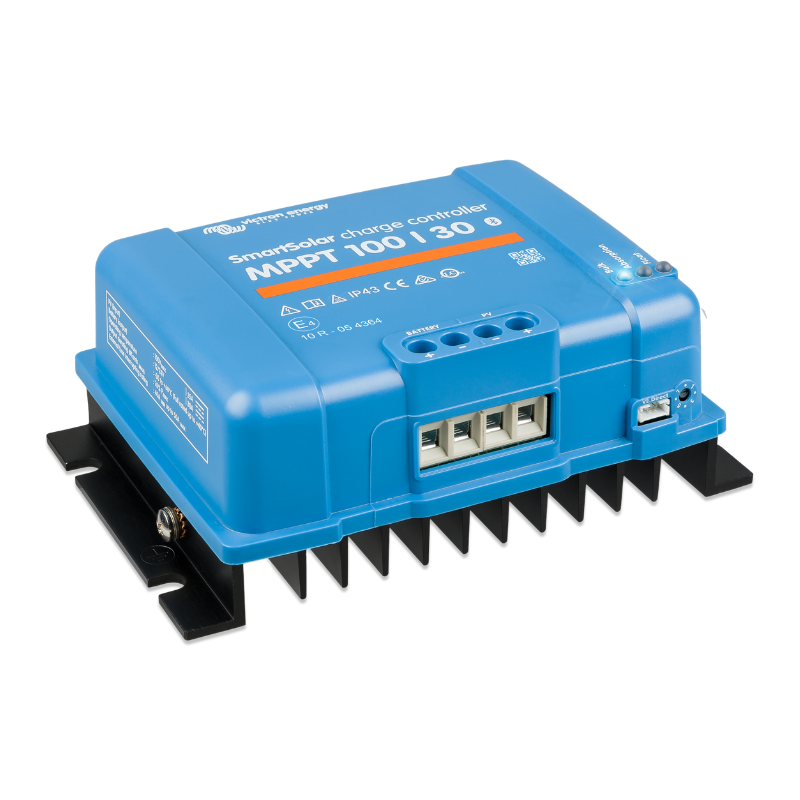

Victron Energy 30 Amp MPPT 12/24 VDC 100 VOC (SmartSolar) Solar Charge Controller

The Victron Energy SmartSolar MPPT 100/30 is a compact and highly efficient solar charge controller engineered to maximize solar energy harvest while providing intelligent charging for 12V and 24V battery systems. Featuring Victron's advanced Maximum Power Point Tracking (MPPT) technology and built-in Bluetooth connectivity, the SmartSolar MPPT 100/30 continuously optimizes solar panel performance to improve charging efficiency in all weather conditions. Ideal for RVs, marine systems, cabins, backup power systems, and off-grid solar installations, this controller delivers reliable battery charging, remote monitoring capabilities, and industry-leading energy conversion efficiency.

Victron Energy 30 Amp MPPT 12/24 VDC 100 VOC (SmartSolar) Solar Charge Controller Features

Advanced MPPT Technology - Maximize solar energy production. Continuously tracks the optimal operating point of solar panels to increase energy harvest compared to conventional charge controllers.

Built-In Bluetooth Smart - Wireless monitoring and configuration. Easily connect through the VictronConnect app to monitor charging performance, adjust settings, and update firmware.

30A Charging Capacity - Ideal for small-to-medium solar systems. Delivers up to 30 amps of charging current for residential, RV, marine, and backup power applications.

100V Solar Input Capability - Flexible solar array design. Supports higher-voltage solar panel configurations to reduce wiring losses and improve installation flexibility.

Adaptive Multi-Stage Charging - Optimizes battery life. Automatically adjusts charging stages based on battery condition and usage patterns.

High Conversion Efficiency - Up to 98% efficiency. Converts more available solar power into usable battery charging energy.

VE.Direct Communication - Advanced system integration. Connects with Victron GX devices, displays, and monitoring systems for enhanced control and visibility.

Comprehensive Protection - Reliable operation. Includes PV reverse polarity, output short circuit, and over-temperature protection.

Victron Energy 30 Amp MPPT 12/24 VDC 100 VOC (SmartSolar) Solar Charge Controller Applications

RV solar systems – Reliable charging for recreational vehicles and campers.
Marine installations – Efficient battery charging for boats and yachts.
Off-grid cabins – Maintains battery banks in remote locations.
Tiny homes – Supports renewable energy systems with battery storage.
Backup power systems – Provides dependable charging for emergency battery banks.
Remote monitoring stations – Powers communications and monitoring equipment.
Agricultural applications – Supports fencing, pumps, and remote farm equipment.
Portable solar systems – Ideal for temporary and mobile solar installations.

What's Included?

Victron Energy 30 Amp MPPT 12/24 VDC 100 VOC (Smart Solar), Solar Charge Controller
User Manual

Warranty

5-Year Limited Manufacturer Warranty

Victron Energy 30 Amp MPPT 12/24 VDC 100 VOC (SmartSolar) Solar Charge Controller Specifications

Electrical Specifications

Specification	Details
Battery Voltage	12/24 V Auto Select
Rated Charge Current	30 A
Nominal PV Power, 12 V	440 W
Nominal PV Power, 24 V	880 W
Maximum PV Open Circuit Voltage	100 V
Max. PV Short Circuit Current	35 A
Maximum Efficiency	98%
Self-Consumption	12 V: 30 mA / 24 V: 20 mA
Charge Voltage "Absorption"	Default setting: 14.4 V / 28.8 V (adjustable)
Charge Voltage "Float"	Default setting: 13.8 V / 27.6 V (adjustable)
Charge Algorithm	Multi-stage adaptive
Temperature Compensation	-16 mV / °C resp. -32 mV / °C
Protection	PV reverse polarity Output short circuit Over temperature
Operating Temperature	-30 to +60°C (full rated output up to 40°C)
Humidity	95%, non-condensing
Data Communication Port	VE.Direct See the data communication white paper on our website

Enclosure

Specification	Details
Colour	Blue (RAL 5012)
Power Terminals	16 mm² / AWG6
Protection Category	IP43 (electronic components), IP22 (connection area)
Weight	1.3 kg
Dimensions (h × w × d)	130 × 186 × 70 mm

Standards

Specification	Details
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2

Stored Trends

Specification	Details
Data Stored	Battery voltage, current and temperature, as well as load output current, PV voltage and PV current
Number of Days Trends Data is Stored	46

Frequently Asked Questions

What is MPPT technology?

MPPT (Maximum Power Point Tracking) automatically optimizes the operating point of solar panels to maximize energy production and improve charging efficiency.

Does the SmartSolar MPPT 100/30 include Bluetooth?

Yes. Built-in Bluetooth Smart allows wireless monitoring, configuration, diagnostics, and firmware updates through the VictronConnect app.

What battery voltages are supported?

The controller automatically detects and supports both 12V and 24V battery systems.

What is the maximum solar panel input voltage?

The SmartSolar MPPT 100/30 supports a maximum PV open-circuit voltage of 100V.

Can I use lithium batteries with this controller?

Yes. The controller supports lithium battery systems and can be configured using VictronConnect for optimal charging performance.

Can I monitor the controller remotely?

Yes. Through the VE.Direct port, the controller can connect to compatible Victron GX devices for remote monitoring through the Victron Remote Management (VRM) platform.

What protection features are included?

The controller includes PV reverse polarity protection, output short circuit protection, and over-temperature protection.

Is this controller suitable for RV and marine installations?

Absolutely. Its compact design, Bluetooth connectivity, and efficient charging capabilities make it an excellent choice for RV, marine, and off-grid solar applications.
