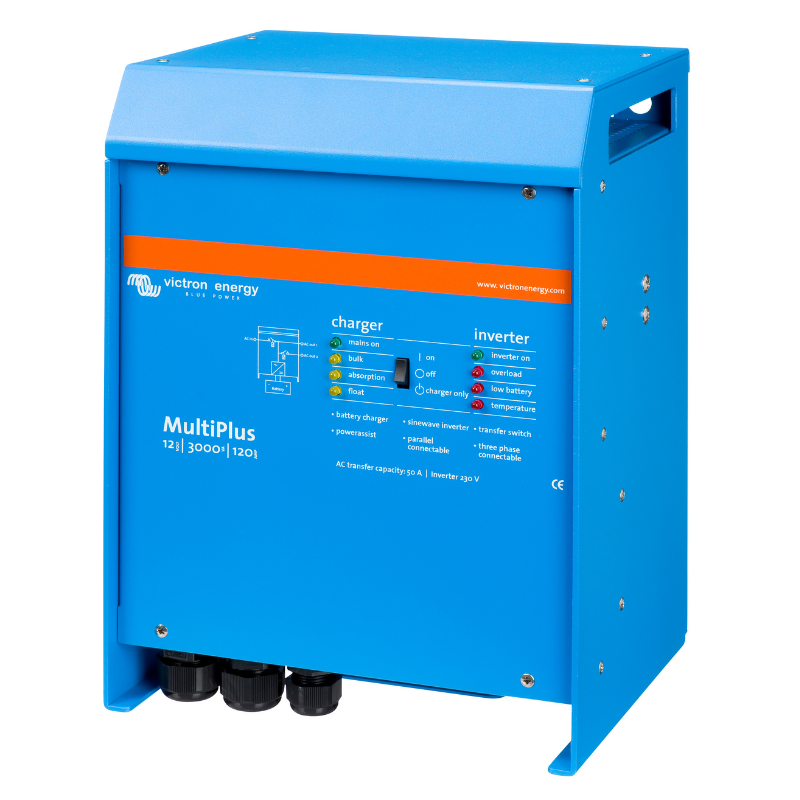

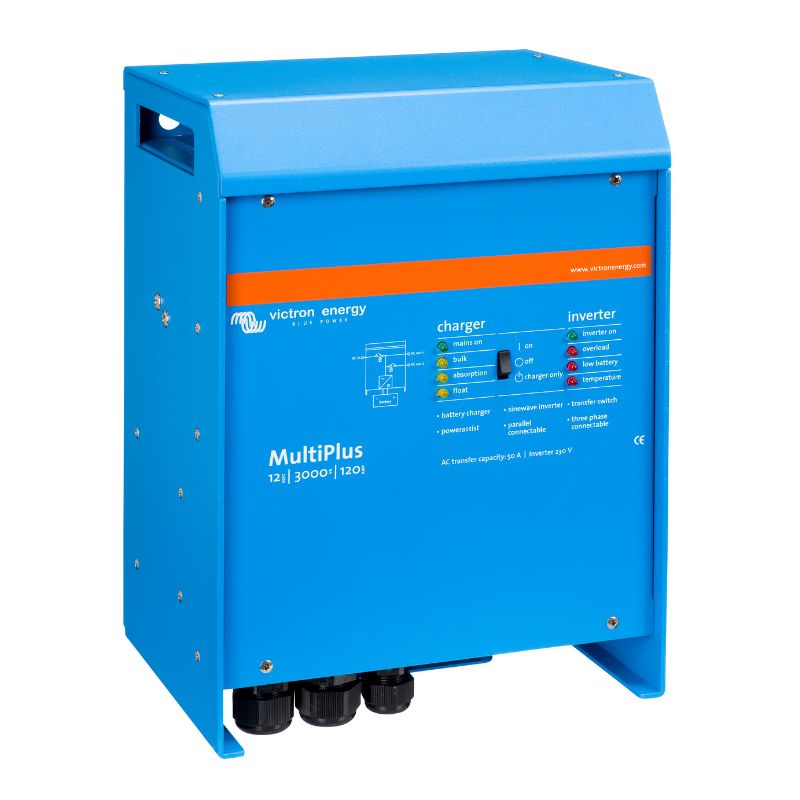

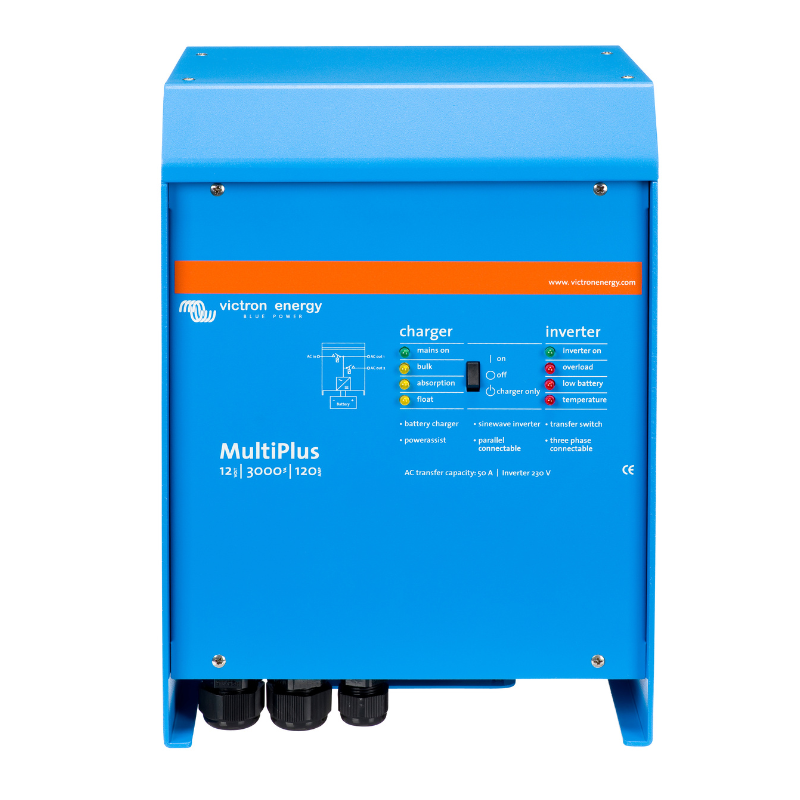

What is the Victron Energy MultiPlus 12/3000/120 used for?
The MultiPlus is used in battery-based power systems where inverter output, battery charging, and AC transfer switching are needed in one unit. It is commonly used in off-grid, marine, RV, backup power, and mobile power applications.
Does this unit provide pure sine wave output?
Yes. The MultiPlus provides true sine wave inverter output with 120 VAC ±2% output voltage and 60 Hz ±0.1% frequency.
What is PowerControl?
PowerControl helps manage limited generator, shore power, or grid input by preventing the AC source from being overloaded while still using available extra power for battery charging.
What is PowerAssist?
PowerAssist allows the MultiPlus to supplement limited generator or shore power with battery power when the connected load needs more power than the AC source can supply.
Can this unit be used with a generator?
Yes. The MultiPlus is designed to work with generator or shore power sources. It can help manage limited AC input power and charge the battery system when AC power is available.
Does this model include an auxiliary output?
Yes. The 12/3000/120 model includes an auxiliary output rated at 32A. This output is live only when AC input power is available.
Can the MultiPlus be used for parallel or three-phase systems?
Yes. The MultiPlus supports parallel and three-phase operation through its VE.Bus communication port.
Should this unit be installed by a professional?
Yes. Victron states that this product may only be installed by a qualified electrical engineer, and it should be installed in a dry, well-ventilated area with proper clearance for cooling.
