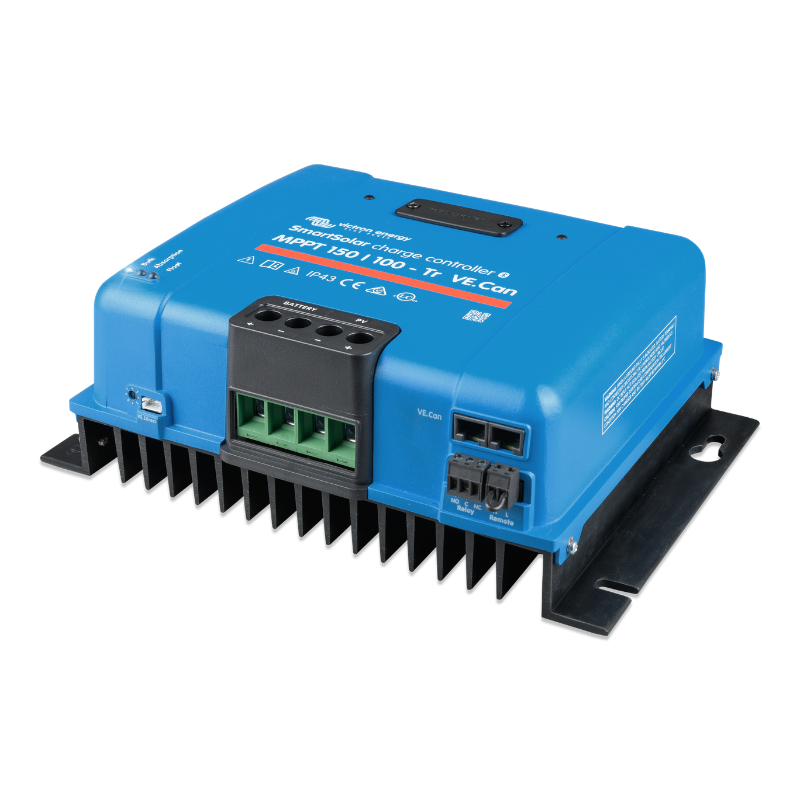

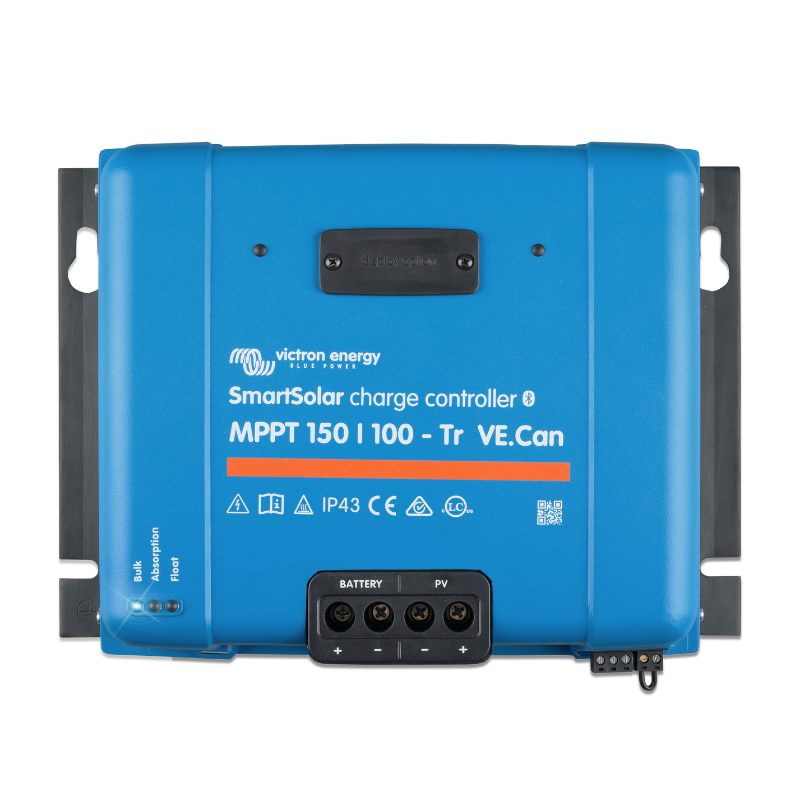

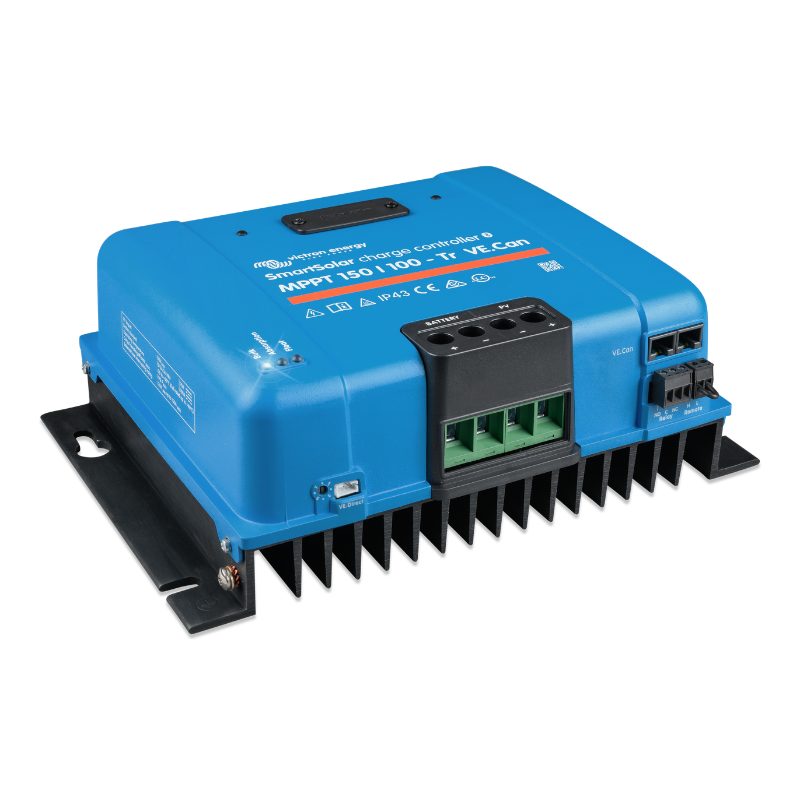

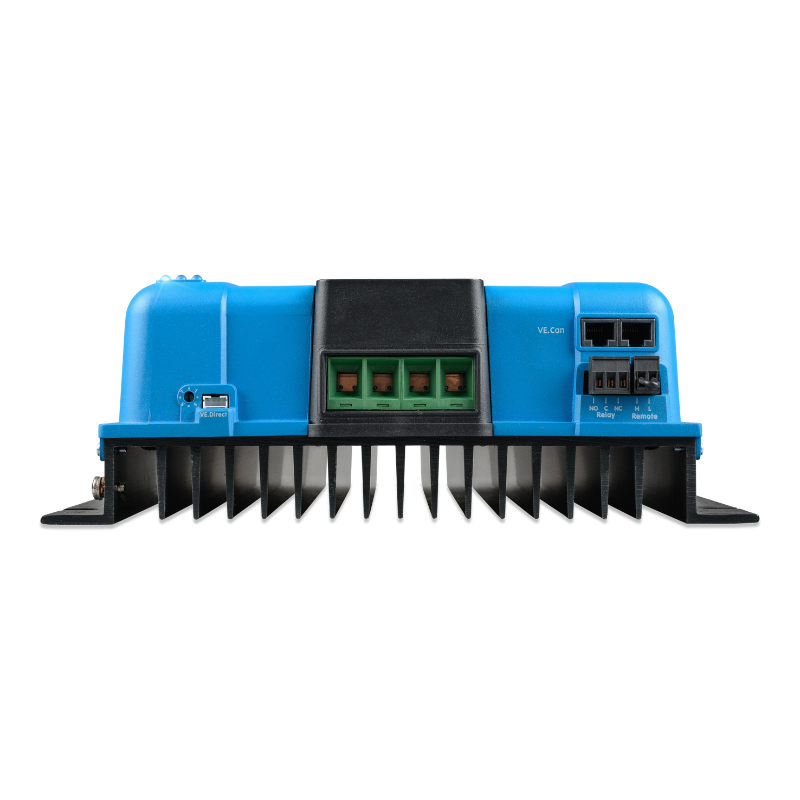

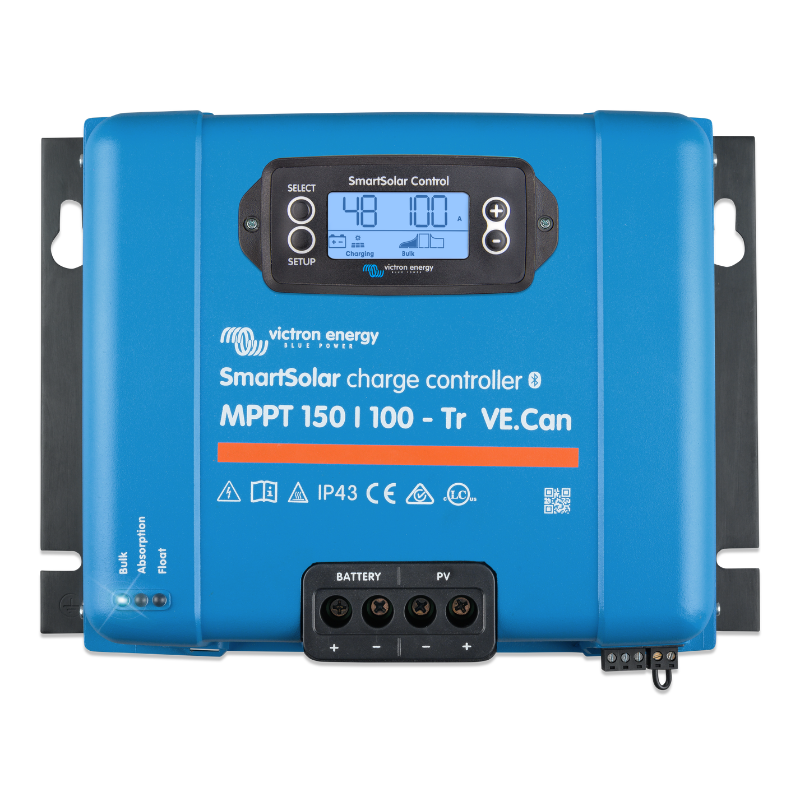

Victron Energy SmartSolar MPPT 150/100-Tr VE.Can Solar Charge Controller
The Victron Energy SmartSolar MPPT 150/100-Tr VE.Can is a powerful solar charge controller engineered for large off-grid and battery storage systems requiring maximum solar harvest and advanced system integration. Featuring Victron's industry-leading Maximum Power Point Tracking (MPPT) technology, built-in Bluetooth connectivity, and VE.Can communication capabilities, this controller optimizes energy collection from solar arrays while providing seamless integration with Victron GX devices and remote monitoring platforms. With a robust 100A charging capacity and support for 12V, 24V, 36V, and 48V battery systems, the SmartSolar MPPT 150/100-Tr VE.Can is ideal for residential, commercial, marine, and industrial renewable energy applications.
Victron Energy SmartSolar MPPT 150/100-Tr VE.Can Features
Ultra-Fast MPPT Tracking - Maximizes solar energy harvest. Advanced MPPT technology continuously tracks the optimum power point of your solar array, increasing energy collection during changing weather conditions.
100A Charging Capacity - Designed for large battery banks. Delivers up to 100 amps of charging current, making it suitable for substantial off-grid and energy storage installations.
VE.Can Communication Interface - Professional system integration. VE.Can networking allows multiple controllers to synchronize and communicate with Victron GX devices for advanced monitoring and control.
Built-In Bluetooth Smart - Wireless monitoring and configuration. Connect directly through the VictronConnect app for setup, firmware updates, diagnostics, and performance monitoring.
Parallel Operation Capability - Expand system capacity easily. Supports synchronized operation with up to 25 units through VE.Can or up to 10 units via Bluetooth.
Advanced Battery Charging Algorithms - Optimized battery performance. Supports lead-acid, AGM, Gel, lithium, and custom battery profiles with adaptive multi-stage charging.
Programmable Relay - Flexible automation options. Configure alarms, generator controls, battery monitoring functions, and system notifications.
Integrated Protection Systems - Reliable long-term operation. Includes PV reverse polarity protection, output short circuit protection, and over-temperature safeguards.
Victron Energy SmartSolar MPPT 150/100-Tr VE.Can Applications
-
Off-grid residential solar systems – Ideal for cabins, homes, and remote properties.
-
Battery energy storage systems – Efficient charging for large battery banks.
-
Marine solar installations – Reliable charging for boats, yachts, and commercial vessels.
-
RV and mobile power systems – Supports large mobile solar arrays.
-
Commercial renewable energy projects – Designed for demanding solar applications.
-
Telecommunications infrastructure – Powers remote communications equipment.
-
Agricultural solar systems – Supports irrigation, monitoring, and farm operations.
-
Industrial backup power systems – Integrates with battery storage and backup solutions.
What's Included?
- Victron Energy SmartSolar MPPT 150/100-Tr VE.Can Charge Controller
- User Manual
Victron Energy SmartSolar MPPT 150/100-Tr VE.Can Specifications
Electrical Specifications
| Specification |
Details |
| Battery Voltage |
12/24/48 V Auto Select (36 V: manual) |
| Rated Charge Current |
100 A |
| Nominal PV Power, 12 V |
1450 W |
| Nominal PV Power, 24 V |
2900 W |
| Nominal PV Power, 36 V |
4350 W |
| Nominal PV Power, 48 V |
5800 W |
| Max. PV Short Circuit Current |
70 A (max 30 A per MC4 connector) |
| Maximum PV Open Circuit Voltage |
150 V absolute maximum coldest conditions; 145 V start-up and operating maximum |
| Maximum Efficiency |
98% |
| Self-Consumption |
Less than 35 mA @ 12 V / 20 mA @ 48 V |
| Charge Voltage "Absorption" |
Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth) |
| Charge Voltage "Float" |
Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
| Charge Voltage "Equalization" |
Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable) |
| Charge Algorithm |
Multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
| Temperature Compensation |
-16 mV / -32 mV / -64 mV / °C |
| Protection |
PV reverse polarity / Output short circuit / Over temperature |
| Operating Temperature |
-30 to +60 °C (full rated output up to 40 °C) |
| Humidity |
95%, non-condensing |
| Maximum Altitude |
5000 m (full rated output up to 2000 m) |
| Environmental Condition |
Indoor, unconditioned |
| Pollution Degree |
PD3 |
| Data Communication |
VE.Can, VE.Direct and Bluetooth |
| Remote On/Off |
Yes (2 pole connector) |
| Programmable Relay |
DPST – AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel Operation |
Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units) |
Enclosure
| Specification |
Details |
| Colour |
Blue (RAL 5012) |
| PV Terminals |
35 mm² / AWG2 (Tr models)
Three pairs of MC4 connectors (MC4 models) |
| Battery Terminals |
35 mm² / AWG2 |
| Protection Category |
IP43 (electronic components), IP22 (connection area) |
| Weight |
4.5 kg |
| Dimensions (h × w × d) |
Tr models: 216 × 295 × 103 mm
MC4 models: 246 × 295 × 103 mm |
Standards
| Specification |
Details |
| Safety |
EN/IEC 62109-1, UL 1741, CSA C22.2 |
Stored Trends
| Specification |
Details |
| Data Stored |
Battery voltage, current and temperature, as well as load output current, PV voltage and PV current |
| Number of Days Trends Data is Stored |
46 |
Frequently Asked Questions
What is the benefit of VE.Can communication?
VE.Can allows multiple charge controllers to synchronize and communicate over a dedicated network, simplifying large solar installations and enabling centralized monitoring through Victron GX devices.
Does this controller include Bluetooth?
Yes. The SmartSolar MPPT 150/100-Tr VE.Can includes built-in Bluetooth for wireless monitoring, configuration, diagnostics, and firmware updates using the VictronConnect app.
Can multiple controllers be connected together?
Yes. The controller supports synchronized operation with up to 25 units via VE.Can or up to 10 units via Bluetooth.
What battery voltages are supported?
The controller supports 12V, 24V, 36V, and 48V battery systems. The 36V setting requires manual configuration.
Is this controller compatible with lithium batteries?
Yes. It supports lithium batteries and offers programmable charging parameters for custom battery profiles.
Can I monitor the system remotely?
Yes. When paired with a Victron GX device, the controller can be monitored remotely through the Victron Remote Management (VRM) portal.
What protections are built into the controller?
The controller includes PV reverse polarity protection, output short circuit protection, and over-temperature protection to help ensure reliable operation.
Is this suitable for large commercial solar systems?
Yes. With 100A charging capability, VE.Can networking, and support for parallel operation, it is designed for demanding residential and commercial energy systems.
