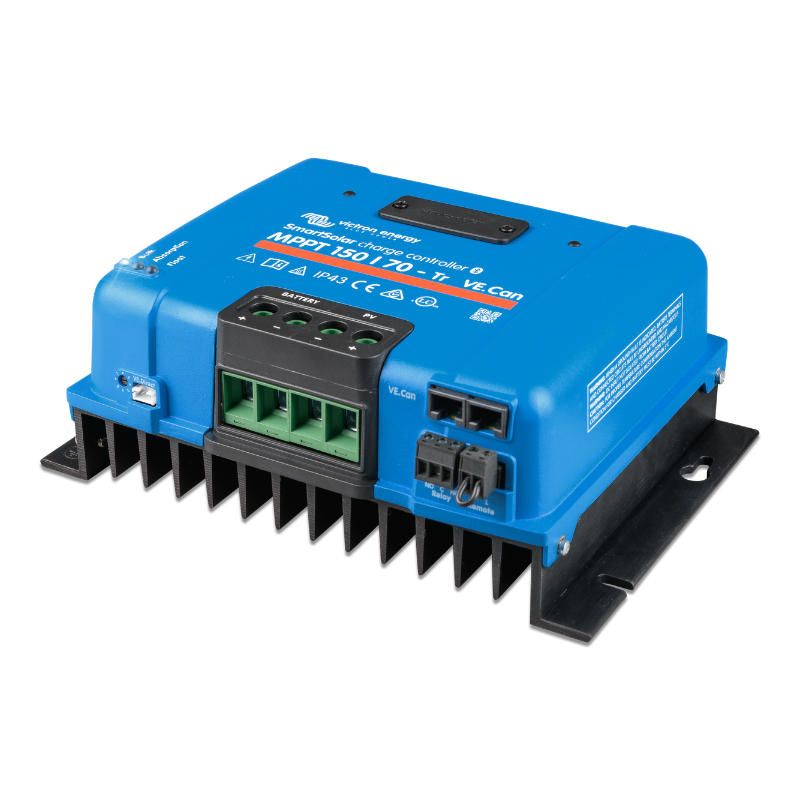

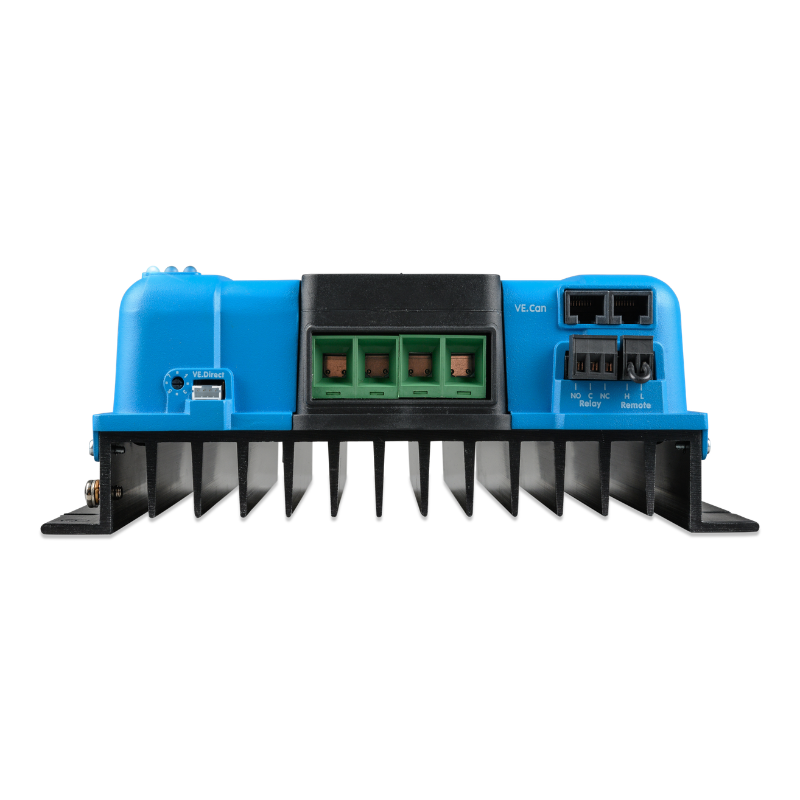

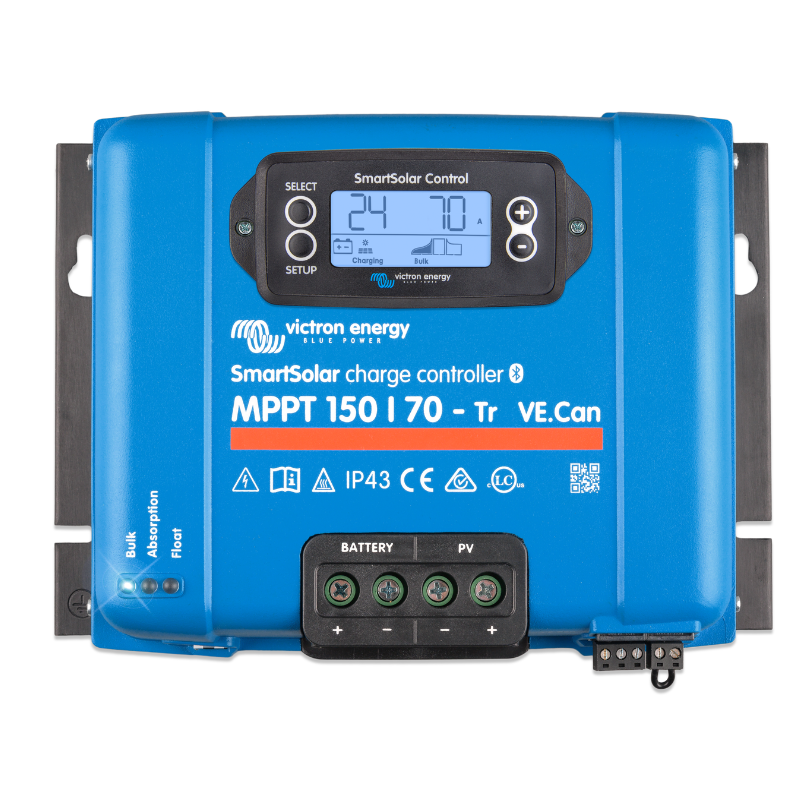

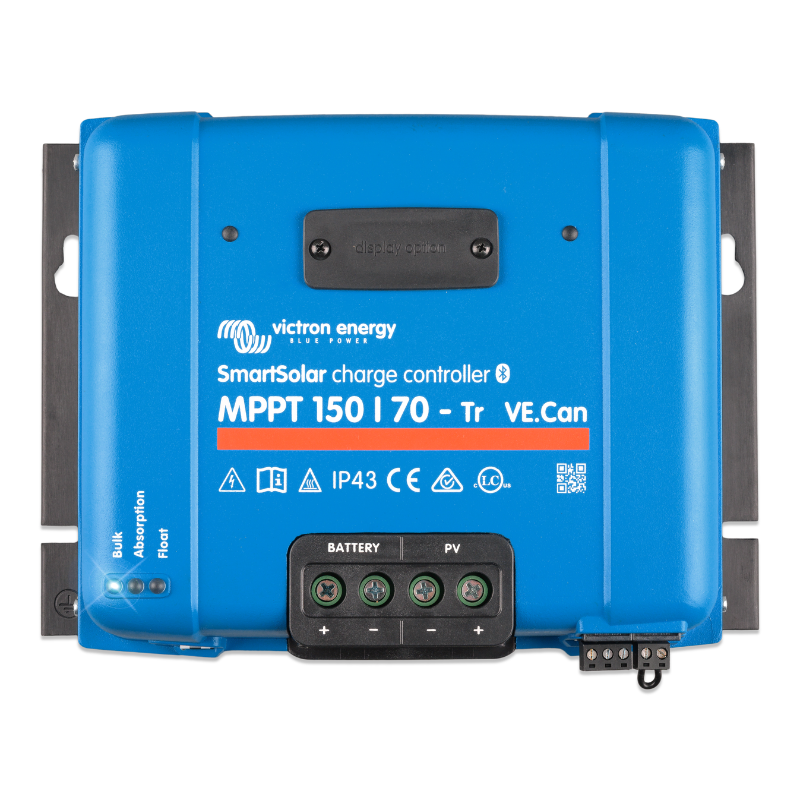

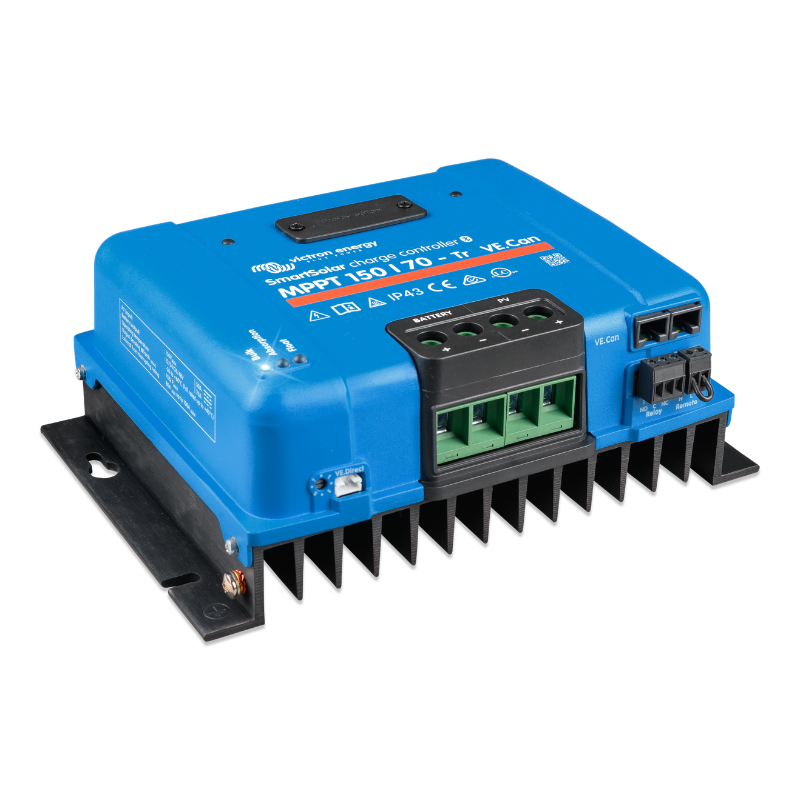

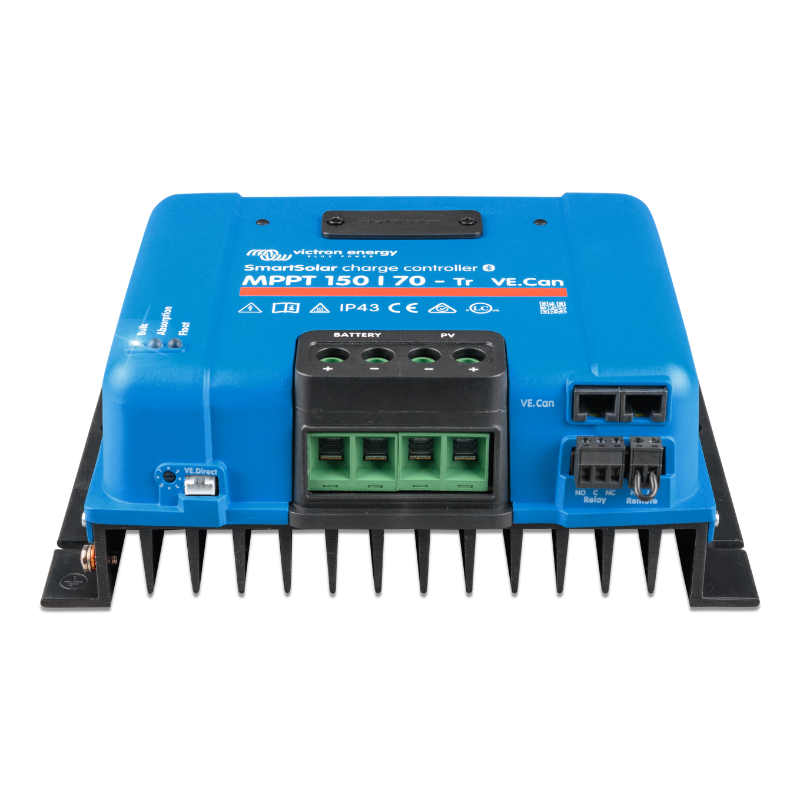

Victron Energy SmartSolar MPPT 150/70-Tr VE.Can, Solar Charge Controller

Name: Victron Energy SmartSolar MPPT 150/70-Tr VE.Can, Solar Charge Controller
Brand: Victron Energy
SKU: SCC115070411
Price: 475.0 USD
Availability: InStock

BY: Victron Energy

SKU: SCC115070411

| Availability: In stock

$488.00

$475.00

You Save: $13.00

Product Highlights

Built for off-grid power, RV travel, and marine systems
70 A MPPT control improves energy harvest from the solar array
MC4-compatible connections integrate with common solar PV wiring
Supports up to 4,000 W solar input for faster daytime recharging

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Victron Energy Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Victron Energy SmartSolar MPPT 150/70-Tr VE.Can Solar Charge Controller

The Victron Energy SmartSolar MPPT 150/70-Tr VE.Can is a professional-grade solar charge controller designed to maximize solar energy harvest while providing seamless integration with advanced Victron Energy systems. Equipped with ultra-fast Maximum Power Point Tracking (MPPT), built-in Bluetooth, and VE.Can networking capabilities, this controller efficiently charges 12V, 24V, 36V, and 48V battery banks while delivering up to 70A of charging current. Its ability to synchronize multiple controllers and communicate with Victron GX devices makes it an excellent choice for larger off-grid, marine, RV, and commercial solar installations.

Victron Energy SmartSolar MPPT 150/70-Tr VE.Can Features

Ultra-Fast MPPT Technology - Maximizes solar harvest. Continuously tracks the optimal power point of the solar array to improve charging efficiency, especially during rapidly changing weather conditions.

VE.Can Network Integration - Ideal for advanced energy systems. Enables communication and synchronization with multiple SmartSolar controllers and Victron GX monitoring devices.

Built-In Bluetooth Smart - Wireless monitoring and setup. Configure settings, monitor performance, and update firmware directly from the VictronConnect app.

70A Charging Output - Designed for larger battery banks. Delivers substantial charging power for off-grid homes, backup power systems, and renewable energy installations.

Parallel Operation Capability - Scalable system design. Supports synchronized operation with up to 25 units via VE.Can or up to 10 units through Bluetooth.

Advanced Charging Algorithms - Optimized battery health. Features adaptive multi-stage charging with pre-programmed and customizable battery charging profiles.

Programmable Relay - Flexible automation. Configure alarms, generator start/stop functions, and battery management notifications.

Comprehensive Protection - Reliable long-term performance. Includes protection against PV reverse polarity, output short circuits, and over-temperature conditions.

Victron Energy SmartSolar MPPT 150/70-Tr VE.Can Applications

Off-grid homes – Efficient charging for standalone solar power systems.
Battery storage systems – Optimizes charging performance for energy storage applications.
Marine installations – Reliable charging for yachts, sailboats, and commercial vessels.
RV and van life systems – Supports high-capacity mobile solar installations.
Telecommunications sites – Powers remote communication infrastructure.
Agricultural solar systems – Supports pumps, monitoring equipment, and farm operations.
Commercial solar projects – Ideal for scalable renewable energy systems.
Backup power systems – Integrates with battery storage for emergency power applications.

What's Included?

Victron Energy SmartSolar MPPT 150/70-Tr VE.Can, Solar Charge Controller
User Manual

Victron Energy SmartSolar MPPT 150/70-Tr VE.Can Specifications

Electrical Specifications

Specification	Details
Battery Voltage	12/24/48 V Auto Select (36 V: manual)
Rated Charge Current	70 A
Nominal PV Power, 12 V	1000 W
Nominal PV Power, 24 V	2000 W
Nominal PV Power, 36 V	3000 W
Nominal PV Power, 48 V	4000 W
Max. PV Short Circuit Current	50 A (max 30 A per MC4 connector)
Maximum PV Open Circuit Voltage	150 V absolute maximum coldest conditions; 145 V start-up and operating maximum
Maximum Efficiency	98%
Self-Consumption	Less than 35 mA @ 12 V / 20 mA @ 48 V
Charge Voltage "Absorption"	Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge Voltage "Float"	Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge Voltage "Equalization"	Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable)
Charge Algorithm	Multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
Temperature Compensation	-16 mV / -32 mV / -64 mV / °C
Protection	PV reverse polarity / Output short circuit / Over temperature
Operating Temperature	-30 to +60 °C (full rated output up to 40 °C)
Humidity	95%, non-condensing
Maximum Altitude	5000 m (full rated output up to 2000 m)
Environmental Condition	Indoor, unconditioned
Pollution Degree	PD3
Data Communication	VE.Can, VE.Direct and Bluetooth
Remote On/Off	Yes (2 pole connector)
Programmable Relay	DPST – AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Parallel Operation	Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units)

Enclosure

Specification	Details
Colour	Blue (RAL 5012)
PV Terminals	35 mm² / AWG2 (Tr models) Two pairs of MC4 connectors (MC4 models)
Battery Terminals	35 mm² / AWG2
Protection Category	IP43 (electronic components), IP22 (connection area)
Weight	3 kg
Dimensions (h × w × d)	Tr models: 185 × 250 × 95 mm MC4 models: 215 × 250 × 95 mm

Standards

Specification	Details
Safety	EN/IEC 62109-1, UL 1741, CSA C22.2

Stored Trends

Specification	Details
Data Stored	Battery voltage, current and temperature, as well as load output current, PV voltage and PV current
Number of Days Trends Data is Stored	46

Frequently Asked Questions

What is the advantage of VE.Can communication?
VE.Can allows multiple SmartSolar charge controllers to communicate and synchronize charging activity while providing centralized monitoring through Victron GX devices and the VRM Portal.
Does this controller include Bluetooth?
Yes. Built-in Bluetooth allows wireless monitoring, configuration, diagnostics, and firmware updates using the VictronConnect mobile or desktop app.
Can multiple controllers operate together?
Yes. The SmartSolar MPPT 150/70-Tr VE.Can supports synchronized operation with up to 25 controllers through VE.Can or up to 10 controllers through Bluetooth.
What battery voltages are supported?
The controller automatically supports 12V, 24V, and 48V battery banks. A 36V battery bank can be configured manually.
Is this controller compatible with lithium batteries?
Yes. It supports lithium batteries and offers customizable charging profiles for optimal charging performance.
Can I remotely monitor my solar system?
Yes. When connected to a Victron GX device, the controller can be monitored remotely through the Victron Remote Management (VRM) platform.
What protection features are included?
The controller includes protection against PV reverse polarity, output short circuits, and over-temperature conditions.
Is this suitable for commercial solar systems?
Yes. With VE.Can networking, Bluetooth connectivity, and parallel operation support, it is suitable for larger residential and commercial renewable energy systems.
