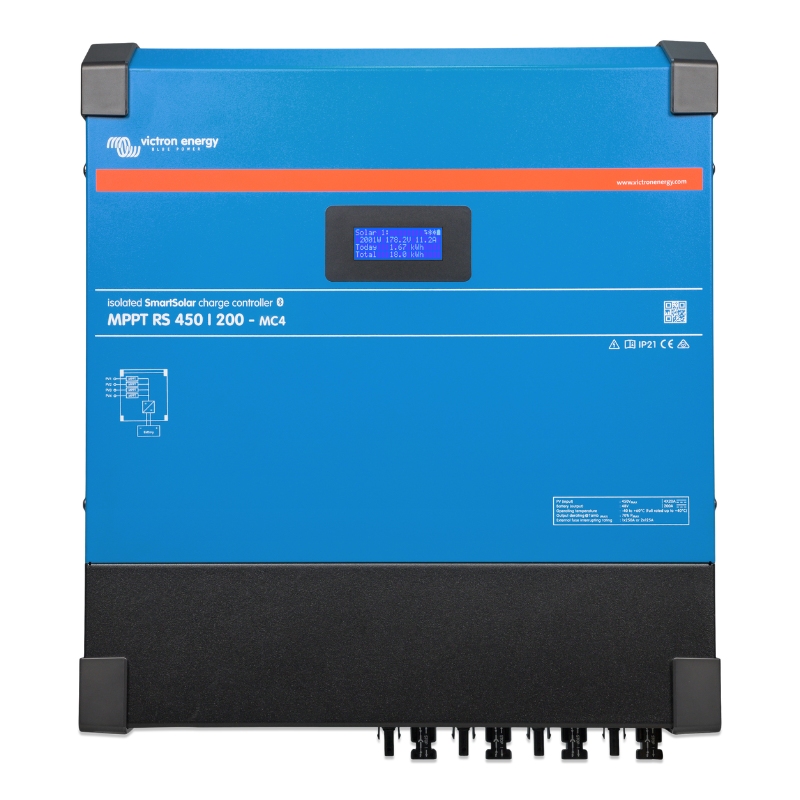

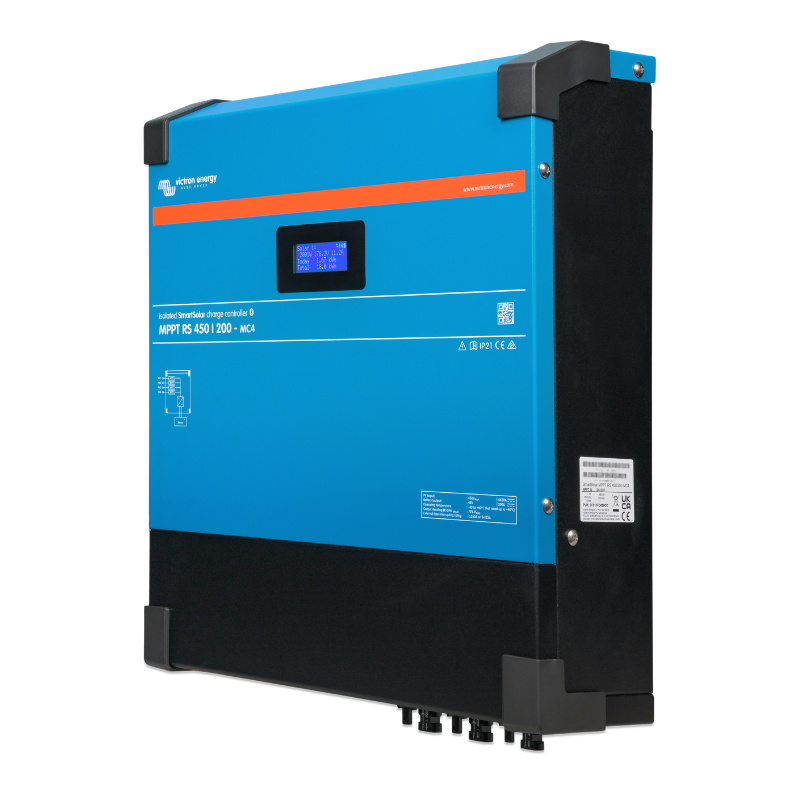

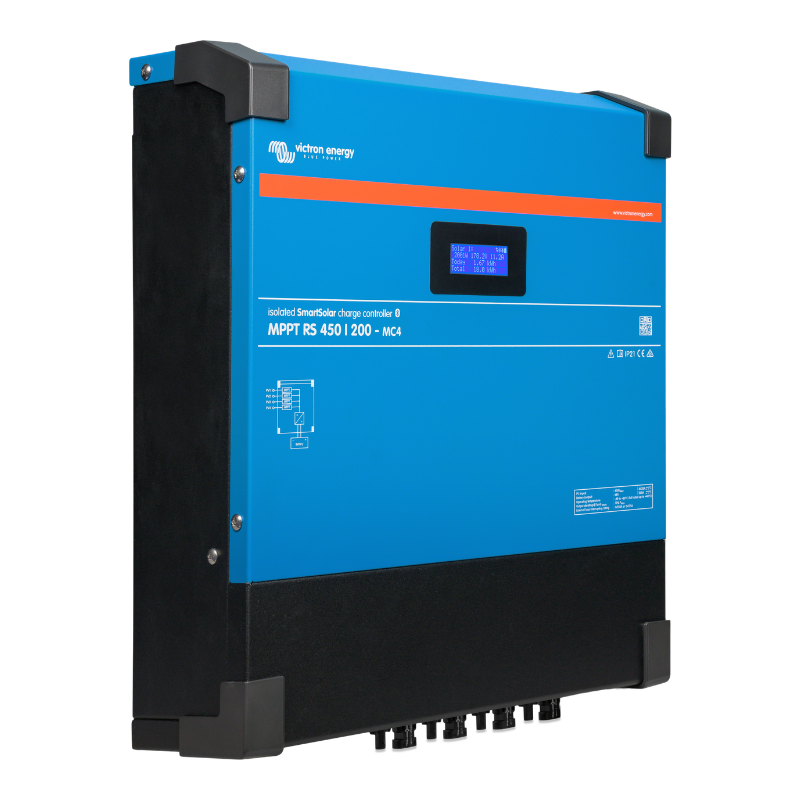

Victron Energy SmartSolar MPPT RS 450/200-MC4

The Victron Energy SmartSolar MPPT RS 450/200-MC4 is a premium solar charge controller purpose-built for high-voltage photovoltaic systems. Supporting up to 450V PV input and delivering up to 200A charging current, this unit is ideal for large off-grid, hybrid, and commercial energy storage setups. It features advanced MPPT tracking, ensuring maximum energy harvest even in variable weather conditions, while integrated Bluetooth and VE.Can connectivity provide seamless system monitoring and configuration through Victron’s ecosystem.

Victron Energy SmartSolar MPPT RS 450/200-MC4 Features

Ultra-High Voltage PV Input - Supports up to 450V DC input, enabling longer string configurations and reducing system wiring complexity.

200A Charging Output - Delivers high current output, making it suitable for large battery banks and high-demand energy storage systems.

Advanced MPPT Technology - Optimizes solar harvest with fast and precise tracking, improving efficiency in low-light or partially shaded conditions.

Integrated Bluetooth Smart - Monitor and configure the system wirelessly via the VictronConnect app for real-time performance insights.

VE.Can & VE.Direct Communication - Seamlessly integrates into larger Victron systems with advanced communication protocols for synchronized operation.

Robust Thermal Management - Engineered with active cooling and high-efficiency design, ensuring stable operation under heavy loads.

Smart Battery Charging Profiles - Supports multiple battery chemistries including LiFePO4, AGM, and Gel, with fully programmable charging parameters.

Victron Energy SmartSolar MPPT RS 450/200-MC4 Applications

Off-grid solar systems – ideal for remote homes and cabins requiring reliable high-capacity charging
Commercial energy storage – supports large-scale battery banks and solar arrays
Hybrid solar installations – integrates seamlessly with grid-tied backup systems
Industrial solar applications – designed for high-voltage, high-output environments
Telecommunications sites – ensures stable power for critical infrastructure

What's Included

Everything you need is included with your product.

Victron Energy SmartSolar MPPT RS 450/200-MC4, Solar Charge Controller

User Manual

Victron Energy SmartSolar MPPT RS 450/200-MC4 Specifications

Charger

Specification	Details
Battery voltage	48 V
Rated charge current	200 A
Maximum charge power	11.5 kW at 57.6 V
Charge voltage 'absorption	Default setting: 57.6 V (adjustable)
Charge voltage 'float'	Default setting: 55.2 V (adjustable)
Programmable voltage range	Minimum: 36 V \| Maximum: 60 V
Charge algorithm	Multi-stage adaptive (adjustable)
Battery temperature sensor	Included
Maximum efficiency	96 %
Self-consumption	15 mA

Solar

Specification	Details
Maximum DC PV voltage	450 V
Start-up voltage	120 V
MPPT operating voltage range	65 – 450 V
Number of trackers	4
Max. PV operational input current	16 A per tracker
Max. PV short circuit current	20 A per tracker
Max. DC output charging power	4000 W per tracker \| 11520 W total
Maximum PV array size per tracker	7200 Wp (450 V x 20 A)
PV Isolation fail level	100 kΩ

General

Specification	Details
Synchronised Parallel Operation	Yes, up to 25 units with VE.Can
Programmable relay	Yes
Protection	PV reverse polarity \| Output short circuit \| Over temperature
Data communication	VE.Direct port, VE.Can port & Bluetooth
Bluetooth frequency	2402 – 2480 MHz
Bluetooth power	4dBm
General purpose analogue/digital in port	Yes, 2x
Remote on-off	Yes
Operating temperature range	-40 to +60 °C (fan assisted cooling)
Humidity (non-condensing)	max 95 %

Enclosure

Specification	Details
Material & Colour	steel, blue RAL 5012
Protection category	IP21
Battery-connection	4x M8 bolts, 2x positive and 2x negative
Power terminals PV input	1 pair of male and female MC4 connectors per tracker
Weight	13.7 kg
Dimensions (h x w x d) in mm	487 x 434 x 146

Standards

Specification	Details
Safety	EN-IEC 62109-1
Country of Origin	Designed in The Netherlands made in India

Manual

Victron Energy SmartSolar MPPT RS 450/200-MC4 Manual
