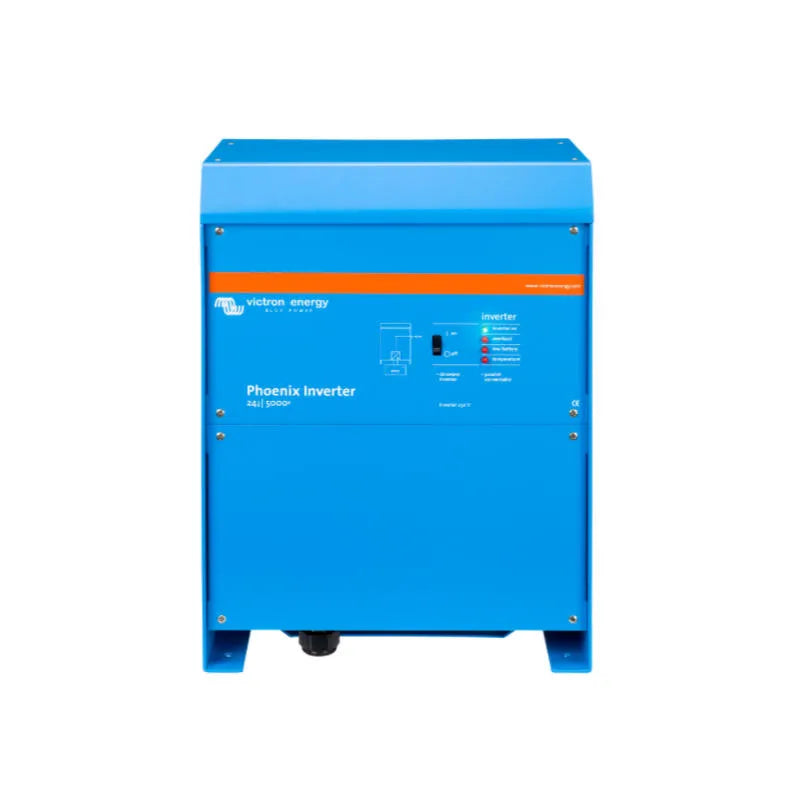

Victron Energy Phoenix Inverter 24/3000 120VAC (Model: PIN243020100)
Dependable Power for Demanding Applications
The Victron Phoenix 24/3000 VE.Bus Inverter (Model PIN243020100) delivers robust, pure sine wave AC power from a 24V DC battery source. Engineered for reliability and high performance, this 3000VA inverter is well-suited for residential, commercial, and industrial power systems—including off-grid installations, backup systems, mobile applications, and more.
Key Features
-
Pure Sine Wave Output
Delivers clean, stable 120V AC power—ideal for running sensitive electronics, appliances, and power tools.
-
3000VA Continuous Output
Provides reliable power for larger loads and demanding systems.
-
High Efficiency Design
Maximizes energy use and minimizes power loss—resulting in better battery performance and reduced operational costs.
-
Advanced Safety Protections
Includes built-in protection against overloads, short circuits, overheating, and battery voltage anomalies.
-
Remote Monitoring Ready
Compatible with Victron’s GX devices, VictronConnect, and the VRM Portal for real-time monitoring and system control.
-
Compact & Rugged
Designed for flexibility in installation while withstanding harsh operating environments.
Technology Overview
Built with Victron’s VE.Bus interface, the 24/3000 inverter supports parallel operation, three-phase setups, and integration with Multiplus or Quattro inverters/chargers. This makes it suitable for scalable power solutions and professional-grade energy systems.
Installation & Compatibility
Easy to install with clear terminal connections and flexible mounting options. Seamlessly integrates with:
-
Victron SmartSolar MPPT charge controllers
-
BMV or SmartShunt battery monitors
-
Victron BatteryProtect and GX control devices
Compatible with AGM, GEL, Lead Carbon, and Lithium battery banks.
Applications
-
Off-grid homes and solar energy systems
-
Mobile power for RVs and vans
-
Marine vessels and yachts
-
Commercial and industrial equipment
-
Emergency backup power for mission-critical systems
Technical Specifications
Specification |
Value |
Model Number |
PIN243020100 |
Continuous Power |
3000VA (approx. 2400W) |
Input Voltage |
24V DC |
Output Voltage |
120V AC ±2% |
Waveform |
Pure Sine Wave |
Frequency |
60Hz ±0.1% |
Efficiency |
Up to ~94% |
Communication |
VE.Bus, optional VE.Direct with accessories |
Remote Monitoring |
Yes – with Victron GX or VRM portal |
Weight |
~18 kg (39.7 lbs) |
Dimensions |
362 x 258 x 218 mm (14.3 x 10.2 x 8.6 in) |
