Victron Quattro 5kVA Elite Off-Grid Solar & Storage Kit – Multi-Source Power Ready
The Victron Quattro 5kVA Elite Off-Grid Solar & Storage Kit is a premium, high-performance energy solution designed for demanding off-grid and backup applications. Equipped with two Victron Quattro 5kVA inverters, advanced MPPT charge controllers, high-efficiency solar panels, and customizable lithium battery storage, this kit ensures you have the flexibility, redundancy, and capacity to keep your property powered in any situation.
With multi-source AC input capability, expandable battery configurations, and a complete installation package, it’s ideal for large homes, commercial sites, and remote locations that require reliable, continuous power.
Victron Quattro 5kVA Elite Off-Grid Solar & Storage Kit Features
Dual Victron Quattro Inverters
Two 48V Quattro 5kVA 120V inverters provide 10kVA total output with integrated 70A chargers, pure sine wave output, and seamless switching between AC sources.
Multi-Source Power Capability
Dual AC inputs allow automatic switching between generator, grid, or shore power for uninterrupted power supply.
Advanced MPPT Solar Charging
A 450V/100A and a 450V/200A Victron SmartSolar MPPT RS controller ensure maximum solar energy capture with intelligent tracking and Bluetooth connectivity.
High-Output Solar Array
Fourteen Sungold Power 440W Mono Black PERC panels provide consistent, high-efficiency performance, even in challenging light conditions.
Scalable Lithium Battery Storage
Choose from EG4 or Pytes LiFePO4 batteries to tailor your storage capacity for your runtime needs and load profile.
Smart Monitoring & Control
Victron Cerbo GX MK2 and GX Touch 7" display give complete system visibility and remote access capabilities.
All-in-One Installation Kit
Includes solar disconnect switch, extension cables, heavy-duty inverter battery cables, and Z-bracket mounting hardware for a streamlined setup.
Victron Quattro 5kVA Elite Off-Grid Solar & Storage Kit Applications
-
Large off-grid homes – maintain full household power without utility dependence.
-
Commercial sites – run critical equipment and lighting in remote or unstable power areas.
-
Backup power – keep vital systems running seamlessly during outages.
-
Agriculture – power irrigation, refrigeration, and machinery reliably.
-
Cabins & retreats – self-sufficient power for extended stays.
-
Mobile and modular systems – adaptable for RVs, trailers, and mobile operations.

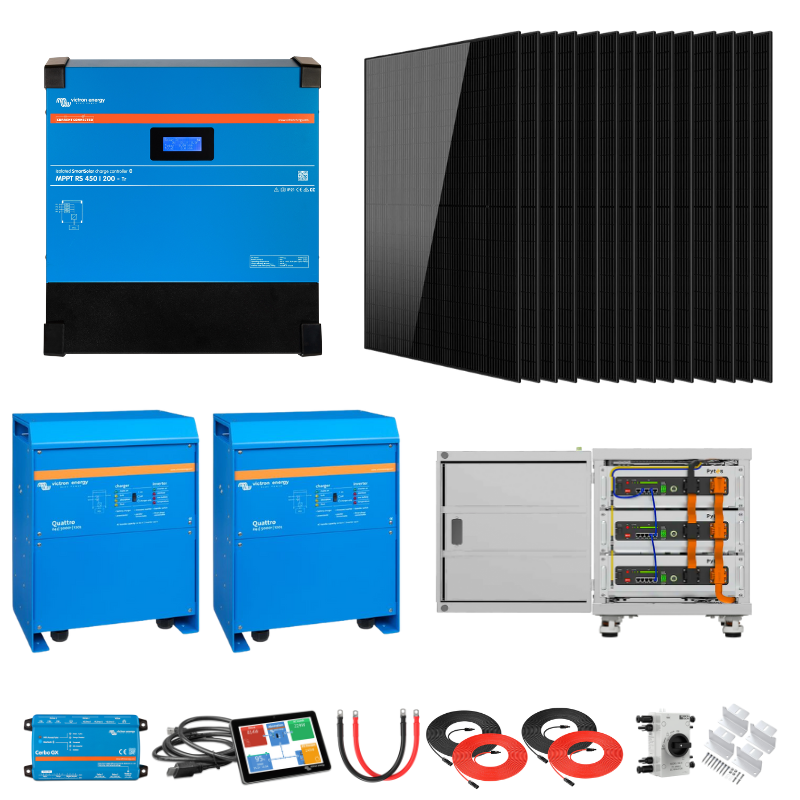

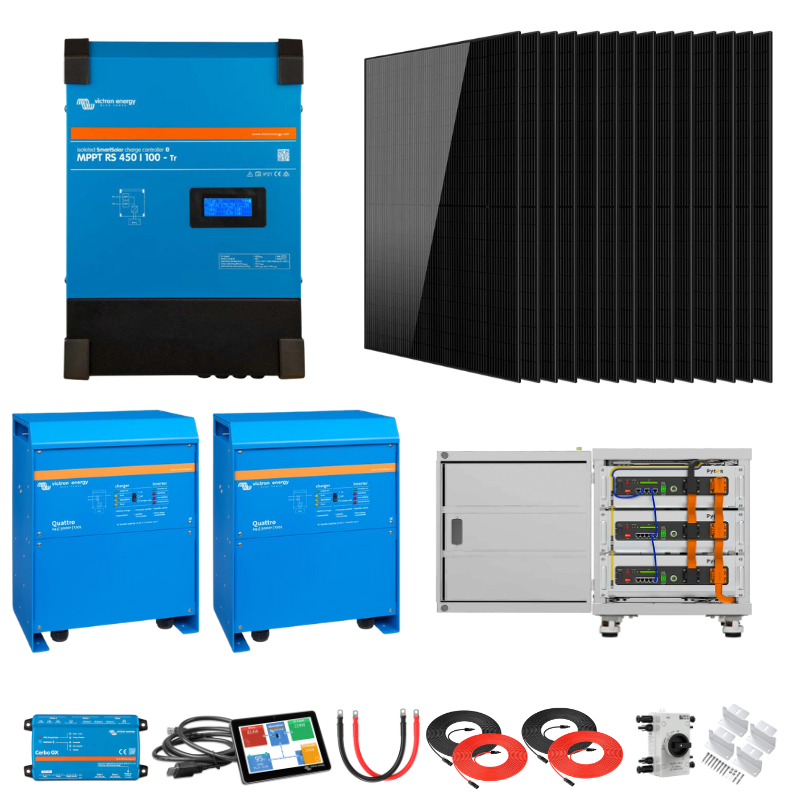

What’s Included?
-
Inverters – Victron 48V Quattro 5kVA 120V Inverter 70A Charger (UL)
-
Smart Solar Charge Controllers – 1× 450V/100A & 1× 450V/200A Victron SmartSolar MPPT RS
-
Solar Panels – 14× Sungold Power 440W Mono Black PERC Solar Panels
-
Battery Options –
-
3× Pytes 48V 100Ah V5 + Pytes V-Box-IC Rack
-
3× EG4 48V 100Ah + 3-slot rack
-
6× EG4 48V 100Ah + 6-slot rack
-
1× EG4 48V 280Ah Indoor WallMount
-
1× EG4 48V 280Ah PowerPro AllWeather WallMount
-
Accessories –
-
Solar PV DC Quick Disconnect Switch
-
2× 50 ft Rich Solar 10 AWG Extension Cables
-
1× Rich Solar 1/0 AWG Inverter Battery Cable Pair (3 ft)
-
Victron Cerbo GX MK2 Controller
-
Victron GX Touch 7" Display
-
Rich Solar Z-Bracket Mounting Hardware
Victron 48V MultiPlus-II 5kVA 120V Inverter – 70A Charger Specifications
Quattro
| Model |
48/3000/35-50/50 120V |
12/5000/220-100/100 120V |
24/5000/120-100/100 120V |
48/5000/70-100/100 120V |
48/10000/140-100/100 120V |
| PowerControl / PowerAssist |
Yes |
Yes |
Yes |
Yes |
Yes |
| Integrated Transfer switch |
Yes |
Yes |
Yes |
Yes |
Yes |
| AC inputs (2×) |
Input voltage range: 90–140 VAC, Input frequency: 45–65 Hz, Power factor: 1 |
|
|
|
|
| Maximum feed through current |
2 × 50A |
2 × 100A |
2 × 100A |
2 × 100A |
2 × 100A |
Inverter
| Parameter |
48/3000/35-50/50 120V |
12/5000/220-100/100 120V |
24/5000/120-100/100 120V |
48/5000/70-100/100 120V |
48/10000/140-100/100 120V |
| Input voltage range |
9.5–17V |
19–33V |
38–66V |
38–66V |
38–66V |
| Output |
Output voltage: 120 VAC ± 2%, Frequency: 60 Hz ± 0.1% |
|
|
|
|
| Cont. output power at 25°C |
3000VA |
5000VA |
4000W |
5000W |
10000VA |
| Cont. output power at 40°C |
2400W |
4000W |
3200W |
4000W |
8000W |
| Cont. output power at 65°C |
1700W |
3000W |
2400W |
3000W |
4500W |
| Peak power |
6000W |
10000W |
9000W |
10000W |
20000W |
| Maximum efficiency |
94% |
94% |
95% |
95% |
96% |
| Zero load power |
25W |
30W |
25W |
35W |
40W |
| Zero load power in AES mode |
20W |
20 / 15W |
20 / 15W |
20 / 15W |
30W |
| Zero load power in Search mode |
12W |
10 / 15W |
10 / 15W |
10 / 15W |
15W |
Charger
| Parameter |
48/3000/35-50/50 120V |
12/5000/220-100/100 120V |
24/5000/120-100/100 120V |
48/5000/70-100/100 120V |
48/10000/140-100/100 120V |
| Charge voltage ‘absorption’ (V DC) |
57.6V |
14.4 / 28.8 / 57.6V |
57.6V |
57.6V |
57.6V |
| Charge voltage ‘float’ (V DC) |
55.2V |
13.8 / 27.6 / 55.2V |
55.2V |
55.2V |
55.2V |
| Storage mode (V DC) |
52.8V |
13.2 / 26.4 / 52.8V |
52.8V |
52.8V |
52.8V |
| Charge current house battery (A) |
35A |
100 / 70 / 70A |
70A |
70A |
140A |
| Charge current starter battery (A) |
4A (12V and 24V models only) |
|
|
|
|
| Battery temperature sensor |
Yes |
Yes |
Yes |
Yes |
Yes |
General Features
| Parameter |
48/3000/35-50/50 120V |
12/5000/220-100/100 120V |
24/5000/120-100/100 120V |
48/5000/70-100/100 120V |
48/10000/140-100/100 120V |
| Auxiliary output |
32A |
50A |
50A |
50A |
50A |
| Programmable relay |
3× |
3× |
3× |
3× |
3× |
| Protection |
Yes |
Yes |
Yes |
Yes |
Yes |
| VE.Bus communication port |
For parallel, split-phase, and three-phase operation, remote monitoring and system integration |
|
|
|
|
| General purpose com. port |
Yes, 2× |
|
|
|
|
| Remote on-off |
Yes |
|
|
|
|
| Common Characteristics |
Operating temp: –40°C to +65°C |
|
|
|
|
| Humidity (non-condensing) |
Max 95% |
Enclosure
| Parameter |
Specification |
| Material & Colour |
Aluminium (Blue RAL 5012) |
| Protection category |
IP21 |
| Battery-connection |
Screw terminals 13 mm² (6 AWG) – 48/3000 model
Four M8 bolts (plus 2d and 2 minus connections) – 12/5000, 24/5000, 48/5000, 48/10000 models |
| 120 V AC-connection |
13 mm² (6 AWG) |
| Weight |
42 lb / 19 kg (48/3000)
75 / 66 / 66 lb (12/5000, 24/5000, 48/5000)
128 lb / 58 kg (48/10000) |
| Dimensions (h × w × d) |
14.3 × 10.2 × 8.6 in (362 × 258 × 218 mm) – 48/3000
18.5 × 14 × 11.2 in (470 × 350 × 280 mm) – 12/5000, 24/5000, 48/5000
26.2 × 19.3 × 13.6 in (572 × 488 × 346 mm) – 48/10000 |
Frequently Asked Questions
Why choose the Victron Quattro over the MultiPlus-II?
The Quattro’s dual AC input capability makes it ideal for systems needing seamless switching between two independent AC sources, such as grid and generator, for greater redundancy.
Is this system expandable?
Yes, both solar and battery capacity can be increased, and additional inverters can be added for higher output or split-phase power.
Can it be used completely off-grid?
Absolutely. This kit is designed for 100% off-grid operation but can also integrate with the grid if desired.
