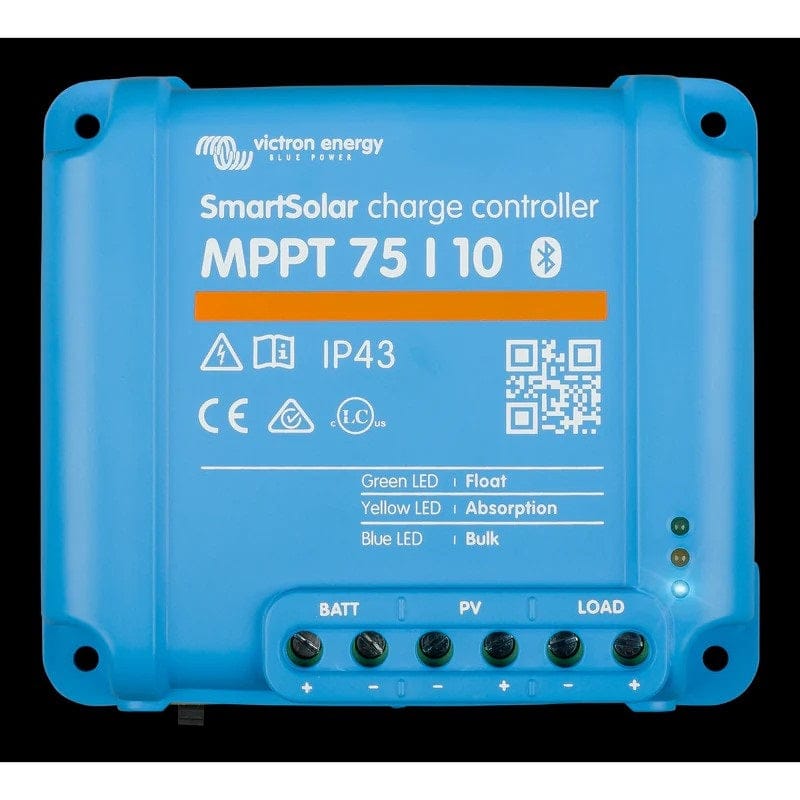

Victron SmartSolar MPPT Charge Controller 75/10
The Victron SmartSolar MPPT 75/10 is a compact, high-efficiency solar charge controller that uses ultra-fast MPPT technology to squeeze the most energy possible from your solar panels. With integrated Bluetooth for easy setup and live monitoring via the VictronConnect app, plus robust multi-stage charging that protects and extends the life of your batteries, this controller is perfect for RVs, boats, off-grid cabins, or remote systems where reliability and smart control matter most.
Victron SmartSolar MPPT Charge Controller 75/10 Features
Ultra-Fast MPPT Technology
Tracks the maximum power point of your solar panels up to hundreds of times per second, improving charge efficiency by up to 30% over PWM controllers, especially under cloudy or partial shade conditions.
Integrated Bluetooth Connectivity
Comes with built-in Bluetooth, allowing you to pair with the free VictronConnect app on your phone or tablet for real-time monitoring, history logs, and easy programming.
Advanced Battery Charging
Provides precise multi-stage charging for flooded, sealed, AGM, gel, and lithium batteries, automatically adjusting to optimize battery health and longevity.
Programmable Load Output
Protects your batteries by disconnecting loads before they are deeply discharged, then reconnects automatically when batteries are recharged.
Full Electronic Protection
Safeguards your system with protections against overload, over-temperature, short-circuiting, and reverse polarity on both PV and battery connections.
Compact, Rugged Design
Small enough to fit tight spaces in RVs, boats, or equipment boxes, with a sturdy build to withstand tough off-grid environments.
Victron SmartSolar MPPT Charge Controller 75/10 Applications
-
RVs & Camper Vans – Keep your house batteries topped off while you explore, using rooftop or portable solar.
-
Marine Systems – Maintain battery charge on sailboats and motor yachts without noisy generators.
-
Off-Grid Cabins & Tiny Homes – Power lights, fans, and small DC appliances with a smart, automated charging system.
-
Agricultural or Security Systems – Keep batteries charged for electric fences, remote gate openers, or cameras.
-
Sheds & Workshops – Run off-grid lights or small tools with reliable solar charging.
-
Emergency Prep Systems – Maintain charged batteries for outages or backup power scenarios.
What’s Included?
Warranty
Victron SmartSolar MPPT Charge Controller 75/10 Specifications
| Specification |
MPPT 75/10 |
MPPT 75/15 |
MPPT 100/15 |
MPPT 100/20 |
| Battery voltage (auto select) |
12V or 24V |
12V or 24V |
12V or 24V |
12V, 24V, or 48V |
| Maximum battery current |
10A |
15A |
15A |
20A |
| Nominal PV power, 12V1,a,b
|
145W |
220W |
220W |
290W |
| Nominal PV power, 24V1,a,b
|
290W |
440W |
440W |
580W |
| Nominal PV power, 48V1,a,b
|
1160W |
1160W |
1160W |
1160W |
| Max. PV short circuit current2
|
10A |
15A |
15A |
20A |
| Automatic load disconnect |
Yes |
Yes |
| Maximum PV open circuit voltage |
75V |
75V |
75V |
100V |
| Peak efficiency |
98% |
98% |
98% |
98% |
| Self consumption |
12V: 20mA / 24V: 10mA |
12V: 20mA / 24V: 10mA |
12V: 20mA / 24V: 10mA |
12V: 25mA / 24V: 15mA / 48V: 15mA |
| Charge voltage ‘absorption’ |
14.4 / 28.8 / 57.6V (adjustable) |
| Charge voltage ‘float’ |
13.8 / 27.6 / 55.2V (adjustable) |
| Charge voltage ‘equalization’3
|
16.2 / 32.4 / 64.8V (adjustable) |
| Charge algorithm |
Multi-stage adaptive or user defined algorithm |
| Temperature compensation |
12V: -16mV/°C / 24V: -32mV/°C / 48V: -64mV/°C |
| Continuous load current |
15A |
15A |
15A |
12V & 24V: 20A / 48V: 1A |
| Low voltage load disconnect |
11.1V / 22.2V / 44.4V or 11.8V / 23.6V / 47.2V or BatteryLife algorithm |
| Low voltage load reconnect |
13.1V / 26.2V / 52.4V / 14V / 28V / 56V or BatteryLife algorithm |
| Protection |
PV reverse polarity, output short circuit, over temperature |
| Operating temperature |
-30°C to +60°C (full rated output up to 40°C) |
| Humidity |
100%, non-condensing |
| Maximum altitude |
5000m (full rated output up to 2000m) |
| Environmental condition |
Indoor type 1, unconditioned |
| Pollution degree |
PD3 |
| Data communication |
VE.Direct port4, Bluetooth via the VictronConnect app |
| ENCLOSURE |
| Colour |
Blue (RAL 5012) |
| Power terminals |
6mm² / AWG10 |
| Protection category |
IP43 (electronic components), IP22 (connection area) |
| Weight |
0.5kg |
0.6kg |
0.65kg |
0.65kg |
| Dimensions (h x w x d) |
100 x 113 x 40mm |
100 x 113 x 50mm |
100 x 131 x 60mm |
100 x 131 x 60mm |
| STANDARDS |
| Safety |
EN/IEC 62109-1 / UL 1741 / CSA C22.2 NO.107.1-16 |
Frequently-Asked Questions
Can this controller charge lithium batteries?
Yes. The SmartSolar MPPT 75/10 fully supports LiFePO4 and other lithium chemistries. You can easily configure the charge parameters using the VictronConnect app.
Do I need a separate Bluetooth dongle?
No. This unit includes built-in Bluetooth, so you can connect directly with your phone or tablet out of the box.
What happens if my panel voltage is too high?
If your solar panel array exceeds 75V open circuit, it may damage the controller. Always size your panels carefully and account for cold-weather voltage increases.
Is it okay for both 12V and 24V systems?
Absolutely. It automatically detects if you’re using a 12V or 24V battery bank and adjusts charging accordingly.
