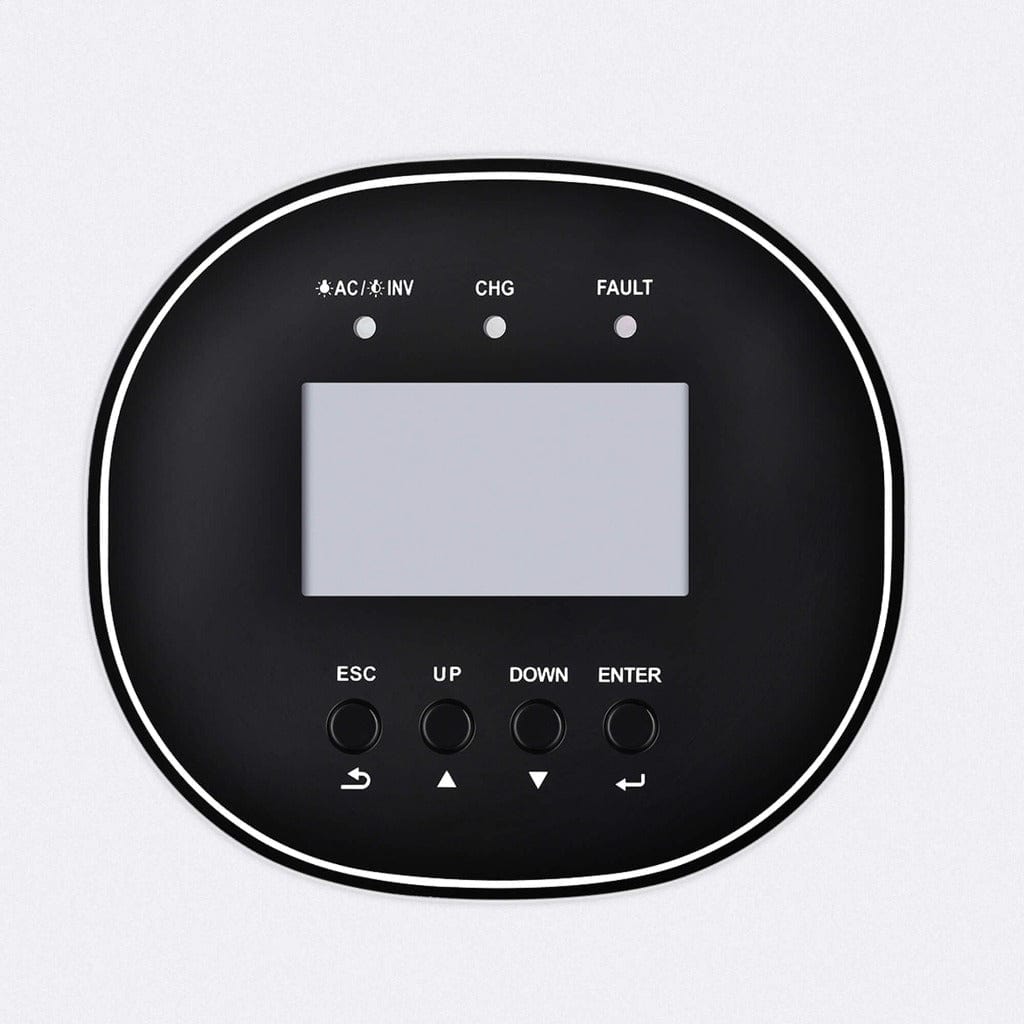

| Pure Sine Wave Inverter | LED Display |
| WI-FI/GPRS Remote Monitoring (optional) | With CAN/RS486 for BMS Communication |
| Integrated MPPT charge controller | Configurable grid or solar input priority |
| 48V Battery System | Compatible to Mains Voltage or Generator Power |
| High-Frequency Inverter with Small Size and Lightweight | Overload, Short Circuit and Deep Discharge Protection |
| Parallel Operation Up to 6 Unit | Off-grid capabilities |
| Rated Power: |
3000VA/3000W |
| Parallel Capability: | Yes |
| AC Voltage Regulation (Battery Mode): | 120 VAC |
| Efficiency (Peak): | 93% |
| Waveform: | Pure sine wave |
| Transfer Time: | 10 ms (personal computers); 20 ms (home appliances) |
| Weight: | 25.4 lb |
| Dimensions: | 13.8″L x 5.1″W x 18.0″H |
| Maximum PV Array Power: |
4500W |
| MPPT Range @ Operating Voltage: | 60VDC ~ 115VDC Maximum PV |
| Array Open Circuit Voltage: | 145VDC |
| Efficiency (Peak): | 93% |
| Waveform: | Pure Sine Wave |
| Max Solar Charge Current: | 80A |
| Maximum Efficiency: | 98% |
| Standby Power Consumption: | 2W |
| Charge Current: |
40A |
| AC Input Voltage: | 120VAC |
| Selectable Voltage Range: | 95-140 VAC (For Personal Computers); 65-140 VAC (For Home Appliances) |
| Frequency Range: | 50Hz/60Hz (Auto sensing) |
| Humidity: |
5% to 95% Relative (Non-condensing) |
| Operating Temperature: | 0°C – 55°C |
| Storage Temperature: | -15°C – 60°C |

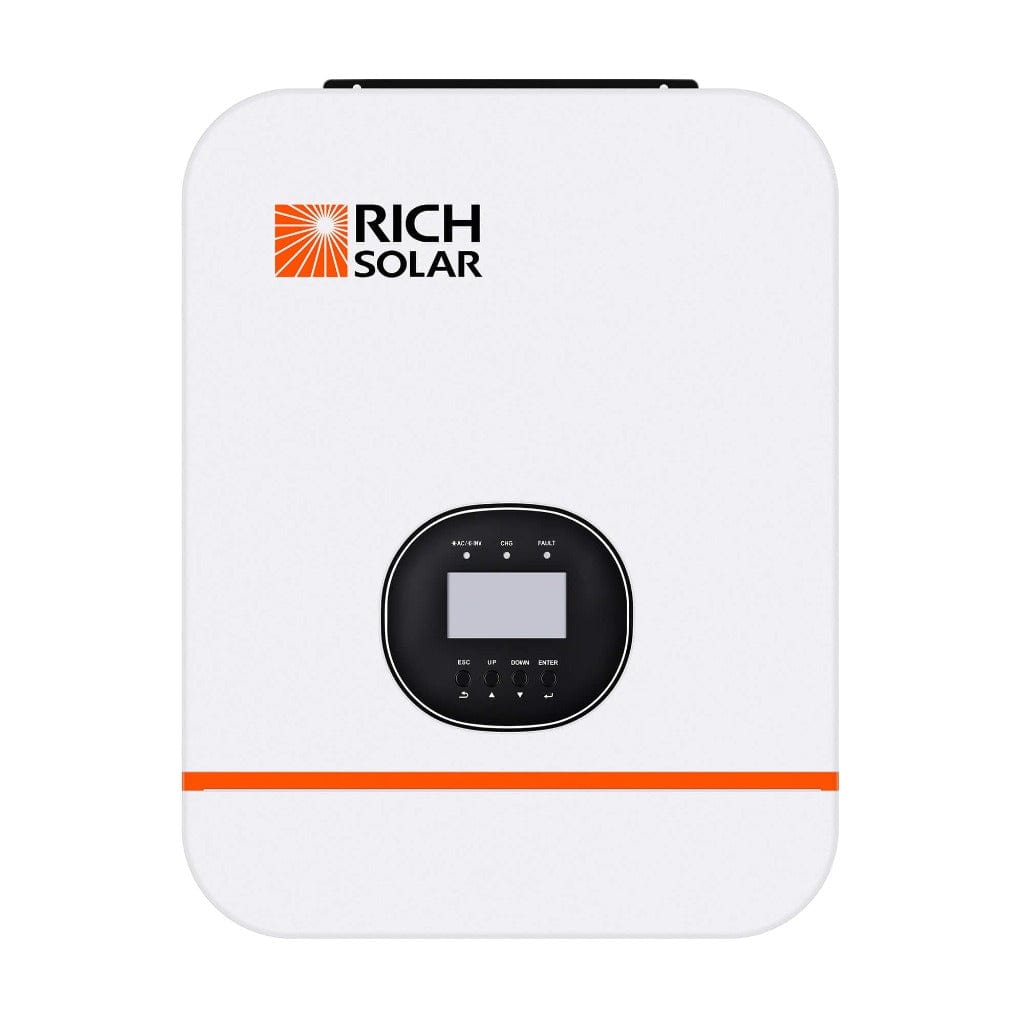

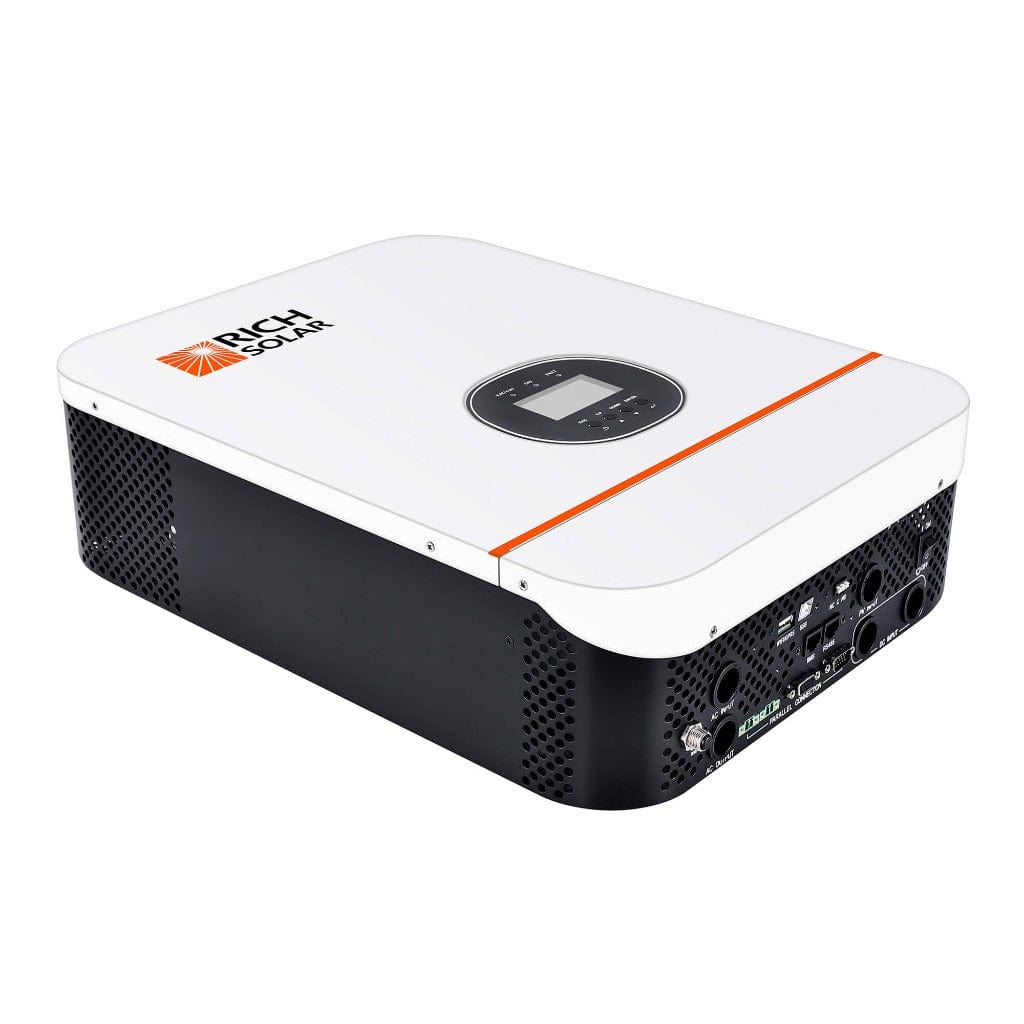

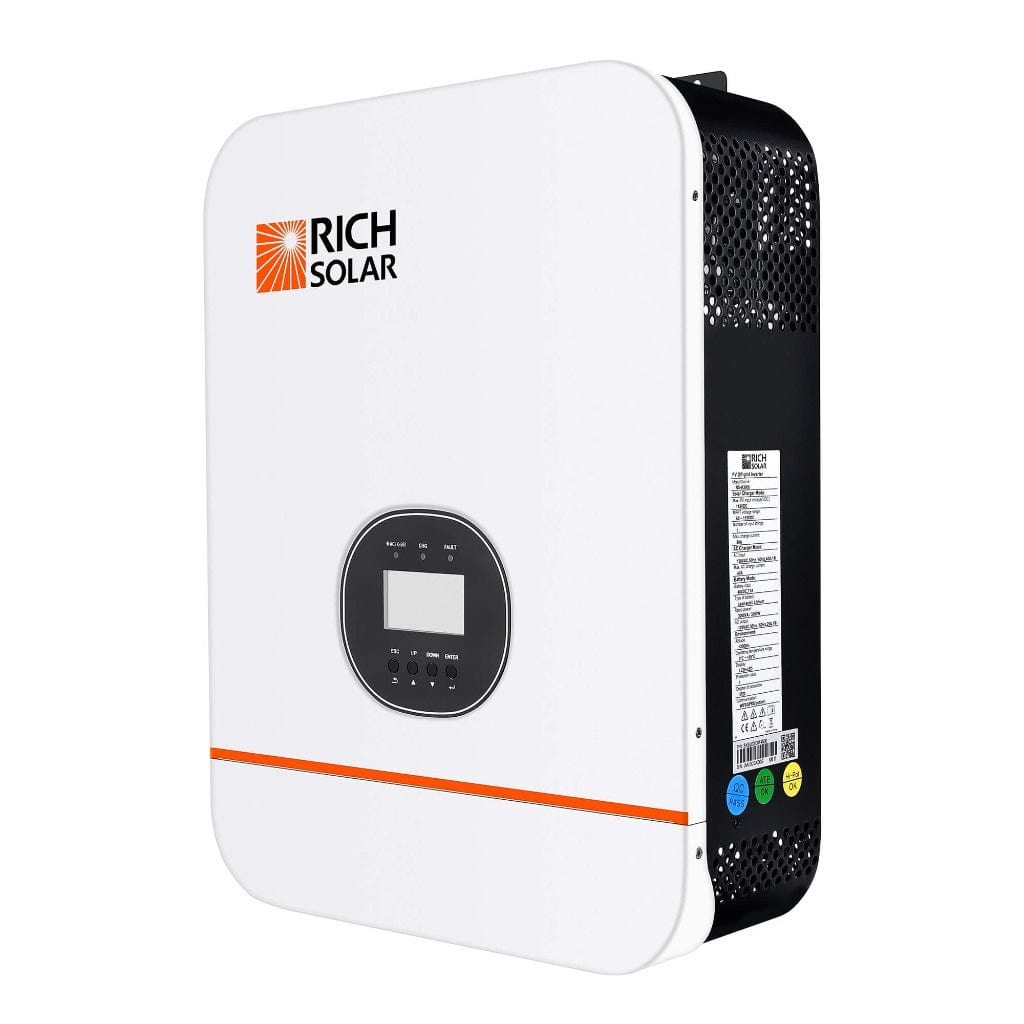

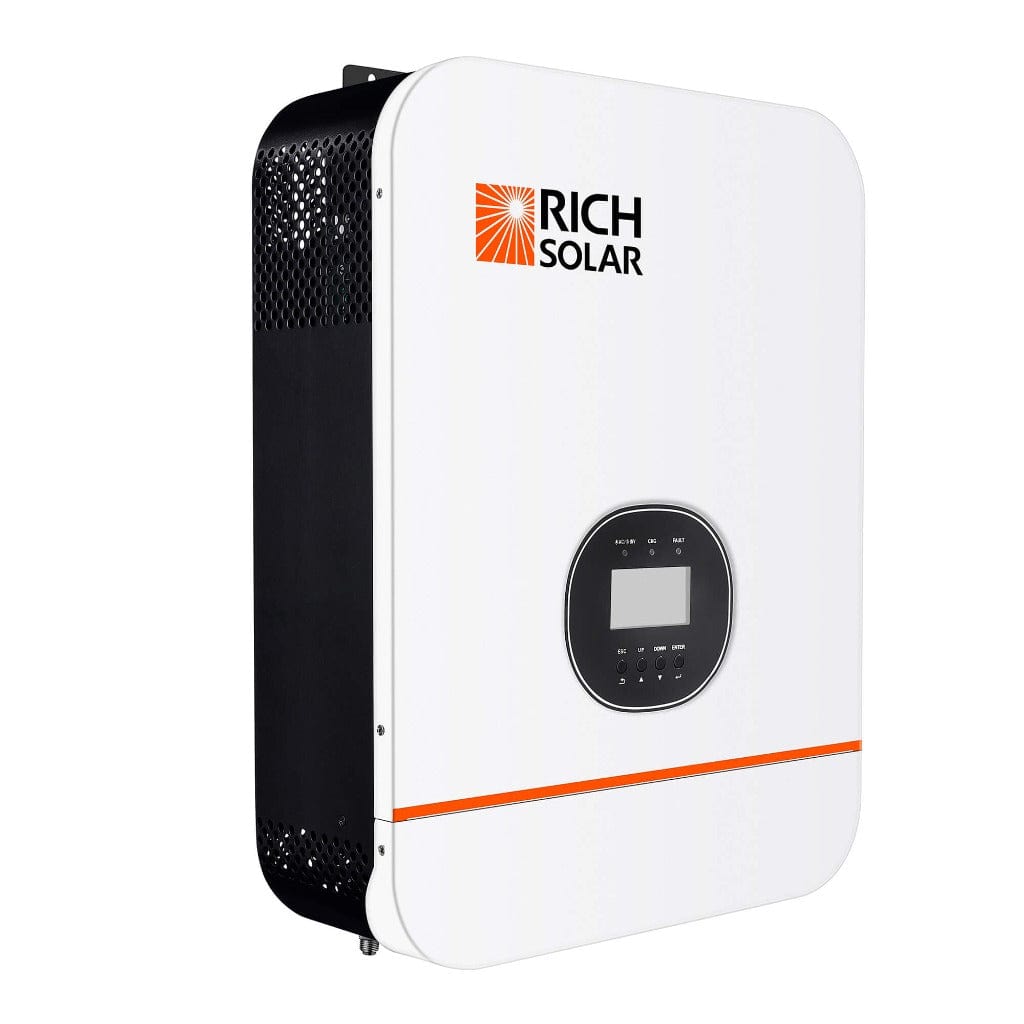

3000 WATT (3KW) 48 VOLT OFF-GRID HYBRID SOLAR INVERTER
