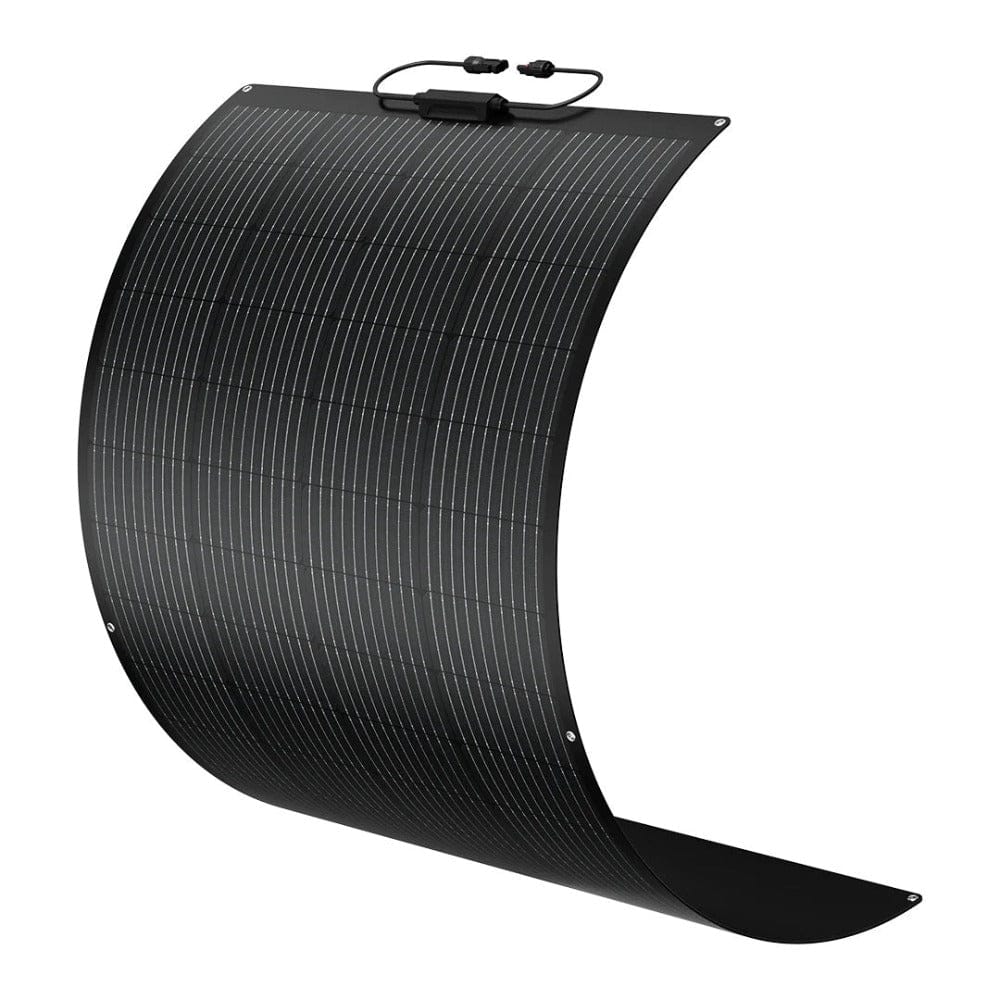

BougeRV Arch 200 Watt Fiberglass Curved Solar Panel Overview

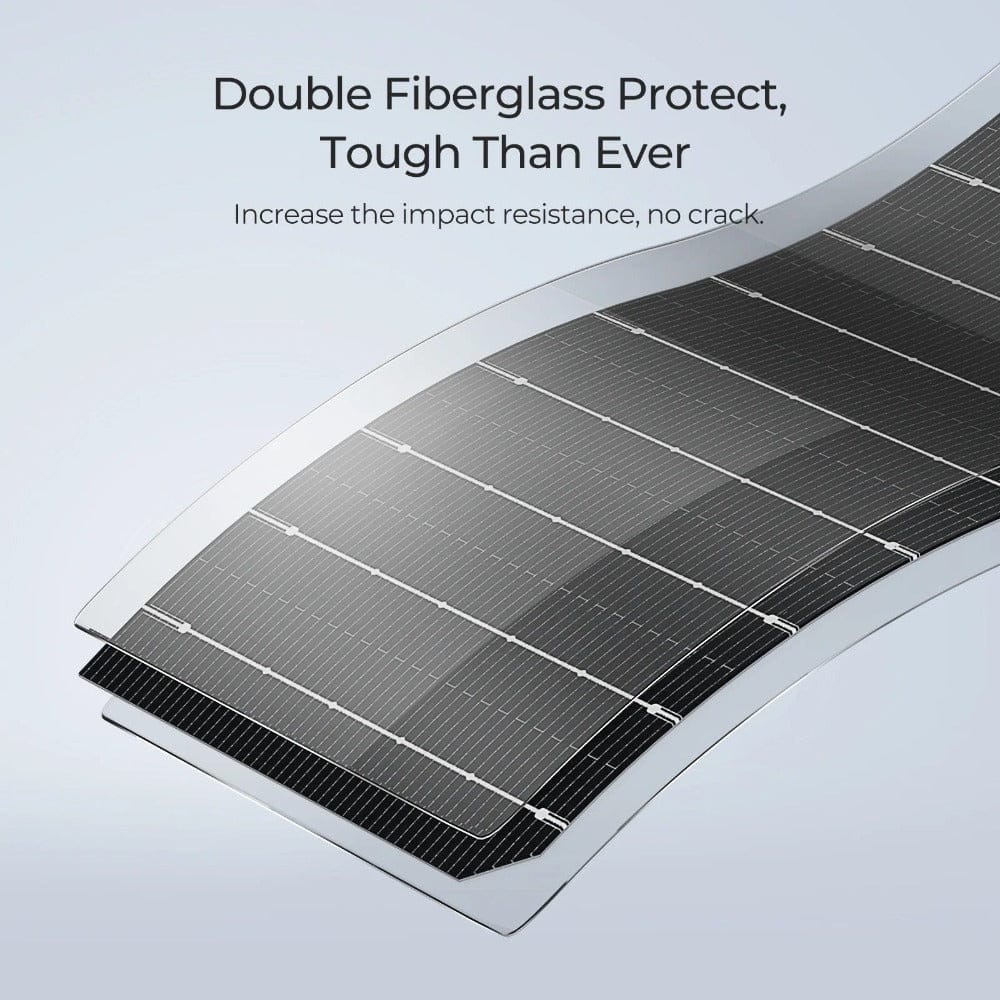

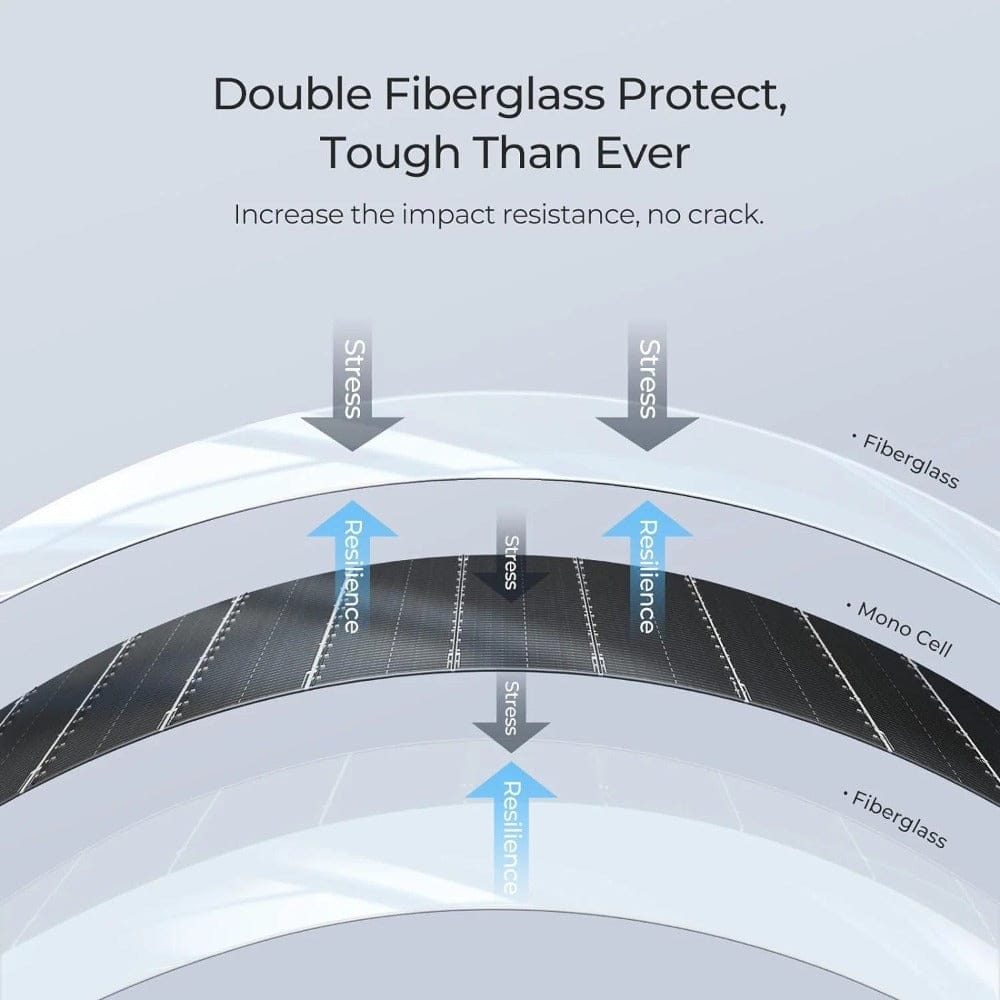

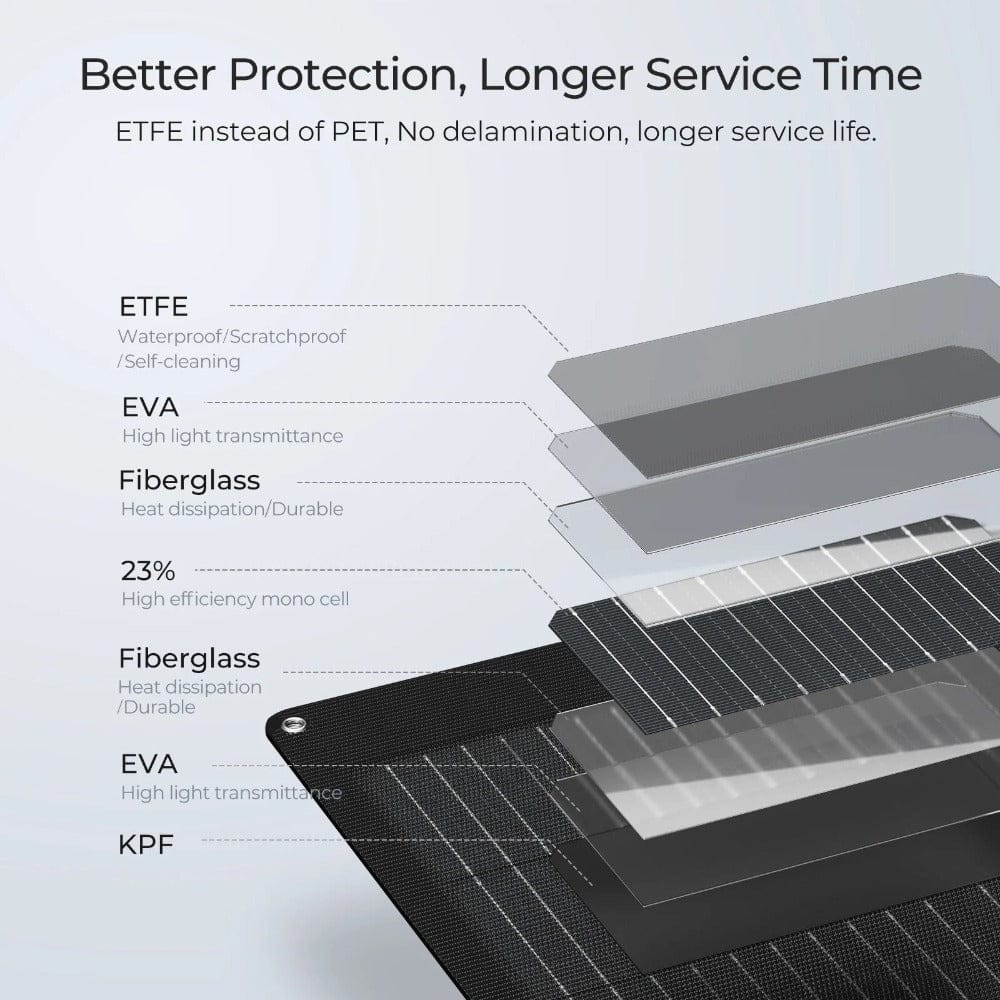

BougeRV curved solar panel offers unmatched flexibility and durability. With double glass fiber layers placed on the upper and lower surfaces of the 10BB mono solar cell, this panel is protected from damage to the maximum extent. No worries about cracks. By conforming better to curved surfaces, it maximizes the use of limited roof space or even the curved sections of a vehicle's front. This fiberglass solar panel is ultra-lightweight, weighing only 7 lbs and measuring only 2mm thin, which makes it easy to carry and move.
BougeRV Arch 200 Watt Fiberglass Curved Solar Panel Features

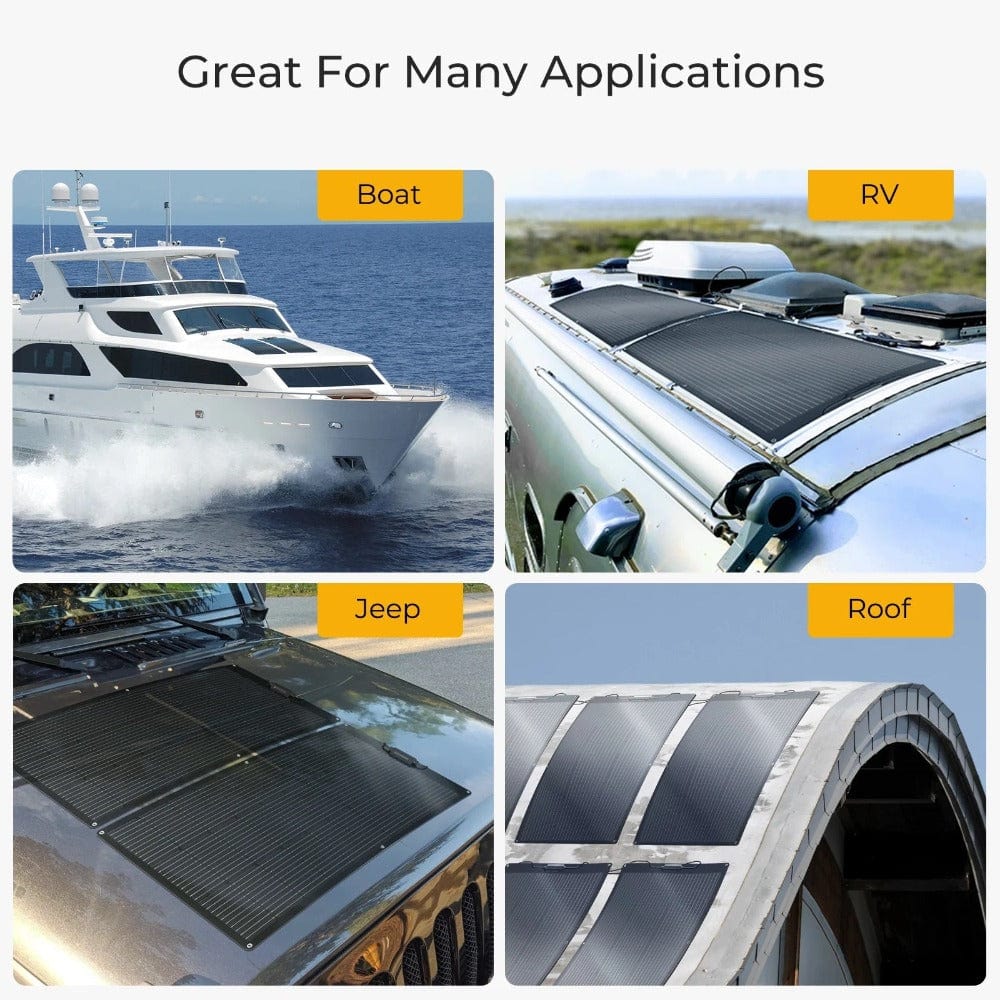

Multipurpose Use

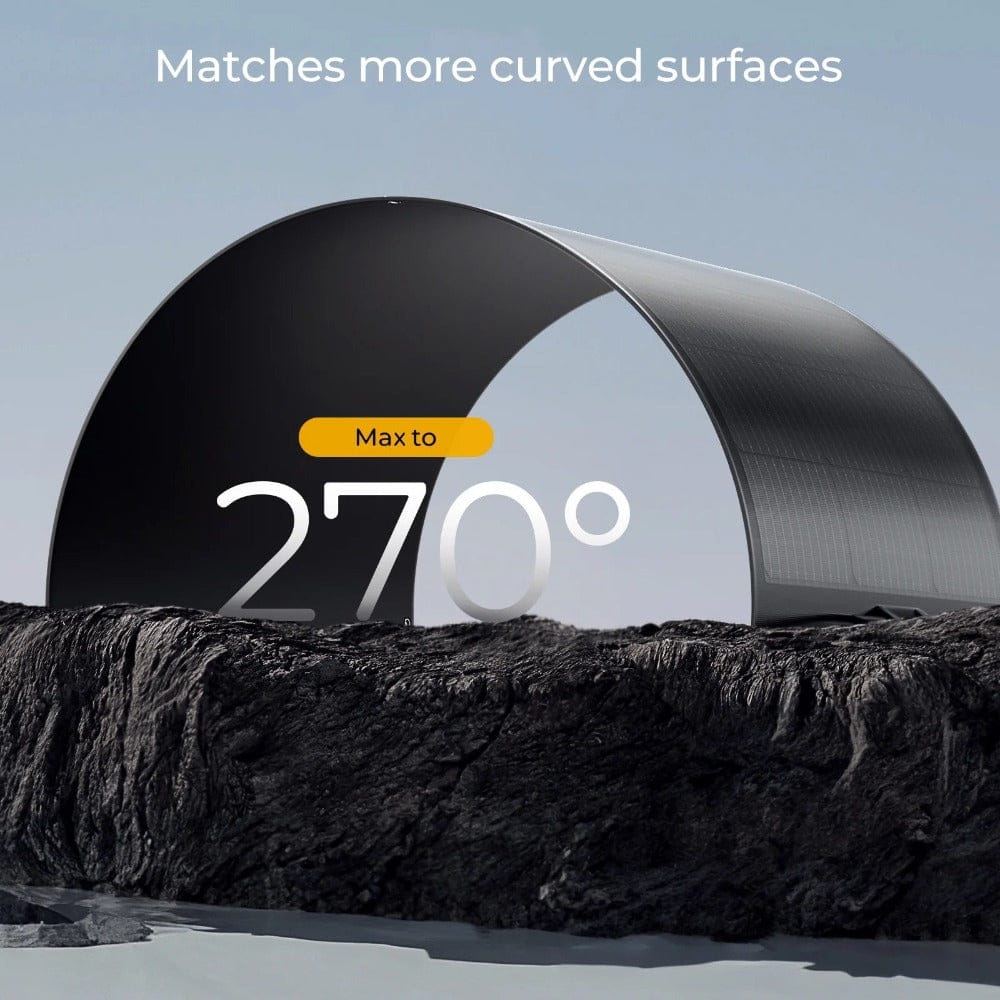

BougeRV innovative fiberglass curved solar panel, crafted from flexible fiberglass material, can bend up to 270 degrees for seamless integration on boats, RVs, Jeeps, and roofs. Outshining traditional monocrystalline silicon panels, it offers enhanced adaptability and diverse mounting options, broadening the potential for solar energy application.
10BB Cell Design
The BougeRV fiberglass curved solar panel features an efficient 10BB cell design, achieving a high conversion rate of up to 23%. Its design also minimizes shading on the cells, enhancing light absorption and potentially contributing to the panel's overall longevity.

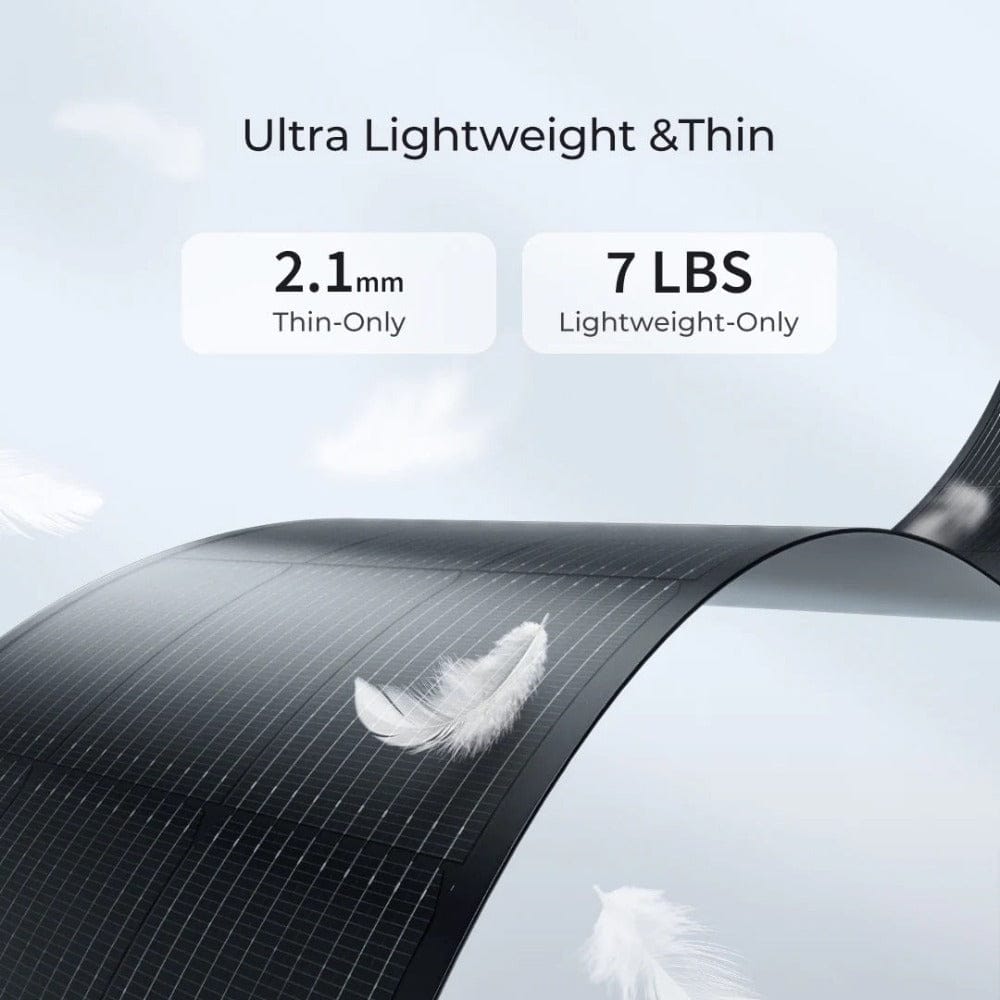

Ultra Lightweight &Thin
The BougeRV 2.1mm glass fiberglass curved solar panel, with its ultra-slim design and lightweight at just 7 pounds, offers easy installation and space efficiency, ideal for tight spaces in vehicles and compact living areas, while providing a portable alternative to traditional panels.
IP68 WaterProof
BougeRV fiberglass curved solar panels are IP68 waterproof, ensuring durability and functionality even when fully submerged or exposed to extreme weather.
Durable & Long Lasting
The BougeRV curved fiberglass solar panel is designed for durability, able to resist high wind (2400 Pa) and heavy snow (5400 Pa), with corrosion-resistant aluminum for an extended lifespan.
Warranty
BougeRV offers Arch 200 Watt Fiberglass Curved Solar Panel 10-year product warranty, a 25-year power warranty, and lifetime warm-hearted service. 24h X 7 online service( Except weekend ) and Lifetime Technical Support will help you solve any product problems.
BougeRV Arch 200 Watt Fiberglass Curved Solar Panel Specification
Max Power (Pmax): 200±5%W
Solar Cells Efficiency: 23%
Max. Power Voltage Vmp (V): 17.1±5%V
Max. Power Current Imp (A): 11.7±5%A
Open Circuit Voltage Voc (V): 20.1±5%V
Short Circuit Current (Isc): 12.28±5%A
Performance Warranty: 25 years
Warranty Description: 10 Years
Operating Temperature Limits: -40℉ ~ +185℉
Series Fuse Rating: 10A
Temperature Coefficient Pmax: -0.39%/℃
Temperature Coefficient Voc: -0.33%/℃
Temperature Coefficient Isc: 0.06%/℃
Dimensions: 58.1*31*0.08 inches
Weight: 7.05 lbs
Product Type: Curved Solar Panels
What's in The Box
1 x BougeRV Arch 200 Watt Fiberglass Curved Solar Panel
A: Yes, solar panels can be curved. These panels are designed to have a curved shape. They are perfect for boats, RVs, and roofs that lack the necessary flat surface for rigid solar array frames.
Q2: Are curved solar panels better?
A: The decision to choose a curved solar panel or traditional solar panel depends on the specific requirements, budget, and personal preferences. The BougeRV 200W flexible solar panel, made of glass fiber, incorporates the advanced 10BB cell design and an extended lifespan for the panel.
Q3: Are curved solar panels more efficient?
A: The BougeRV 200W curved solar panel is made with high-quality 10BB cells, resulting in a remarkable 23% conversion rate, the highest in its class. This design feature not only extends the solar panel's lifespan but also enhances its efficiency.
