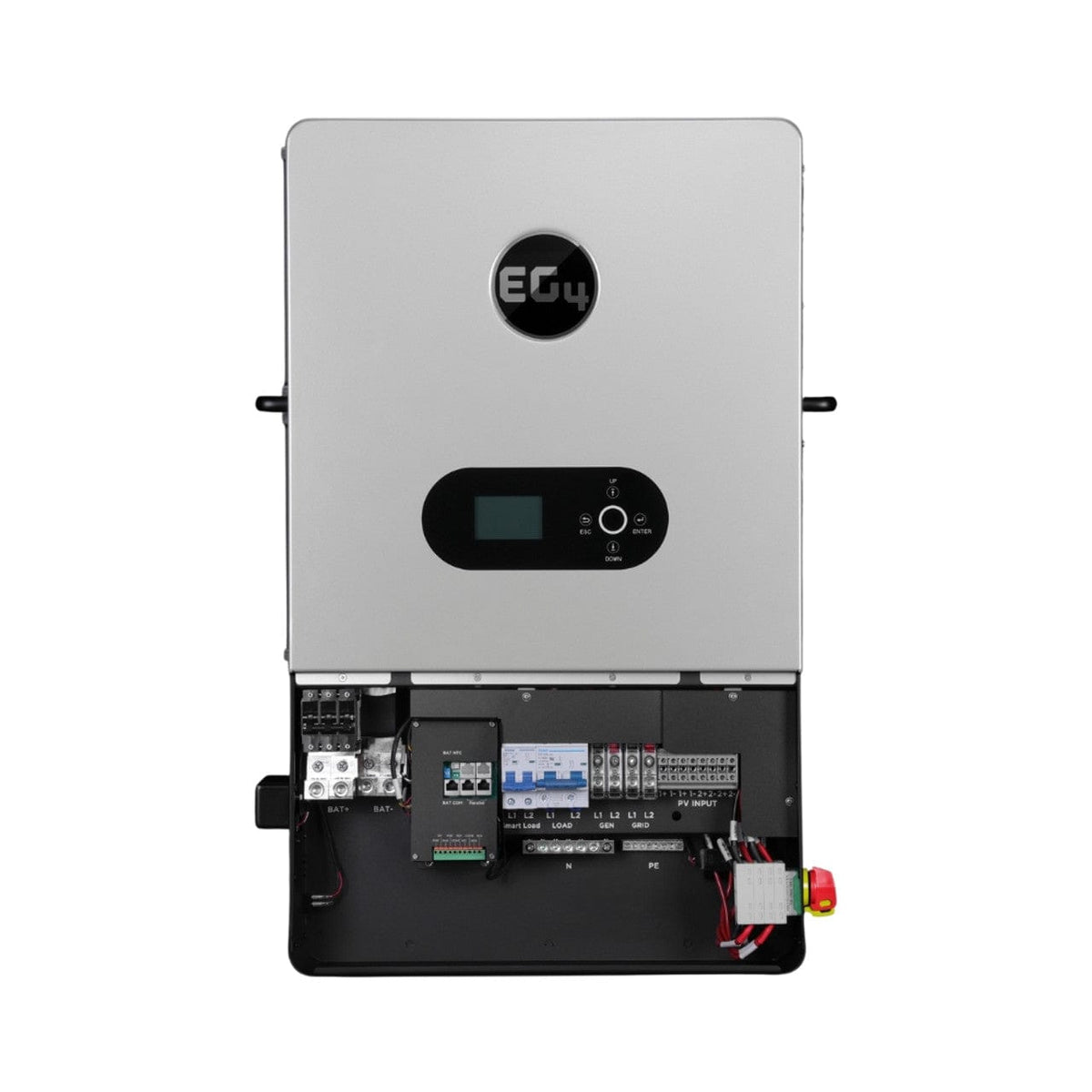

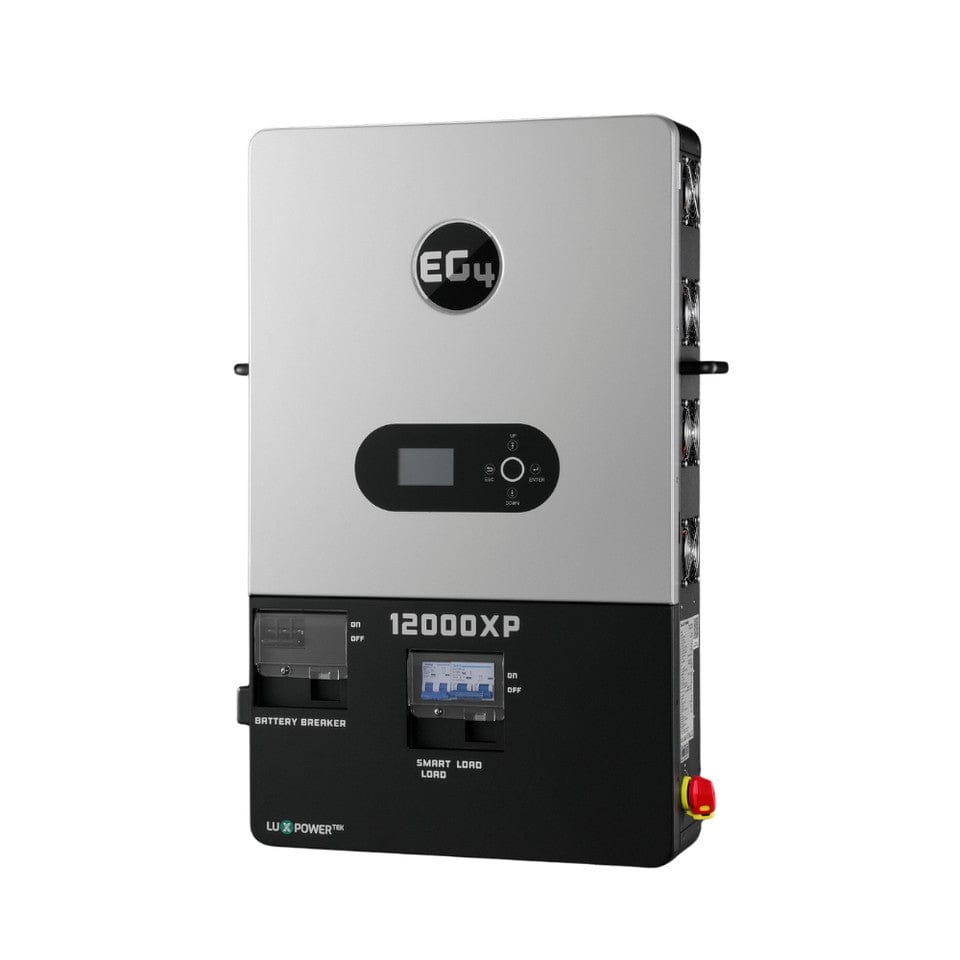

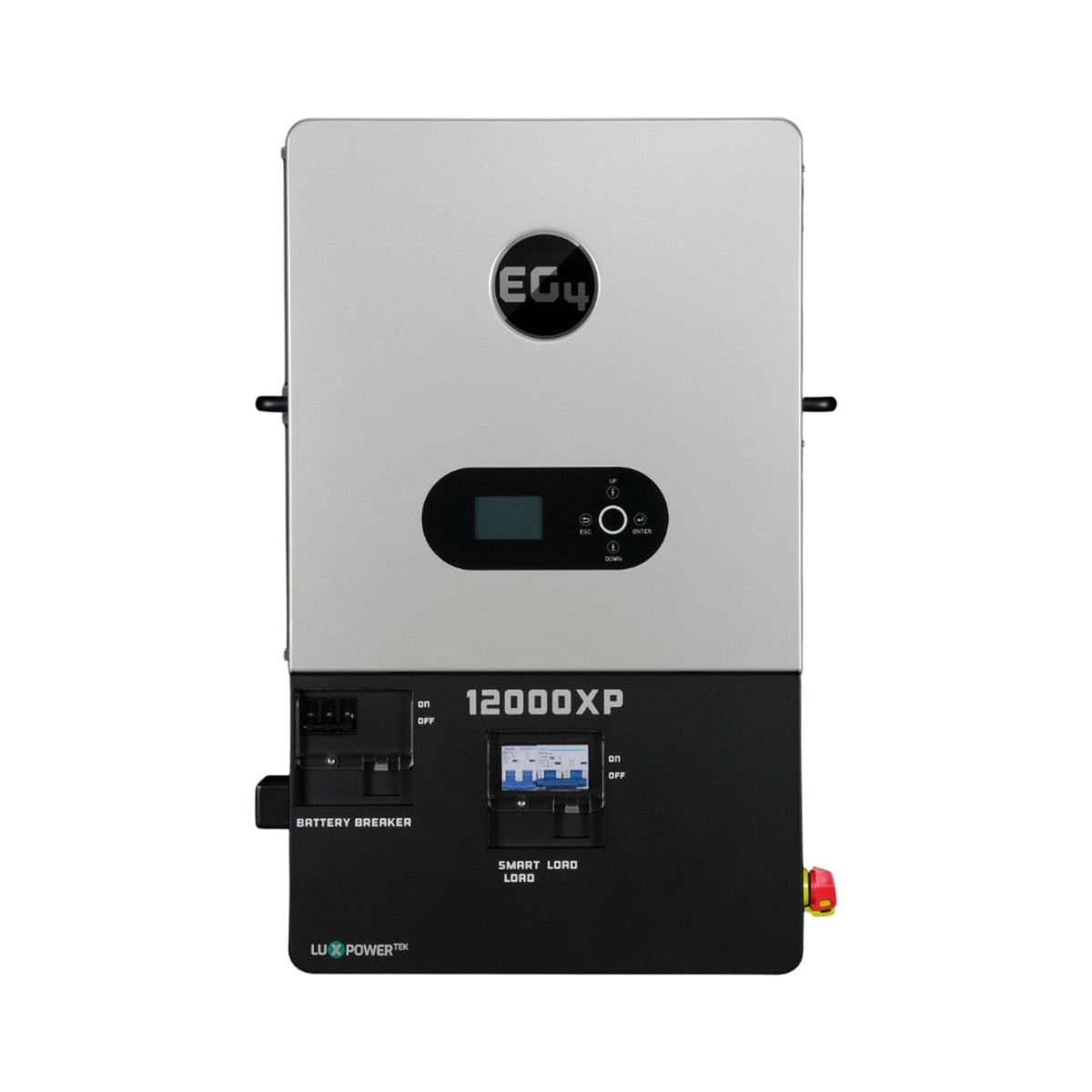

EG4 12000XP Off-Grid Solar Inverter | 24kW PV Input | 12kW Power Output | 48V Split Phase Hybrid Inverters EG4

EG4 12000XP Off-Grid Solar Inverter | 24kW PV Input | 12kW Power Output | 48V Split Phase

EG4
SKU EG4-12000XP
Save $300.00
$2,799.00
$2,499.00

⭐ Authorized EG4 Dealer

⭐ Fast & Free Shipping + No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

EG4 12000XP Off-Grid Solar Inverter

The EG4 12000XP is ideal for those looking for a powerful, all-in-one off-grid inverter with robust performance, reliable durability, and advanced communication capabilities. It can operate fully off-grid or integrate with grid power, making it a versatile choice for both residential and commercial applications.

With high output power, advanced safety features, and remote management capabilities, the EG4 12000XP off-grid inverter provides an industry-leading solution that meets all your off-grid energy needs. Engineered for efficiency and durability, this inverter is your best choice for reliable and scalable power.

EG4 12000XP Off-Grid Solar Inverter Features

  • High Input Voltage (480VDC): Supports high-voltage input, reducing the need for extensive cabling and allowing for up to 24kW PV input without a combiner box.
  • Dual MPPT Design: Ensures optimal solar energy utilization, providing efficiency and stability under varying sunlight conditions.
  • Plug-in Wi-Fi Capability: Monitor and adjust settings remotely using the EG4 app or Monitor system, adding convenience and control from any location.
  • Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries and other supported brands, offering enhanced system performance and safety.
  • Rapid Shut Down Compliance: Equipped with NEC 690.12-ready rapid shutdown (RSD) capabilities for compliance and peace of mind in critical situations.
Placeholder Image


Performance Highlights

  • 12kW Power Output with Surge Capacity up to 18kW: Delivers robust, consistent power with the ability to manage heavy-duty appliances and equipment in off-grid settings.
  • Expandable Power Options: Parallel up to six units to reach a 72kW system, providing the flexibility to scale power output as needed.
  • High Efficiency Rates: Enjoy an impressive 99% MPPT efficiency, maximizing energy harvest and minimizing energy loss.

Ideal Applications

  • Residential Off-Grid Living: Perfect for homes wanting to break free from grid reliance.
  • Remote Worksites and Cabins: Ensures a steady power supply, even in isolated locations.
  • Commercial and Industrial Use: Robust enough to handle demanding off-grid requirements.
Placeholder Image

What's Included

Everything you need is included with your product.

  • 1 x 12000XP Off-Grid Inverter
  • 6 x Hex Head Wood Lag Screw
  • 6 x Expansion Bolts
  • Carboard Template
  • Wi-Fi Dongle
  • 1 x Parallel Communication Cable L=2m (Orange)
  • 1 x Battery Communication Cable L=2m (Grey)
  • 4 x Phillips Hex Head Bolt M5
  • Wall Mounting Bracket
  • 2 x Angle Bracket
  • 4 x Phillips Hex Head Bolt
  • 8 x Phillips Hex Head Bolt M6
  • User Manuals

EG4 12000XP Off-Grid Solar Inverter Specifications

Specification Details
Max. Units in Parallel 6
Product Dimensions (HxWxD) 34.25×20.87×5.91 in. (870×530×150 mm)
Unit Weight 104.7 lbs. (47.5 kg)
Design Topology High Frequency - Transformerless
Relative Humidity 5 – 95% (non-condensing)
Operating Altitude <6561 ft. (<2000 m)
Operating Ambient Temperature Range 32°F – 113°F (0°C – 45°C) @ Full Load
Storage Ambient Temperature Range 5°F – 140°F (-15°C – 60°C)
Noise Emission (Typical) <60 dB
Cooling Method Fan
Communication Interface RS485/CAN/Wi-Fi
Standard Warranty 5-year standard warranty
Ingress Protection Rating IP20
Safety Features PV Reverse Polarity Protection, Surge Protection Device, Output Over-Voltage Protection, Output Over-Voltage Protection Varistor
Standards and Certifications UL1741

Frequently-Asked Questions

Can the EG4 12000XP be used in grid-tied applications?

No, the EG4 12000XP is designed specifically for off-grid solar energy systems and does not support grid-tied operation.

What battery types are compatible with this inverter?

This inverter is optimized for 48V LiFePO4 battery banks, ensuring maximum efficiency and lifespan.

Can I expand my system with additional inverters?

Yes, the EG4 12000XP supports parallel operation, allowing users to scale their energy system as needed.

Does it support remote monitoring?

Yes! The Wi-Fi and RS485 connectivity allow real-time system monitoring and control via the EG4 app.
