EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump 12000 BTU | SEER2 22 | Plug-N-Cool Do-It-Yourself Installation Appliances EG4

EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump 12000 BTU | SEER2 22 | Plug-N-Cool Do-It-Yourself Installation

Name: EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump 12000 BTU | SEER2 22 | Plug-N-Cool Do-It-Yourself Installation
Brand: EG4
SKU: EG4MISPH12K
Price: 2049.95 USD
Availability: InStock

BY: EG4

SKU: EG4MISPH12K

| Availability: In stock

$2,049.95

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized EG4 Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump 12000 BTU | SEER2 22 | Plug-N-Cool Do-It-Yourself Installation

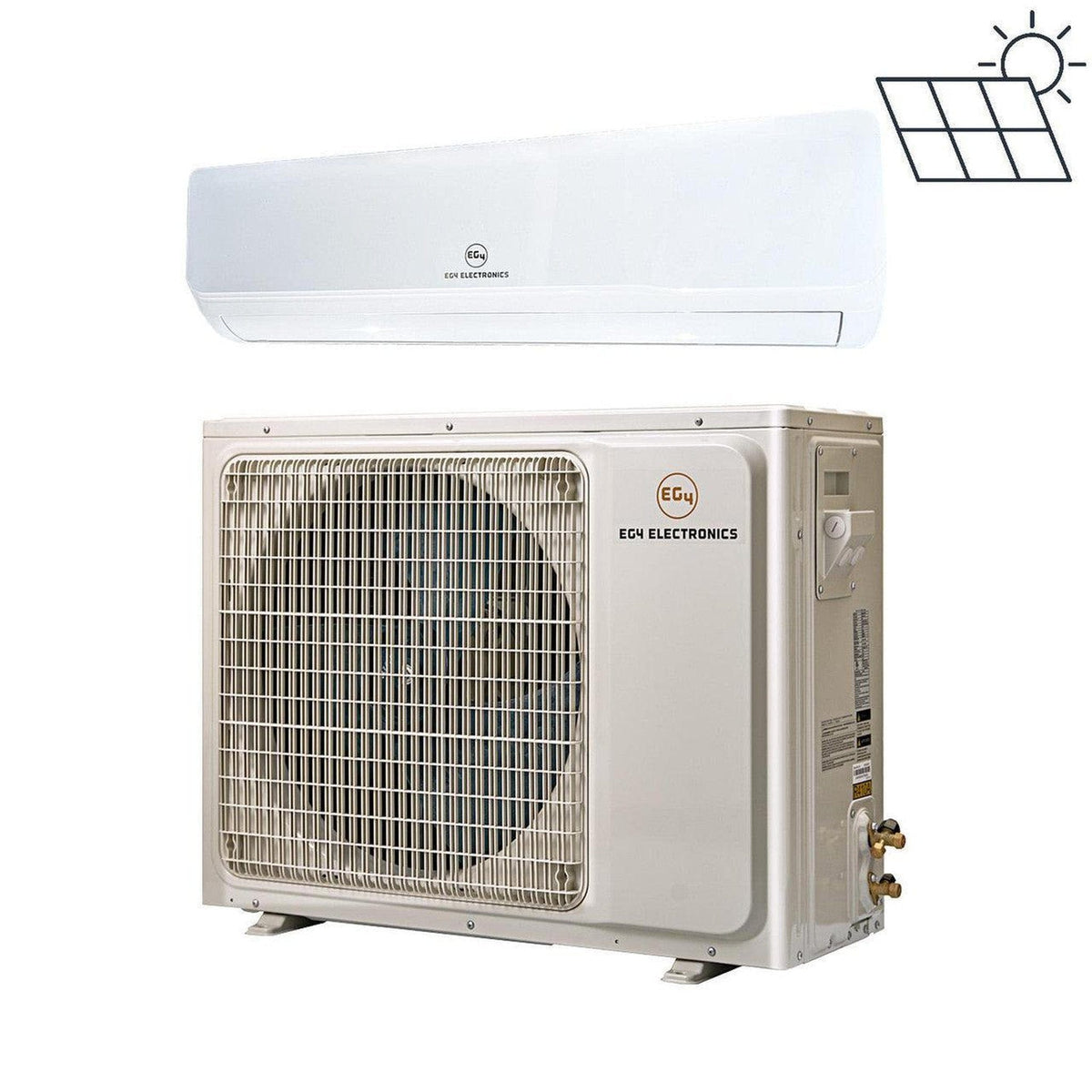

The EG4 Solar Mini-Split AC is a cutting-edge ductless mini split system designed to provide efficient climate control while reducing energy costs. This ductless mini split air conditioner can plug directly into solar panels, drawing DC power during the day and automatically switching to AC power from the grid at night or on overcast days. With the innovative Plug-N-Cool technology, installation of this mini split heat pump is incredibly easy—no special tools or training required. It’s an ideal solution for homes, offices, or off-grid properties looking to save on cooling and heating costs.

Recommended Solar Input: 1000-1600W (90VDC-380VDC)

Upgrade to the EG4 Solar Mini-Split AC today and experience energy-efficient, solar-powered heating and cooling.

EG4 Hybrid AC/DC Solar Mini Split Features

Hybrid AC/DC Operation – Runs on solar power during the day and grid power at night.
100% Solar-Powered Cooling & Heating – No inverter, battery, or charge controller needed.
Plug-N-Cool DIY Installation – Quick-connect self-sealing valves eliminate the need for vacuum pulling.
MC4 Solar Connector Compatibility – Directly connects to PV wires for easy integration.
AC Grid Power Limiter – Adjustable from 0-600W for optimized efficiency.
Versatile Power Supply Options – AC mode, DC mode, or a combination (AC/DC Auto Balance).
Wide Operating Temperature Range – Functions in temperatures from -10°C to 58°C.
Compact & Sleek Design – Ideal for off-grid, solar, and energy-efficient projects.

EG4 Hybrid AC/DC Solar Mini Split Applications

Off-grid homes & cabins – Efficient climate control without full grid reliance.
Grid-tied energy savings – Reduces utility costs by running on solar power.
RV, camper, and tiny home cooling & heating – Off-grid comfort with direct solar operation.
Workshops, garages, and offices – Climate control for indoor workspaces.
Emergency backup cooling & heating – Works during outages using solar power.

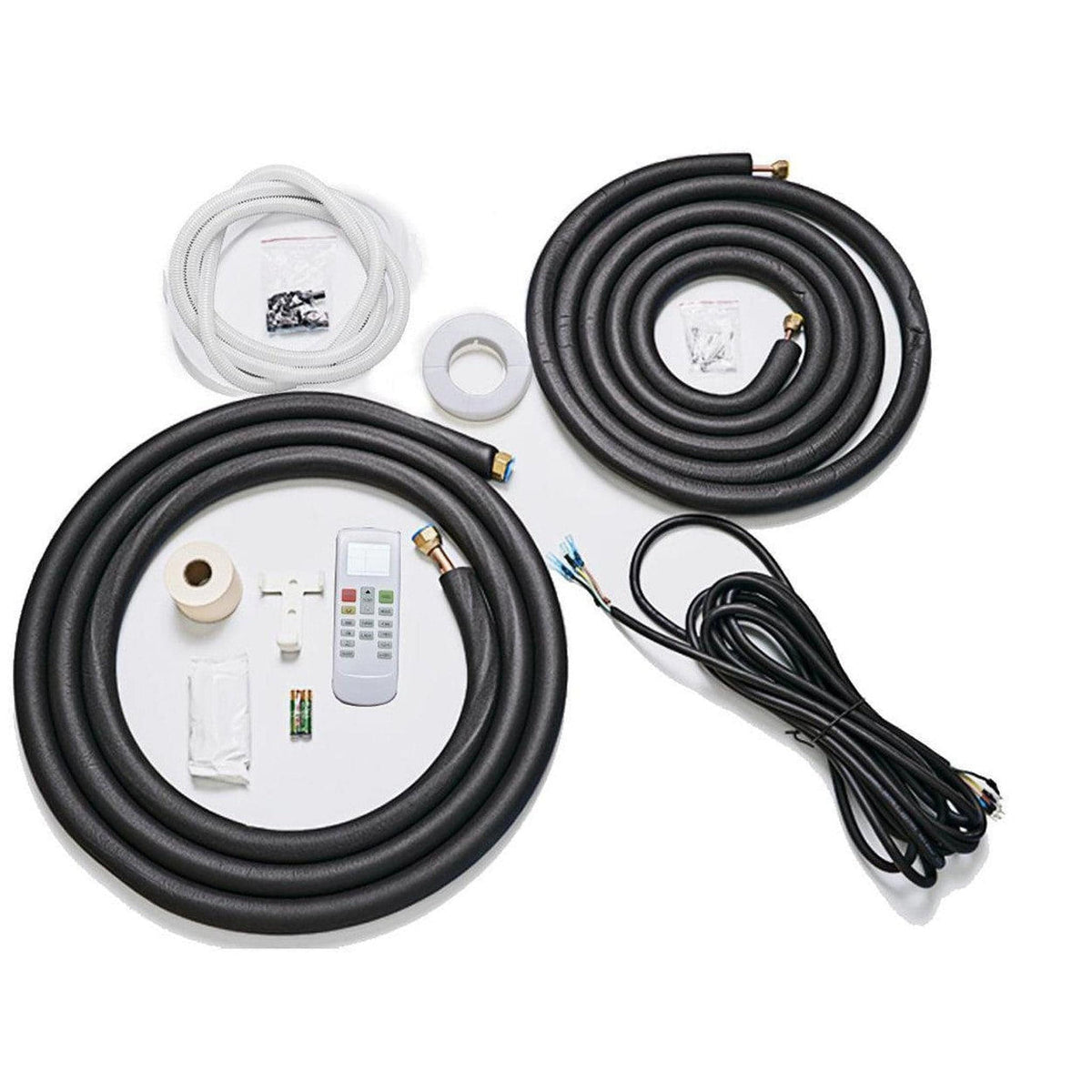

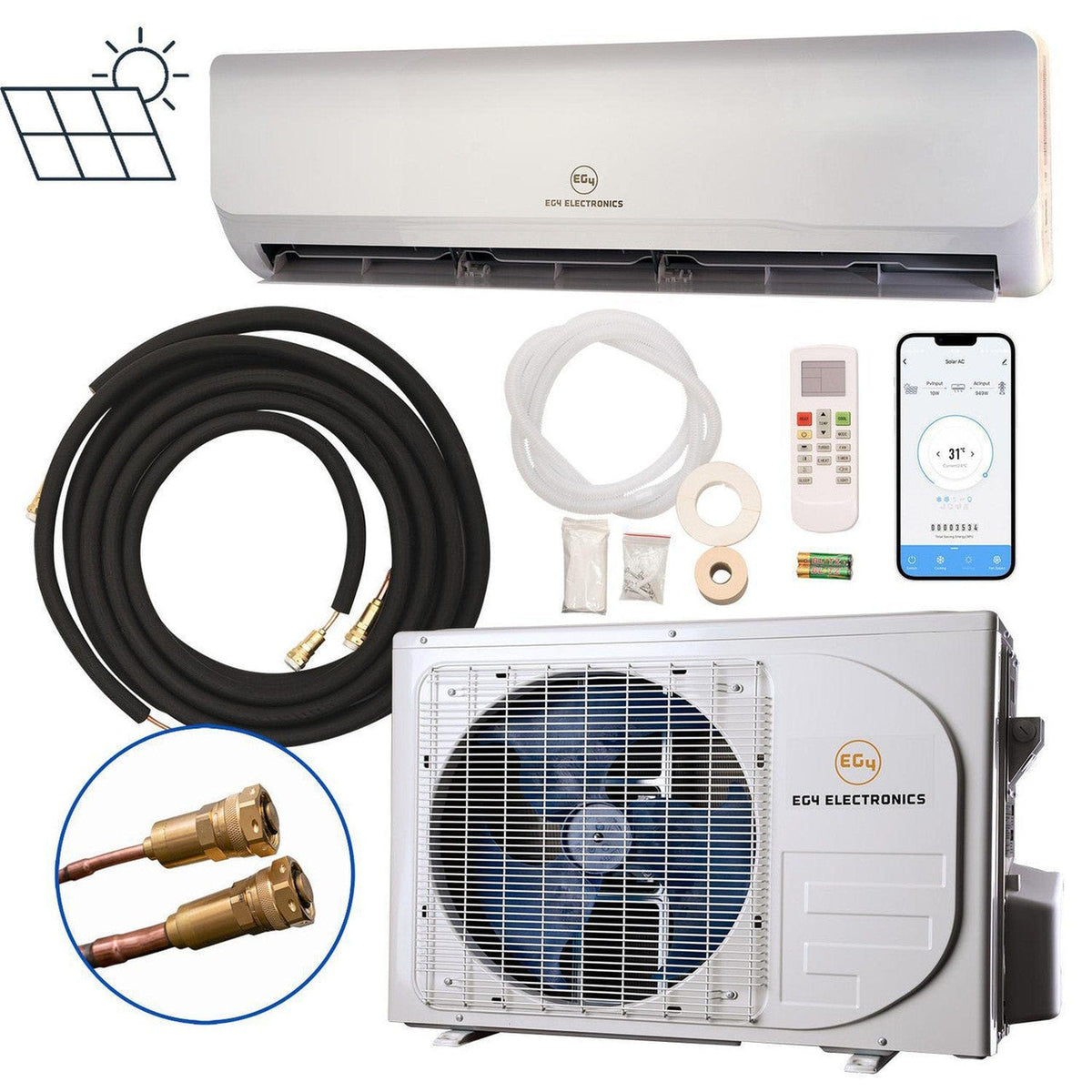

What's Included

Everything you need is included with your product.

Indoor Head Unit
Outdoor Unit
Pre-Charged 16.4Ft Lineset & Electrical Wire

LCD Remote Control
Installation Accessories
User Manual

EG4 Hybrid AC/DC Solar Mini Split Specifications

Specification	Details
RATED VOLTAGE	115VAC
RATED CURRENT COOLING	8.1A
RATED CURRENT HEATING	8.26A
RATED INPUT POWER	190W – 1100W
FREQUENCY	60Hz
MINIMUM CIRCUIT AMPACITY	19.05A
MAXIMUM BREAKER SIZE	20A
MAXIMUM STARTING CURRENT	4A

ELECTRICAL (DC)

Specifications	Details
RATED VOLTAGE	90VDC – 380VDC
MAXIMUM PV VOLTAGE	380VOC
MAXIMUM PV AMPERAGE (ISC)	12A
RATED PV WATTAGE	1100

RATED COOLING

Specifications	Details
NOMINAL CAPACITY	12,000 BTU/h
OPERATING RANGE	3,000 – 13,000 BTU/h
EER	13.04 BTU/W
SEER2	22 BTU/W

RATED HEATING

Specifications	Details
NOMINAL CAPACITY	12,500 BTU/h
OPERATING RANGE	3,000 – 13,000 BTU/h
HSPF2	10.5

EG4 Hybrid AC/DC Solar Mini Split Video

Frequently-Asked Questions

Can this AC run completely off-grid?

Yes! The EG4 Hybrid Mini Split can run directly from solar panels without an inverter or batteries.

What happens if there is not enough solar power?

The unit automatically switches to AC grid power, ensuring continuous operation.

Is installation DIY-friendly?

Yes! The Plug-N-Cool design includes pre-charged refrigerant lines, making installation quick and easy.

How many solar panels are required?

Typically, 4-6 solar panels (depending on wattage) are needed for full solar operation.

Can this unit be used in extreme temperatures?

Yes! The heat pump function provides year-round heating and cooling, even in colder climates.
