EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump 24000 BTU Direct Solar Input Solar Accessories EG4

EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump 24000 BTU Direct Solar Input

Name: EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump 24000 BTU Direct Solar Input
Brand: EG4
SKU: EG4MISPH24K
Price: 2549.95 USD
Availability: InStock

BY: EG4

SKU: EG4MISPH24K

| Availability: In stock

$2,549.95

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized EG4 Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump 24000 BTU Direct Solar Input

The EG4 Solar AC is one of the most innovative ductless heat pump/air conditioners available; reduce your electric bill and keep your home the temperature you want with this energy-efficient appliance. Featuring the ability to plug directly into solar panels, this system accepts DC power from their PV array without the need for an intermediary device during the day or can draw AC power from the grid at night or during overcast days. Users of the EG4 Solar Mini-Split AC can save money when compared to conventional central air conditioning systems. Pair this unit with a small string of solar panels to immediately begin heating and cooling your property.

Its compact size, sleek design, and new Plug-N-Cool technology make this EG4 Mini-Split a Do-It-Yourself project. Plug-C-Cool allows the EG4 Mini-Split to be easily installed, cooling and heating quickly in virtually any living space or workplace.

RECOMMENDED SOLAR INPUT: 1600-2400W (90VDC-380VDC)

EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump Features

Hybrid - AC/DC Driven - Power from the grid or PV array - No inverter, battery, or charge controller necessary!

100% energy saving in the daytime - Daytime power comes directly from solar.

Plug and Play - MC4 Connectors attach directly to PV wire.

AC grid power limiter - Limit AC power from 0-600W

AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)

Wide operating temperature (-10℃ to 58 ℃)

Highly Efficient - Perfect for off-grid, solar, or energy-efficient projects!

EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump Applications

Off-grid homes & cabins – Reliable climate control without grid dependency.
Grid-tied energy savings – Cuts down on electricity bills by utilizing solar power.
RV, camper, and tiny home cooling & heating – Off-grid comfort with direct solar power.
Commercial & industrial use – Energy-efficient climate control for offices and workshops.
Emergency power backup – Functions during grid outages with direct solar input

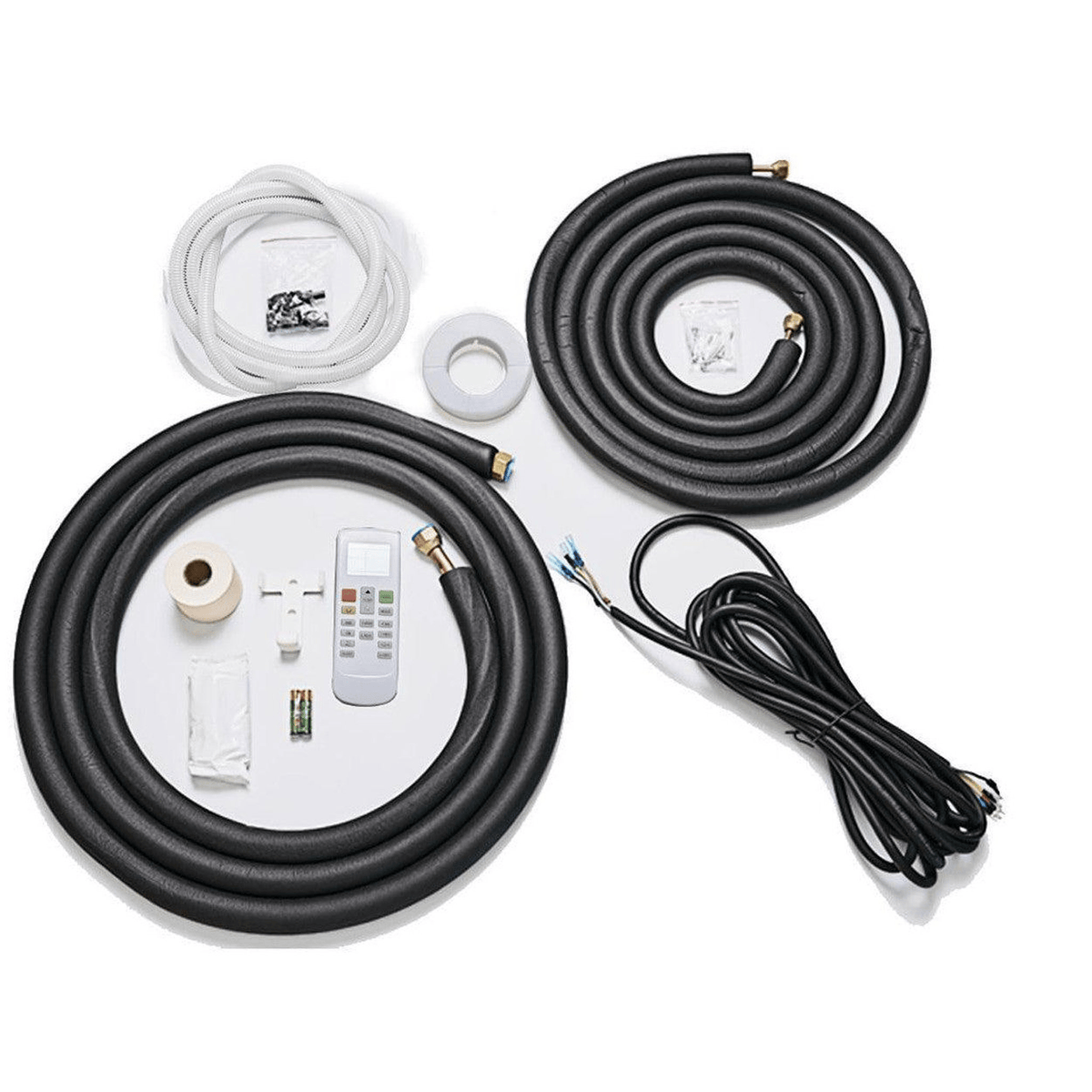

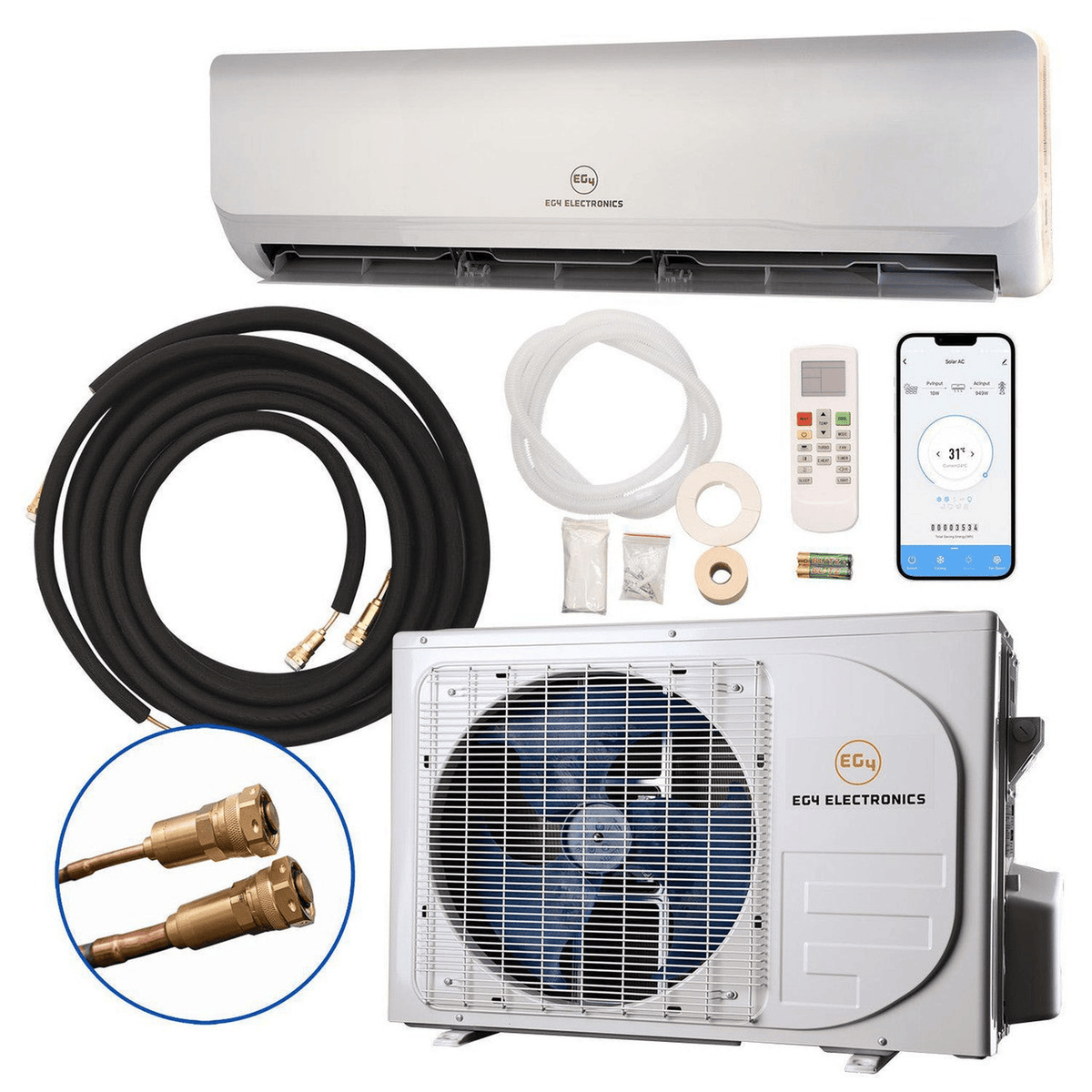

What's Included

Everything you need is included with your product.

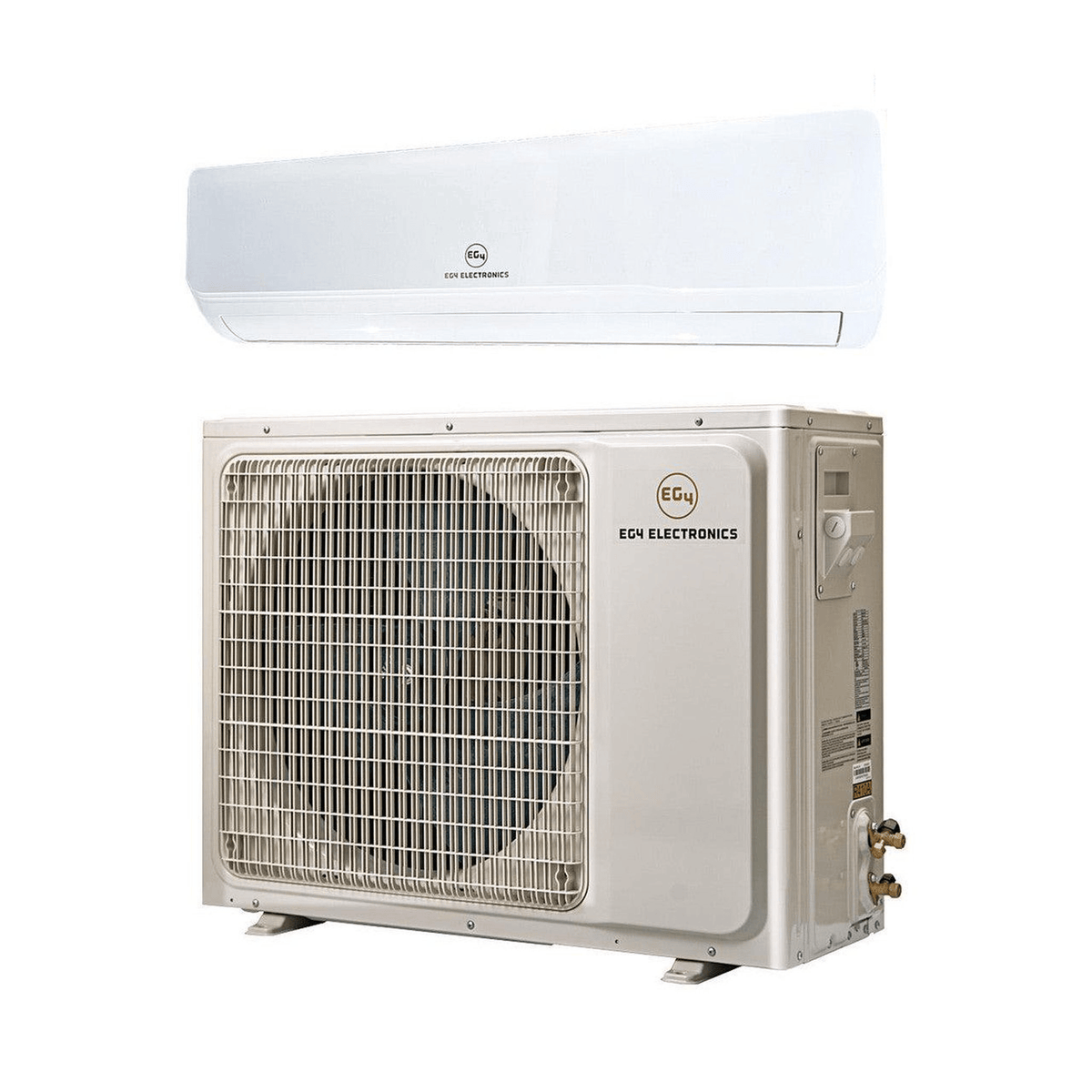

Indoor Head Unit
Outdoor Unit
Pre-Charged Lineset & Electrical Wire - 16.4Ft

LCD Remote Control
Installation Accessories
User Manual

New Plug-n-Cool Technology - Easy Do-It-Yourself Installation

Allows for quick and easy connection via the quick-connect self-closing companion valves. Plug-n-cool allows you to install this innovative mini-split system without special tools, equipment, or training. No need to pull a vacuum.

EG4 Hybrid AC/DC Solar Mini Split Air Conditioner Heat Pump Specifications

Specification	Details
RATED VOLTAGE	208VAC – 240VAC
RATED CURRENT COOLING	9.5A
RATED CURRENT HEATING	10.1A
RATED INPUT POWER	190W – 2250W
FREQUENCY	60Hz
MINIMUM CIRCUIT AMPACITY	16.33A
MAXIMUM BREAKER SIZE	20A
MAXIMUM STARTING CURRENT	6A

ELECTRICAL (DC)

Specifications	Details
RATED VOLTAGE	90VDC – 380VDC
MAXIMUM PV VOLTAGE	380VOC
MAXIMUM PV AMPERAGE (ISC)	12A
RATED PV WATTAGE	2200W

RATED COOLING

Specifications	Details
NOMINAL CAPACITY	24,000 BTU/h
OPERATING RANGE	6,100 – 25,200 BTU/h
EER	11.7 BTU/W
SEER2	21 BTU/W

RATED HEATING

Specifications	Details
NOMINAL CAPACITY	26,000 BTU/h
OPERATING RANGE	6,100 – 26,000 BTU/h
HSPF2	9.6

Frequently-Asked Questions

Can this AC run completely off-grid?

Yes! The EG4 Hybrid Mini Split can run directly from solar panels without the need for an inverter or batteries.

What happens if there is not enough solar power?

The system automatically switches to AC grid power to ensure continuous operation.

Is installation DIY-friendly?

Yes! The unit comes pre-charged with refrigerant, making installation easier and faster.

Can I connect this unit to a battery?

While it does not require batteries, it can be paired with a battery system for extended backup power.

How many solar panels are needed?

Typically, 4-6 solar panels (depending on wattage) are required for full solar operation.
