EG4 WallMount Indoor Battery 280AH | 51.2V | Indoor | Heated UL1973, UL9540A | Wall Mount Batteries EG4

EG4 WallMount Indoor Battery 280AH | 51.2V | Indoor | Heated UL1973, UL9540A |

EG4
SKU EG4LIFPOW4WM-48V280A
Save $652.93
$4,352.88
$3,699.95

⭐ Authorized EG4 Dealer

⭐ Fast & Free Shipping + No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

EG4 WallMount Indoor Battery 280AH | 51.2V | Indoor | Heated UL1973, UL9540A |

The WallMount Indoor 14.3kWh batteries are ideal for low-voltage residential indoor energy storage applications. The batteries use lithium iron phosphate cells with the highest safety performance and an intelligent Battery Management System (BMS) that can monitor and record the voltage of each cell along with the current, voltage, and temperature of the module in real-time. The BMS also contains a passive balance function and an advanced battery control method, both of which improve the performance of the battery pack.

Placeholder Image


ON-BOARD LCD TOUCH SCREEN

Easy to see BMS monitoring, and selectable closed-loop communications with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.

DUAL ON-BOARD FIRE ARRESTORS

Offer fail-safe protection against thermal runaway.

INTEGRATED SELF-HEATING FEATURE

Internal heating keeps cells operating during cold temperatures.

Placeholder Image


INTEGRATED BUSBARS

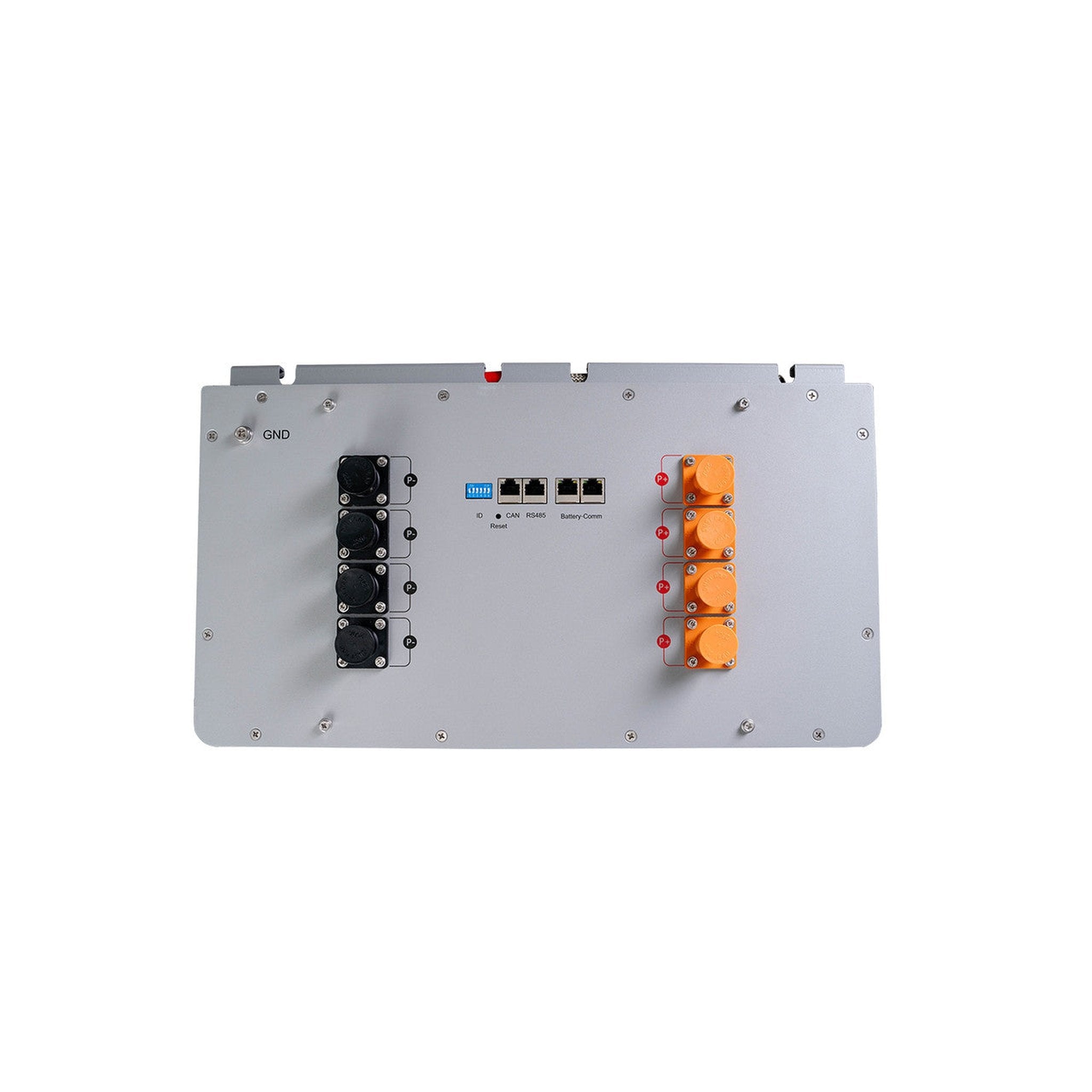

The battery design comes manufactured with 600A internal busbars with multiple terminals (4 positive & 4 negative) eliminating the need for external busbars when paralleling batteries and/or multiple inverters.

INNOVATIVE EMERGENCY STOP FUNCTION

The optional ESS disconnect can shut down all batteries and inverters (if equipped with rapid shut down capability) with the press of a button.

THE PERFECT PARTNER TO EG4 INVERTERS

The optional conduit box mates up directly to the connection ports of EG4 inverters allowing a sleek and efficient installation. For other inverters or stand-alone battery installation, the conduit box plugs should be installed.

Placeholder Image

What's Included

Everything you need is included with your product.

  • EG4-WallMount Indoor Battery | 48V 280Ah | 14.3kWh | Indoor | Heated UL1973, UL9540A | 10-Year Warranty
  • User Manual

EG4 WallMount Indoor Battery 280AH | 51.2V Specifications

Module Operating Parameters

Specification Details
Voltage 51.2V
Total Energy Capacity 14.3kWh
Capacity 280Ah
Charging Voltage (Bulk/Absorb) 56.0V (+/-0.8V) to 56.2V (+/-0.2V)
Float Voltage 54V (+/-0.2V)
Low DC Cutoff 44.8V (adjustable start from 47V to 45.6V)
Charging Current Up to 200A (continuous), recommended range: 60A - 160A
Discharging Current Up to 200A (continuous), recommended: 160A

Environmental Parameters

Specifications Details
Charging Range 32°F to ≈113°F (0°C to ≈45°C)
Discharging Range -4°F to ≈122°F (-20°C to ≈50°C)
Storage Range -4°F to ≈122°F (-20°C to ≈50°C)
Ingress Protection IP20

Charging/Discharging Protection

Specifications Details
Overcharging Protection : >205A (10 sec), >225A (3 sec)
Temperature Protection <23°F or >158°F (1 sec), <-5°C or >70°C (1 sec)

General Specifications

Specifications Details
Communication Ports RS485/CAN Can be customized
Cycle Life >8000 Cycles, 80% Depth of Discharge (DOD)
Design Life Over 15 Years
Weight 282.2 lbs. (128 kg)
Safety Certifications UL1973, UL 9540A (Testing)

Frequently-Asked Questions

Can I install the EG4 WallMount Battery outdoors?

No, this battery is designed for indoor use only, ensuring protection from environmental factors.

Is this battery compatible with my solar inverter?

Yes! The EG4 WallMount Indoor Battery is optimized for 48V solar inverters and charge controllers.

Can I expand my energy storage capacity with additional batteries?

Absolutely! This battery supports parallel stacking, allowing for greater storage capacity.

How does the built-in heating system work?

The heating system automatically activates in cold temperatures to maintain optimal battery performance.

What is the expected lifespan of this battery?

With 10,000+ cycles, this battery can last 10+ years under normal use conditions.
