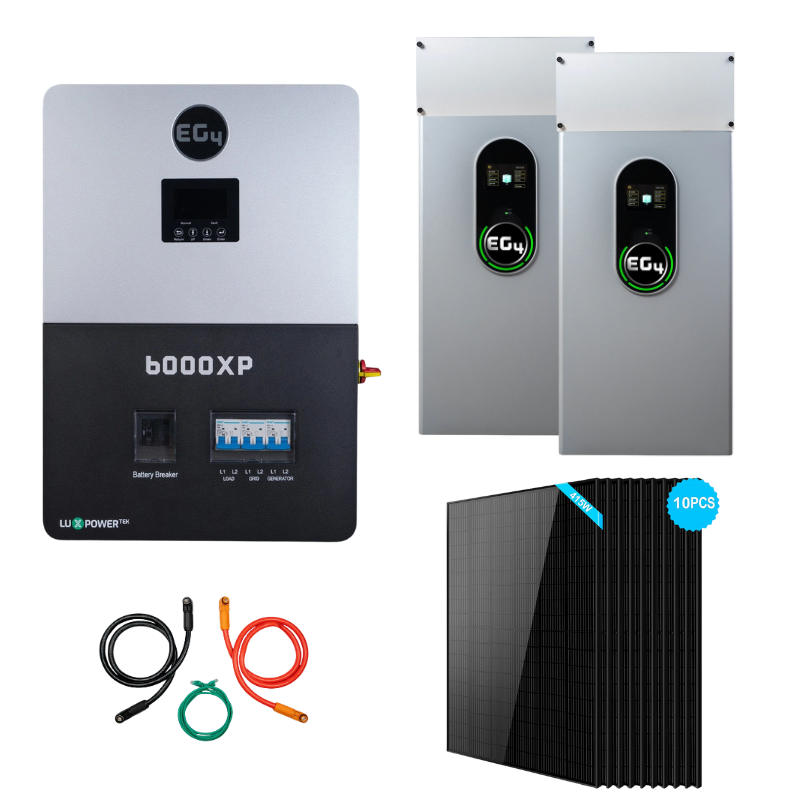

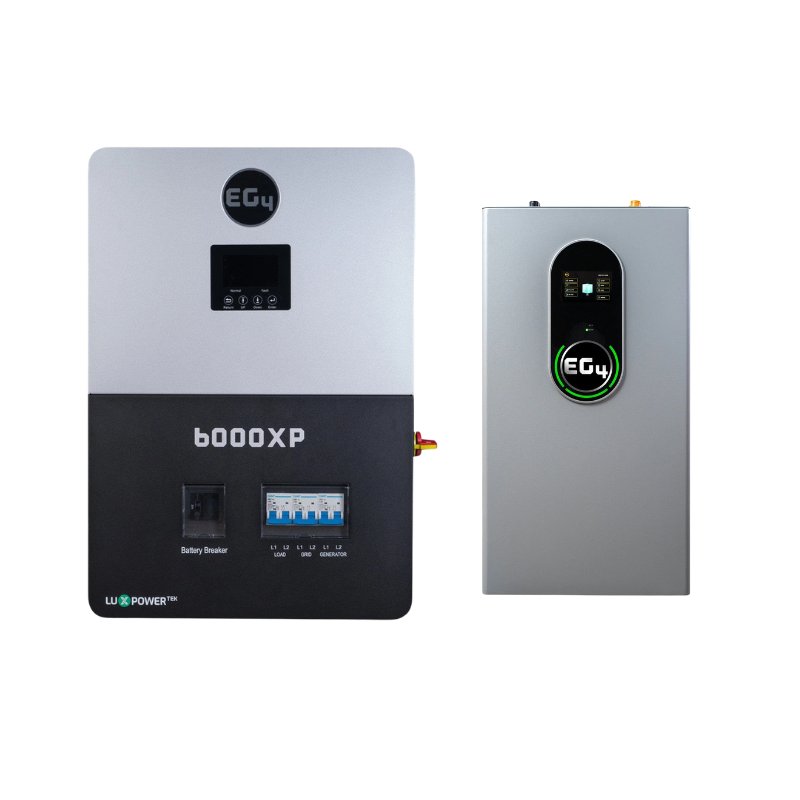

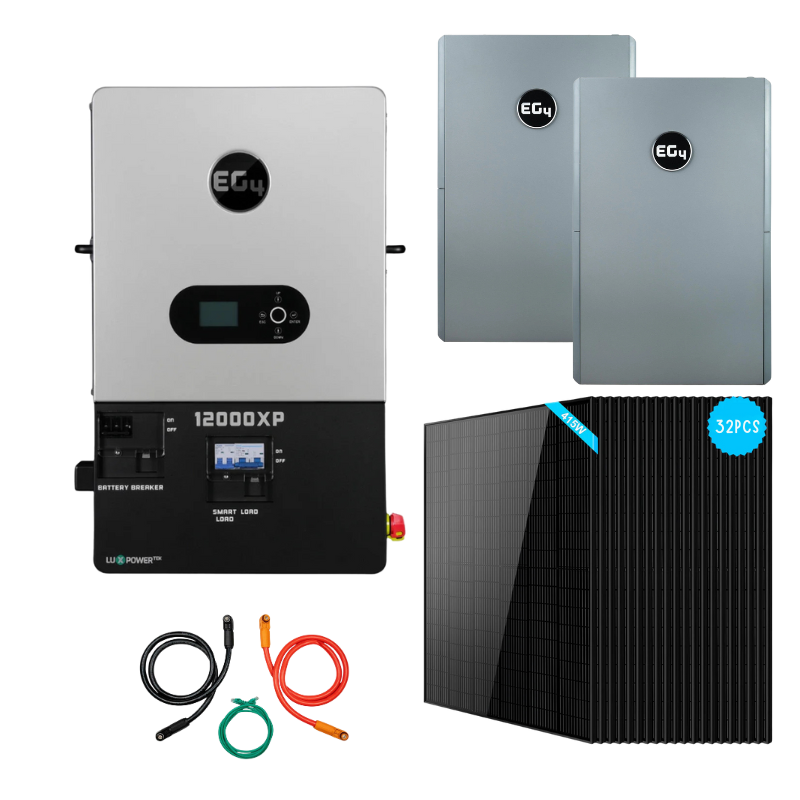

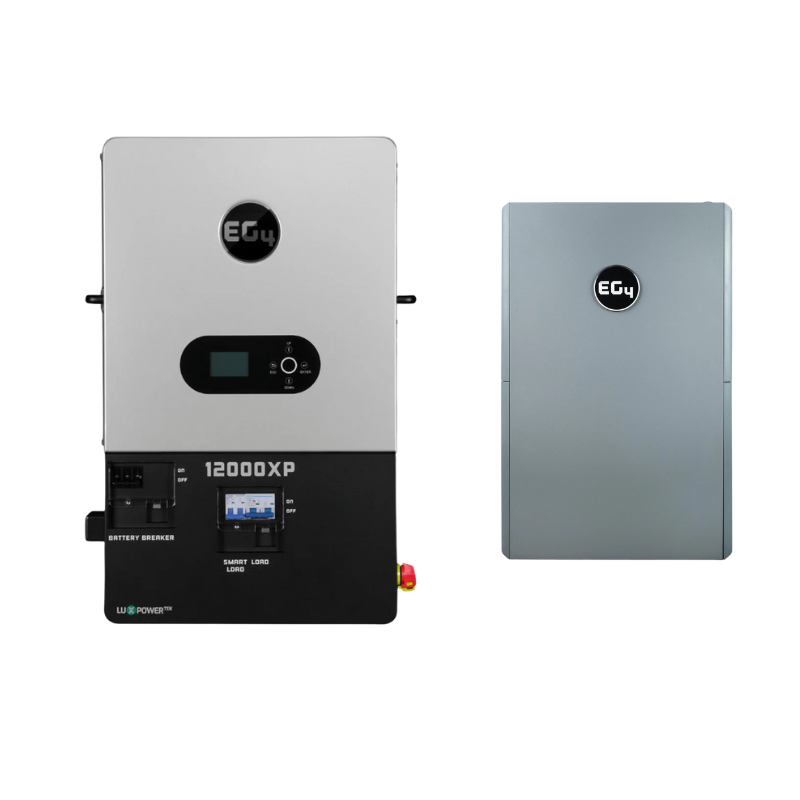

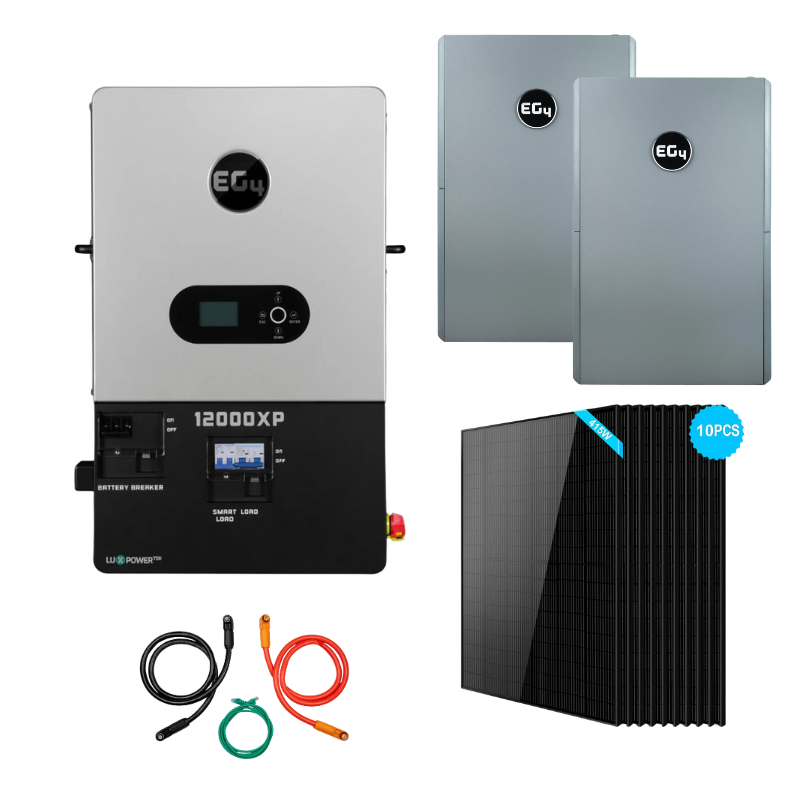

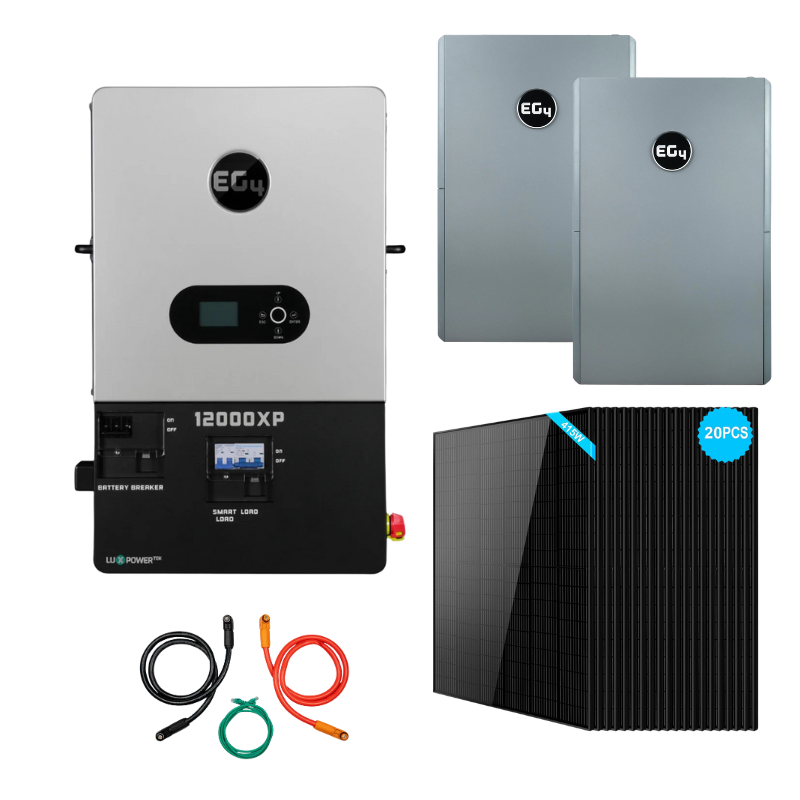

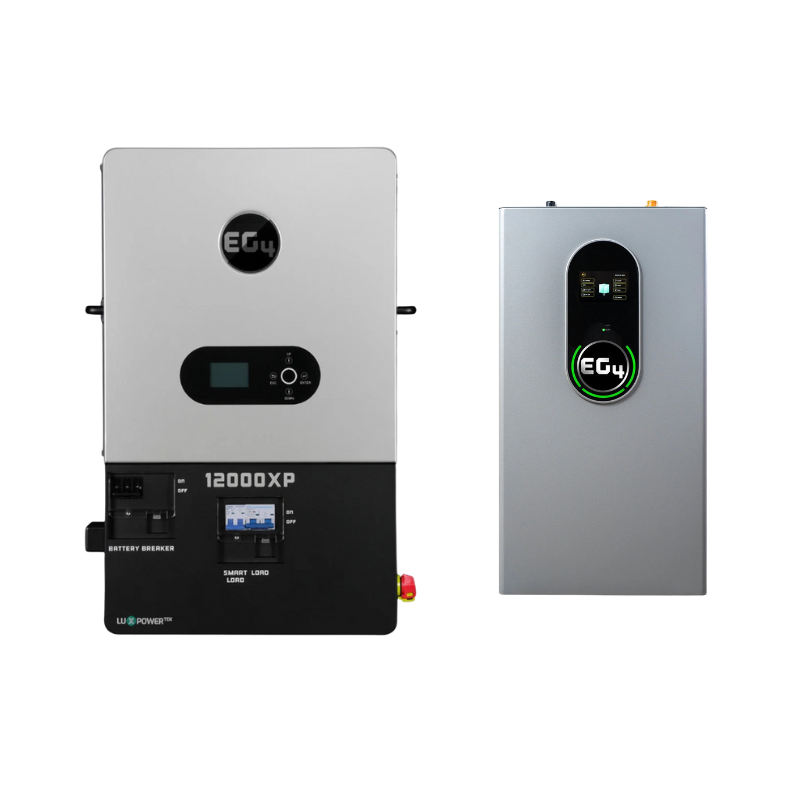

EG4 XP-Series Whole Home Solar Kit

The EG4 XP-Series Whole Home Solar Kit is a fully customizable off-grid and backup power solution for your entire home. Now available with your choice of the EG4 12000XP or EG4 6000XP Off-Grid Hybrid Inverter, this kit is designed to provide reliable energy storage and distribution. Pair it with EG4 WallMount Indoor or All Weather Batteries and optional SunGold Power 415W Mono Black PERC Solar Panels to achieve the perfect setup for your household energy needs.

EG4 XP-Series Whole Home Solar Kit Features

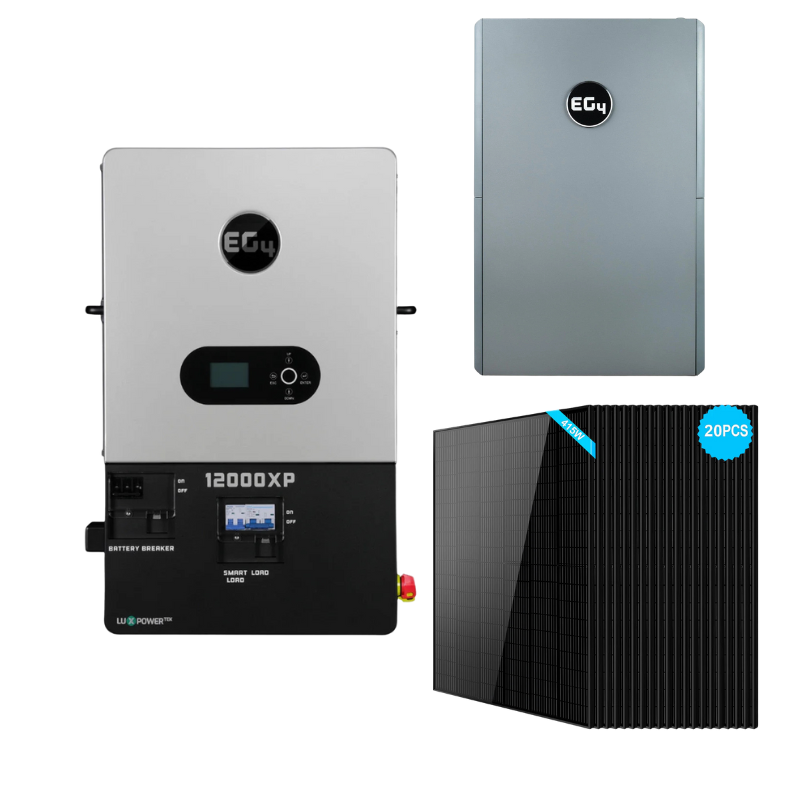

Choice of High-Performance Inverters – Select between the EG4 12000XP Off-Grid Hybrid Inverter (UL Listed) with up to 24kW PV input / 12kW output, ideal for full home backup, or the EG4 6000XP Off-Grid Hybrid Inverter (UL Listed) with up to 12kW PV input / 6kW output, perfect for smaller homes or partial backup.
Flexible Battery Options – Configure with EG4 WallMount Indoor or All Weather Batteries. Available in single or dual-battery setups. Dual configurations include the correct conduit boxes and paralleling cable automatically.
Expandable Solar Power – Add 0, 10, 20, or 32 SunGold Power 415W Mono Black PERC solar panels to match your energy production goals and scale over time.
Seamless Installation Integration – Conduit boxes and paralleling cables are included for dual battery setups, making installation quicker and easier.
Whole-Home Energy Independence – Ideal for off-grid living or as a grid-assisted backup solution to keep your home running during power outages.

EG4 XP-Series Whole Home Solar Kit Applications

Whole-home backup – Power essential or all circuits during outages.
Off-grid living – Great for cabins, homesteads, and remote locations.
Energy independence – Reduce electricity bills and reliance on the grid.
Custom scalability – Adjust inverter size, battery capacity, and solar panel count to match your lifestyle.

What's Included

Everything you need is included with your product.

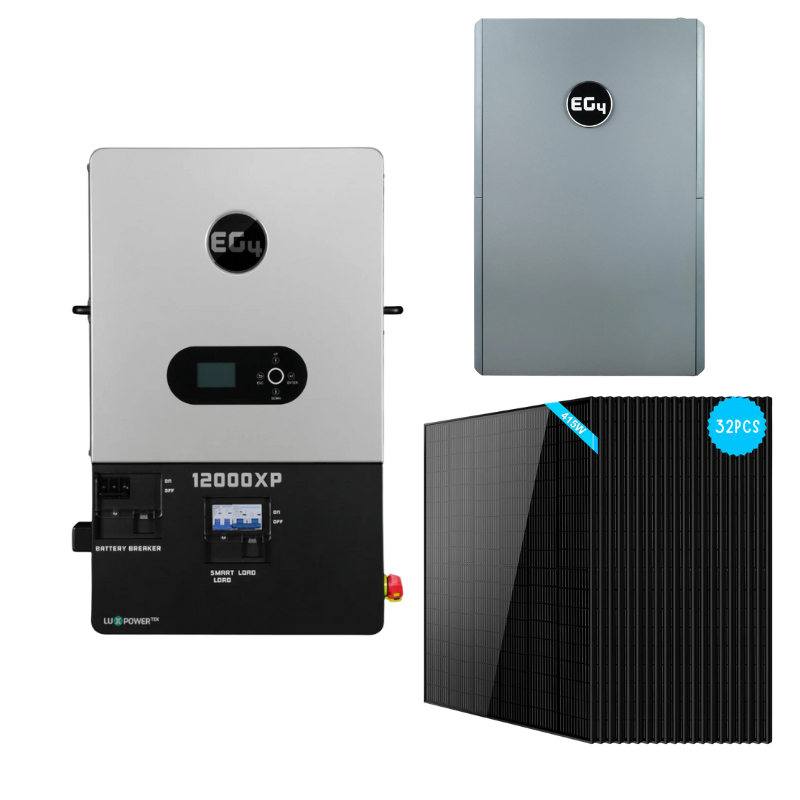

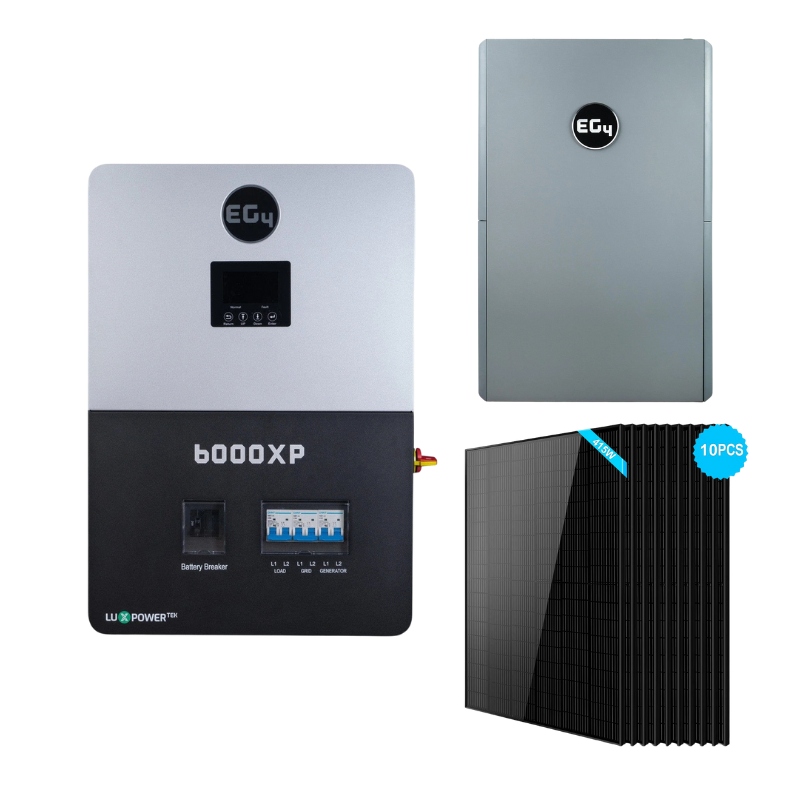

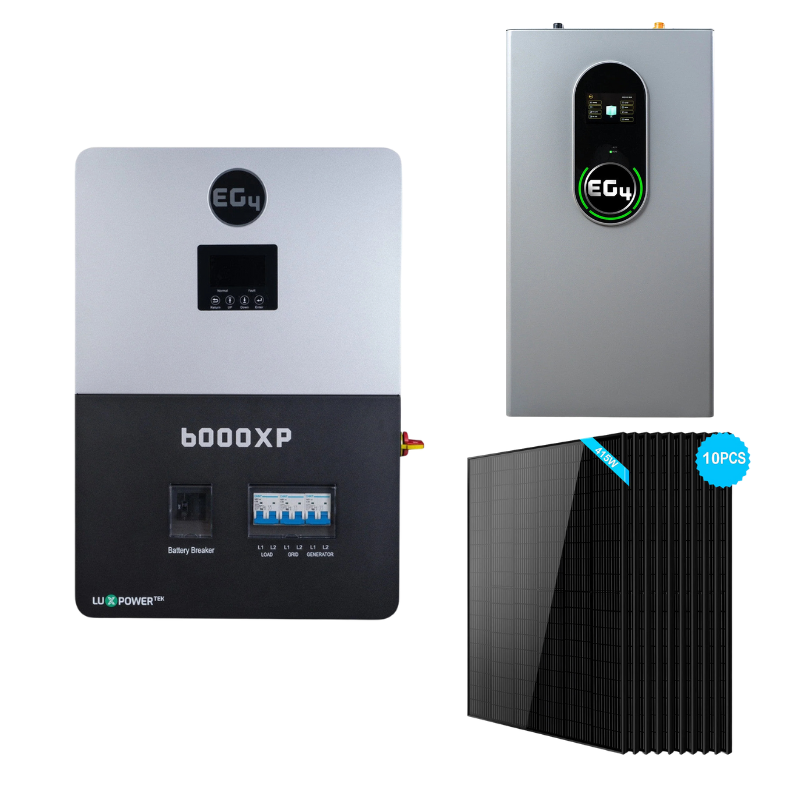

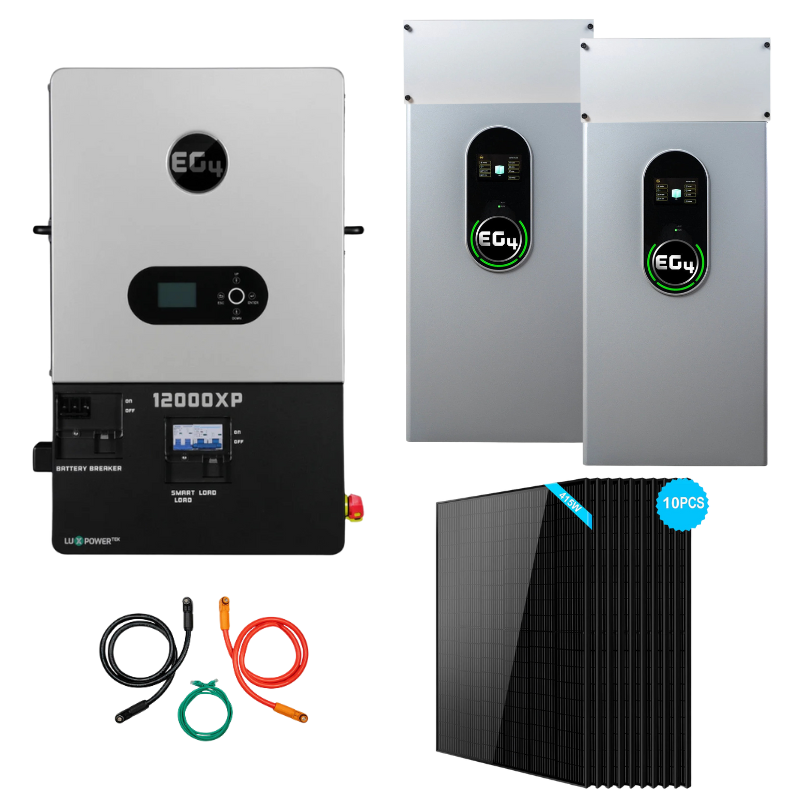

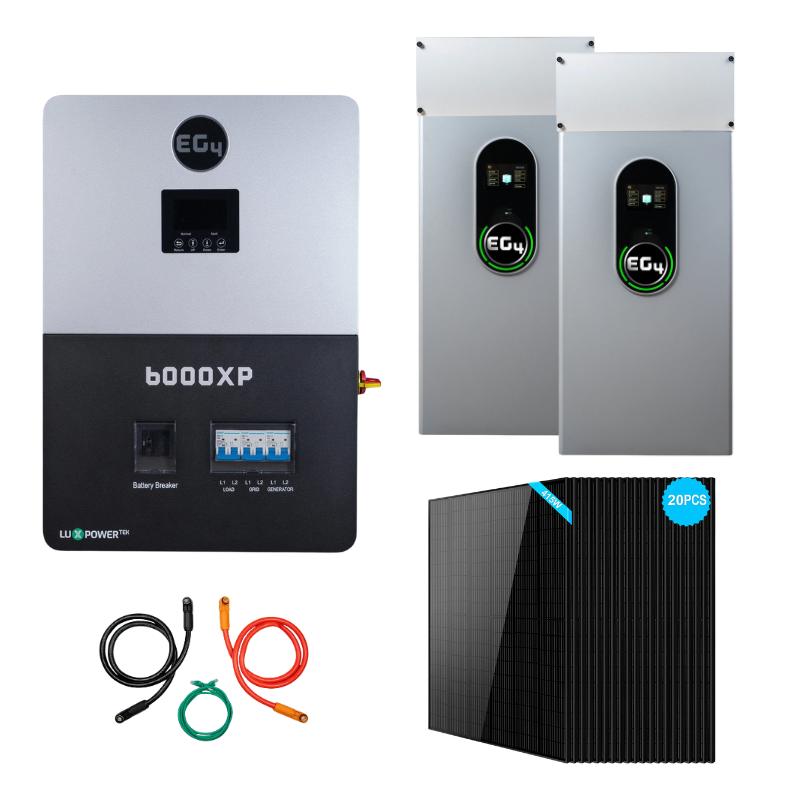

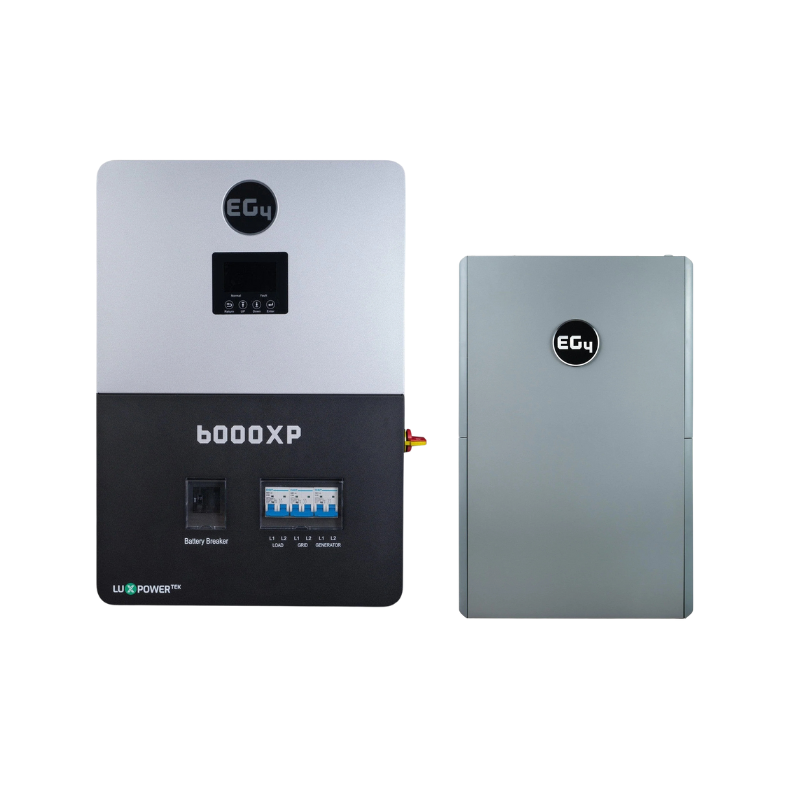

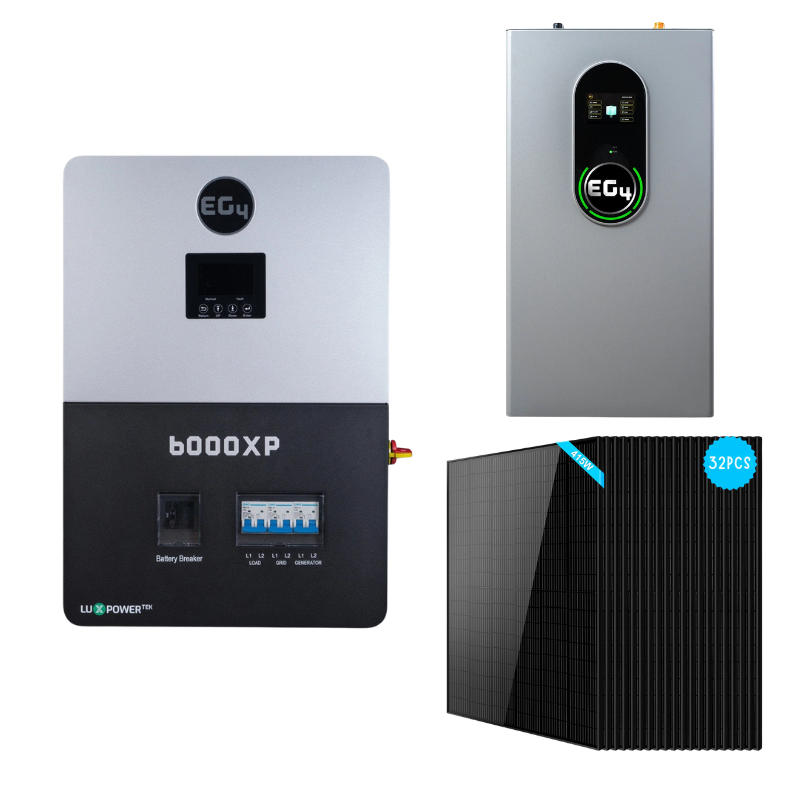

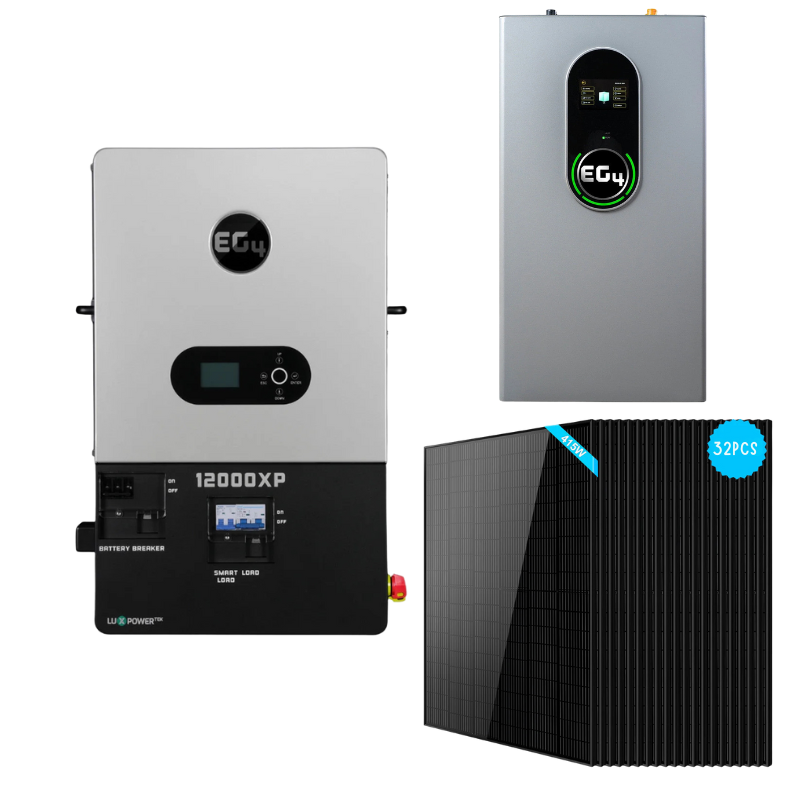

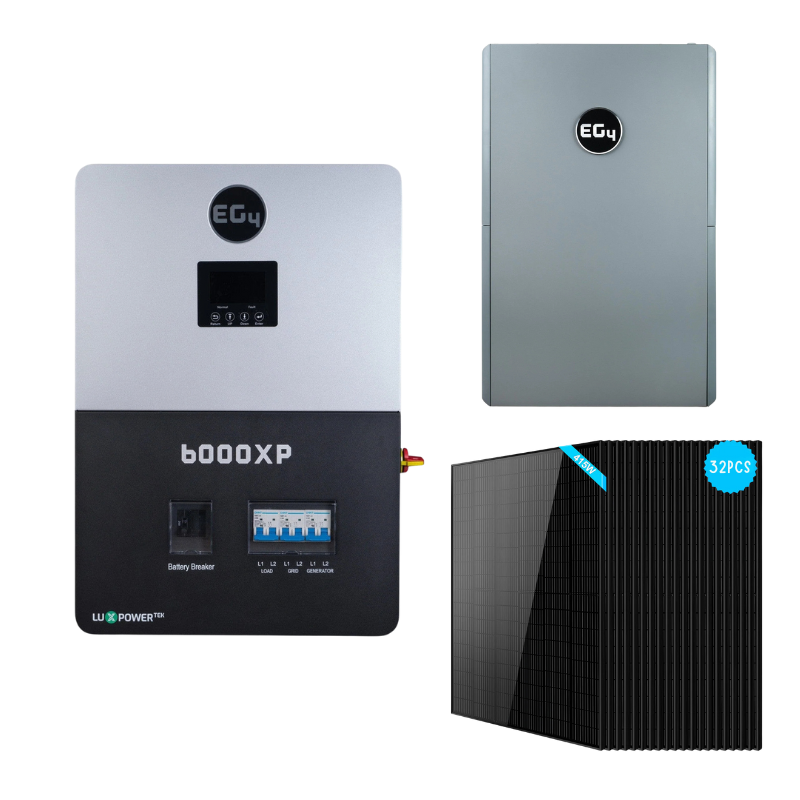

Inverter Options – EG4 12000XP Off-Grid Hybrid Inverter (UL Listed) or EG4 6000XP Off-Grid Battery Options –

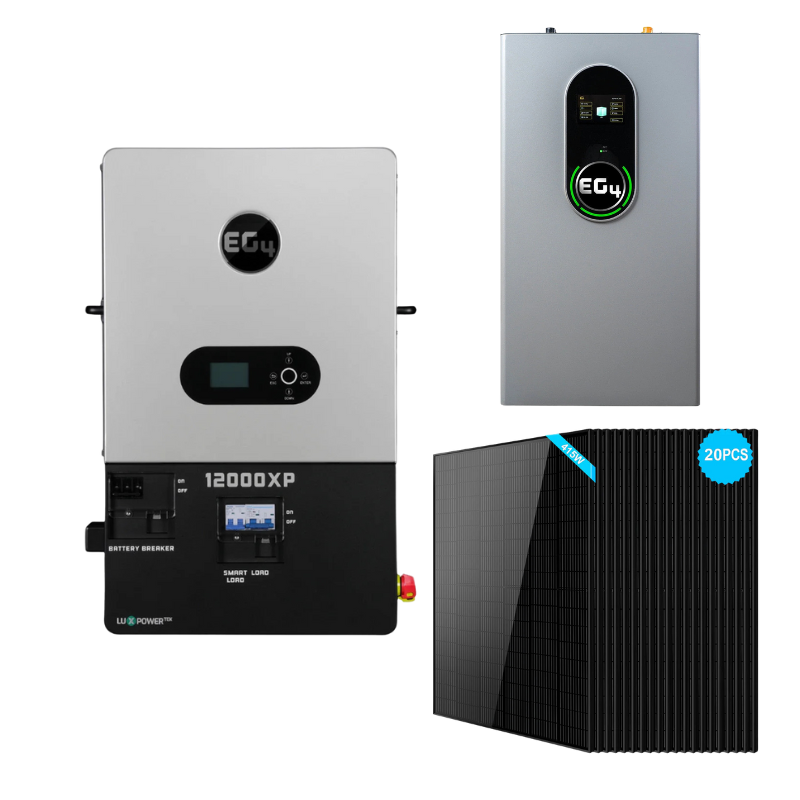

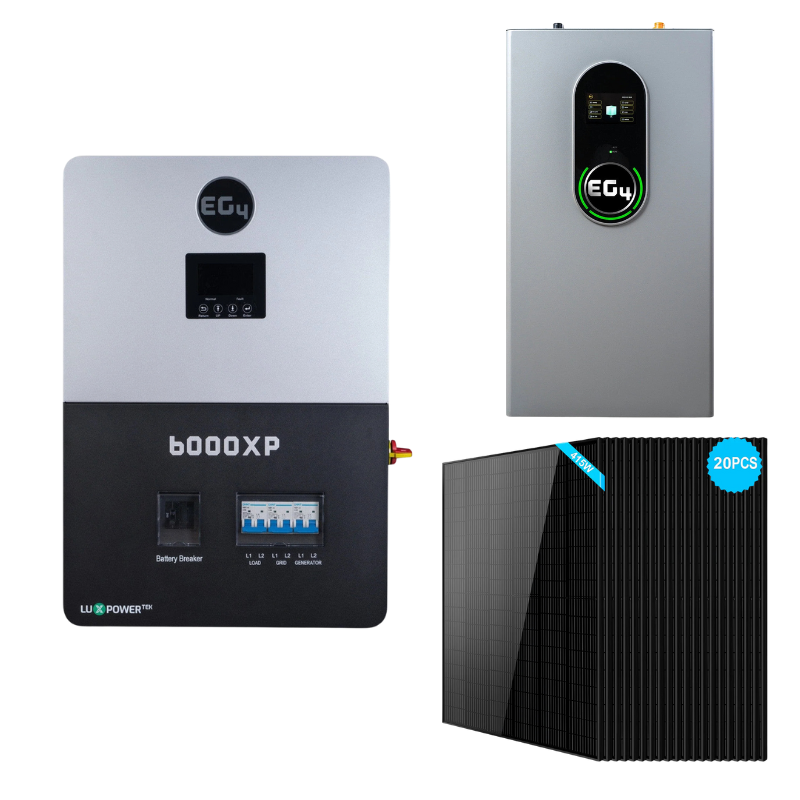

1x EG4 WallMount Indoor Battery

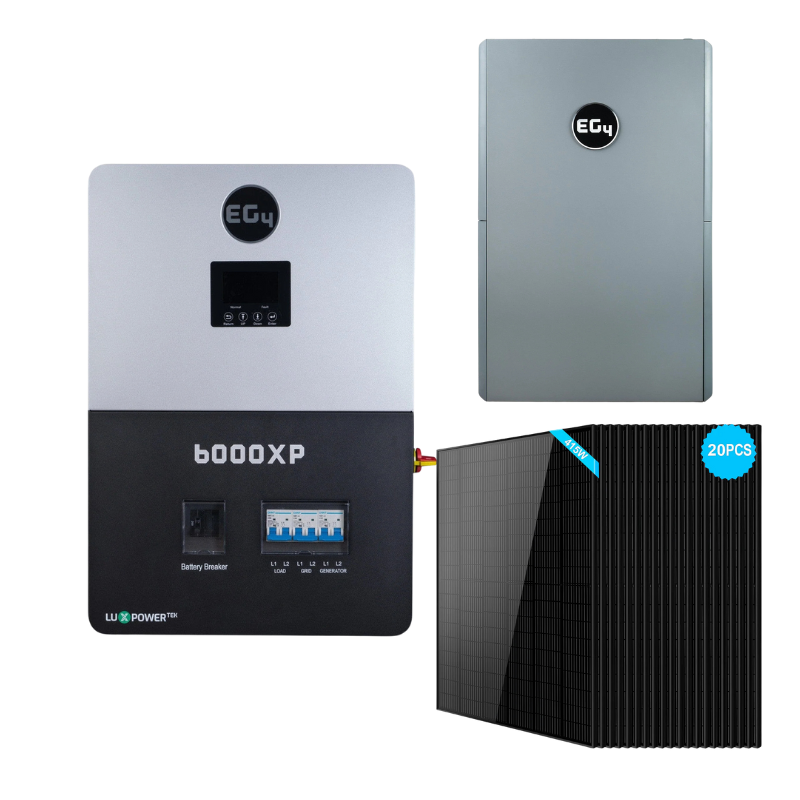

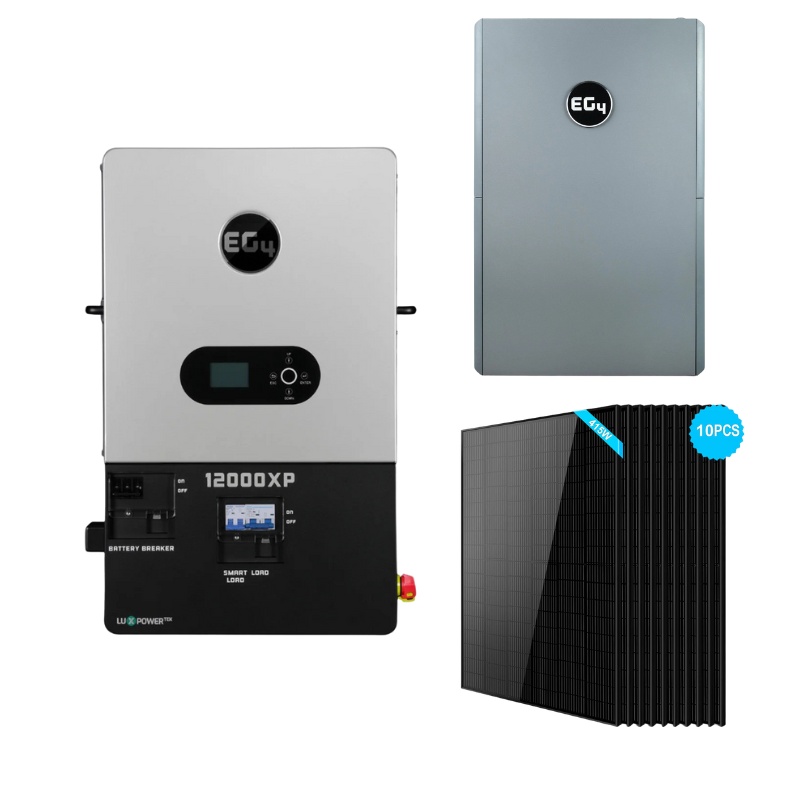

1x EG4 WallMount All Weather Battery

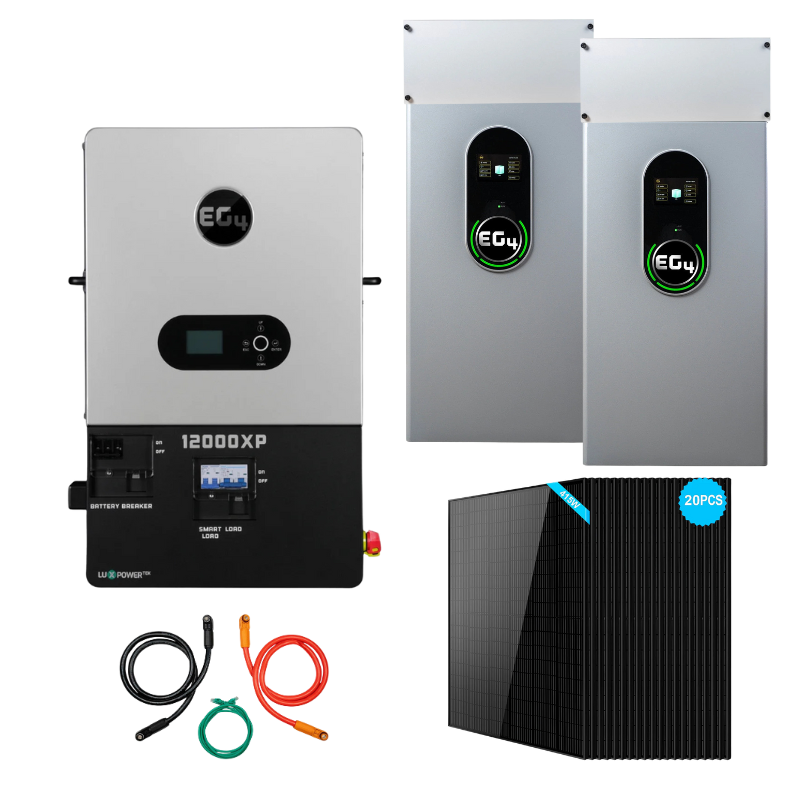

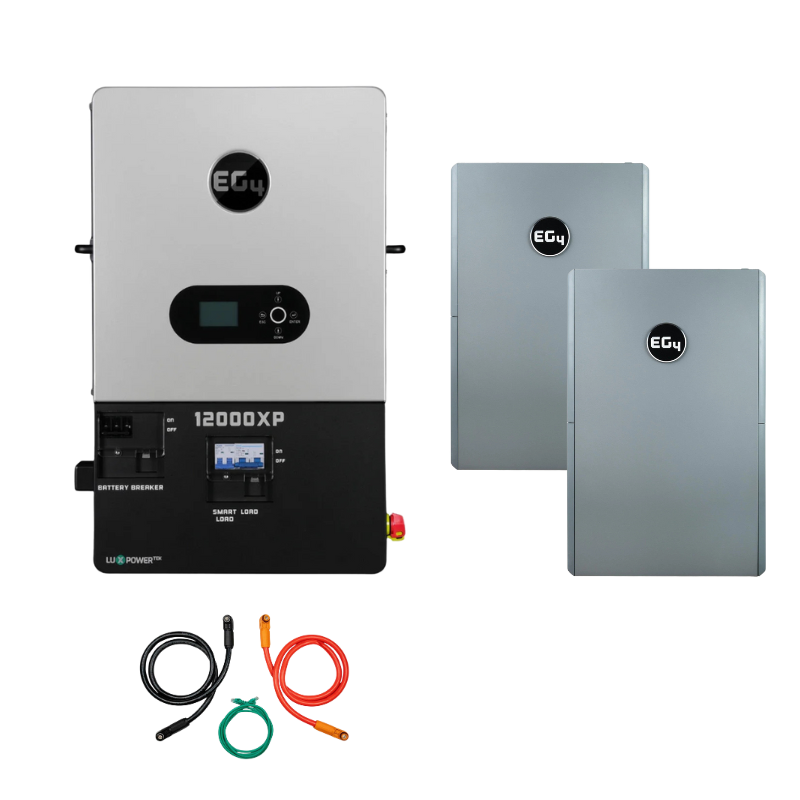

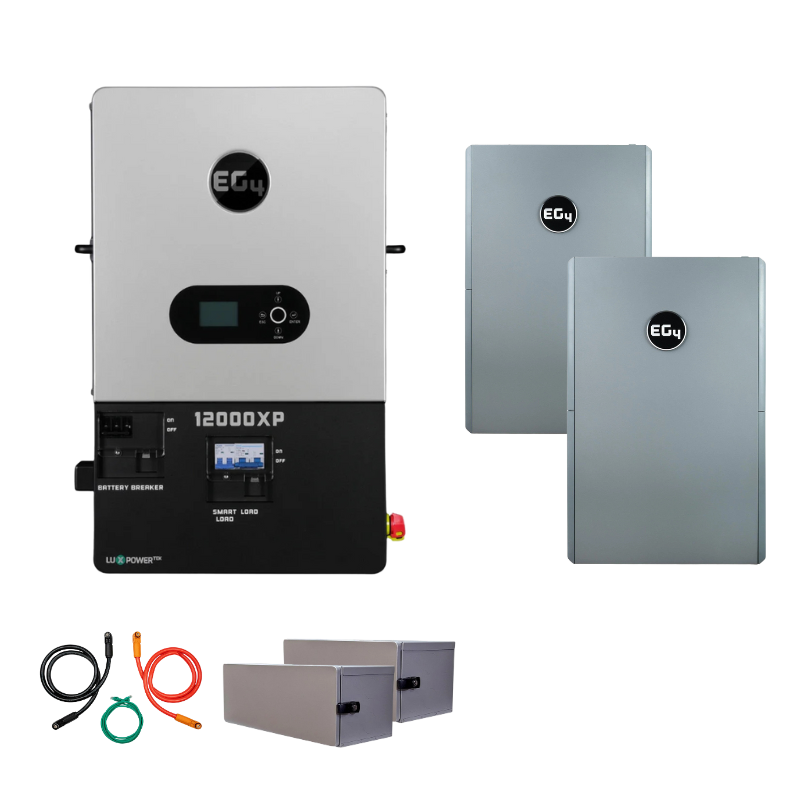

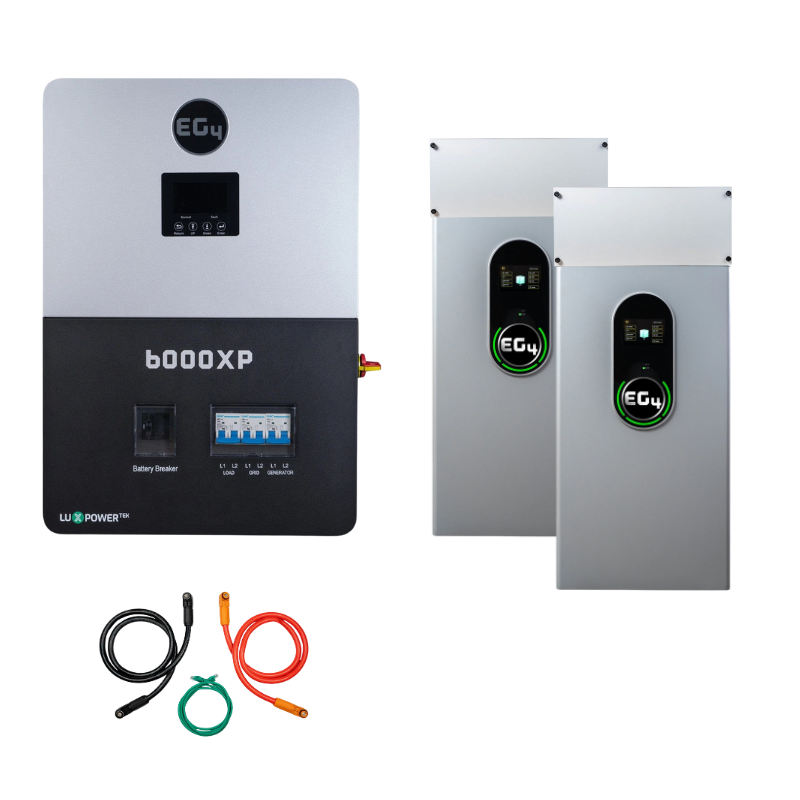

2x EG4 WallMount Indoor Batteries + 2x EG4 Indoor Buildable Conduit Boxes + 1x EG4 All Weather Battery Paralleling Cable

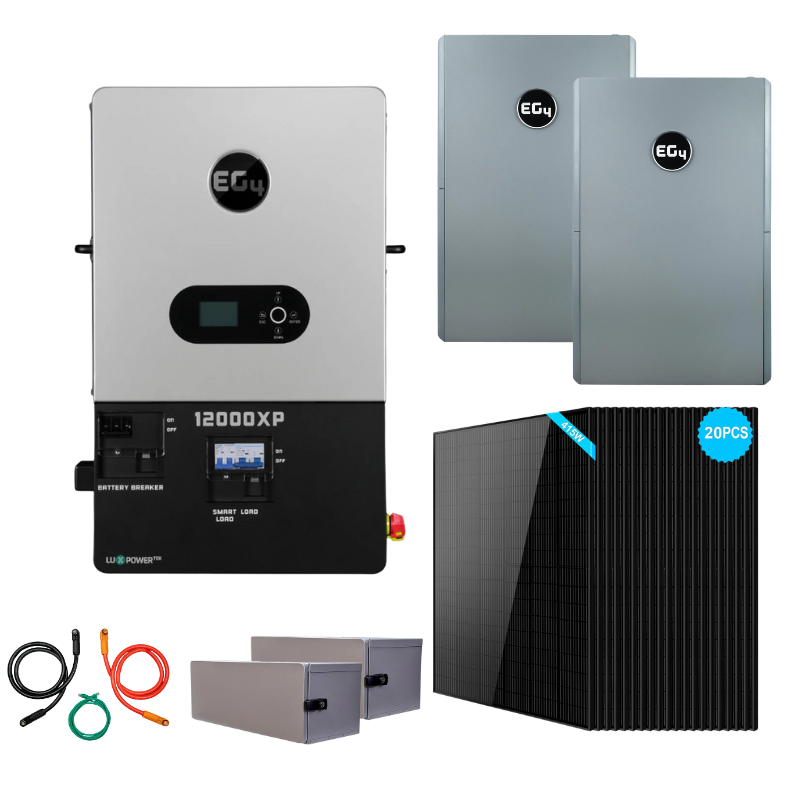

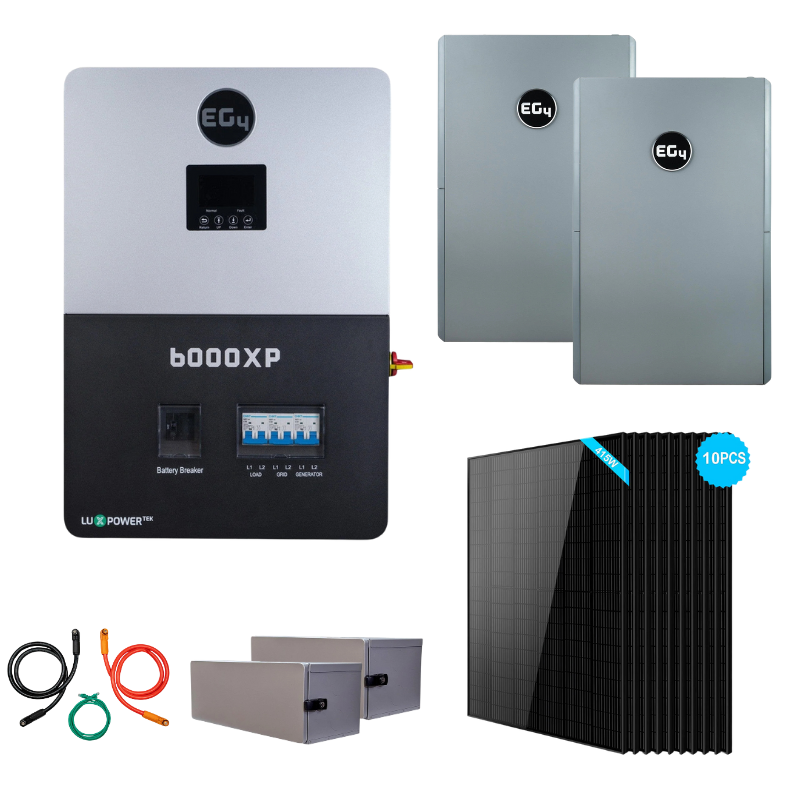

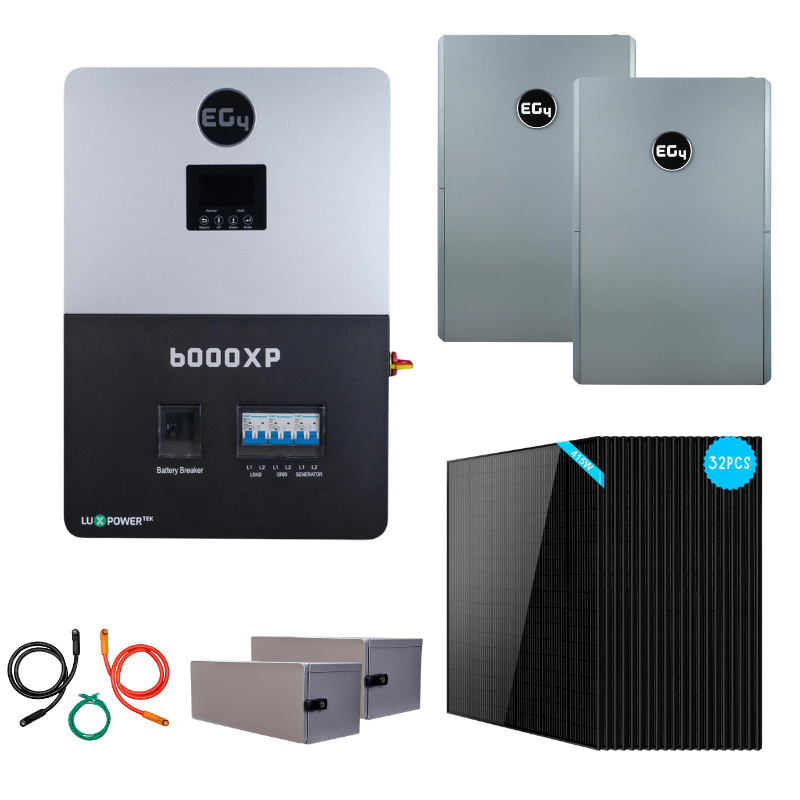

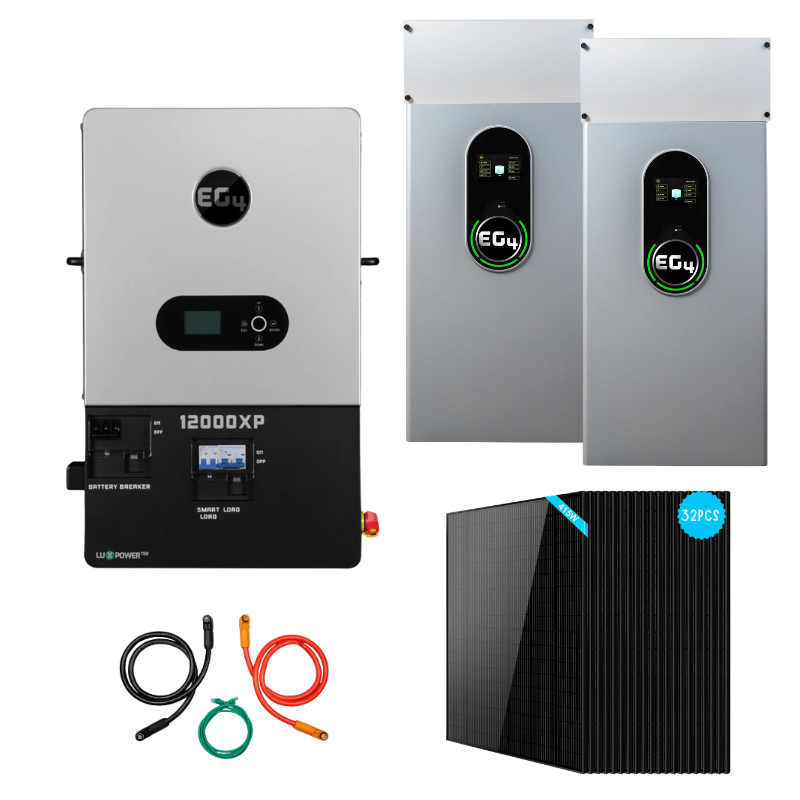

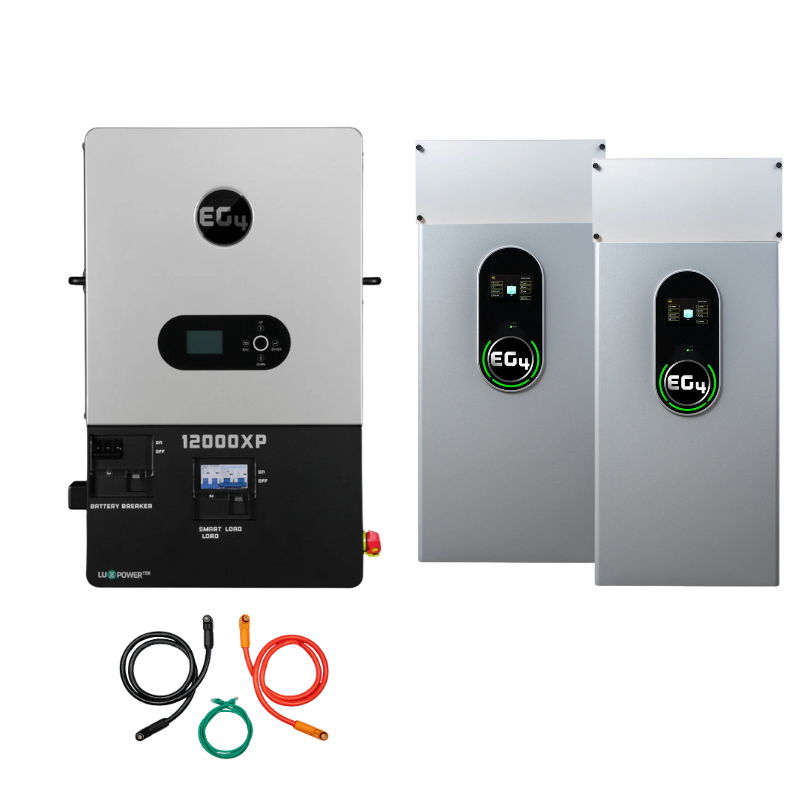

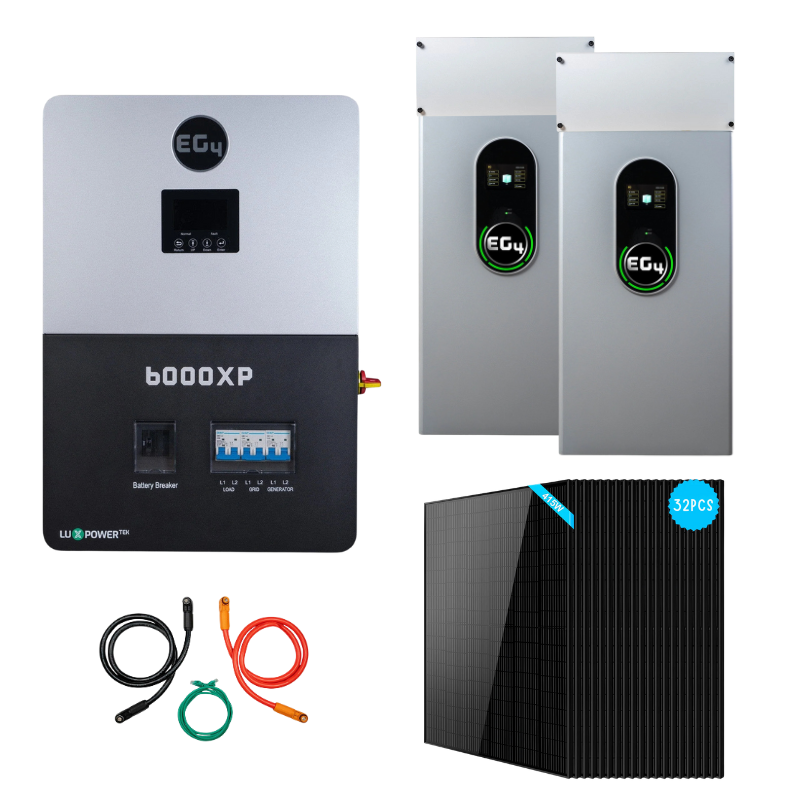

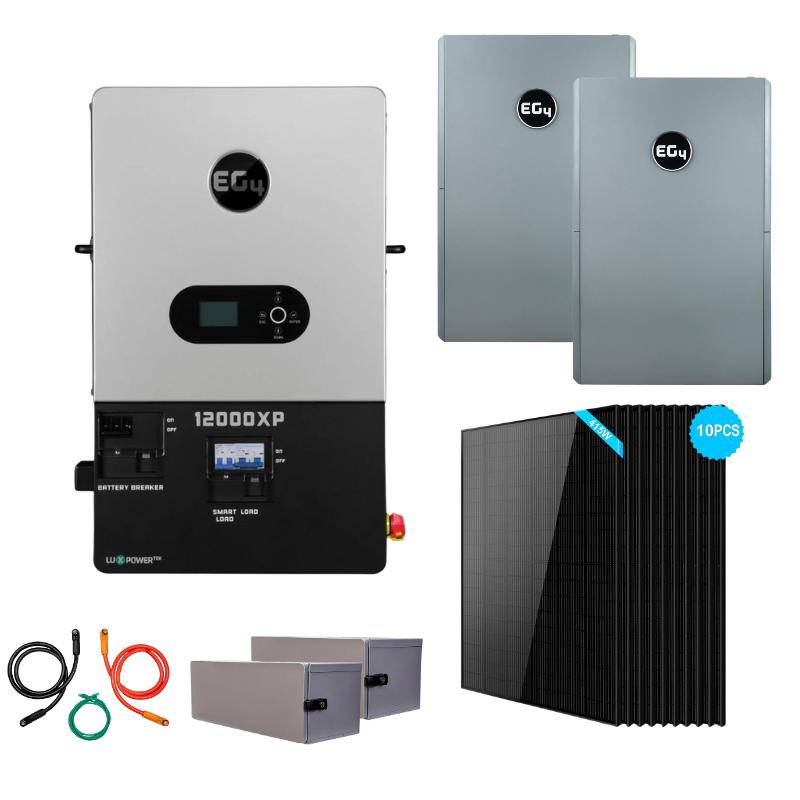

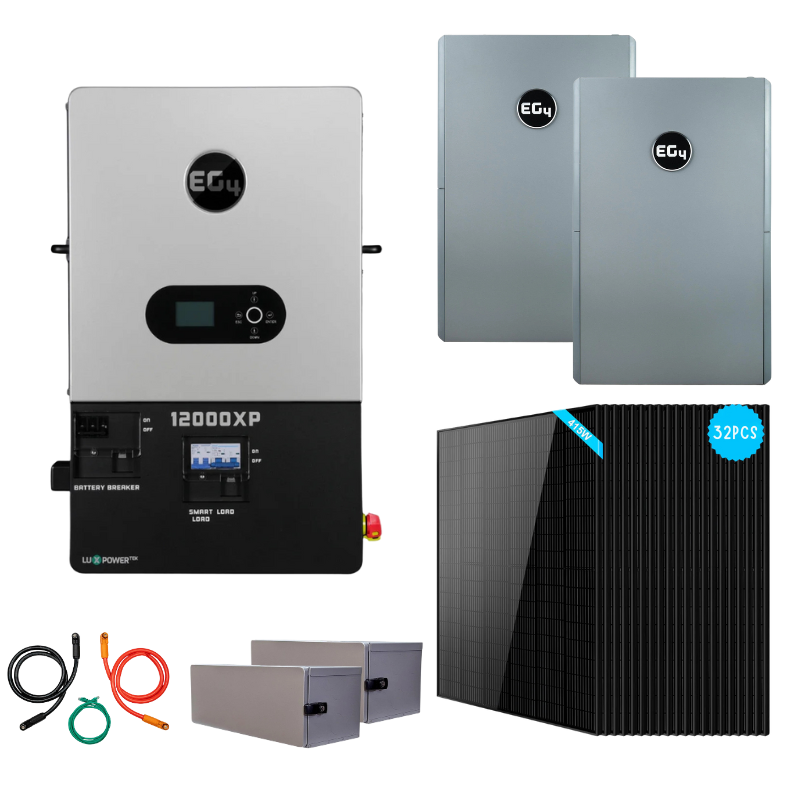

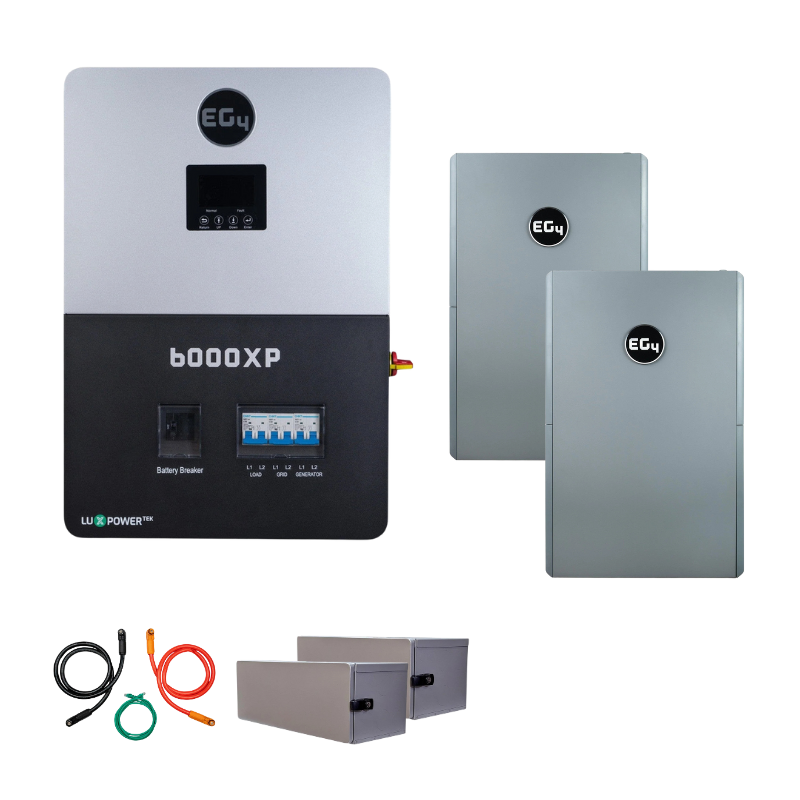

2x EG4 WallMount All Weather Batteries + 2x EG4 PowerPro Conduit Boxes + 1x EG4 All Weather Battery Paralleling Cable

Optional Solar Panels:

0, 10, 20, or 32x SunGold Power 415W Mono Black PERC Panels
User Manual

Warranty

Inverter: 5-Year Limited Warranty
Batteries: 10-Year Limited Warranty
Solar Panels (if selected): 25-Year Performance Warranty

EG4 12000XP Off-Grid Solar Inverter Specifications

Specification	Details
Nominal AC Voltage	120/240VAC; 120/208VAC (L1/L2/N required)
Frequency (Grid \| Generator)	60 Hz (Default) \| 50 Hz (Configurable)
Nominal Power Output	w/ PV: 12000W @ 240V \| 12000W @ 208V • w/ out PV: 12000W @ 240V \| 12000W @ 208V
Max. Continuous Current	50A @ 240VAC \| 57.7A @ 208V
Peak Power Surge Capacity	18000W for ≈5 seconds \| 15000W for ≈10s
Max. Utilized Solar Power	24000W (12000 per MPPT)
DC Input Voltage Range	100 – 480 VDC
Max. PV Input Voltage	500 VDC
Number of MPPTs	2
Compatible Types	Lead-Acid/Lithium
Battery Voltage Range	46.4 – 60 VDC (Lithium) \| 38.4 – 60 VDC (Lead-Acid)
Max. Charge/Discharge Current (A) \| Max. Charge/Discharge Current (W)	250 A • 12,000 W
Maximum Efficiency	99% (MPPT) • 92.8% (PV→Battery) • 92.5% (AC→Battery) • 93.5% (PV→Loads) • 90.2% (Battery→Loads)
Communication Interface	RS485 / CAN / Wi-Fi
Product Dimensions (HxWxD)	34.25 × 20.87 × 5.91 in (870 × 530 × 150 mm)
Unit Weight	104.7 lbs. (47.5 kg)
Cooling Method	Fan
Ingress Protection Rating	IP20
Operating Ambient Temperature Range	32°F – 113°F (0°C – 45°C) @ Full Load
Storage Ambient Temperature Range	5°F – 140°F (-15°C – 60°C)
Noise Emission (Typical)	<60 dB+
Certifications	UL1741, FCC Part 15, Class B
Warranty	5-year standard

EG4 6000XP Off-Grid Inverter Specifications

Specification	Details
Nominal AC Voltage	120/240VAC (L1/L2/N required)
Frequency	50 / 60 Hz
Nominal Power Output	6,000W
Max. Continuous Output Current @240V	25A
Surge Capacity	12,000W for ≈3.5 seconds \| 11,000W for ≈5 seconds
Maximum Utilized Solar Power	8000W (4000W per MPPT)
PV Input Voltage Range	100 – 480 VDC (MPPT: 120 – 385 VDC)
Number of MPPTs	2
Battery Type	Lead-acid/Lithium
Battery Voltage Range	46.4 – 60 VDC (Lithium) \| 38.4 – 60 VDC (Lead-acid)
Max. Charge/Discharge Current	140A (Discharge) \| 125A** (Charge)
Efficiency (Max.)	99% (MPPT)
Communication Interface	RS485 / Wi-Fi / CAN
Display	LCD + LED
Dimensions (HxWxD)	18 × 25.5 × 6.5 in (457 × 648 × 132 mm)
Weight	52.9 lbs (24 kg)
Cooling Concept	TL (Transformerless)
Operating Temp Range	32°–113 °F (0°–45 °C)
Storage Temp Range	5°–140 °F (−15°–60 °C)
Noise Emission	≤60 dB
Ingress Protection	IP20
Certifications	UL1741, FCC Part 15 Class B
Warranty	5 years

EG4-WallMount Indoor Battery Specifications

Specification	Details
Total Energy Capacity	14.3 kWh (@25°C, 100% SOC)
Voltage	51.2 V
Capacity	280 Ah
Charging Current	140A continuous • Recommended Setting 60-140A
Discharging Current	140 A continuous • 200A (Max. Continuous for 30 min) • Recommended Setting 60-140A
Cycle Life	>8,000 cycles, 0.5C 80% DoD)
Design Life	>10 years
Charging and Discharging Range	Charge: 32°–122 °F (0°–50 °C) \| Discharge: −4°–131 °F (−20°–55 °C)
Storage Temperature	32°–113 °F (0°–45 °C)
Dimensions (HxWxD)	34.1 in.×18.1 in.×10.4 in. (865 mm×460 mm×264 mm)
Weight	286.6 lbs. (130 kg)
Communication Ports	RS485/CAN • Condition: Can be customized
Certifications	UL1973, UL 9540A

EG4 WallMount All Weather Lithium Battery Specifications

Specification	Details
Total Energy Capacity	14.3 kWh (@25°C, 100% SOC)
Voltage	51.2 V
Capacity	280 Ah ±2% • Recommended Charger Settings: @25°C ±2°C @ 0.5C
Charge Current	140A Max. Continuous • Recommended Charger Settings: 60 – 140A
Discharge Current	140A Max. Continuous, 200A (Max. Continuous for 30 min) • Recommended Charger Settings: 60 – 140A
Cycle Life	> 8000 Cycles @ 0.5C 80% DOD
Design Life	>15 years
Charging Range	32°F to ≈122°F (0°C to ≈50°C)
Discharging Range	−4° to 131 °F (−20 °C to 55 °C)
Storage Range	32° to 113 °F (0 °C to 45 °C)
Operating Altitude	<16,404 ft (<5000 m)
Ingress Protection	IP65
Dimensions (HxWxD)	36.2 × 20.2 × 9.1 in (92 × 51.2 × 23.2 cm)
Weight	308.6 lbs (140 kg)
Battery Heater	56V (Voltage) • 224W (Power Consumption) • ≤32 °F (0 °C) or ≥41 °F (5 °C) - Condition: Heat On/Heat Of (Internal Battery Temperature)
Communication Ports	RS485 / CAN (customizable)
Certifications	UL1973, UL9540A (Passed)

SunGold Power 415W Mono Black PERC Panel Specifications

Specification	Details
Model	SG415WM
Maximum Power (Pmax)	415 W
Module Efficiency	21.3%
Voltage (Vmp / Voc)	31.6 V (Max-Power Voltage) / 37.50 V (Open-Circuit Voltage)
Current (Imp / Isc)	13.13 A (Max-power Current) / 14.02 A (Short-Circuit Current)
Maximum System Voltage	1500 Vdc
Maximum Series Fuse Rating	25A
Operating Temperature	−40 °F to 185 °F (−40 °C to +85 °C)
Nominal Operating Temp. (NOCT)	44 °C ±2 °C
Dimensions (L×W×D)	67.8 × 44.6 × 1.4 in (1722 × 1134 × 35 mm)
Weight	45.8 lbs (20.8 kg)
Cell Type	Mono 182*91mm
Cell Arrangement	108 (6*18)
Front Cover	3.2mm tempered glass
Frame Material	Anodized aluminum alloy
Junction Box	IP68 rated
Output Cables	4mm2 ,Length：（+）300mm/（-）300mm
Power Tolerance	±3%

Frequently-Asked Questions

What is the difference between the EG4 6000XP and 12000XP?

The 6000XP is a 6kW inverter ideal for medium homes or partial backup. The 12000XP is a 12kW inverter suited for full-home systems and larger arrays.

Can I expand my battery capacity later?

Yes. Start with one battery and add a second later; you’ll need the correct conduit boxes and paralleling cable when expanding.

Can I start without solar panels and add them later?

Yes. The kit can operate without solar panels initially and can be expanded with panels when ready.

Do I need professional installation?

Yes. For safety and warranty protection, installation by a licensed electrician or solar professional is strongly recommended.

Can I upgrade from the 6000XP to the 12000XP later?

Yes, the system is designed to be scalable. You can upgrade to the larger inverter when your energy needs grow.
