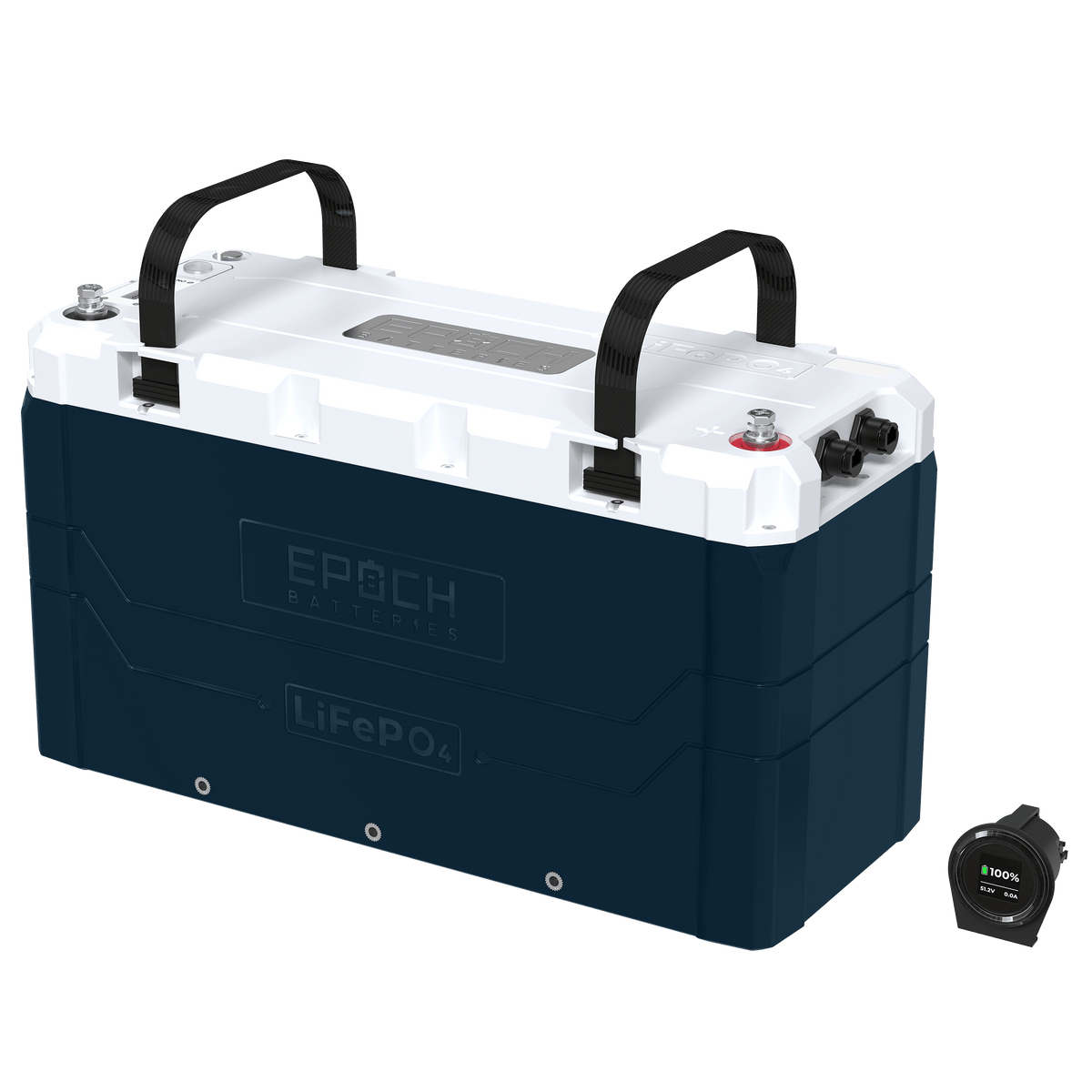

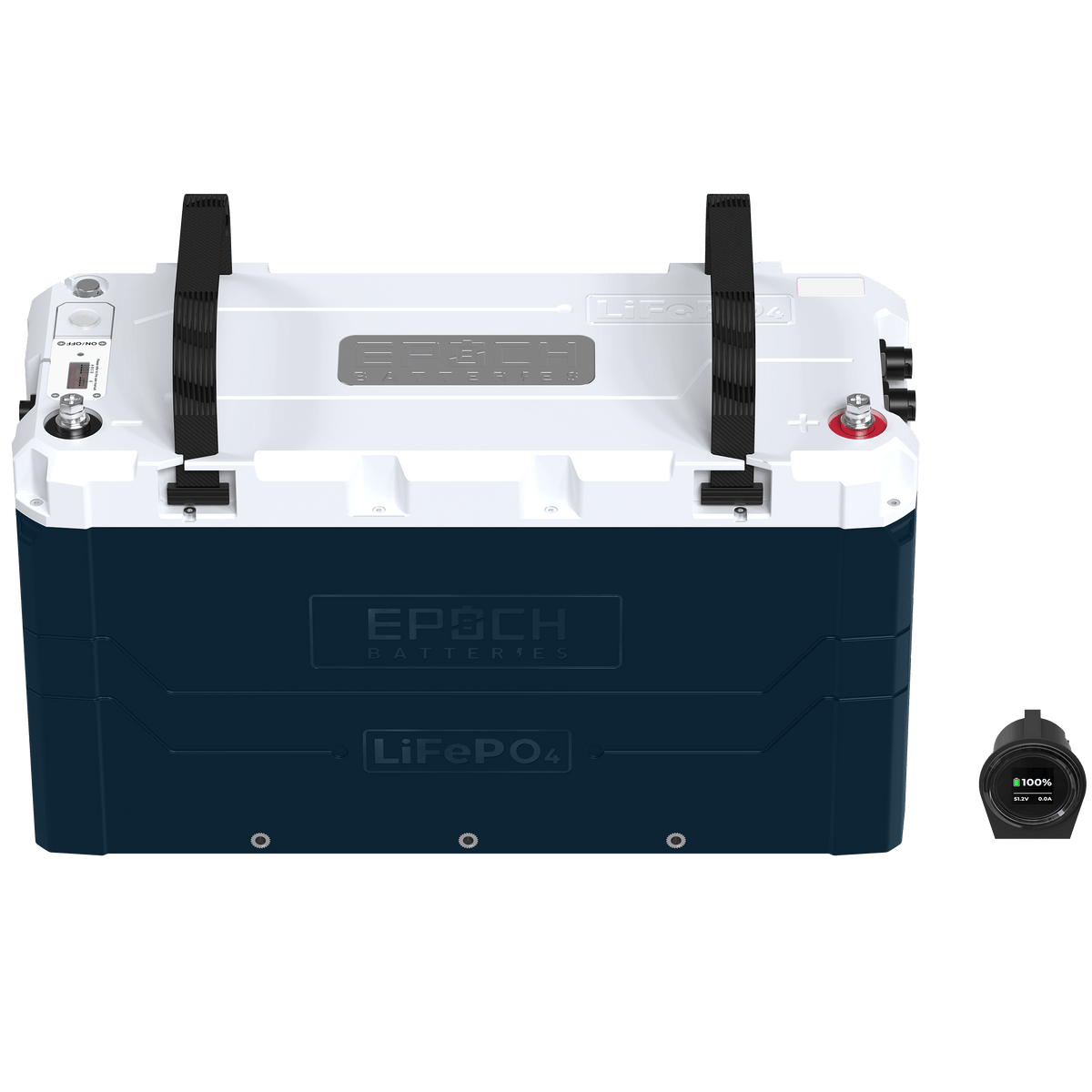

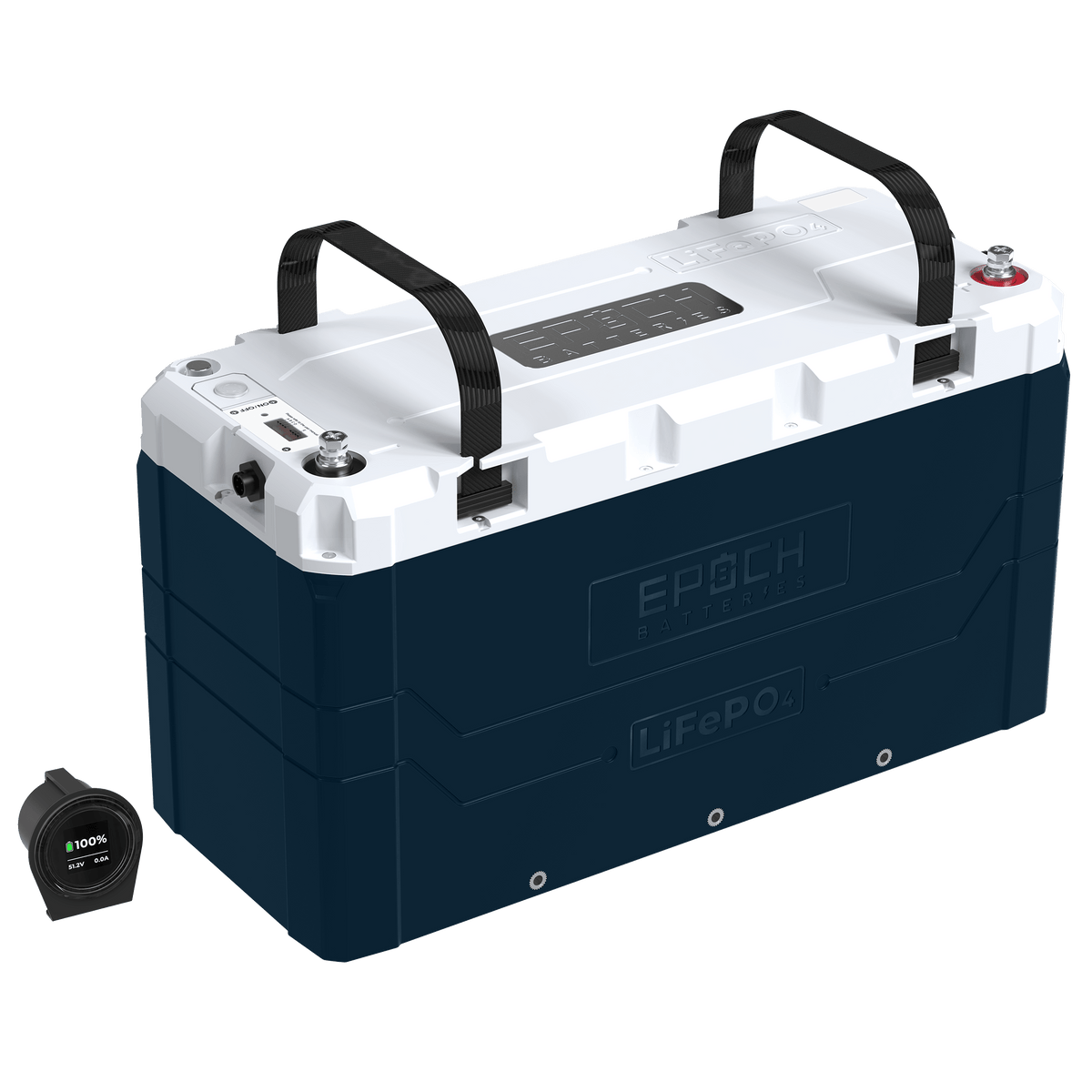

Epoch 24V 230Ah LiFePO4 V2 Elite Series Battery | 3500 Cycles | IP67 Rated | Internal Heating
The Epoch 24V 230Ah LiFePO4 V2 Elite Series Battery is designed for serious off-grid and energy storage needs. With a powerful 5.9kWh capacity, IP67 waterproof rating, and built-in internal heating, this battery performs exceptionally in all climates and conditions. It's engineered with top-tier lithium iron phosphate cells and BMS protections, offering unmatched reliability, long lifespan, and advanced safety.
Epoch 24V 230Ah LiFePO4 V2 Elite Series Battery Features
High Capacity Power – 5.9kWh of energy storage ideal for off-grid, solar, and backup systems.
Long Cycle Life – Rated for 3,500+ cycles at 80% depth of discharge for years of dependable use.
Internal Heating – Integrated heater ensures cold-weather charging performance even below freezing.
IP67 Rated – Fully waterproof and dustproof, perfect for marine, RV, and outdoor environments.
Advanced BMS – Built-in Battery Management System for overvoltage, undervoltage, short circuit, and temperature protection.
Compact Design – Space-saving dimensions for easy installation in racks, enclosures, or mobile systems.
High Discharge Rate – Supports high-current applications with stable voltage and performance.
Epoch 24V 230Ah LiFePO4 V2 Elite Series Battery Applications
-
Off-grid – Reliable energy storage for remote cabins, homesteads, and solar-powered properties.
-
RV – Provides consistent, high-capacity power for travel and boondocking adventures.
-
Marine – Ideal for boats and yachts needing waterproof, high-performance energy storage.
-
Home Backup – Keeps essential appliances running during power outages or blackouts.
-
Mobile Power – Powers food trucks, mobile workstations, and utility trailers.
-
Renewable Systems – Integrates seamlessly with solar, wind, or hybrid renewable installations.
What’s Included?
Warranty
Epoch 24V 230Ah LiFePO4 V2 Elite Series Battery Specifications
| Weight (lbs) |
97 |
| Length |
20.75" |
| Width |
8.5" |
| Height |
12" |
| Cell Configuration |
8S1P |
| Chemistry |
LiFePO4 |
| Ah Capacity |
230Ah |
| Max Continuous Discharge Amps |
230A |
| Max Charge Current Amps |
230A |
| Max Discharge Peak Current Amps |
500A (30 Seconds), 1300A (1 Second) |
| Series | Parallel |
Max (2) in Series OR Max (16) in Parallel - 2S1P or 1S16P |
| Voltage |
25.6V |
| Max Charge Voltage |
29.2V |
| Operating Voltage Range |
20.0 - 29.2V |
| Charge Temp Range |
-20°C (-4°F) to 55°C (131°F) (with heating)
|
| Discharge Temp Range |
-20°C (-4°F) to 60°C (140°F) |
| Storage Temp |
0°C (32°F) to 35°C (95°F) |
| Battery Cycle |
3500+ Cycle life & Maintenance-free |
| Warranty |
11-Year Manufacturer Warranty |
Frequently-Asked Questions
Can this battery be used in parallel or series setups?
Yes, it supports parallel configurations for increased capacity. Always consult Epoch guidelines for correct connection limits.
Is it safe to charge in freezing temperatures?
Yes, thanks to the internal heater. It will automatically warm the battery before charging begins below 32°F.
What type of inverter is compatible?
Compatible with most 24V inverters. Ensure the inverter supports LiFePO4 profiles and check amp load compatibility.
How long will this battery last?
With over 3,500 cycles at 80% DOD, you can expect 10+ years of service under normal conditions.
