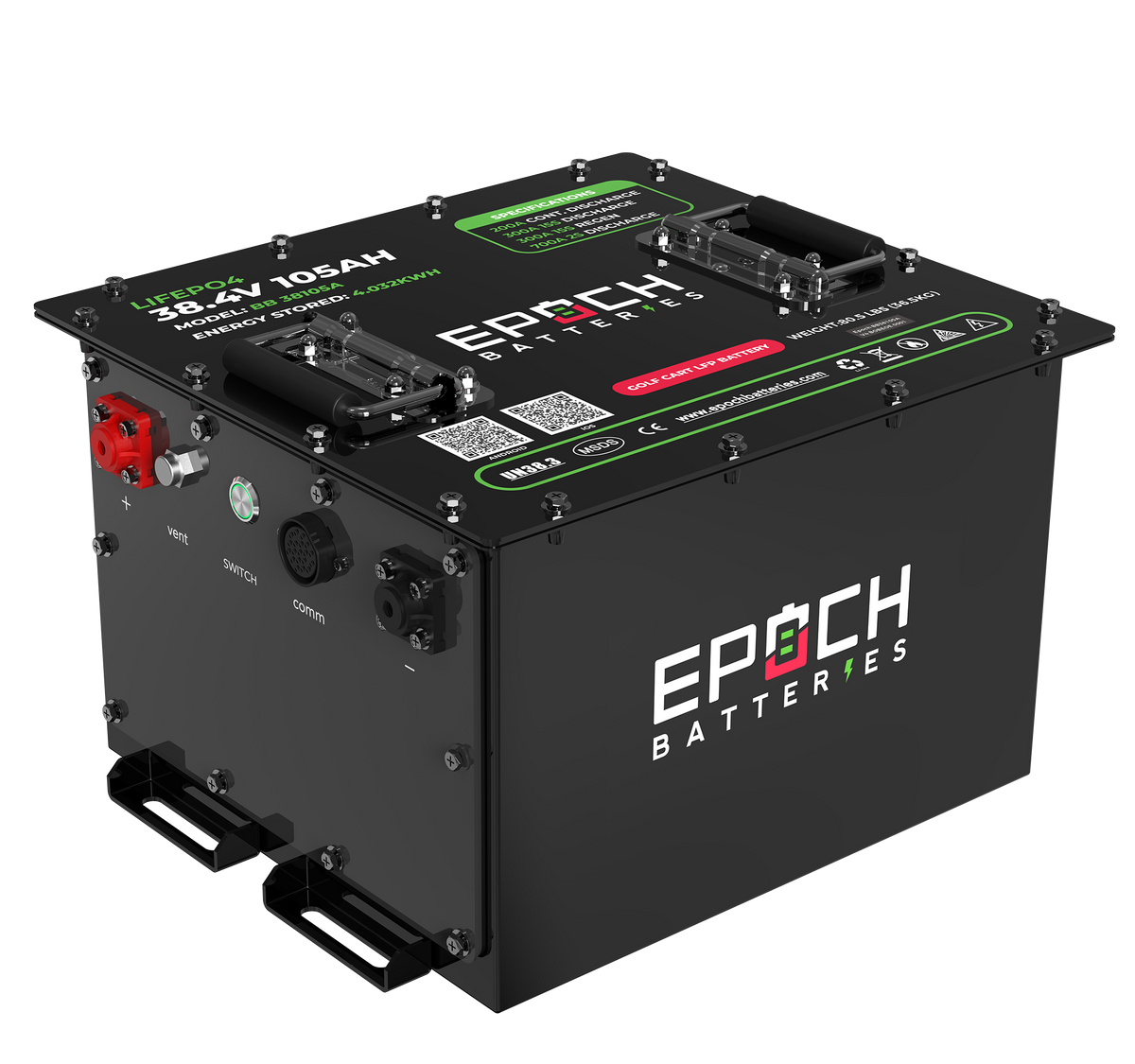

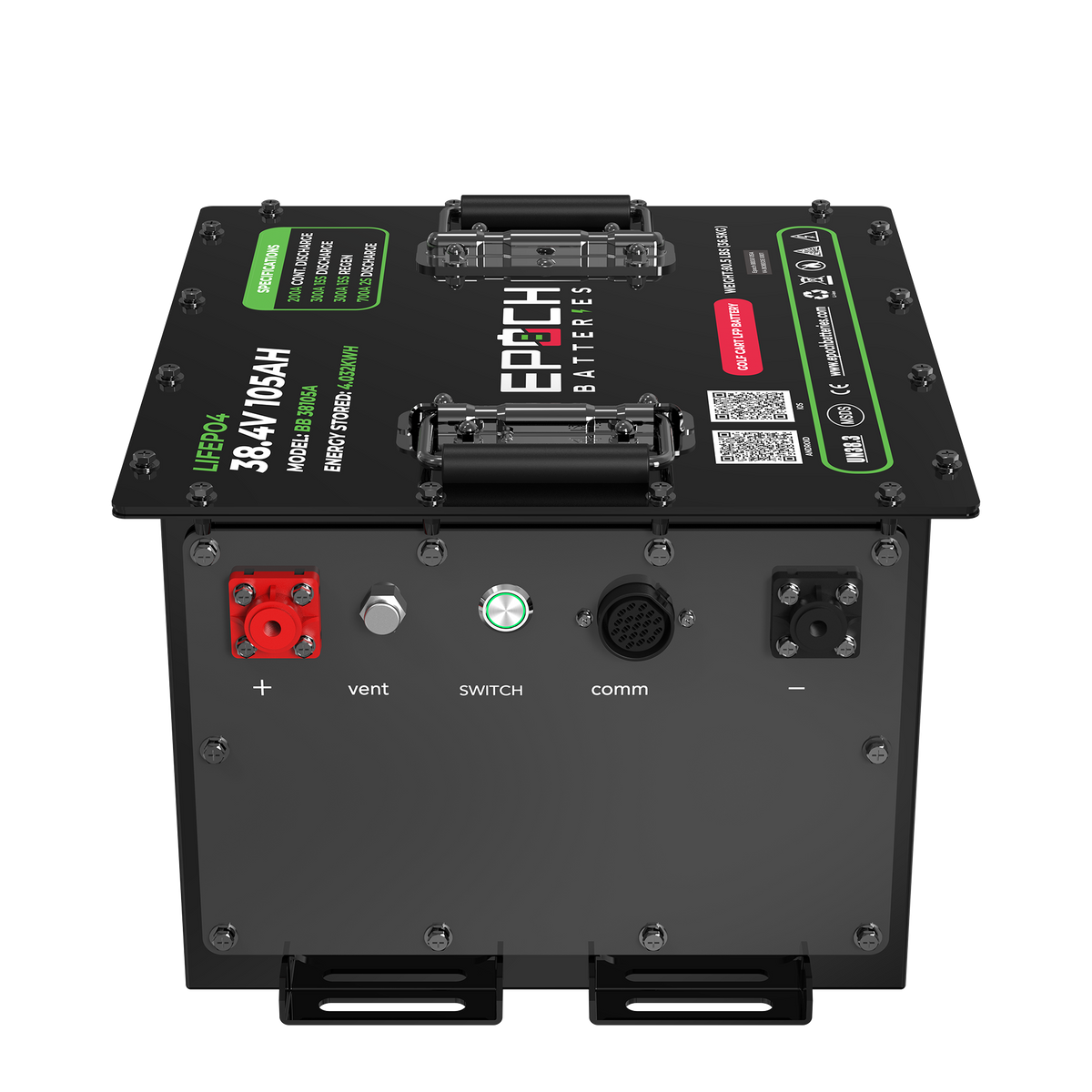

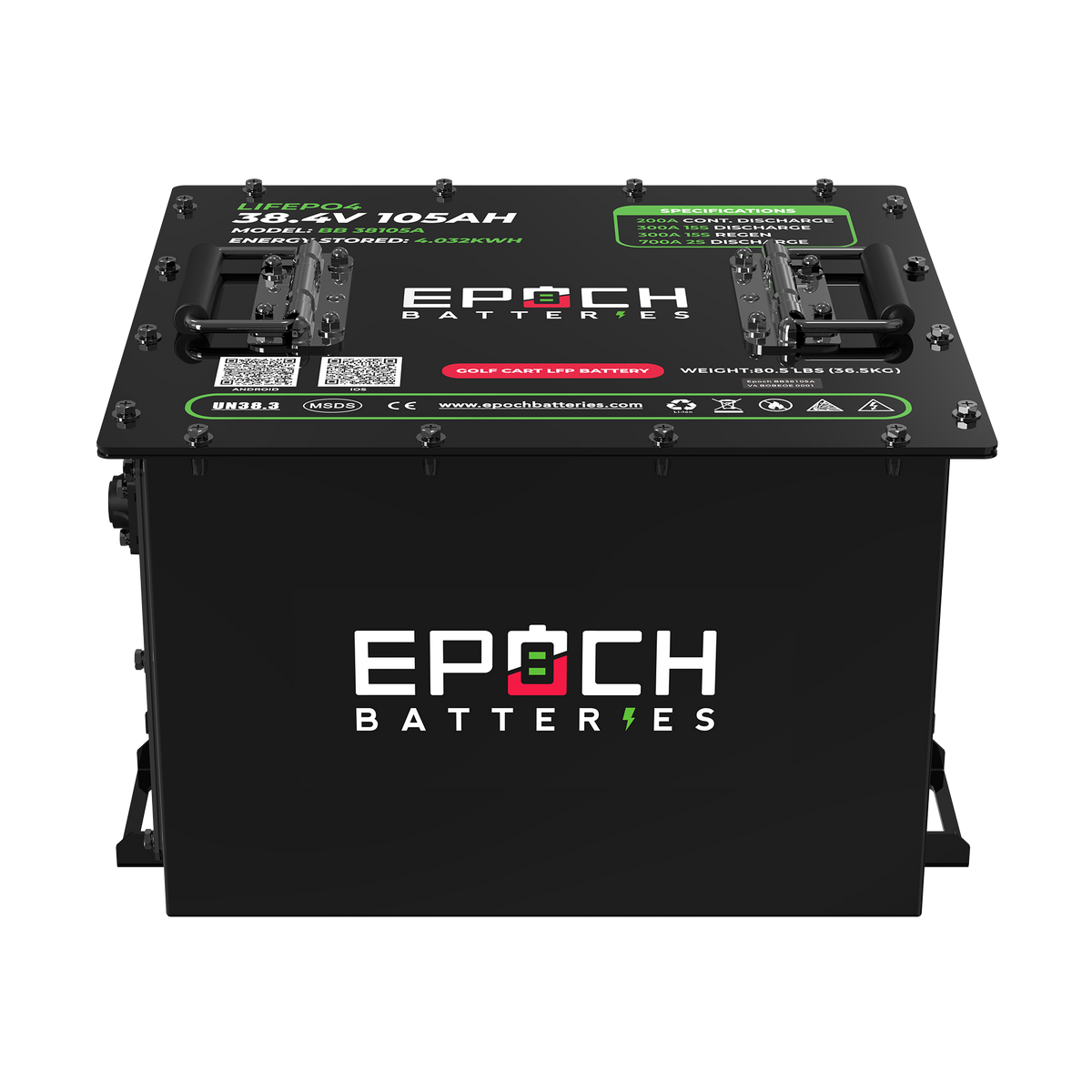

Epoch 36V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit
The Epoch 36V 105Ah LiMax Series Golf Cart Battery is engineered to deliver powerful performance, long-lasting durability, and advanced lithium technology for golf carts and utility vehicles. With a robust 200A max continuous discharge, Bluetooth connectivity for real-time monitoring, and a compact, lightweight design, this battery ensures reliable energy with minimal maintenance. Featuring 3,500+ life cycles and an 11-year warranty, it is a dependable choice for both recreational and commercial use.
Epoch 36V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit Features

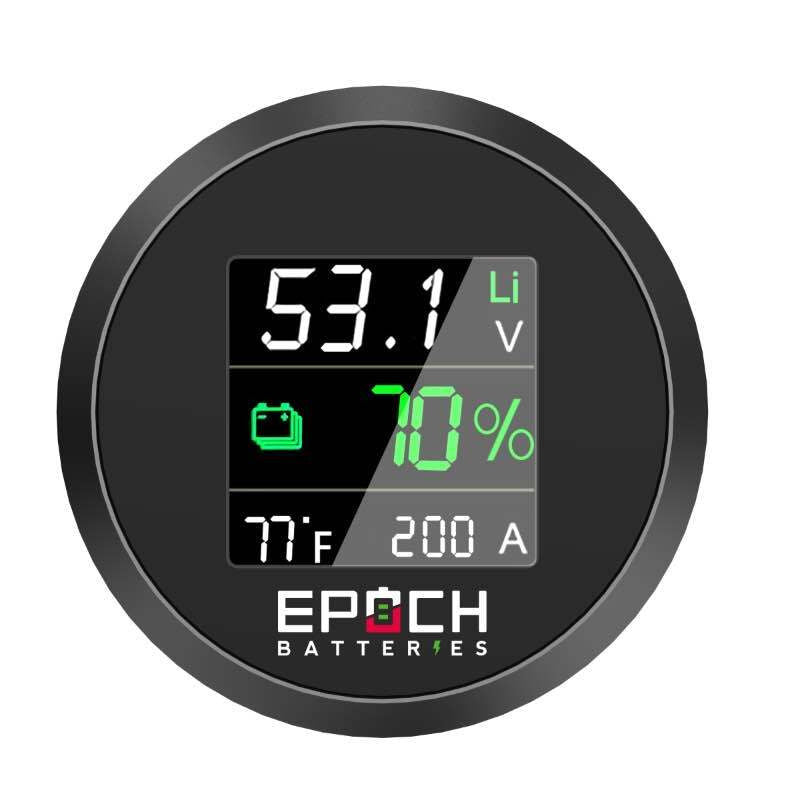

Complete Conversion Kit – Includes 36V 15A Lithium Charger, Battery Gauge, and 12V Converter for a full upgrade solution.

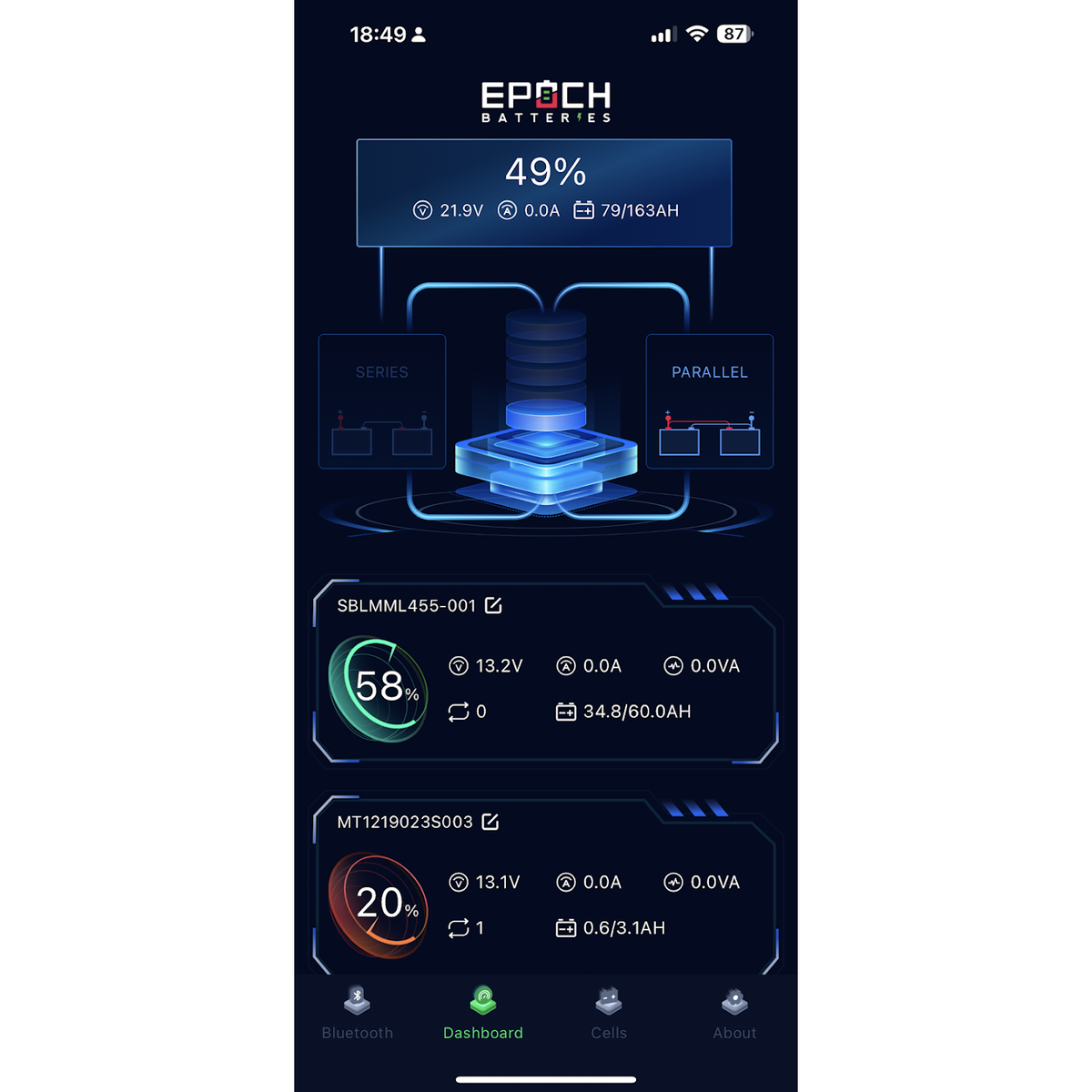

Bluetooth App (iOS & Android) – Monitor battery performance in real time with over-the-air firmware updates.
High Power Output – 200A Max Continuous Discharge and 300A at 15s / 700A at 2s Peak Discharge.
Fast & Efficient Charging – Supports up to 100A continuous charge and 300A at 15s peak charge/regen.
Advanced BMS Protection – Built-in Battery Management System with overcharge, over-discharge, and short-circuit protection.
Long Cycle Life – 3,500+ cycles for extended service life and reduced replacement costs.
Golf Cart Ready – Designed specifically for golf carts with cart-specific mounting brackets included.
Epoch 36V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit Applications
-
Golf Carts – Long-lasting, maintenance-free energy solution.
-
Utility Vehicles – Provides high power for commercial or industrial carts.
-
Recreational Vehicles – Dependable energy for extended rides.
-
Fleet Operations – Efficient, durable power for multiple cart systems.
What’s Included?
Warranty
Epoch 36V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit Specifications
| Category |
Specification |
| Cell Configuration |
1P12S |
| Chemistry |
LiFePO₄ |
| Ah Capacity |
105Ah |
| Max Continuous Discharge Amps |
200A |
| Max Charge Current Amps |
100A Continuous, 300A @ 15s |
| Max Discharge Peak Current Amps |
300A @ 15s, 700A @ 2s |
| Series / Parallel |
Max (2) in Parallel |
| Voltage |
38.4V |
| Max Charge Voltage |
43.8V |
| Operating Voltage Range |
30 – 43.8V |
| Charge Temp Range |
0°C (32°F) / 55°C (131°F) |
| Discharge Temp Range |
-20°C (-4°F) / 60°C (140°F) |
| Storage Temp |
0°C (32°F) / 35°C (95°F) (Max 12 Months) |
| Weight |
81 lbs |
| Dimensions (L×W×H) |
14.6 × 13.4 × 9.9 in |
Frequently Asked Questions
How long does this battery last on a single charge?
Usage time varies based on terrain, cart load, and driving speed, but the high 105Ah capacity ensures extended range compared to standard lead-acid batteries.
Does it require regular maintenance?
No – the LiFePO4 chemistry is maintenance-free and designed for long-term durability.
Is it compatible with my golf cart model?
Yes – cart-specific mounting brackets are included for easy installation.
