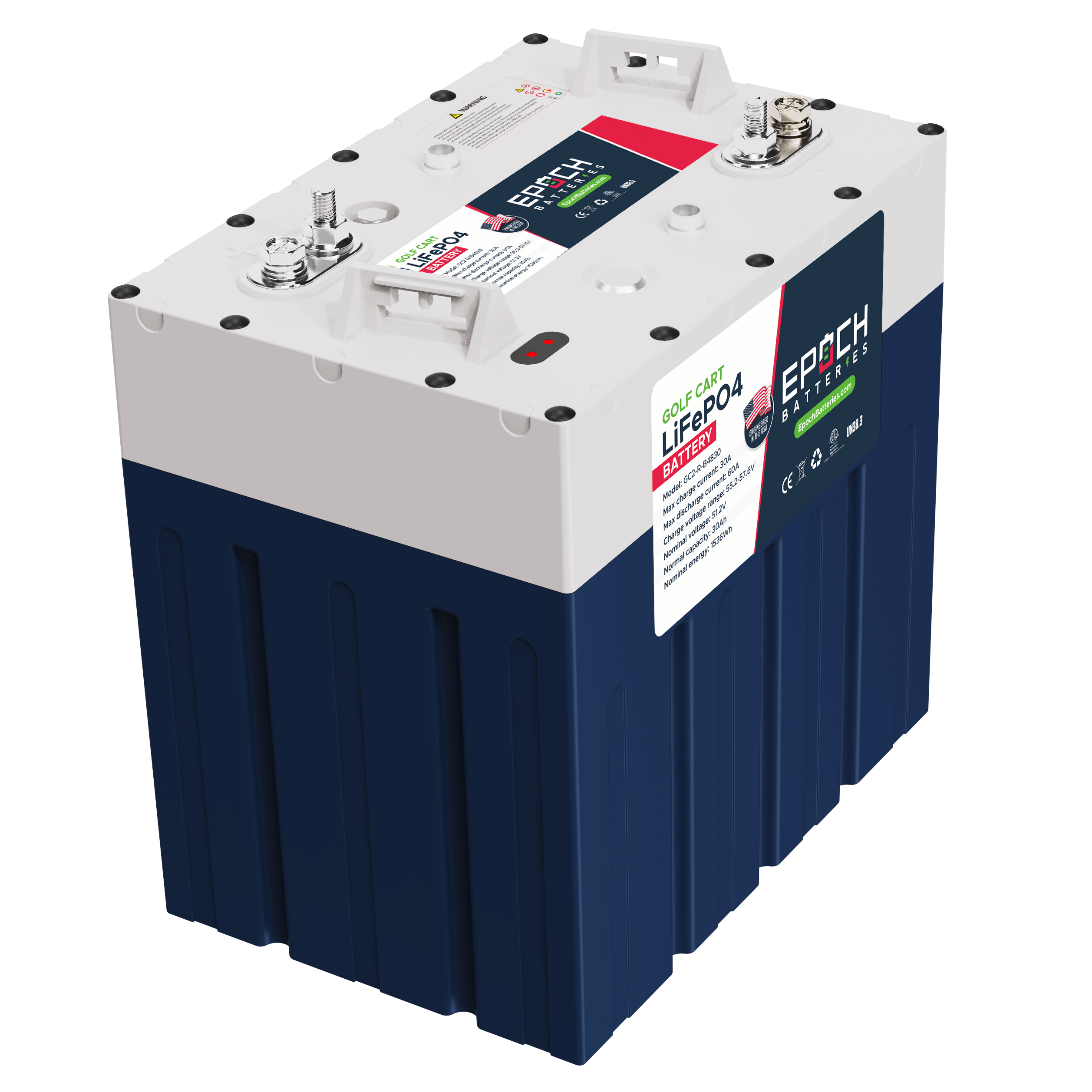

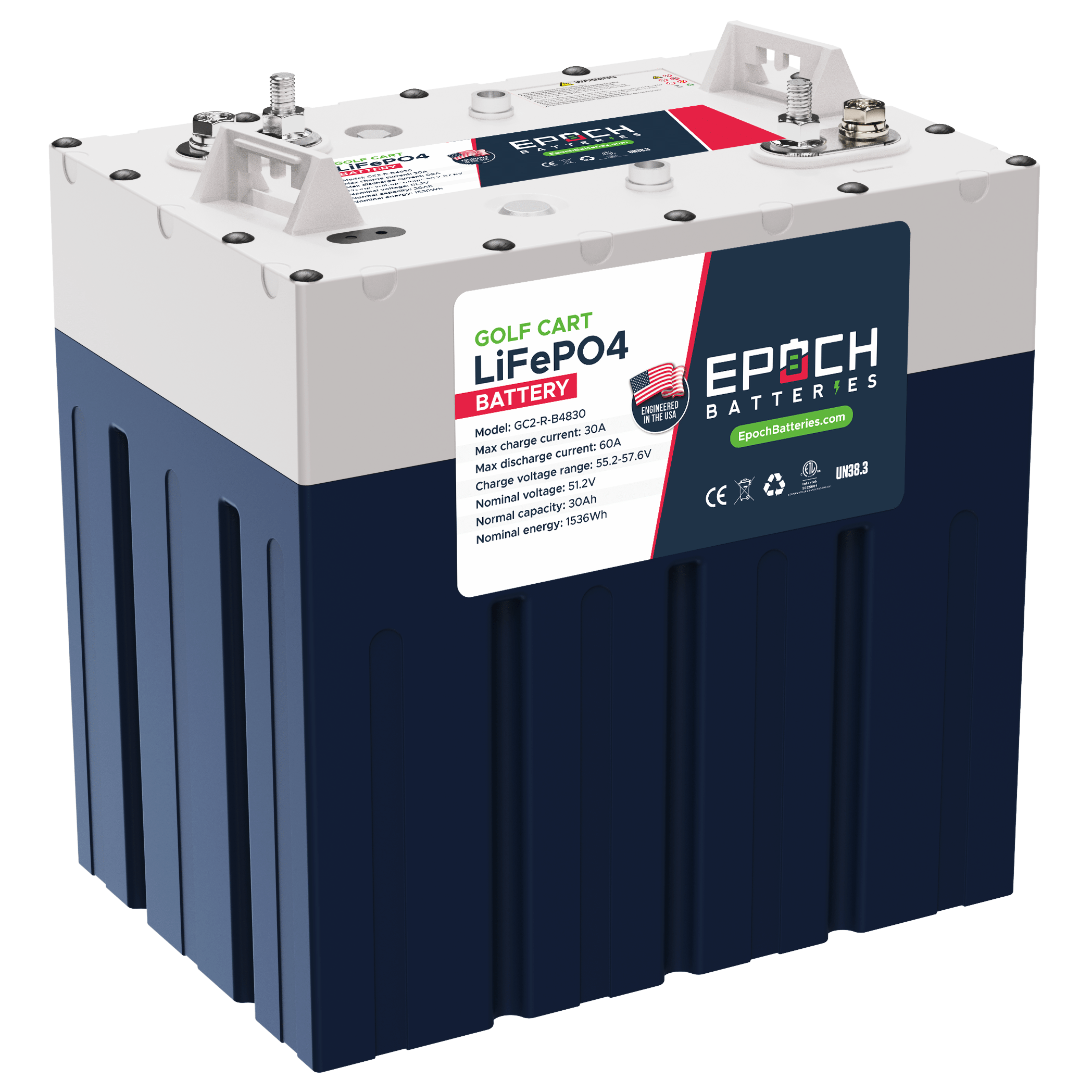

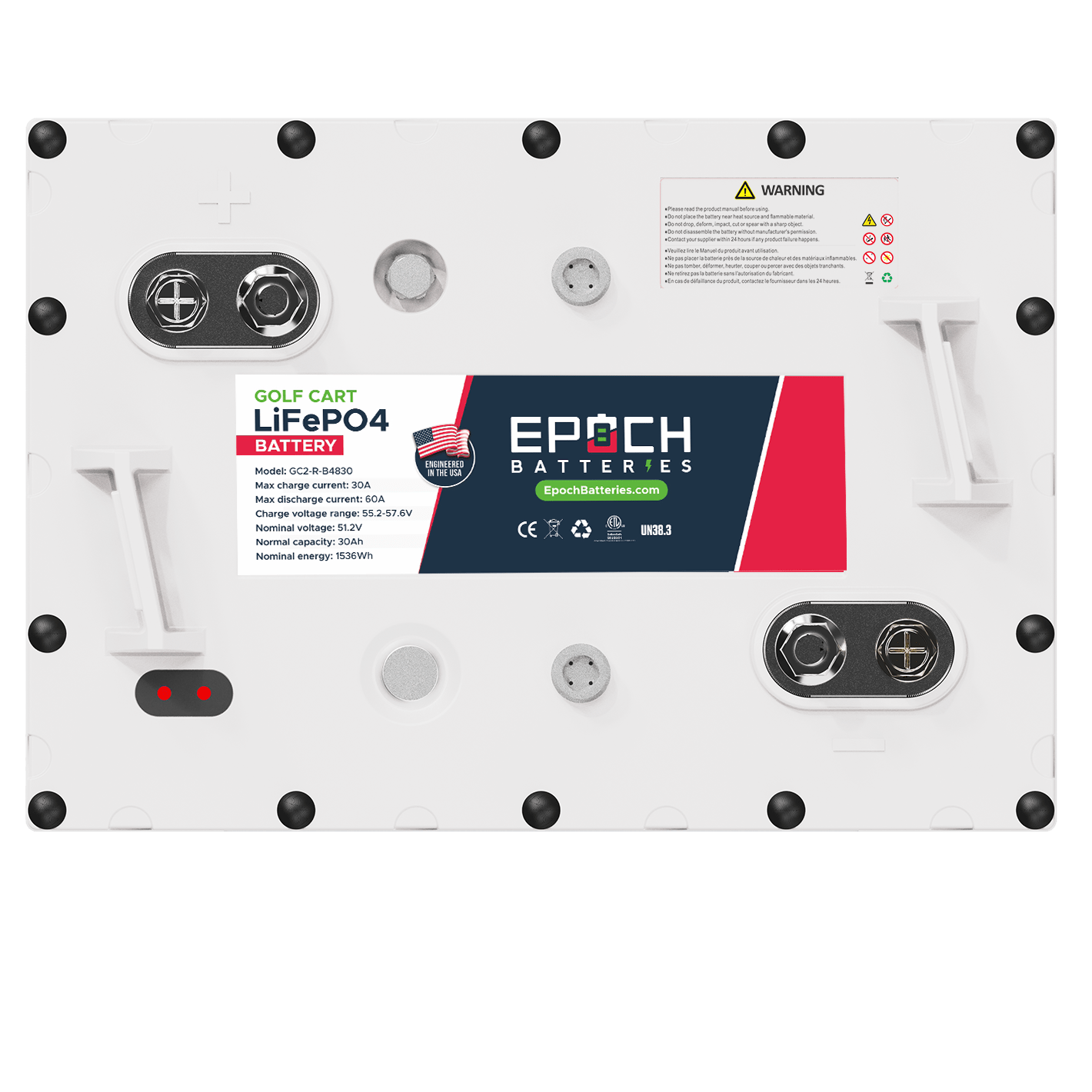

Epoch 48V 120Ah GC2 - Golf Cart LiFePO4 Lithium Battery Kit - Complete Kit
The Epoch 48V 120Ah GC2 LiFePO4 Battery Kit is the most powerful lithium golf cart upgrade in the Epoch lineup—offering extended range, ultra-reliable power, and intelligent monitoring in a complete, drop-in-ready package. Featuring a robust 6.14kWh capacity, Bluetooth connectivity, and an integrated smart BMS, this battery is perfect for high-demand applications, long driving hours, and fleet performance. If you're ready to replace outdated lead-acid systems and maximize your cart’s efficiency, this kit delivers elite-level energy with zero maintenance.
Epoch 48V 120Ah GC2 - Golf Cart LiFePO4 Lithium Battery Kit Features
High-Capacity 120Ah Power
Delivers exceptional range and runtime—ideal for long days on the course or all-day use in commercial settings.
Smart Bluetooth Monitoring

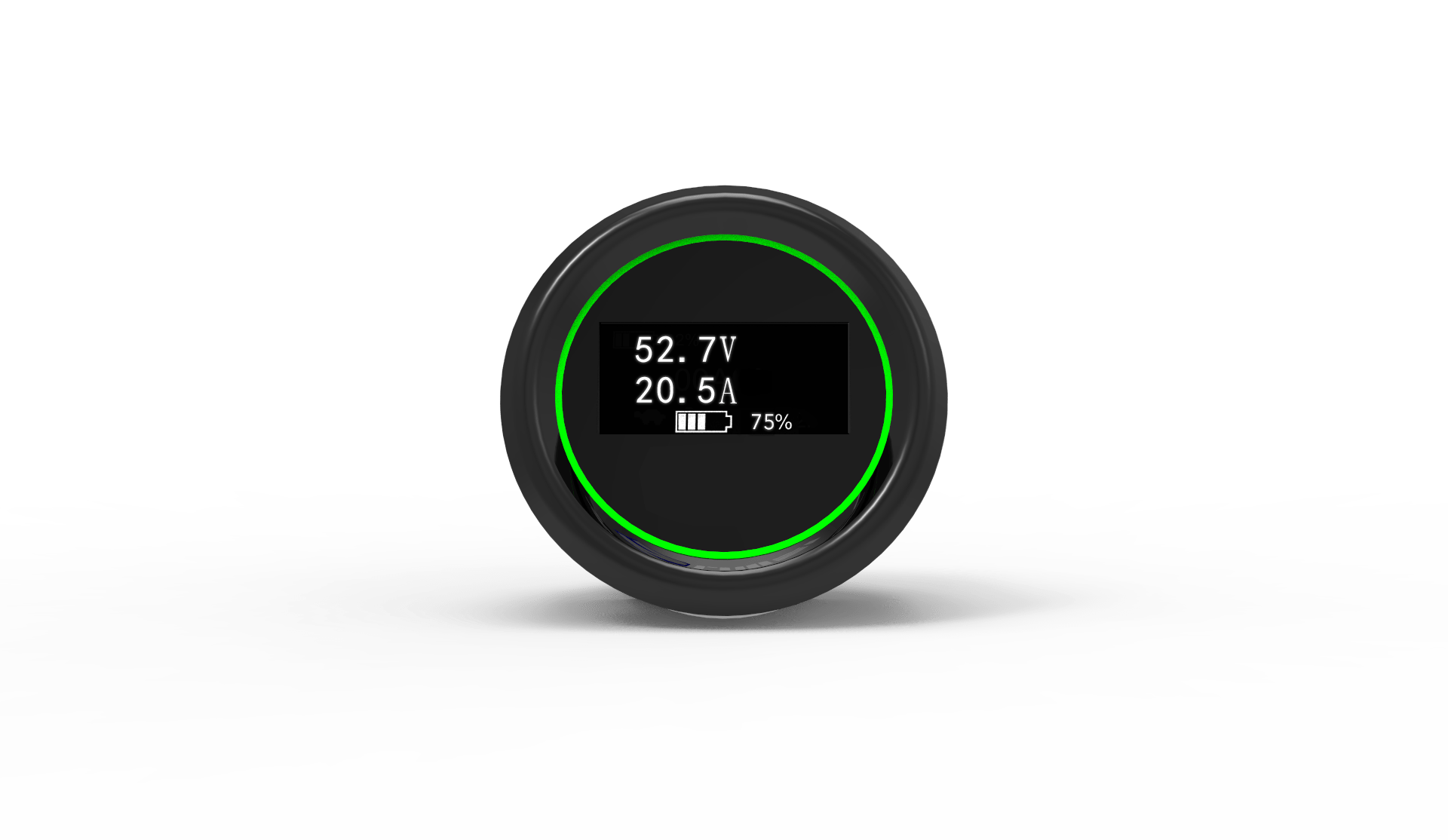

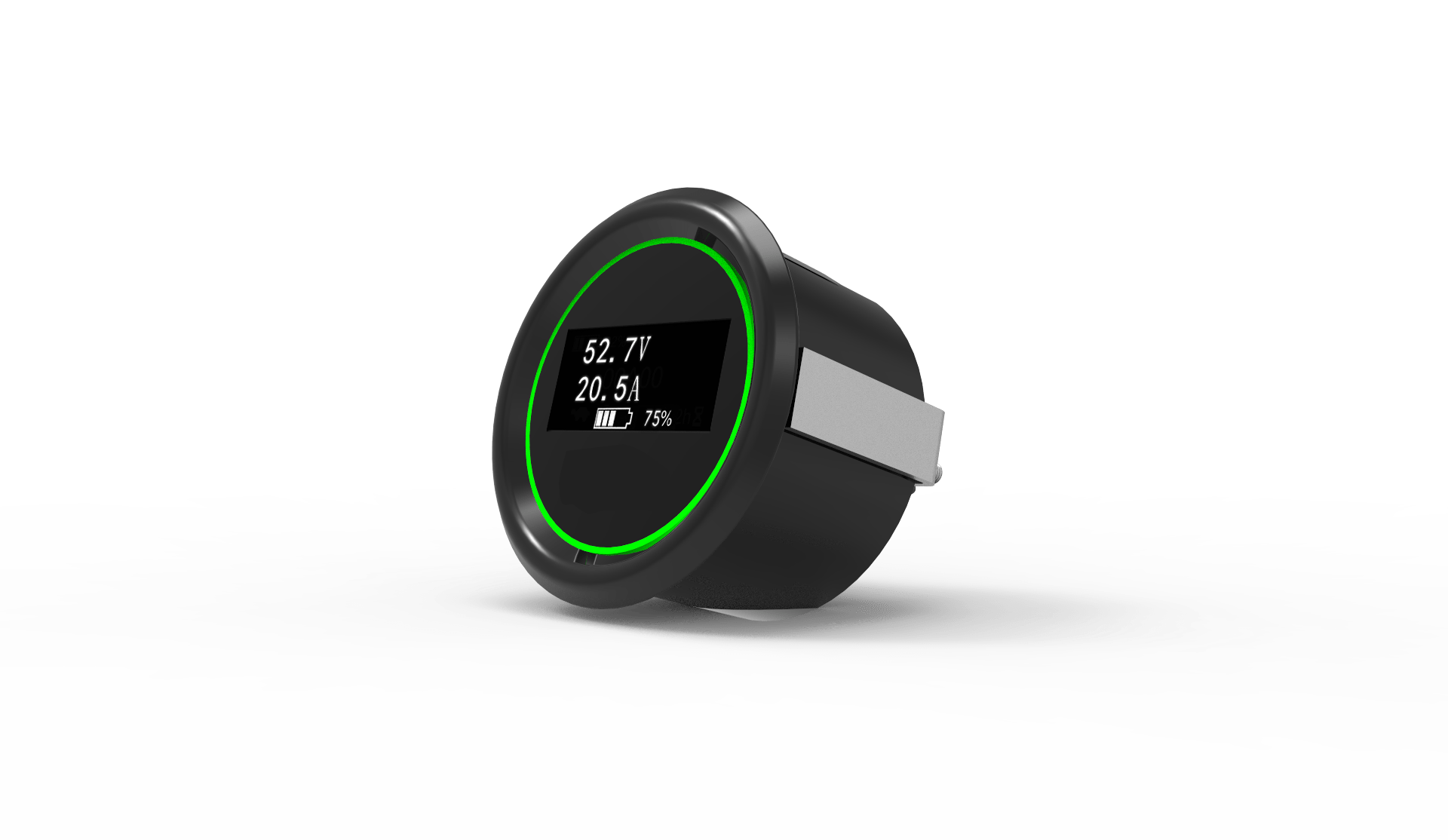

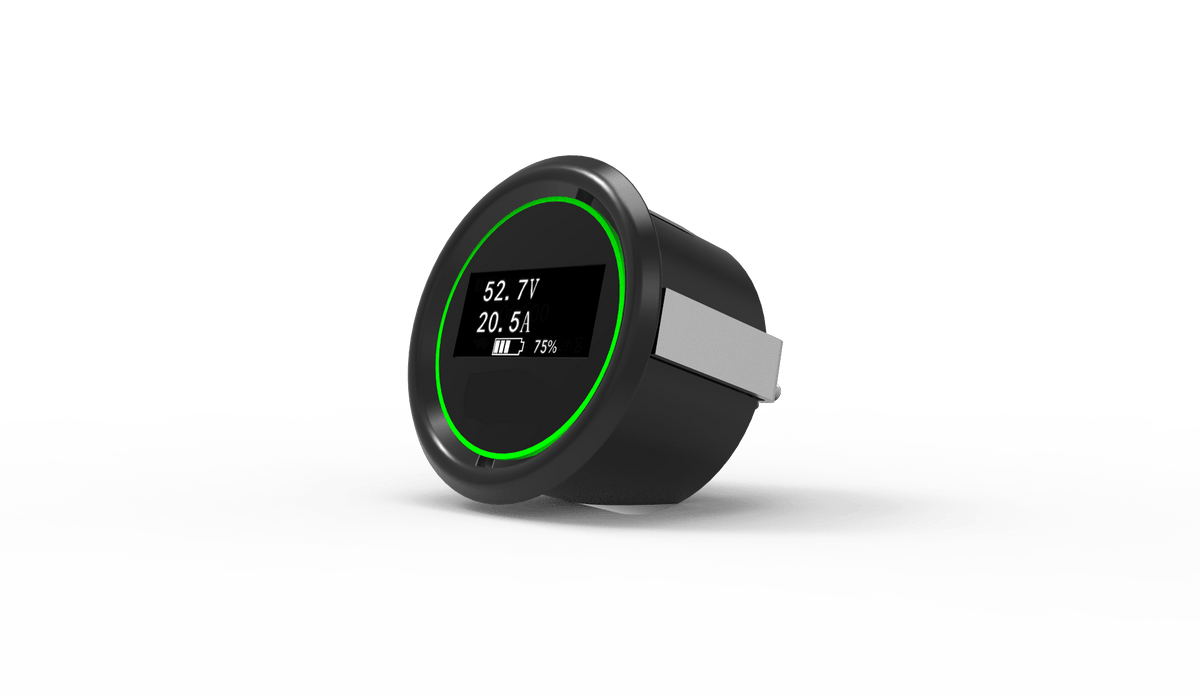

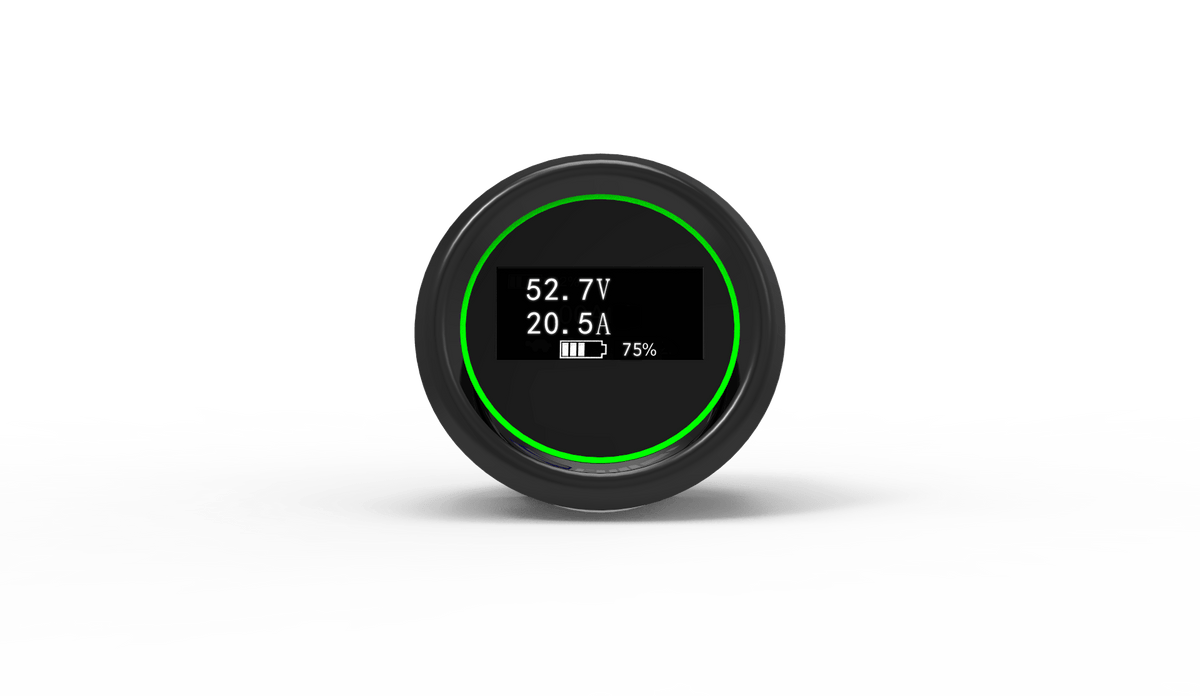

Easily connect via the Epoch app to track voltage, charge level, cycles, temperature, and battery health in real time.
Complete Drop-In Kit
Includes everything needed for installation—no guesswork or custom modifications required.
Ultra-Durable LiFePO4 Chemistry
Engineered for safety, stability, and longevity, with up to 7,000 cycles at 80% depth of discharge.
Advanced BMS Protection
Built-in Battery Management System provides overcharge, over-discharge, short circuit, and temperature protection.
Epoch 48V 120Ah GC2 - Golf Cart LiFePO4 Lithium Battery Kit Applications
-
Golf carts and fleet vehicles – Delivers long-range performance for personal or commercial use
-
Campus and industrial EVs – Powers people movers, work carts, and maintenance vehicles
-
Off-road and recreational carts – Ideal for hunters, outdoor explorers, or property owners
-
Lead-acid replacements – Upgrade to lighter, faster-charging, and longer-lasting lithium power
-
Fleet operations – Lower maintenance costs and boost reliability across vehicle fleets
-
High-load carts – Perfect for carts running lifts, coolers, or other accessories
What’s Included?
Warranty
Epoch 48V 120Ah GC2 - Golf Cart LiFePO4 Lithium Battery Kit Specifications
| Voltage |
51.2V Nominal |
| Chemistry |
LiFePO4 |
| Max Charge Voltage |
57.6V |
| Operating Voltage Range |
40.0 - 57.6V |
| Ah Capacity |
120Ah (~55 miles runtime for standard golf cart) |
| Cell Configuration |
16S |
| Max Continuous Discharge Amps |
240A |
| Max Discharge Peak Current Amps |
400A (10 Seconds) |
| Max Charge Current Amps |
30A |
| Charge Temp Range |
0°C (32°F) / 55°C (131°F) |
| Discharge Temp Range |
0°C (32°F) / 55°C (131°F) |
| Storage Temp |
0°C (32°F) / 30°C (86°F) (<6 Months) |
| Weight |
33 lbs (per module x4) |
| Depth (Inches) |
7.1 (per module x4) |
| Width (Inches) |
10.2 (per module x4) |
| Height (Inches) |
10.7 (per module x4) |
| Safety Features |
BMS (Battery Management System): Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature |
| Parallel |
Max 10 in Parallel = 300 Amp Hours |
Frequently-Asked Questions
Is this battery compatible with all 48V golf carts?
Yes, this GC2 form factor battery is designed for direct replacement of lead-acid systems with no modifications needed.
What’s included in the complete kit?

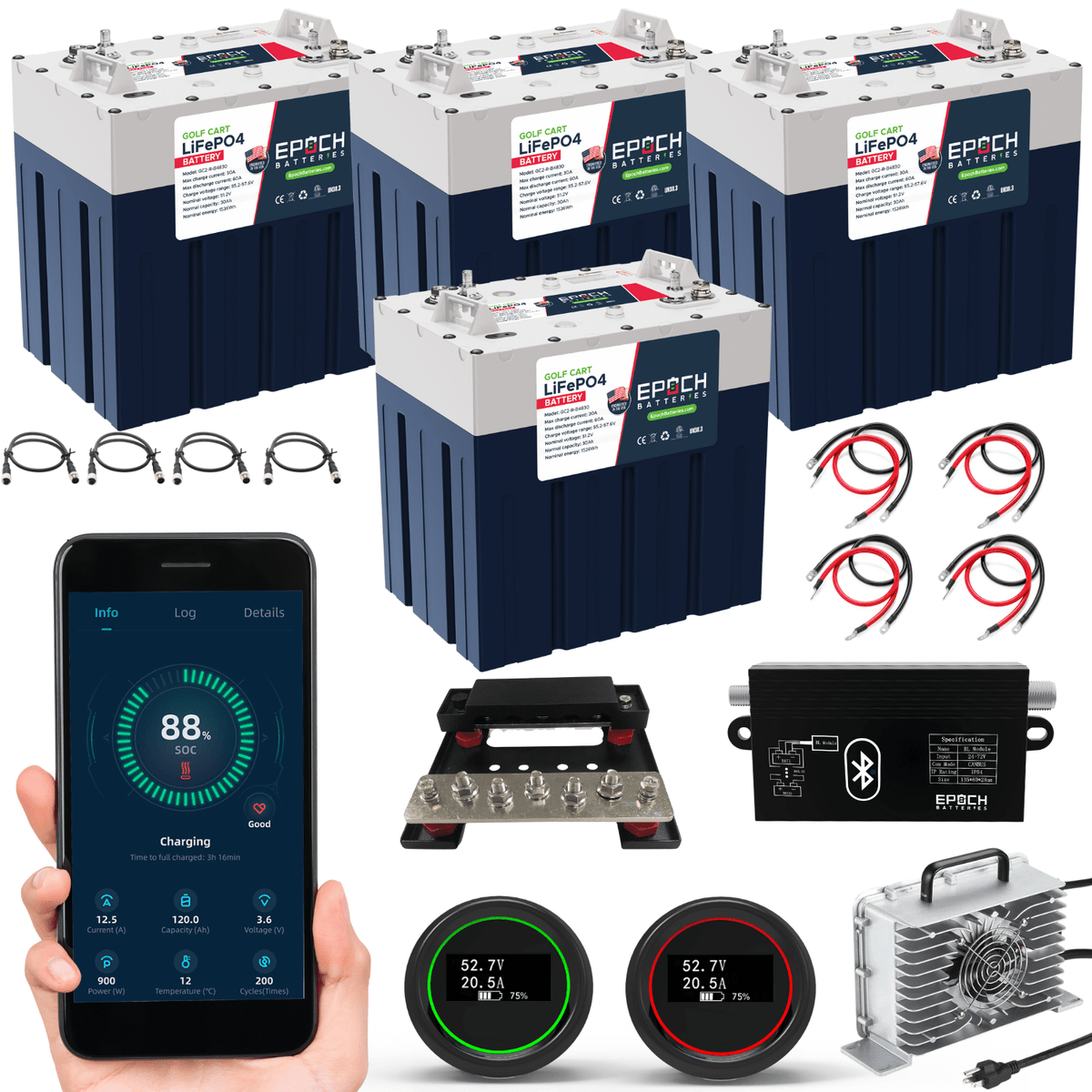

The complete kit comes with the battery, wiring, Bluetooth module, smart BMS, and installation hardware—everything you need for setup.
Can I monitor the battery from my phone?
Yes! The Epoch Bluetooth App allows you to monitor live performance metrics like charge level, voltage, temperature, and more.
