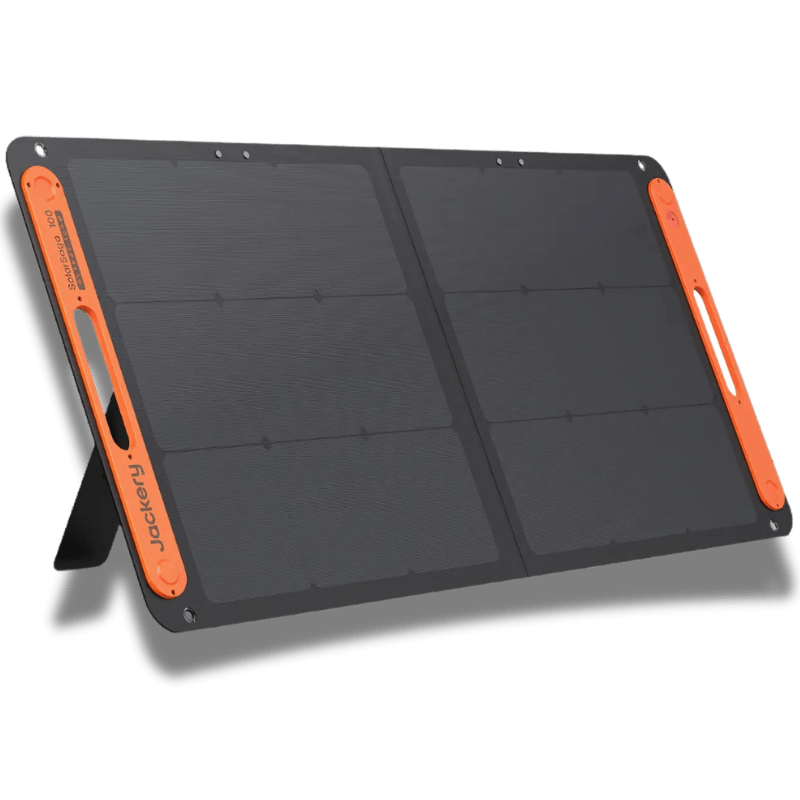

Catch and Convert Sunlight Efficiently
Made with monocrystalline solar cells, and a honeycomb light trapping design, the solar panels are equipped with adjustable stands, with solar panel efficiency reaching up to 24.3%. Make the most use of solar power, no matter if it's on sunny or cloudy days!
Made with monocrystalline solar cells, and a honeycomb light trapping design, the solar panels are equipped with adjustable stands, with solar panel efficiency reaching up to 24.3%. Make the most use of solar power, no matter if it's on sunny or cloudy days!
Easy to Use and Portable

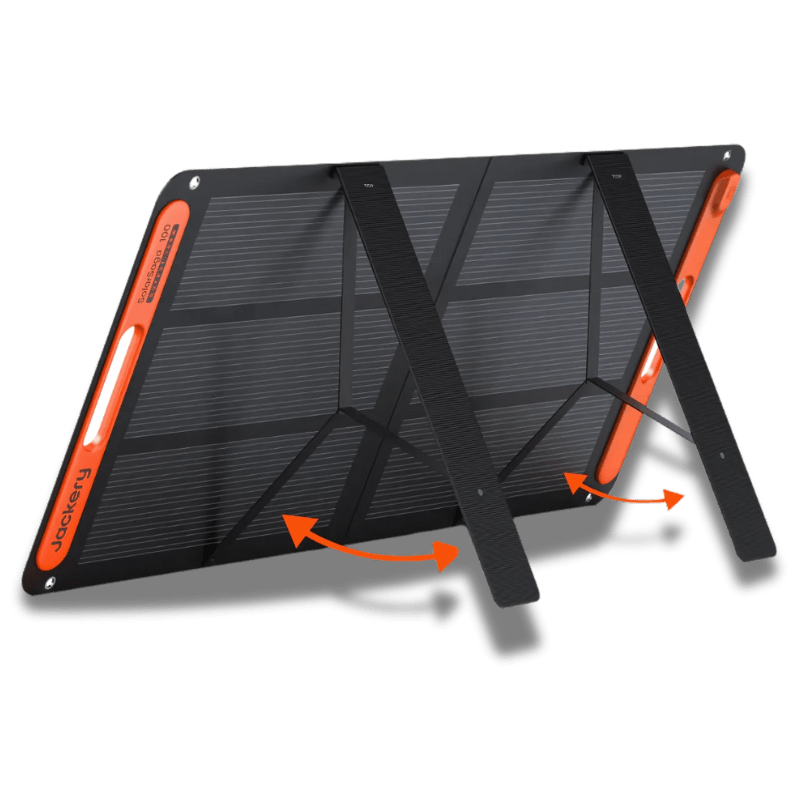

Instant Set Up Solar Energy System. Within 60 seconds to set up, the solar panel stands firmly and can ensure optimum absorption of the sunlight thanks to its adjustable kickstands. It is the perfect companion for outdoor travel.

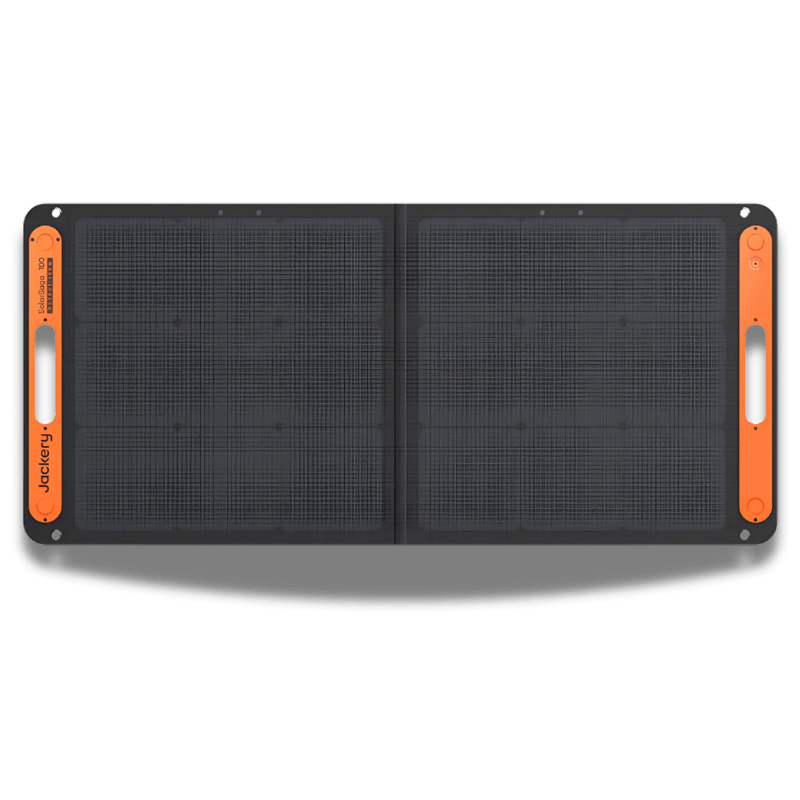

Foldable design for easy transport. It's also compact and lightweight for carrying on your outdoor activities. Simply fold the solar panel in two, in seconds and you'll be good to go, with convenient solar at your fingertips in an instant.
Designed to Last
The ETFE-laminated design make it extremely temperature and corrosion resitant, with a functioning temperature range of -10-65°C (14-149°F). The battery grid is designed on the back of the panel, preventing battery cracks whilst giving longer battery life.
Waterproof for Outdoorsy
Up to IP65 waterproof rated, making it possible for camping in the rain, with the product able to withstand both harsh and wet weather - now explore further to any of the world's locations on earth!
Direct Charging Under Sunlight
Jackery SolarSaga 100W solar panel features 1* USB-C (5V,3A) output port and 1* USB-A (5V, 2.4A) output port to charge 2 small devices like phones, and fans directly. Instant and convenient power to your appliances, both indoors and outdoors with magnificent solar power!
Jackery SolarSaga 100W Solar Panel Specification
Ports
-
USB-A Output: 5V⎓2.4A
-
USB-C Output: 5V⎓3A
Solar
Peak Power: 100W
Power Voltage: 18V
Power Current: 5.55A
Open Circuit Voltage: 21.6V
Short Circuit Current: 6A
Dimensions
Folded: 24 x 21 x 1.4 in (610 x 535 x 35 mm)
Unfolded: 48 x 21 x 0.2 in (1220 x 535 x 5 mm)
Weight: 10.33 lbs (4.69 kg)
General
Warranty: 2 Years
Waterproof: IP65
Materiales: Monocrystalline Silicon Solar Cells
Efficiency rate: 0.23
Operating temperature: -10-65℃(14-149°F)
What's in The Box
- 1 x SolarSaga 100
- 1 x User Manual

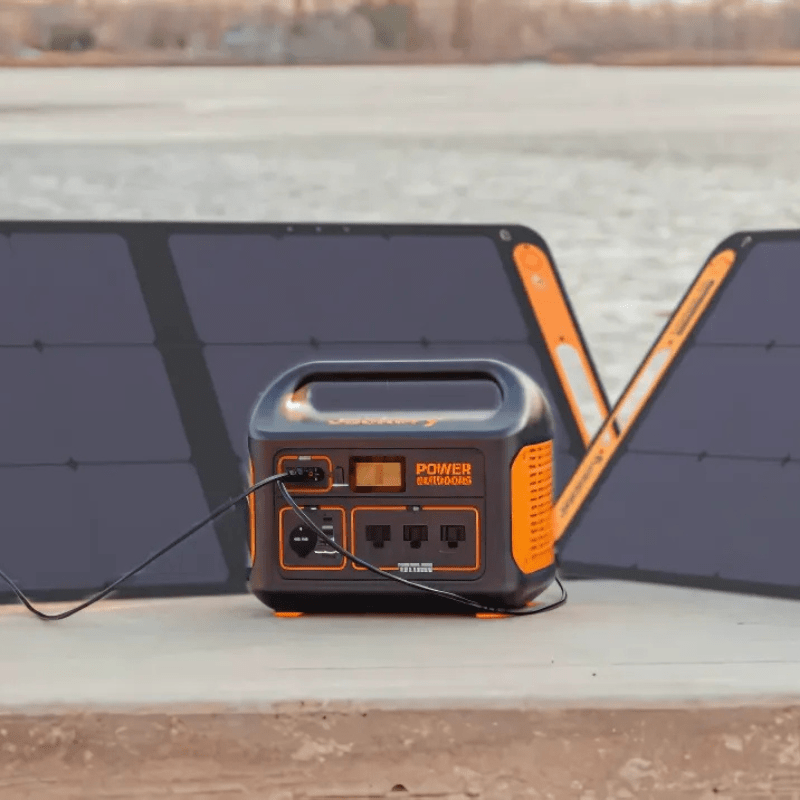

Portable Power Station
Explorer 3000 Pro: Up to 6 Pcs (with 2 solar connectors)
Explorer 2000 Pro: Up to 6 Pcs (with 2 solar connectors)
Explorer 1500 Pro: Up to 6 Pcs (with 2 solar connectors)
Explorer 1500: Up to 2 Pcs
Explorer 1000 Pro: Up to 4 Pcs (with 2 solar connectors)
Explorer 1000: Up to 2 Pcs
Explorer 500: Up to 1 Pc
Explorer 300: Up to 1 Pc
Explorer 240: Up to 1 Pc
User Manual
Jackery SolarSaga 100W Solar Panel User Manual
Notice
1. Solar Recharging time varies from different location, temperature, weather etc. The actual time may be different.
2. During solar recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.
3. Avoid contact with corrosive substances during storage, keep away from fire and heat sources. Avoid storing with sharp objects at the same time.
User Guide Videos / Pictures
FAQ
Q1: Why the solar can not produce 100W power when charging to Jackery power station?
A: As you know , the solar panels are affected by many factors. such as the intensity of the light and the angle of the panel put on the ground. 100W is tested in an ideal laboratory. However, the intensity of the light constantly changes. In addition, the angle of the light illuminating the solar panel also changes with the rotation of the sun. Please try test your solar panel under the full sunlight to see, and make sure there is no shadow cast on the panel.
Q2: Is the solar panel waterproof?
A: It is IP65 water-resistant that will protect from water splashing (Do not place it under the rain, or to soak in water). The zippers on the pocket can hold the power cords, and cover the power port.
Q3: How to clean the solar panel surface?
A: We mentioned this point in the manual. Please use a soft cloth to remove the dust and dirt on the surface. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.
Q4: Can the solar panel charge smartphones and tablet?
A: Yes, the 100W solar panel has 1* USB-C(5V,3A) output port and 1* USB-A(5V, 2.4A) output port.
