MidNite Solar Hawke's Bay 120 Pre-Wired System Charge Controller MidNite Solar

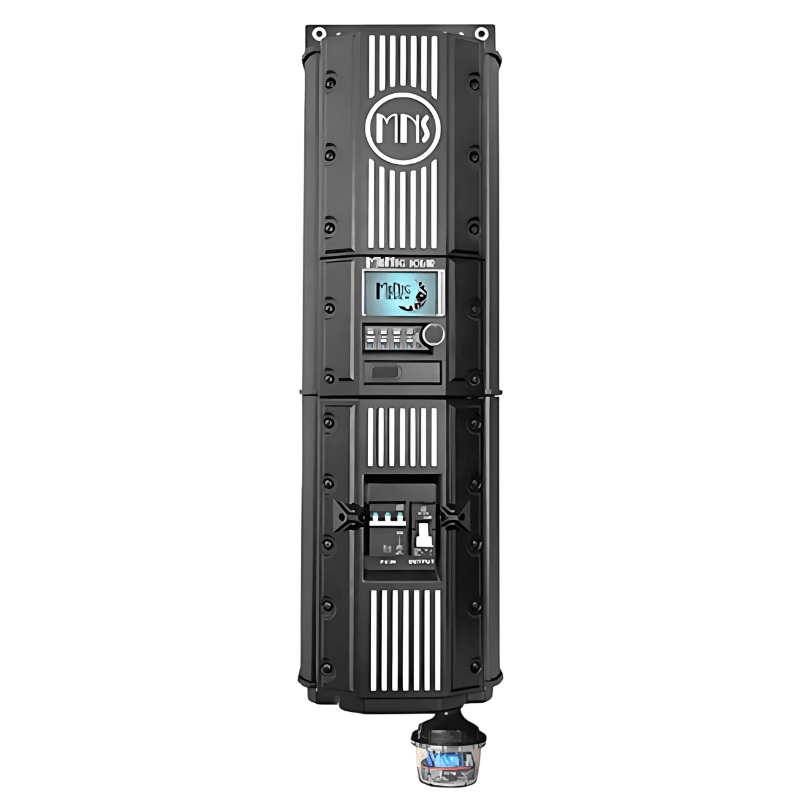

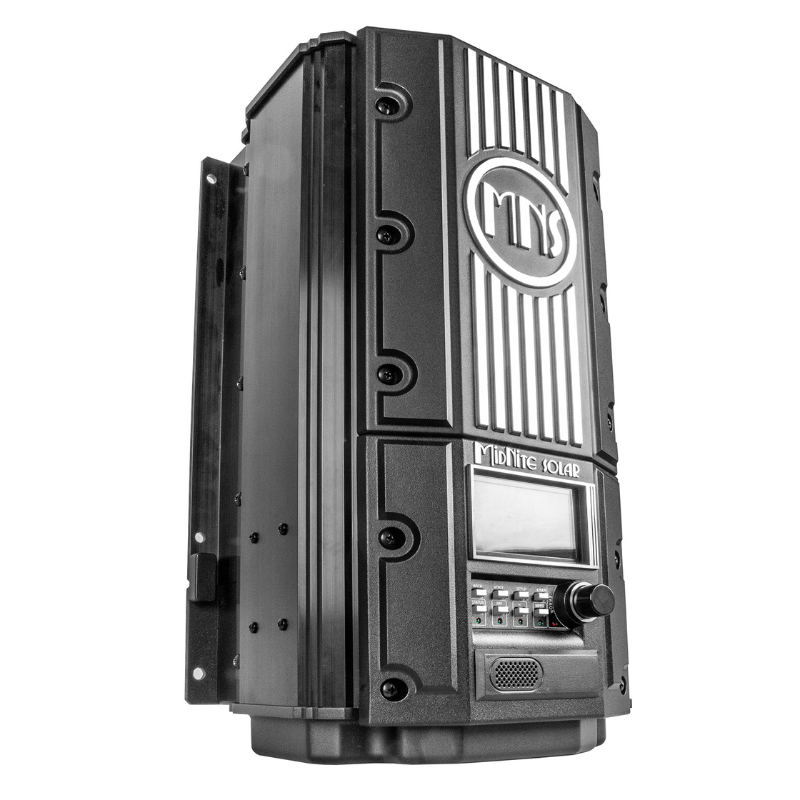

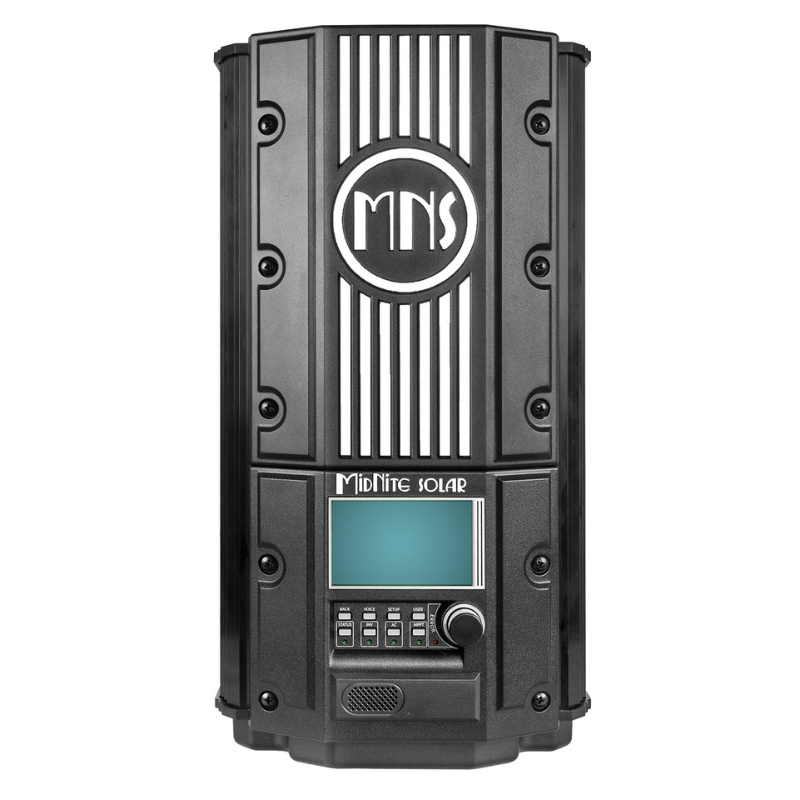

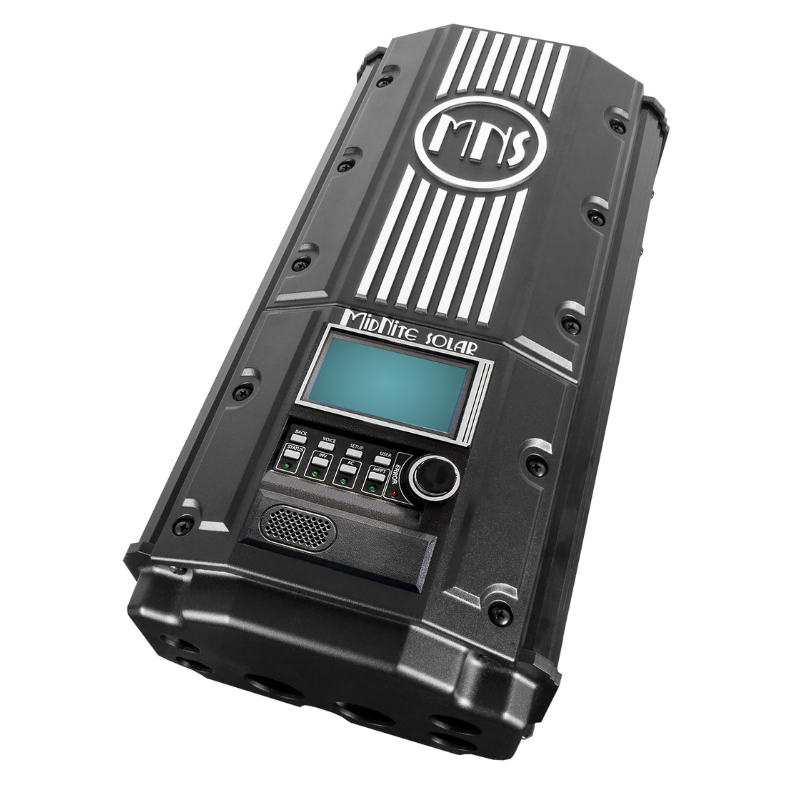

MidNite Solar Hawke's Bay 120 Pre-Wired System

BY: MidNite Solar | SKU: MNHAWKE BAY120-PW Availability: In Stock
$2,550.00

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized MidNite Solar Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

MidNite Solar Hawke's Bay 120 Pre-Wired System

Maximize your solar energy potential with the MidNite Solar Hawke's Bay 120 Pre-Wired System, a top-tier choice for both on-grid and off-grid solar installations. This advanced system delivers an impressive 120 amps at 48V, handling PV inputs from 300 to 600 VDC with a maximum open-circuit voltage (VOC) of 600V. Whether you're expanding an existing solar array or building a new installation, the Hawke's Bay 120 offers unmatched efficiency and reliability.

MidNite Solar Hawke's Bay 120 Pre-Wired System Features

High Power Output: 120A at 48V, perfect for robust battery charging and high-demand solar setups.

Wide PV Input Range: Supports 300–600 VDC with a maximum 600V VOC, offering flexibility for various solar configurations.

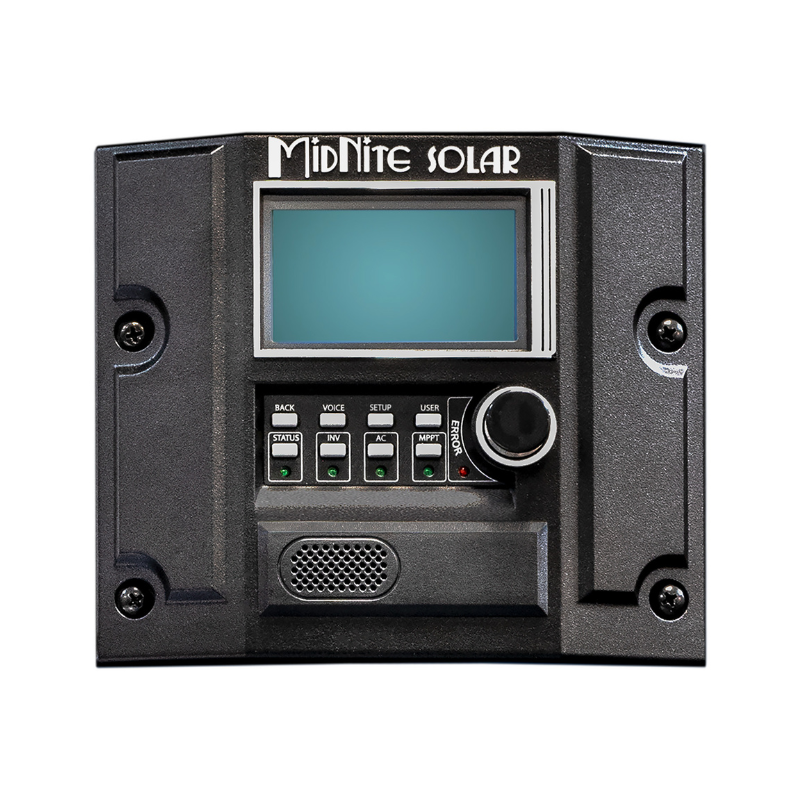

User-Friendly Display: The innovative "talking" MNGP2 display provides real-time data and system monitoring with an easy-to-use rotary knob.

Enhanced Safety Measures: Optional Arc Fault and Ground Fault protection modules, along with a built-in Hawke’s Bay Breaker Box to prevent over-voltage.

Advanced Surge Protection: Includes the MNSPD-600 module to guard against voltage spikes.

High Efficiency: Achieves up to 98% conversion efficiency, with automatic derating above 25°C to maintain performance.

Durable & Reliable: Constructed with a die-cast aluminum enclosure (Type 1, indoor-rated) and engineered to endure extreme temperatures as low as -40°C.

Placeholder Image

MidNite Solar Hawke's Bay 120 Pre-Wired System Applications

  • Large Residential Solar Installations – Ideal for homes requiring substantial energy management and storage.​
  • Commercial Solar Projects – Suitable for businesses aiming to harness solar energy for operational needs.​
  • Off-Grid Living – Perfect for remote locations where traditional power grids are unavailable.​
  • Agricultural Energy Systems – Supports farms and agricultural operations in utilizing solar power for various applications.
Placeholder Image

What's Included

Everything you need is included with your product.

  • MidNite Solar Hawke's Bay 120 Pre-Wired System
  • User Manual

Designed & Assembled in the USA

The Hawke’s Bay 120 system meets rigorous industry standards, carrying UL1741/ETL certification for guaranteed safety and performance. Enjoy peace of mind with a 7-year limited warranty, knowing you're investing in long-term reliability.

Seamless Compatibility with MidNite Solar Rosie Inverter

Pair with MidNite Solar’s powerful 7000W Rosie inverter for a fully optimized and efficient solar power solution. Ideal for residential, commercial, or off-grid energy systems, the Hawke's Bay 120 ensures you get the most out of your solar investment.

Why Choose MidNite Solar Hawke’s Bay 120?

  • Lowest Price Guaranteed: Shop with confidence, knowing you're getting the best deal.
  • Long-Term Warranty: Protected by a 7-year warranty for lasting performance and peace of mind.

Elevate your solar power system with the MidNite Solar Hawke's Bay 120 Pre-Wired System, the ultimate solution for modern solar energy demands.

MidNite Solar Hawke's Bay 120 Pre-Wired System Specifications

Category Specification
Nominal Battery Voltage 48V
Maximum Output Current 90 or 120 amps depending on model
PV Open Circuit Voltage VOC 600VDC
Power Conversion Efficiency 98% (Typical system)
Arc Fault and NEC 2020 Ground Fault Protection Optional plugin modules - user installed
Charging Regulation Bulk, Absorb, Float as well as Equalization
Battery Voltage Regulation Set Points 40V to 65V
Equalization Charging Adjustable voltage and duration
Battery Over Voltage Fully protected (The Hawke's Bay Breaker Box automatically trips PV input breaker if battery exceeds 68VDC)
Battery Short Circuit Fully protected
Battery Temp Compensation Automatic when BTS is installed. Adjustable mV per degree C per 2V cell
Programmable Auxiliary 2 auxiliary outputs
Graphic Display MNGP2 - 64 x 122
Stacking cables for system networking Standard CAT5 - Canbus
Communications Canbus
Remote Display MNGP2 can be relocated and a second display can be added
External Monitoring Phone Application software allows monitoring within normal Bluetooth range from Hawke's Bay.
Terminal Rating 75C
Data Logging 380 days of daily history
Positive Ground Applications Requires 2 pole input and output breakers
Operating Temperature Minimum of -40C to 50C (controller will auto derate as temperature rises above 25C)
Environmental Rating Indoor type 1
Warranty 5 years
Weight & Dimensions 17-5/8" x 9" x 8-1/8" 19lbs (8.62kgs)
Shipping Dimensions 22" x 12" x 11" 24lbs (10.89kgs)
Optional Hawke’s Bay Breaker Box (MNHawke’s Bay BB125), SPD115 and SPD 600 (MNSPD-115 for Battery Side and MNSPD-600 for the PV input side)
Certifications Listed by ETL for US & Canada

Frequently-Asked Questions

Is the Hawke's Bay 120 suitable for both on-grid and off-grid applications?

Yes, it's designed for both on-grid and off-grid solar installations, offering flexibility for various energy setups.​

What types of batteries are compatible with this system?

It supports various battery chemistries, including Lithium, Flooded Lead Acid, and AGM batteries.​

Does the system include surge protection?

Yes, it comes with the MNSPD-600 Surge Protection Device to guard against voltage spikes.​

Are the Arc Fault and Ground Fault protection modules included?

These are optional plug-in modules and can be added based on specific safety requirements.​

Can the display interface be remotely accessed?

The MNGP2 Graphics and Programming Module can be relocated, and a second display can be added for remote monitoring.​
