Exclusive Expansion for the E2000LFP Power Station

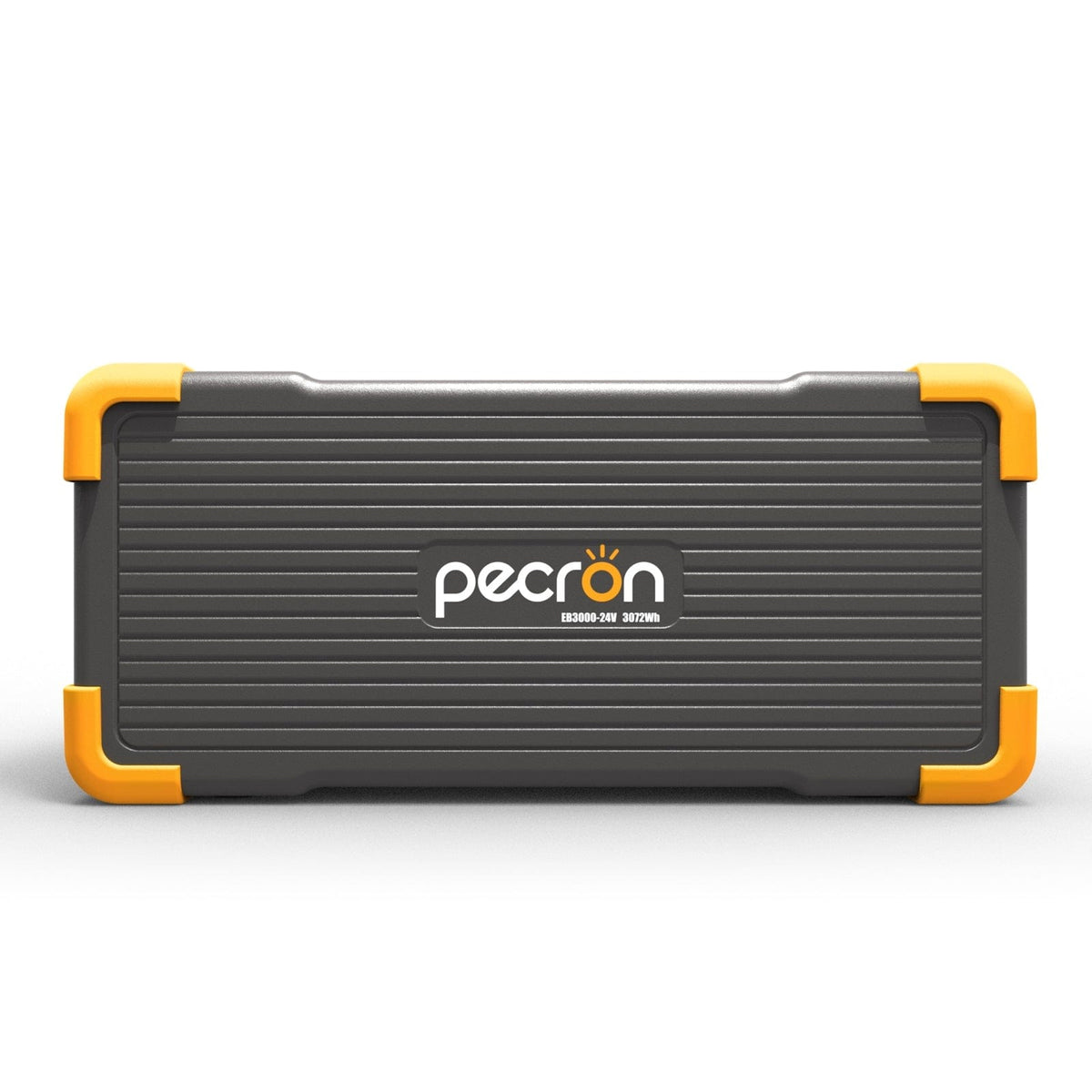

The PECRON EB3000-24V is a high-capacity expansion battery designed exclusively for the E2000LFP. With 3072Wh of storage, this LiFePO4 battery extends the runtime of your power station, making it ideal for off-grid living, emergency backup, and outdoor applications.

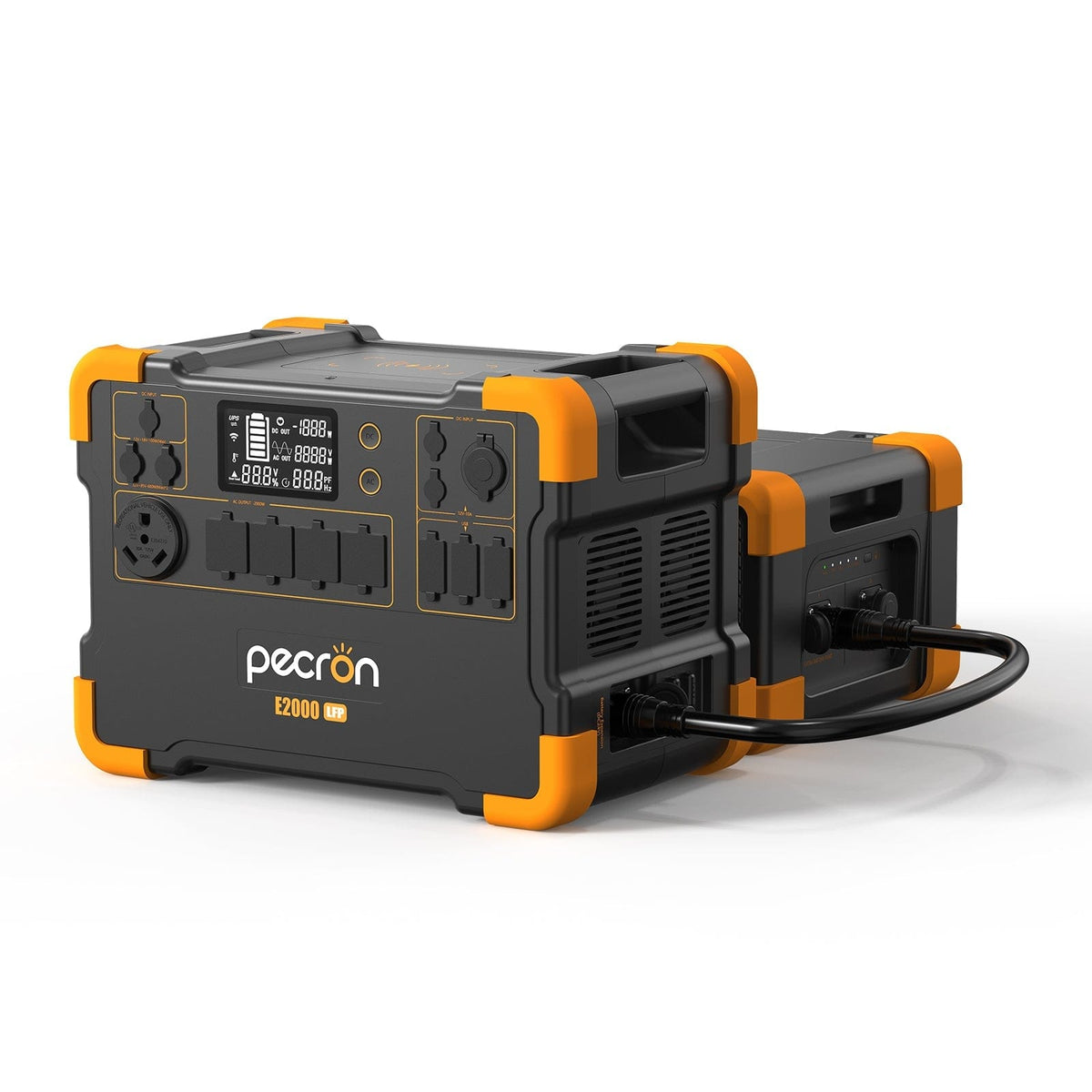

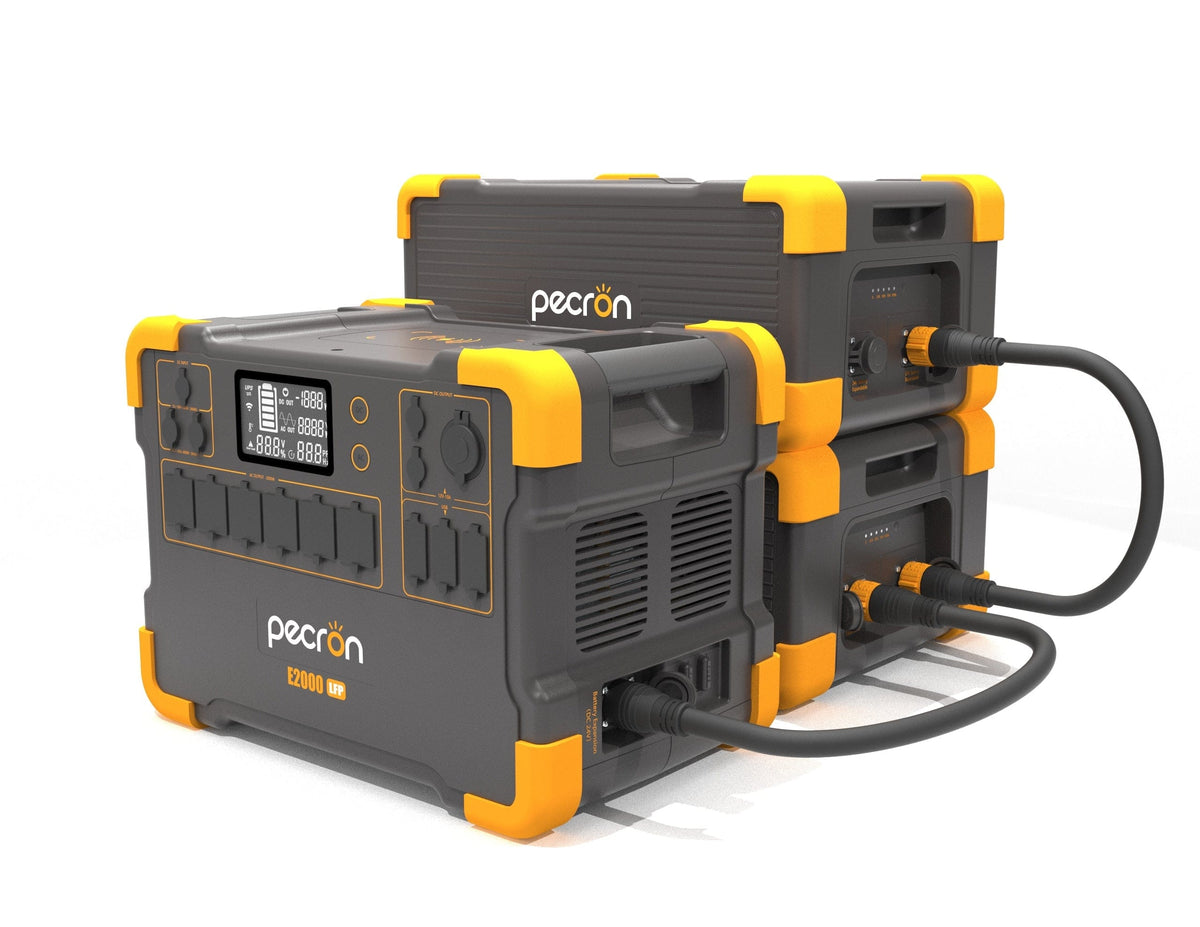

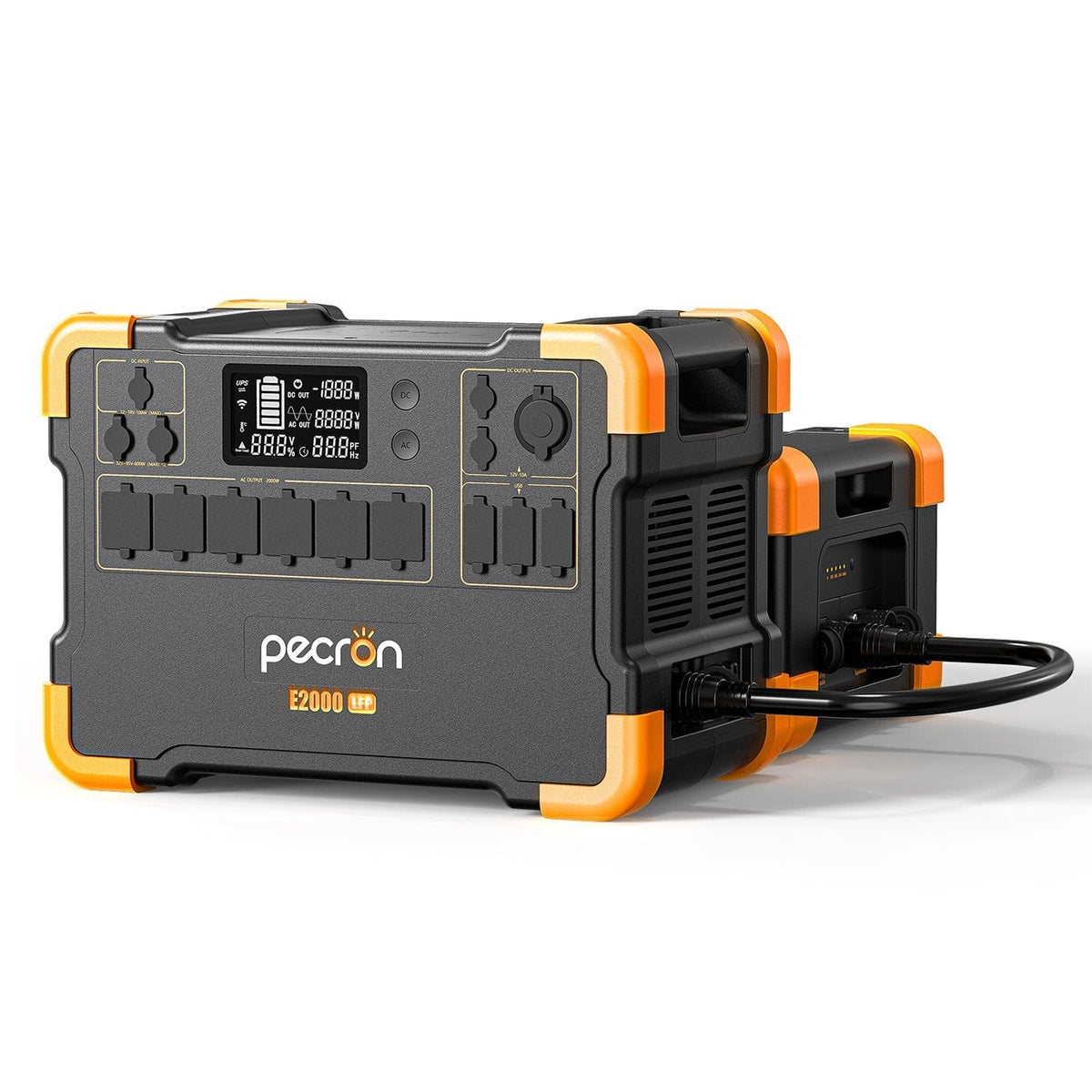

With built-in MPPT charge controllers, multiple charging inputs, and a cascade function that allows up to two EB3000-24V units to be connected, this expansion battery effectively increases the E2000LFP’s total capacity to 8064Wh.
Key Features
High-Capacity Expansion for E2000LFP
3072Wh large capacity (25.6V/120Ah) provides extended power.

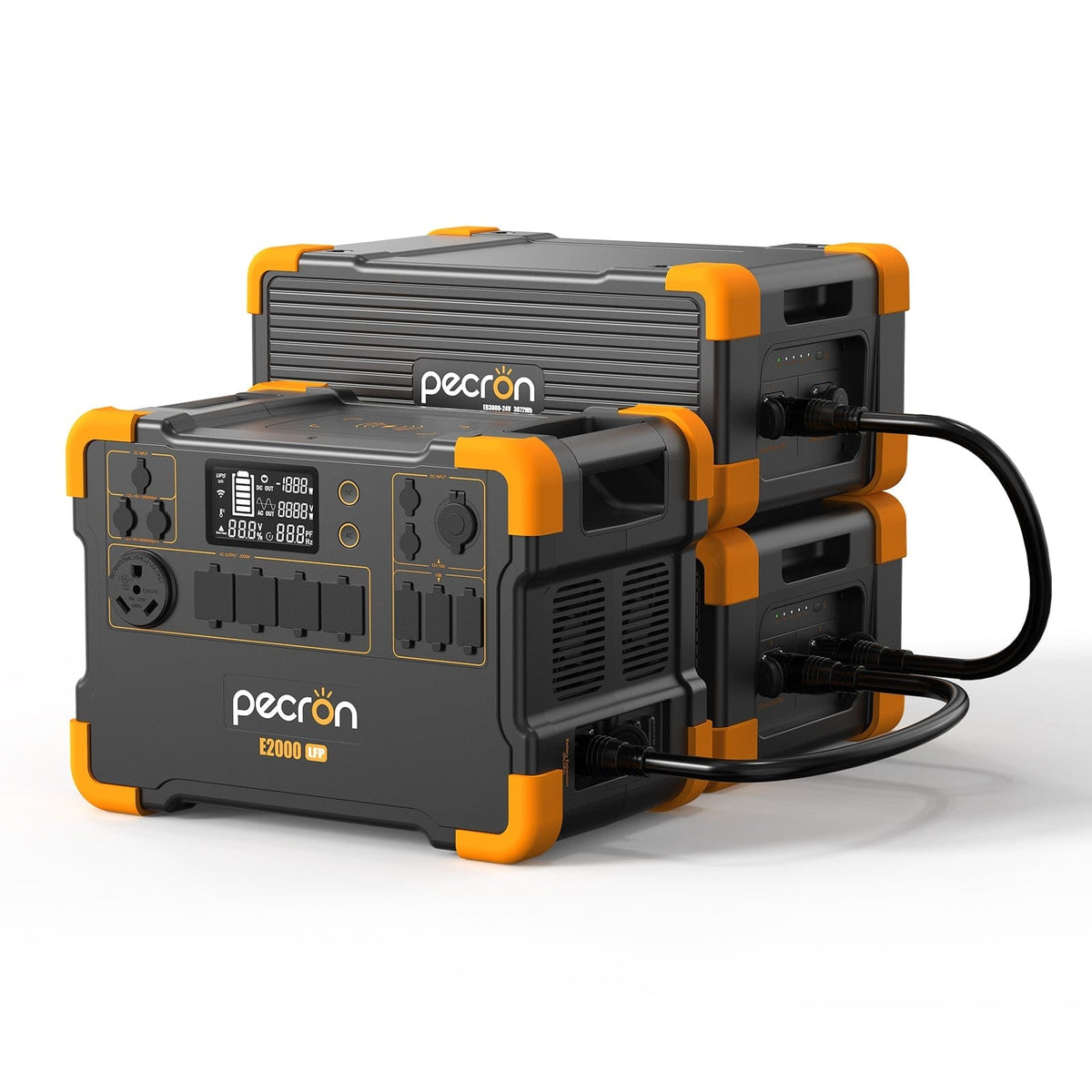

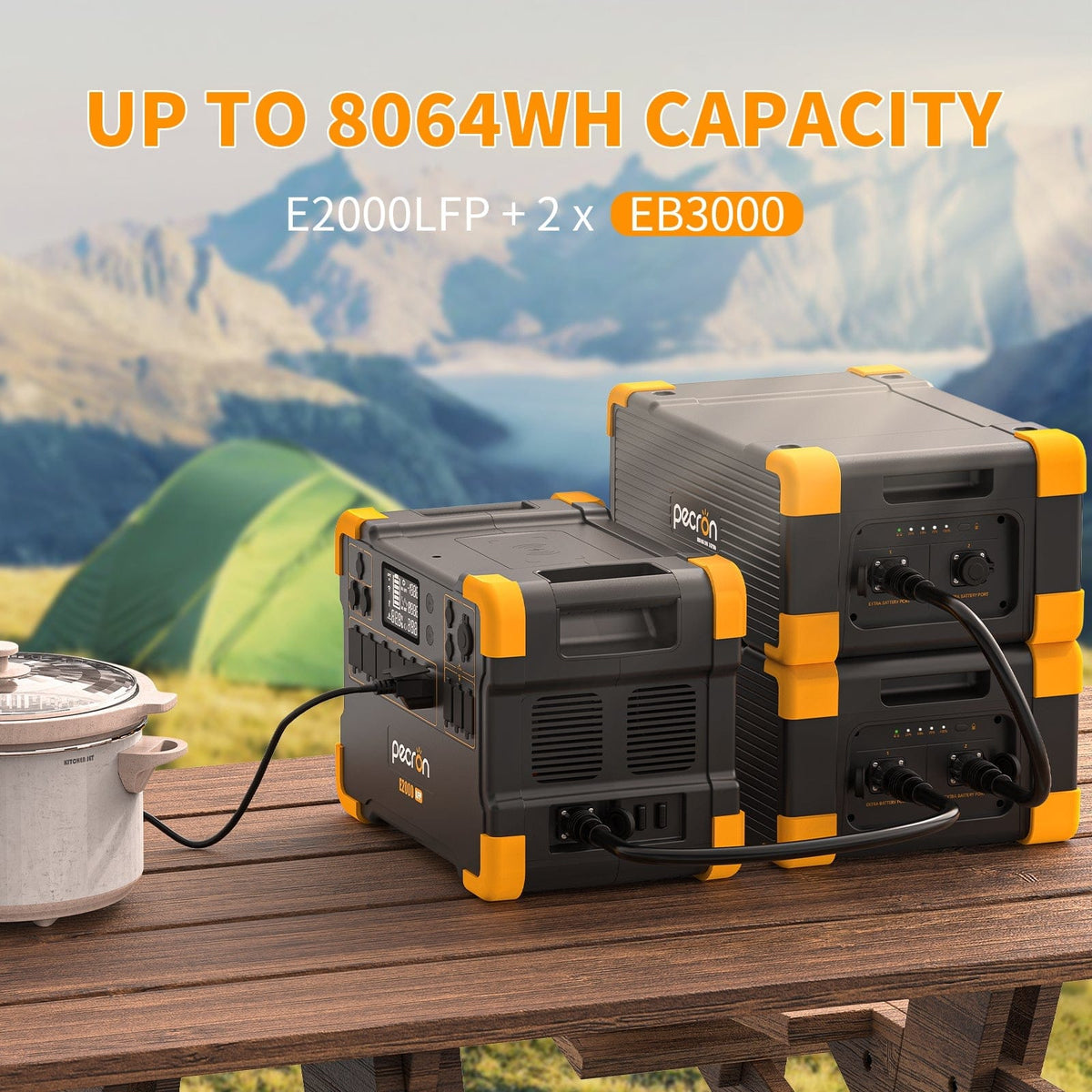

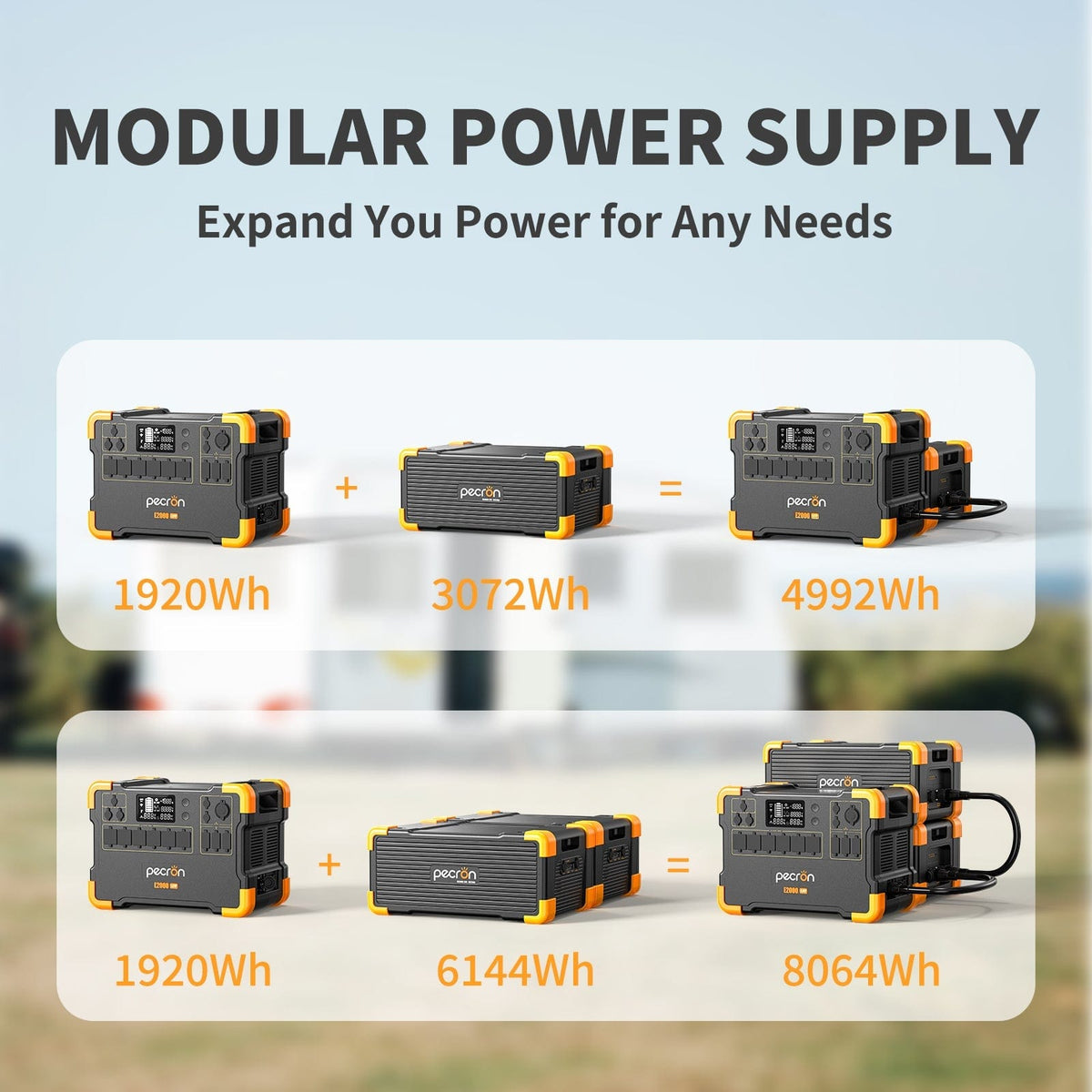

Can connect up to 2 units to E2000LFP, expanding total capacity to 8064Wh.
Only compatible with the E2000LFP (not compatible with other PECRON models).
Multiple Charging Methods
AC adapter charging, solar charging, and car charging.
400W max solar input (Voc 12V~95V, 15A max) for efficient off-grid recharging.
Car input (12Vdc-95Vdc, 400W max) for charging while traveling.
Versatile Power Output & Built-In MPPT Controller
Can be used as a standalone DC output power source.

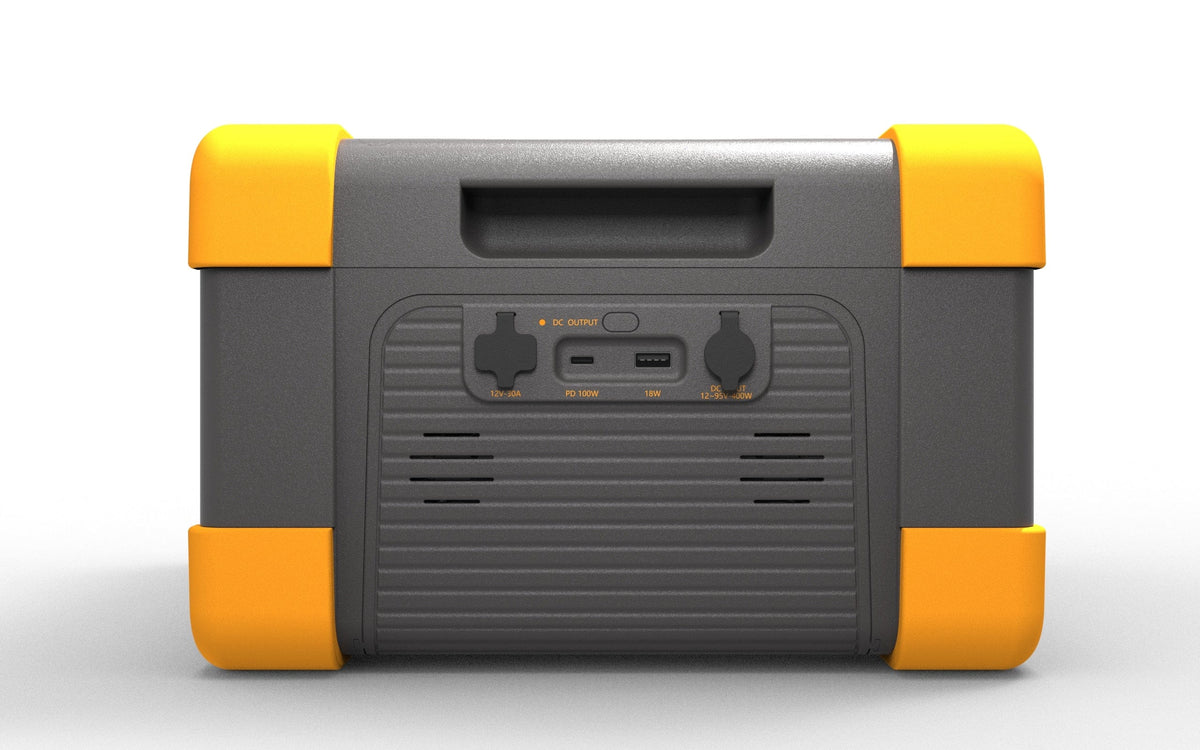

XT60 (30A max) output for high-power applications.
USB-C (100W) and USB-A (18W) ports for direct device charging.
Built-in MPPT charge controller improves solar charging efficiency.
Reliable LiFePO4 Battery Technology
3,500+ life cycles, retaining 80% capacity for long-term reliability.
UL-certified automotive-grade battery cells for safety and performance.
Specifications
Model
EB3000-24V
Capacity
3072Wh (25.6V/120Ah)
Battery Type
LiFePO4 (3,500 cycles to 80%)
Weight
57.3 lbs (26 kg)
Solar Input
400W max / 15A max (Voc 12V~95V)
Car Input
12Vdc-95Vdc / 400W max
DC Output
XT60 (30A max), PD 100W USB-C, USB-A 18W
Charge Temperature
0°C to 45°C (32°F to 113°F)
Discharge Temperature
-20°C to 45°C (-4°F to 113°F)
Dimensions
17.3 × 12.2 × 7.8 in

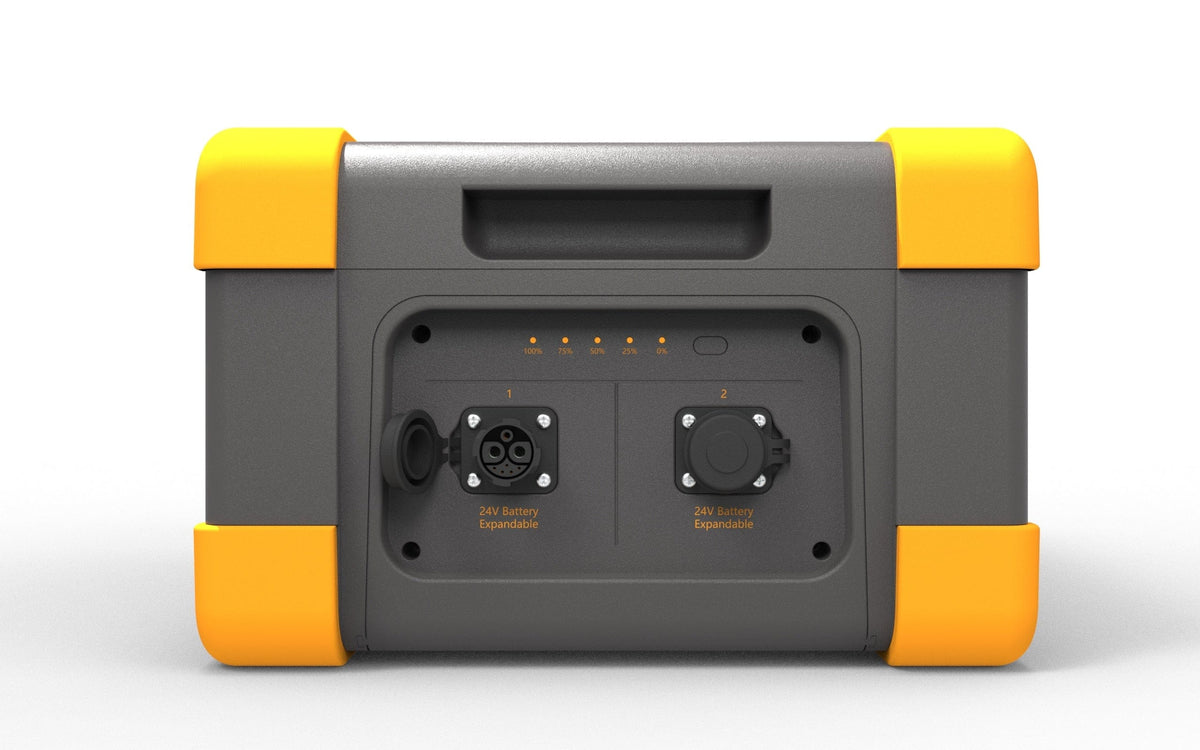

Cascadable Devices
E2000LFP (Up to 2 units)

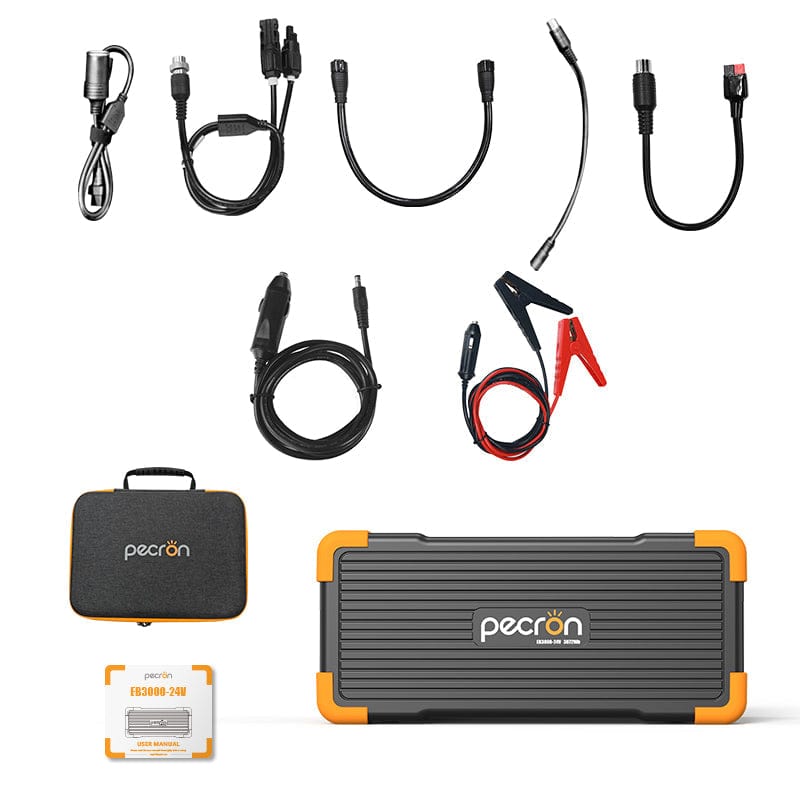

Package Includes
PECRON EB3000-24V Expansion Battery
XT60 to Cigarette Lighter & 5525 Port Cable
MC4 to 5-Pin Solar Charging Cable (LSMC4-5GX16)
M25 Cascade Cable
Solar Cable with 5521 Connector
Anderson Solar Charging Cable
Car Charging Cable with GX16MF-5 Connector
12V Alligator Clips
Why Choose the EB3000-24V Expansion Battery?
✔ Dramatically extends E2000LFP runtime (up to 8064Wh total capacity). ✔ Standalone DC output for flexible power needs. ✔ Efficient MPPT charge controller for optimized solar charging. ✔ Multiple charging options: solar, AC, and car charging. ✔ Durable and safe LiFePO4 battery technology with UL-certified cells.
The PECRON EB3000-24V is the perfect expansion battery for E2000LFP users looking to maximize energy storage and off-grid power reliability.
