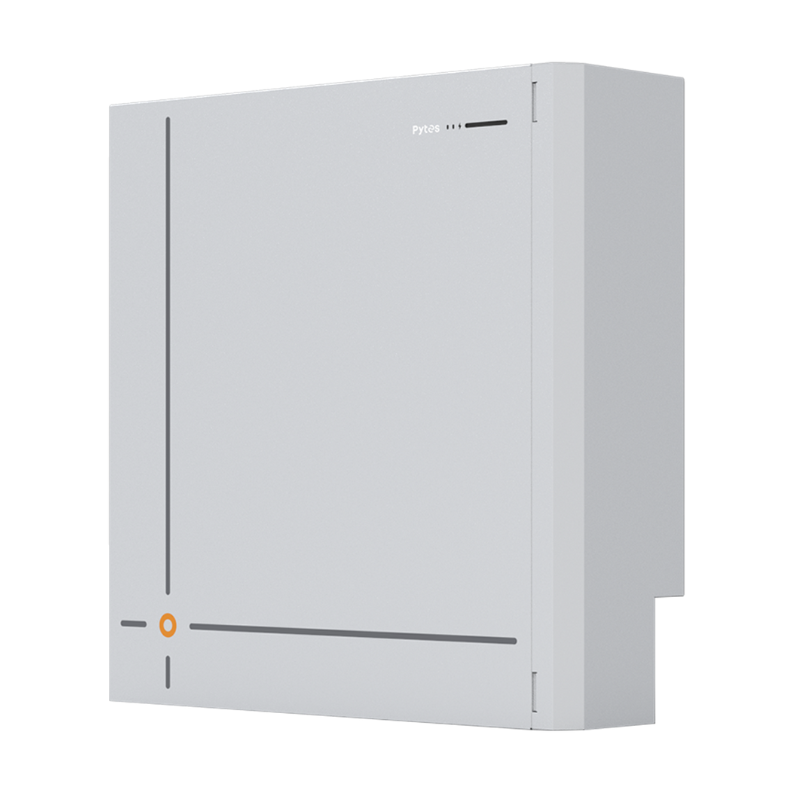

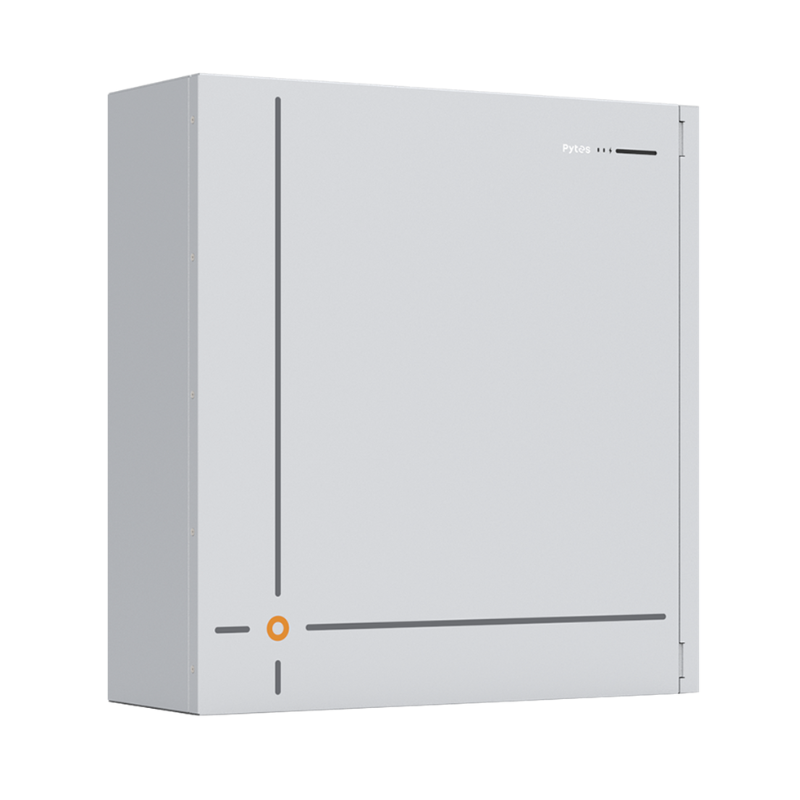

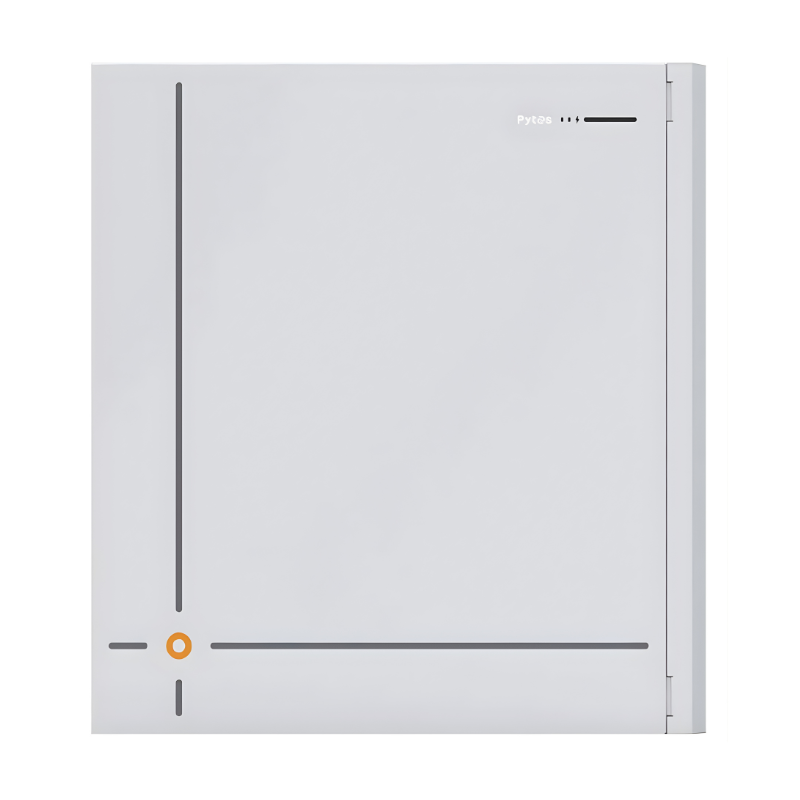

PYTES Energy V16 Wall Mount 48V 314Ah LiFePO4 Battery Pack

PYTES Energy V16 Wall Mount 48V 314Ah LiFePO4 Battery Pack

Name: PYTES Energy V16 Wall Mount 48V 314Ah LiFePO4 Battery Pack
Brand: Pytes
SKU: 110402100209
Price: 3999.92 USD
Availability: InStock

BY: Pytes

SKU: 110402100209

| Availability: In stock

$3,999.92

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized Pytes Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

Pytes V-BOX Indoor Battery Cabinet – 3-Slot Enclosure for V5 Batteries

The PYTES Energy V16 is a high-capacity 51.2V wall-mounted LiFePO4 battery built for residential and light commercial energy storage. With 16 kWh of energy, strong continuous and surge output, and long cycle life, it’s designed to support daily solar cycling and heavy backup loads. It features a rugged outdoor-ready cabinet, self-heating for cold-weather charging, and advanced safety systems, while offering seamless closed-loop integration with many mainstream inverters. The V16 can be installed on a wall or ground-mounted and scaled in parallel for larger storage banks.

PYTES Energy V16 Wall Mount 48V 314Ah LiFePO4 Battery Pack Features

High 16 kWh storage capacity – 51.2V, 314Ah battery provides substantial energy for longer runtimes and bigger backup needs.

Long-life LiFePO4 chemistry – Lithium Iron Phosphate cells deliver safer operation and an extended lifespan compared to traditional lithium or lead-acid.

Strong continuous power delivery – Supports 125A continuous charge/discharge (about 6.4 kW) for steady everyday loads.

High surge capability – Handles up to 300A peak discharge for 15 seconds to cover appliance startup spikes.

Scalable up to 16 units in parallel – Expand your system up to 16 batteries (up to 256 kWh total) without needing a dedicated hub.

Seamless inverter integration – Closed-loop communication support via multiple ports for strong compatibility with many inverter brands.

Built-in fire suppression safety – Integrated aerosol fire suppression system adds protection inside the battery enclosure.

ESS emergency shutdown ready – Includes an emergency shutdown function to support safer system control during faults.

Durable IP66 enclosure – Sealed protection against dust and water for rugged indoor or sheltered outdoor installs.

PYTES Energy V16 Wall Mount 48V 314Ah LiFePO4 Battery Pack Applications

Home energy storage – dependable capacity for solar self-consumption and outage backup.
Off-grid solar systems – long runtime support for cabins, shops, and remote properties.
RV and mobile power rooms – high storage for extended boondocking and heavy loads.
Hybrid inverter setups – designed to communicate and scale in multi-battery installations.
Cold-weather installations – internal heating helps maintain charging performance in low temperatures.
Coastal/outdoor installs – corrosion-resistant, IP-rated cabinet supports harsher environments.

What's Included

Everything you need is included with your product.

1 x PYTES V16 LiFePO4 Battery Pack
1 x Positive power cable set (2 m) and Negative power cable set (2 m)
1 x Cascading Cable
1 x Earthing Cable
4 x Hexagon cross-slot combination screws

1 x Cover plate
1 x Wall-mount bracket
1 x Wall-mounted bracket
8 x Expansion screws
2 x Spare RJ45 connectors (2 pcs)
1 x User Manual

Warranty

10-year warranty

PYTES Energy V16 Wall Mount 48V 314Ah LiFePO4 Battery Pack Specifications

Electrical

Category	Specifications
Battery Chemistry	Lithium Iron Phosphate (LFP)
Rated Voltage	51.2 V
Rated Capacity	314 Ah
Rated Energy	16kWh
Recommended Continuous Charge / Discharge Current	125 A (6.4kW)
Max Charge / Discharge Current	200A (10.24kW)
Peak Discharge Current	300A (15.36kW) @15s

General

Category	Specifications
Dimensions (W × D × H)	26.42 × 10.24 × 27.56 inch (671 × 260 × 700 mm)
Weight (lb / kg)	288 / 130.5
Ingress Protection Rating	IP66
Mounting Method	Wall / Ground
Terminal	Phoenix Plug & Play DC Connector
Communication Ports	CAN / RS485 / RS232 / Dry Contact / WiFi
Cycle Life	8000 cycles
Warranty	10 years

Internal Heating Film

Category	Specifications
Rated Input Voltage	51.2 Vdc
Rated Power	500 W
Control Temperature	On: ≤41°F (5°C) / Off: ≥59°F (15°C)

Environmental

Category	Specifications
Charging Temperature	32°F ~ 131°F (0°C ~ 55°C)
Discharging Temperature	-4°F ~ 131°F (-20°C ~ 55°C)
Recommended Operating Altitude	≤ 9843 ft (3000 m)
Relative Humidity	0 ~ 95%, non-condensing

Compliance

Category	Specifications
Certifications	UL 9540 Ed.3 (2023), UL 9540A, UL 1973, UN 38.3

Videos

Frequently-Asked Questions

Is this battery compatible with common 48V hybrid inverters?

Yes. The V16 is built for 48V-class systems and supports closed-loop communication through CAN/RS485. Always confirm protocol compatibility with your specific inverter model.

Can I expand my system with more batteries?

Yes. The V16 supports parallel expansion up to 16 units total, allowing large-scale storage without a separate hub.

Is it safe for indoor installation?

Yes. LiFePO4 chemistry is among the safest lithium types, and the V16 includes a BMS plus added enclosure-level safety features like fire suppression and emergency shutdown readiness.

Does it work in cold climates?

Yes. It includes an internal heating film that automatically activates in low temperatures to support charging.

Is it suitable for outdoor or coastal environments?

Yes. The cabinet is IP66-rated for water/dust resistance and includes enhanced C4-M corrosion protection for harsh or salty air conditions.
