Renogy 1.2kW Essential Kit Overview

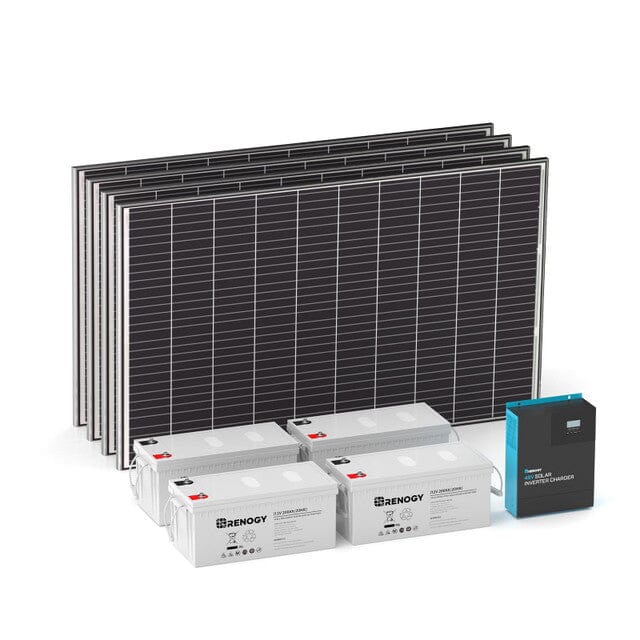

The Renogy 1.2kW Essential Kit is an all-in-one solar solution designed for those seeking a powerful yet compact off-grid system. Perfect for cabins, RVs, or backup power at home, this kit provides reliable energy storage and smart inverter control with advanced monitoring capabilities. With 1.2kW of high-efficiency solar power and a robust 48V inverter charger, it ensures smooth, uninterrupted energy performance across a variety of applications.
Renogy 1.2kW Essential Kit Features

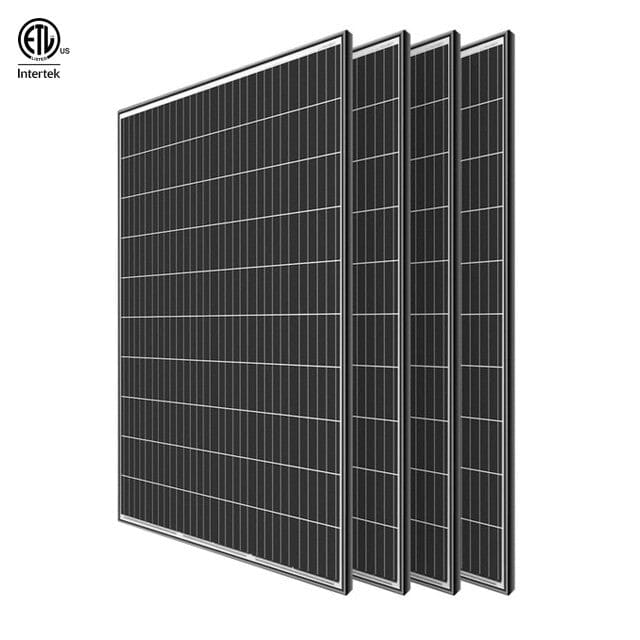

High Efficiency Solar Panels - Includes four 320W monocrystalline panels for a total of 1,280 watts of high-efficiency solar power generation.

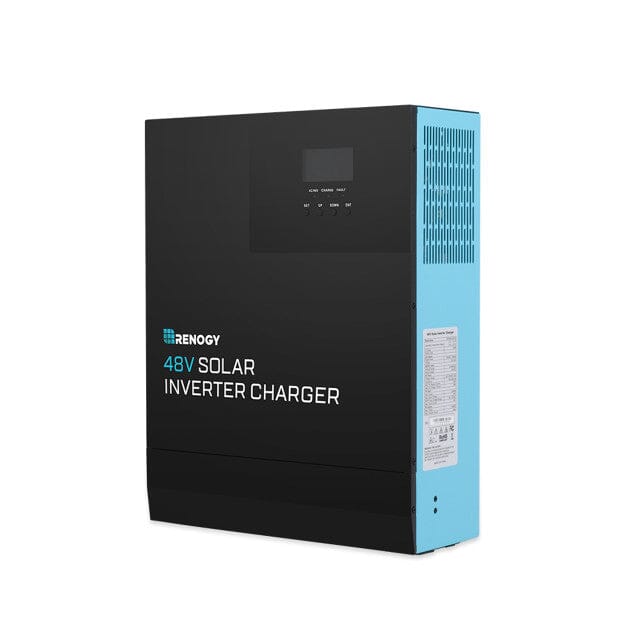

Smart Inverter Charger - The 48V 3500W solar inverter charger allows split-phase output, perfect for running larger appliances or sensitive electronics.

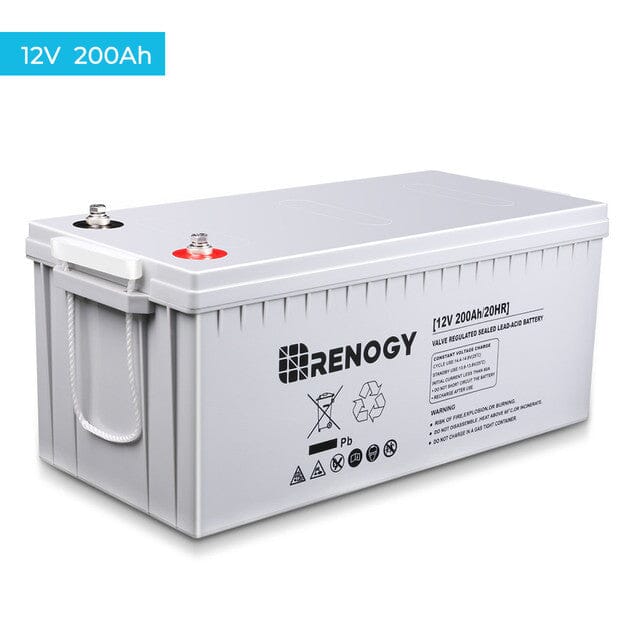

Advanced Battery Bank - Equipped with four 12V 200Ah AGM batteries and integrated interconnect cabling for secure, scalable power storage.

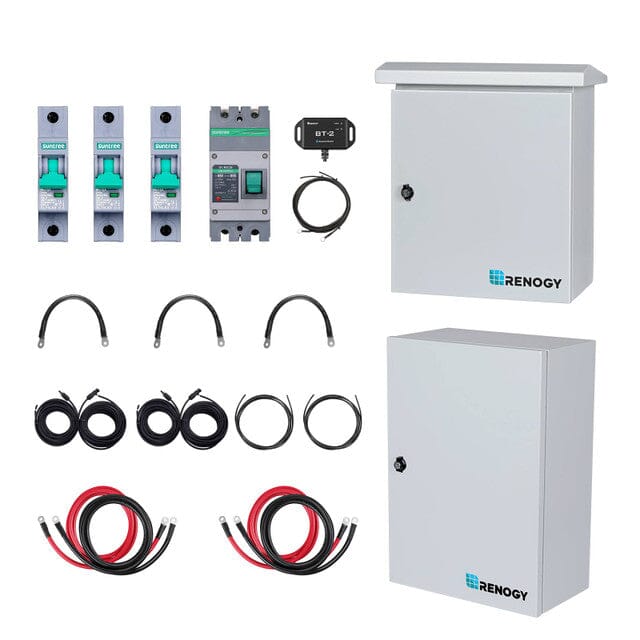

Comprehensive Protection - Includes DC breakers, molded case breaker, and combiner box to ensure safe and reliable system operation.

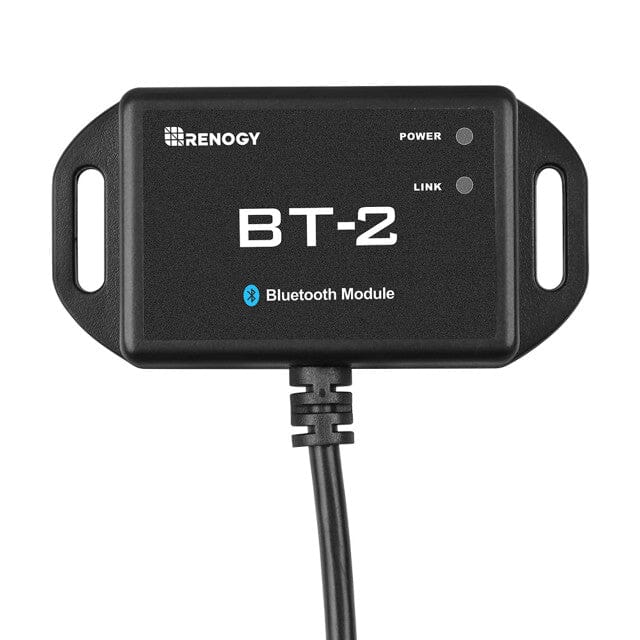

Bluetooth Monitoring - Easily track system performance with the included BT-2 Bluetooth Module and the Renogy DC Home app.
Insert picture of appliances charging time sheet or lifestyle image
Renogy 1.2kW Essential Kit Applications
-
Cabins - Dependable power for off-grid cabin setups.
-
RVs and Campers - Keep your travels powered with renewable energy.
-
Backup Power - Provides emergency backup for essential loads during outages.
-
Workshops - Power tools and lights in remote or semi-permanent locations.
-
Small Homes - Supplements grid power or serves as an independent energy solution.
What’s Included?
-
1 × 4 Pieces of 320 Watt Monocrystalline Solar Panel
-
2 × 40Ft 10AWG Solar Panel to Charge Controller Adaptor Kit (Pair)
-
1 × 5 Strings Solar Combiner Box
-

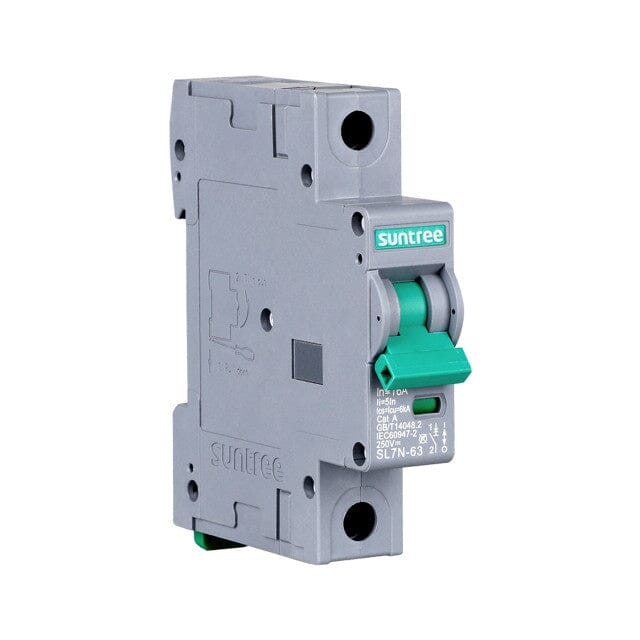

2 × 16A 1P DC Miniature Circuit Breaker
-
1 × DC Circuit Breaker Box
-
1 × 32A 1P DC Miniature Circuit Breaker
-
1 × 16Ft 10AWG Battery to Charge Controller Tray Cables for 3/8 in Lugs (Pair)
-
2 × 8Ft 8AWG Solar Stranded Copper PV Wire
-
1 × 160A 2P DC Molded Case Circuit Breaker
-
1 × 48V 3500W Solar Inverter Charger
-
4 × 12V 200Ah AGM Battery
-
3 × 12Inch 1AWG Copper Battery Interconnect Cable for 3/8Inch Lugs
-
2 × 8Ft 1AWG Copper Battery Inverter Cables for 3/8Inch Lugs (Pair)
-
1 × BT-2 Bluetooth Module
Renogy 1.2kW Essential Kit Specifications
| 320 WATT MONOCRYSTALLINE SOLAR PANEL |
| Maximum Power at STC |
320W |
| Optimum Operating Voltage (Vmp) |
32.7V |
| Open-Circuit Voltage (Voc) |
40.1V |
| Optimum Operating Current (Imp) |
9.79A |
| Short-Circuit Current (Isc) |
10.36A |
| Operating Temperature |
-40°F to 185°F |
| Cell Efficiency |
21% |
| Maximum System Voltage |
1000V DC (UL) |
| Maximum Series Fuse Rating |
15A |
| Weight |
39.71lbs |
| Dimensions |
65.6 x 39.4 x 1.4 in |
| Certifications |
CE, ISO, UL |
| RENOGY 48V 3500W SOLAR INVERTER CHARGER WITH 80A/145V MPPT |
| Output Waveform |
Pure Sine Wave |
| Continuous Output Power |
3500W |
| Peak Power Rating |
7000W |
| Output Voltage |
120VAC ±5% |
| Output Frequency |
50 Hz ± 0.3% / 60 Hz ± 0.3% |
| Input Voltage / Rated Battery Voltage |
48VDC (minimum start-up voltage 44V) |
| Charge Controller Type |
MPPT |
| Maximum Input Power |
4800W |
| Maximum Input Current |
50A |
| Dimensions |
16.8*12.7*4.9 in / 426*322*124 mm |
| Weight |
23.8 lbs / 10.8kg |
| 12 VOLT 200AH DEEP CYCLE AGM BATTERY |
| Battery Type |
AGM |
| Rated Capacity |
200Ah (20 Hour Rate to 10.5V) |
Frequently-Asked Questions
Can this kit be expanded later? Yes, additional solar panels and batteries can be added to scale up the system capacity as needed.
Does this system support split-phase output? Yes, the included inverter supports 120/240V split-phase output.
Is the system plug-and-play or will I need professional installation? While many components are user-installable, we recommend professional setup for optimal safety and performance.
