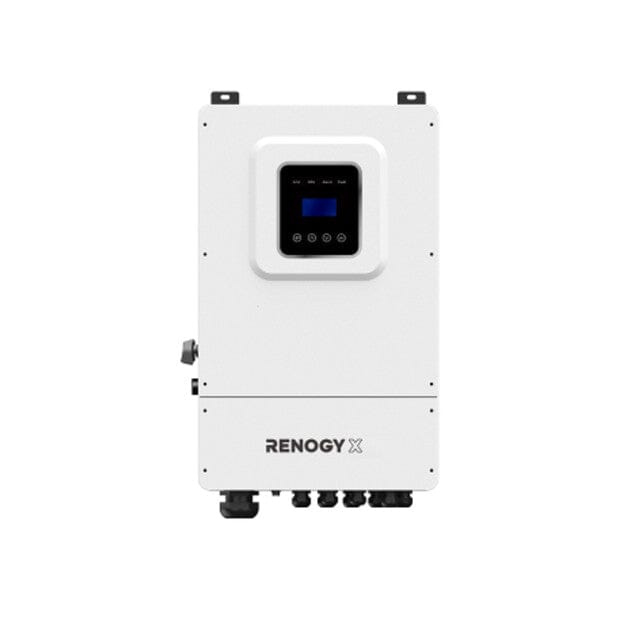

Renogy X Inverter
The Renogy X Inverter is a versatile hybrid inverter designed for both on-grid and off-grid applications. With a continuous output of 8000W and a maximum photovoltaic input of 12000W, it ensures reliable power delivery for various settings. Its split-phase 120/240V output accommodates a wide range of household and commercial appliances. The inverter features an intuitive LCD screen and mobile app connectivity, providing real-time monitoring and control for efficient energy management.
Renogy X Inverter Features
Split-Phase 120/240V Output
Delivers 8000W continuous power, accommodating a wide range of household appliances and tools.
High PV Input Capacity
Supports up to 12,000W of photovoltaic input, maximizing solar energy utilization.

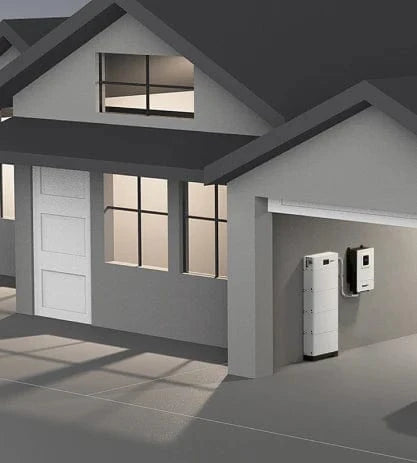

Emergency Power Supply (EPS)
Ensures uninterrupted power to essential circuits during grid outages.
Intuitive LCD Display
Provides clear, real-time information on system operation, energy production, and power usage.

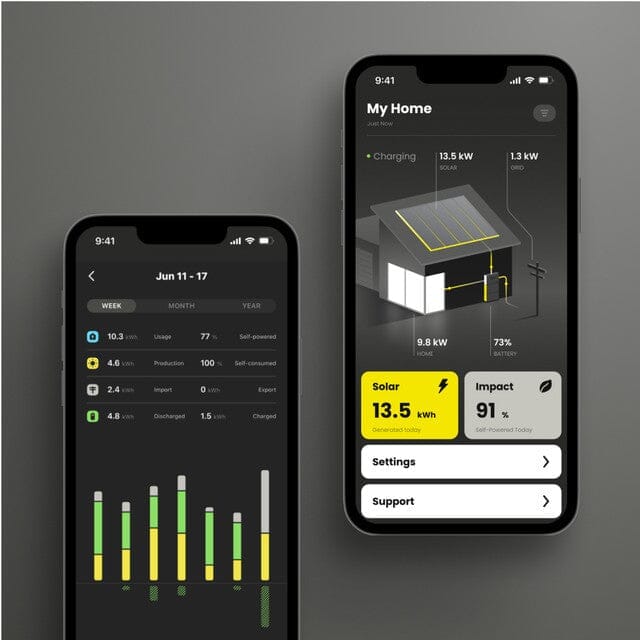

Mobile App Monitoring
Monitor and control your energy system remotely via the Renogy X app, available for both Android and iOS devices.
Future-Proof Design
Compatible with evolving technologies and energy storage solutions, ensuring long-term usability.
Renogy X Inverter Applications

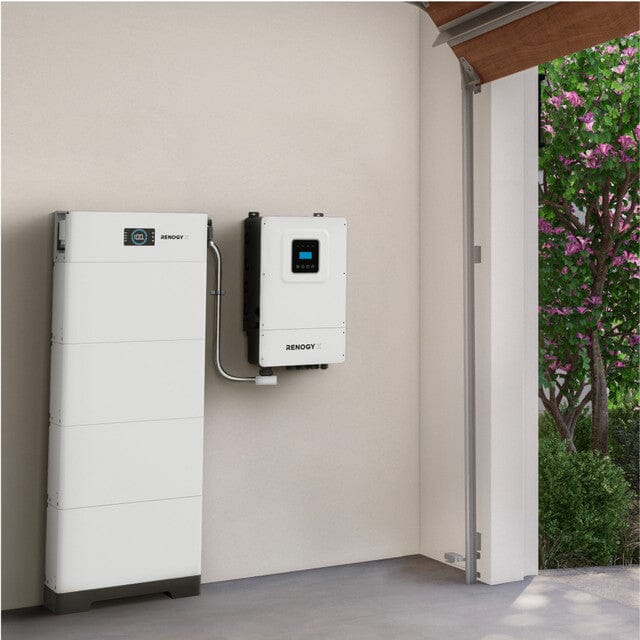

Home Backup Power – Provides reliable power during outages, keeping essential appliances running smoothly.
Off-Grid Living – Ideal for remote locations, ensuring consistent energy supply without reliance on the grid.
Solar Energy Systems – Integrates seamlessly with solar panels, optimizing energy harvest and usage.
Energy Storage Integration – Compatible with various battery systems, enhancing energy independence.
Commercial Applications – Suitable for small businesses requiring stable and efficient power solutions.
What’s Included?
Renogy X Inverter Specifications
RENOGY X INVERTER – RIV4800HI-SPS
| Input (PV) |
| Max. Power (kW) |
12 |
| Max. DC Voltage (V) |
500 |
| MPPT Voltage Range (V) |
120–500 |
| Max. Input Current of Single MPPT (A) |
12 |
| MPPT Tracker/Strings |
4/1 |
| AC Output |
| Rated Output Power (kVA) |
7.6 |
| Max. Output Current (A) |
35 |
| AC Output Voltage (V) |
120/240 (split phase) |
| THDi |
<3% |
| Battery |
| Battery Voltage Range (V) |
40–58 |
| Max. Charging Voltage (V) |
58 |
| Max. Charge/Discharge Current (A) |
190/190 |
| Battery Type |
Lithium / Lead-Acid |
| EPS |
| Rated Power (kVA) |
8 |
| Rated Output Voltage (V) |
120/240 (split phase) |
| Rated Output Current (A) |
38.3 |
| Automatic Switching Time (ms) |
<20 |
| General Data |
| Max. Efficiency |
≥98.2% |
| Ingress Protection |
IP65 / NEMA 3R |
| Operation Temperature (F/C) |
-13°F to 140°F (-25°C to 60°C) |
| Cooling |
Natural |
| Dimensions W x D x H (in) |
17.72 x 8.66 x 27.95 |
| Weight (lbs) |
90.39 |
| Display and Communication |
| Display |
LCD |
| Interface |
RS485 / WiFi / 4G / CAN |
| Safety Standard |
UL1741SA All Options, UL1699B, CSA 22.2 |
| EMC |
FCC Part 15, Class B |
| Warranty |
5 Years |
Frequently-Asked Questions
What is the maximum photovoltaic input capacity of the Renogy X Inverter?
The inverter supports up to 12,000W of photovoltaic input, allowing for substantial solar energy integration.
Can the Renogy X Inverter operate off-grid?
Yes, it is designed for both on-grid and off-grid applications, providing flexibility for various energy setups.
Is the inverter compatible with lithium batteries?
Yes, it supports both lithium and lead-acid battery types, ensuring compatibility with a range of energy storage systems.
How can I monitor the inverter's performance?
You can use the built-in LCD screen for real-time data or the Renogy X mobile app for remote monitoring and control.
remote monitoring and control.
