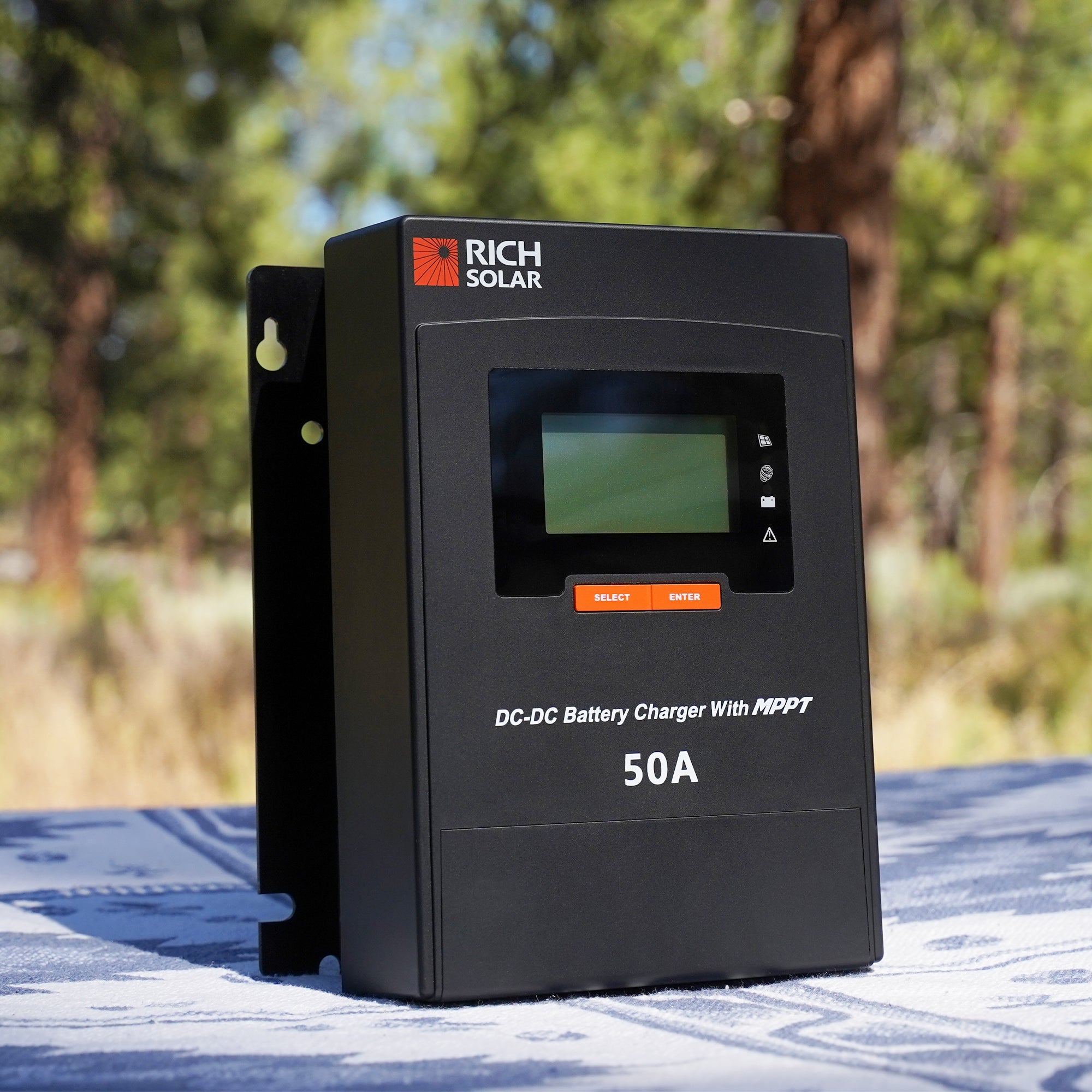

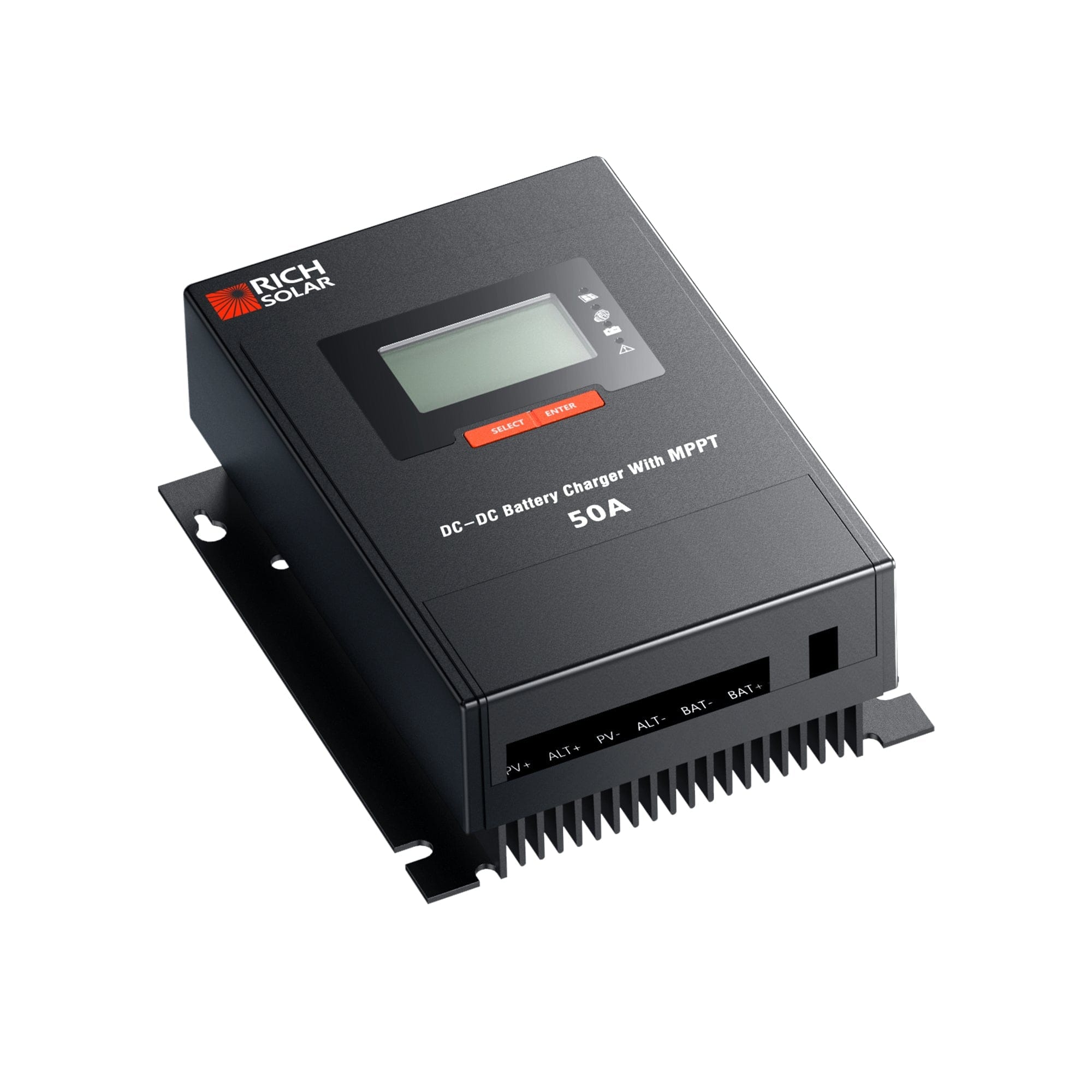

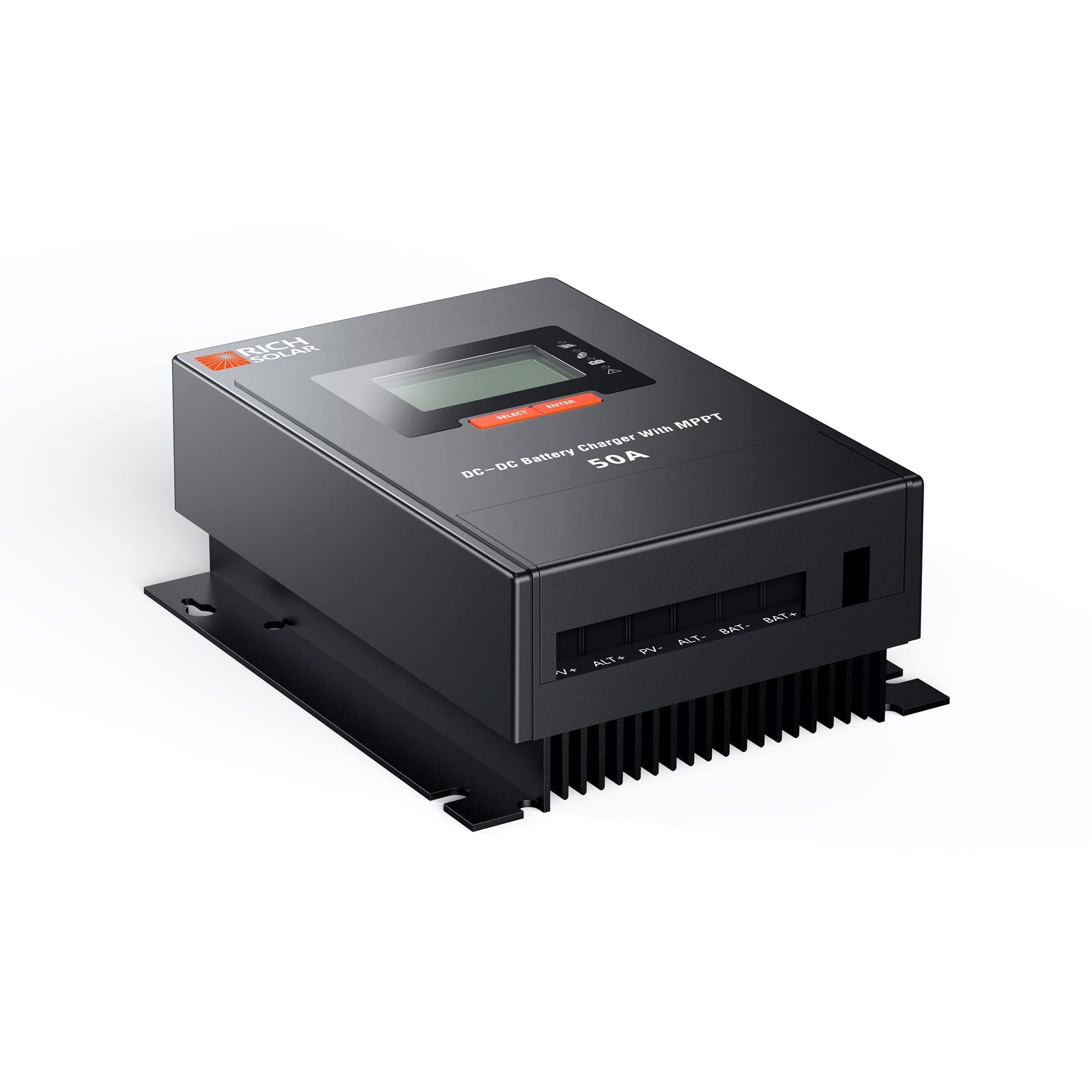

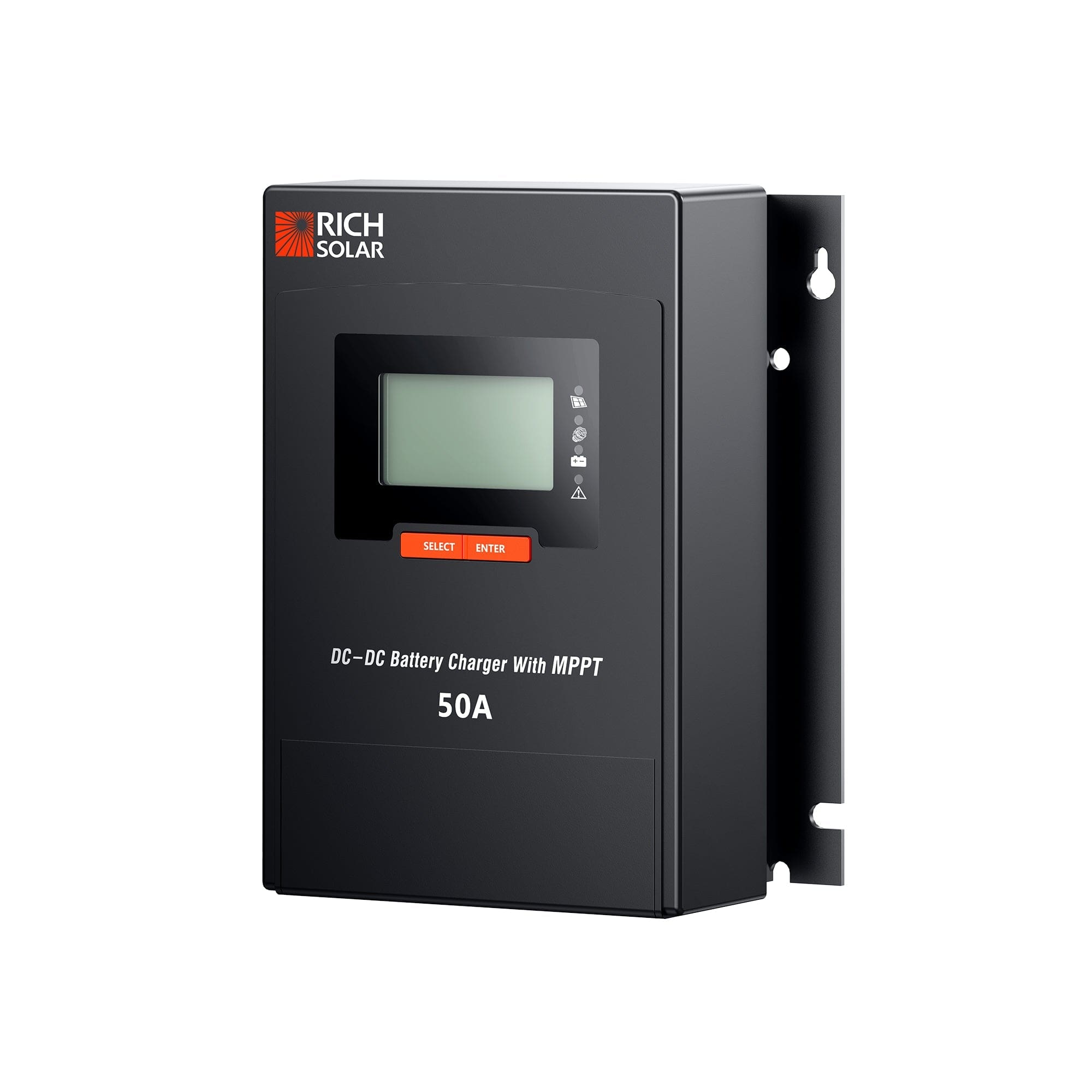

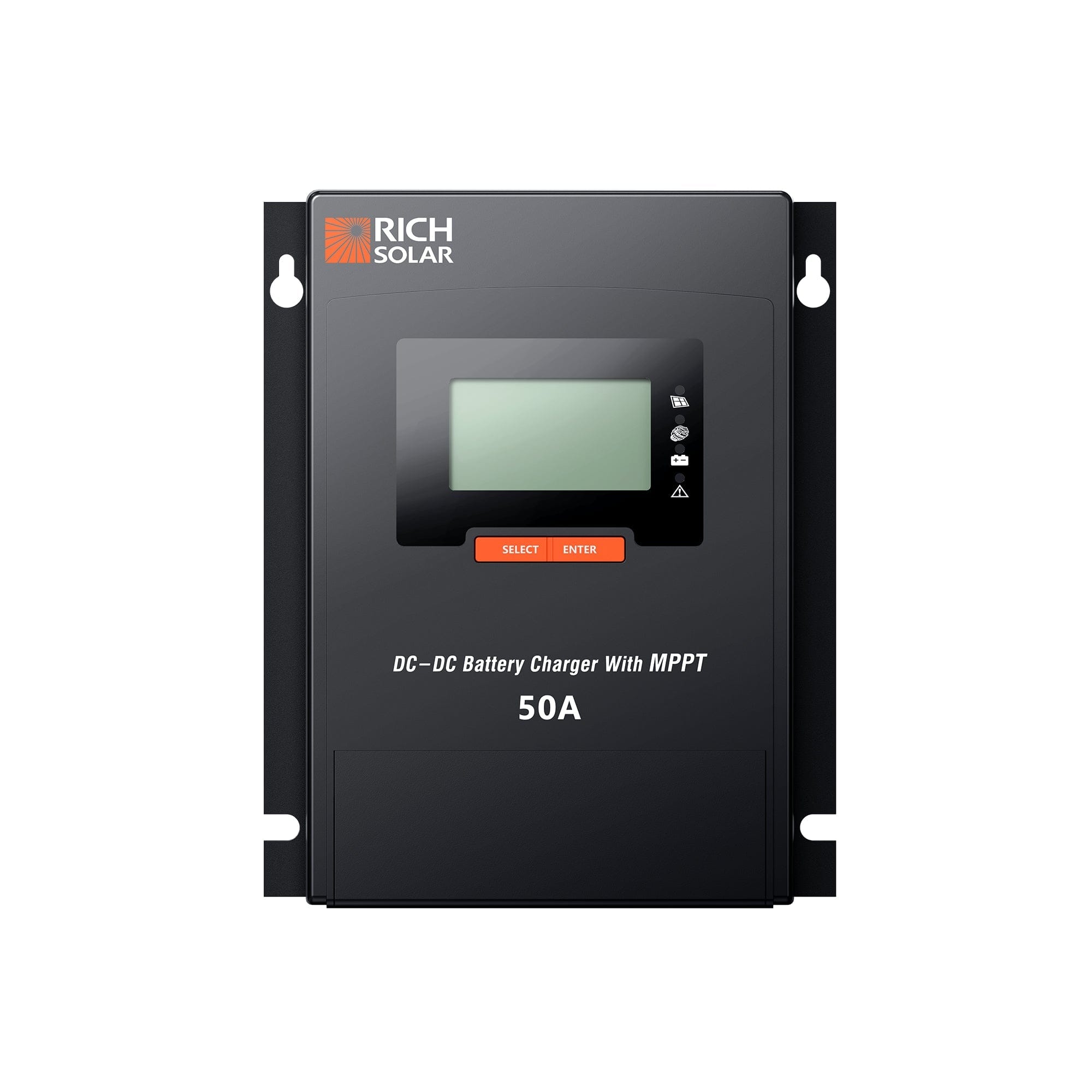

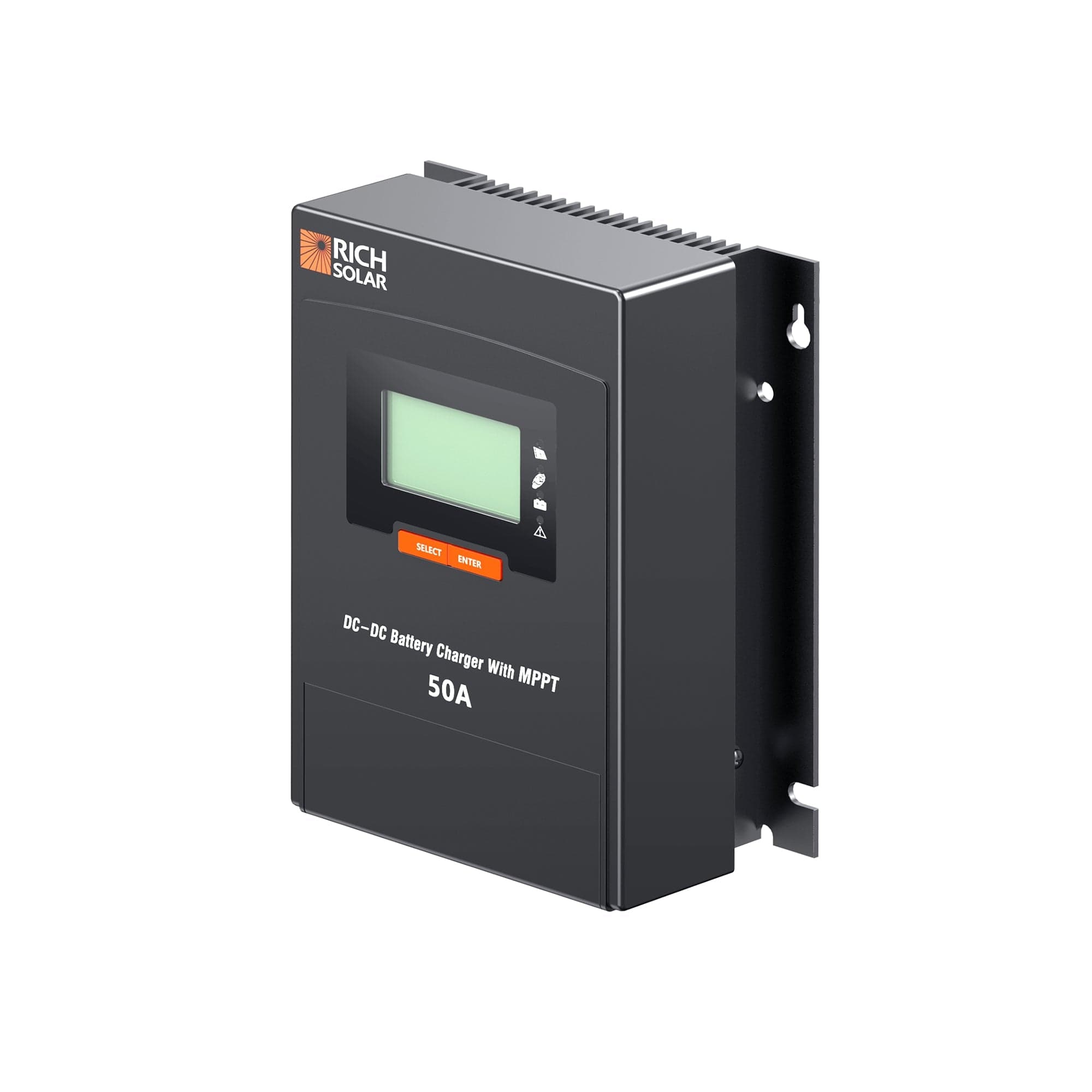

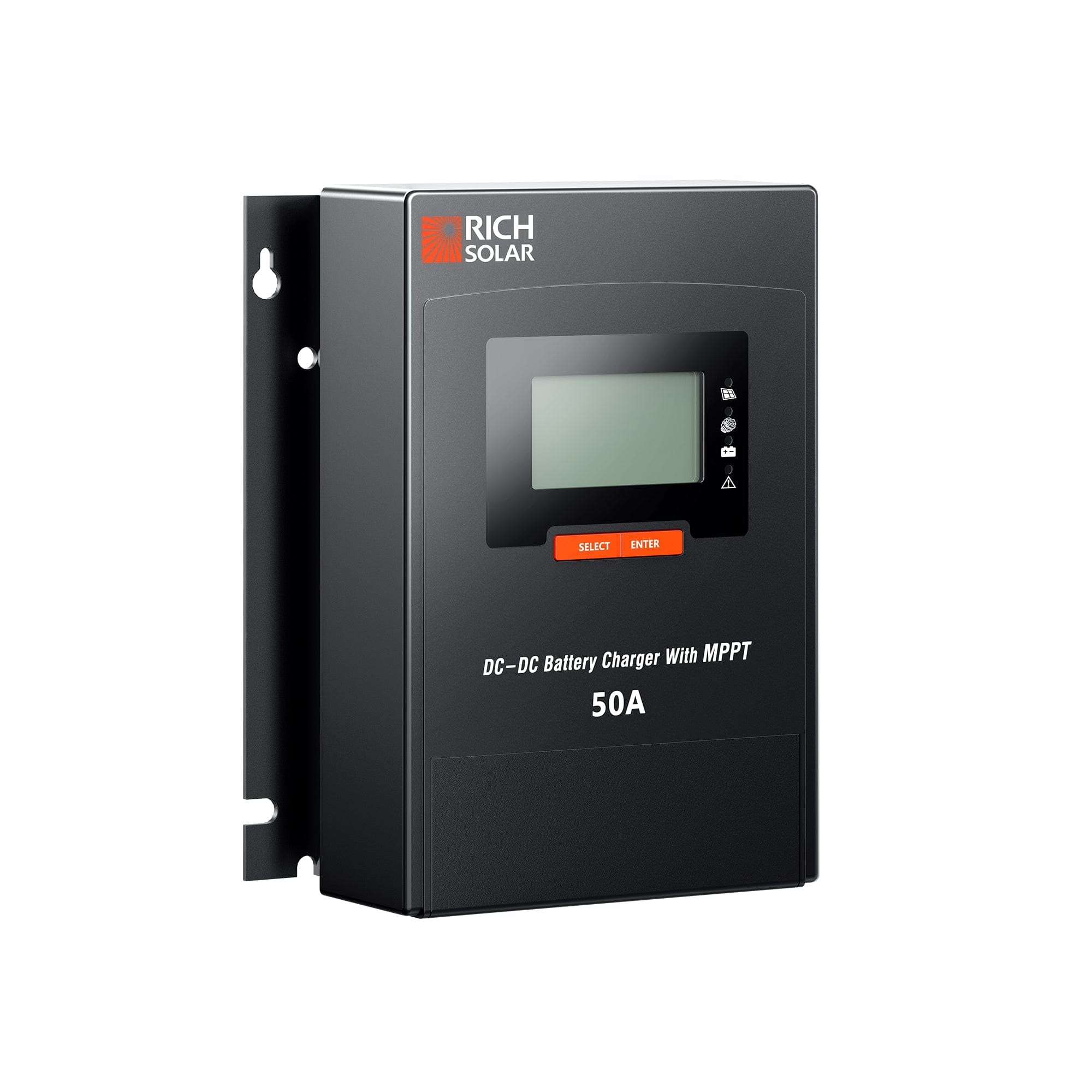

RICH SOLAR BRAVO 50 DC - 50A DC-DC MPPT Solar Charge Controller, 12V/24V for Off-Grid & Mobile Applications MPPT Charge Controllers Rich Solar

RICH SOLAR BRAVO 50 DC - 50A DC-DC MPPT Solar Charge Controller, 12V/24V for Off-Grid & Mobile Applications

BY: Rich Solar | SKU: RS-MPPT50DC Availability: In Stock
$249.99

Notify me when back in stock

Found a Better Price?

Share it with us now and we will beat it. Get the best deal online - Guaranteed!

Call/Text Us: 877-556-3347
Live Chat With an Expert

  • Authorized Rich Solar Dealer

    Full manufacturer warranty included

  • Free Shipping + No Sales Tax

    More savings on every purchase

  • Easy 30-Day Returns & Price Beat Guarantee

    Risk-free shopping + best price guaranteed

  • Lifetime Expert Support

    Dedicated help whenever you need it

Estimated Delivery Between

and .

Order within to get it by the earliest date.

The BRAVO 50 DC is a high-quality charging device designed specifically for charging lithium batteries from a vehicle's alternator. This charger utilizes Maximum Power Point Tracking (MPPT) technology to optimize the charging efficiency and ensure maximum power transfer from the alternator to the battery, giving you the comfort and confidence to go fully off-grid!

 FEATURES

  • Can connect to PV and alternator
  • Charges both leisure and starter battery
  • MPPT with up to 99.9% efficiency
  • Supports TTL communication

Tech Specs

PV INPUT

Max. Voltage of Open Circuit: 55Vdc
MPPT Voltage Range: 17-36Vdc
Max PV Input Current: 45A
Max PV Input Power: 800W


BATTERY TYPE - Li-ion / Lead Acid / User Defined


Rated Battery Voltage: 12Vdc
Battery Voltage Range: 9-17Vdc
Max MPPT Charging Current: 50A
Max Alternator Charging Current: 60A
MPPT Charging Mode: Buck


BATTERY TYPE - Lead Acid


Rated Battery Voltage: 12Vdc
Max MPPT Charging Voltage: 13.8V
Max MPPT Charging Current: ≤25A
Max Alternator Input Voltage (Conventional): 13.2-16Vdc
Max Alternator Input Voltage (Euro 6 Standard): 12-16Vdc
Alternator Charging Mode: Buck, Boost, Buck-Boost


EFFICIENCY


MPPT Tracking Efficiency: >99%
Max Charging Conversion Efficiency: 98%


COMMUNICATION


Embedded Interfaces: TTL, Remove Switch


GENERAL


Weight: 4.7 lbs
Dimensions: 8.7 x 6.9 x 3.2 inches
Protection Degree: IP32
Operating Temperature Range: -35°C~65°C（-31℉～149℉)


CERTIFICATION


Safely: IEC62109
EMS: IEC61000, FCC sDoC
Rohs: YES


Specification & User Manual

50 Amp DC to DC Lithium Battery Alternator Charger with MPPT

50 AMP DC TO DC LITHIUM BATTERY ALTERNATOR CHARGER WITH MPPT

Customer Reviews

Based on 2 reviews
50%
(1)
0%
(0)
50%
(1)
0%
(0)
0%
(0)
J
Jazzy Blue
Haven't connected

Still seeking someone to wire it.

D
Dave in Moab
Preferred over blue colored combo mppt

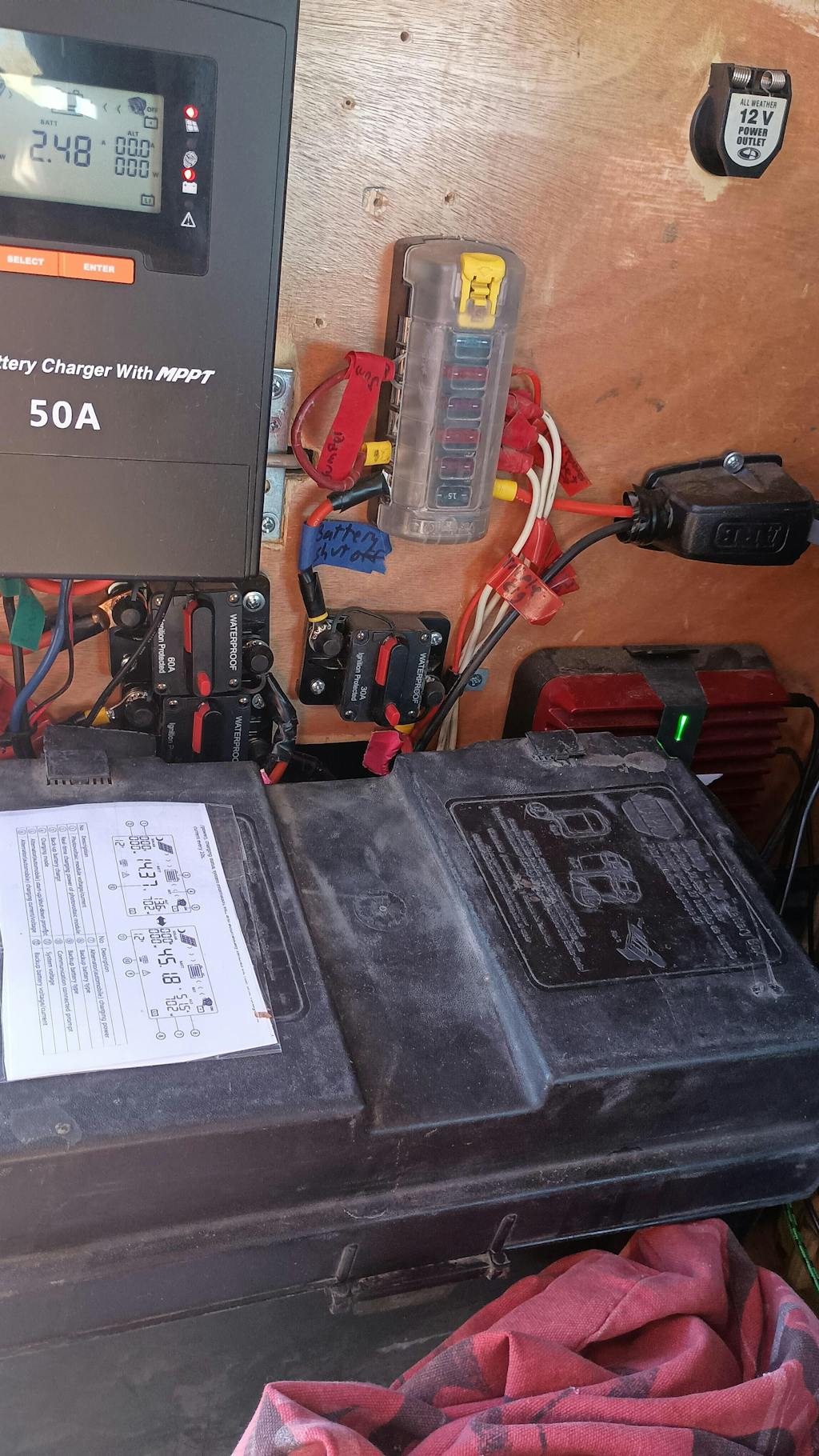

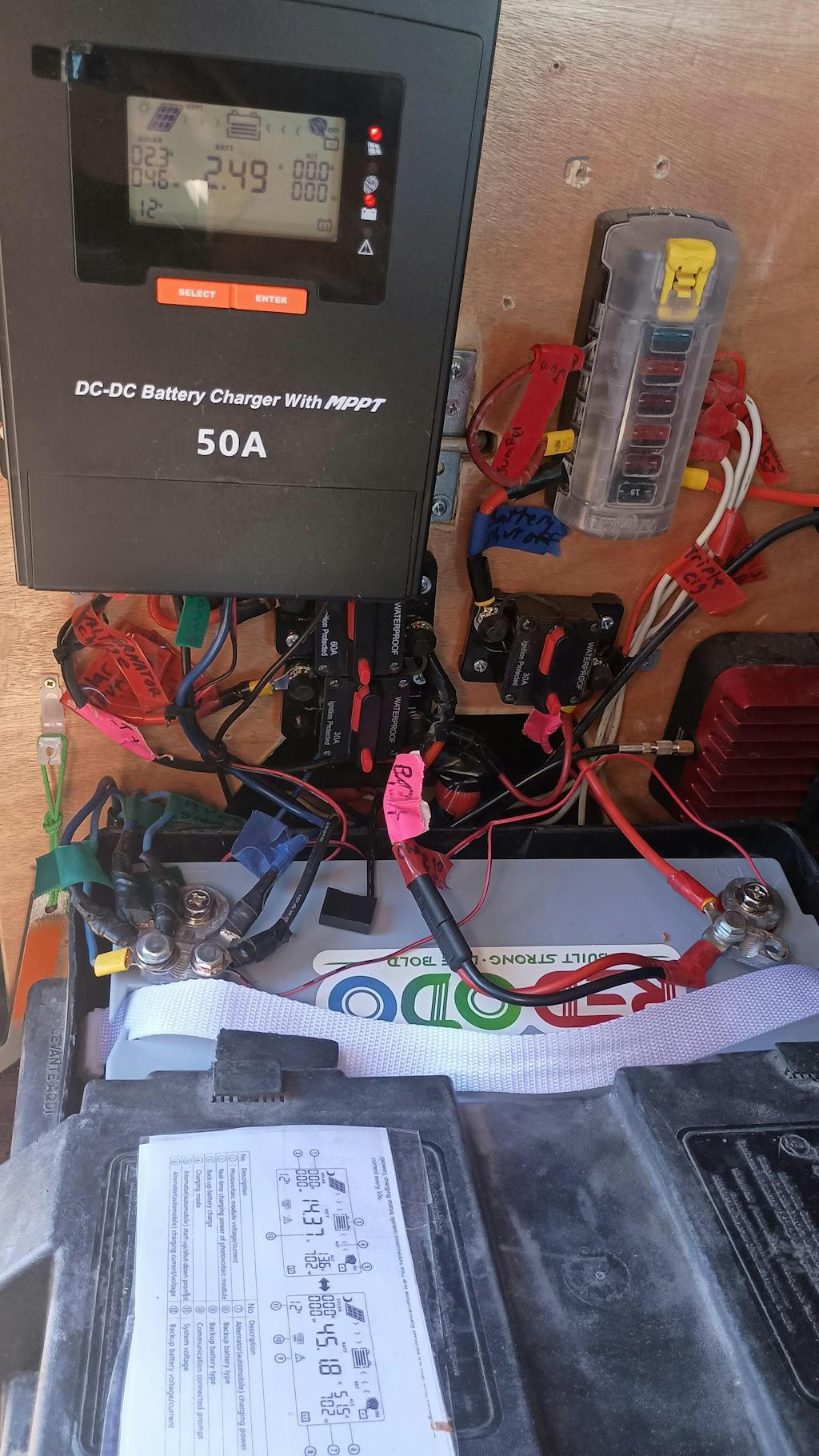

Over the last 12 years I have installed 5 different solar setups in 3 different vehicles. The Bravo 50A so far seems to be the complete ticket. The Bravo 50 is connected to a 100ah LiFePo battery with internal heating ability, 160W solar panel, and hooked up to the vehicle battery as well.

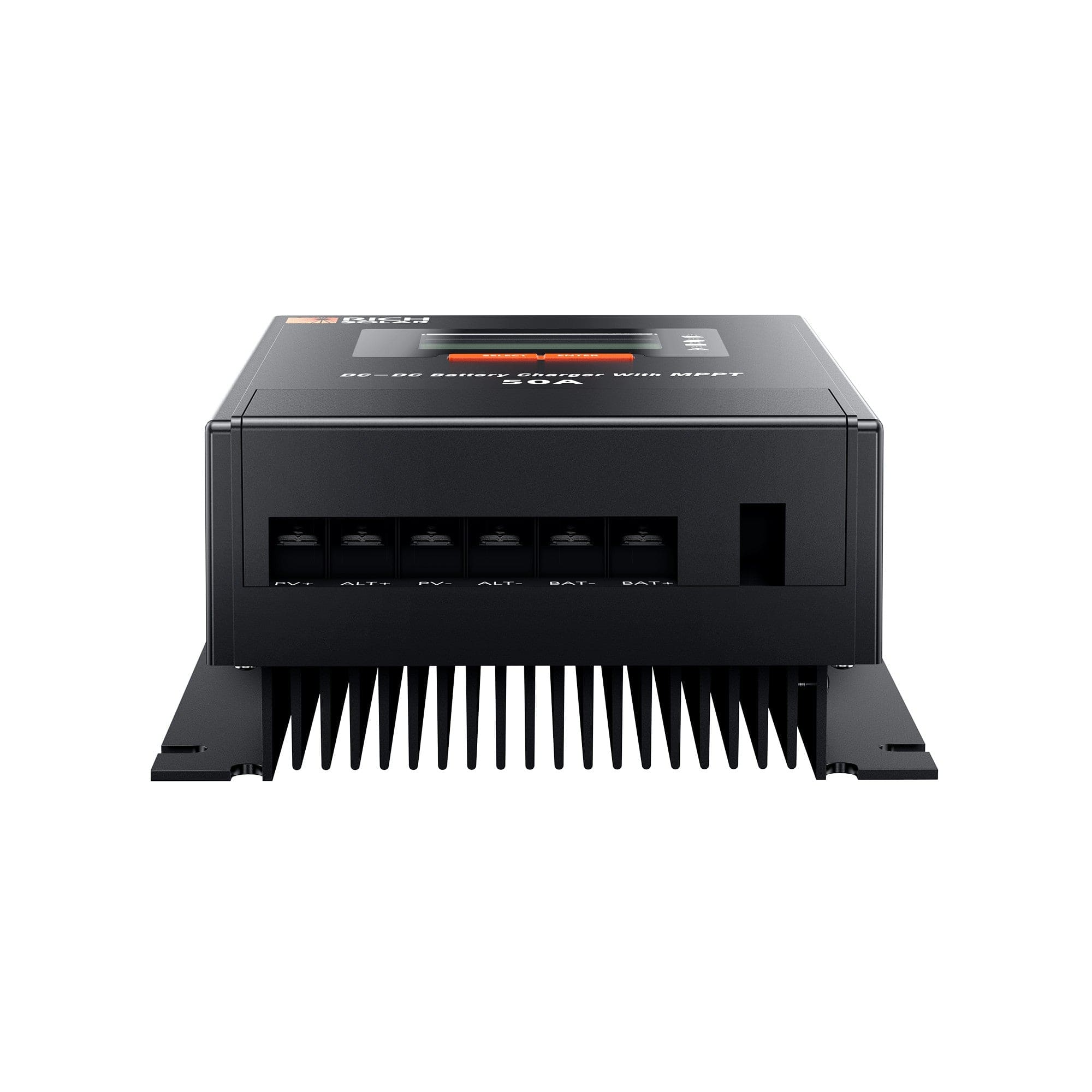

There are several reasons why I prefer this one over others. Cost- I got this for about the same as, or a lot less than other combo dc-dc/mppt setups. Connections-the Bravo 50A connections are designed to handle fatter gauge wires than other boxes out there.
Juice capacity- the 50A is plenty for my needs.
Display and Bluetooth- the display has a lot of information available(I put a copy of the instruction manual page with the key to display data on the battery box for reference) and the SRNE app connects really with my phone for remote viewing, and has a nice pictorial image of what's happening with solar, alternator, etc charging.
Two way vehicle battery charging- many systems have a dc-dc charger that is one way, ie vehicle alternator to auxiliary battery, but few have excess solar juice to vehicle battery. The 50A does both, and during a 4 night parked set up, the excess solar did indeed go to the vehicle battery.

It was pretty easy to swap out the former mppt and put in the Bravo 50A. I set the Bravo for Li battery and so far just using the internal factory settings.

I've only had it installed for about 3 weeks, but we did test it on a camping trip where we parked for 4 nights with temperatures down to freezing(low of 28F, highs in the low 60s). We were running some LED's at night, charging phones, a WEboost cell signal booster, and running a 60l ARB fridge.
So far I'm liking it, and about to swap out the old system in another vehicle for this same setup, with a few differences. The other vehicle has 2x100W solar panels and I'm going to try and add 2 LiFePo 100ah batteries to see how all that works. We have an extended 2 month road trip coming up this winter for a better test before we head out for another session of field work next spring.

If it fails I'll be back here whining, otherwise, consider it a decent system.
November 2024
