RICH SOLAR | MEGA 80 FLEX | 80 Watt CIGS Flexible Solar Panel | Premium 12V Flexible Panel for Vans, RVs, Boats | High Efficiency

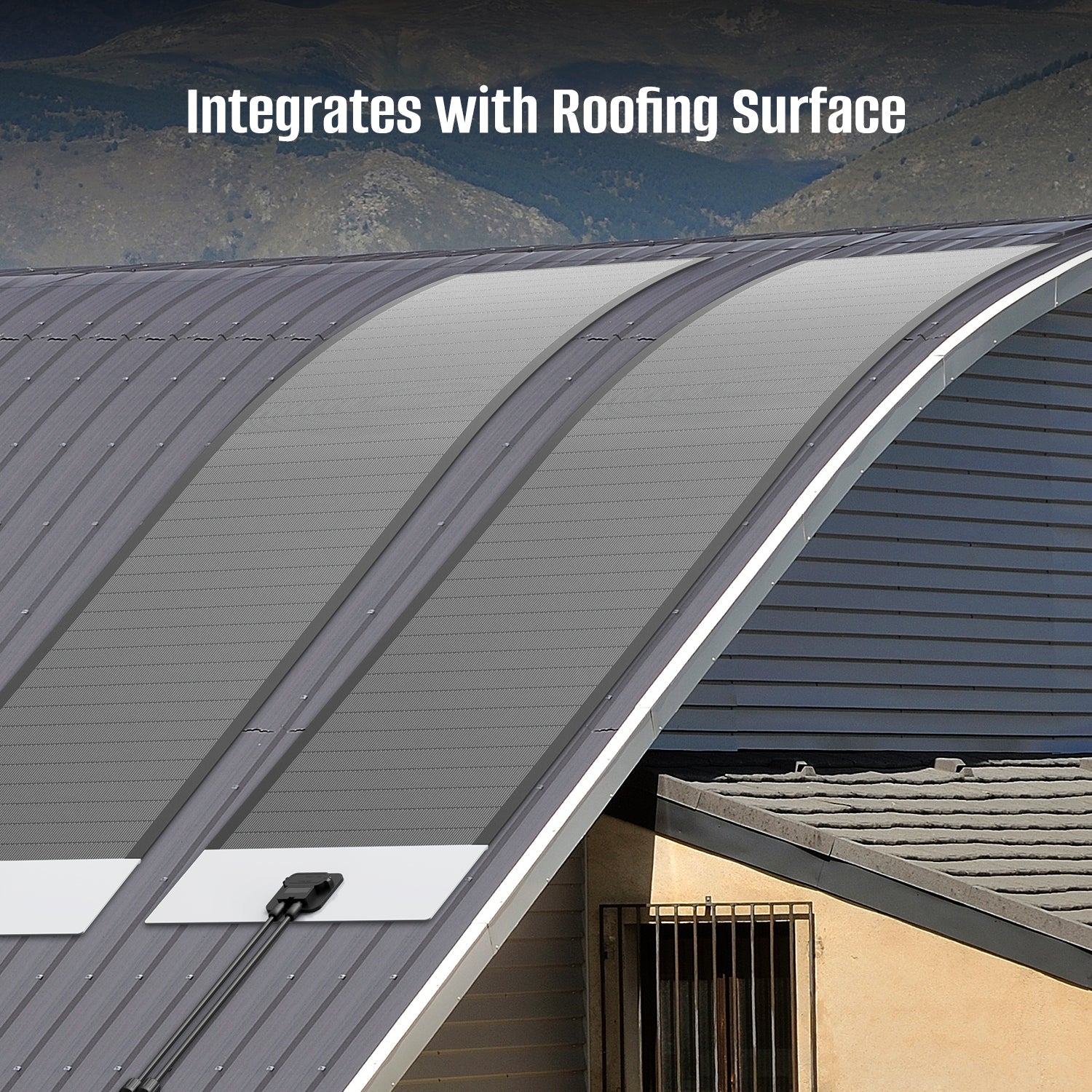

Integrates With Roofing Surface

• Easy to install with an adhesive mounting system
• No mounting hardware needed
• No roof penetration
• No wind load
• Low profile

Flexible Solar Panels

• Fits many roof types (Marine, RV, Vans, Residential, etc.)
• Conforms to the shape of your roof

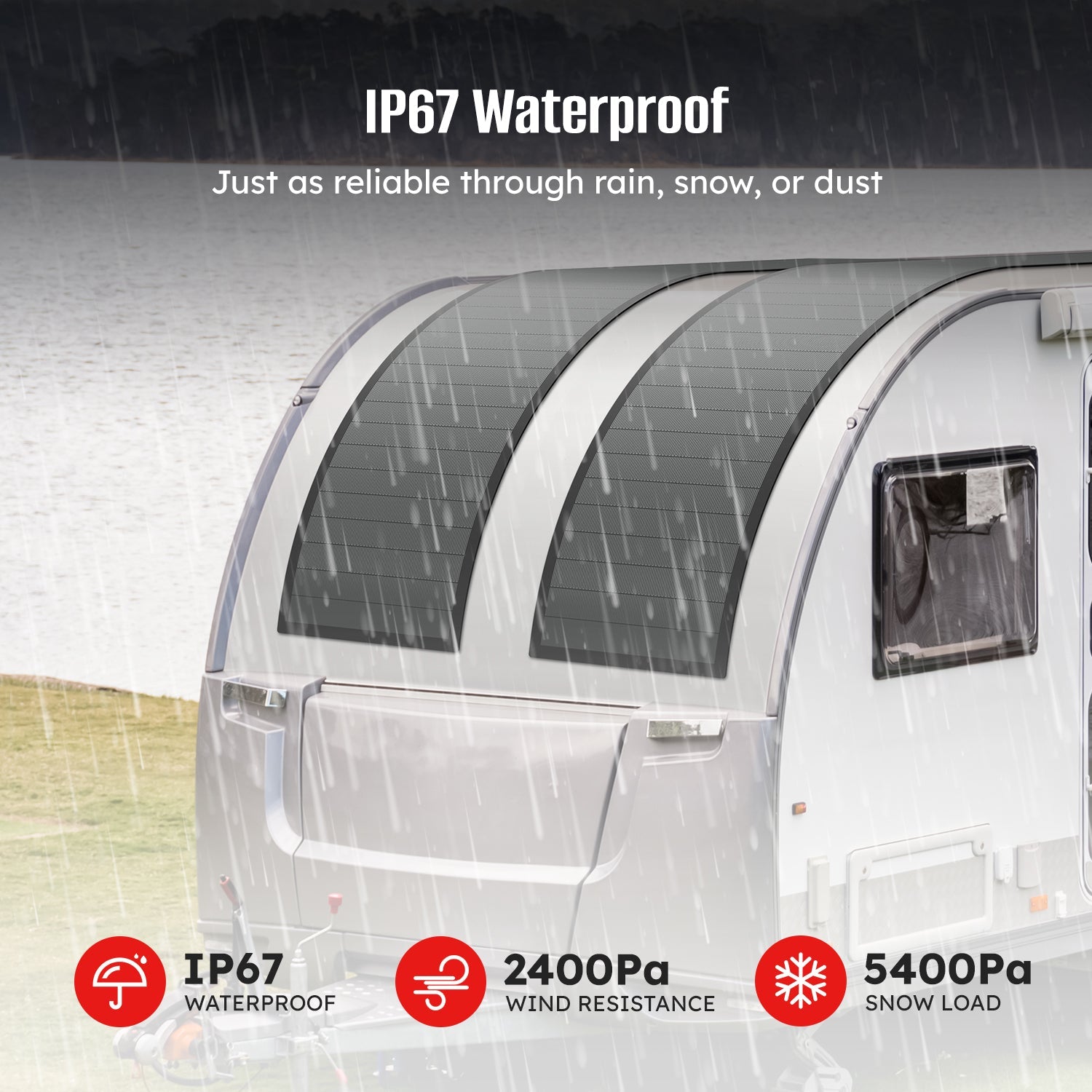

• Durable and weather-resistant


Adhesive Mounting System

• Special rooftop adhesive materials
• No screws needed
• Less wear and tear on your roof
• Theft-resistant

Lightweight System

• Flexible installation configurations
• Minimize roof stress

• Aerodynamic

High Efficiency

• CIGS Technology
• High absorption rate
• Performs in all light conditions
• Shade tolerant

Protection Tip

Built-in Components

• 80 Watt Flexible Solar Panel
• CIGS Cell technology
• Panel Leads (Pair): 12AWG, 2FT each
• IP67 Rated waterproof junction box
• IP67 Rated waterproof connectors

Specifications

• Maximum Power(Pmax): 80W
• Maximum Power Voltage(Vmp): 19.6V
• Maximum Power Current(Imp): 4.08A
• Open Circuit Voltage(Voc): 23.8V
• Short Circuit Current(Isc): 4.32A
• Maximum System Voltage(Vmax): 1000VDC
• Max Series Fuse Rating: 10A
• Weight: 3.8 lbs
• Dimensions: 67.3 x 13.8 in
