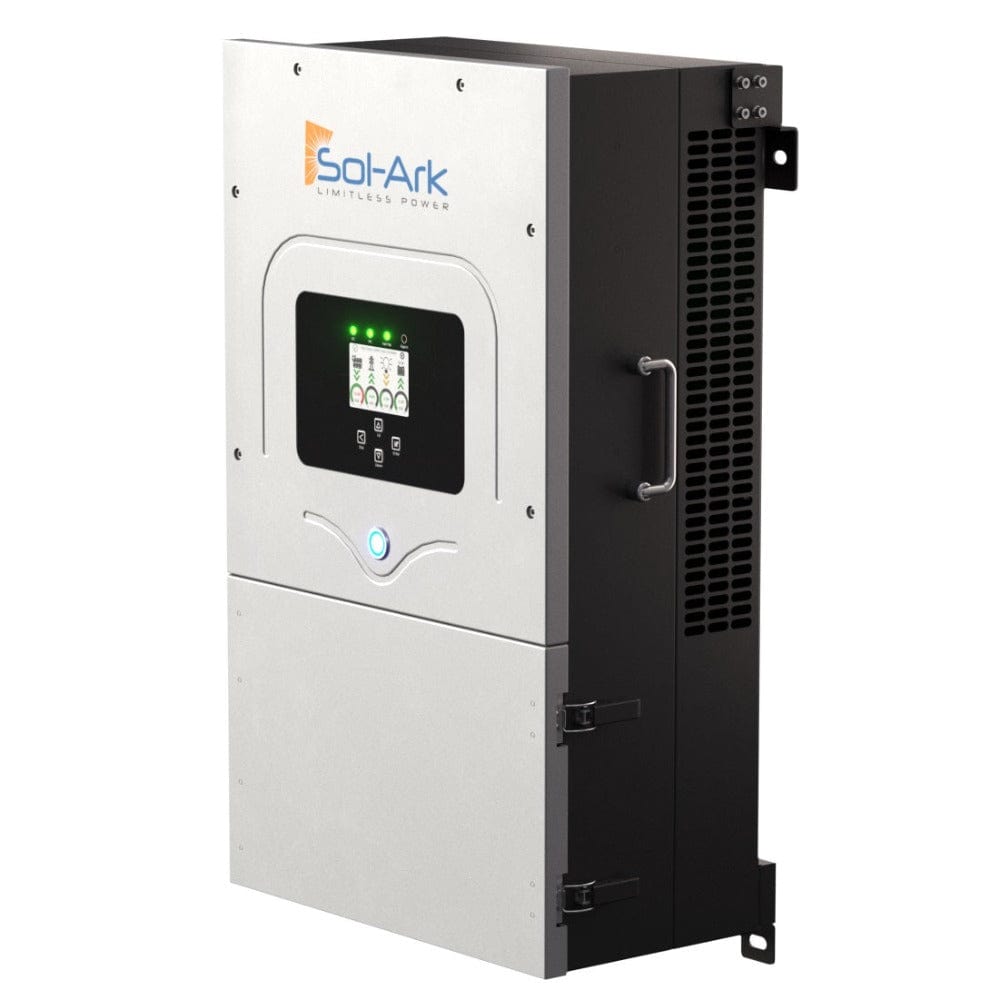

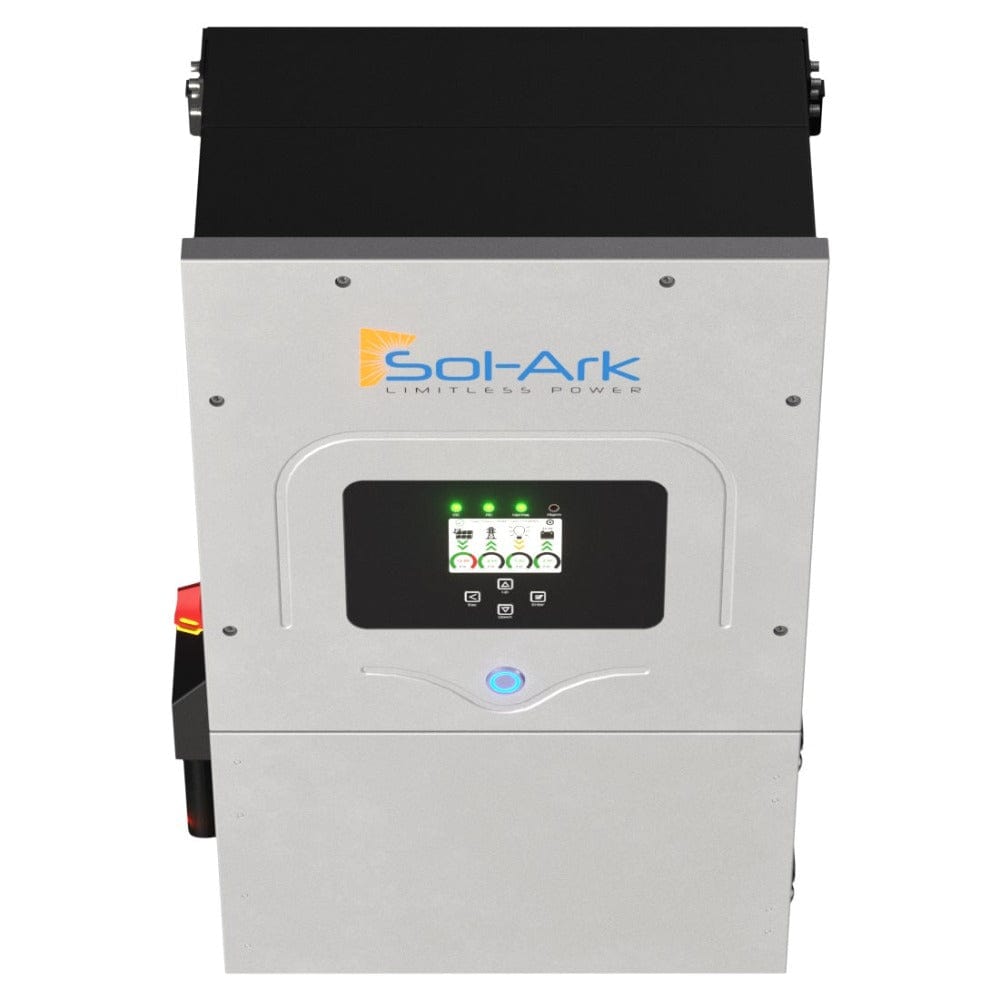

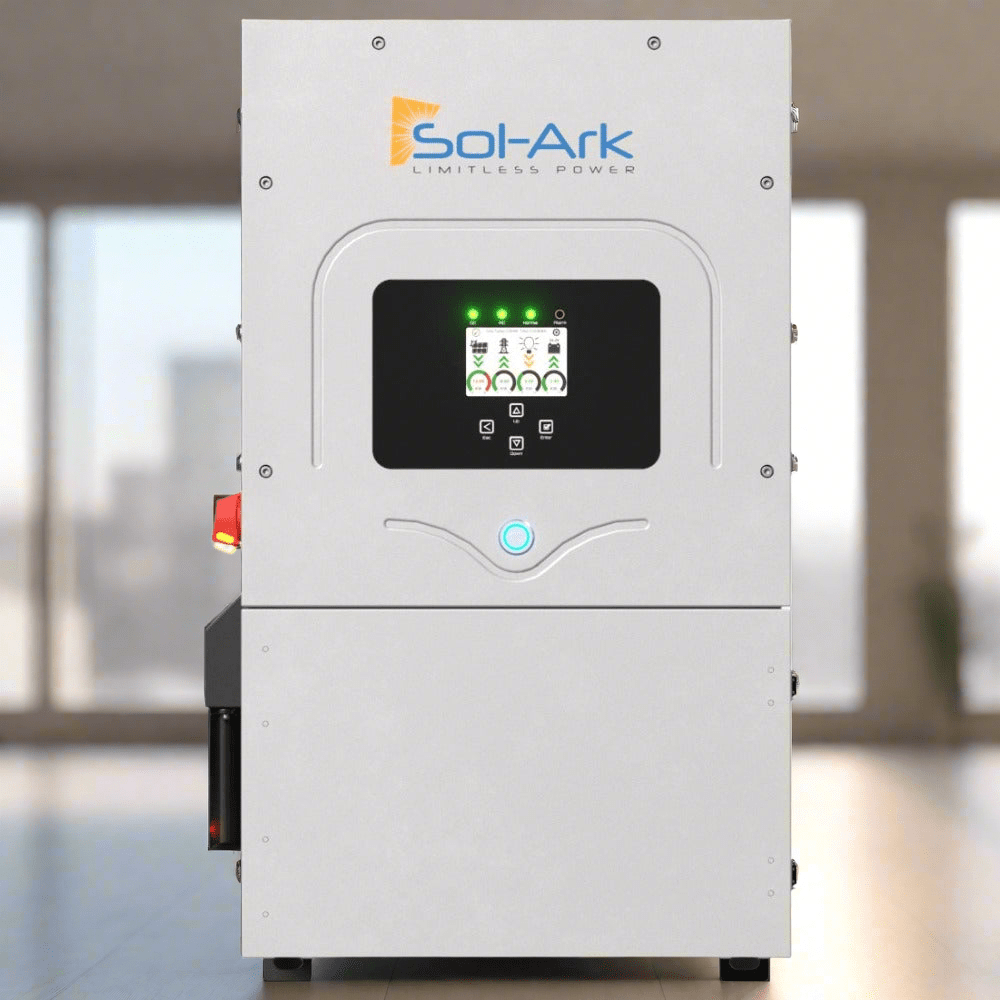

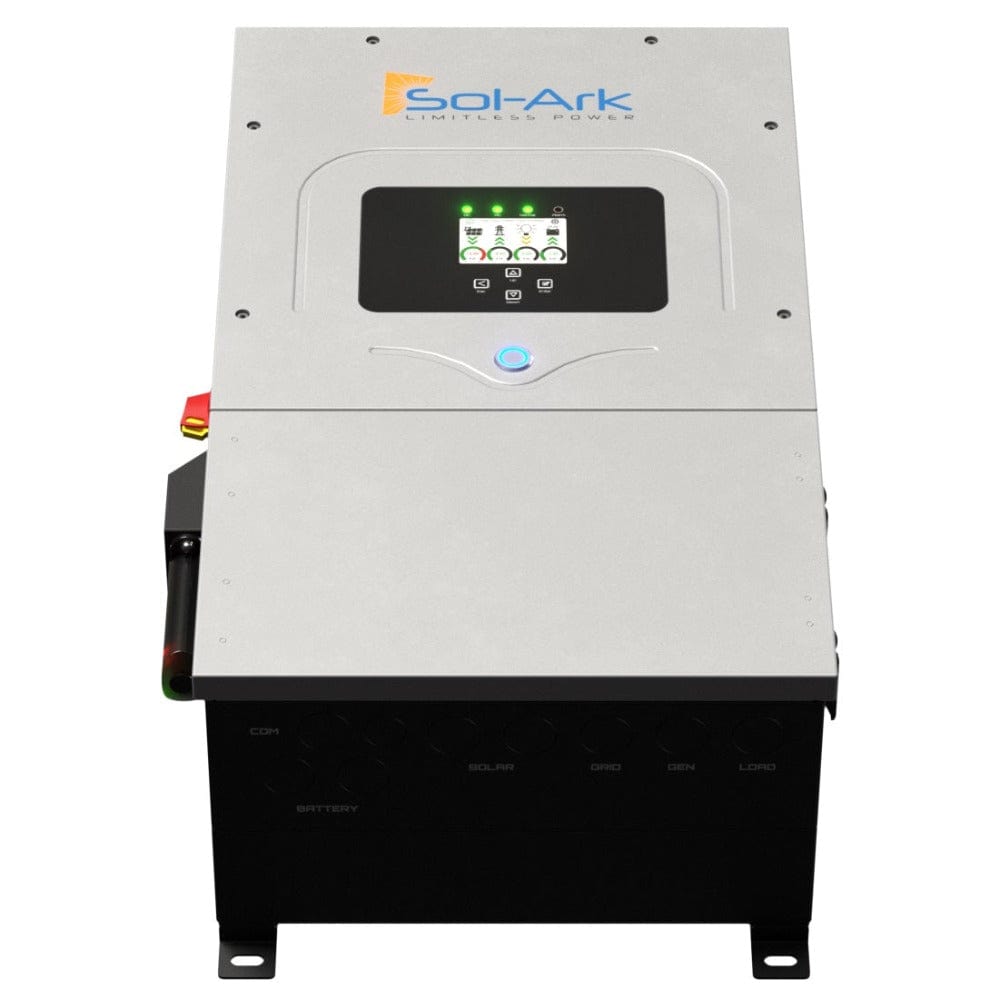

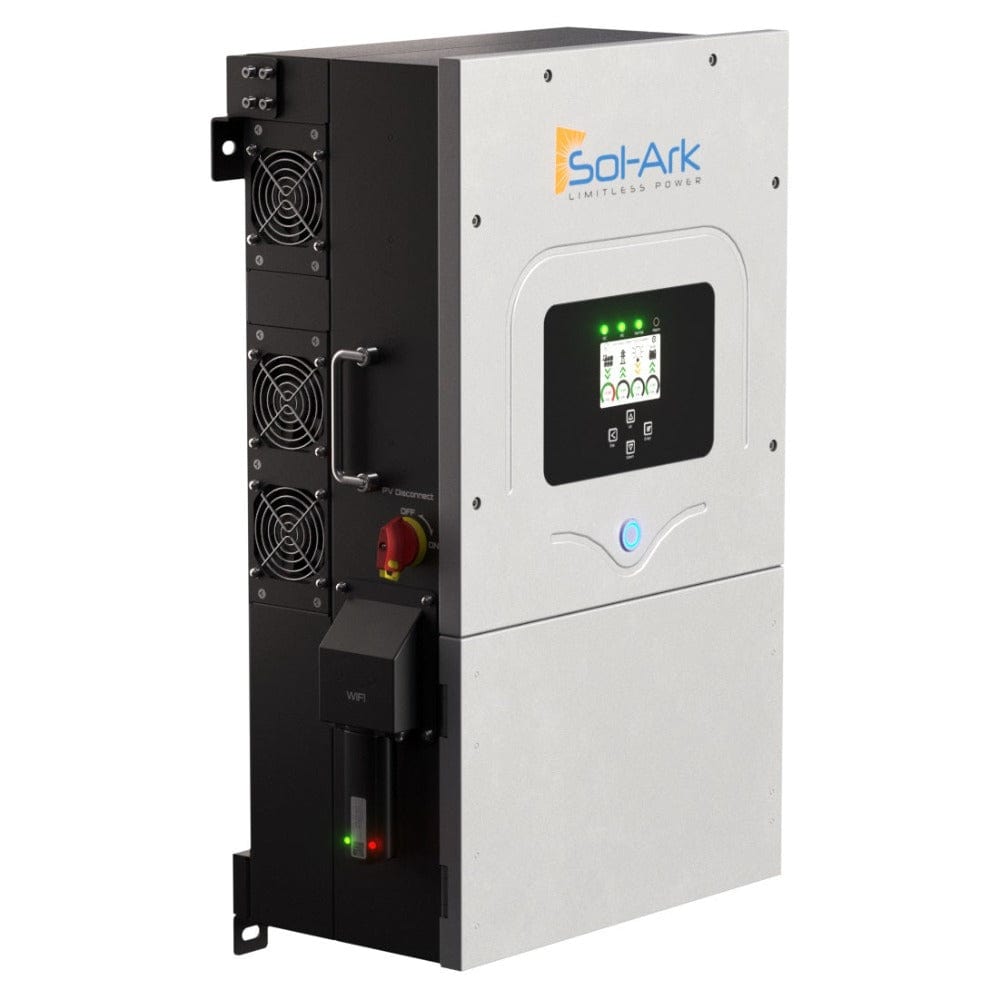

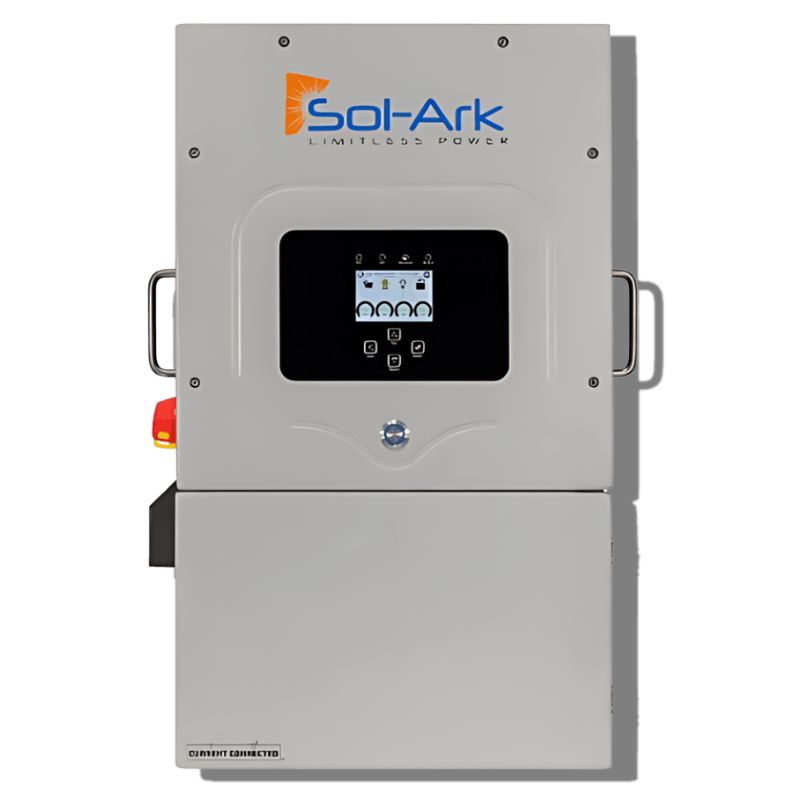

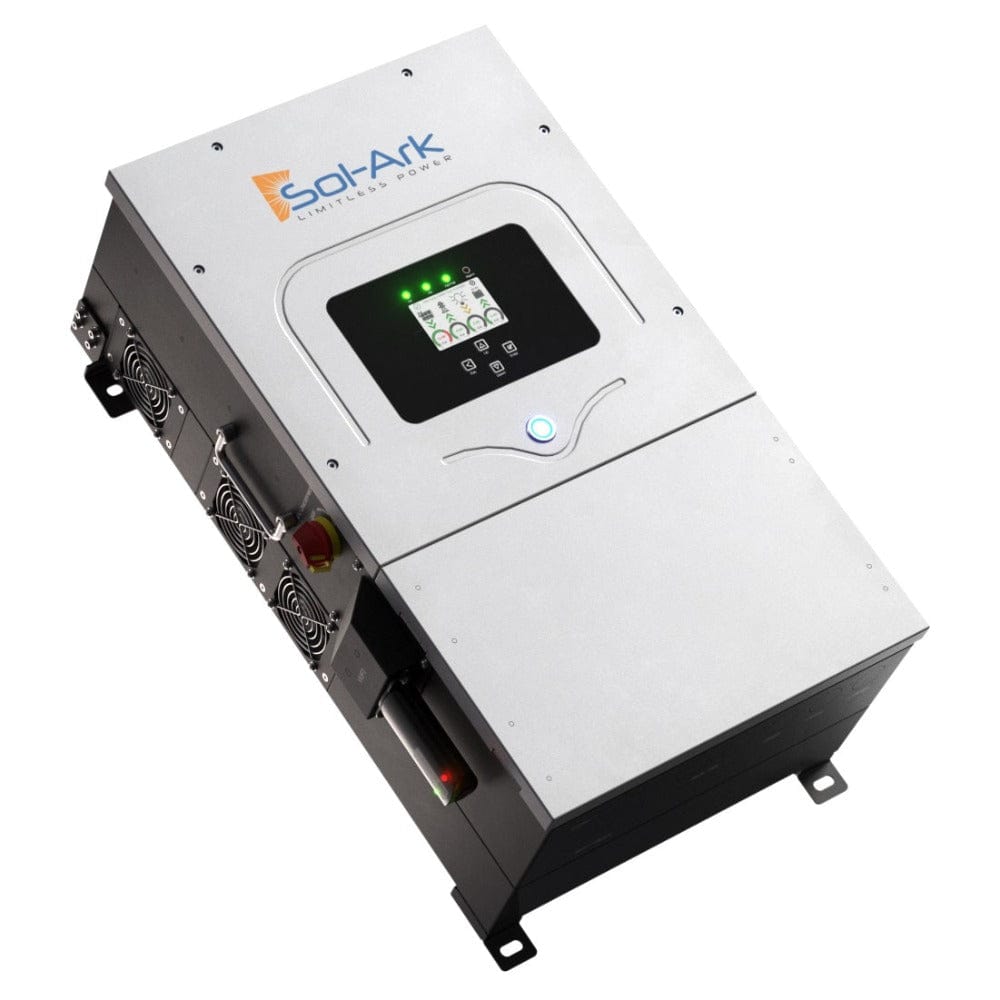

Sol-Ark 12K 120/240/208V 48V [All-In-One] Pre-Wired Hybrid Solar Inverter | 10 Year Warranty

Sol-Ark inverters also do not have expensive battery restrictions like other solar inverters do, and can be used with a wide variety of 48V battery chemistries, from lead to lithium.

SOL-ARK 12K-2P Hybrid Inverter Specifications

Input Data (PV)

• Max. Allowed PV Power (STC): 13,000W
• Rated MPPT Operating Voltage Range: 175 - 425V
• MPPT Voltage Range: 150 - 500V
• Startup Voltage: 125V
• Max. Input Voltage: 500V
• Max. Operating Input Current per MPPT: 20A (self-limiting)
• No. of MPP Trackers: 2
• No. of PV Strings per MPPT: 2
• Max. AC Coupled Input: 9,600W

Output Data (AC)

• Nominal AC Voltage: 120/240V, 120/208V, 220V
• Grid Frequency: 50 / 60Hz
• Real Power, max continuous: 9,000W
• Max. Output Current: 37.5A
• Peak Apparent Power (10s, off-grid): 16,000VA @ 240V
• Peak Apparent Power (100ms, off-grid): 25,000VA @ 240V
• Max Output Fault Current (100ms): 104A
• Max. Grid Passthrough Current: 63A
• Power Factor Output Range: +/- 0.9 adjustable
• Backup Transfer Time: 4ms
• CEC Efficiency: 96.5%
• Max Efficiency: 97.5%
• Design (DC to AC): Transformerless DC
• Stackable: Up to 9 in parallel

Battery Input Data (DC)

• Battery Technologies: Lithium / Lead Acid
• Nominal DC Voltage: 48V
• Operating Voltage Range: 43 - 63V
• Capacity: 50 — 9900Ah
• Max. Battery Charge / Discharge Current: 185A
• Charging Controller: 3-Stage with Equalization
• Grid to Battery Charging Efficiency: 96.0%
• External Battery Temperature Sensor (BTS): Included
• Automatic Generator Start (AGS): 2 Wire Start - Integrated
• BMS Communication: CANBus & RS485 MODBUS


General Data

• Dimensions (H x W x D): 750 x 450 x 254 mm (29.5 x 17.7 x 10 in)
• Weight: 35.4 kg / 78 lb.
• Enclosure: IP65 / NEMA 3R
• Ambient Temperature: -25~55°C, > 45°C Derating
• Noise: < 30 dB @ 25°C (77°F)
• Idle consumption: - No Load 60W
• Communication and Monitoring: Wi-Fi & LAN Hardware Included
• Standard Warranty: 10 Years


Protection and Certifications

• Certifications and Listings: UL1741-2010/2018, IEEE1547a 2003/2014, FCC 15 Class B, UL1741SB, CA Rule 21, HECO Rule 14H
• PV DC Disconnect Switch — NEC 240.15: Integrated
• Ground Fault Detection — NEC 690.5: Integrated
• PV Rapid Shutdown Control — NEC 690.12: Integrated
• PV Arc Fault Detection — NEC 690.11: Integrated
• PV Input Lightning Protection: Integrated
• PV String Input Reverse Polarity Protection: Integrated
• AC Output Breaker - 63A: Integrated
• 250A Battery Breaker / Disconnect: Integrated
• Surge Protection: DC Type II / AC Type II
