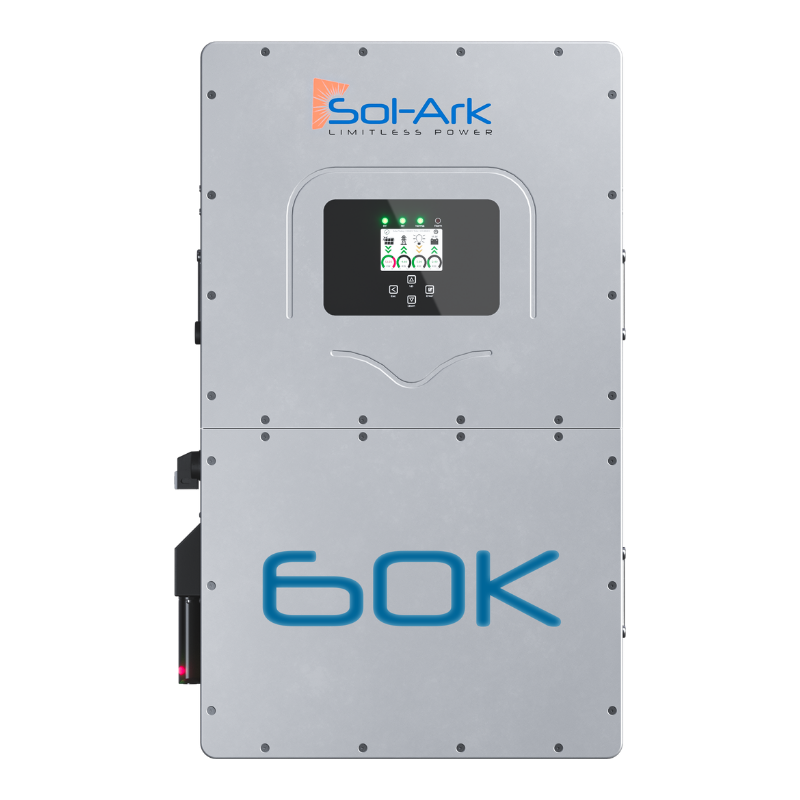

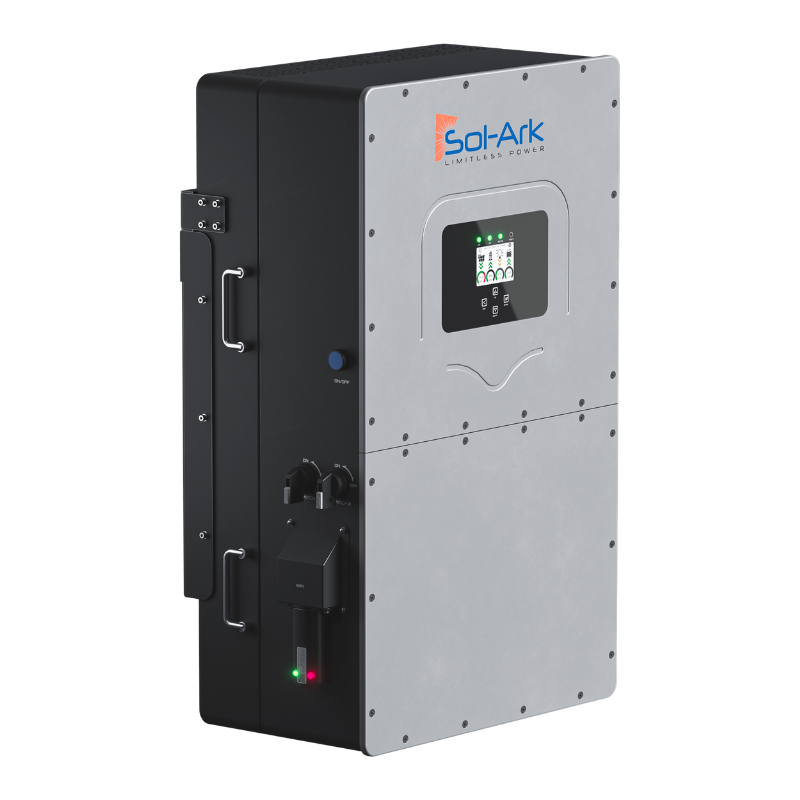

Sol-Ark 60K 3-Phase Hybrid Inverter

The Sol-Ark 60K 3-Phase Hybrid Inverter is a commercial-grade energy solution designed for large-scale applications, including industrial, commercial, and microgrid systems. With a robust 60kW power output, this inverter seamlessly integrates solar, battery storage, and the grid to deliver efficient energy management and backup power. Featuring advanced scalability, multi-unit stacking, and high efficiency, the Sol-Ark 60K ensures reliable performance for high-demand energy applications.

Sol-Ark 60K 3-Phase Hybrid Inverter Features

High-Power Output for Commercial Use

Delivers 60kW of continuous power, making it ideal for large-scale energy storage and industrial applications.

True 3-Phase Hybrid Functionality

Supports 120/208V and 277/480V 3-phase power, ensuring compatibility with commercial and industrial power systems.

Multi-Unit Stacking for Scalability

Stack up to 12 units to create a massive 720kW power system, providing flexibility for larger operations.

Peak Efficiency & Fast Transfer Time

Achieves an industry-leading 97.5% efficiency and features an ultra-fast <8ms transfer time for seamless power switching.

Multiple Battery & Energy Storage Options

Compatible with 48V, 240V, and high-voltage battery systems, allowing for diverse storage solutions.

Advanced Monitoring & Smart Controls

Remote monitoring and system control via the Sol-Ark web portal and mobile app, providing real-time energy management.

Sol-Ark 60K 3-Phase Hybrid Inverter Applications

Commercial & Industrial Facilities – Ideal for factories, data centers, warehouses, and corporate buildings requiring uninterrupted power supply.

Microgrids & Energy Independence – Supports large-scale microgrid installations, reducing dependency on the grid and optimizing renewable energy sources.

Solar-Plus-Storage Solutions – Seamlessly integrates with solar panels and battery storage to maximize energy efficiency.

EV Charging Stations – Powers large-scale EV charging infrastructures, ensuring high energy availability for fleet operations.

Emergency Backup for Large-Scale Operations – Delivers instant backup power for hospitals, government buildings, and critical infrastructure.

What's Included

Everything you need is included with your product.

Sol-Ark 60K 3-Phase Hybrid Inverter

User manual

SOL-ARK 60K-3P Hybrid Inverter Specifications

Input Data (PV)

Specification	Details
Max. Allowed PV Power (STC)	78,000W
MPPT Voltage Range	150 - 850V
Startup Voltage	180V
Max. Input Voltage	1,000V
Max. Operating Input Current per MPPT	36A
Max. Short Circuit Current per MPPT	55A
No. of MPP Trackers	4
No. of PV Strings per MPPT	2
Max. AC Coupled Input	60,000W

Output Data (AC)

Specification	Details
Nominal AC Voltage (3Φ)	277/480V
Grid Frequency	50 / 60Hz
Real Power, max continuous (3Φ)	60,000W
Max. Output Current	72.3A
Peak Apparent Power (10s, off-grid, 3Φ)	90,000VA
Max. Grid Passthrough Current (10min)	200A
Continuous Grid Passthrough Current	180A
Power Factor Output Range	+/- 0.8 adjustable
Backup Transfer Time	5ms (adjustable)
CEC Efficiency	96.5%
Max Efficiency	97.5%
Design (DC to AC)	Transformerless DC
Stackable	Up to 10 in parallel

Battery Input Data (DC)

Specification	Details
Battery Technologies	Lithium iron phosphate
No. of Battery Inputs	2
Battery Input Terminal Rating	50A
Nominal DC Voltage	≥600V
Operating Voltage Range	160 - 800V
Capacity	50 — 9900Ah
Max. Battery Charge / Discharge Current	100A (50A per input)
Charging Controller Type	3-Stage with Equalization
Grid to Battery Charging Efficiency	96.0%
Automatic Generator Start (AGS)	2 Wire Start - Integrated
BMS Communication	CANBus & RS485 MODBUS

General Data

Specification	Details
Dimensions (H x W x D)	894 x 528 x 295 mm (35.2 x 20.8 x 11.6 in)
Weight	80 Kg / 176 lb.
Enclosure	IP65 / NEMA 3R
Ambient Temperature	-25~55°C, > 45°C Derating
Noise	< 30 dB @ 25°C (77°F)
Idle consumption	- No Load 60W
Communication and Monitoring	Wi-Fi & LAN Hardware Included
Standard Warranty	10 Years (15 Years)

Protection and Certifications

Specification	Details
Certifications and Listings	UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP
PV DC Disconnect Switch — NEC 240.15	Integrated
Ground Fault Detection — NEC 690.5	Integrated
PV Rapid Shutdown Control — NEC 690.12	Integrated
PV Arc Fault Detection — NEC 690.11	Integrated
PV Input Lightning Protection	Integrated
PV String Input Reverse Polarity Protection	Integrated
Surge Protection	DC Type II / AC Type II

FAQs

Can the Sol-Ark 60K work without a battery?

Yes, it can function as a grid-tied inverter without a battery, feeding excess solar power to the grid.

What battery brands are compatible with the Sol-Ark 60K?

The inverter supports most 48V, 240V, and high-voltage battery systems, including brands like Fortress Power, SimpliPhi, and Blue Planet Energy.

How many inverters can be stacked together?

Up to 12 Sol-Ark 60K units can be stacked for a total system capacity of 720kW.

Can this inverter function as a microgrid?

Yes, it can be used for large-scale microgrid applications, supporting both grid-connected and fully off-grid systems.

Does it support EV charging?

Yes, it can power Level 2 and Level 3 EV charging stations, making it ideal for commercial EV infrastructure.

Is remote monitoring available?

Yes, the Sol-Ark 60K features web-based and mobile app monitoring, allowing users to track energy usage and system performance in real-time.
