Sungold Power 450 Watt Bifacial N-Type Monocrystalline Solar Panel SGN-450-BDG5 UL61730 CEC Listed
Capture more energy from every ray of sunlight with the Sungold Power 450 Watt Bifacial N-Type Monocrystalline Solar Panel SGN-450-BDG5. This dual-glass, high-efficiency module uses advanced N-type cells and bifacial technology to generate power from both the front and rear sides of the panel, boosting energy output while delivering industry-leading durability. With UL61730 certification and CEC listing, it is ideal for residential, commercial, and off-grid solar applications.
Sungold Power 450 Watt Bifacial N-Type Monocrystalline Solar Panel SGN-450-BDG5 UL61730 CEC Listed Features

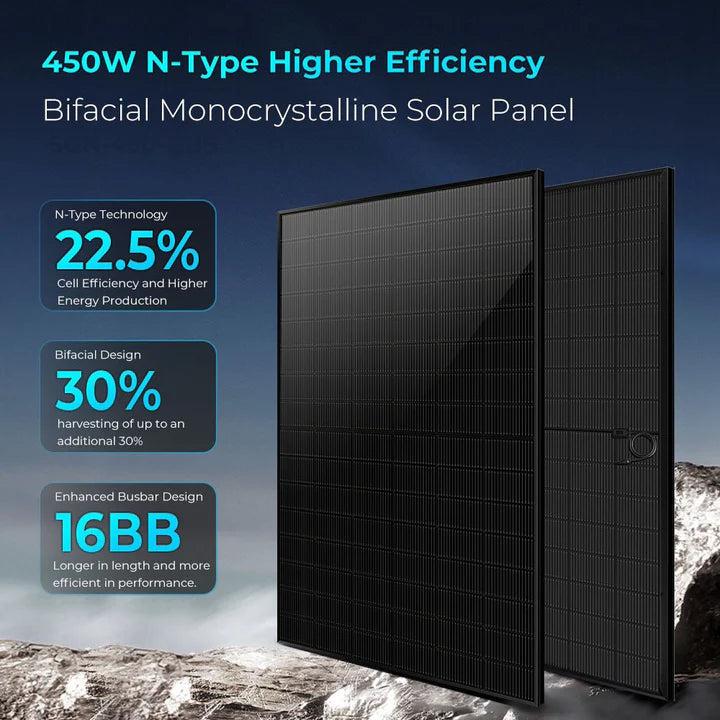

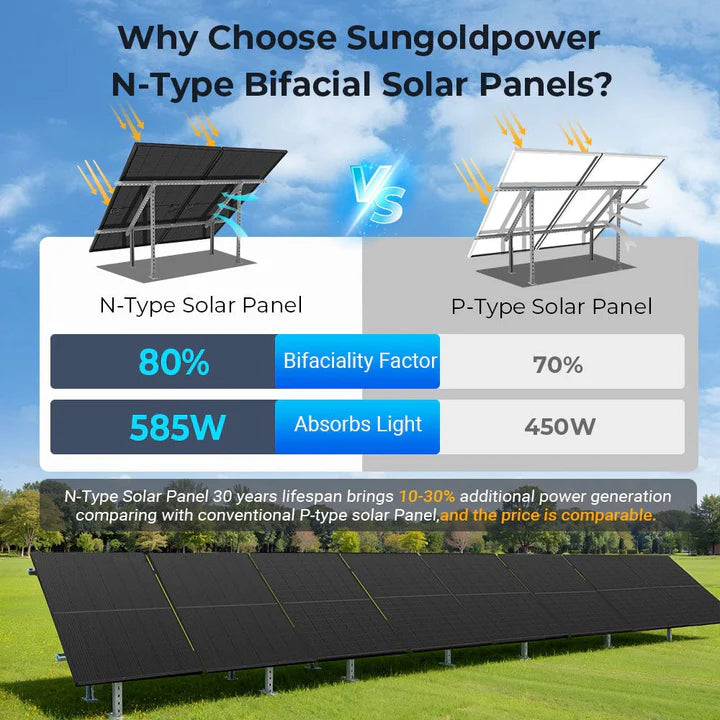

High bifacial output – Generates up to 30% additional rear-side energy under the right conditions.
Advanced N-type monocrystalline cells – Higher efficiency, low degradation, and greater long-term reliability.

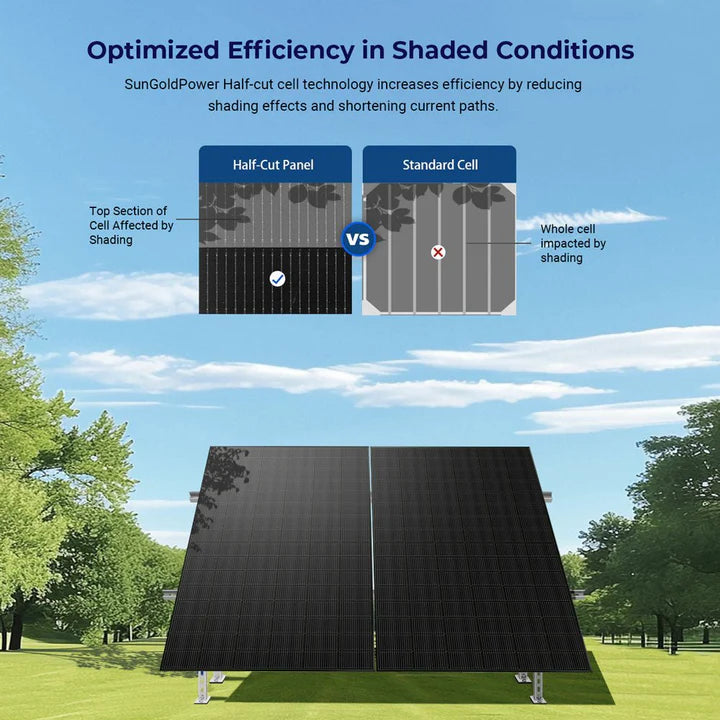

Exceptional low-light performance – Optimized for cloudy conditions, early mornings, and late afternoons.
Dual-glass durability – 2 mm tempered front glass + 2 mm heat-strengthened rear glass for maximum longevity.
High mechanical strength – Snow load tested to 5,400 Pa and wind load tested to 2,400 Pa.
Low temperature coefficients – Maintains higher real-world output during hot weather.
Long-term warranty protection – 12-year product warranty + 30-year linear performance warranty.
Sungold Power 450 Watt Bifacial N-Type Monocrystalline Solar Panel SGN-450-BDG5 UL61730 CEC Listed Applications
-
Residential rooftops – ideal for home grid-tied or hybrid solar systems to offset daily electricity usage.
-
Ground-mount arrays – great for open land or yard installations where optimal tilt and orientation are needed.
-
Off-grid systems – pairs well with battery banks and inverters for cabins, homesteads, and remote power setups.
-
Commercial and industrial sites – suitable for warehouses, offices, and facilities looking to reduce utility costs.
-
Carports and solar canopies – perfect for structures where both shade and additional energy production are desired.
-
RVs, tiny homes, and mobile setups – can be used on mobile platforms when properly mounted and wired to an appropriate charge controller and battery system.
What’s Included?
Warranty
Sungold Power 450 Watt Bifacial N-Type Monocrystalline Solar Panel SGN-450-BDG5 UL61730 CEC Listed Specifications
| Model Type |
SGN-450-BDG5 |
| Peak Power (Pmax) |
450W |
| Production tolerance |
±3% |
| Maximum Power Current (Imp) |
14.97A |
| Maximum Power Voltage (Vmp) |
30.08V |
| Short Circuit Current (Isc) |
16.05A |
| Open Circuit Voltage (Voc) |
35.03V |
| Maximum System Voltage |
1500V |
| Wind Resistance |
2400Pa |
| Output Cables |
12 AWG (1ft per cable) |
| Number of Cells |
96 cells |
| Cell Type |
N-type monocrystalline ( 7.17 X 8.27 inch） |
| Certifications |
UL61730 Certified by ETL,CEC Listed,ISO 9001, ISO 14001, ISO 45001 |
| Product Weight |
53.35 lbs |

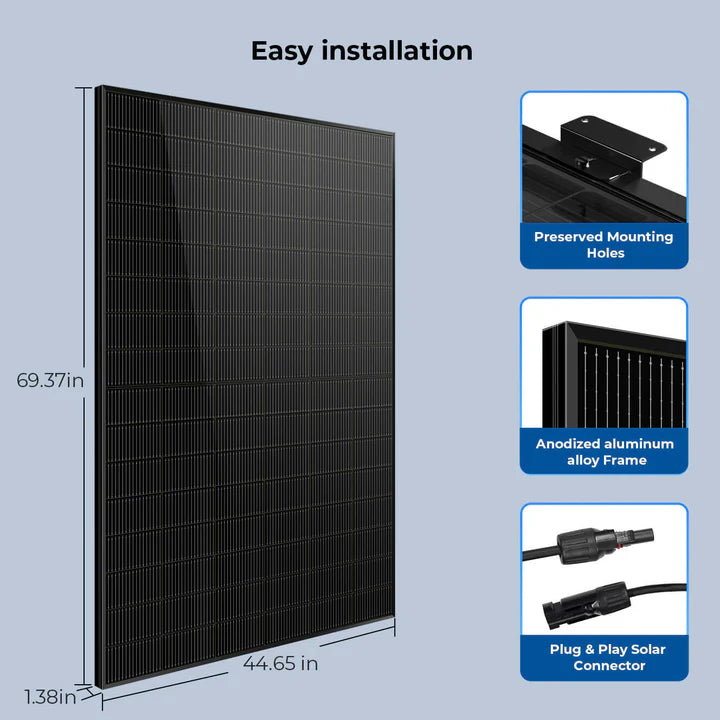

| Product Dimension |
69.37 x 44.65 x 1.38 inch |
| Package Weight |
120.8lbs（2PCS） |
| Package Dimension |
70.9*46.1*3.7inch（2PCS） |
| Warranty |
12 years material and workmanship warranty,30 years Linear power warranty |
Frequently Asked Questions
What does bifacial technology mean?
The panel produces energy from both the front and rear sides, increasing total energy generation—especially when installed over reflective surfaces.
Is this panel compatible with off-grid and hybrid systems?
Yes. Its voltage and current ratings are suitable for most MPPT charge controllers and hybrid inverters when panels are wired according to manufacturer specifications.
Does bifacial performance require special mounting?
Open-back racking that allows sunlight to reach the rear side will improve bifacial gain. Avoid shading or blocking the rear glass.
Is professional installation recommended?
Yes. High-voltage solar equipment must be installed by a qualified professional for safety and code compliance.
