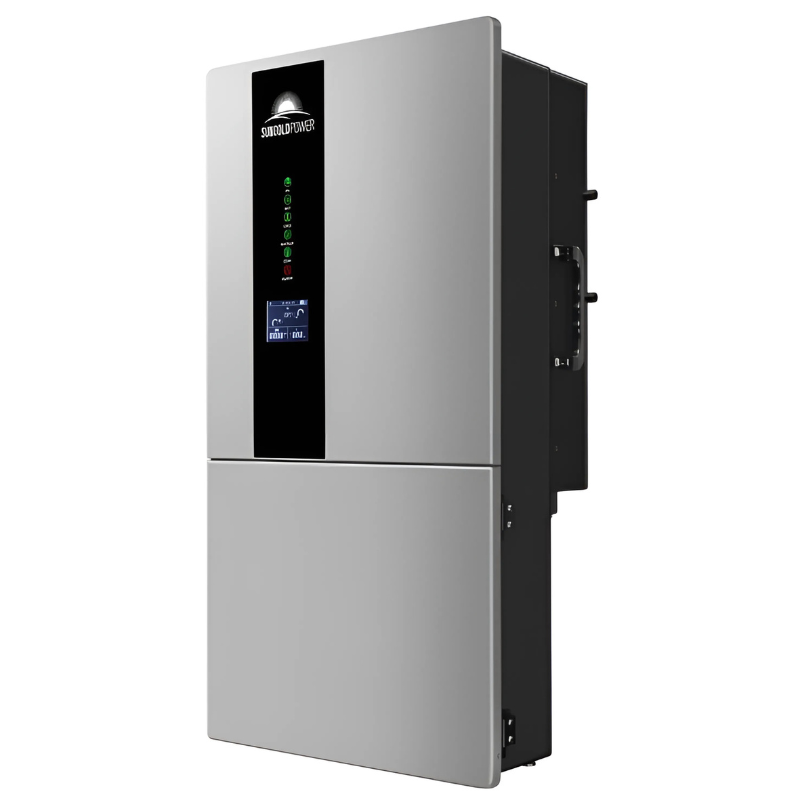

Sungold Power 7.6KW Hybrid Inverter 48V Split Phase (SGN7.6K1HB-48)

The Sungold Power SGN7.6K1HB-48 is a 7.6KW hybrid inverter designed for 48V battery systems and split-phase 120/240V power output. It seamlessly integrates solar, grid, and battery power, offering smart energy management for off-grid, grid-tied, or hybrid systems. With WiFi monitoring, MPPT solar charging, and intelligent load prioritization, this inverter delivers robust performance for home, cabin, or commercial energy systems.

Placeholder Image

Sungold Power 7.6KW Hybrid Inverter Features

7.6KW Pure Sine Wave Output

Delivers stable and clean 120/240V split-phase power, ideal for sensitive appliances and heavy loads.

Smart Hybrid System

Combines solar, grid, and battery inputs with automatic switching for optimized energy use.

High PV Input Capacity

Supports up to 500V DC and 6,000W solar input, making it perfect for high-efficiency solar arrays.

Integrated MPPT Controller

Built-in Maximum Power Point Tracking (MPPT) ensures optimal solar energy harvest.

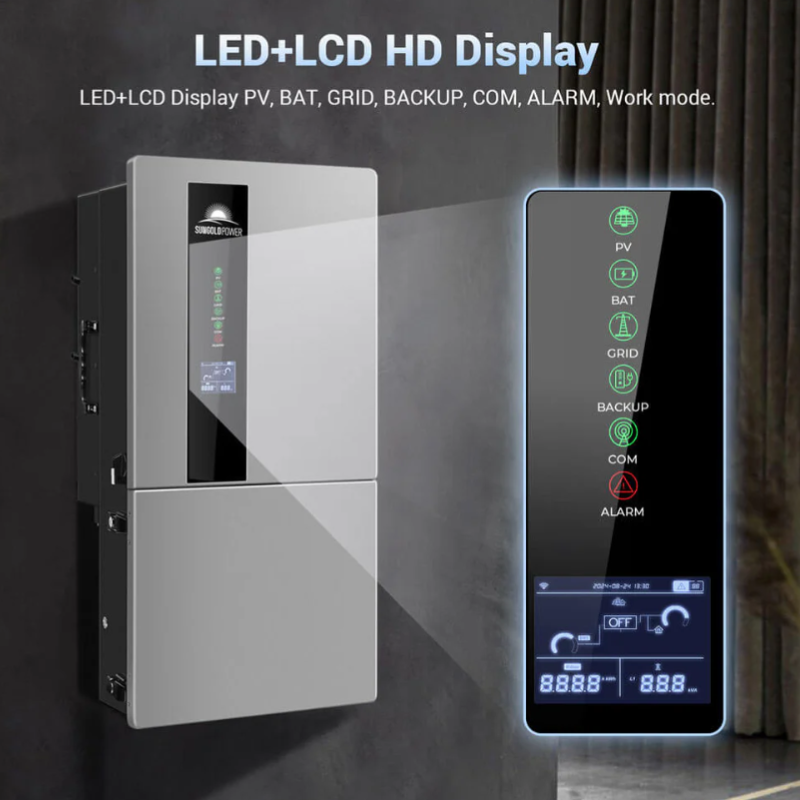

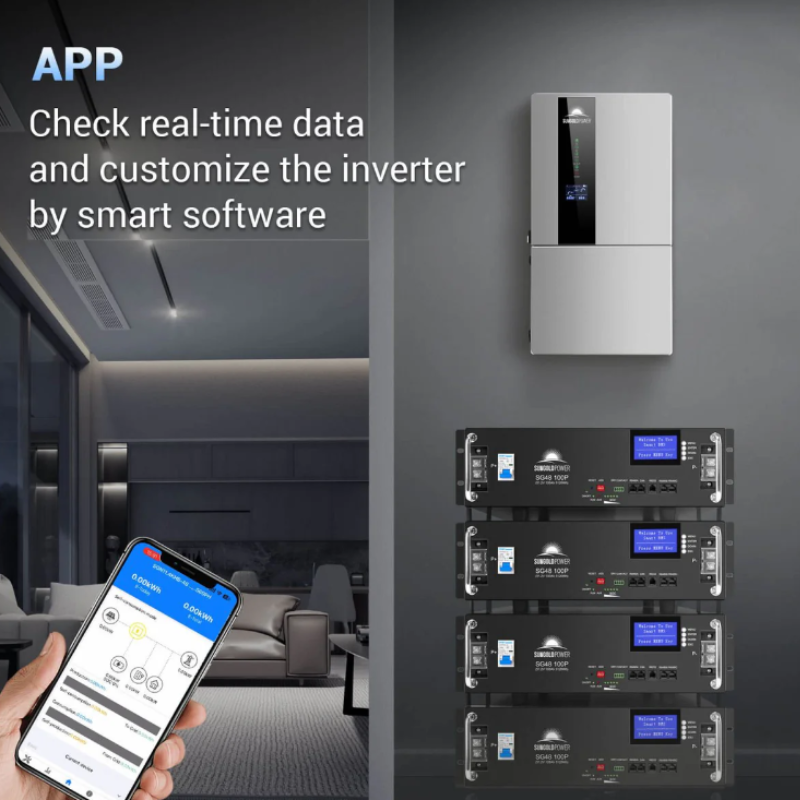

WiFi Monitoring & Remote Access

Monitor performance, battery status, and system behavior in real-time from your phone or browser.

48V Battery Compatibility

Works with 48V lithium, AGM, or lead-acid batteries, offering flexible energy storage options.

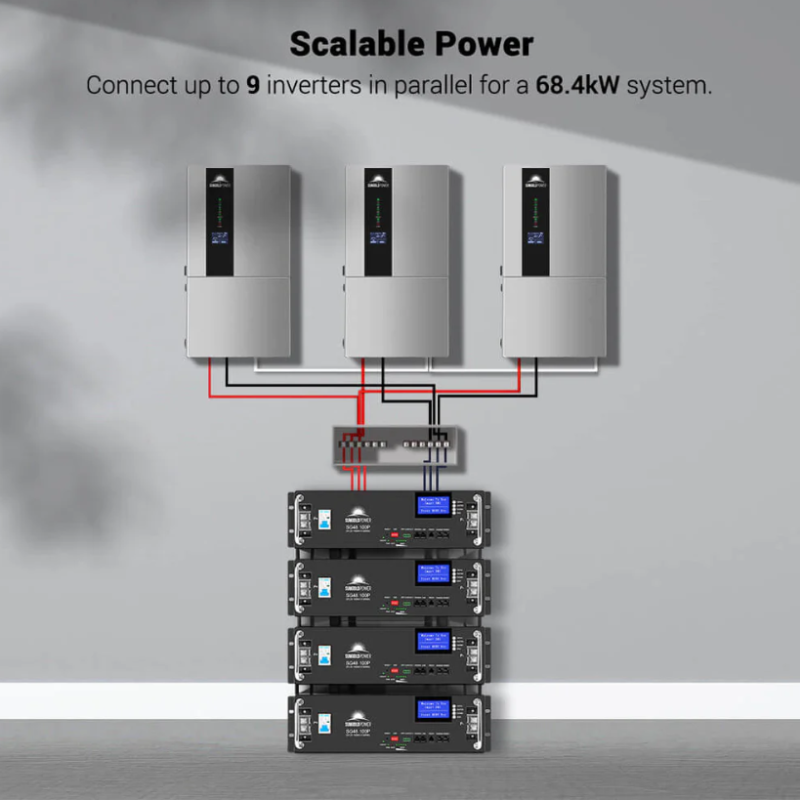

Parallel-Capable Design

Connect multiple units for expanded system capacity (check model specs for limits).

Placeholder Image

Sungold Power 7.6KW Hybrid Inverter Applications

  • Off-grid solar homes or cabins – Reliable energy source for remote locations
  • Hybrid grid-tied systems – Reduces utility reliance and supports backup power
  • Battery backup systems – Keeps your essentials running during outages
  • Solar + storage installations – Ideal for scalable residential or commercial energy systems
  • Workshops or barns – Powers tools and lights with grid or solar
Placeholder Image
Placeholder Image
Placeholder Image

What's Included

Everything you need is included with your product.

  • Sungold Power SGN7.6K1HB-48 Hybrid Inverter
  • User Manual
Placeholder Image
Placeholder Image

Sungold Power 7.6KW Hybrid Inverter Specifications

Input (PV)

Category Specification
Max. PV Input Power 12,000 W
Max. PV Voltage 600 V
Start-up Voltage 90 V
MPPT Operating Voltage 70 V to 540 V
Max. Input Current/MPPT 30 A / 22 A / 22 A
Nos. of MPPT 3

Input/Output (BAT)

Category Specification
Compatible Battery Type Lithium-ion / Lead-acid
Battery Voltage Range 40 V to 64 V
Max. Charge/Discharge Current 210 A / 180 A
Max. Charge/Discharge Power 10,000 W / 7,600 W

Output (Grid)

Category Specification
Max. AC Output Power (PF=1) 7,600 W
Nominal AC Output Current 31.7 A
Max. AC Output Current 31.7 A
Nominal Grid Voltage 120/240 V (Split phase) / 208 V (2/3 phase) V AC
Nominal Grid Frequency 50/60 Hz
Power Factor >0.99 @ rated power (Adjustable 0.8LD~0.8LG)

Output (Back up)

Category Specification
Max. AC Output Power (PF=1) 7,600 W
Nominal Output Current 31.7 A
Peak Power 15,200 VA
Nominal Output Voltage 120/240 V (Split phase) / 208 V (2/3 phase) V AC
Nominal Output Frequency 50 Hz / 60 Hz
Transfer Time <10 ms (typical)
THDV <3% @100% R Load

Protection

Category Specification
Protection Category Class I
AC Overcurrent Protection Yes
DC/AC Overvoltage Protection DC Type II, AC Type III
AC Short Circuit Protection Yes
DC Reverse Protection Yes
Surge Arrester DC Type II, AC Type III
RSD Yes

General

Category Specification
Ingress Protection Degree IP65 / NEMA 3R
Operating Temperature Range -25 ~ 60°C (>45°C derating)

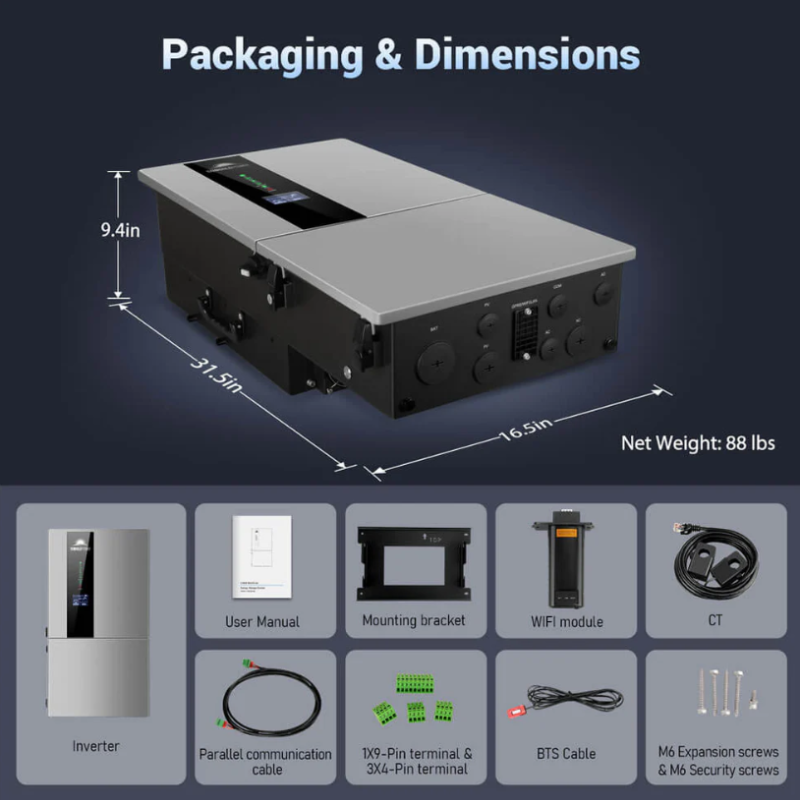

Dimensions (WHD) 16.5 * 31.5 * 9.4 inch (420 * 800 * 240 mm)
Weight 88 lb / 40 kg

HMI & COM

Category Specification
Display Wireless & APP + LED + LCD (optional)
Communication Interface RS485 / CAN (for BMS), DRM / RS485 (for meter), RS485, Optional: Wi-Fi / LAN

Certification

Category Specification
Compliance UL 1741 / CSA C22.2 / UL 1699B, UL 1741SB, IEEE 1547:2018, HECO SRD 2.0, FCC Part 15 Class B
Warranty 5 Years

Sungold Power 7.6KW Hybrid Inverter Video

Frequently-Asked Questions

Can this inverter work off-grid?

Yes! It is designed for full off-grid operation, as well as grid-tied or hybrid systems.

Does it work with lithium batteries?

Absolutely. It supports 48V lithium, lead-acid, and AGM batteries.

How do I monitor the system?

The inverter comes with WiFi functionality for remote performance tracking and system control.

Is it hard to install?

While DIY-capable, we recommend professional installation to ensure compliance and safety.

Can I expand this system later?

Yes, it supports parallel operation, allowing you to scale up your system as needed.
