Sungold Power Off-Grid Solar Kit 12 X 415 WATTS SOLAR PANELS 2 X 10.24KWH LITHIUM BATTERY 8000W SOLAR INVERTER 48VDC 120V/240V | SGM-8K20T
Estimated Delivery Between
and .
Order within to get it by the earliest date.
Free Shipping In The USA | Call Us: 877-556-3347
Free Shipping In The USA | Call Us: 877-556-3347
Share it with us now and we will beat it. Get the best deal online, guaranteed!
and .
Order within to get it by the earliest date.
Build Your Perfect Off-Grid Rig With Our System Calculator

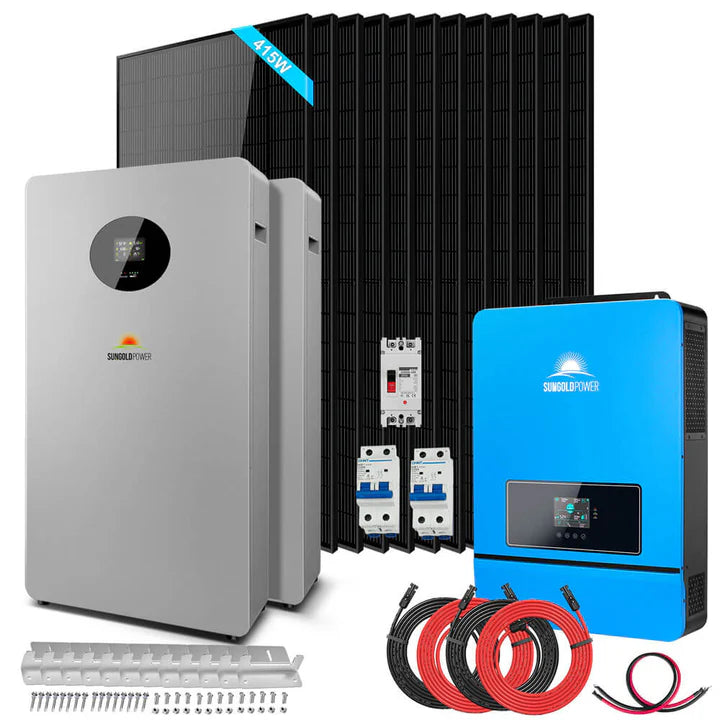

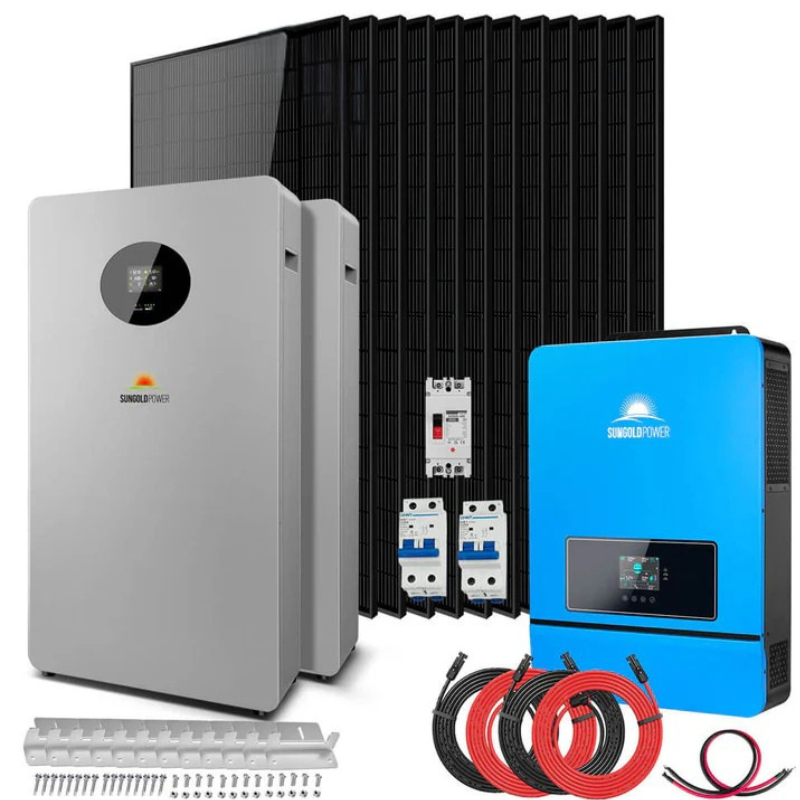

Visit CalculatorThe SunGold Power Off-Grid Solar Kit is a complete renewable energy solution engineered for off-grid homes, cabins, workshops, farms, and backup power applications. Combining 12 high-efficiency 415W monocrystalline solar panels, 20.48kWh of LiFePO4 lithium battery storage, and an 8,000W split-phase pure sine wave inverter, this system provides dependable power generation and long-lasting energy storage for demanding residential and light commercial applications. Designed to support both 120V and 240V loads, the kit offers reliable performance, system expandability, and energy independence wherever utility power is unavailable or unreliable.


Everything you need is included with your product.

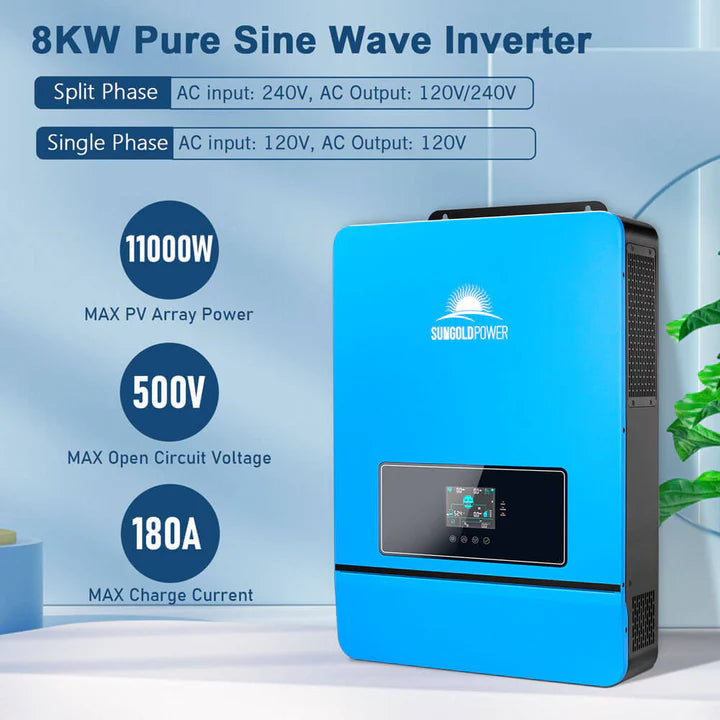

| Specification | Details |
| AC Output | 8000W with Parallel Function |
| Output Waveform | Pure Sine Wave |
| AC Output | 120/240V(split phase/single phase) |
| Parallel Function | Up to 6 units Parallel |
| MPPT operating voltage range | 125 Vdc-425 Vdc |
| Efficiency | 92% |
| Max Charging Current | 180A |
| Maximum PV Array Power | 11,000W |
| Dimension | 25.6 X 17.7 X 5.1 inch |
| Weight | 53.5lb |
| Warranty | 3 Years |
| Certificates | UL1741 Listed By ETL |

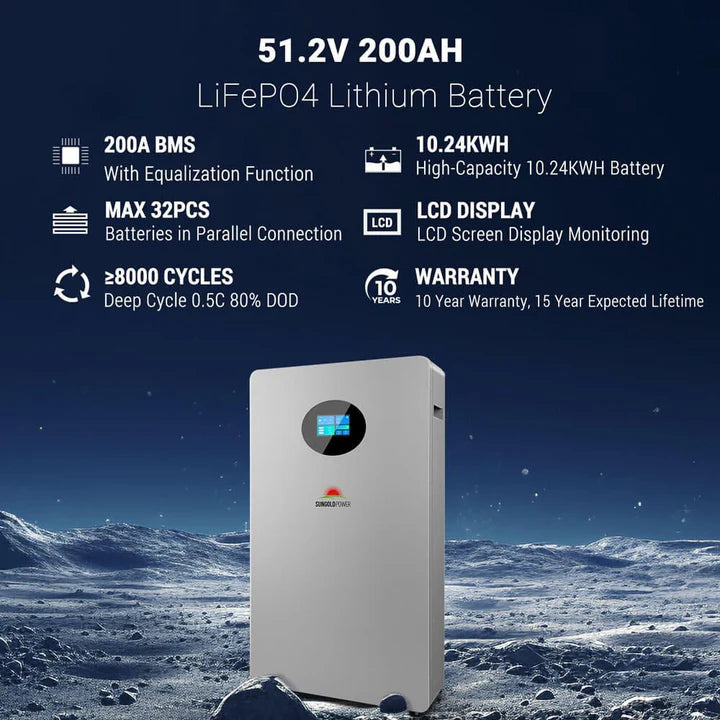

| Specification | Details |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200AH |
| Energy | 10.24KWH |
| Standard charge/discharge current | 100A |
| Maximum Charge Current | 140A |
| Maximum Cut-off Voltage for Charging | 57.6V |
| Disharge cut-off voltage | 44.8V |
| Cycle Life | 5000 Cycles |
| Communication | RS485/CAN |
| Storage Temperature | 14℉ to 122℉ |
| Warranty | 10 Years |

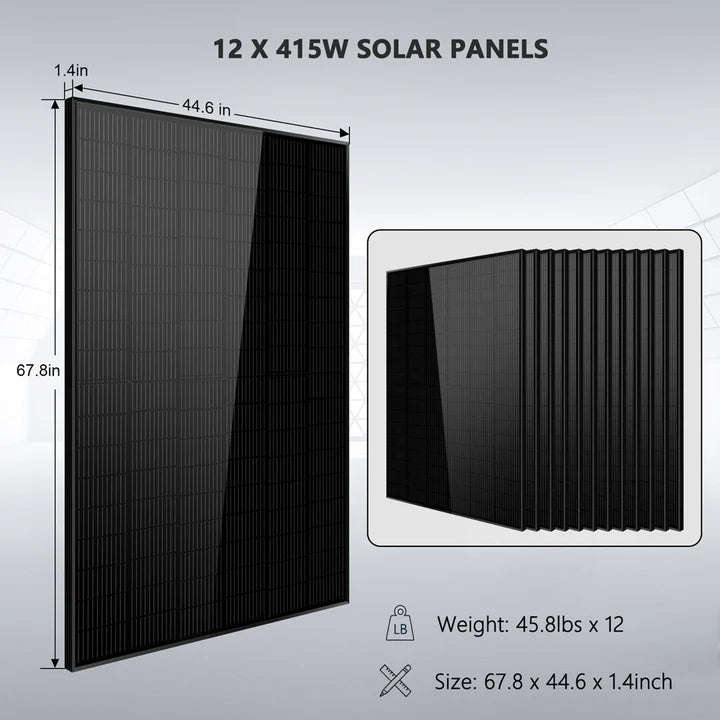

| Specification | Details |
| Peak Power | 415W |
| Solar Cell | Monocrystalline |
| Product Tolerance | ±3% |
| Maximum Power Current (IMP) | 13.34A |
| Maximum Power Voltage (VMP) | 31.11V |
| Short Circuit Current(ISC) | 14.09A |
| Open Circuit Voltage(VOC) | 38.32V |
| Product Dimension | 67.8 * 44.6 * 1.4inch |
| Product Weight | 48.06lbs |
| Material and workmanship warranty | 12 Years |
| Performance Warranty | 25 Years |
| Certificates | UL61730, CEC Listed··· |
| Specification | Details |
| Max Continuous Output | 8000W |
| AC Output | 120V/240V |
| DC Voltage | 48V |
| Max Solar Input | 11,000W |
| Total Watt of Panels | 4980W |
| Per Panel Watt | 415W |
| Panel NO. | 12pcs |
| Total KWH of Batteries | 20.48KWH |
| Chemistry | Lithium |
| Battery NO. | 4pcs |
| Battery Spec | 48V 100AH |

How much energy can this system generate daily?
Under ideal conditions with approximately 4 to 5 peak sun hours per day, the 4.98kW solar array can generate roughly 20–25kWh of energy daily. Actual production will vary depending on weather, location, shading, and installation angle.
How long will the 20.48kWh battery bank last?
Runtime depends on total energy consumption. Essential household loads such as refrigeration, lighting, internet equipment, and electronics can often be powered for a full day or longer before recharging is required.
Can this system power 240V appliances?
Yes. The included 8000W split-phase inverter supports both 120V and 240V appliances, making it suitable for well pumps, HVAC systems, workshop equipment, and other high-demand loads.
Is the battery system expandable?
Yes. The system supports battery expansion, allowing users to increase storage capacity as energy requirements grow.
Is LiFePO4 battery technology safe?
Yes. Lithium Iron Phosphate (LiFePO4) batteries are recognized as one of the safest lithium battery chemistries available, offering excellent thermal stability, long service life, and low maintenance.
Is this system suitable for full-time off-grid living?
Yes. With nearly 5kW of solar generation and over 20kWh of battery storage, this system is well-suited for many full-time off-grid homes when properly matched to energy consumption requirements.
