Sungold Power 10KW 48V Split Phase Solar Inverter (ETA: Late June) Hybrid Inverters SunGoldPower

Sungold Power 10KW 48V Split Phase Solar Inverter

Sungold Power 10KW 48V Split Phase Solar Inverter

Name: Sungold Power 10KW 48V Split Phase Solar Inverter
Brand: SunGoldPower
SKU: SPH10048P
Price: 1690.0 USD
Availability: InStock
Rating: 5.0 (4 reviews)

BY: SunGoldPower

SKU: SPH10048P

| Availability: In stock

$1,980.00

$1,690.00

You Save: $290.00

Found A Better Price?

Share it with us now and we will beat it. Get the best deal online, guaranteed!

Live Chat With an Expert

Estimated Delivery Between

and .

Order within to get it by the earliest date.

Order within

to get it by the earliest date.

Authorized SunGoldPower Dealer

Free & Fast Shipping From US Warehouses

Easy 30-Day Returns & Price Beat Guarantee

Lifetime Expert Support

SunGold Power 10KW 48V Split Phase Solar Inverter

The SunGold Power 10KW 48V Split Phase Solar Inverter is a robust and high-performance inverter designed for off-grid and hybrid solar power systems. This UL 1741 certified inverter ensures safe and efficient power conversion for homes, businesses, and industrial setups. With support for up to 6 parallel units, it provides flexible scalability, allowing for power expansion as needed. Its dual MPPT solar controller, Wi-Fi monitoring, and intelligent battery management make it an advanced choice for solar energy users.

SunGold Power 10KW 48V Split Phase Solar Inverter Features

High Power Output & Efficiency

10,000W pure sine wave inverter for stable, high-quality power.
Split-phase output (120V/240V) supports both residential and commercial loads.
Max 11,000W PV input & 500V max input voltage for optimal solar energy usage.

Advanced Solar Charging Capabilities

Dual MPPT solar charge controller with 99.9% tracking efficiency.
Supports two independent solar inputs, maximizing energy harvest.
4 charging modes: Solar-only, PV priority, Utility priority, Hybrid charging.

Smart Energy Management & Efficiency

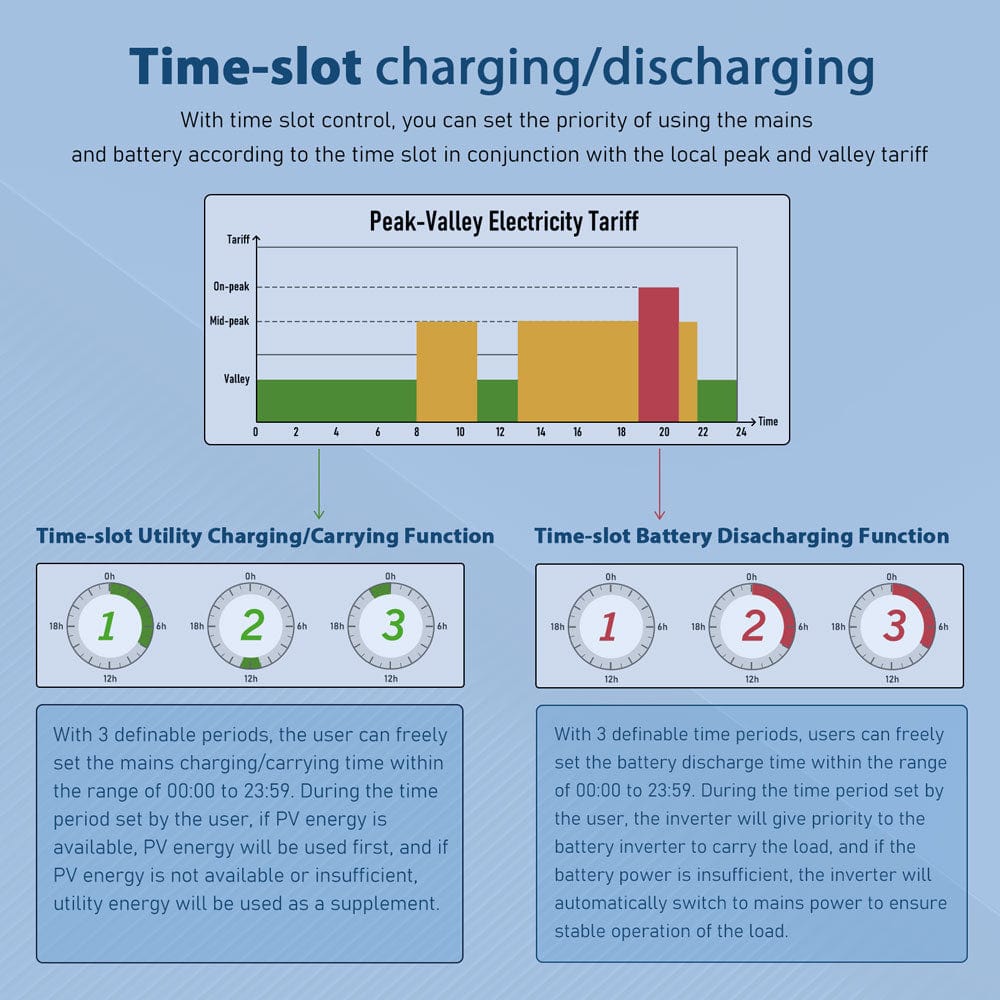

Time-slot charging/discharging optimizes energy use and cost savings.
Energy-saving mode reduces no-load power loss.
Automatic mains/photovoltaic power switching for seamless operation.

Parallel Capability & Scalability

Supports up to 6 parallel units, expanding power capacity up to 60KW.
Compatible with various battery types, including LiFePO4, AGM, and GEL.

Wi-Fi Monitoring & Smart Control

Wi-Fi module included for real-time system monitoring.
Mobile app support enables remote control and diagnostics.
RS485 & CAN communication ports for seamless integration with BMS systems.

Total Protection & Reliability

Overload, short circuit, and surge protection for system safety.
Battery overcharge & over-discharge protection.
AC over-voltage and PV over-voltage protection.

SunGold Power 10KW 48V Split Phase Solar Inverter Applications

Reliable Home Backup Power – Provides uninterrupted power to essential appliances during outages, ensuring security systems, lighting, refrigerators, and medical equipment remain operational.

Off-Grid Residential Systems – Perfect for homes relying solely on solar energy, offering continuous, clean power even in remote locations.

Commercial & Industrial Use – Ensures stable power for businesses with high energy demands, reducing reliance on the grid and lowering operational costs.

Remote Cabins & RVs – Enables off-grid lifestyles with reliable power for recreational vehicles, tiny homes, and wilderness retreats.

Farming & Agricultural Equipment – Powers irrigation systems, farm tools, greenhouses, and heavy-duty agricultural machinery, improving farm efficiency and sustainability.

What's Included

Everything you need is included with your product.

SunGold Power 10KW 48V Split Phase Solar Inverter
Wi-Fi Box
Parallel COM Cable
Communication Cable

Cable Lugs & Screws
User Manual
Warranty Card

SunGold Power 10KW 48V Split Phase Solar Inverter Specifications

Inverter Output

Specification	Details
Rated Output Power	10,000W
Max. Peak Power	20,000W
Rated Output Voltage	120/240Vac (split phase/single phase)
Load Capacity of Motors	6HP
Rated AC Frequency	50/60Hz
Waveform	Pure Sine Wave
Switch Time	10ms (typical)
Parallel Capacity	6
Overload	After triggering the overload protection the inverter will resume output after 3 minutes, 5 consecutive overloads will switch off the output until the inverter is restarted. (102% 125%±10%: error reported and output switched off after 5s.

Battery

Specification	Details
Battery Type	Li-ion / Lead-Acid / User Defined
Rated Battery Voltage	48Vdc
Voltage Range	40-60Vdc
Max. MPPT Charging Current	200A
Max. Mains/Generator Charging Current	120A
Max. Hybrid Charging Current	200A

PV Input

Specification	Details
Num. of MPP Trackers	2
Max. PV array power	11,000W
Max. input current	22/22A
Max. Voltage of Open Circuit	500Vdc
MPPT Voltage Range	125-425Vdc

Mains / Generator Input

Specification	Details
Input Voltage Range	90-140V (Single phase), 180-260V (Split phase)
Frequency Range	50/60Hz
Bypass Overload Current	63A

Efficiency

Specification	Details
MPPT Tracking Efficiency	99.9%
Max. Battery Inverter Efficiency	92%

General

Specification	Details
Dimensions	17.9265.1 inch
Weight	54lb
Protection Degree	IP20, Indoor Only
Operating Temperature Range	14~131°F, >113°F derated (-10~55°C,>45°C derated)
Noise	<60dB
Cooling Method	Internal Fan
No-load consumption	95W/100W
Warranty	2 Years

Communication

Specification	Details
Embedded Interfaces	RS485 / CAN / USB / Dry contact
External Modules (Optional)	Wi-Fi / GPRS

FAQs

What appliances can this inverter support?

This inverter can power most household appliances, including refrigerators, washing machines, HVAC systems, and electronics.

Does this inverter support battery-less operation?

Yes, it can directly power loads from solar panels and grid power without needing a battery.

Can I monitor my system remotely?

Yes, the included Wi-Fi monitoring module allows real-time remote monitoring via a mobile app.

Can I expand my solar system with this inverter?

Yes, the inverter supports parallel operation of up to 6 units, allowing for scalability.
