SunGold Power | UL 10kW Hybrid Inverter | 48V Split Phase, Grid Feedback, Batteryless Hybrid Inverters SunGoldPower Only Inverter

SunGold Power | UL 10kW Hybrid Inverter | 48V Split Phase, Grid Feedback, Batteryless

SunGoldPower
SKU SG10KHB-48
$3,050.00

⭐ Authorized SunGoldPower Dealer

⭐ Fast & Free Shipping + No Sales Tax

⭐ Easy 30-Day Returns & Price Beat Guarantee

⭐ Flexible Financing Available

⭐ Full Manufacturer Warranty Included

Notify me when back in stock

Estimated Delivery Between

and .

Order within to get it by the earliest date.

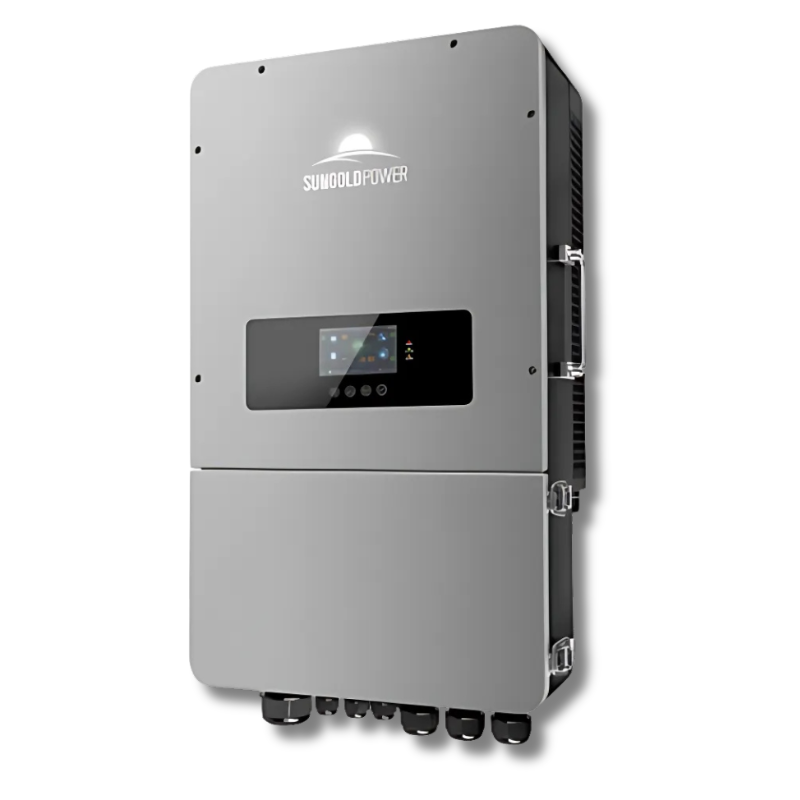

SunGold Power | UL 10kW Hybrid Inverter | 48V Split Phase, Grid Feedback, Batteryless

The SunGold Power UL 10kW Hybrid Inverter is a high-performance, grid-interactive inverter designed for both on-grid and off-grid energy systems. This inverter offers advanced hybrid functionality, allowing seamless batteryless operation or integration with solar panels, batteries, and grid power.

Ideal for residential homes, businesses, and off-grid applications, this inverter provides a powerful 10kW output with split-phase 120V/240V support, ensuring reliable energy management and optimized solar-to-grid power conversion.

Placeholder Image

SunGold Power UL 10kW Hybrid Inverter Features

Versatile Hybrid Power Management

  • 10kW High-Capacity Hybrid Inverter supports solar, battery, and grid power.
  • Batteryless Operation – Functions without a battery, making it an ideal grid-tied solution.

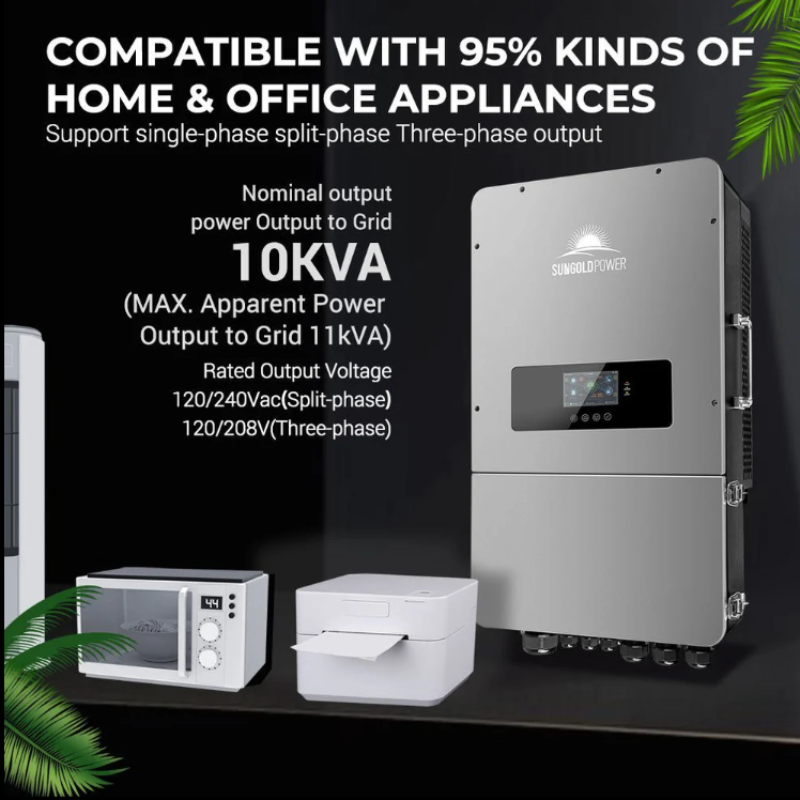

  • Split-Phase 120V/240V Output – Supports heavy-duty appliances and whole-home backup.

Advanced MPPT Solar Charging

  • Maximum Power Point Tracking (MPPT) Controller optimizes solar energy harvesting.
  • High Efficiency – Converts solar energy with 99% MPPT tracking accuracy.
  • Supports up to 18kW PV Input, ideal for large-scale solar setups.

Reliable Backup Power & Off-Grid Capability

  • Works with or without battery storage, providing uninterrupted energy supply.

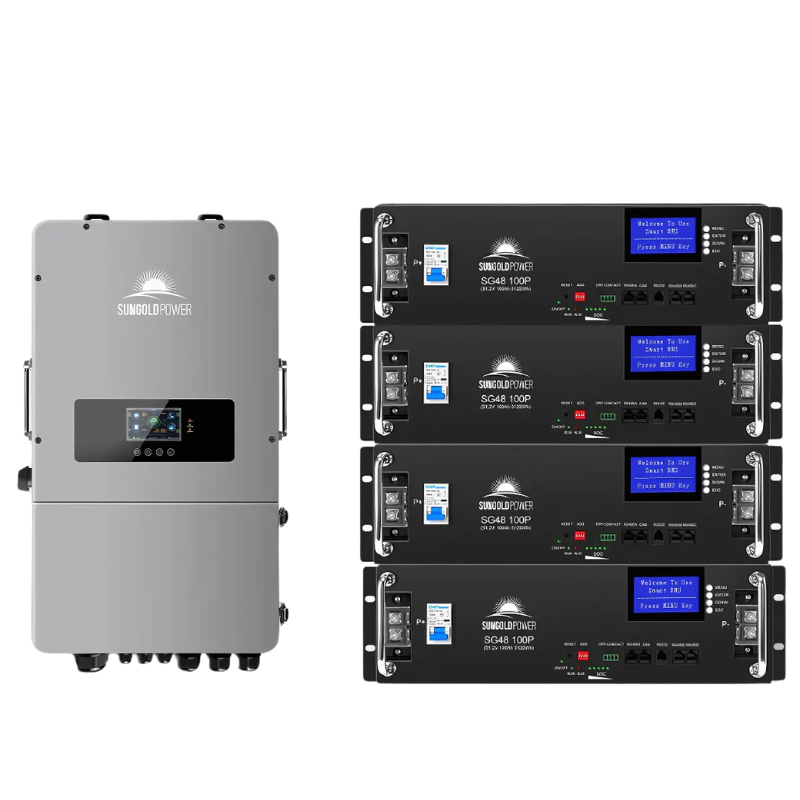

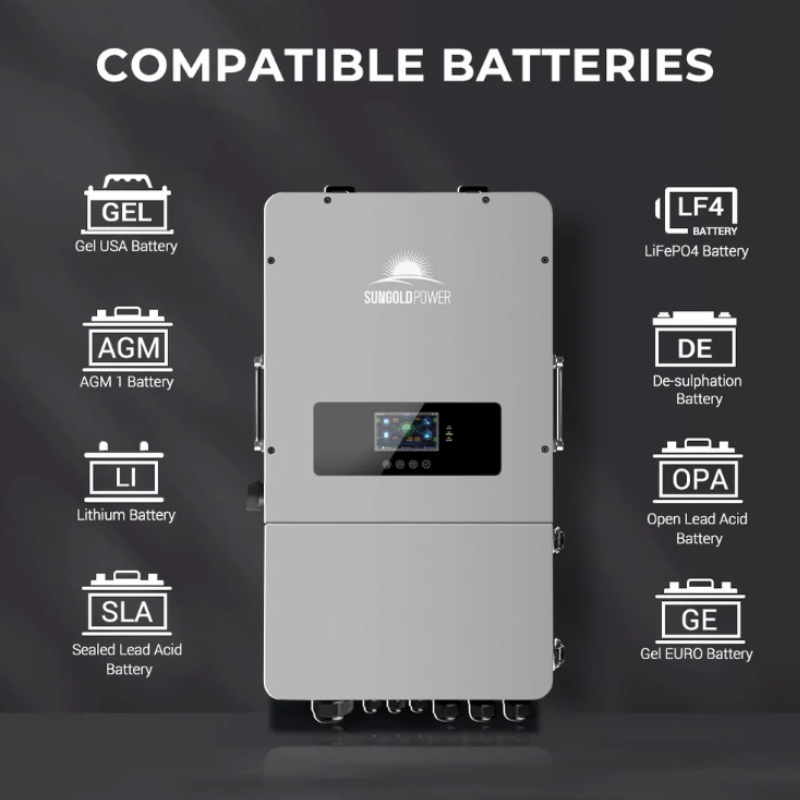

  • Supports LiFePO4, lead-acid, and other battery types for flexible energy storage.

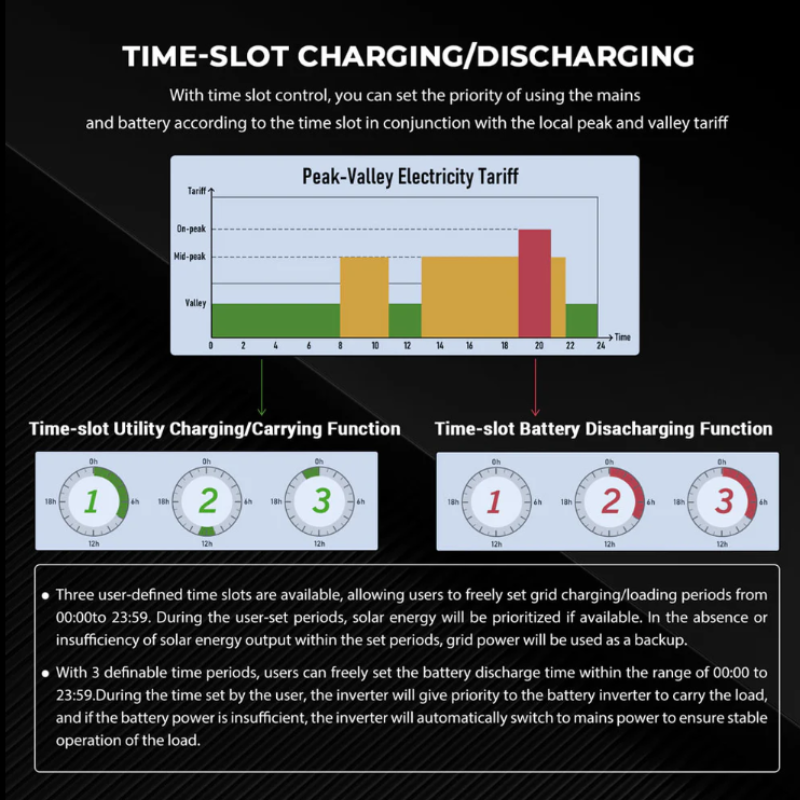

  • Multiple Charging Modes – Solar, Grid, or Generator charging options available.

Smart Monitoring & Control

  • WiFi & Mobile App Integration – Monitor energy production and consumption remotely.

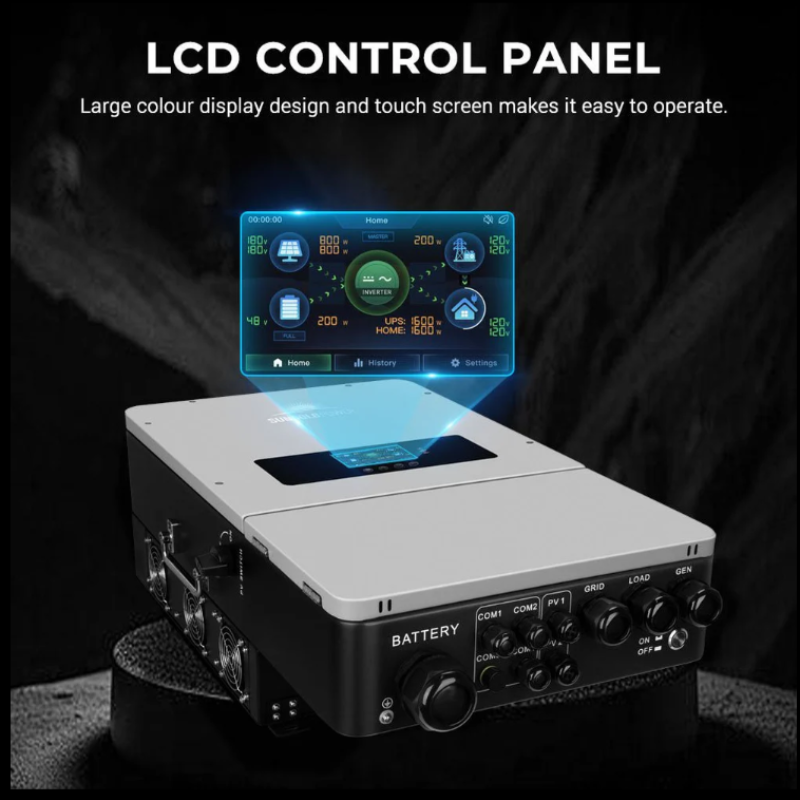

  • Real-Time LCD Display – Provides key system status, voltage, and power output details.
  • Remote Firmware Upgrades – Stay up to date with the latest inverter features.
Placeholder Image

SunGold Power UL 10kW Hybrid Inverter Applications

  • Whole-Home Energy Management – Supports essential and non-essential loads.
  • Solar Energy Optimization – Maximizes solar power utilization with grid integration.
  • Batteryless Solar Systems – Operates without the need for battery storage.
  • Off-Grid Power Supply – Ideal for remote areas, farms, and cabins.
  • Commercial & Industrial Use – Reduces grid dependence for businesses.
Placeholder Image

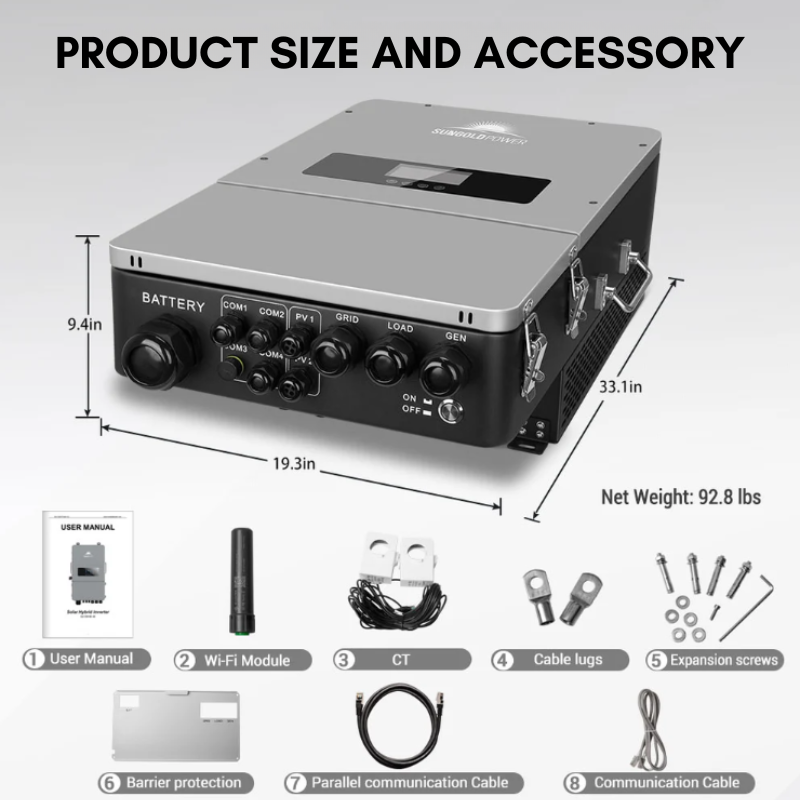

What's Included

Everything you need is included with your product.

  • 10KW Hybrid Inverter 48V Split Phase Grid Feedback Batteryless
  • User Manual
Placeholder Image
Placeholder Image

SunGold Power UL 10kW Hybrid Inverter Specifications

Inverter Output

Specification Details
Rated Output Power 10,000W
Max. Peak Power 2 times rated power
Rated Output Voltage 120/240Vac (Split-phase) / 120/208V (Three-phase)
Output Voltage Error @240V 41.7A / @208V 48.1A
Load Capacity of Motors 6HP
Rated AC Frequency 50/60Hz
Waveform Pure Sine Wave

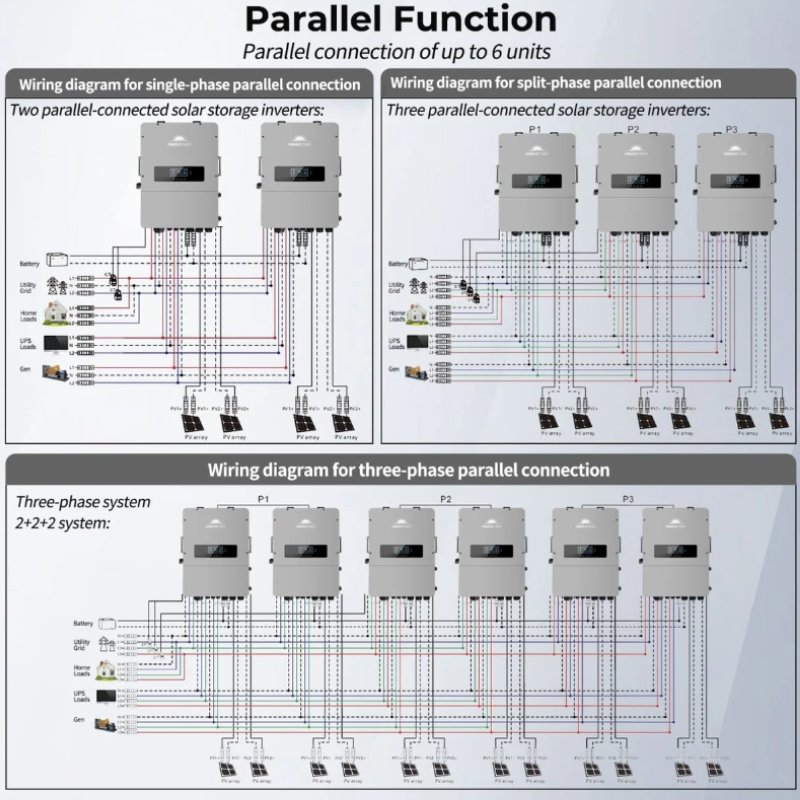

Parallel Capacity 6

Battery

Specification Details
Battery Type Li-ion / Lead-Acid / User Defined
Rated Battery Voltage 48Vdc
Voltage Range 40-60Vdc
Max. PV Charging Current 200A
Max. Grid Charging Current 120A
Max. Generator Charging Current 60A
Max. Hybrid Charging Current 200A

PV Input

Specification Details
Num. of MPP Trackers 2
Max. PV array power 5500W / 5500W
Max. input current 25A + 25A
Max. Voltage of Open Circuit 550Vdc + 550Vdc
MPPT Voltage Range 125-450Vdc / 125-450Vdc

Grid / Generator Input

Specification Details
Input Voltage Range 90-140Vac
Frequency Range 50/60Hz
Bypass Phase Current 63A

Efficiency

Specification Details
MPPT Tracking Efficiency 99.9%
Max Efficiency 97.5%
CEC Efficiency 96.5%

Basic Data

Specification Details
Dimensions 33.1 * 19.3 * 9.4 inches
Weight 92.8 lbs
Protection Degree IP65
Operating Temperature Range -13°F to 140°F, >113°F derated (-25~60°C, >45°C derated)
Noise <60dB
Cooling Method Heat sink + intelligent fan cooling

Communication

Specification Details
Embedded Interfaces RS485 / CAN / USB / Dry contact
External Modules (Optional) Wi-Fi / GPRS
Placeholder Image

Frequently-Asked Questions

Can this inverter work without batteries?

Yes! This hybrid inverter supports batteryless operation, allowing solar energy to be used directly or exported to the grid.

Is this inverter compatible with lithium batteries?

Yes, it supports LiFePO4, lead-acid, and other battery types for energy storage.

How much solar power can this inverter handle?

It supports up to 18kW PV input, making it ideal for large-scale solar installations.

Can I use this inverter for whole-home backup?

Yes! With 10kW output and split-phase 120V/240V support, this inverter can power an entire home.

Does this system work in extreme weather conditions?

Yes! The IP65-rated waterproof enclosure ensures durability in rain, snow, and high winds.

Can I install this inverter myself?

While it is pre-configured for easy installation, we recommend hiring a licensed electrician for proper setup.
