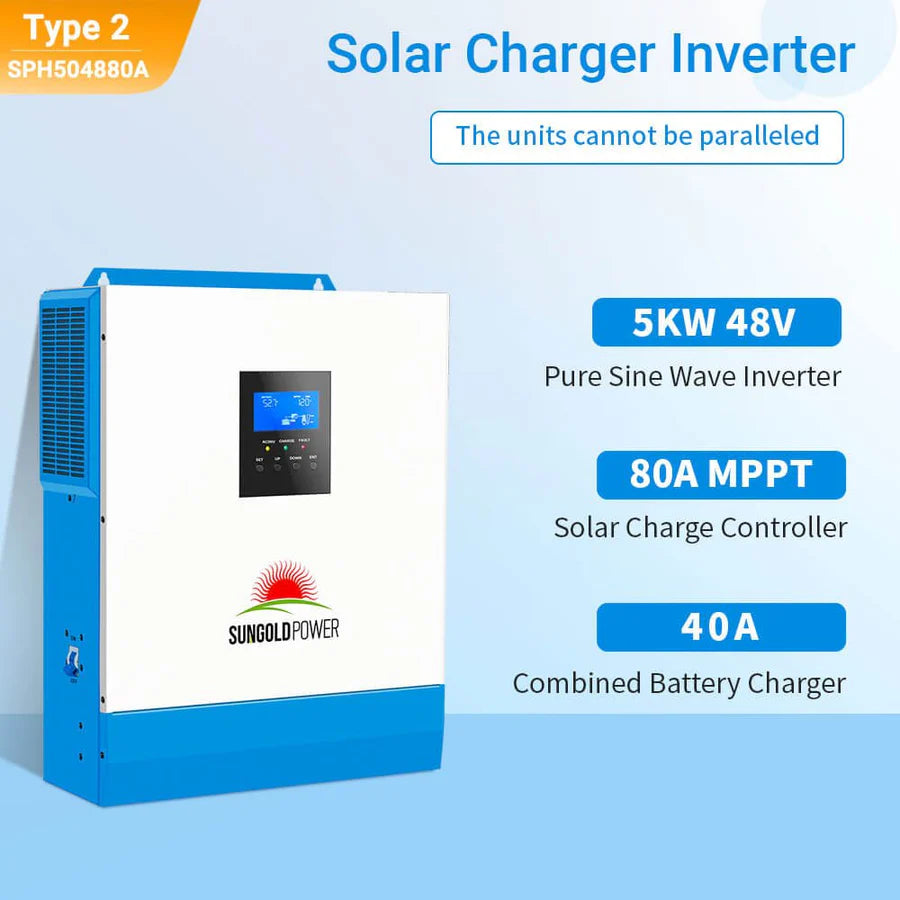

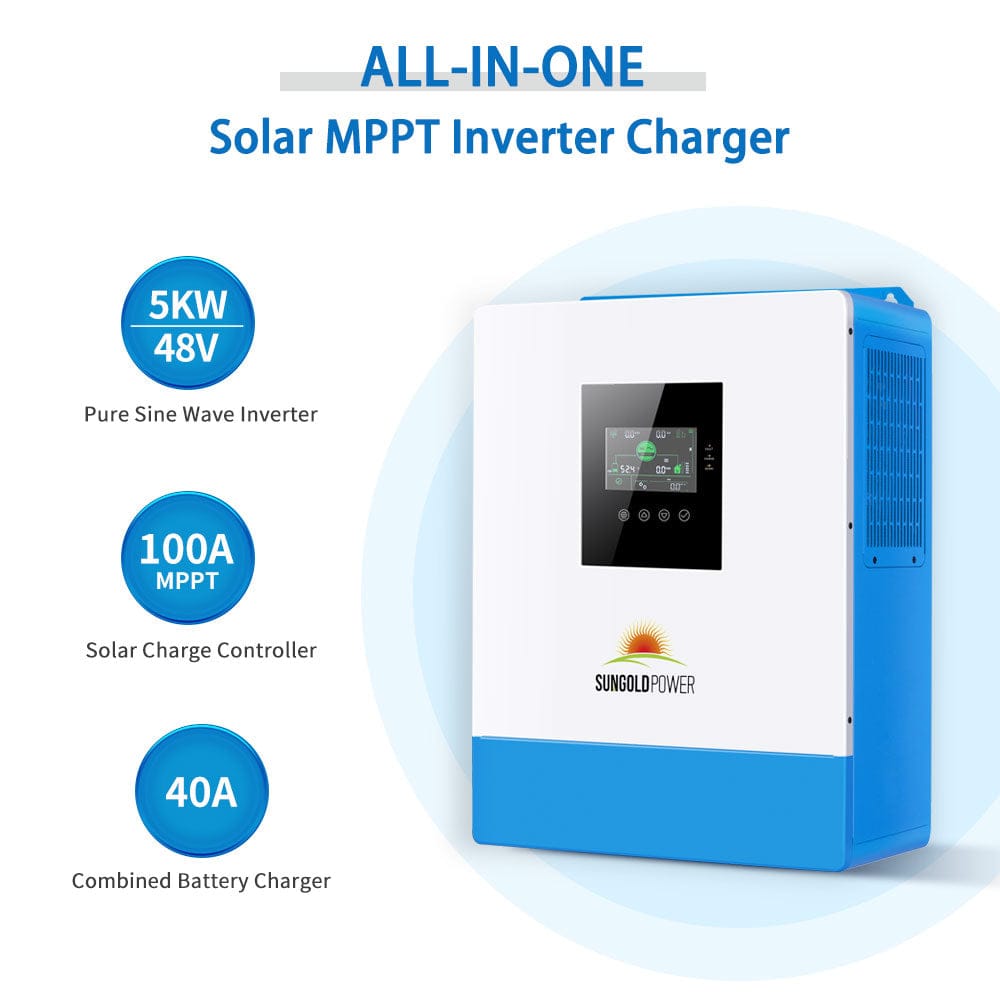

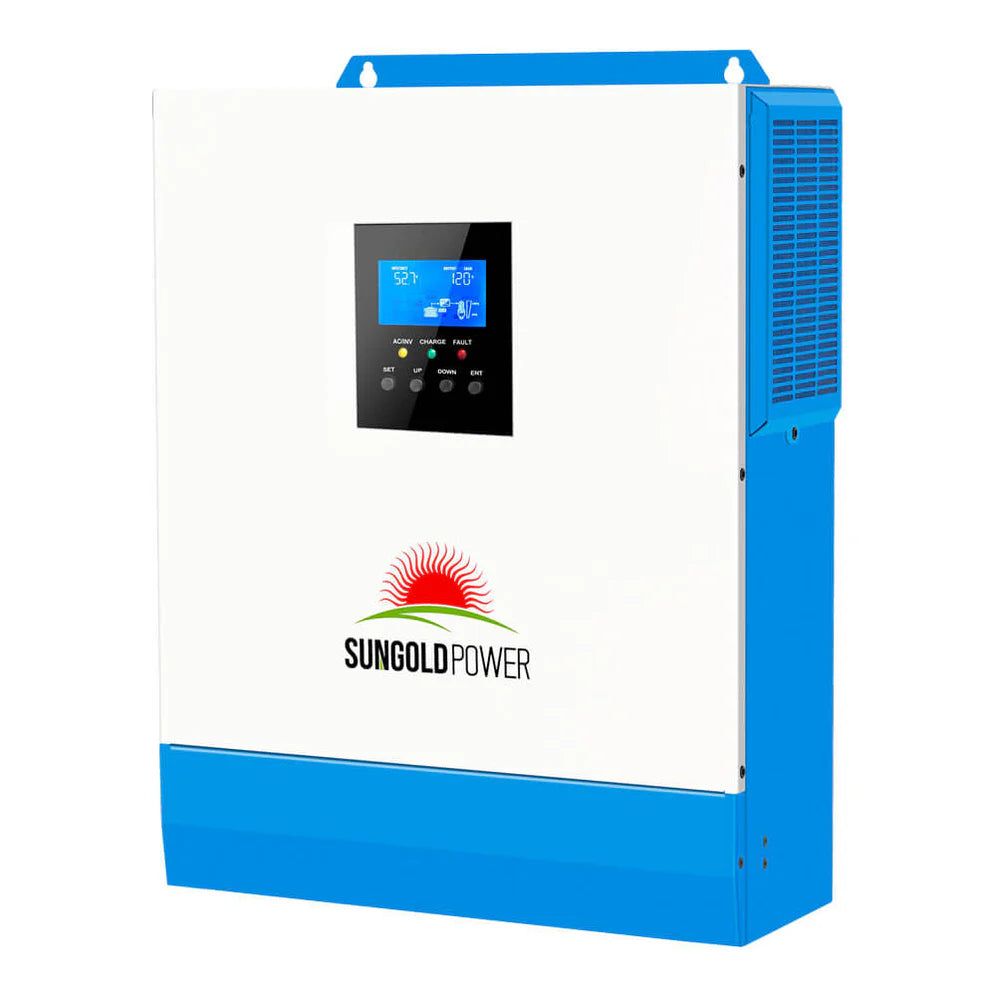

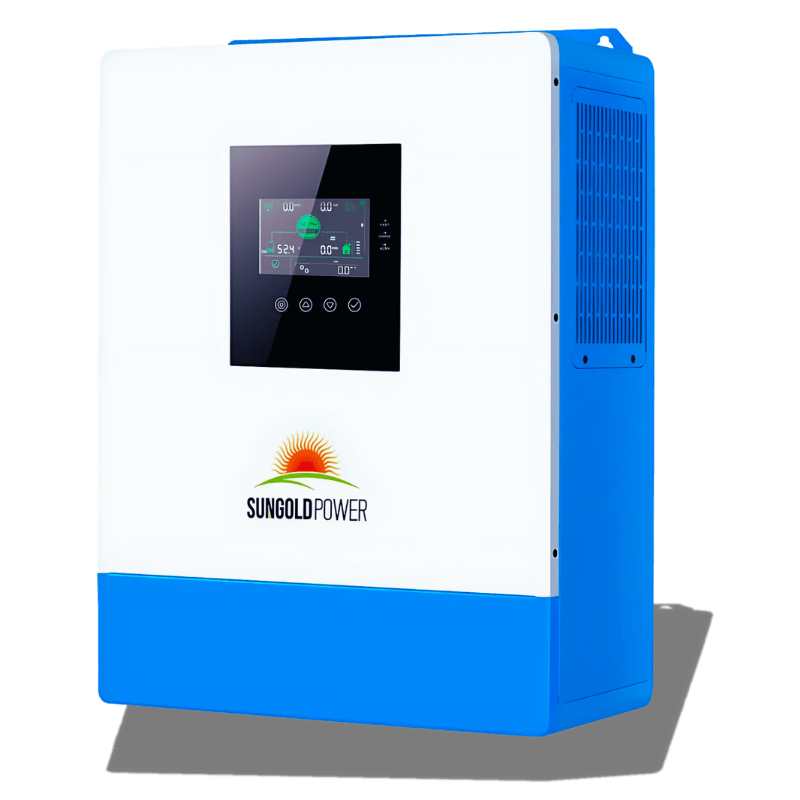

The Sungold Power 5000W 48V Solar Charger Inverter is a powerful, efficient, and reliable off-grid energy solution designed for homes, businesses, RVs, and remote locations. With a built-in 100A battery charger, MPPT solar charge controller, and pure sine wave output, this inverter ensures stable and uninterrupted power delivery. It supports parallel operation for scalability, making it an ideal choice for off-grid and backup power applications.
High-Performance Power Output
Built-in Smart Solar MPPT Charging
Parallel Expandability

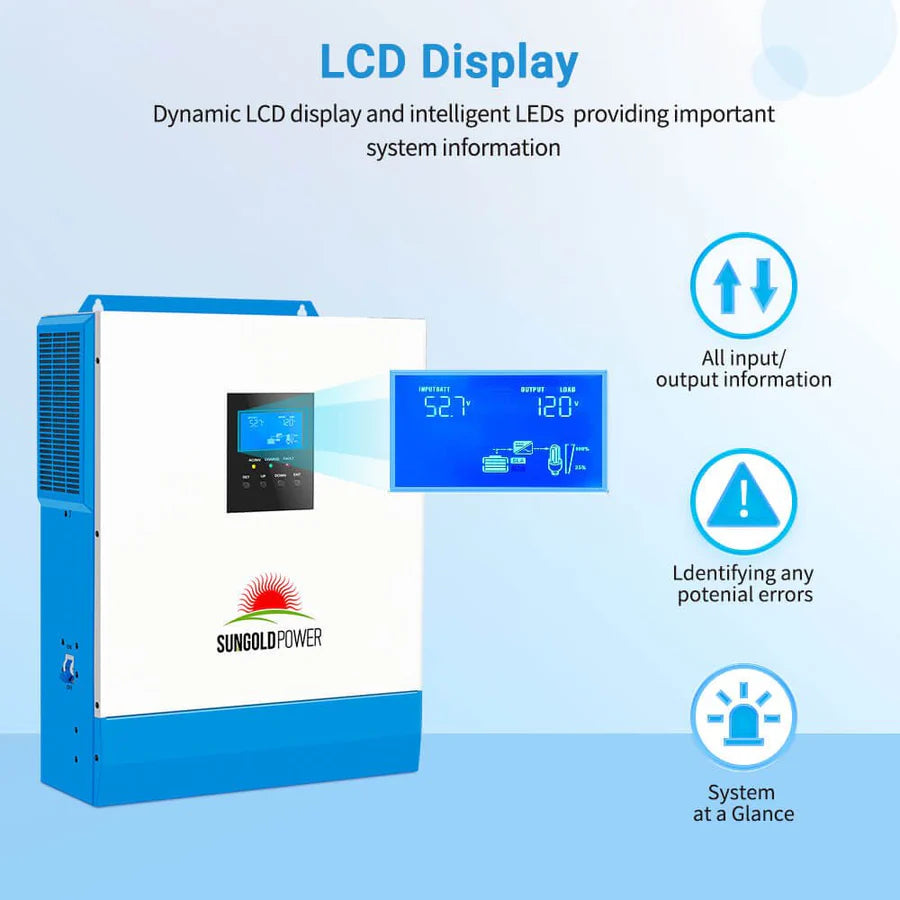

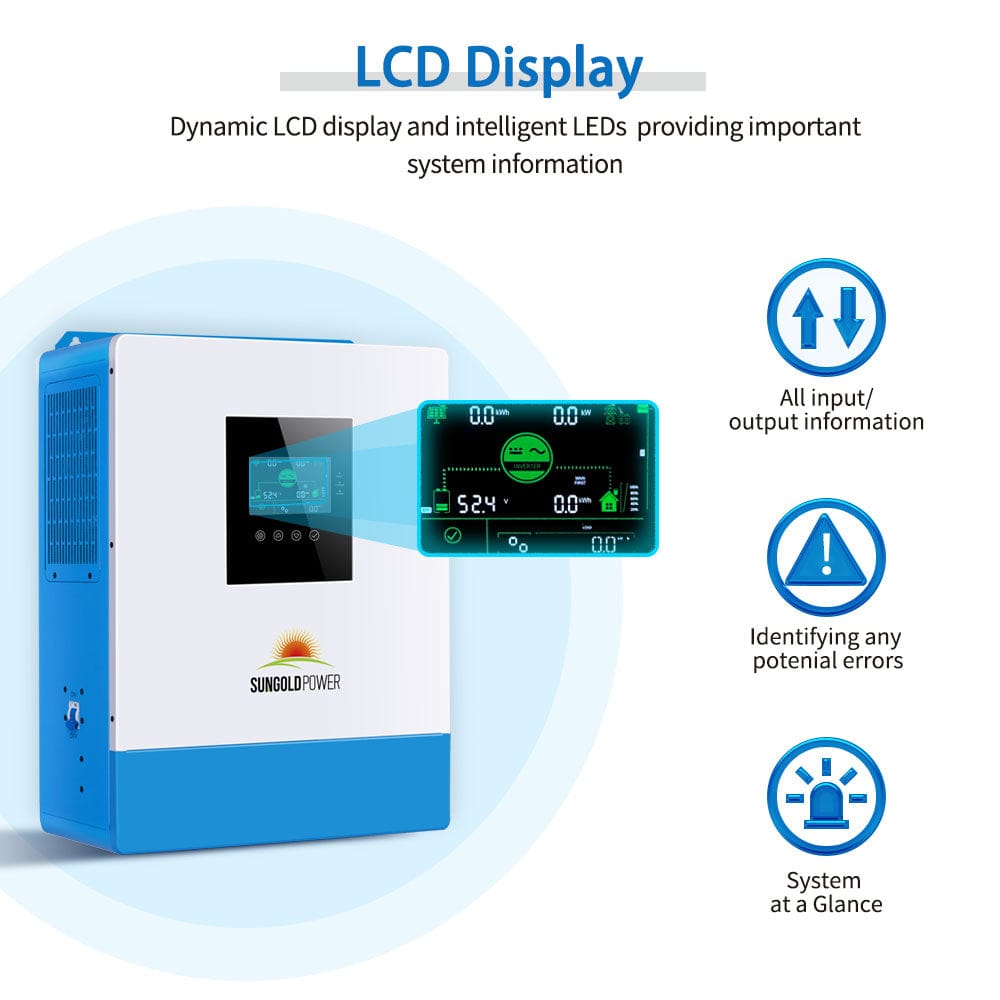

Advanced Monitoring & Connectivity
Ultimate Safety & Protection Features

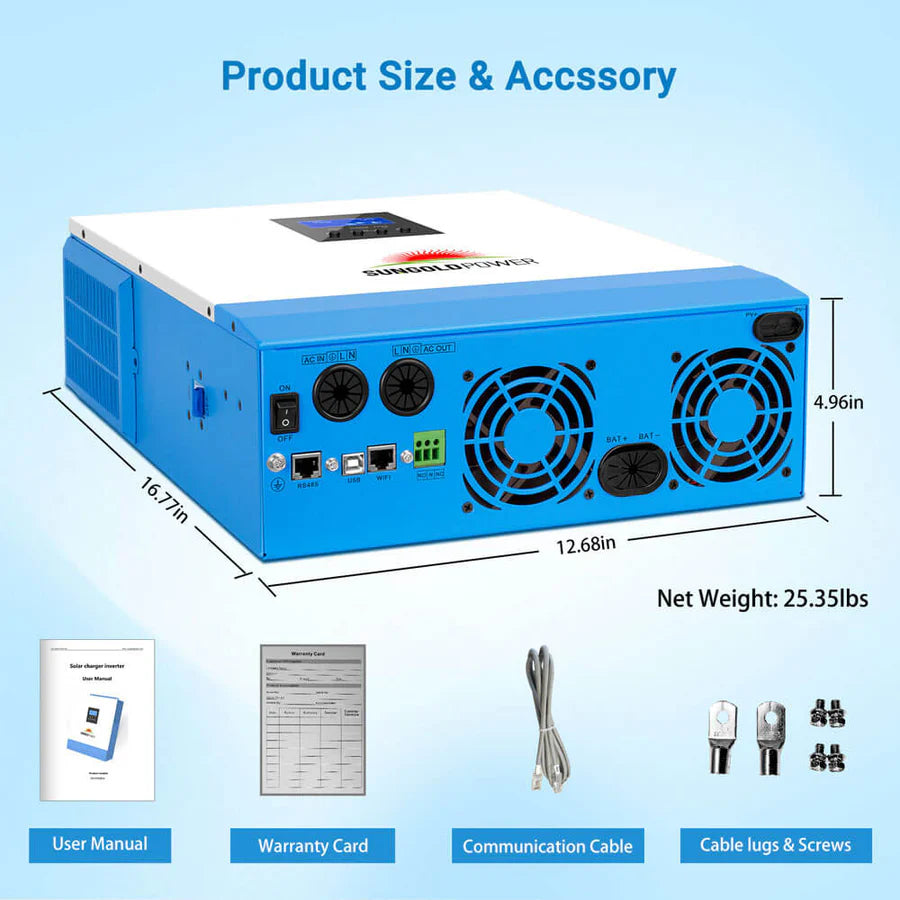

Everything you need is included with your product.
| Specification | Details |
| Permitted parallel number | 1~6 |
| Specification | Details |
| Rated Input Voltage | 110/120Vac |
| Input Voltage Range | (90Vac-140Vac)+2% |
| Frequency | 50Hz/60Hz (auto-sensing) |
| Overload/short-circuit protection | Circuit breaker |
| Efficiency | >95% |
| AC reverse flowing protection | Yes |
| Maximum bypass overload current | 63A |
| Specification | Details |
| Output voltage waveform | Pure since wave |
| Rated output power (W) | 5000 |
| Rated output voltage (Vac) | 120Vac (100/105/110Vac Settable) |
| Overload protection | (102% |
| Peak Power | 10000VA |
| Loaded motor capacity | 4HP |
| Output short-circuit protection | Breaker |
| Specification of bypass breaker | 63A |
| Rated Battery Input Voltage | 48V (minimum start voltage 44V) |
| Battery Voltage Range | 40.0Vdc~60Vdc±0.6Vdc |
| Power Saving Mode | Idle consumption is 20~25W |
| Power Saving Off Mode | Idle consumption is 45~50W |
| Specification | Details |

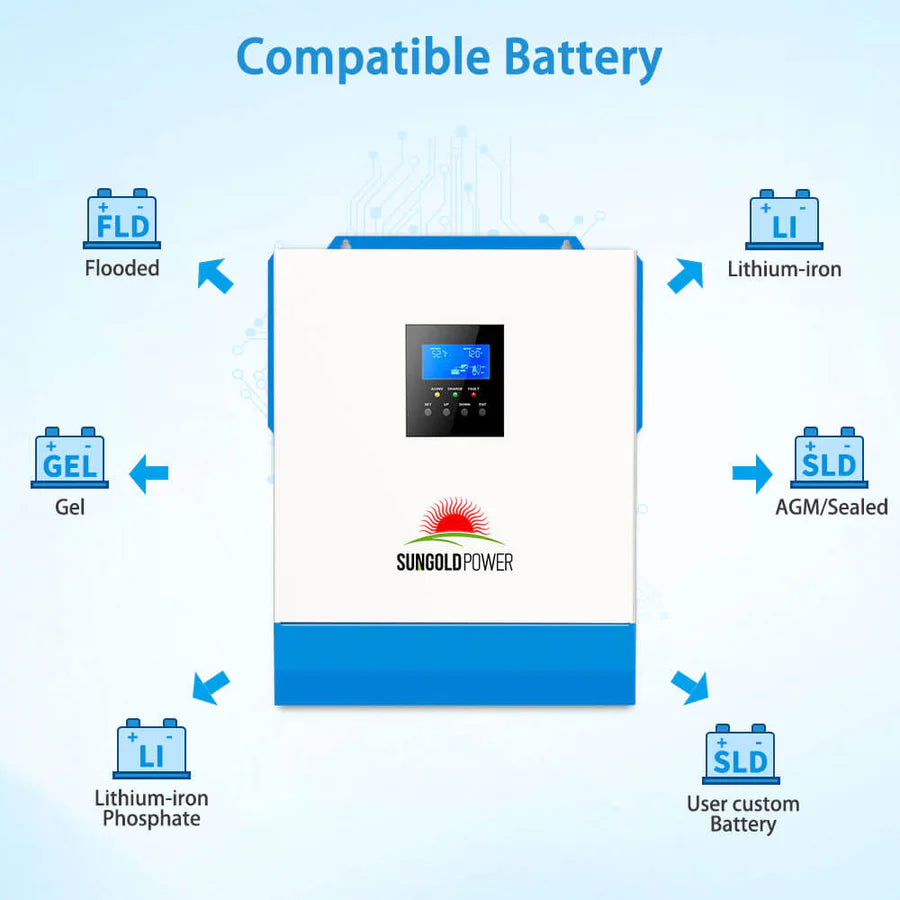

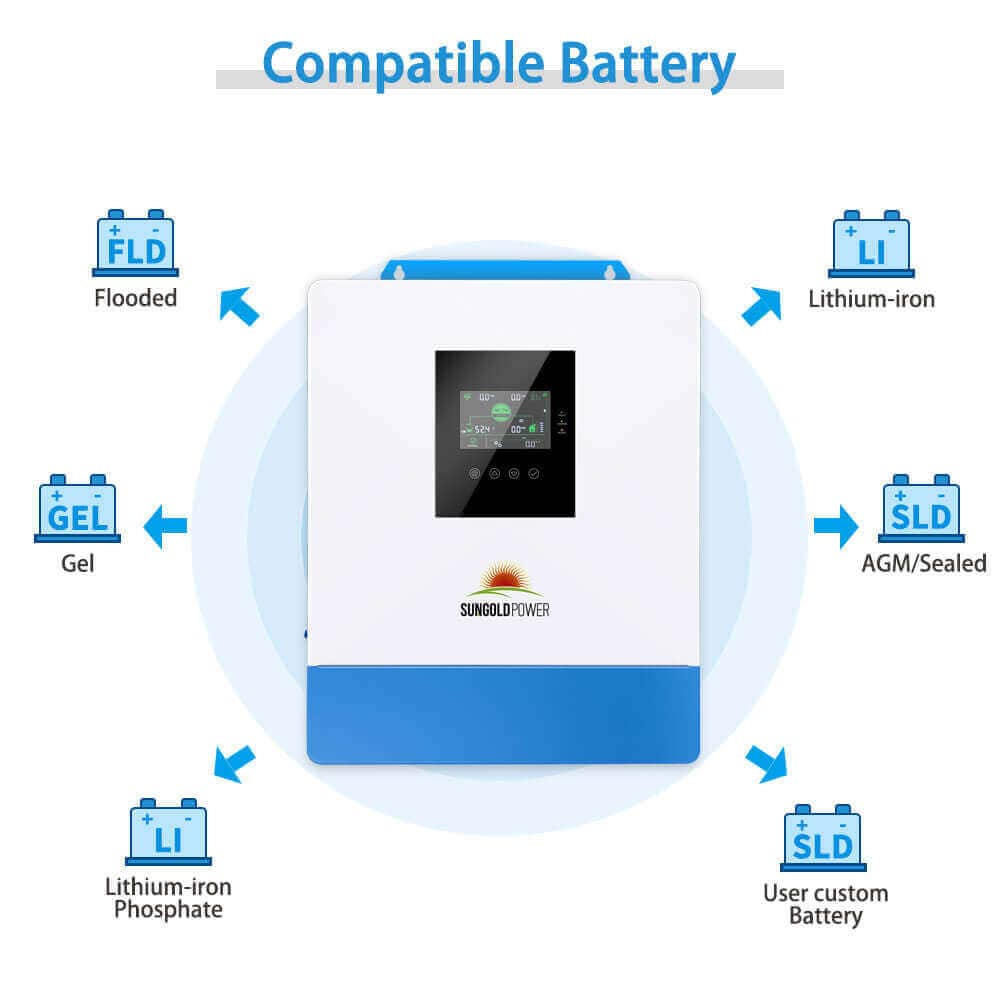

| Battery Type | Lead Acid or Lithium Battery |
| Maximum Charge current (can be set) | 0-40A |
| Charge voltage range | 40-60Vdc |
| Short-circuit protection | Circuit breaker and blown fuse |
| Breaker Specification | 63A |
| Overcharge Protection | Alarm and turn off charging after 1 minute |
| Specification | Details |

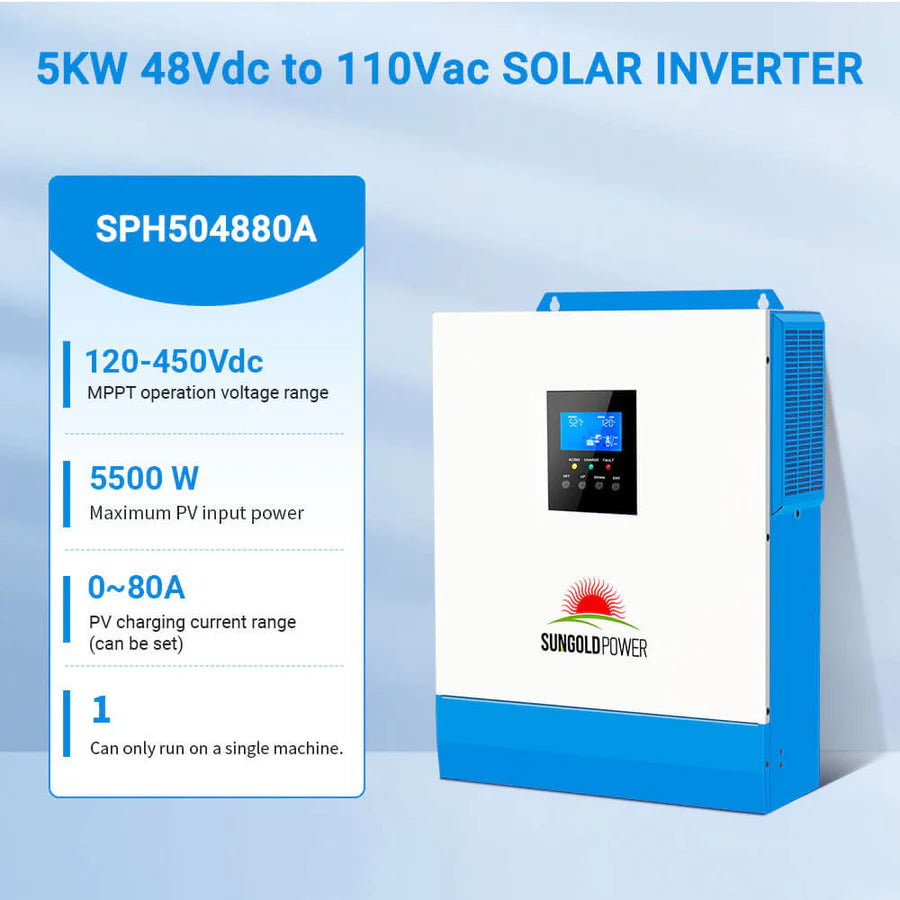

| Maximum PV open-circuit voltage | 500Vdc |
| PV operation voltage range | 120-500Vdc |
| MPPT Voltage Range | 120-450Vdc |
| Maximum output power | 5000W |
| PV charging current range (can be set) | 1000A |
| Charge short-circuit protection | Blown Fuse |
| Wiring protection | Inverse wiring protection |
| Specification | Details |
| Operation Temperature Range | 5°F to 131°F (-15°C to 55°C) |
| Storage Temperature Range | -13°F to 140°F (-25°C~60°C) |
| Noise | <60dB |
| Thermal dissipation | Forced cooling with adjustable air speed |

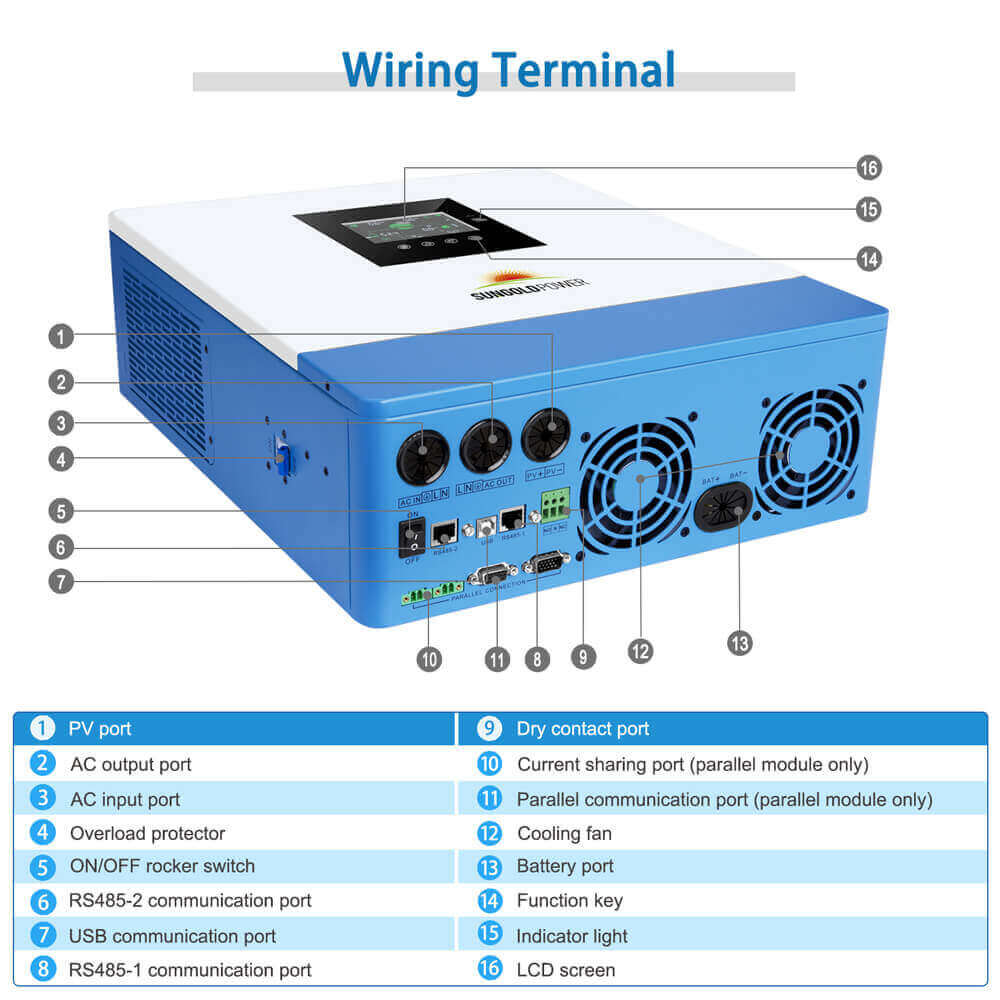

| Communication Interface | USB/RS485 (WiFi/GPRS)/dry node control |

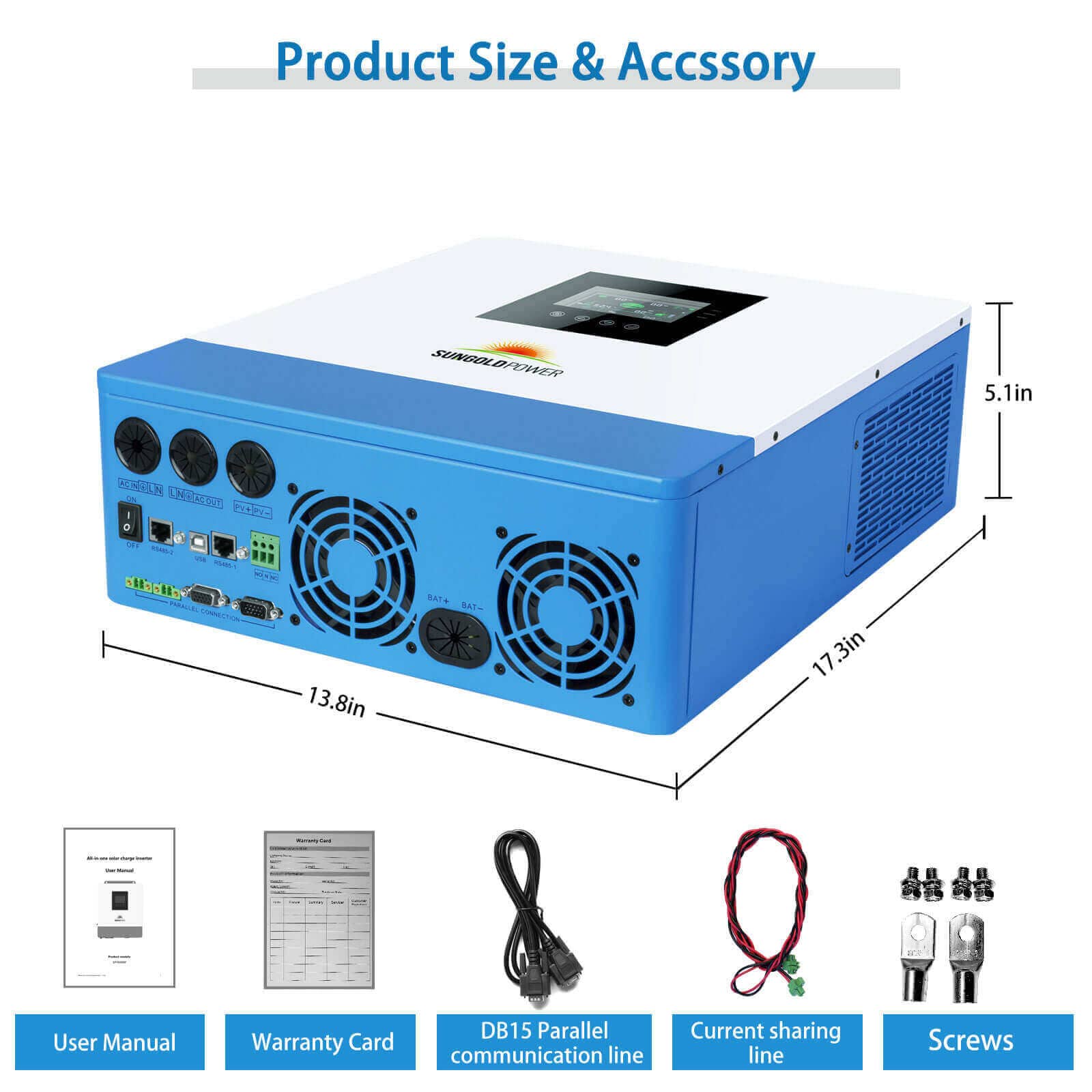

| Dimension (L*W*D) IN | 17.3*13.8*2.1 |
| Weight (LB) | 28 |
| Certification | UL1741 |
Yes, this inverter is capable of powering essential home appliances and can be expanded by adding additional units for whole-home coverage.
No, it can operate as a grid-tied inverter without batteries, allowing direct solar-to-grid energy usage.
The UPS feature provides an automatic switch in <10ms, ensuring no interruption in power supply.
Yes, the WiFi module (optional) allows for real-time system monitoring and remote adjustments via a mobile app.

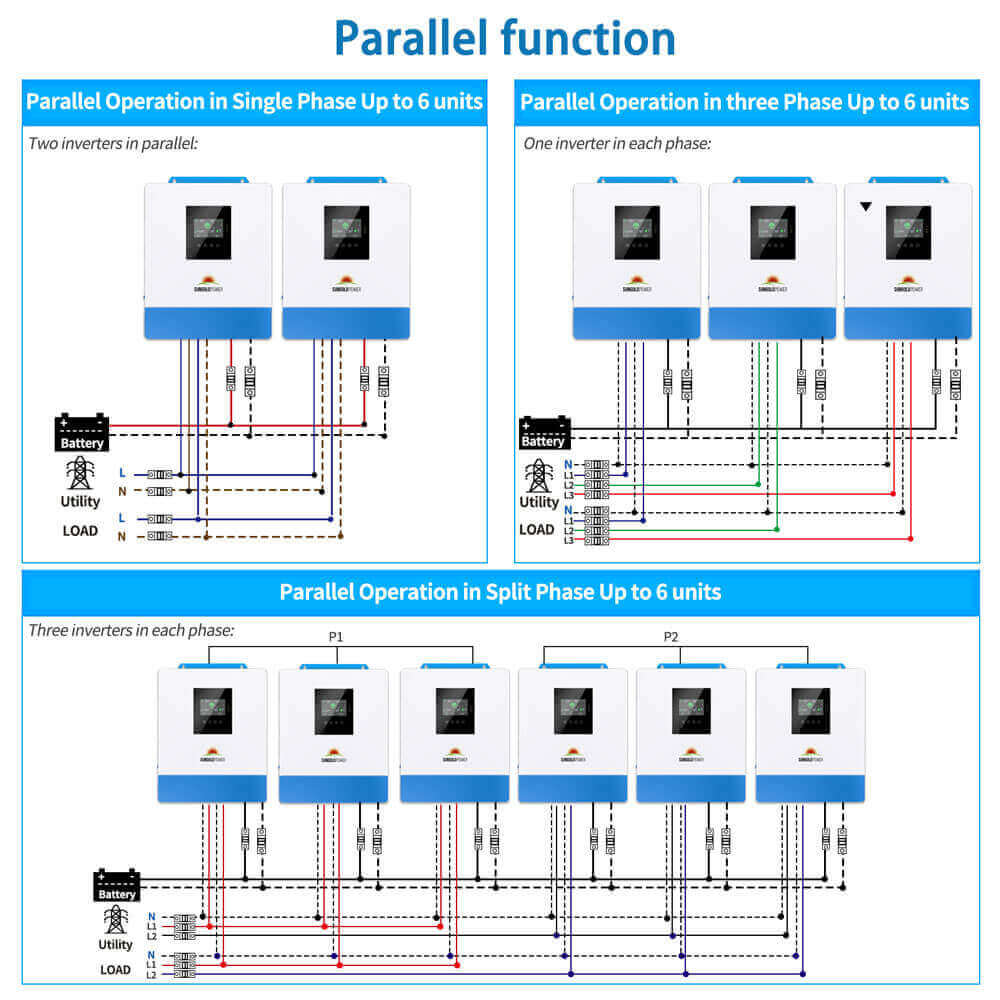

Yes, the Sungold Power 5000W supports parallel operation with up to 6 units, allowing a total system capacity of 30,000W.
