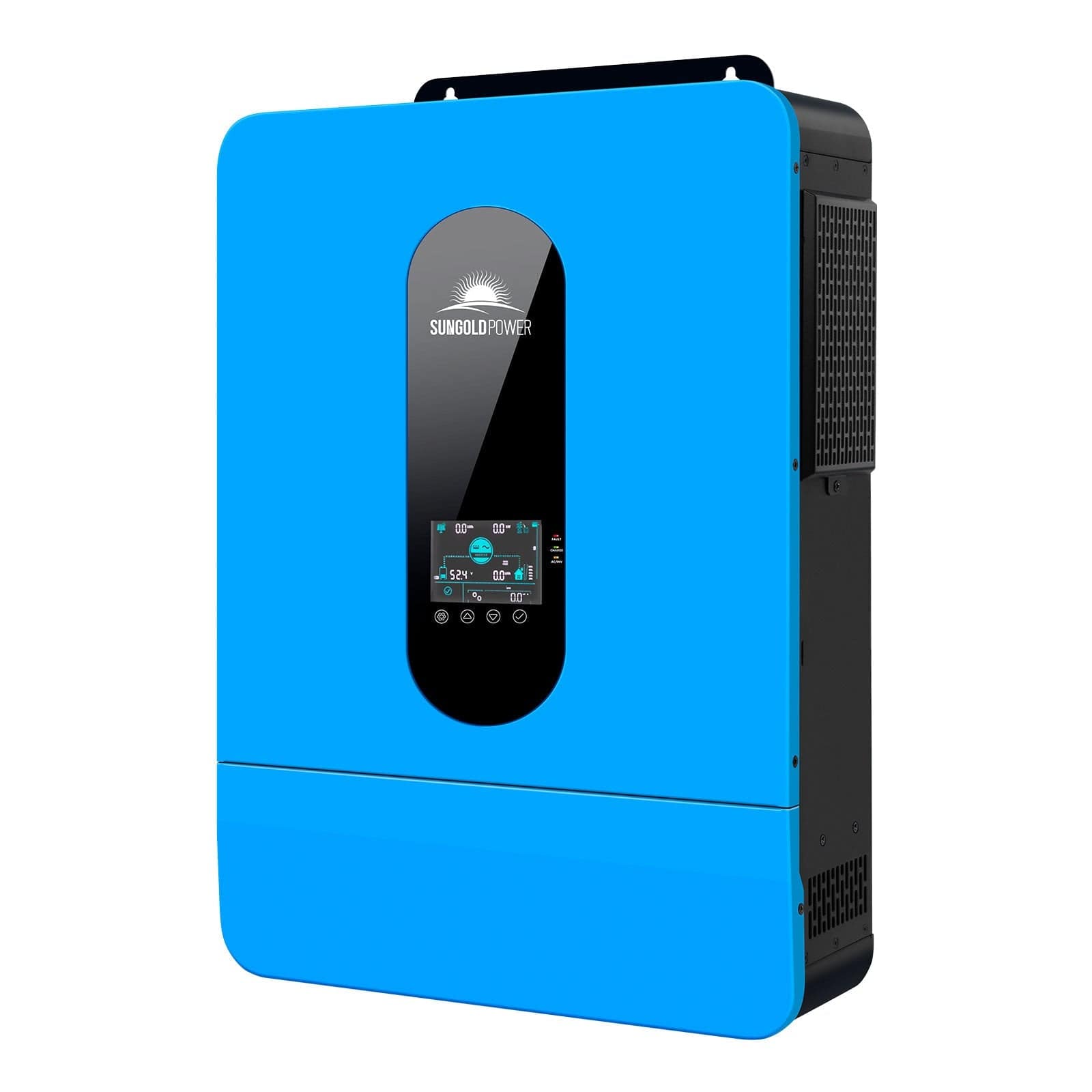

Sungold Power 6500W 48V Solar Charge Inverter Parallel + Wifi Monitor UL1741 Standard

Sungold Power 6500W 48V Solar Charge Inverter Parallel + Wifi Monitor UL1741 Standard Overview

The SungoldPower 6.5KW Solar Inverter offers a complete solar power solution with built-in charging, flexible configurations, and advanced monitoring capabilities.

This versatile inverter delivers clean and reliable 6,500-watt solar power for your home. It features a pure sine wave AC output, a powerful 120A MPPT solar charger, and a 120A utility battery charger, maximizing energy production and storage. The inverter boasts dual MPPT solar inputs for optimizing performance with different roof orientations. Additionally, the Wi-Fi model allows for convenient remote monitoring via a mobile app.

Sungold Power 6500W 48V Solar Charge Inverter Parallel + Wifi Monitor UL1741 Standard Features

• Solar Inverter: 6.5KW DC 48V pure sine wave AC output 120V, Built-in MPPT solar charger max 120A and utility battery charger max 120A, Max PV input 390V (VOC), Dual PV input. UL 1741 Standard Listed by TUV / CSA / FCC

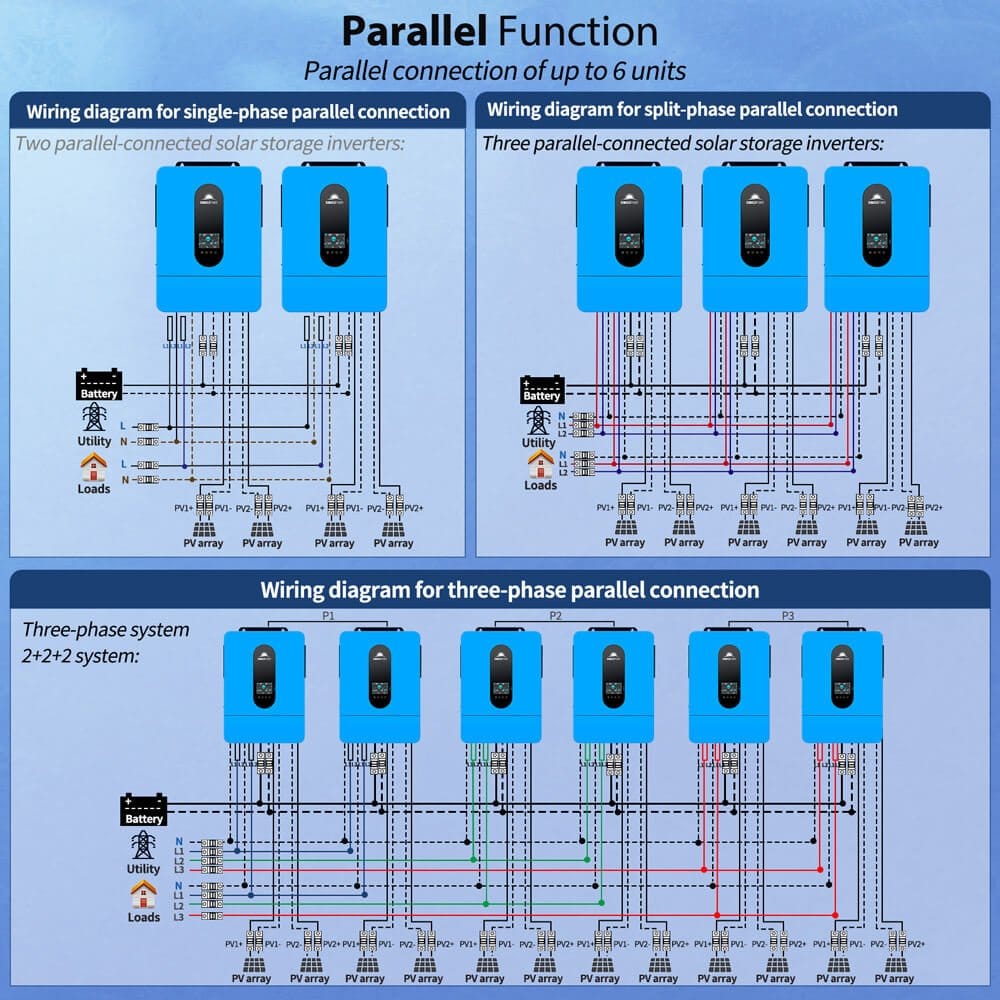

• Parallel Kit: parallel support up to 6 units, 120V single phase (1 unit),120V/240V Split Phase capable (2 unit parallel),208V 3-Phase Support (3 unit parallel)

• WIFI Model : Built-in WIFI transmitter, Enable inverter data to be transmitted via WIFI to user's iPhone or android smartphone, app can be downloaded from apple or android store

• Batteryless support: the inverter can power the loads from PV array / ac grid without battery connected

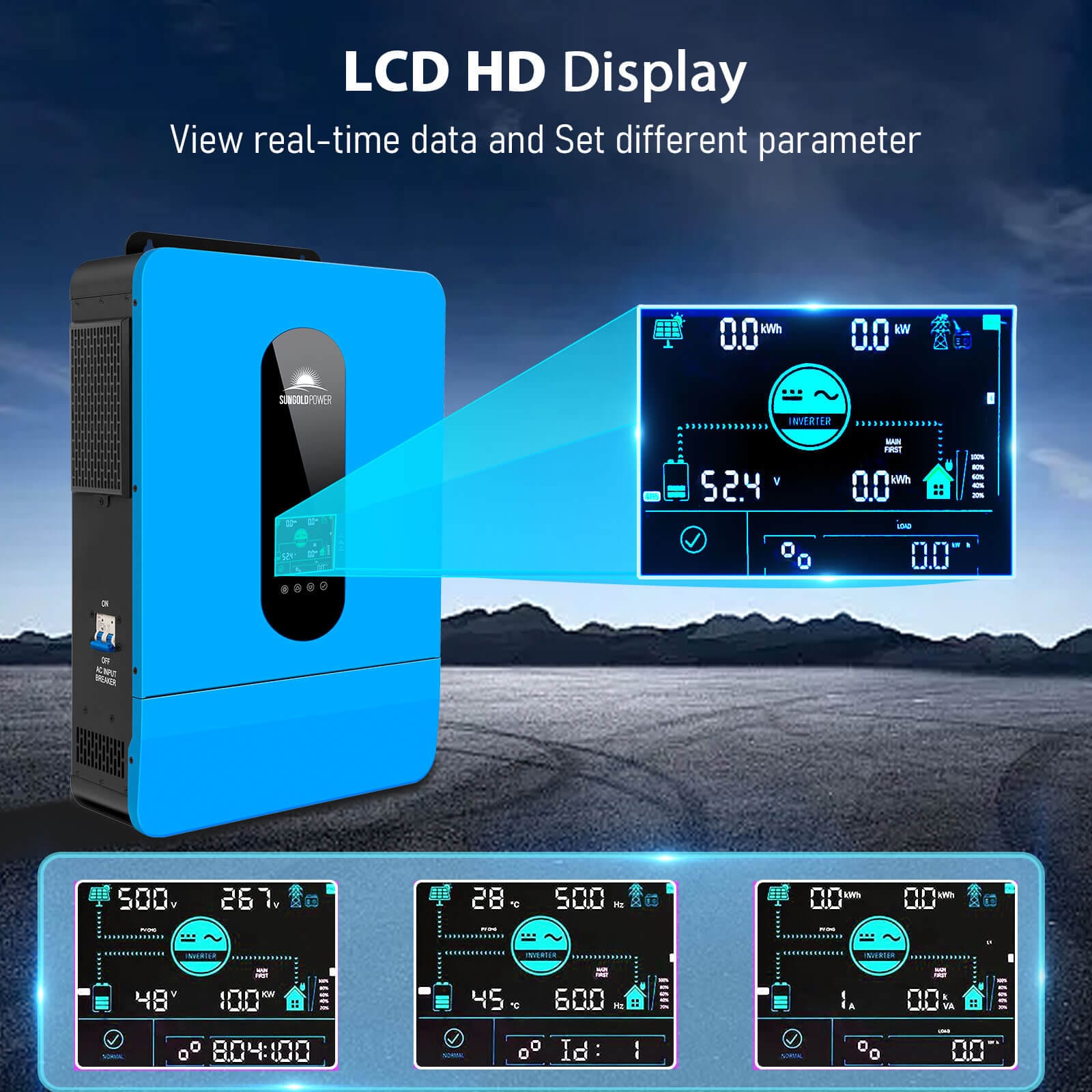

• LCD operation: Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)

Sungold Power 6500W 48V Solar Charge Inverter Parallel + Wifi Monitor UL1741 Standard Specifications

• Rated Power: 6500W
• Parallel: Yes, 6 units

Input

• Voltage: 120V
• Selectable Voltage Range: 90-140 VAC/80-140 VAC
• Frequency Range: 50/60HZ (Auto Sensing)

Output

• AC Voltage Regulation: 120V AC ± 5%
• Surge Power: 15000VA
• Efficiency: 93%
• Transfer Time: 20ms
• Perform: Pure Sine Wave
• Idle Power Consumption: < 70W

Battery

• Battery Voltage: 48V DC
• Low DC Cut-off Voltage: Self-defined from 42-48Vdc
• Bulk Charging Voltage: Self-defined from 48V-62V
• Overcharge Protection: 66 VDC

Solar Charger & AC Charger

• Solar Charger Type: MPPT
• Maximum PV Array Power: 8000W (2 X 4000W)
• MPTT Operation Voltage: 90-350VDC
• Maximum PV Array Open Circuit Voltage: 390VDC
• Maximum Solar Charge Current:120A
• Maximum AC Charge Current:120A
• Maximum Charge Current: 120A

Physical

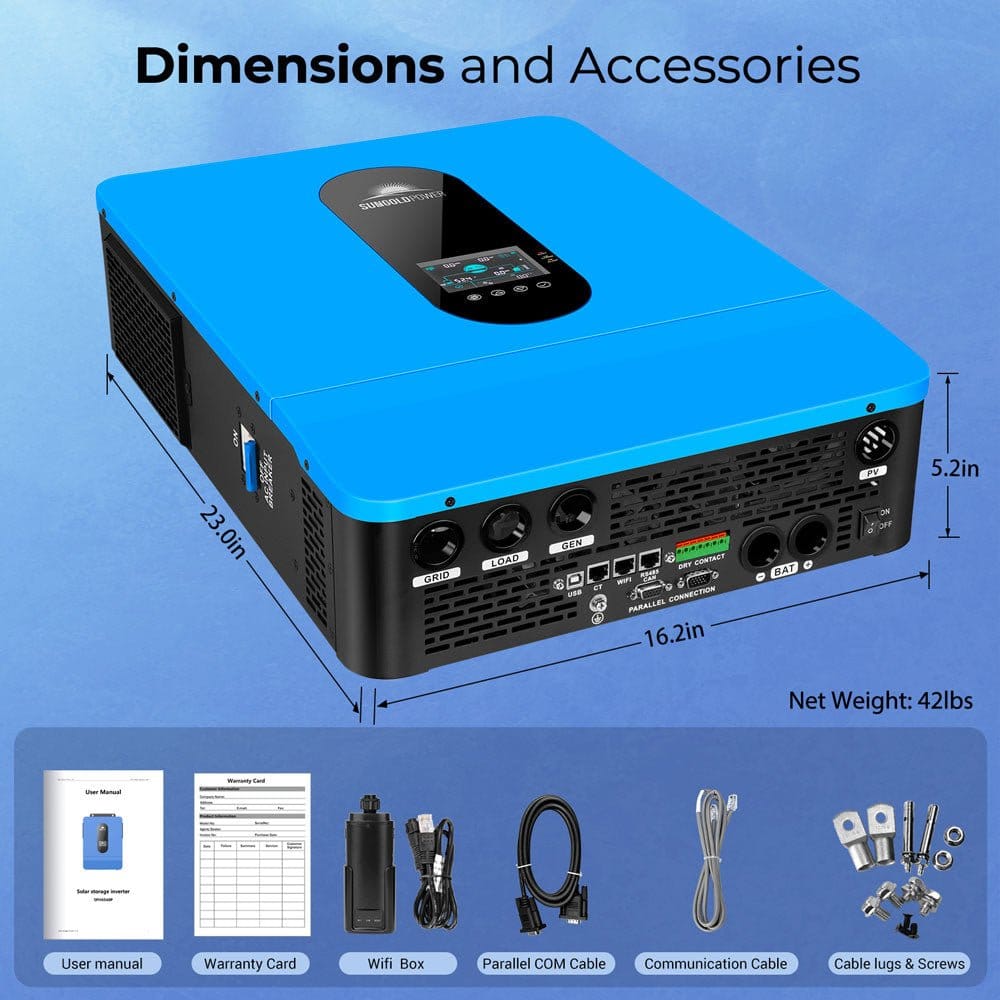

• Size D X W X H (inch): 5.91 X 16.93 X 23.62
• Net Weight (lb): 43.2
• Communication Interface: USB/RS232/RS485/WIFI/DRY-Contact

User Manual

• Sungold Power 6500W Inverter User Manual
