Sungold Power Complete Off-Grid Solar Kit 12000W 48V 120V/240V output 10.24KWH Lithium Battery 5400 Watt Solar Panel

Sungold Power Complete 12000W Off-Grid Solar Kit Overview

If you're looking for a safe, reliable way to build your own DIY Solar system at a fraction of the cost, you've come to the right place. This solar Kits includes 12000W 48V AC120V/240V Split output inverter + 2PCS 100A MPPT Solar Charge Controller + 12PCS 450 Watt Solar Panel + 4PCS 200AH Lithium Battery + other Accessories, the solar kit is powerful for the air-conditioner, washer, refrigerator, water pump and other big appliances with the low frequency inverter, It is widely use in the off grid home, solar system or emergency back up system! you can extend your system by adding more solar panel or batteries in the future!

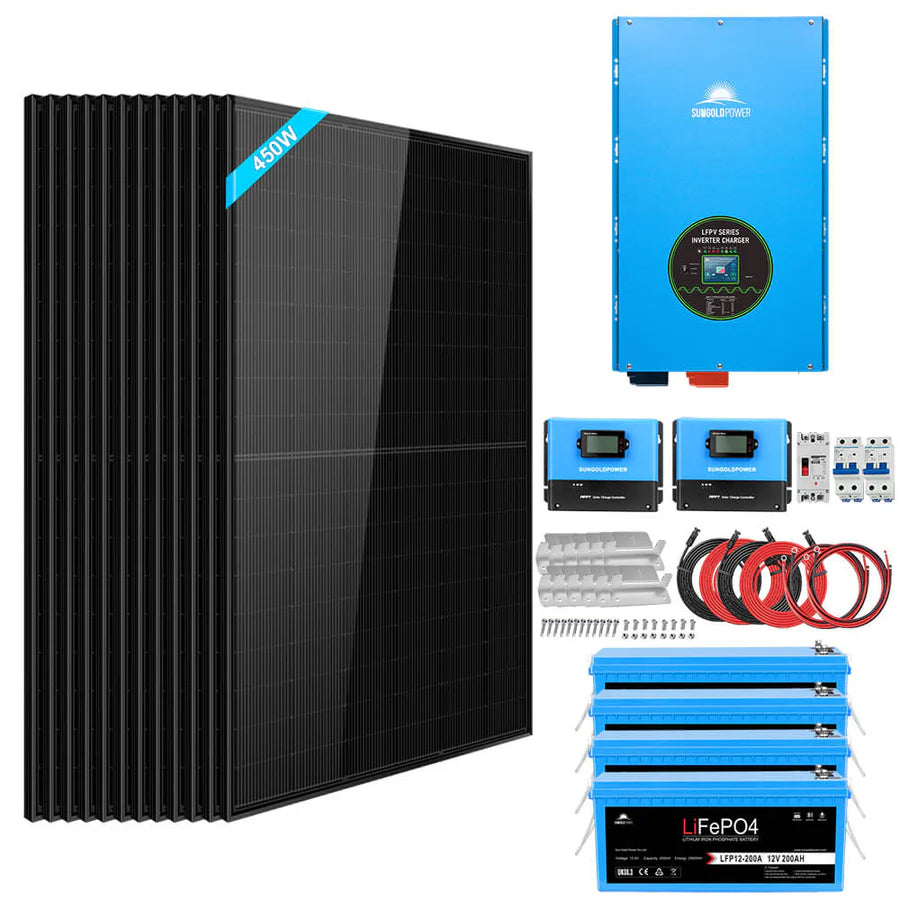

WHAT IS INCLUDED WITH THE SOLAR KITS!

• 1 x 12000 Watt 48V DC 120V/240V Inverter
• 2 x 100A MPPT Solar Charge Controller
• 12 x 450 Watt Monocrystalline Solar Panels
• 4 x 200AH Lifepo4 Battery with Bluetooth
• 12 x Sets of Mounting Z-Brackets
• 2 x 50 Feet, Solar Extension Cables-Inverter PV input
• 2 x Solar Cables Between Solar Panel and MPPT Controller

Sungold Power Complete 12000W Off-Grid Solar Kit Specification

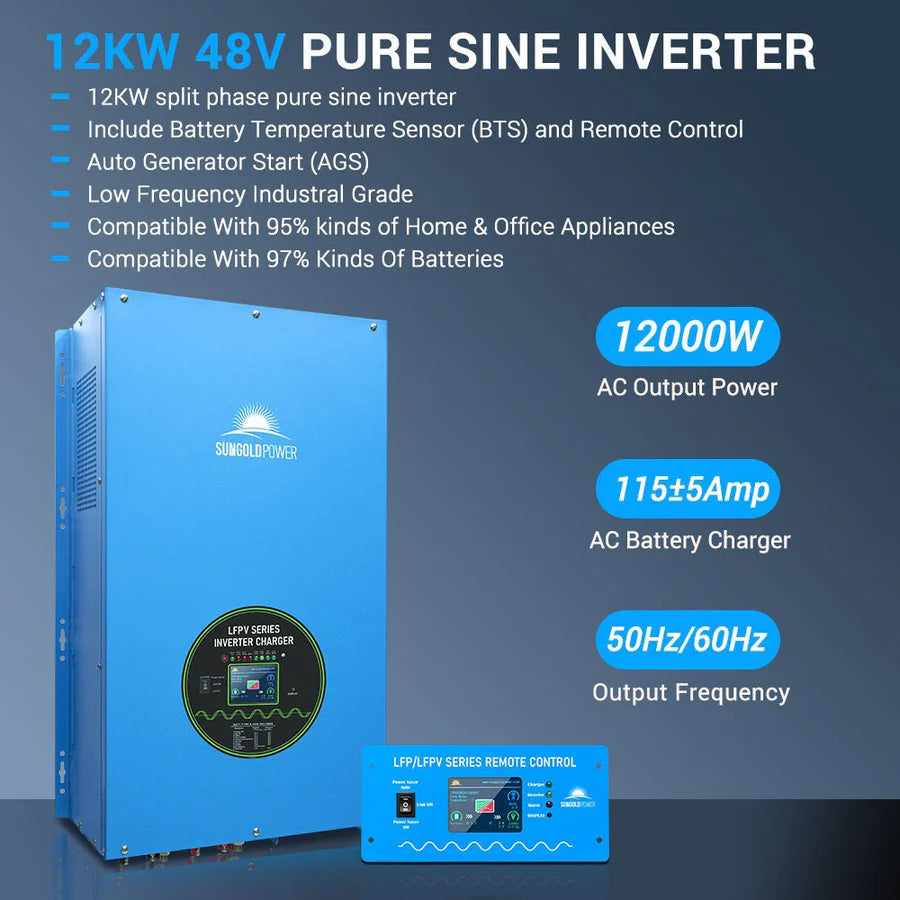

12000 Watt Inverter

• AC Output: 12000W
• Output Waveform: Pure Sine Wave
• AC Output: 120V/240V
• AC Input Voltage: 240V
• Type: Low Frequency Inverter
• Support: Generator
• Surge Rating (20s): 36.0KW
• Dimension: 27.6 x 16.5 x 8 inch
• Weight: 159.5 LB
• Warranty: 3 Years

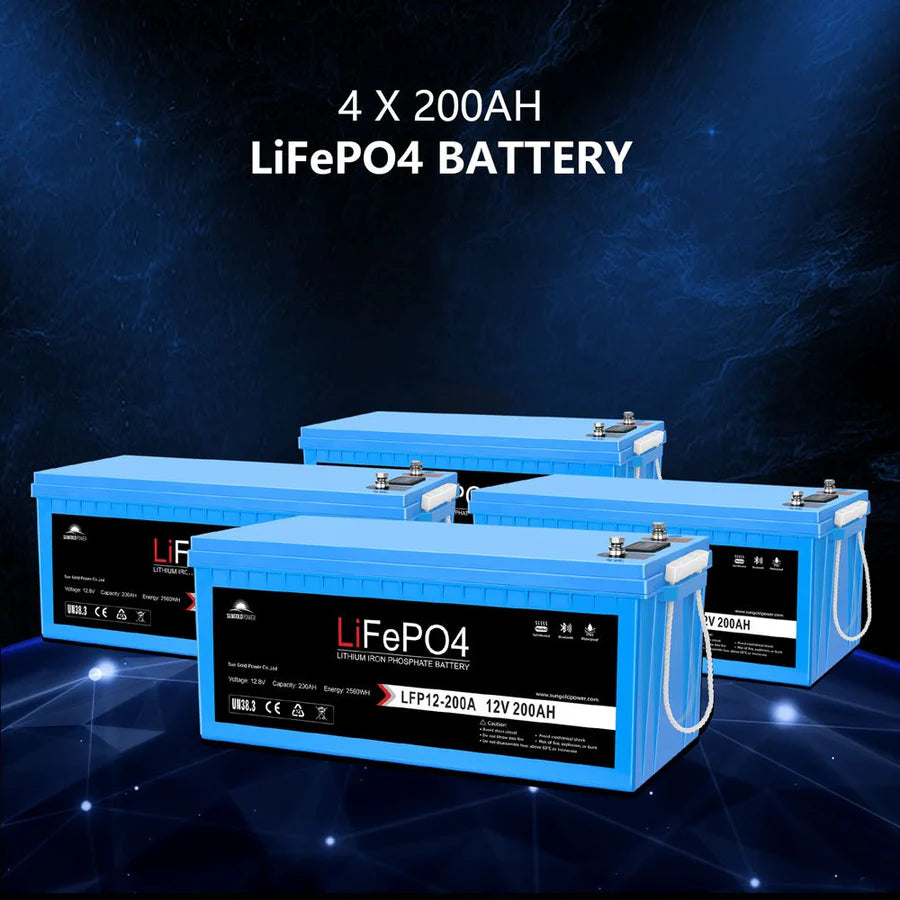

LifePo4 Battery

• Nominal Voltage: 12.8V
• Nominal Capacity: 200AH
• Energy: 2560WH
• Voltage window: 10.8-14.6V
• MAX Continuous Charge Current: 150A
• Peak Discharge Current: 245A
• Cycle Life: >4000
• Main Charactor: Self Heating / IP65
• Monitoring function: LCD/Bluetooth
• Dimension: 19.7 X 9.4 X 9.1inch
• Weight: 48.5 lbs
• Warranty: 5 Years

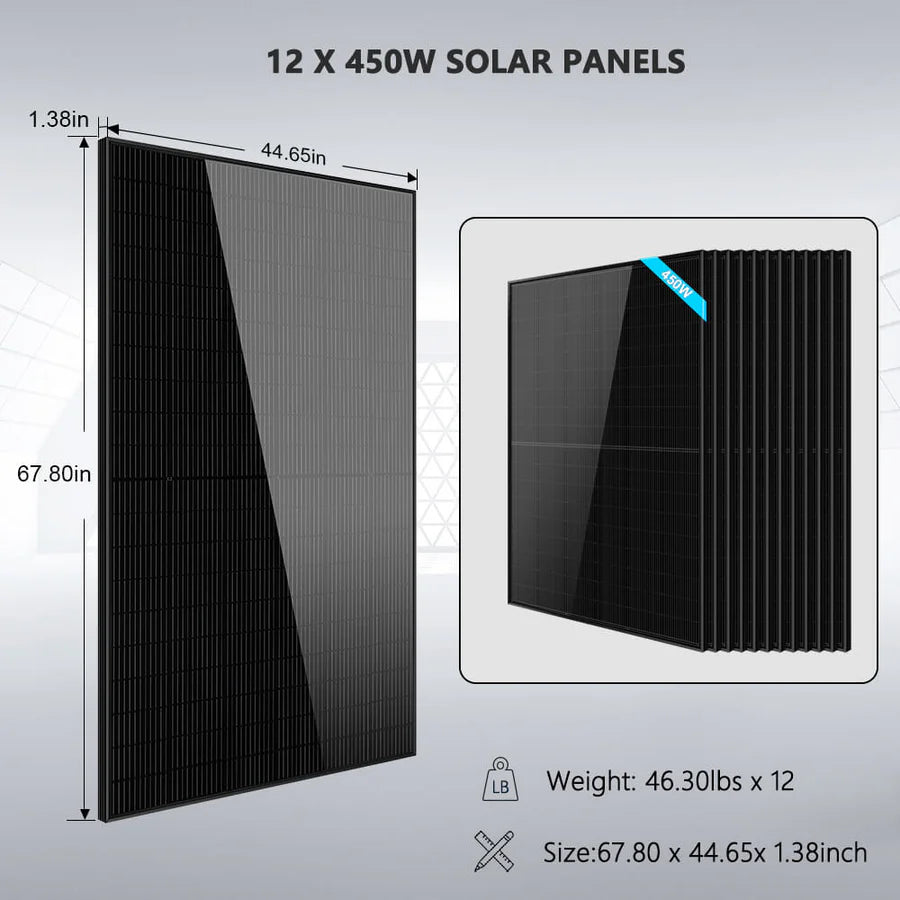

450 Watt Mono Solar Panel

• Peak Power: 450W
• Solar Cell: Monocrystalline
• Product Tolerance: ±3%
• Maximum Power Current (IMP): 13.16A
• Maximum Power Voltage (VMP): 34.2V
• Short Circuit Current(ISC): 13.82A
• Open Circuit Voltage(VOC): 41.72V
• Product Dimension: 75.2 X 44.7 X 1.4 inch
• Product Weight: 53.9LB
• Warranty: 25 Years

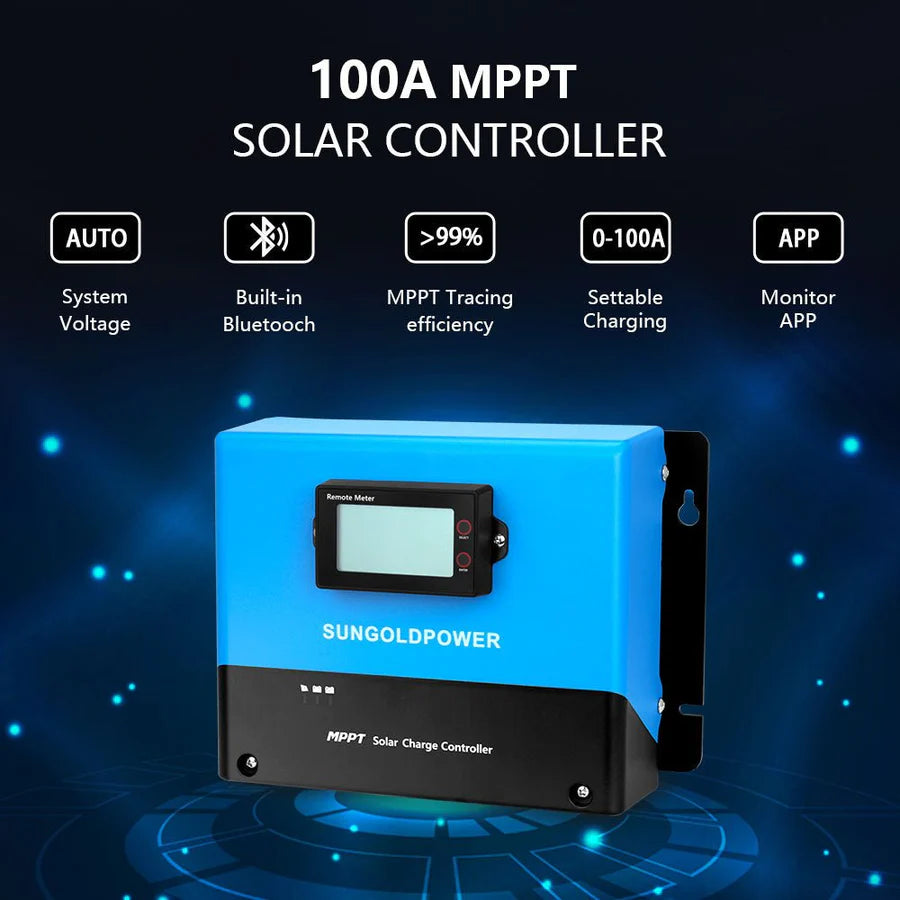

100A MPPT Solar Controller

• System Voltage: 12V/24V/36V/48V Auto
• Support: Bluetooth and APP monitoring
• Maximum PV Open-circuit Voltage: 250V
• Maximum PV Short-circuit Current: 70A
• Rated Charging Current: 100A
• Settable Charging Current: 0-100A
• Power of Solar Panel: 12V-1320W, 24V-2640W, 36V-3960W, 48V-5280W
• MPPT Tracing efficiency: >99%
• Product Dimension: 12.4 X 8.9 X 4.8 inch
• Weight: 12.5lb
• Warranty: 3 Years

Solar Kit Specification

• Max Continuous Output: 12000W
• AC Output: 120V/240V
• DC Voltage: 48V
• Total Watt of Panels: 5400W
• Per Panel Watt: 450 Watt
• Panel NO.: 12 pcs
• Total KWH of Batteries: 10.24KWH
• Chemistry: Lithium
• Battery NO.: 4 pcs
• Battery Spec: 12V 200AH

User Manual

• Sungold Power 12000 Watt Inverter User Manual
• Sungold Power 200Ah LiFePo4 Battery With Bluetooth User Manual
• Sungold Power 450 Watt Monocrystalline Solar Panels
• Sungold Power 100A MPPT Solar Charge Controller User Manual
